Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Unit (Civic) | On right side of luggage compartment, behind trim panel. |

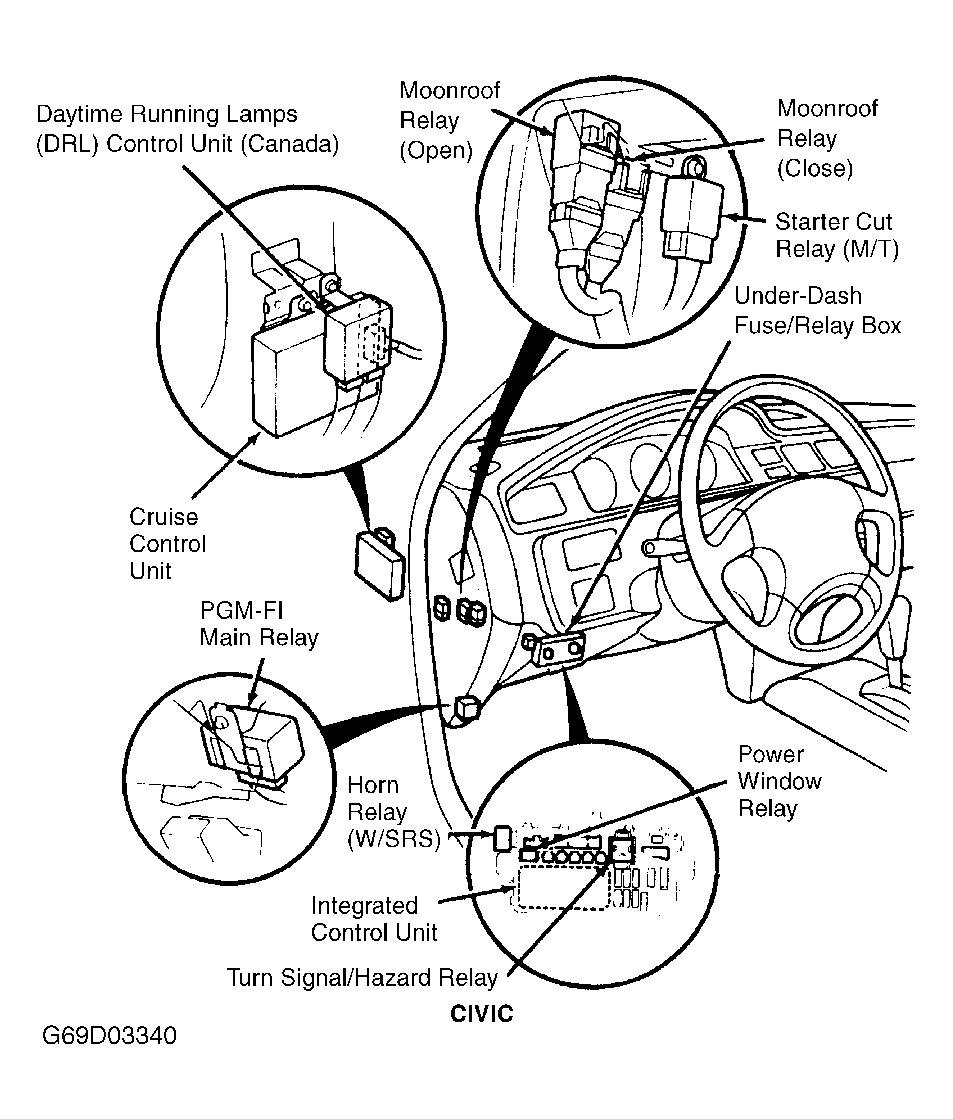

| Cruise Control Unit (Civic) | Behind left side of dash, near top of kick panel. See Figure . |

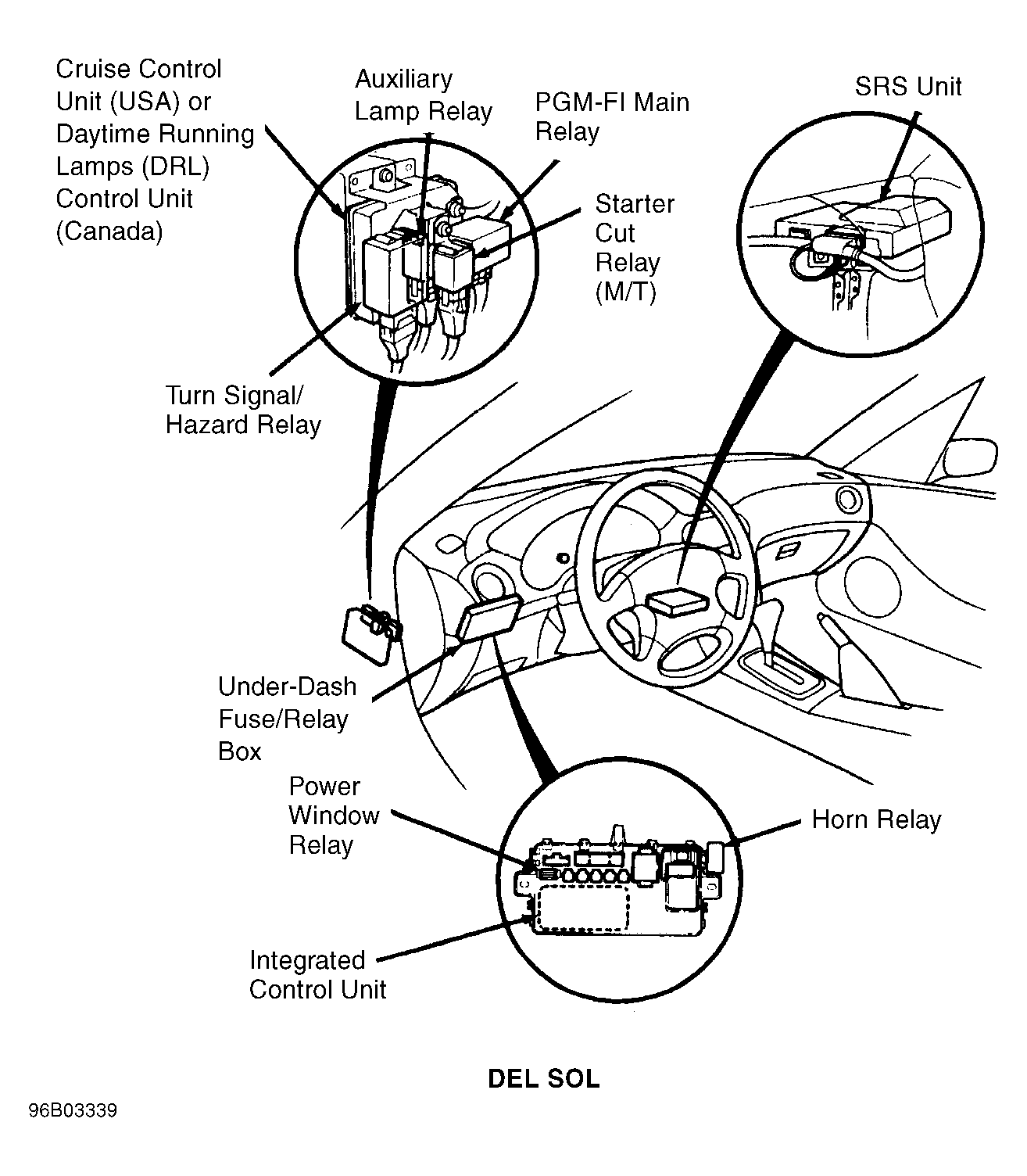

| Cruise Control Unit (Del Sol) | Behind left side of dash, near top of kick panel. See Figure . |
| Daytime Running Lamps (DRL) Control Unit (Canada) (Civic) | Behind left side of dash, near top of kick panel. See Figure . |
| Daytime Running Lamps (DRL) Control Unit (Canada) (Del Sol) | Behind left side of dash, near top of kick panel. See Figure . |

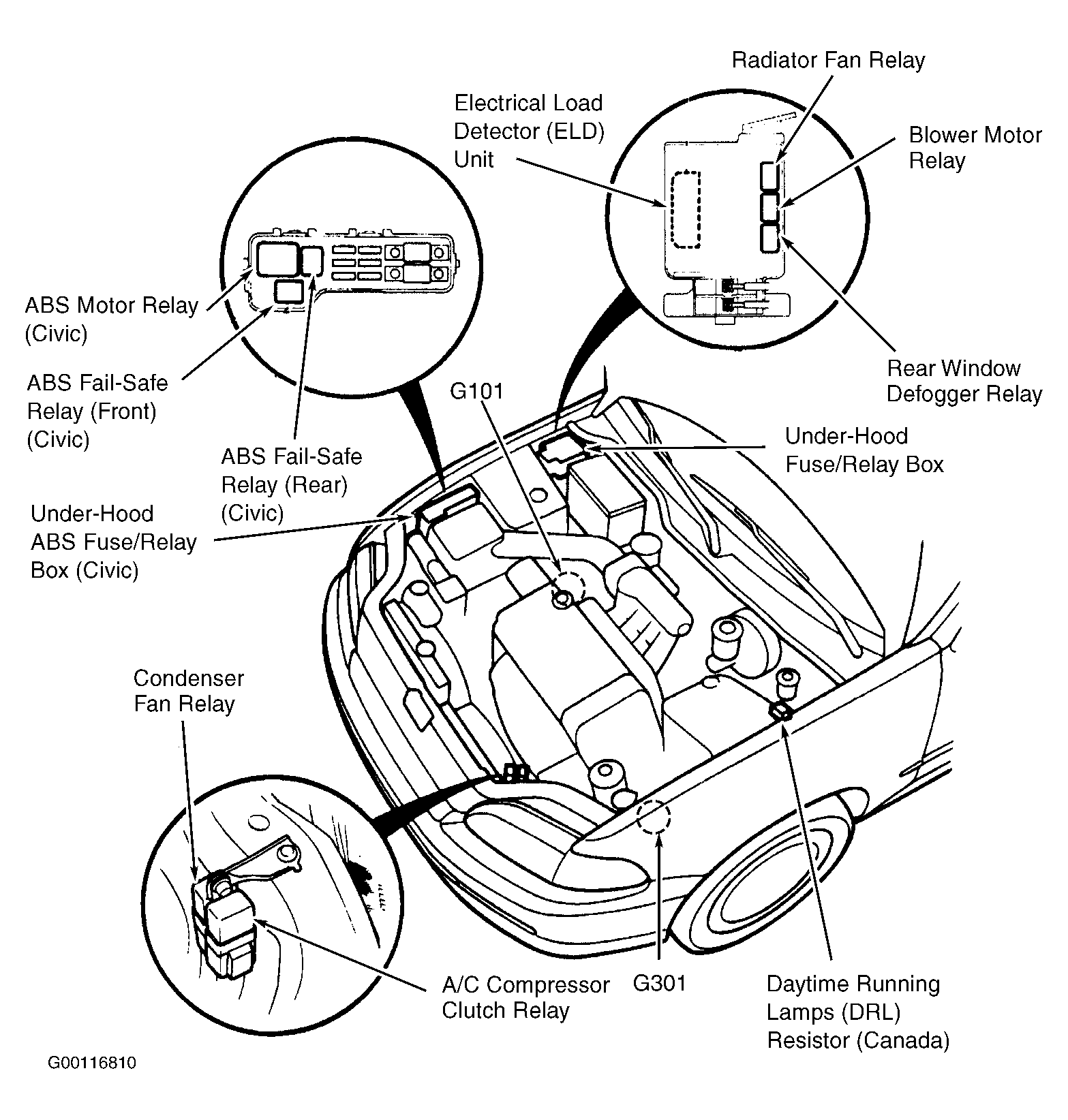

| Electrical Load Detector (ELD) Unit | Integrated with under-hood fuse/relay box. See Figure . |
| Engine Control Module (ECM) | Behind right kick panel. |

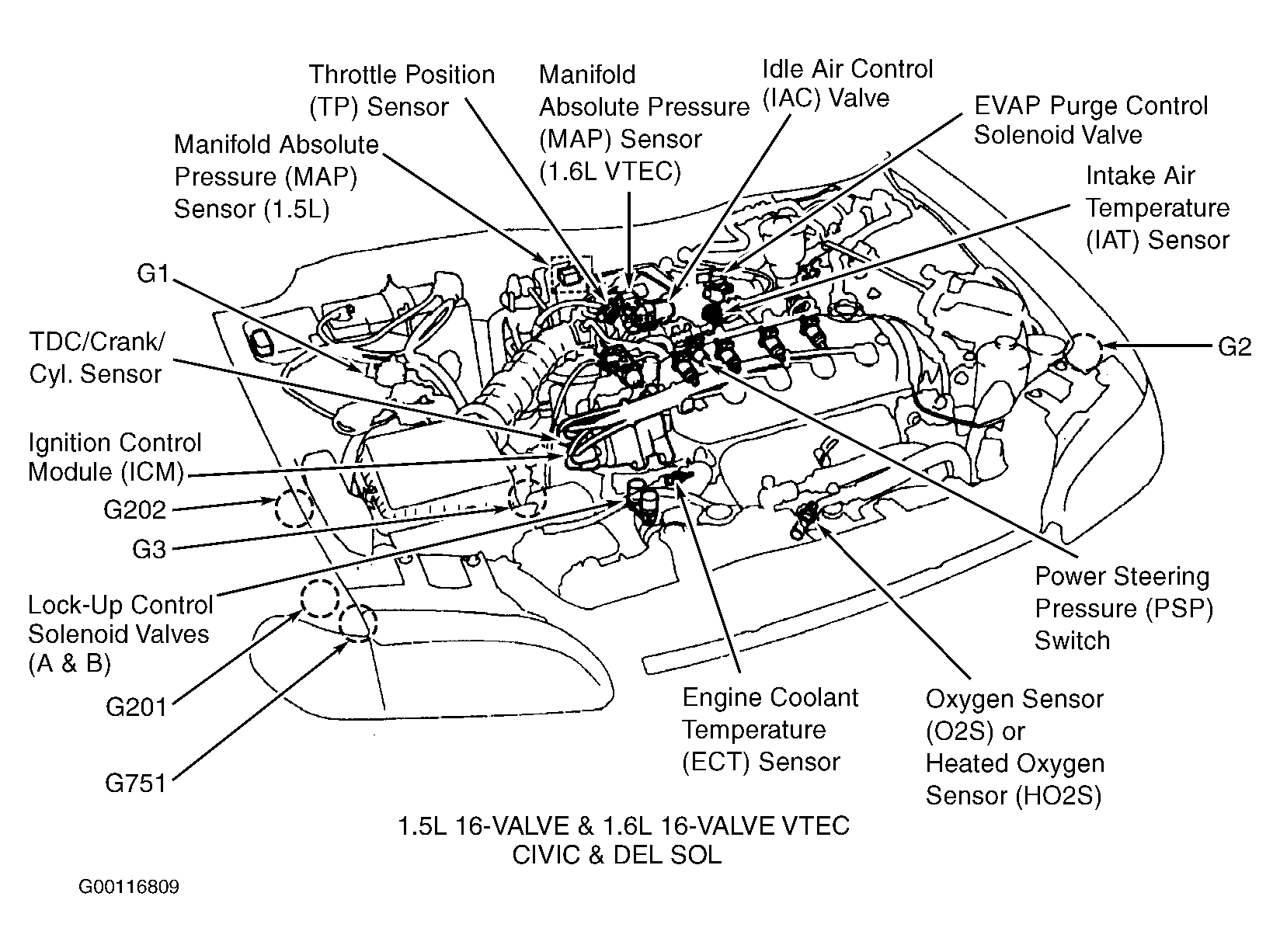

| Ignition Control Module (ICM) (1.5L & 1.6L VTEC) | Incorporated in distributor. See Figure . |

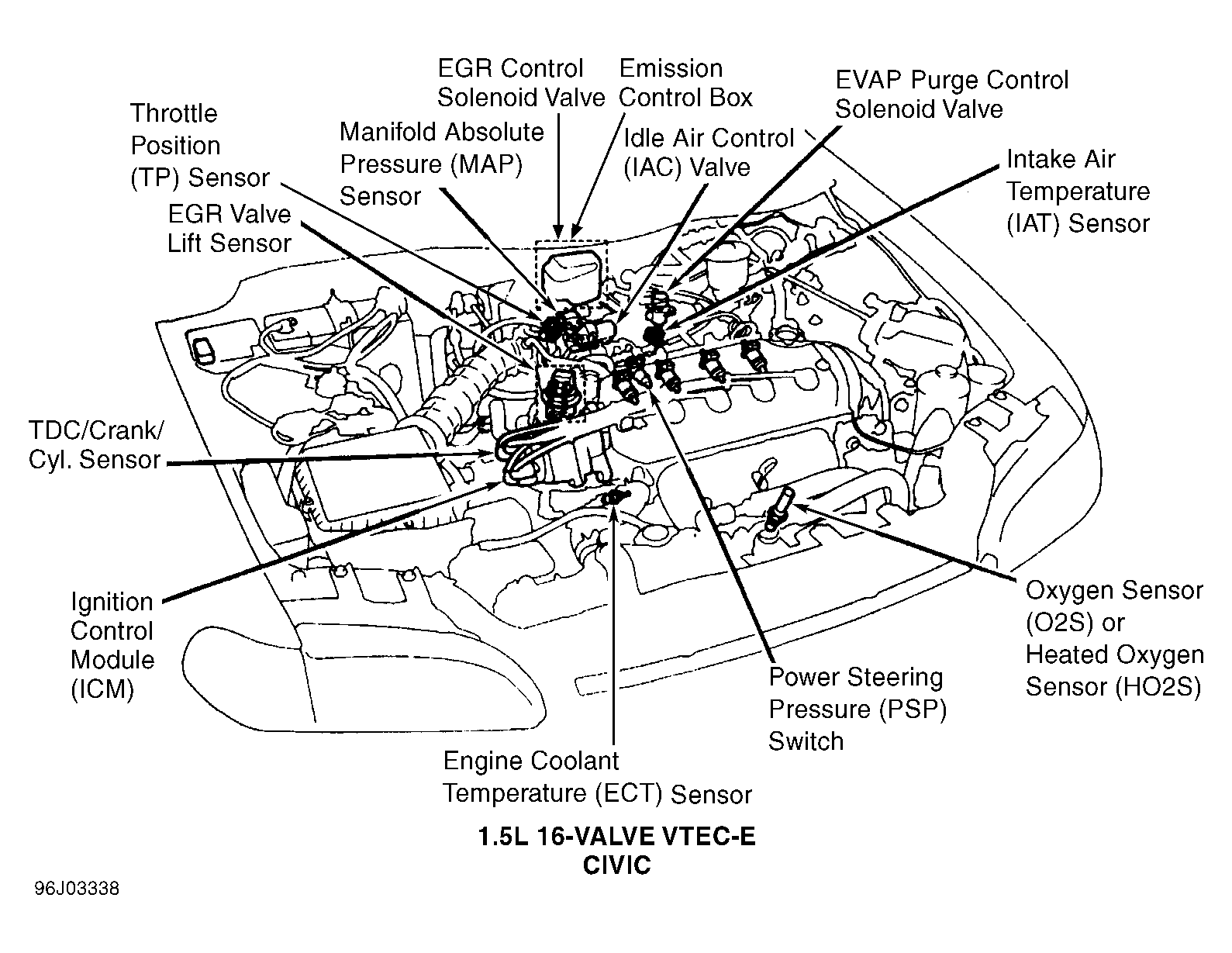

| Ignition Control Module (ICM) (1.5L VTEC-E) (Civic) | Incorporated in distributor. See Figure . |
| Integrated Control Unit (Civic) | In under-dash fuse/relay box. See Figure . |
| Integrated Control Unit (Del Sol) | In under-dash fuse/relay box. See Figure . |
| Interlock Control Unit (A/T) | Behind left side of dash. |
| Power Door Lock Control Unit (Civic) | In left front door, behind door panel. |
| Security Control Unit (Civic) | Behind left side of dash. |
| Security Control Unit (Del Sol) | Under driver's seat. |
| SRS Unit (Del Sol) | Behind center of dash, forward of floor console. See Figure . |
