Connector Identification

Connector	See Fig.
A/C Clutch Relay	Fig. Fig 1
ASD Relay	Fig. Fig 2
Battery Temperature Sensor	Fig. Fig 3
Brake Lamp Switch	Fig. Fig 4
Camshaft Position (CMP) Sensor	Fig. Fig 5
Center Oxygen Sensor (O2S)	Fig. Fig 6
Crankshaft Position (CKP) Sensor	Fig. Fig 7
Data Link Connector (DLC)	Fig. Fig 8
Downstream Oxygen Sensor (O2S)	Fig. Fig 9
EGR Solenoid	Fig. Fig 10

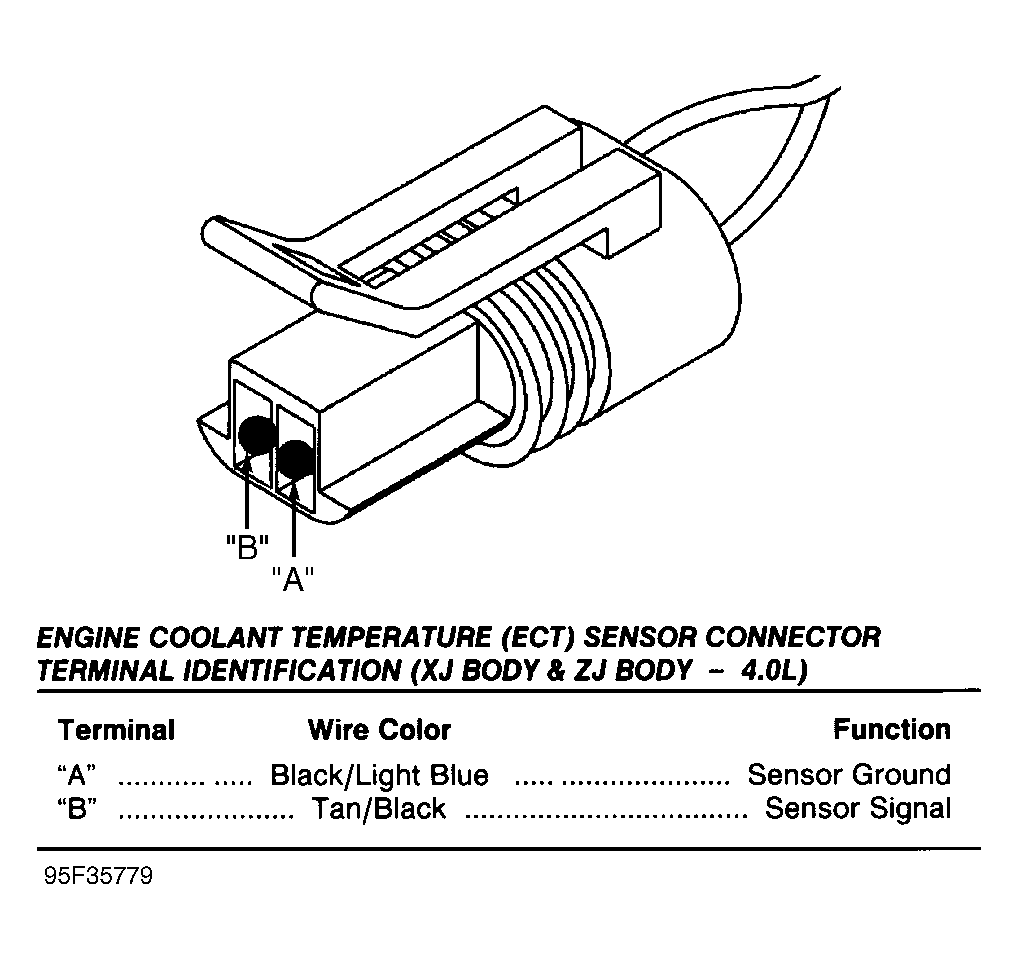

Engine Coolant Temperature (ECT) Sensor	Fig. Fig 11
EVAP Purge Solenoid	Fig. Fig 12
Fuel Pump Module	Fig. Fig 13

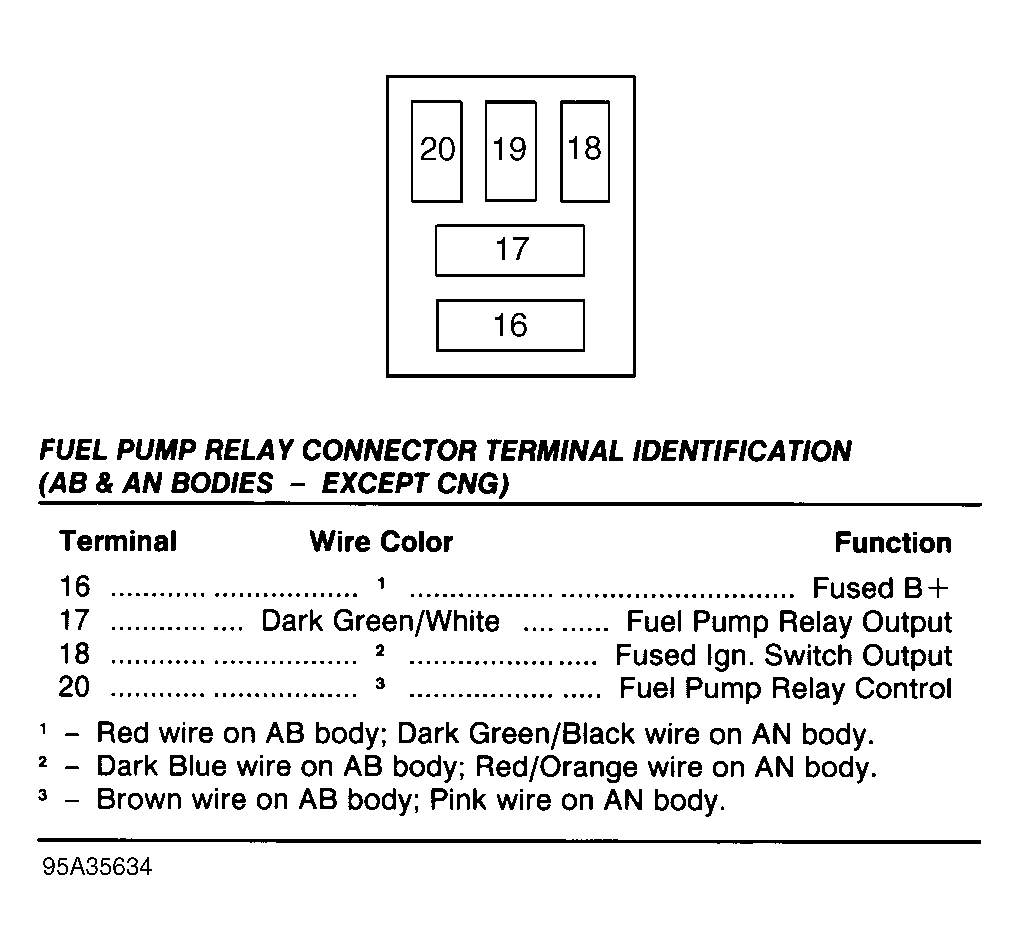

Fuel Pump Relay	Fig. Fig 14
Idle Air Control (IAC) Motor	Fig. Fig 15

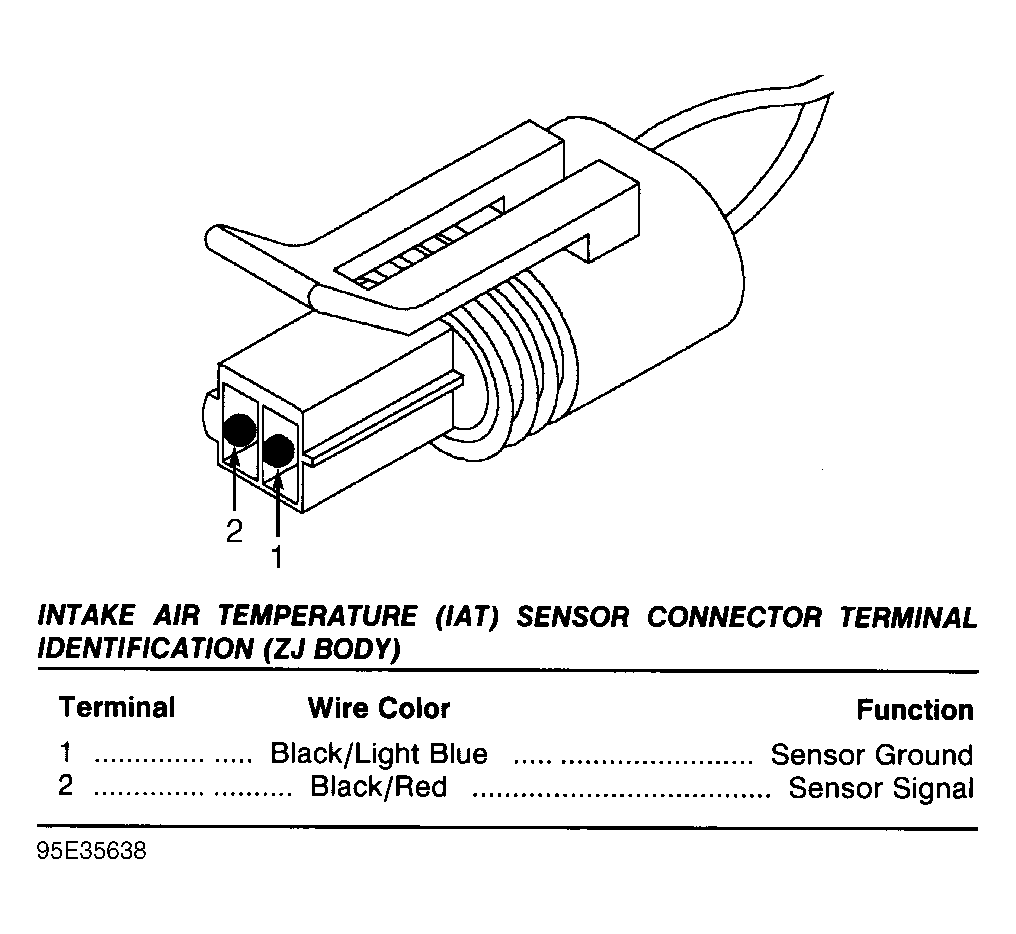

Intake Air Temperature (IAT) Sensor	Fig. Fig 16
Leak Detection Pump (LDP)	Fig. Fig 17
Left Oxygen Sensor (O2S)	Fig. Fig 18
MAP Sensor	Fig. Fig 19
Message Center	Fig. Fig 20

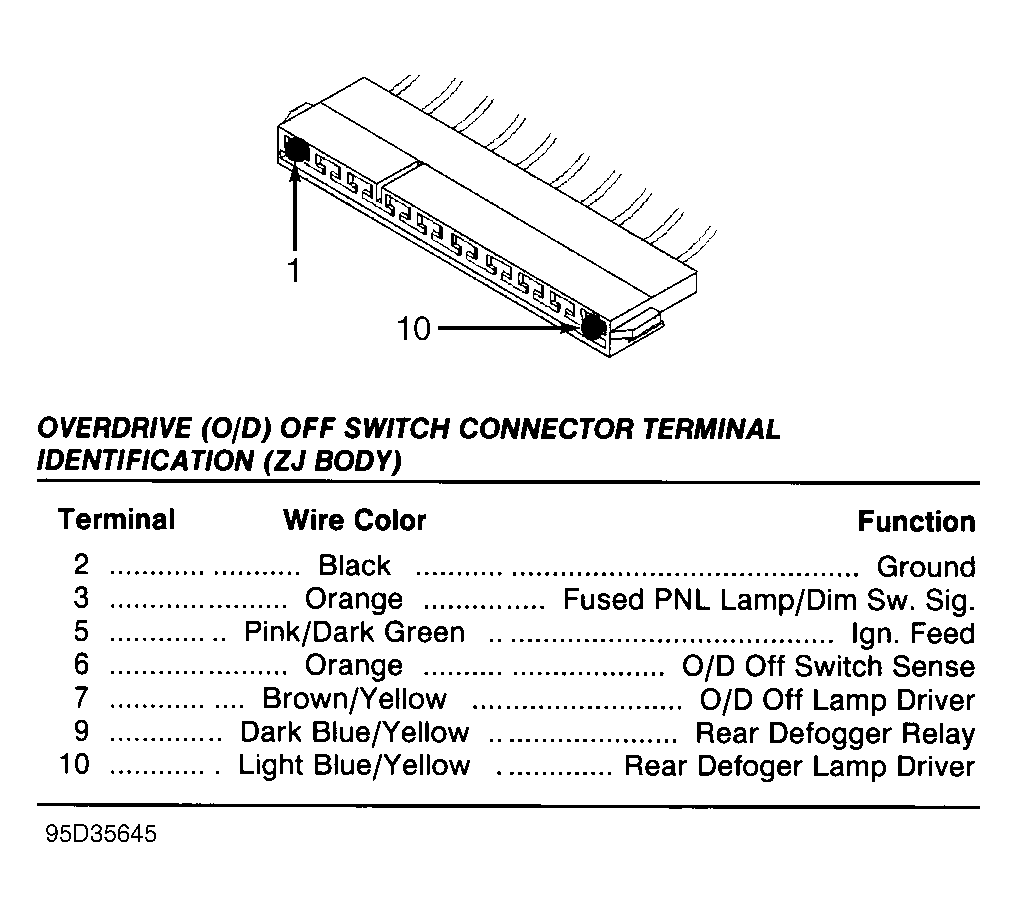

Overdrive (O/D) Off Switch	Fig. Fig 21

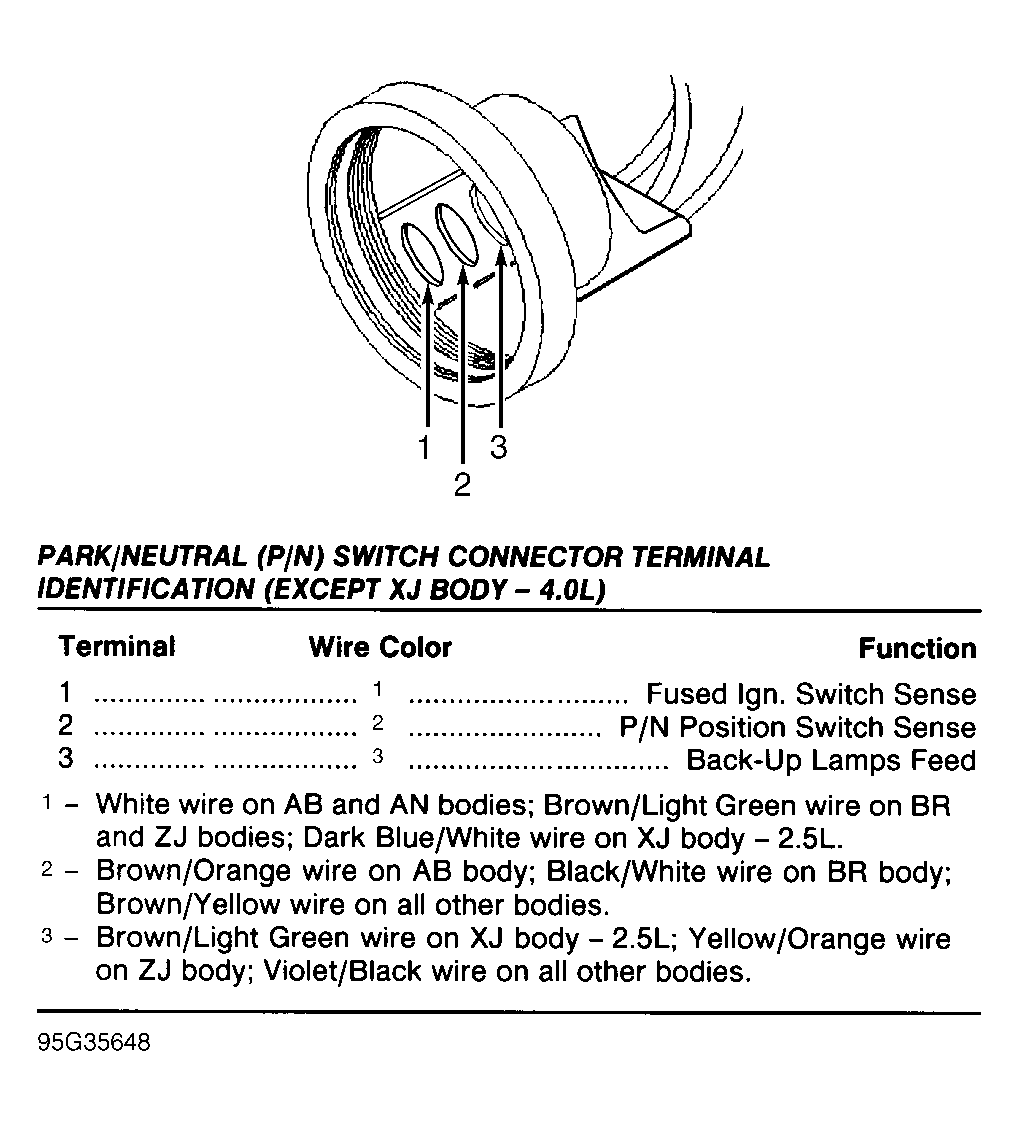

Park/Neutral (P/N) Switch	Fig. Fig 22
Power Steering (P/S) Switch	Fig. Fig 23
Powertrain Control Module (PCM)	Fig. Fig 24
Right Oxygen Sensor (O2S)	Fig. Fig 25
Speed Control (S/C) Servo	Fig. Fig 26

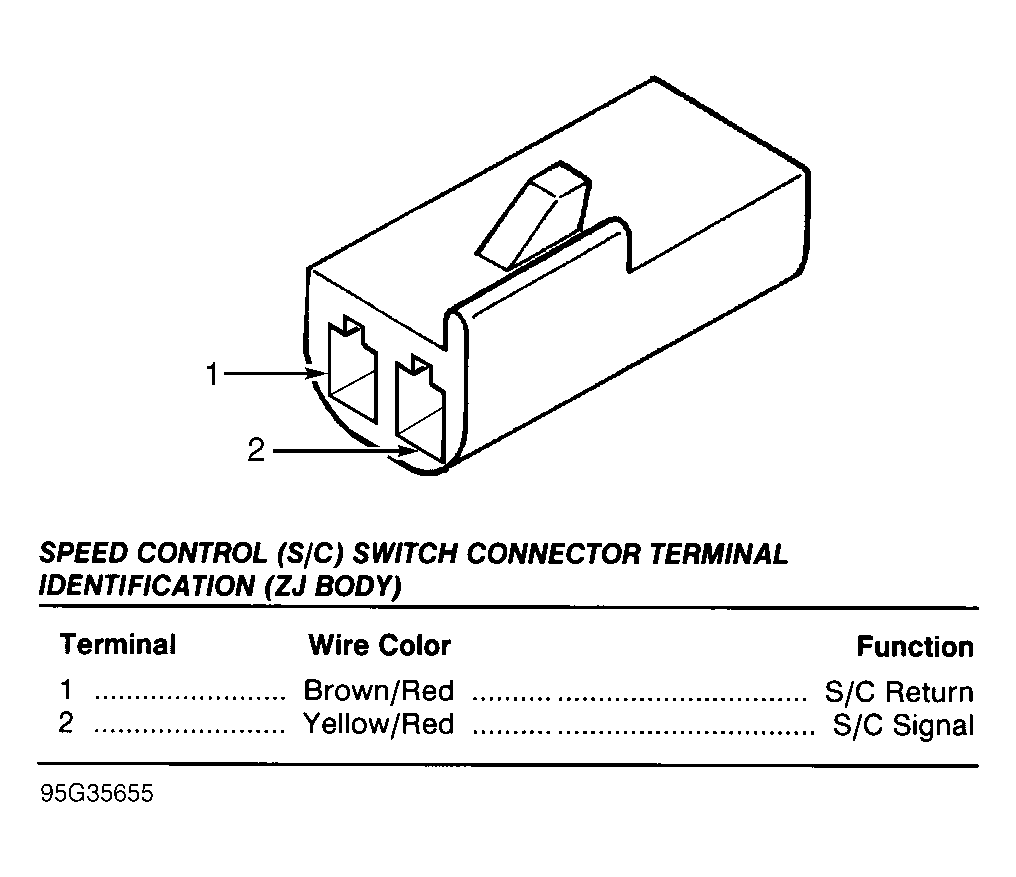

Speed Control (S/C) Switch	Fig. Fig 27
Throttle Position (TP) Sensor	Fig. Fig 28
Torque Converter Clutch (TCC) Solenoid	Fig. Fig 29

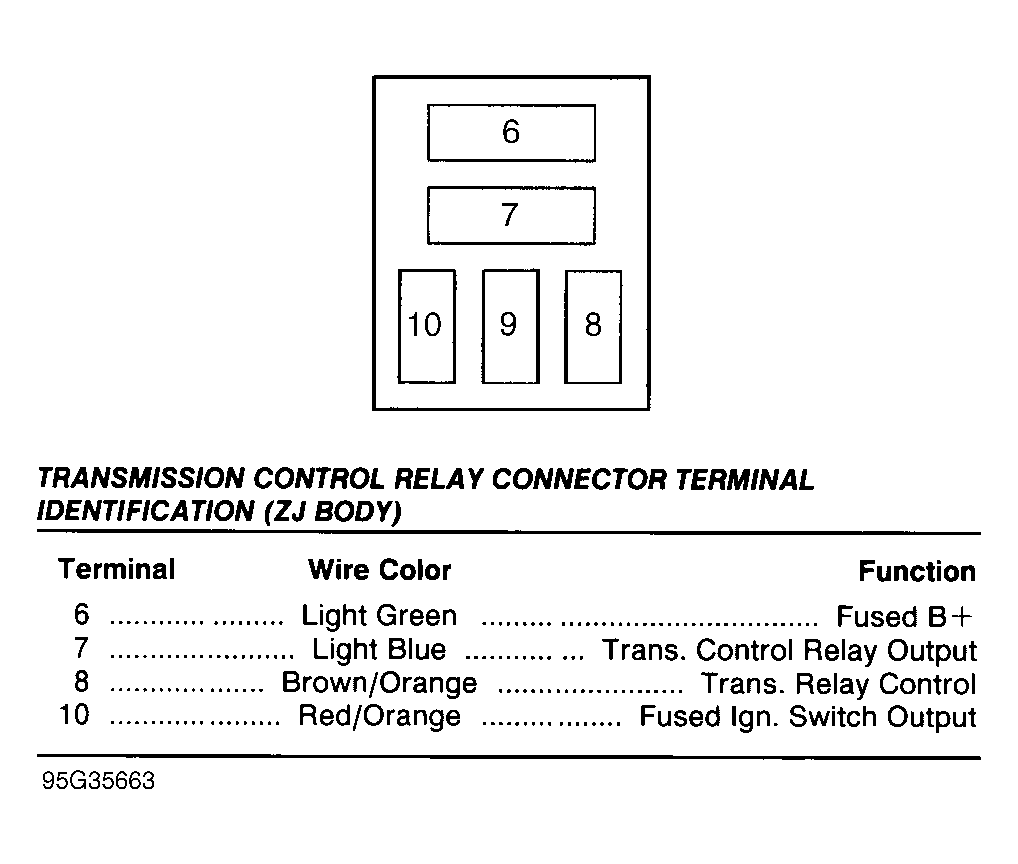

Transmission Control Relay	Fig. Fig 30
Transmission Governor Pressure Sensor	Fig. Fig 31
Transmission Output Speed Sensor	Fig. Fig 32
Transmission Solenoid	Fig. Fig 33
Upstream Oxygen Sensor (O2S)	Fig. Fig 34
Vehicle Speed Sensor (VSS)	Fig. Fig 35
Water-In-Fuel Sensor	Fig. Fig 36
