Charging System: Generator: Removal

WARNING: DISCONNECT NEGATIVE CABLE FROM BATTERY BEFORE REMOVING BATTERY OUTPUT WIRE (B+ WIRE) FROM GENERATOR. FAILURE TO DO SO CAN RESULT IN INJURY OR DAMAGE TO ELECTRICAL SYSTEM.

Disconnect negative battery cable at battery.
Remove generator drive belt. Refer to ACCESSORY DRIVE for procedure.
Unsnap cable protector cover from B+ mounting stud (Fig 1)
Disconnect (unsnap) 2-wire field connector at rear of generator (Fig 1) .

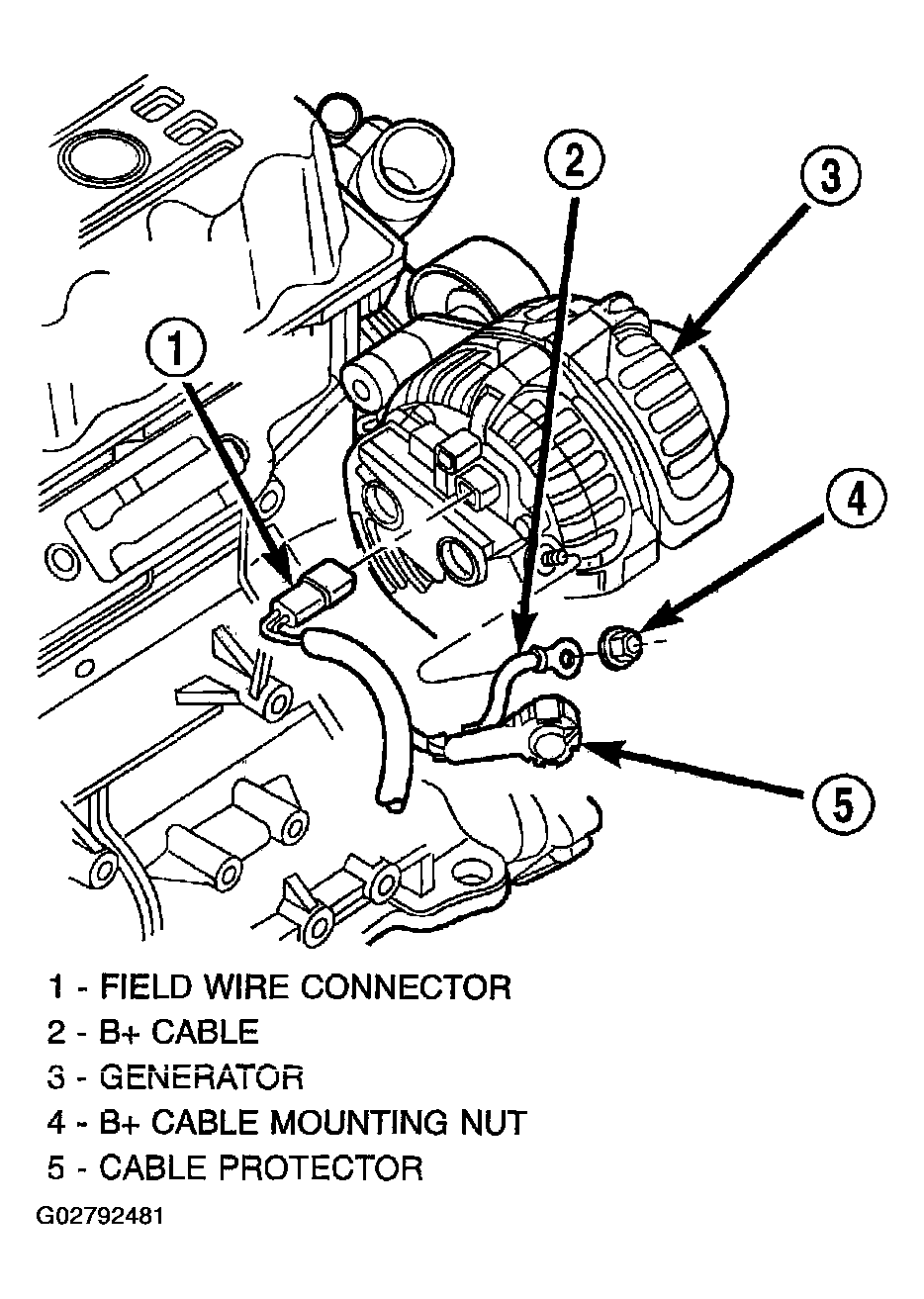

Fig 1: Removing Generator B+ Cable And Field Wire Connections (Typical-4.0L Engine)
Courtesy of DAIMLERCHRYSLER CORP.
Remove generator mounting bolts (Fig 2) or (Fig 3).
Remove generator from vehicle.

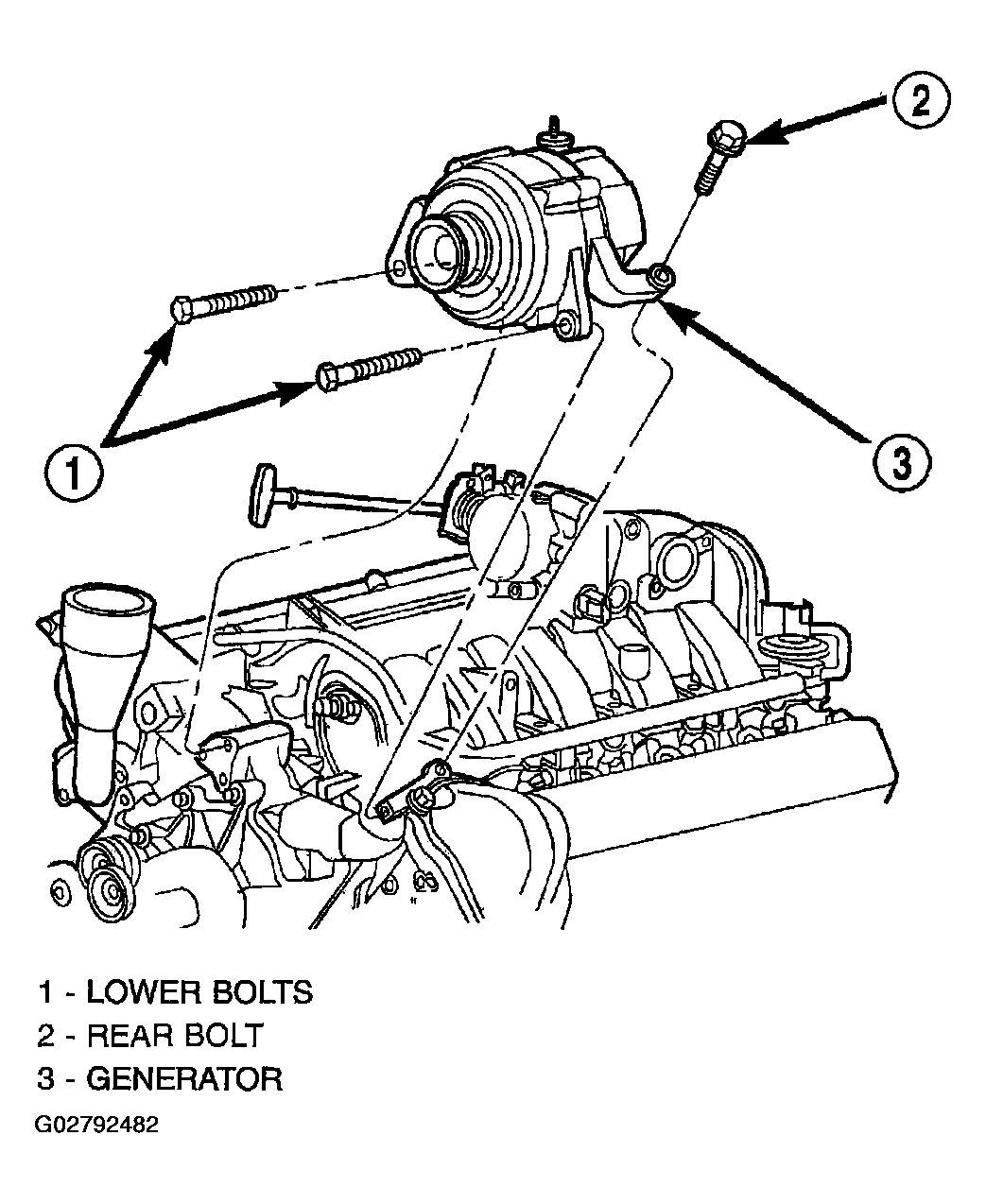

Fig 2: Removing/Installing Generator - 4.7L V-8 Engine
Courtesy of DAIMLERCHRYSLER CORP.

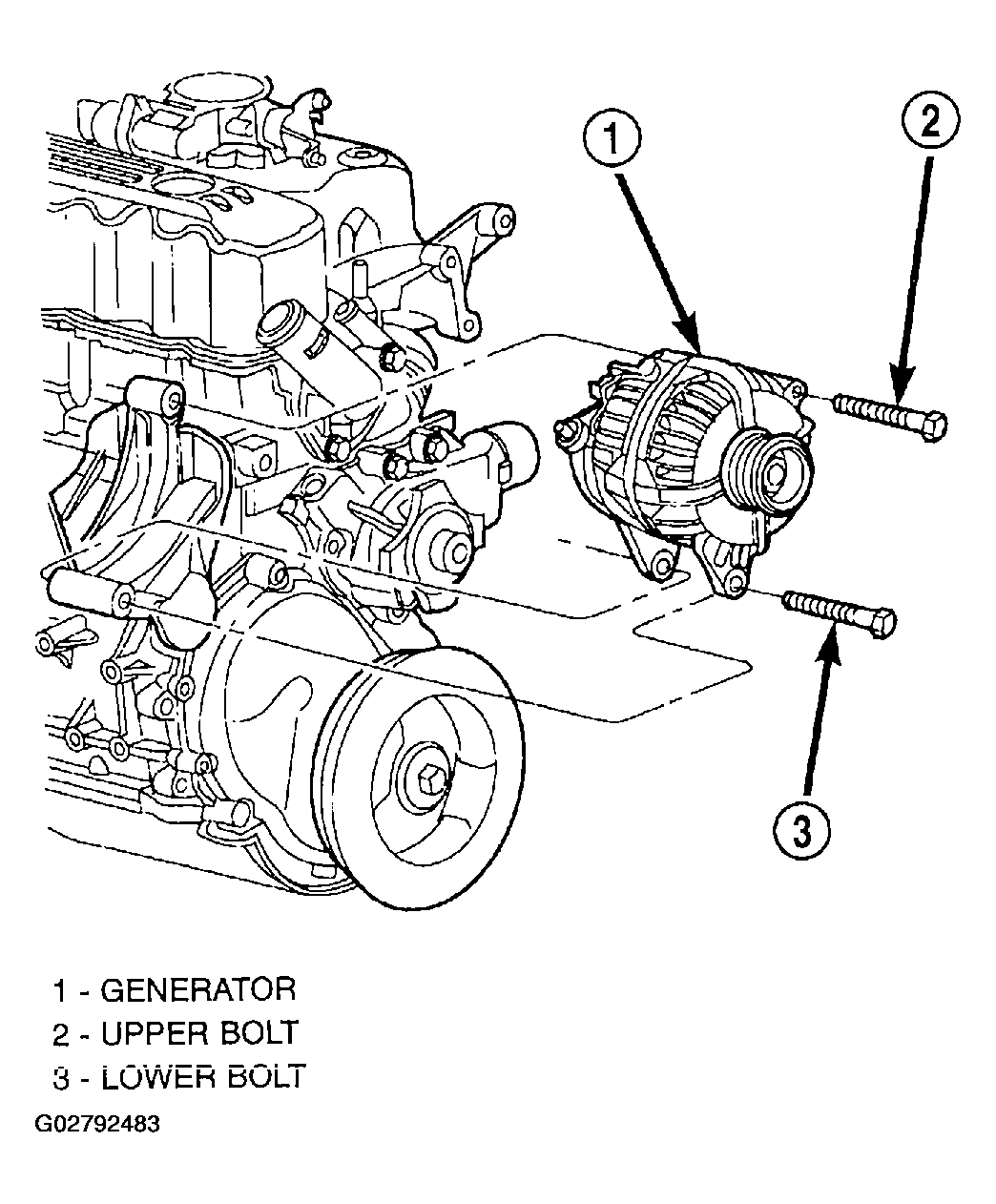

Fig 3: Removing/Installing Generator - 4.0L 6 Cylinder Engine
Courtesy of DAIMLERCHRYSLER CORP.
