Control Units

CONTROL UNITS LOCATION

Component Location
Airbag Control Module Front of floorpan tunnel. See Figure.

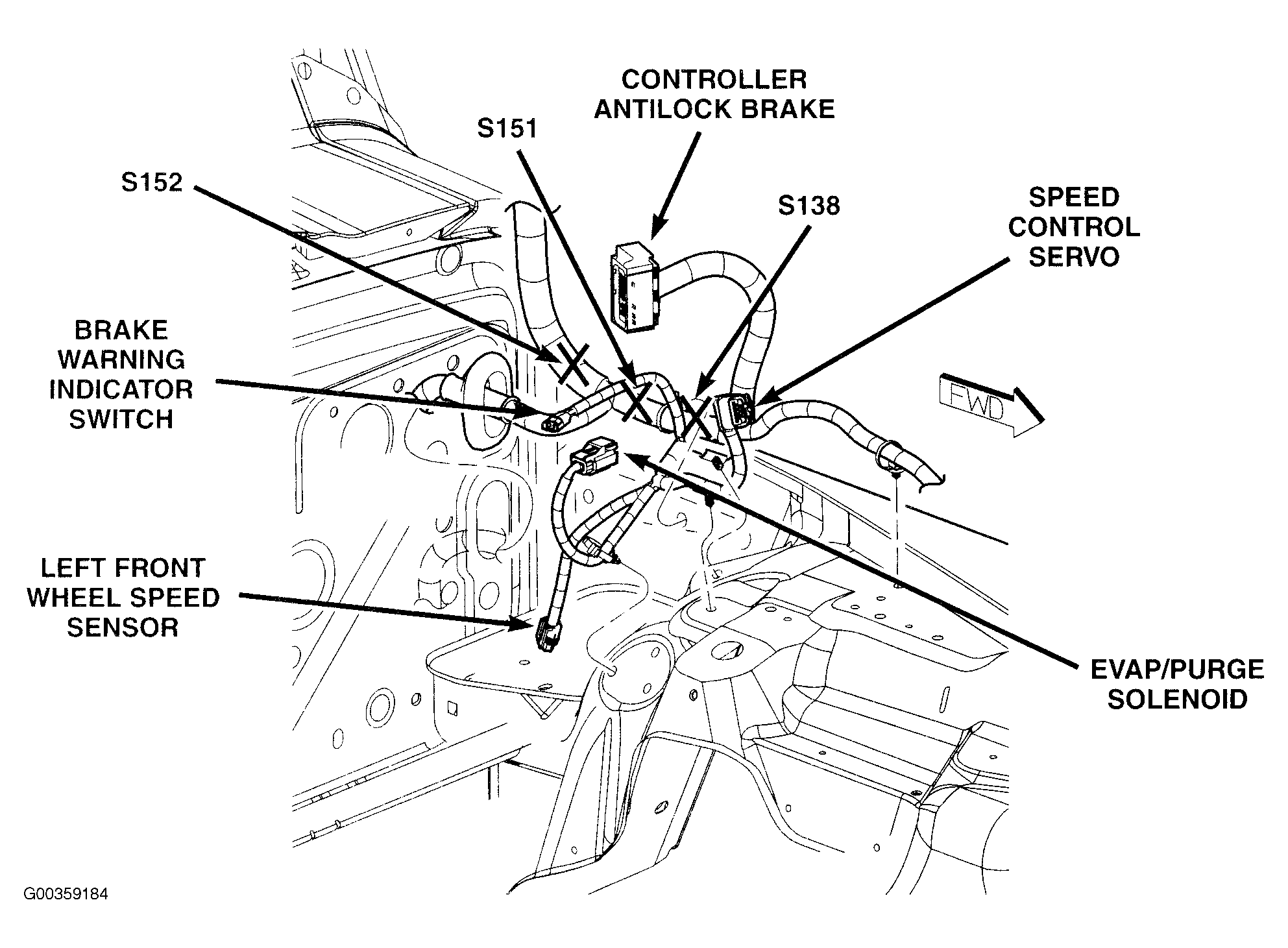

Controller Anti-Lock Brake At left rear corner of engine compartment. See Figure.

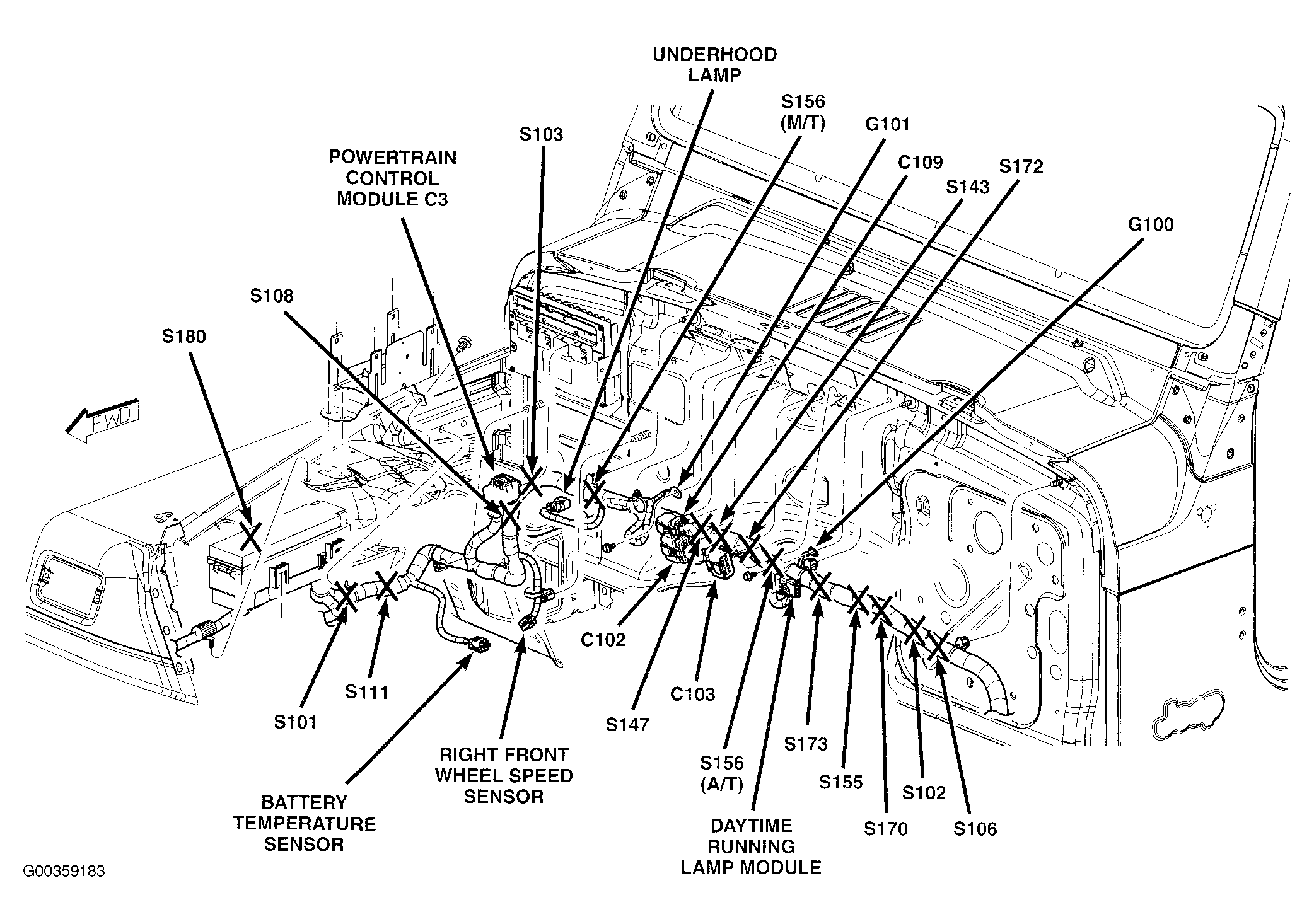

Daytime Running Lamp Module Left side of engine compartment. See Figure.
Powertrain Control Module Right rear of engine compartment. See Figure.

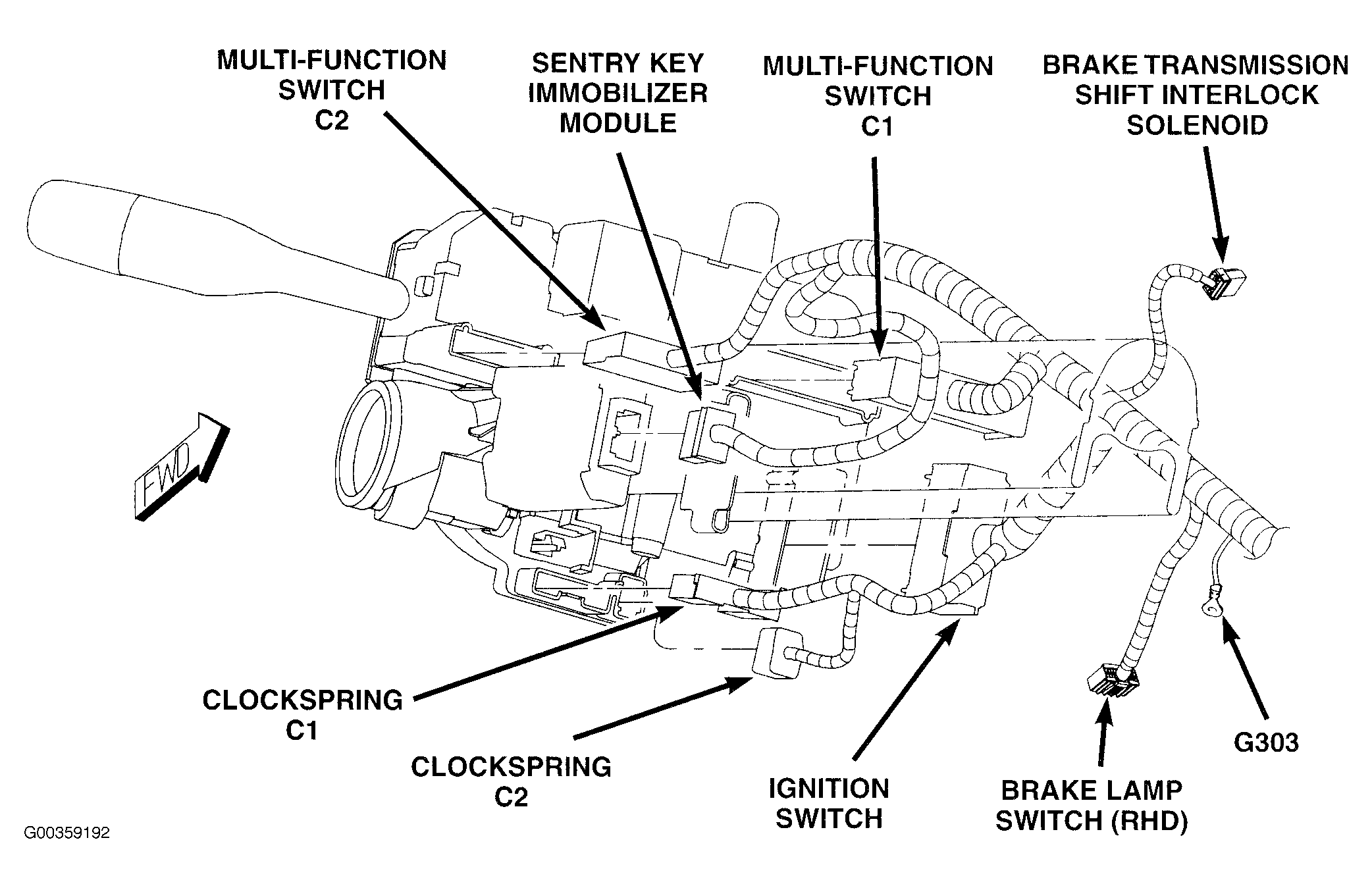

Sentry Key Immobilizer Module On steering column, near ignition lock cylinder. See Figure.
