Control Units
CONTROL UNITS
| Component | Location |
|---|---|
| ABS Control Module | Right front side of engine compartment. See Figure. |
| Audio Unit | Behind center of dash. |
| Cellular Phone Module | In left side of luggage compartment. |
| Driver Door Lock Unit | In driver's door. |
| Driver Door Module (DDM) | In driver's door. |
| Driver Heated Seat Module | Under driver's seat. |
| Driver Seat Module | Under driver's seat. |
| Electrochromatic Inside Mirror Unit | In center of roof panel. |
| Electronic Automatic Temperature Control (ETAC) Unit | Behind center of dash. |
| Front Electronic Module (FEM) | In left "A" pillar. |
| Fuel Pump Module | Under rear of vehicle. |
| Heater Blower Control Module | Behind left side of dash. See Figure. |
| Instrument Panel Dimming Module | Behind left side of dash. |

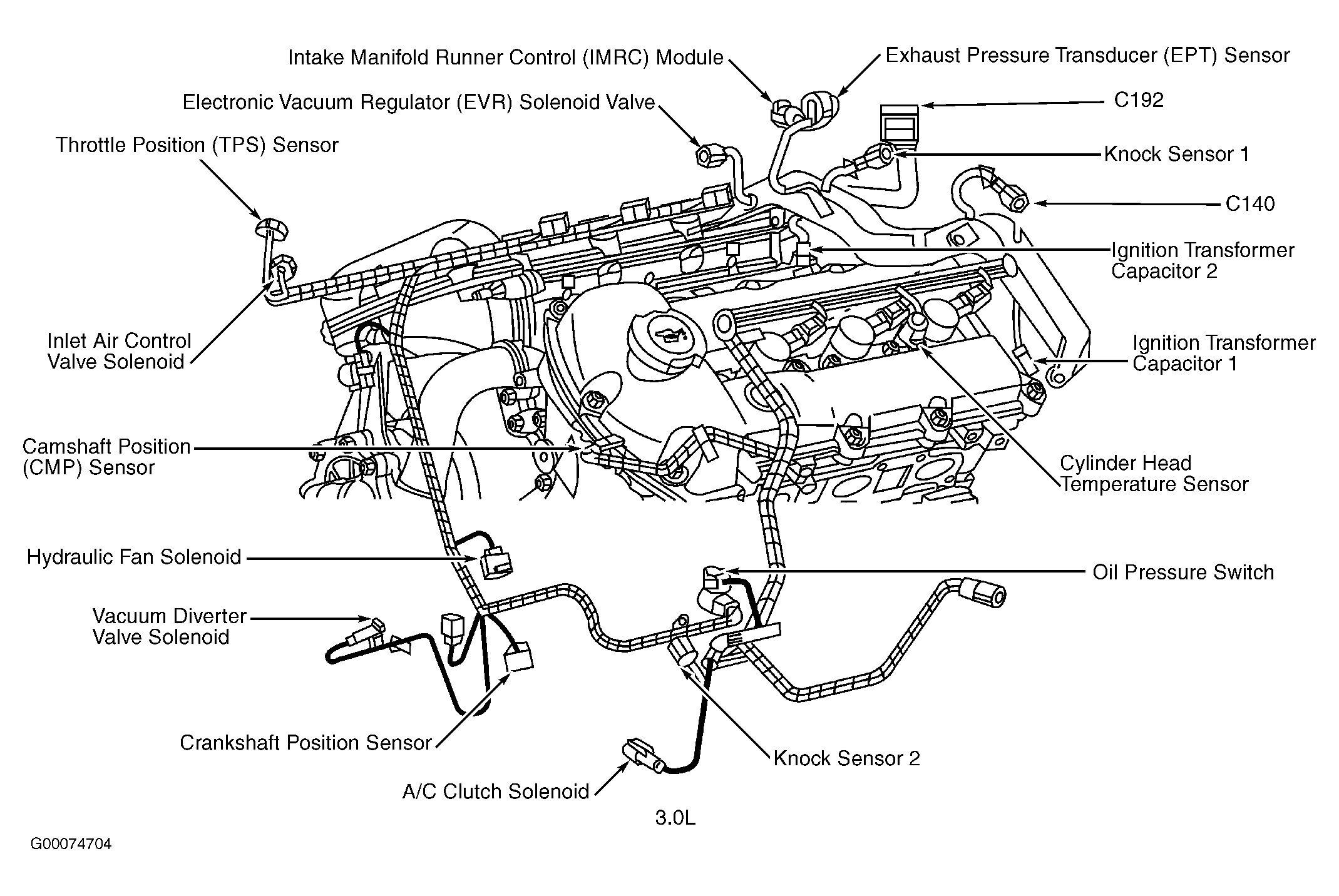

| Intake Manifold Runner Control (IMRC) Module (3.0L) | Right rear of engine compartment. See Figure. |
| Intake Manifold Runner Control (IMRC) Module (3.9L) | Right rear of engine compartment. |
| Passenger Door Lock Unit | In passenger's door. |
| Passenger Heated Seat Module | Under passenger's seat. |
| Passive Anti-Theft Transceiver Module | Behind center of dash. |
| Powertrain Control Module (PCM) | Right rear of engine compartment. |
| Rain Sensor Module | In rear center of roof panel opening. |
| Rear Electronic Module (REM) | In right side of luggage compartment. See Figure. |
| Remote Emergency Satellite Cellular Unit (RESCU) | In left side of luggage compartment. |
| Restraint Control Module (RCM) | In center console. |
| Roof Opening Panel Module | In center of roof panel opening. |
| Trailer Tow Control Unit | Rear center of luggage compartment. |
