Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

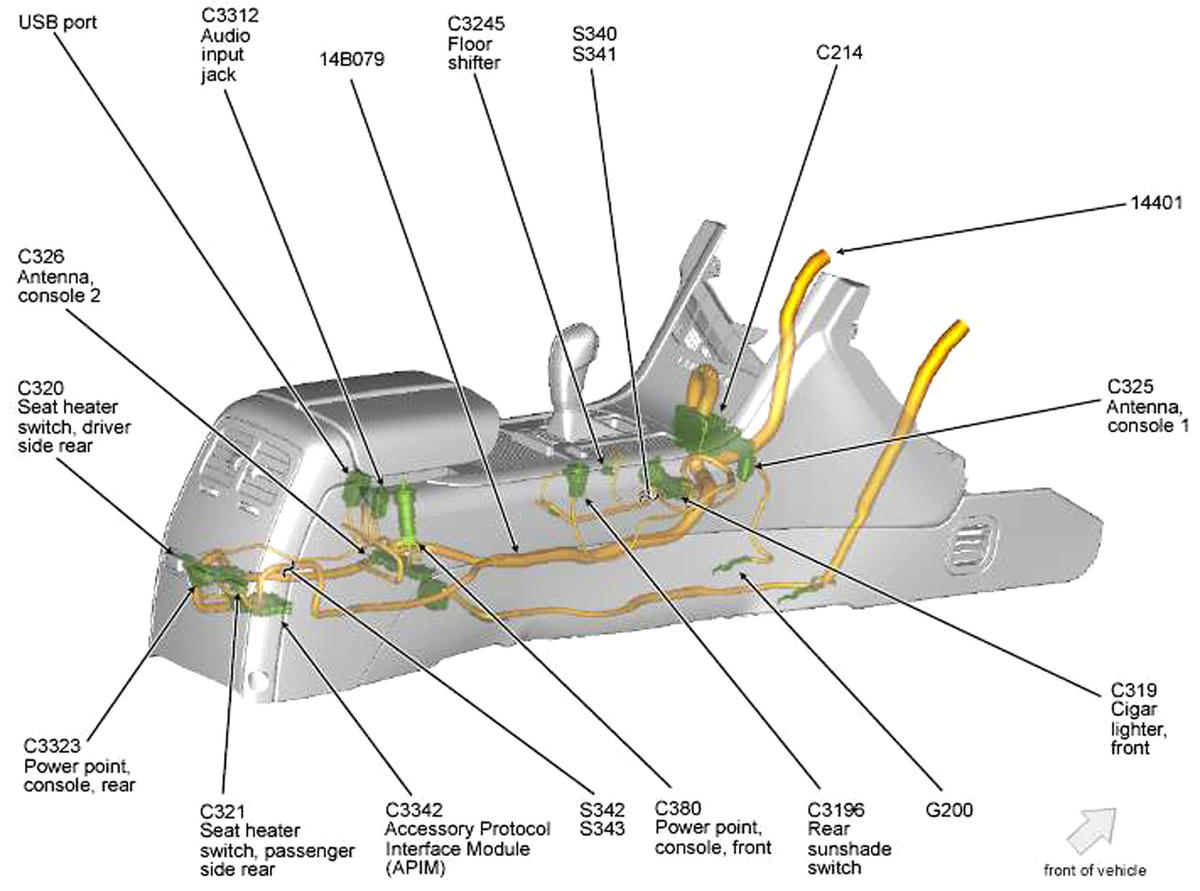

| Accessory Protocol Interface Module (APIM) | Under center console. See Figure. |
| Antenna Module | Right "C" pillar. See Figure. |

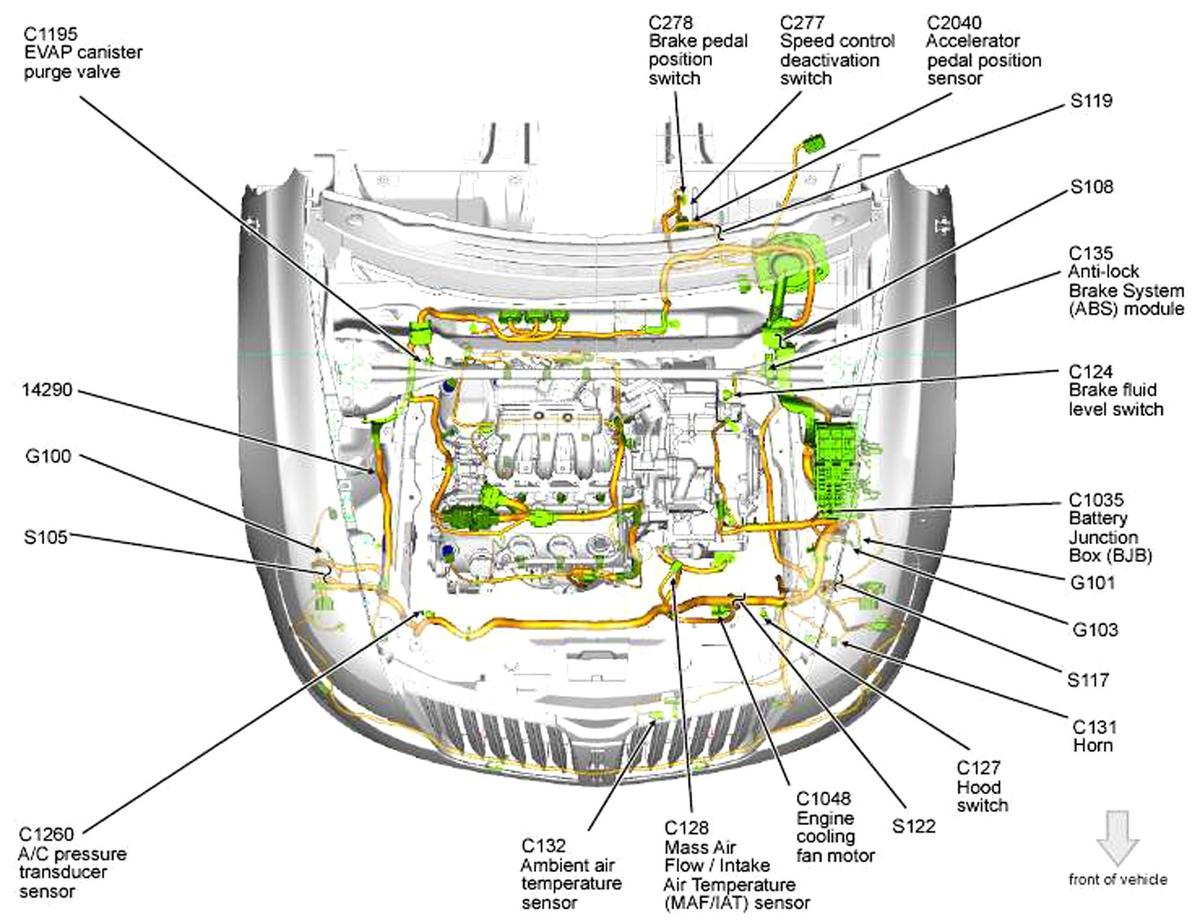

| Anti-Lock Brake System (ABS) Module | Left rear of engine compartment. See Figure. |
| Audio Control Module (ACM) | Center of dash. See Figure. |

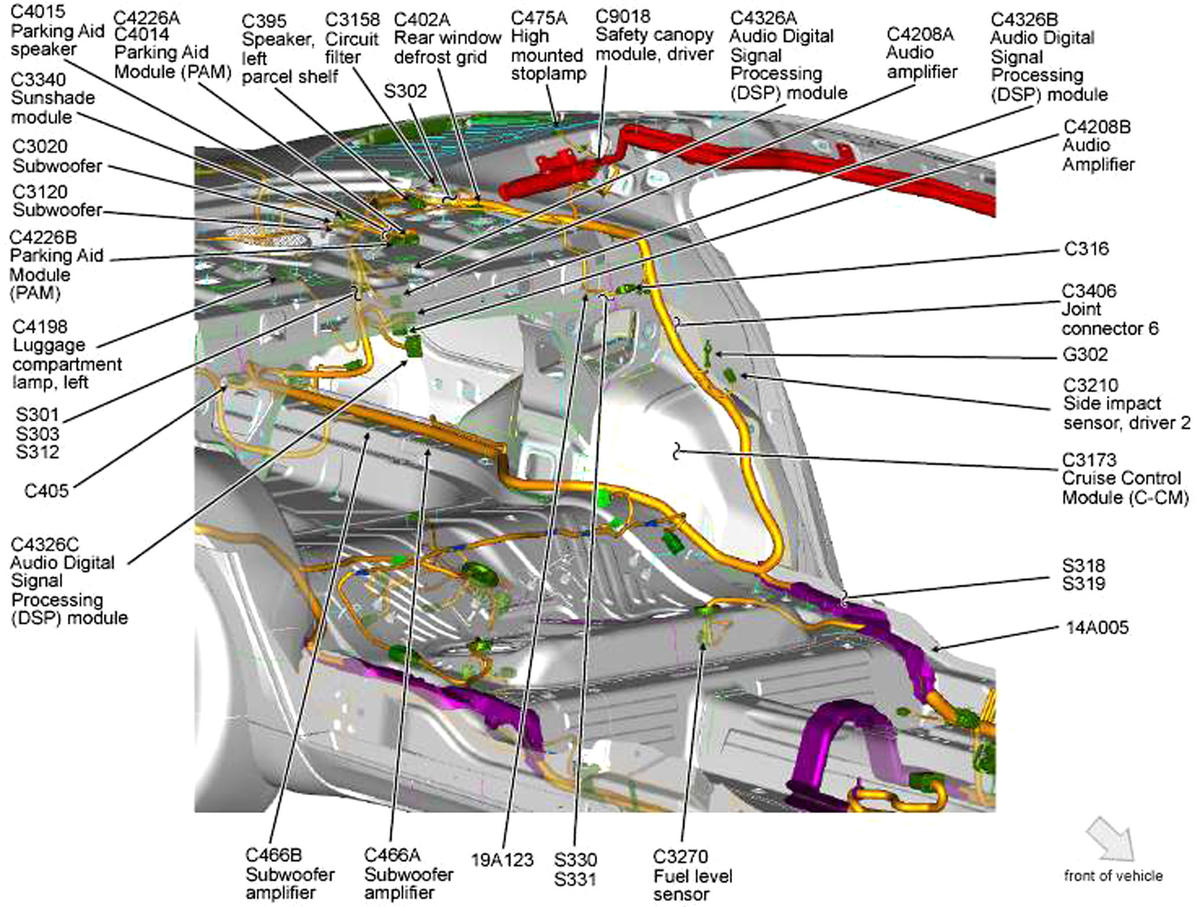

| Audio Digital Signal Processing (DSP) Module | Left side of luggage compartment. See Figure. |

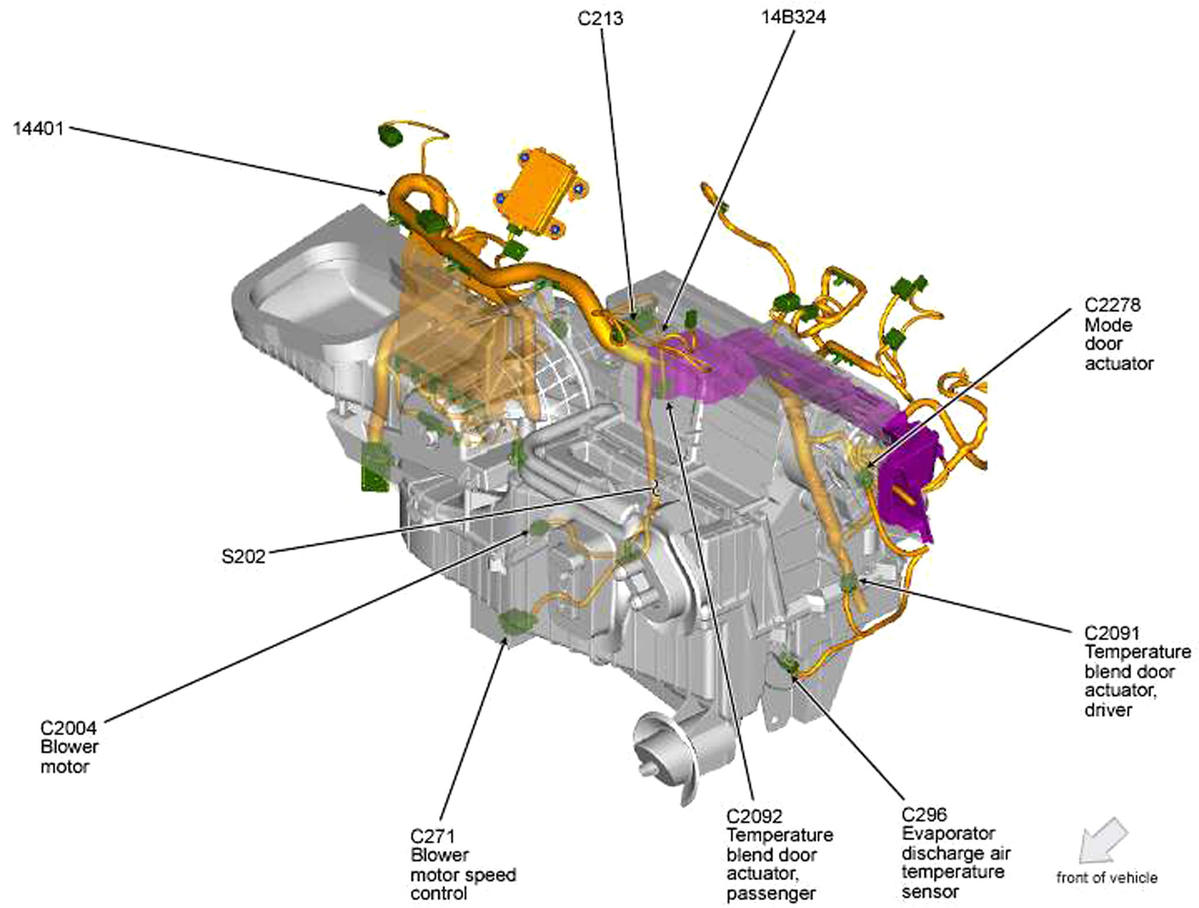

| Blower Motor Speed Control | Lower center of HVAC unit. See Figure. |

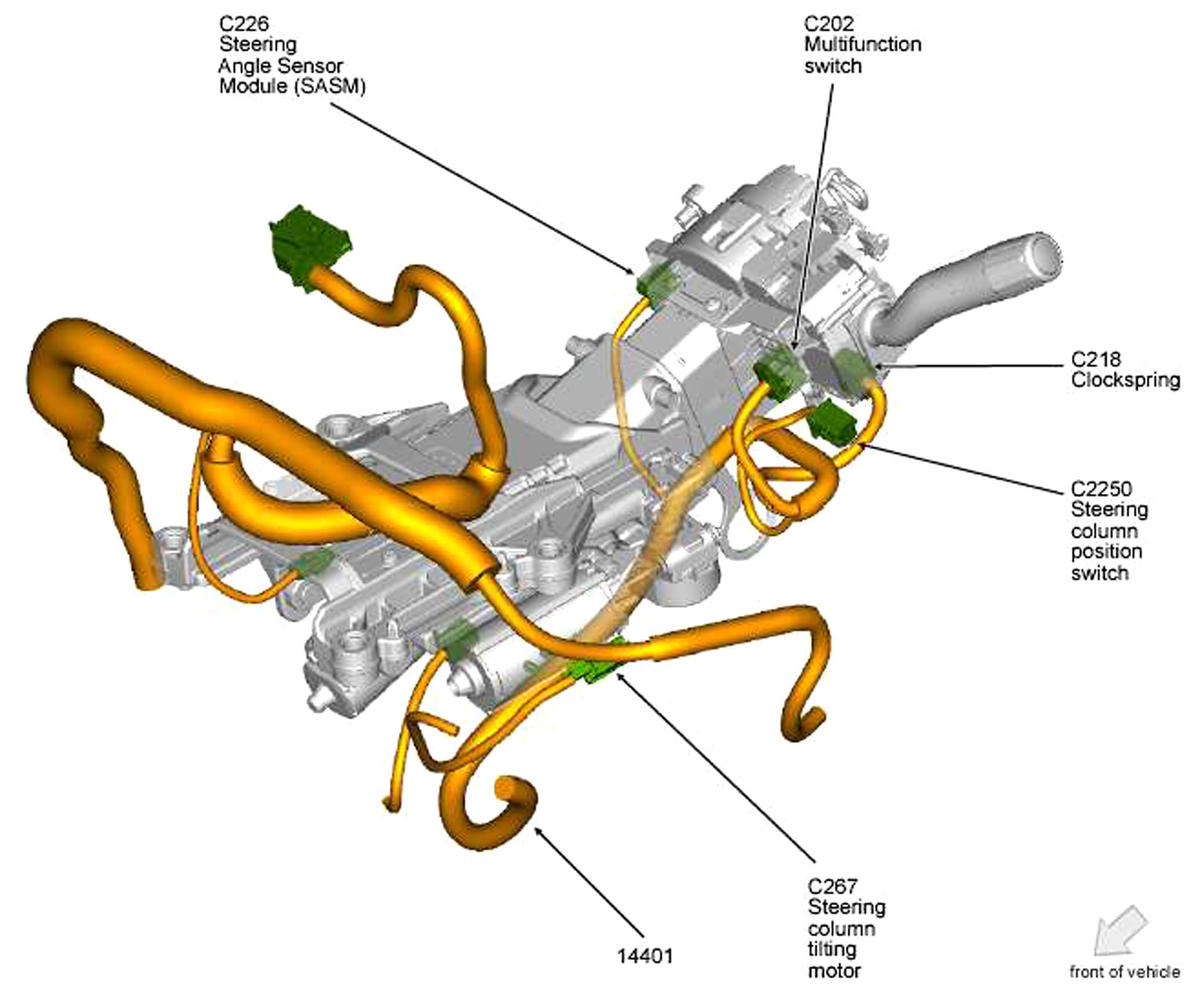

| Collapsible Steering Column Module | Steering column assembly. See Figure. |
| Cruise Control Module | Left rear wheelwell. See Figure. |
| Dual Climate Controlled Seat Module | Under front passenger's seat. See Figure. |

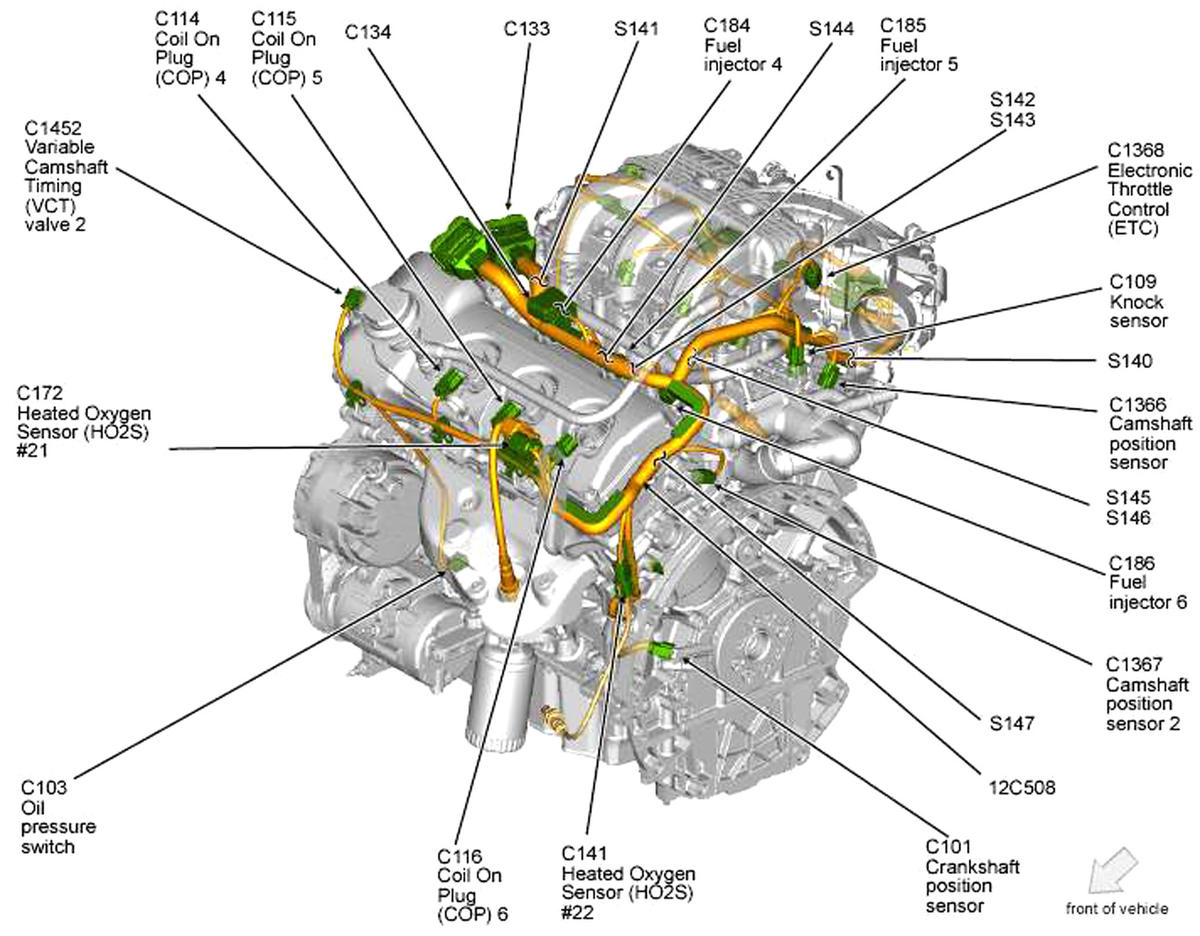

| Electronic Throttle Control (ETC) | Top rear of engine. See Figure. |

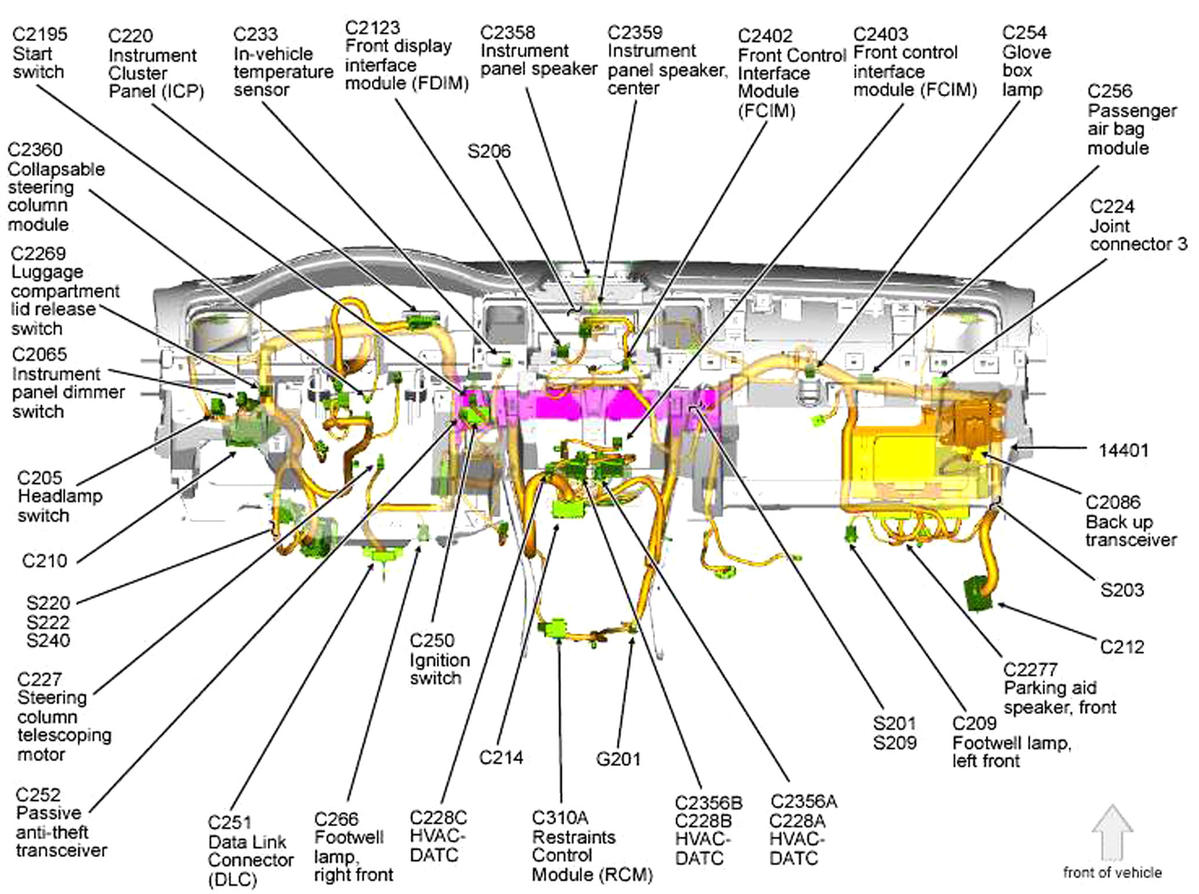

| Front Control Interface Module (FCIM) | Center of dash. See Figure. |
| Front Display Interface Module (FDIM) | Center of dash. See Figure. |

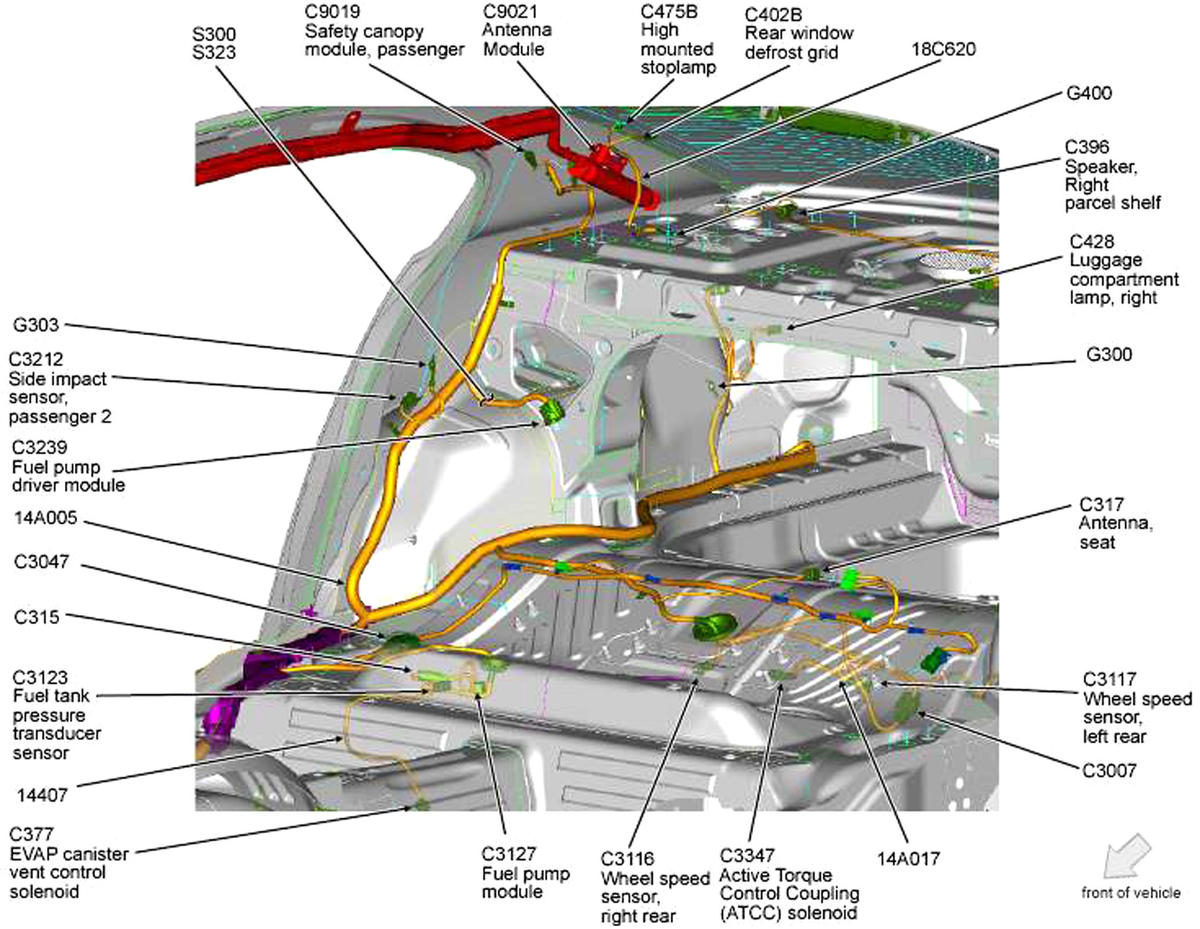

| Fuel Pump Driver Module | Right "C" pillar. See Figure. |

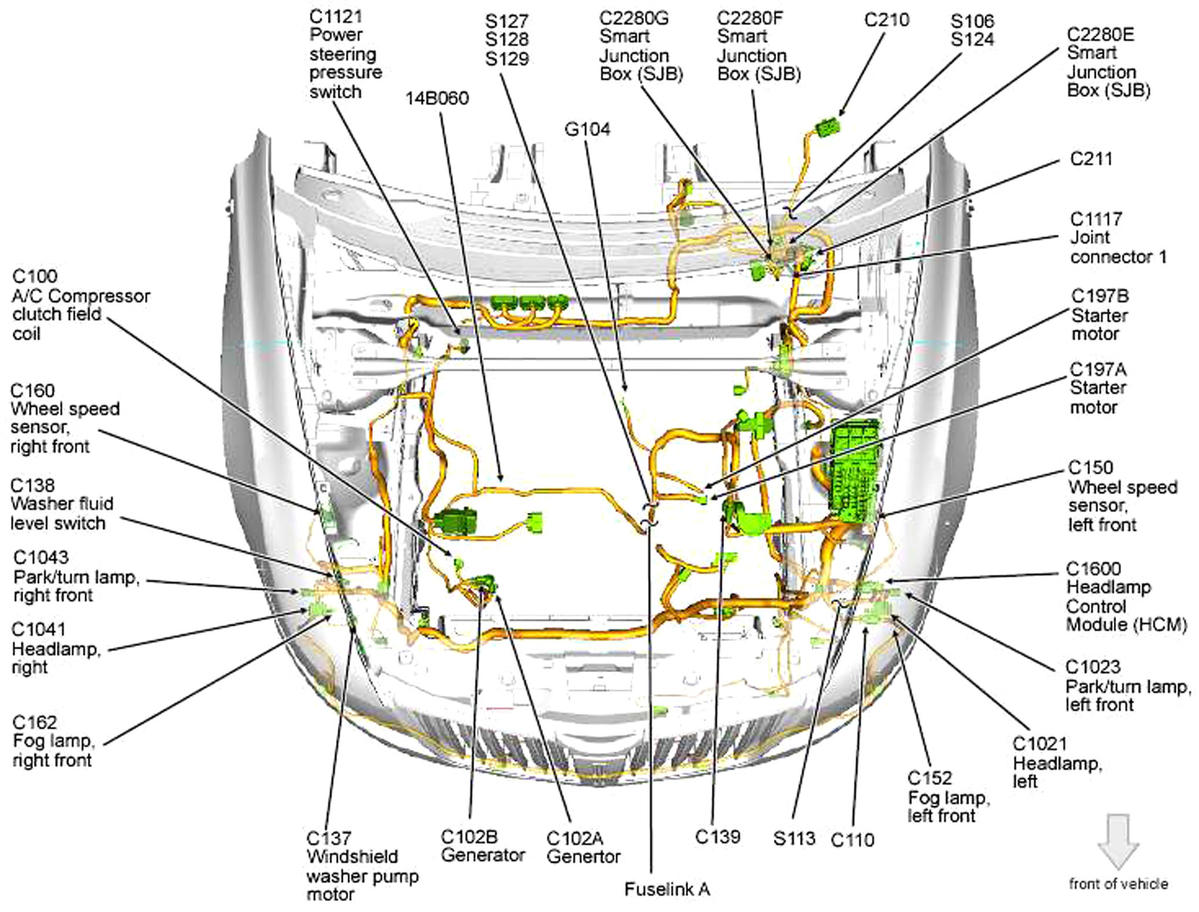

| Headlamp Control Module (HCM) | Left front of engine compartment. See Figure. |

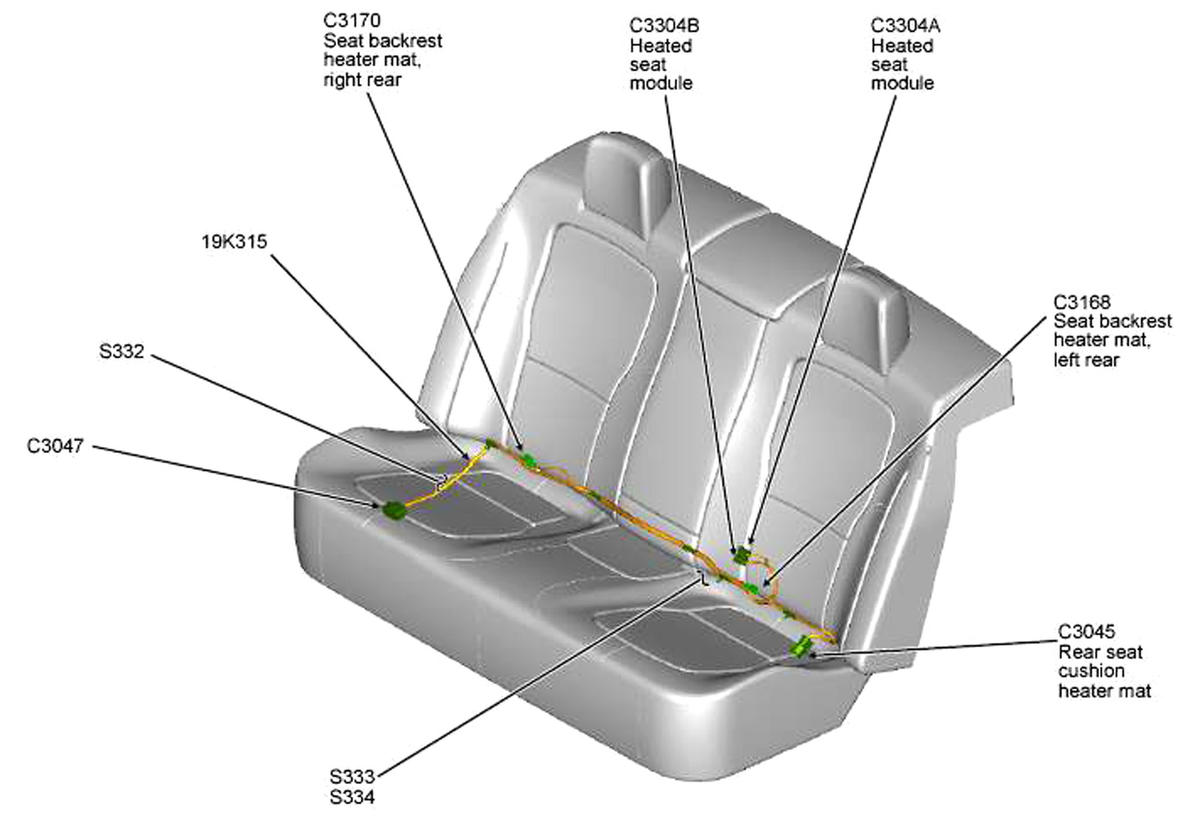

| Heated Seat Module (Rear) | Under left rear seat. See Figure. |

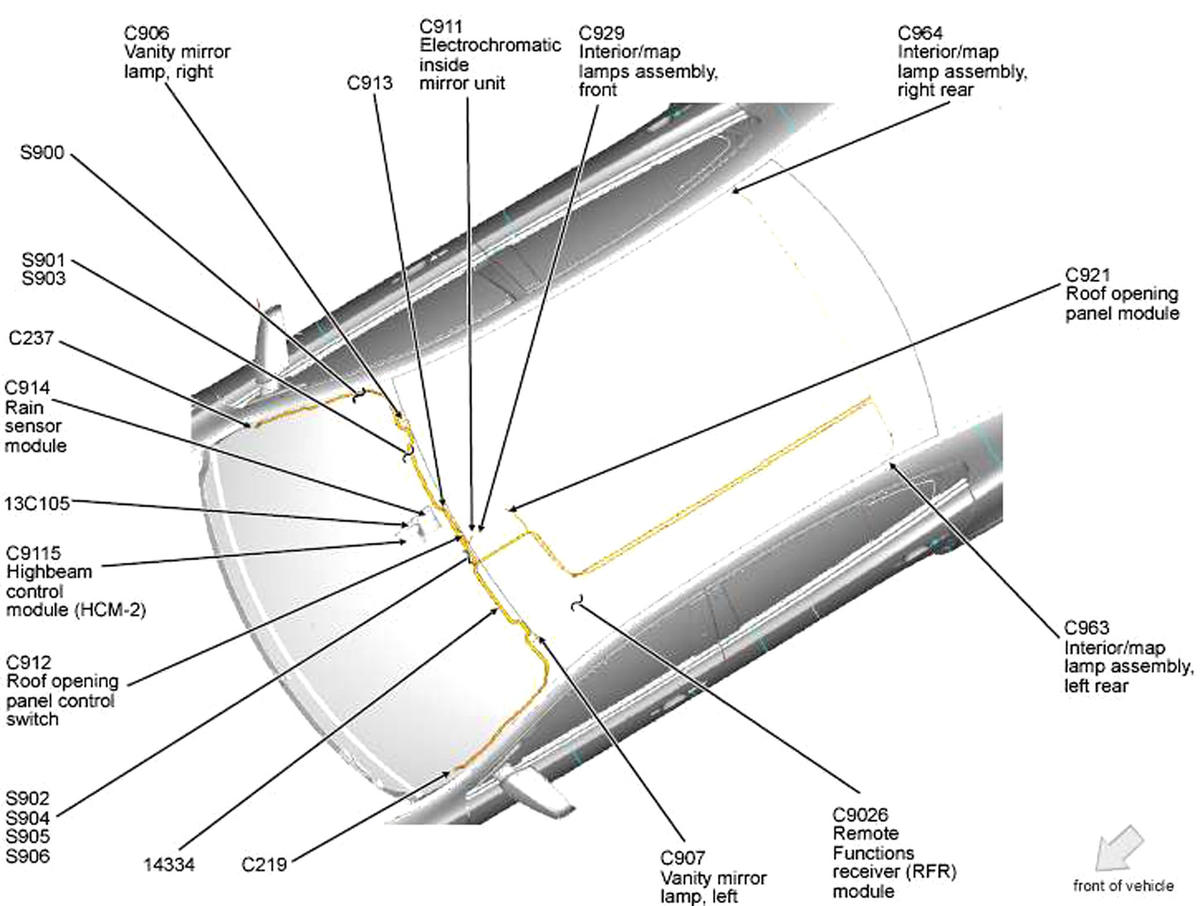

| Highbeam Control Module (HCM-2) | Integral to inside rearview mirror. See Figure. |
| HVAC Module (DATC) | Center of dash. See Figure. |

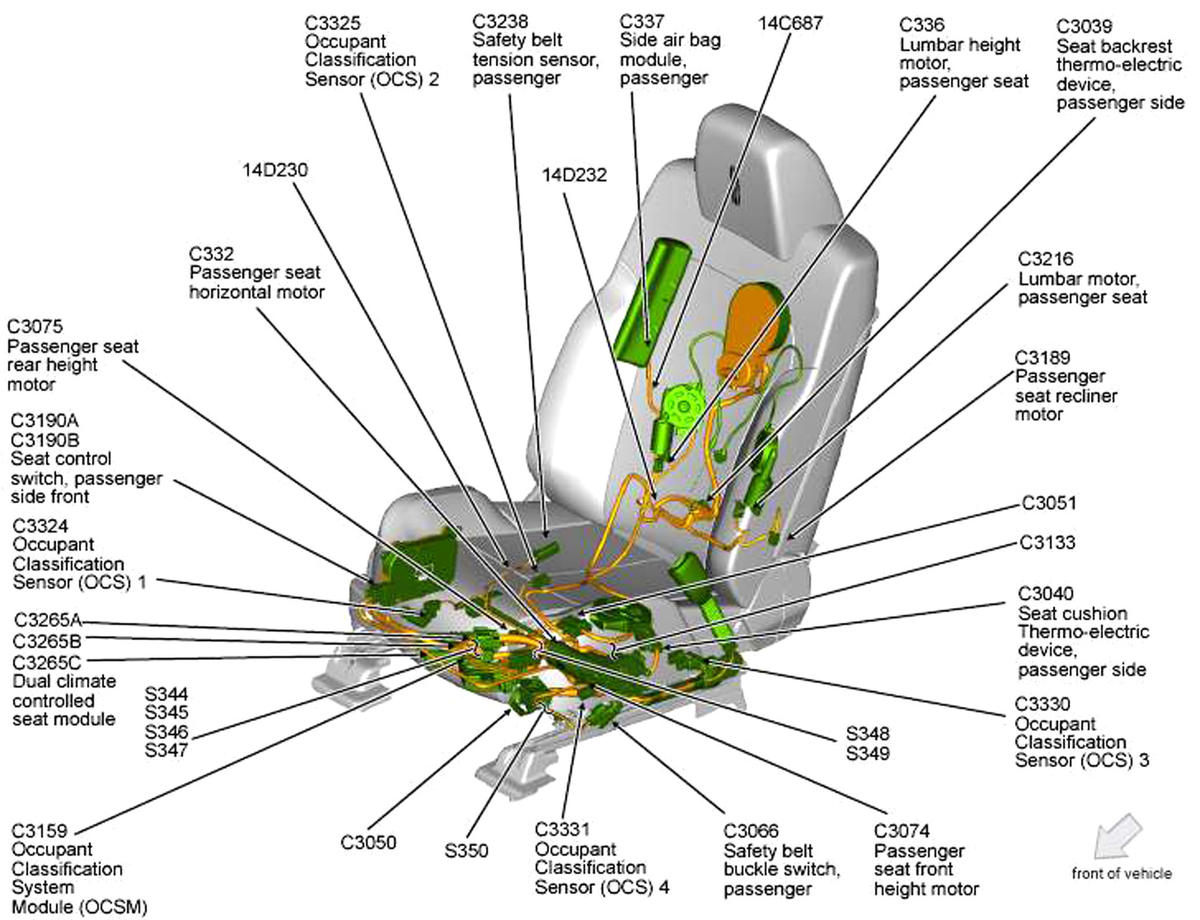

| Occupant Classification System Module (OCSM) | Under front passenger's seat. See Figure. |
| Parking Aid Module (PAM) | Under left side of hatshelf. See Figure. |

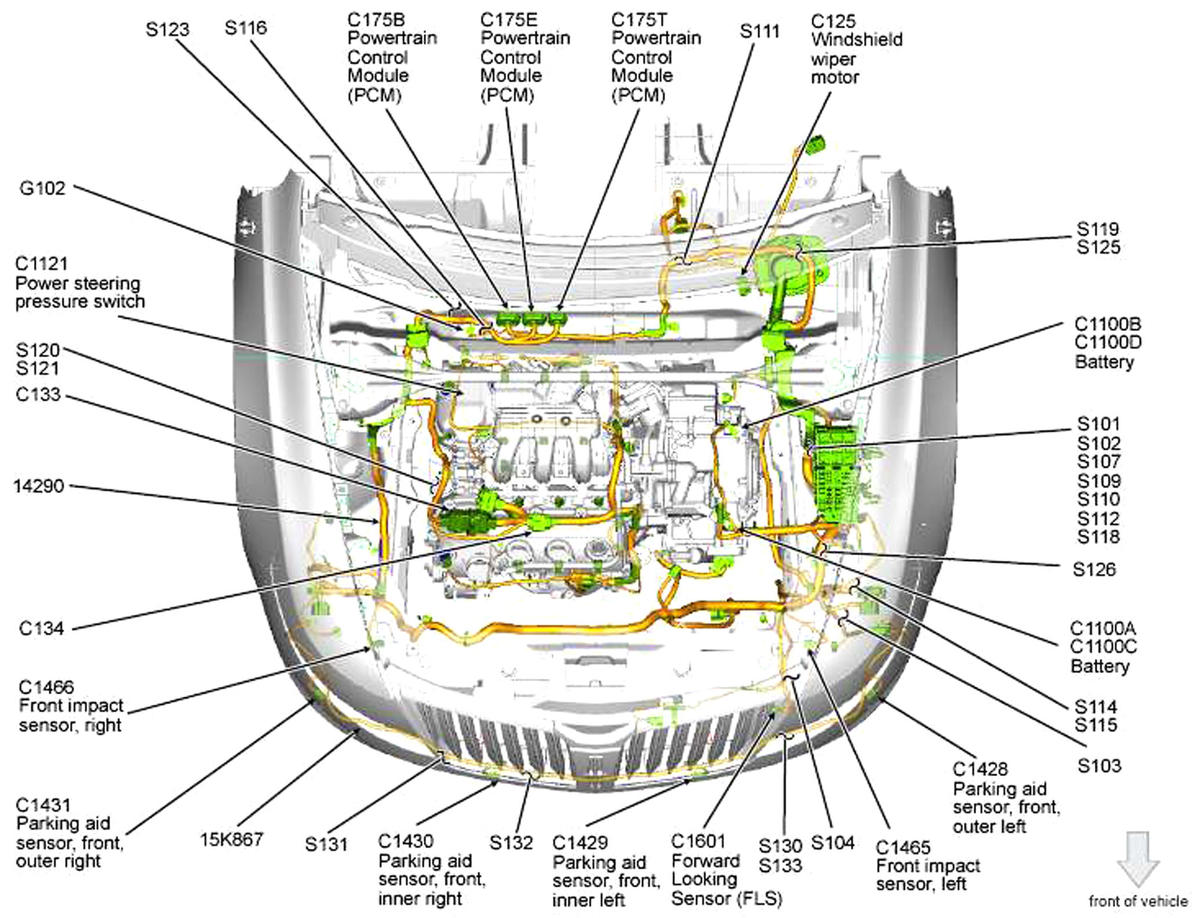

| Powertrain Control Module (PCM) | Rear of engine compartment. See Figure. |

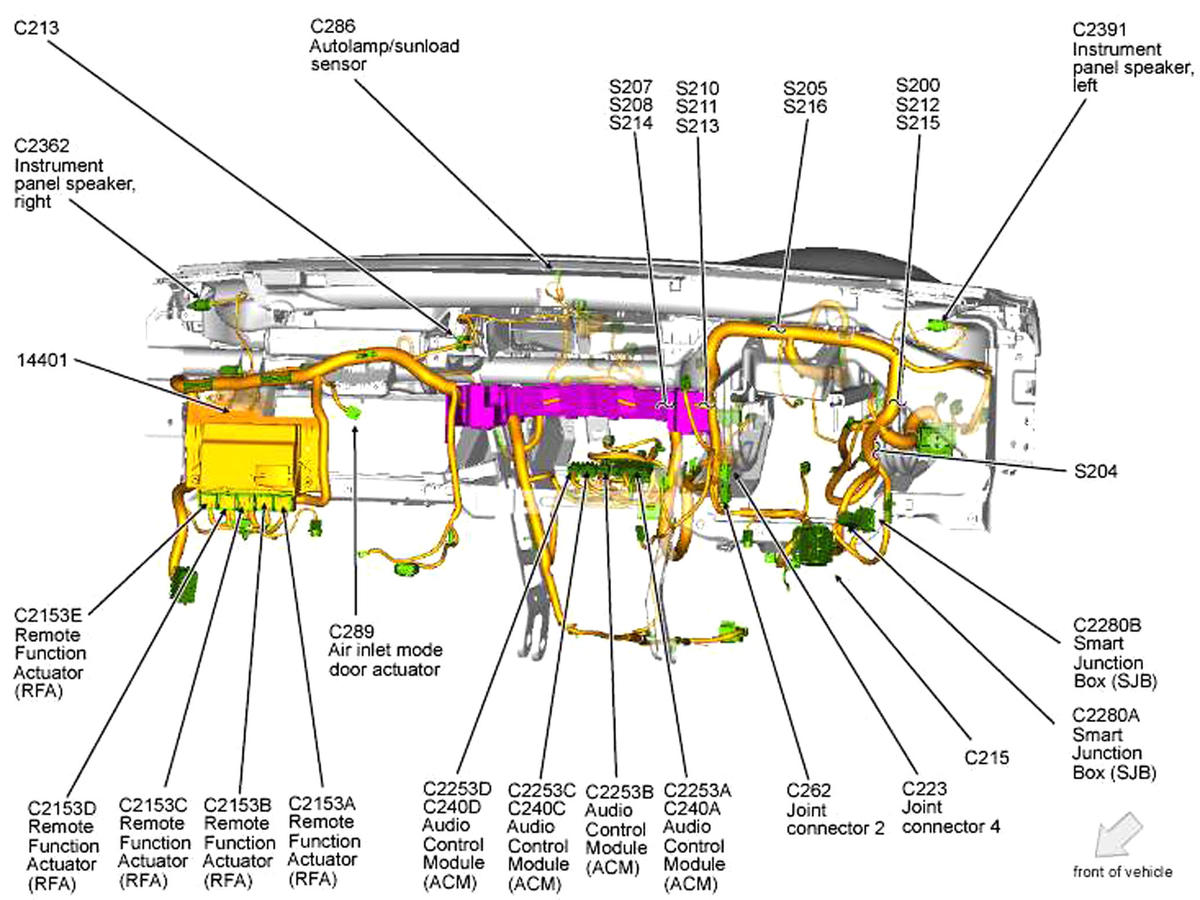

| Remote Function Actuator (RFA) | Right side of dash. See Figure. |
| Remote Functions Receiver (RFR) Module | Left front of roof. See Figure. |
| Restraints Control Module (RCM) | Under center console. See Figure. |
| Roof Opening Panel Module | Center front of roof. See Figure. |

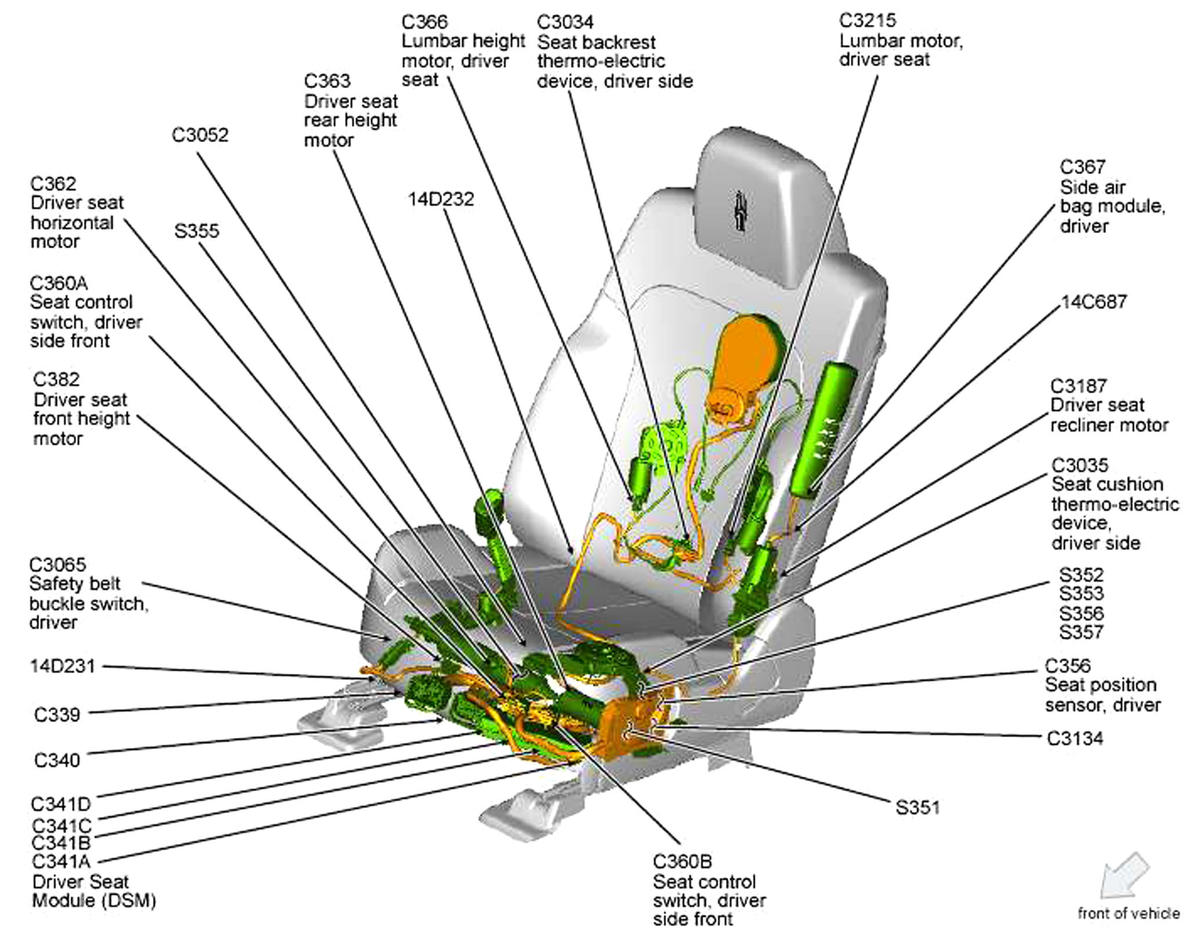

| Seat Module (DSM) (Driver) | Under driver's seat. See Figure. |
| Steering Angle Sensor Module (SASM) | Top of steering column. See Figure. |

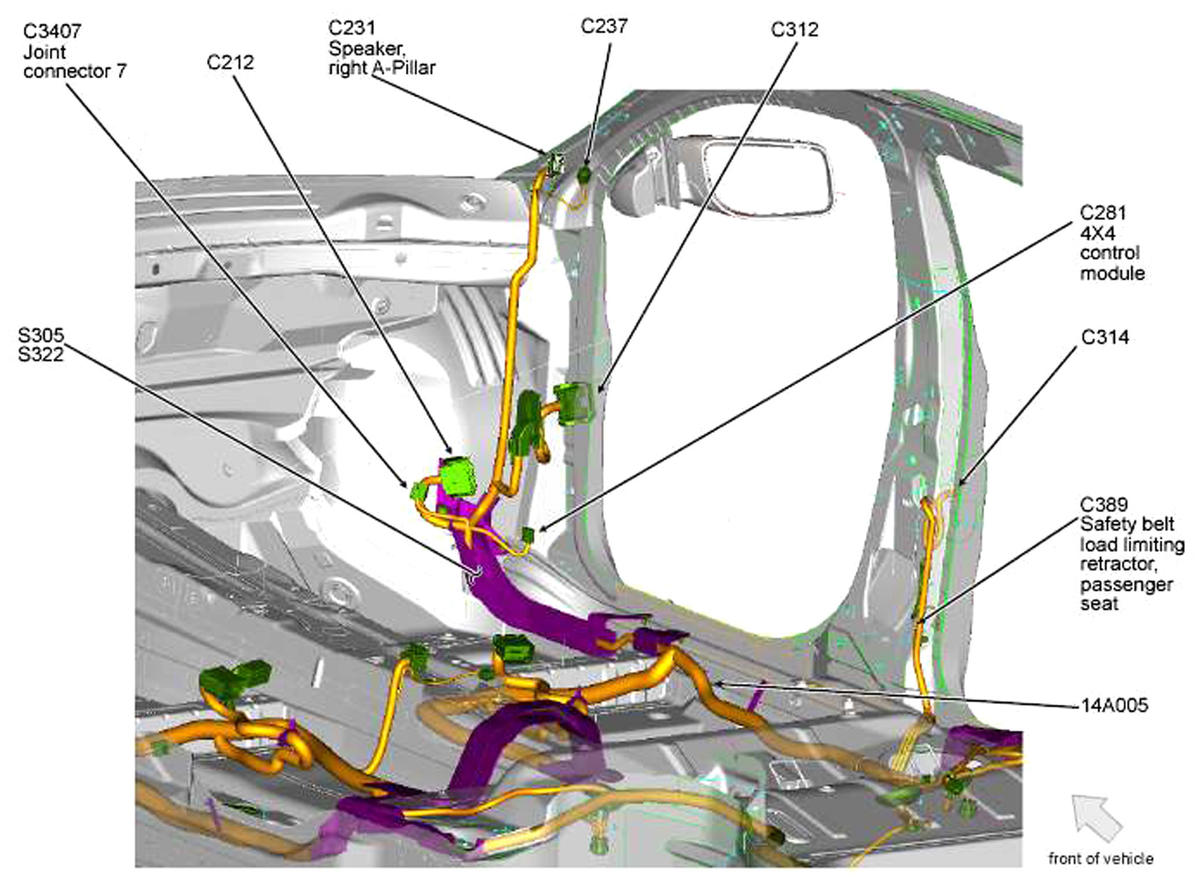

| 4X4 Control Module | Right kick panel. See Figure. |
