Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Under passenger-side footwell, near ECU. |

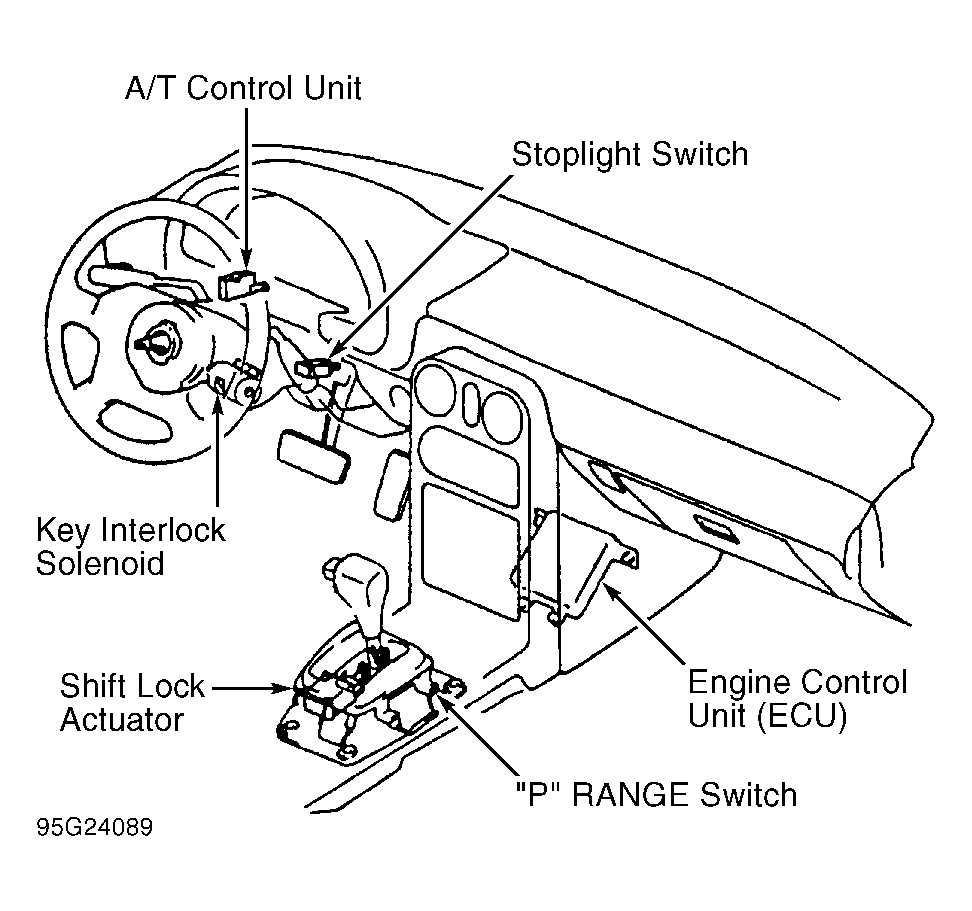

| A/T Control Unit | Behind left kick panel. See Figure & Figure . |

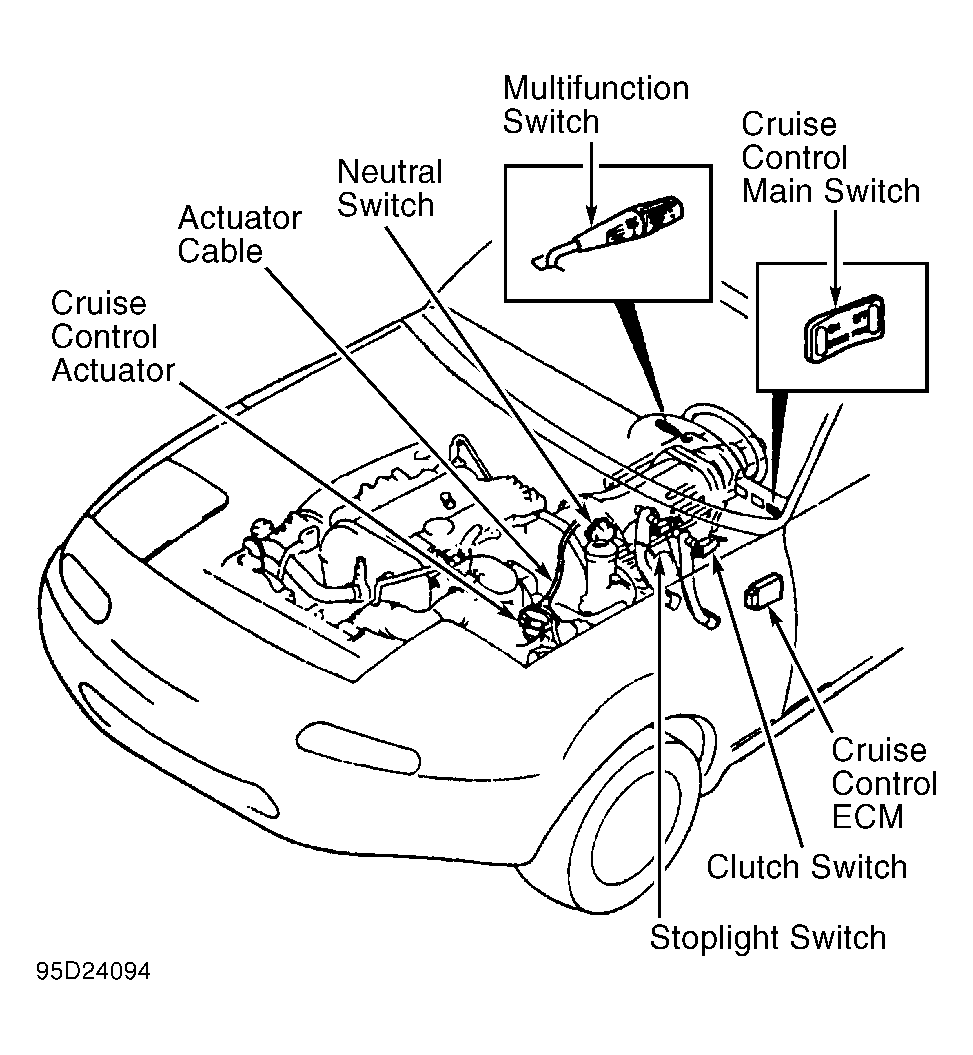

| Cruise Control ECM | Behind left side of dash, above fuse block. See Figure . |
| Daytime Running Light (DRL) Control Unit | On bracket, behind left side of dash. |

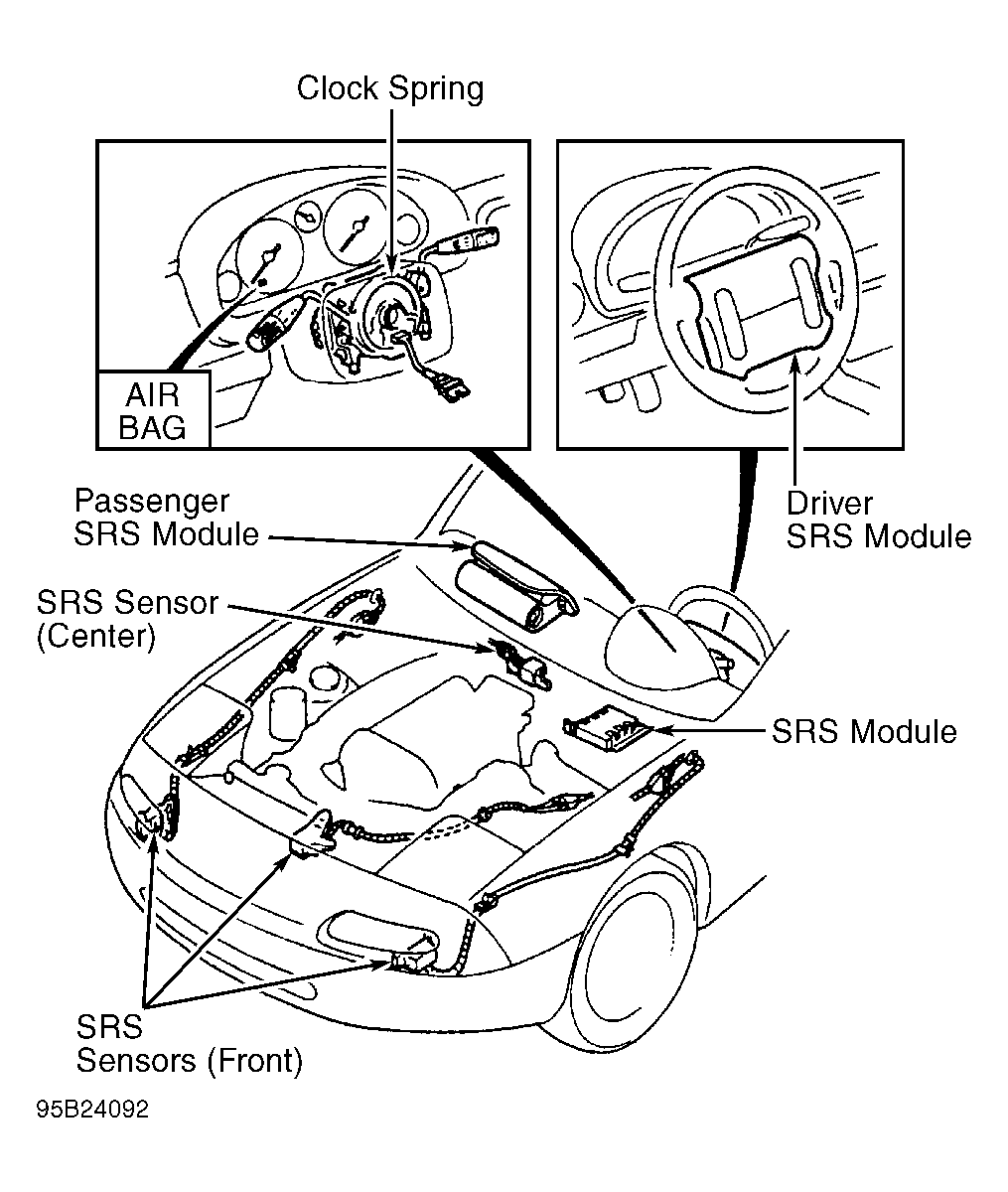

| Driver SRS Module | Center of steering wheel. See Figure . |
| Engine Control Unit (ECU) | Under passenger-side footwell. See Figure . |
| Supplemental Safety Restraint (SRS) Driver Module | Behind left side of dash. See Figure . |
| Supplemental Safety Restraint (SRS) Passenger Module | Upper right side of dash. See Figure . |
