Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

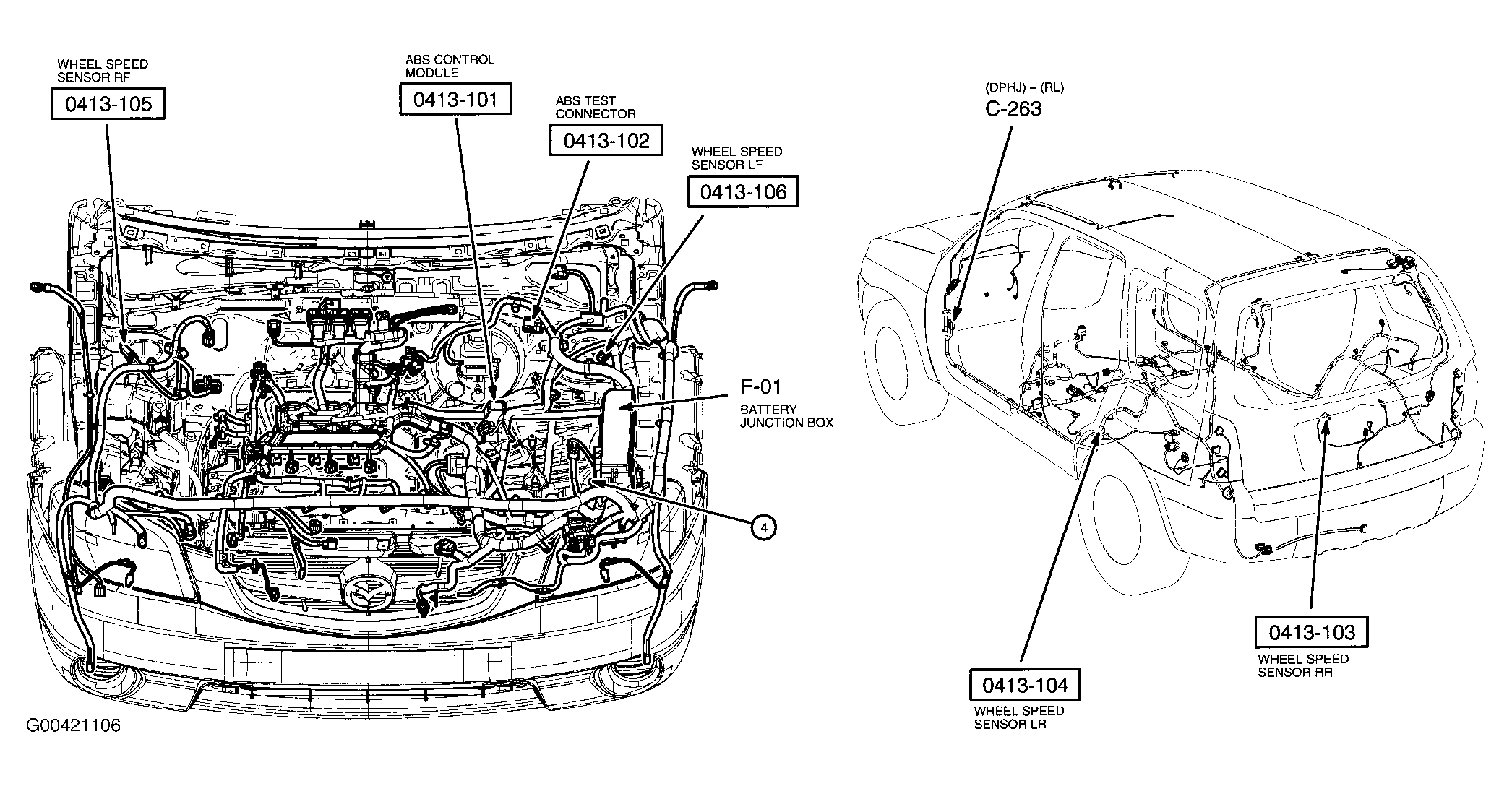

| ABS Control Module | At left rear of engine compartment. See Figure . |

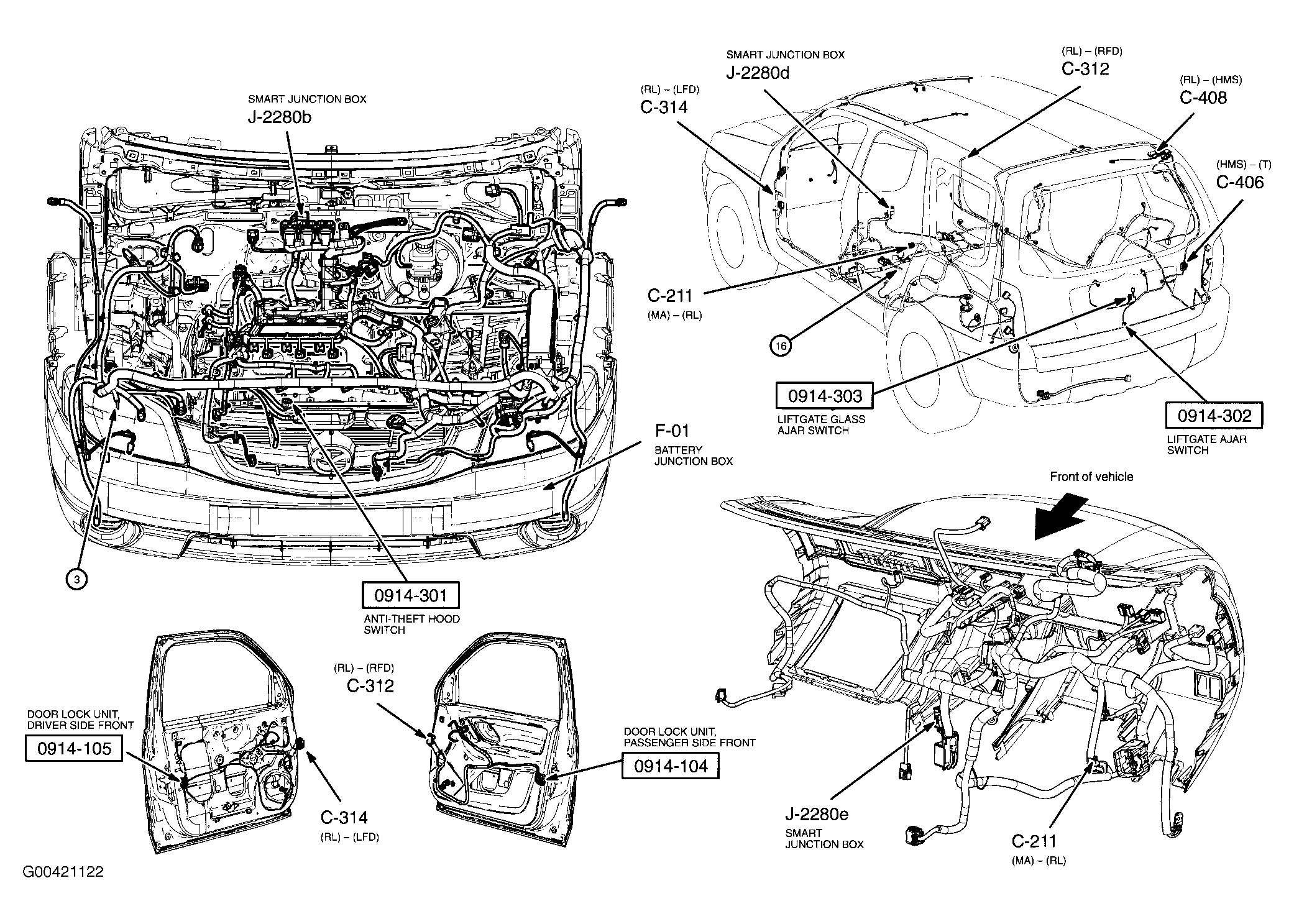

| Door Lock Unit, Driver Side Front | Rear of left front door. See Figure . |
| Door Lock Unit, Passenger Side Front | Rear of front passenger's door. See Figure . |

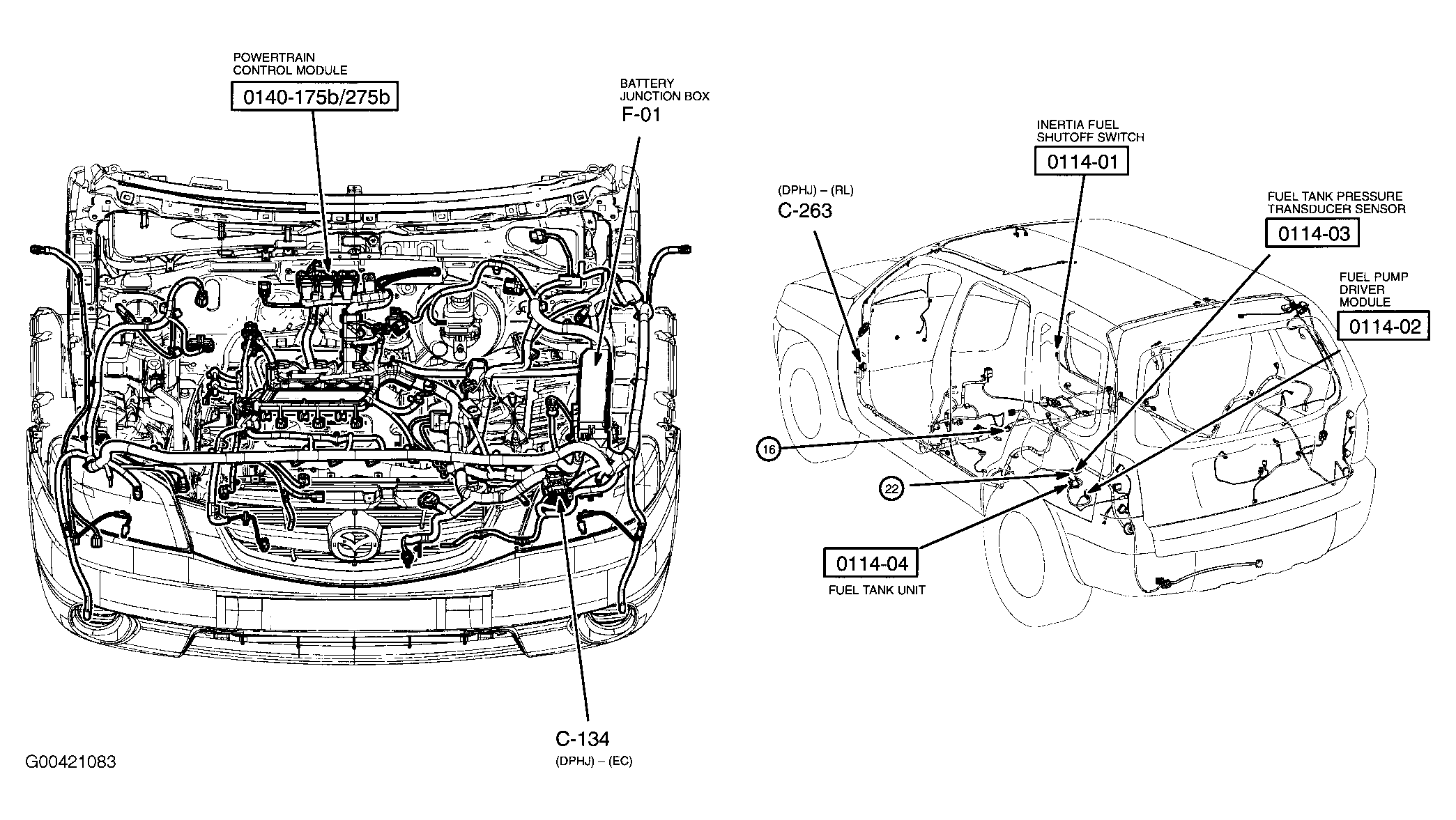

| Fuel Pump Driver Module | Left rear wheelwell. See Figure . |

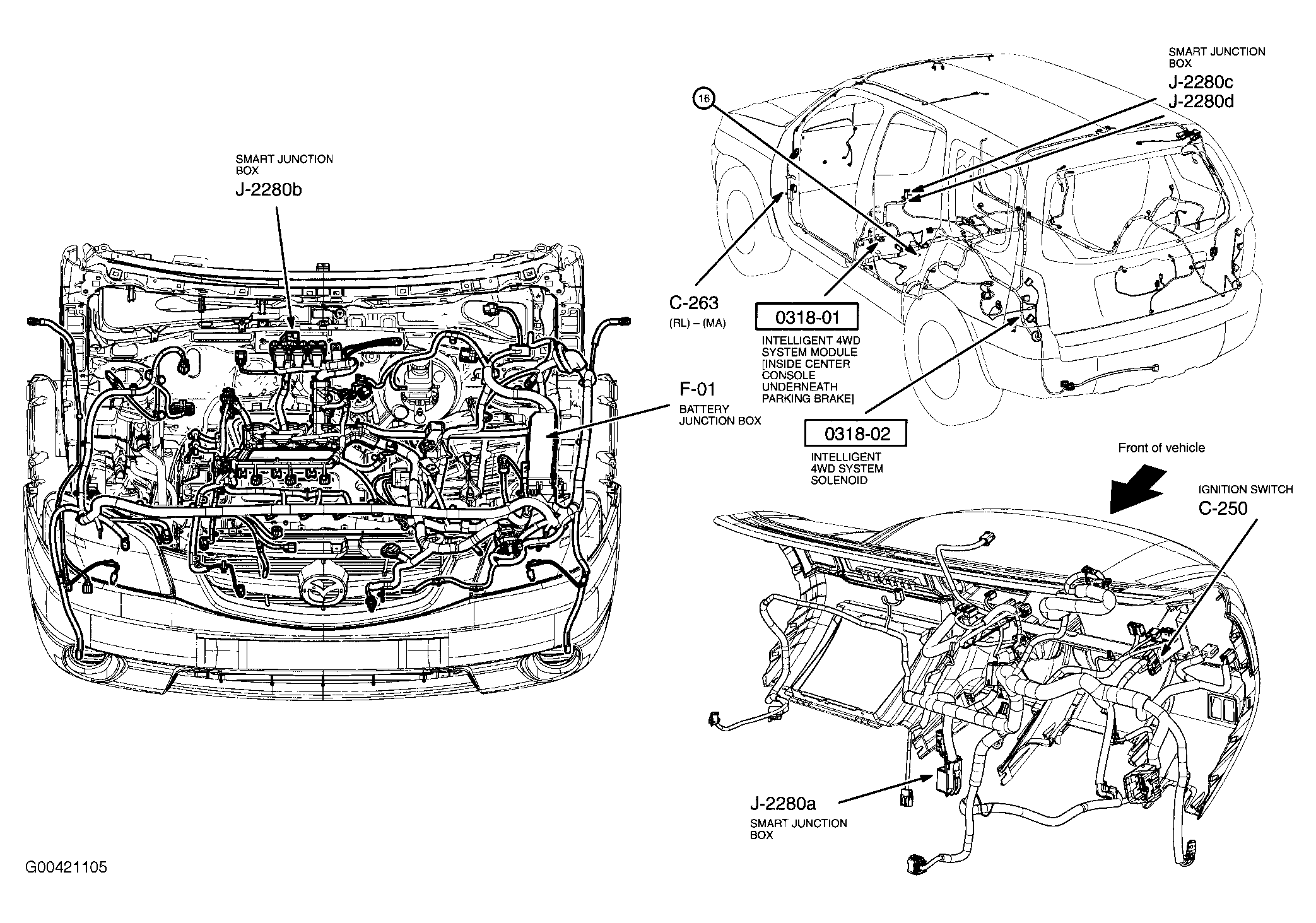

| Intelligent 4WD System Module | Inside center console, underneath parking brake. See Figure . |

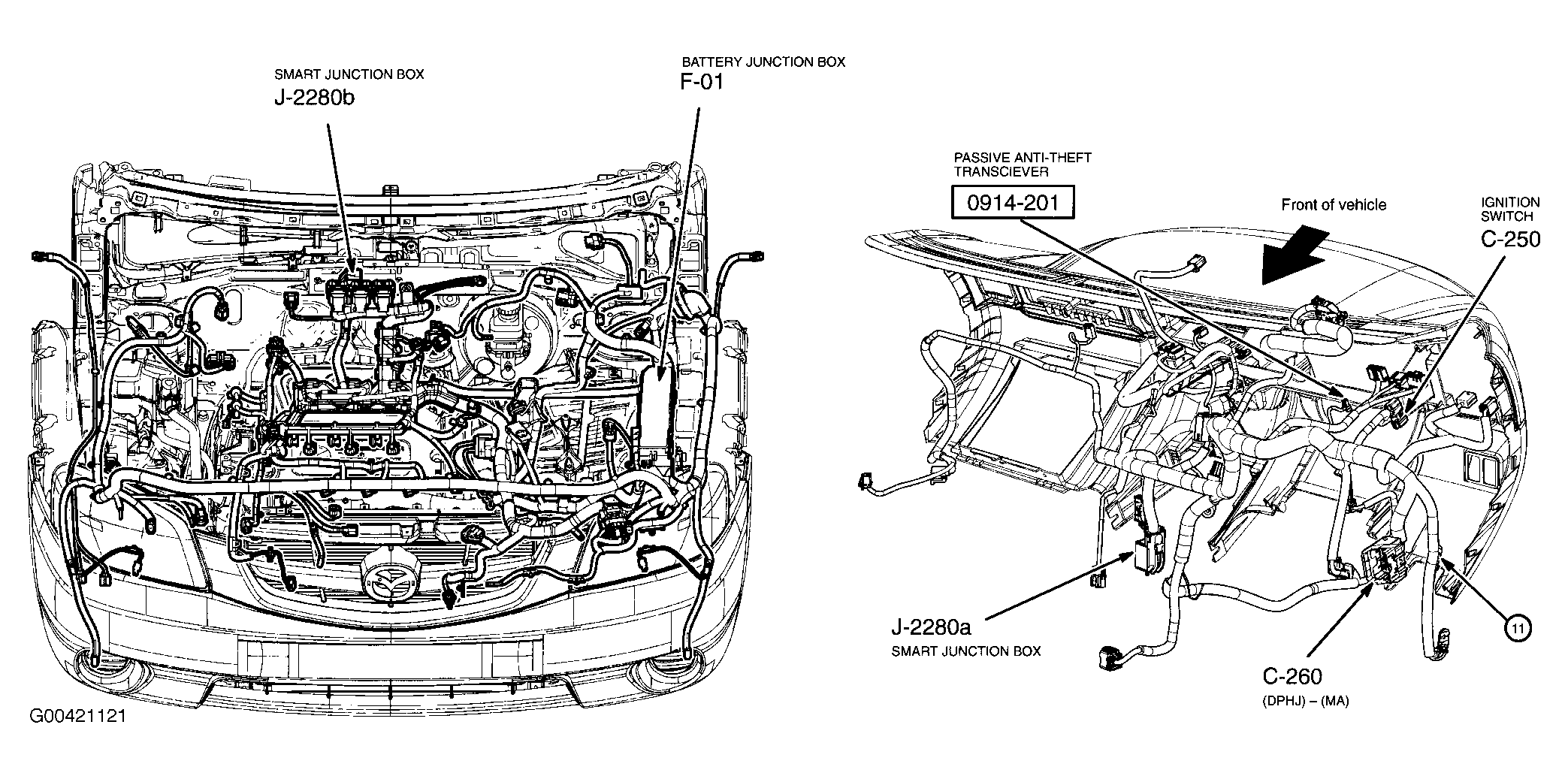

| Passive Anti-Theft Transceiver | Behind lower left side of dash, near steering column. See Figure . |

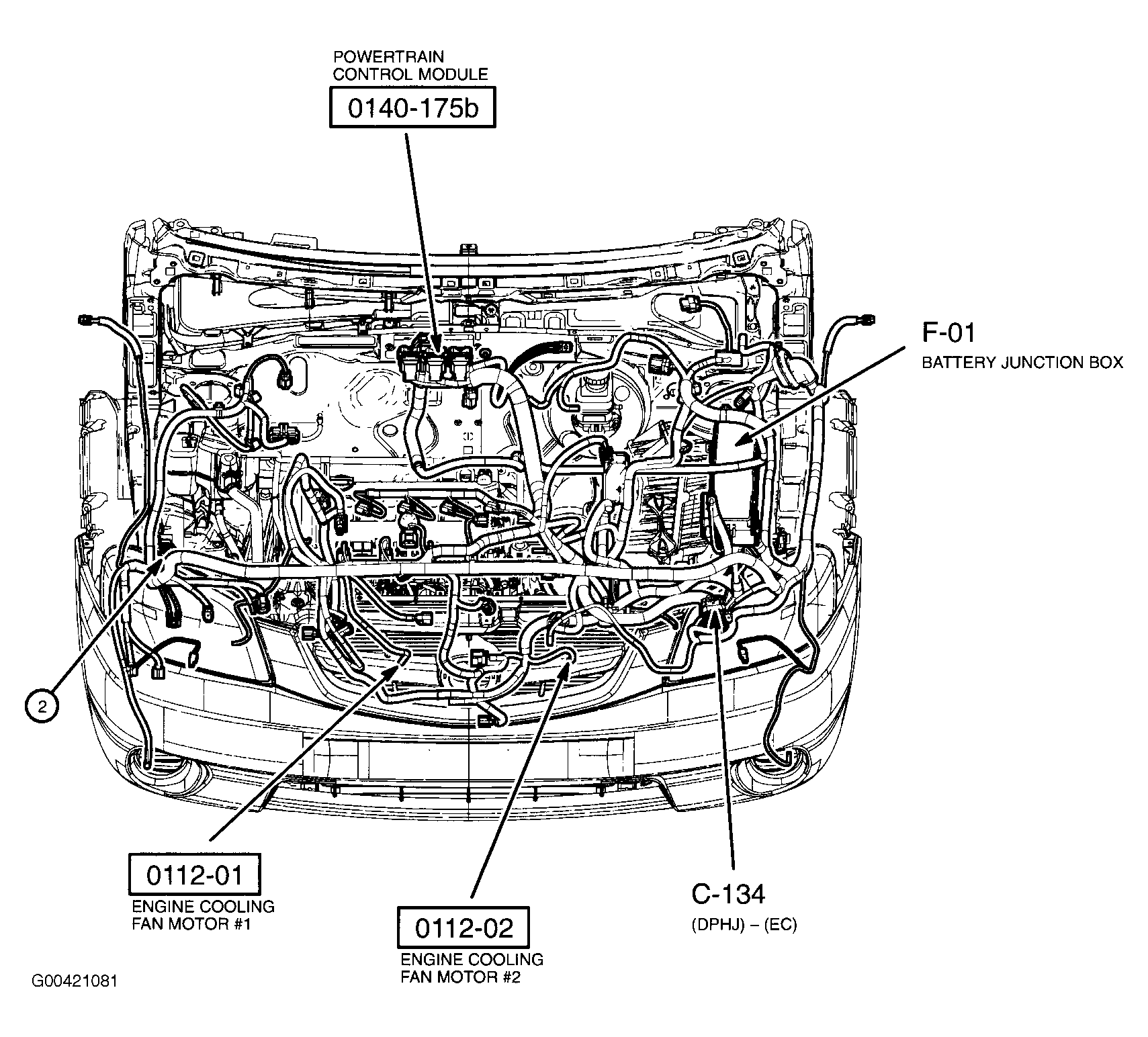

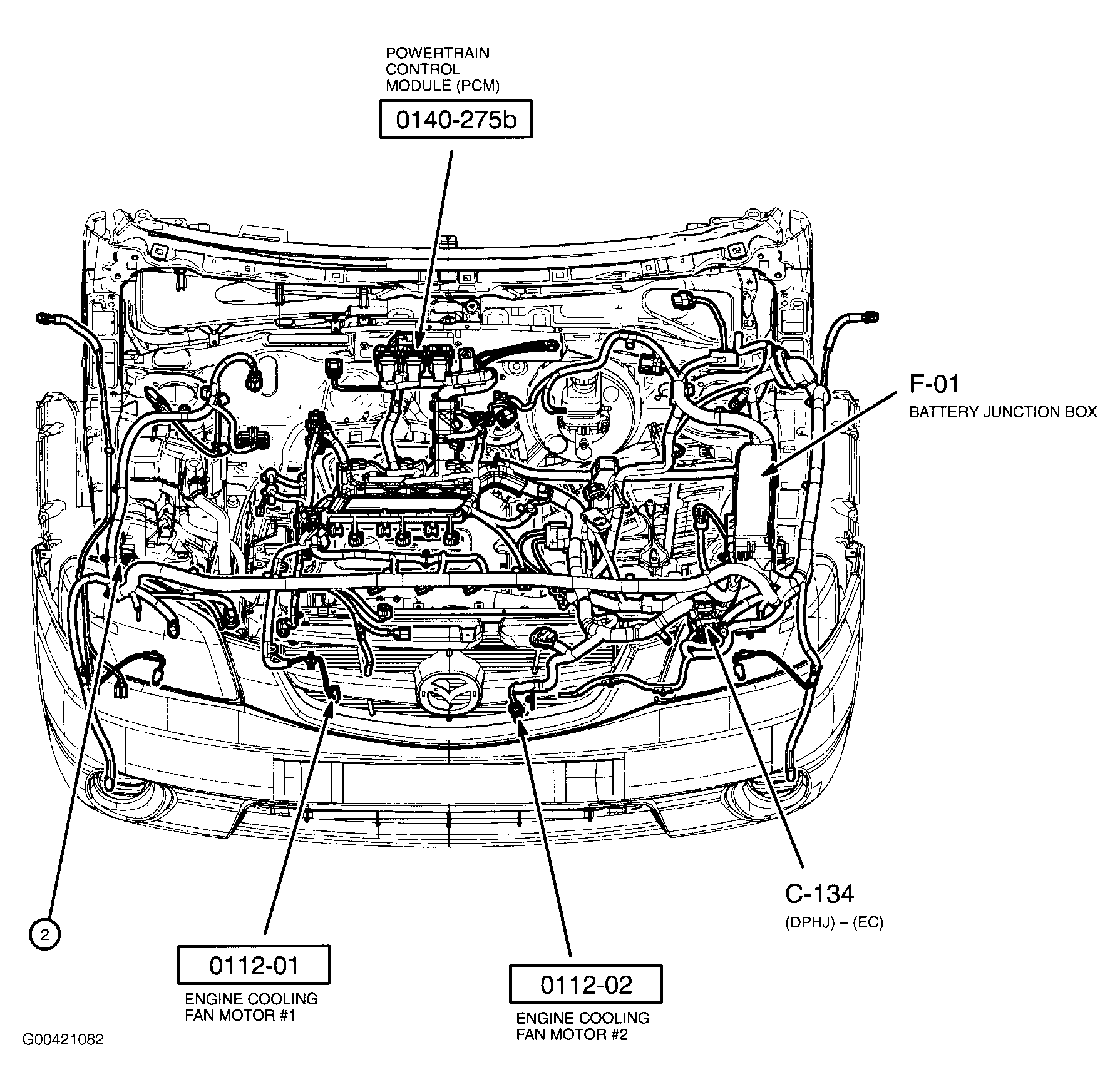

| Powertrain Control Module (2.3L) | At upper center of firewall. See Figure . |
| Powertrain Control Module (3.0L) | At upper center of firewall. See Figure . |

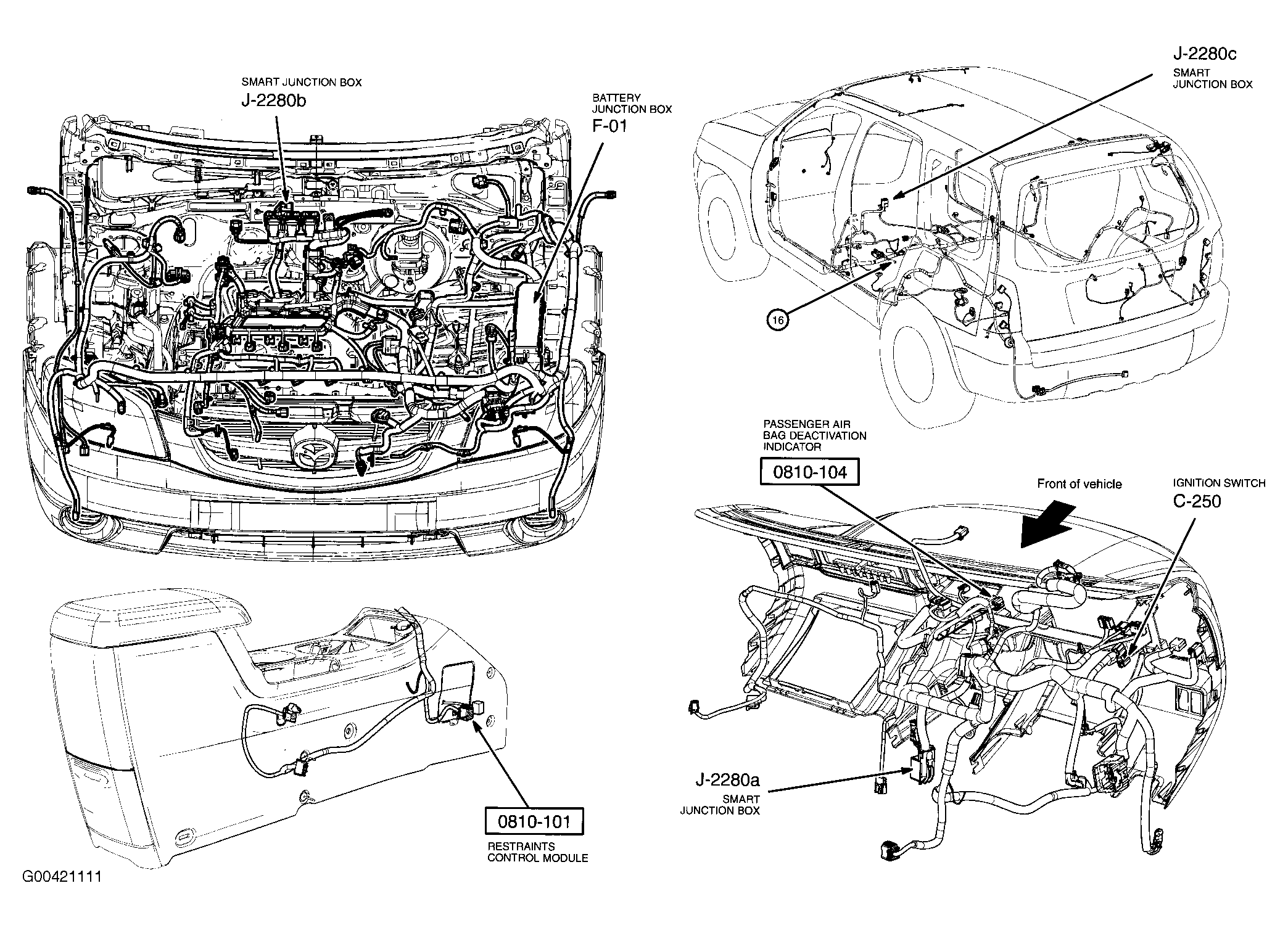

| Restraints Control Module | Under lower center of dash, on floor. See Figure . |

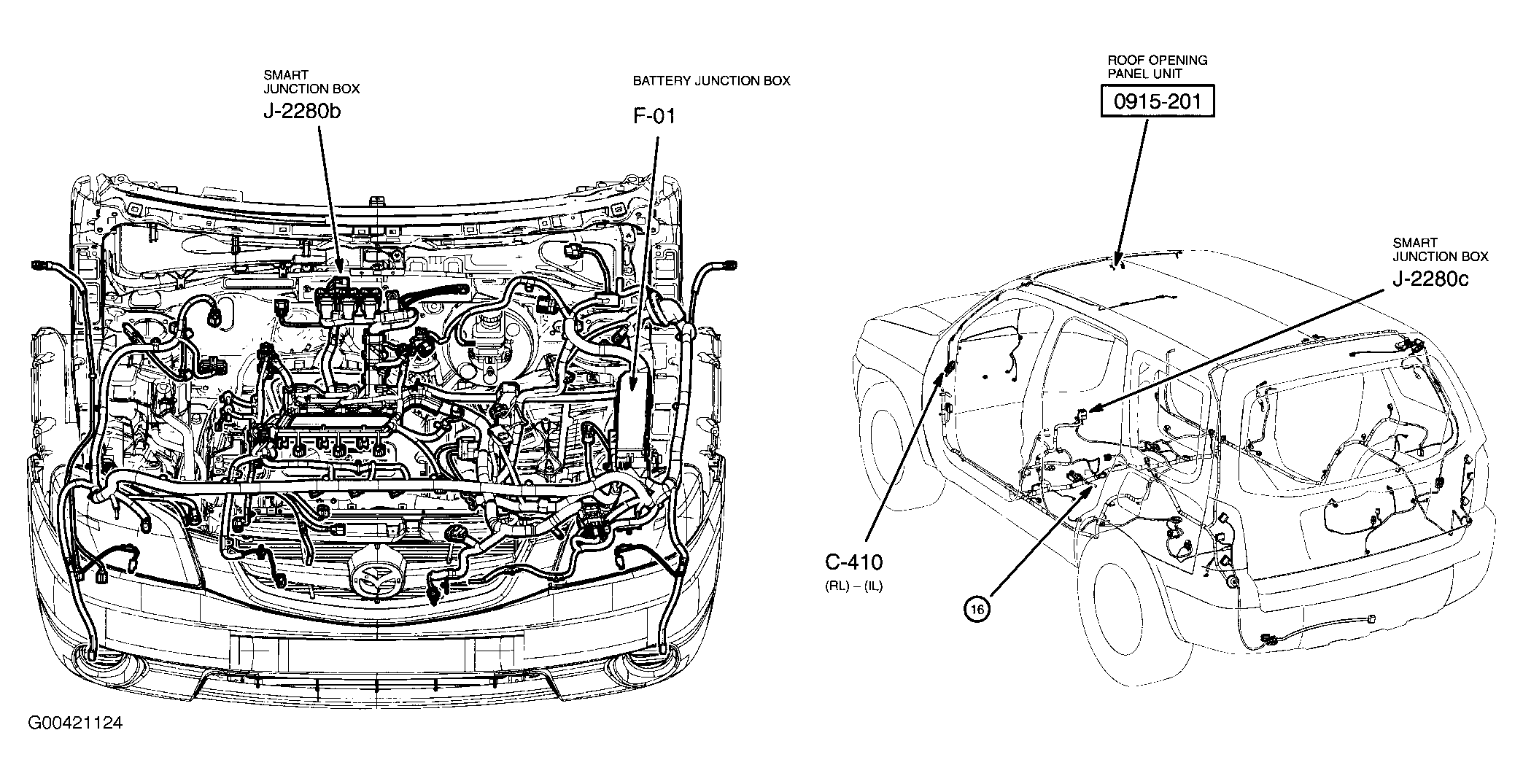

| Roof Opening Panel Unit | Front center of roof. See Figure . |
| Side Air Bag Module (Left) | In driver's seat bottom. See Figure . |
| Side Air Bag Module (Right) | In front passenger's seat bottom. See Figure . |

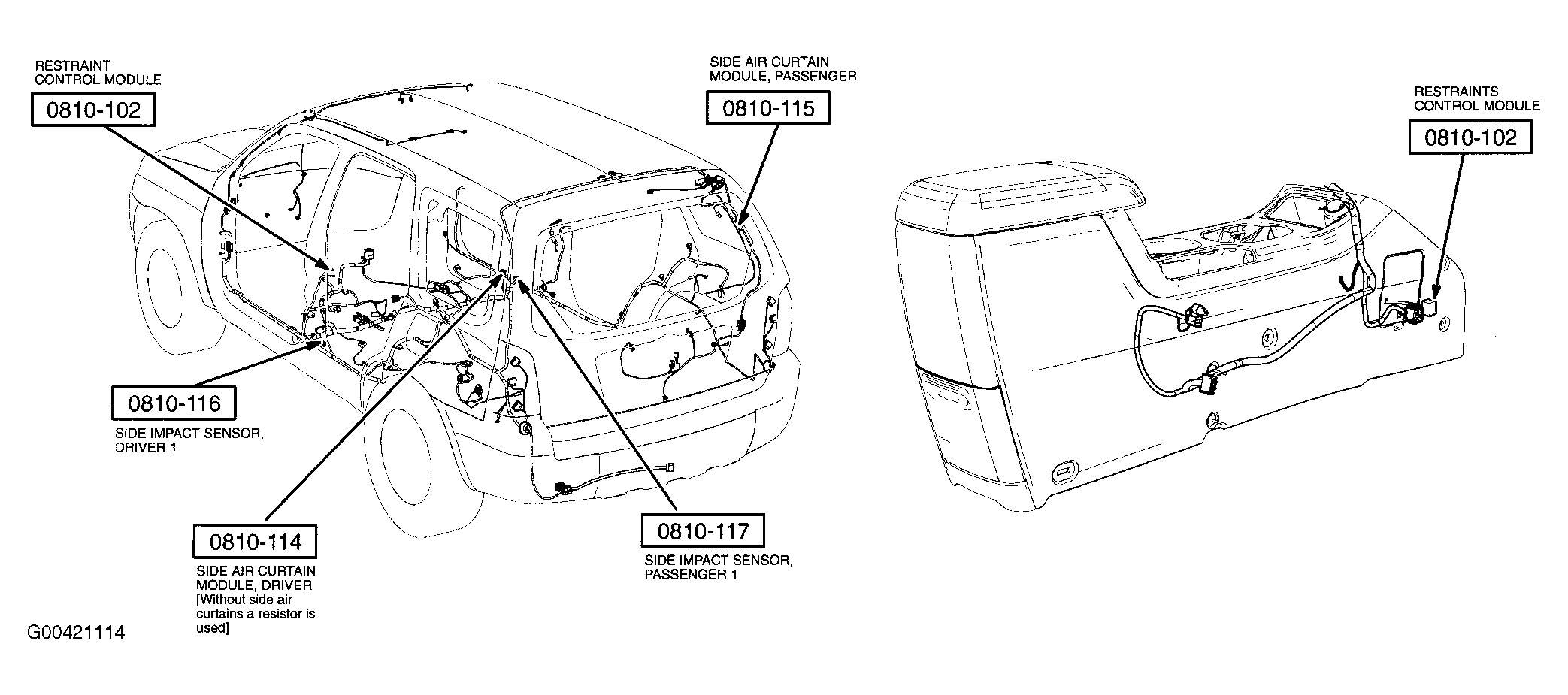

| Side Air Curtain Module (Driver) | Under respective front seats. See Figure . |
