CONTROL UNITS
| Component | Component Location |
|---|---|
| ADS Control Module | On left rear corner of engine compartment. |

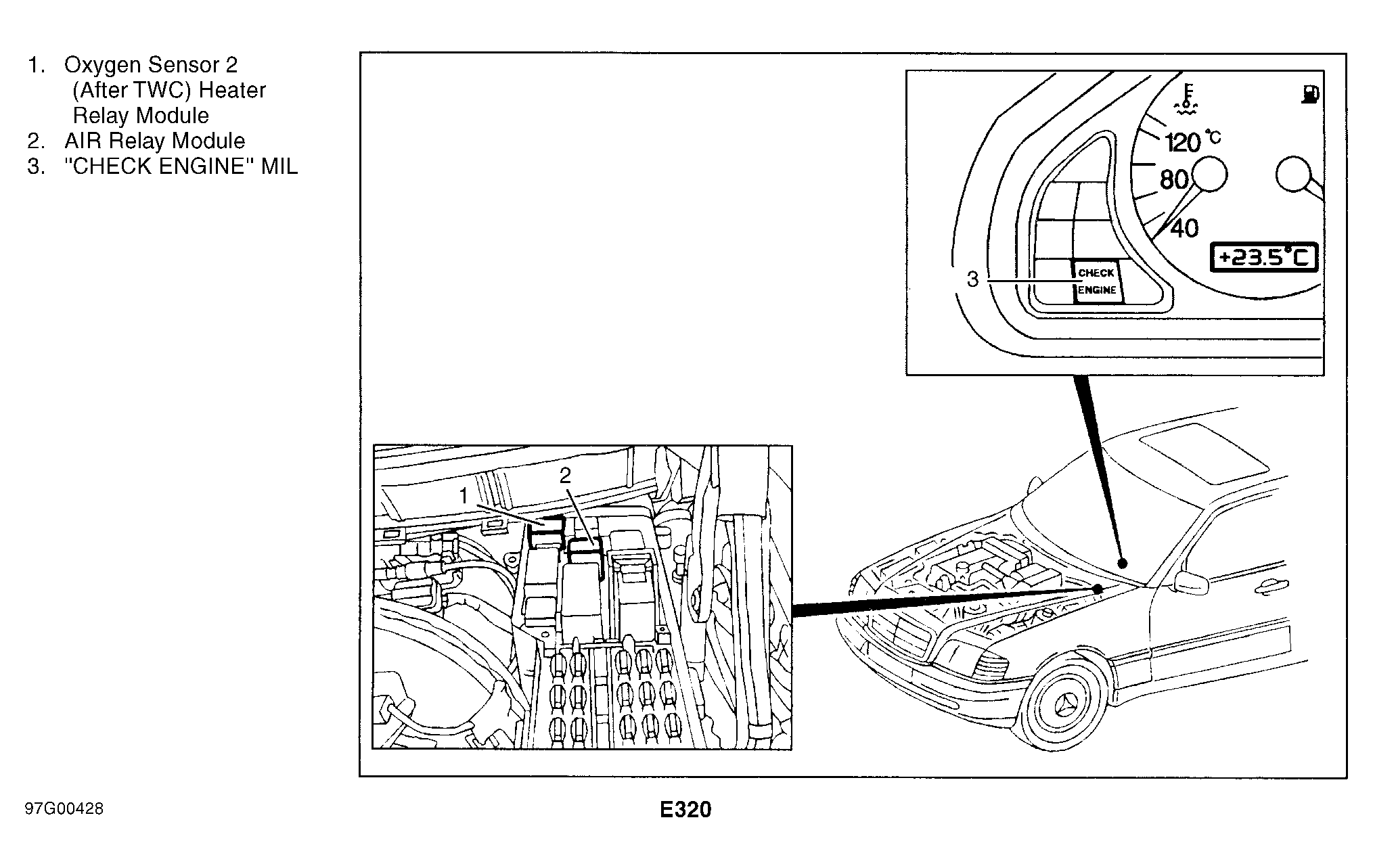

| AIR Relay Module (E320) | On left rear corner of engine compartment. See Figure . |
| ASR/ETS/ESP Hydraulic Unit (ESP & SPS) | On left front of engine compartment. See Figure . |

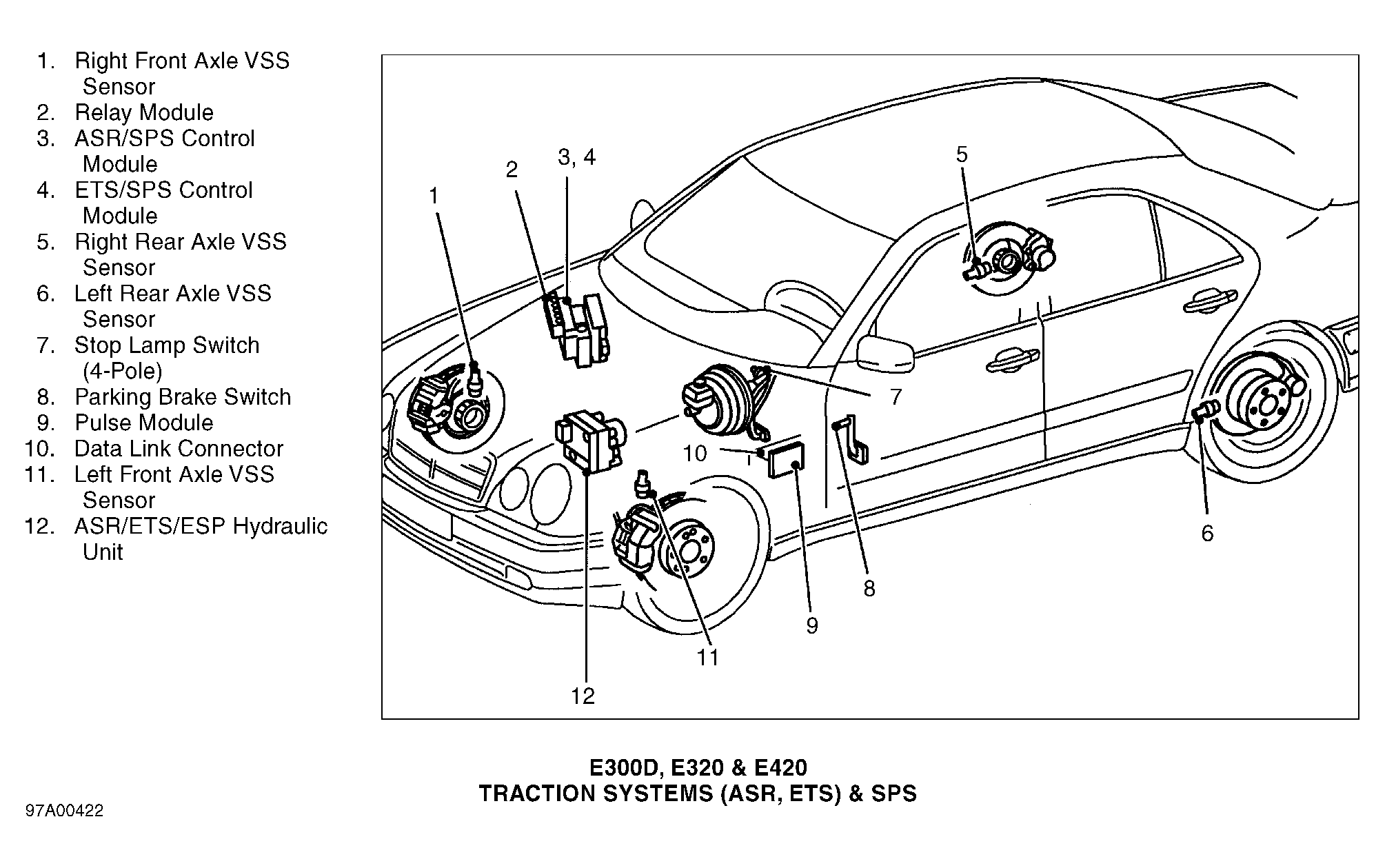

| ASR/ETS/ESP Hydraulic Unit Traction Systems (ASR, ETS) & SPS | On left front of engine compartment. See Figure . |
| ASR/SPS Control Module | In module box, on right rear of engine compartment. |
| ASR/SPS Control Module Traction Systems (ASR, ETS) & SPS | In module box, on right rear of engine compartment. See Figure . |
| Automatic Transmission Control Module (EATC) (5-Speed) | In module box, on right rear of engine compartment. |
| Cycling Module | On left rear corner of engine compartment. |
| Diagnostic Module | On left rear corner of engine compartment. |
| Engine Control Module | In module box, on right rear of engine compartment. |

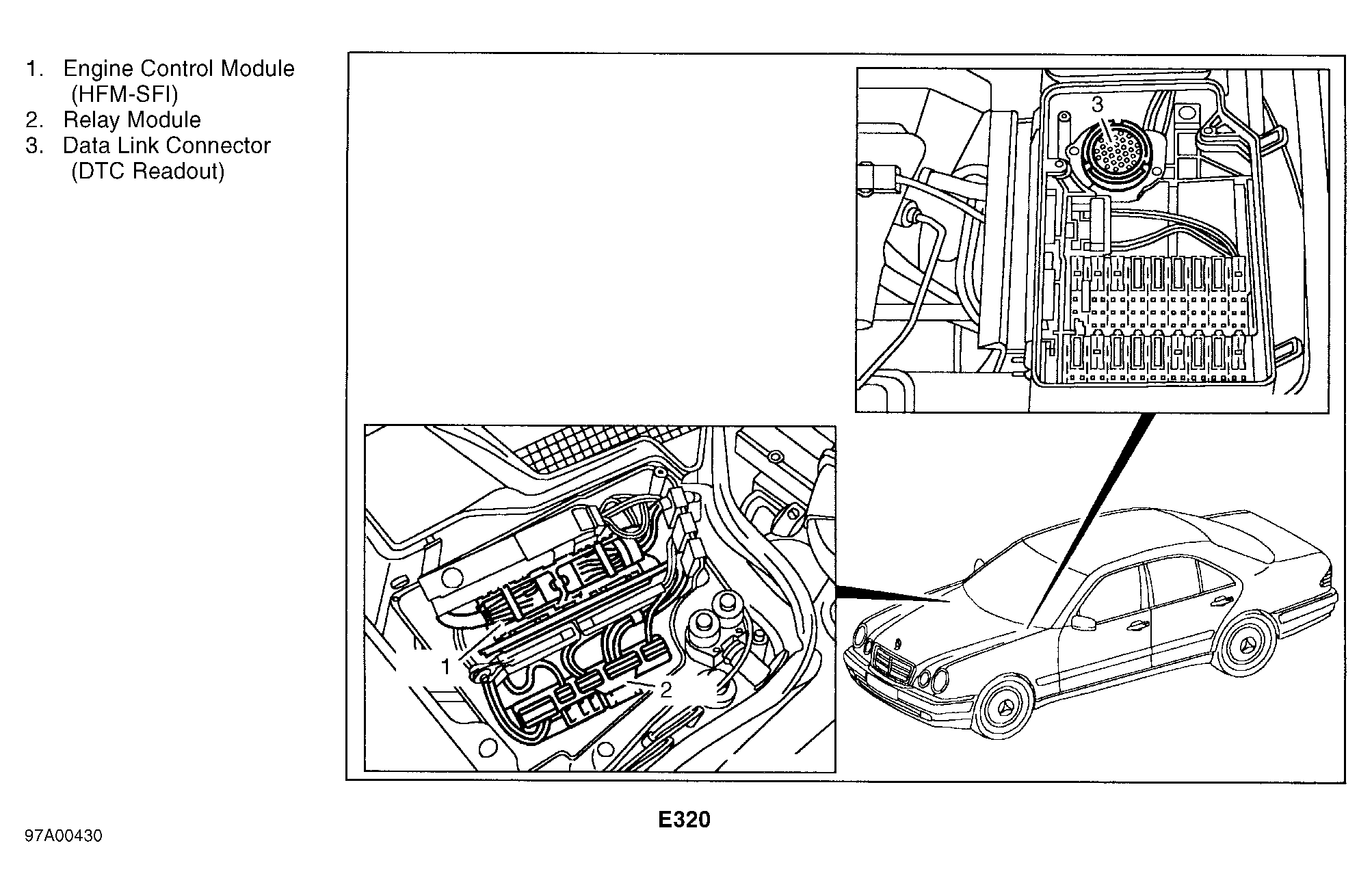

| Engine Control Module (HFM-SFI) (E320) | In module box, on right rear of engine compartment. See Figure . |

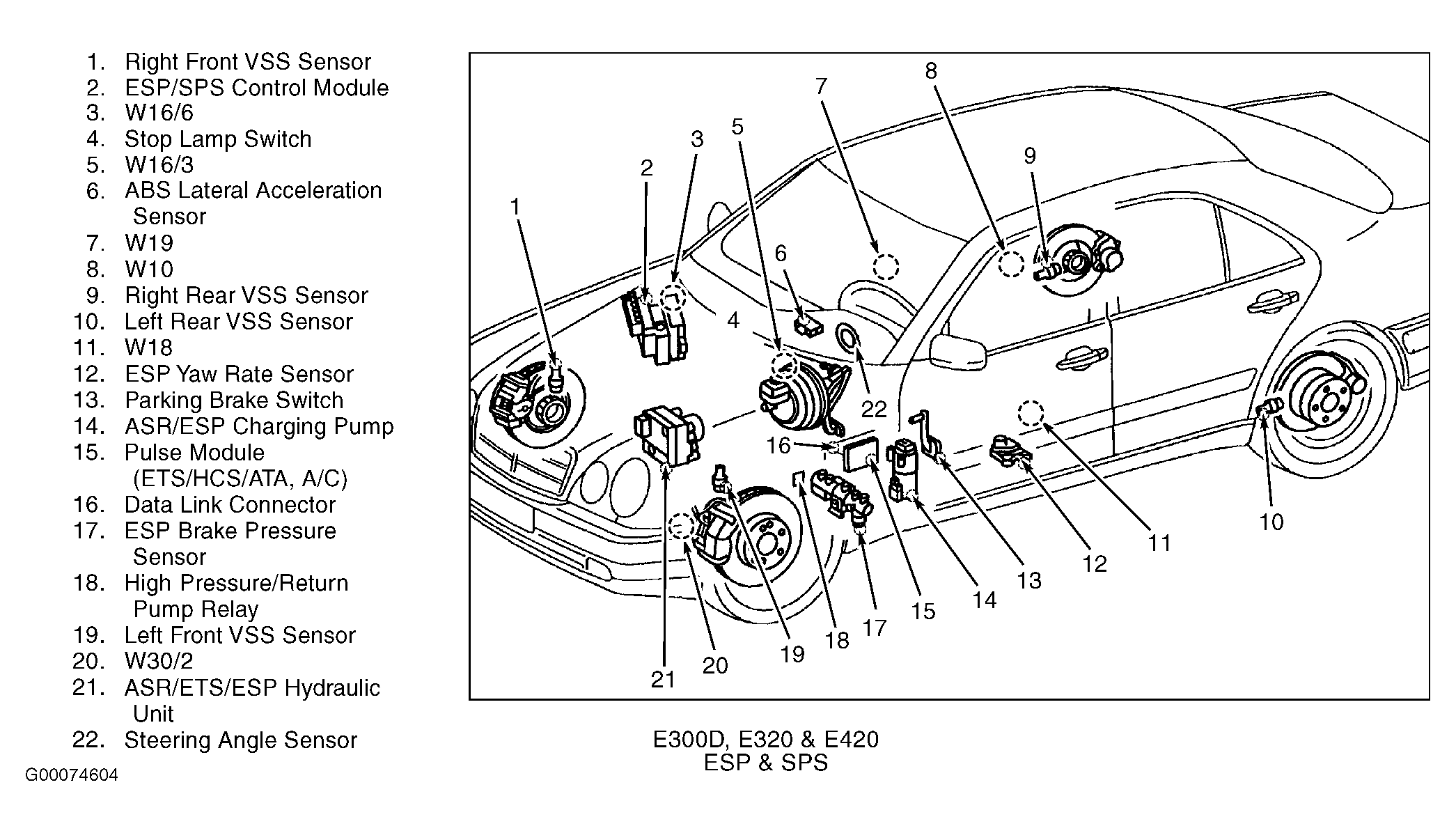

| ESP/SPS Control Module (ESP & SPS) | In module box, on right rear of engine compartment. See Figure . |
| ETS/SPS Control Module | In module box, on right rear of engine compartment. |
| ETS/SPS Control Module Traction Systems (ASR, ETS) & SPS | In module box, on right rear of engine compartment. See Figure . |
| Headlamp Range Adjustment Control Module | Under left side of rear seat. |

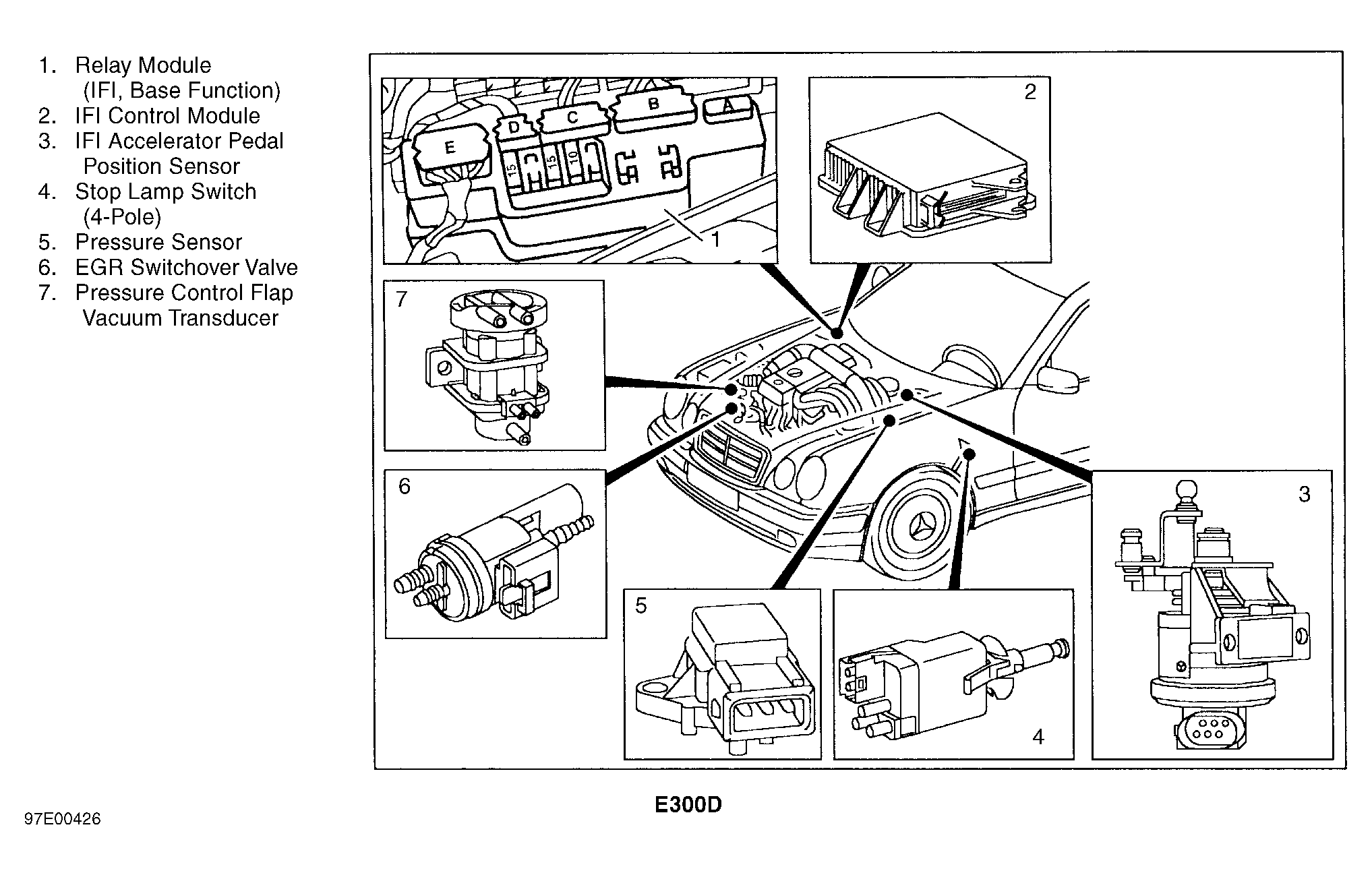

| IFI Control Module (E300D) | In module box, on right rear of engine compartment. See Figure . |
| Infrared Remote Central Locking (IRCL) Control Module | Behind right side of dash. |
| Left Infrared Transmitter & Receiver | At top of left "B" pillar. |
| Light Module | Under left side of dash. |
| Malfunction Control Module | On left rear corner of engine compartment. |
| Multi-Function Control Module | In module box, on right rear corner of engine compartment. |
| Oxygen Sensor 2 (After TWC) Heater Relay Module (E320) | On left rear corner of engine compartment. See Figure . |
| Preglow Time-Limit Relay Module (E300D) | On left front of engine compartment. |
| Pressure Engine Management (PMS) Control Module (E320) | On left side of engine compartment. |
| Pulse Module (ESP & SPS) | On left rear of engine compartment. |
| Pulse Module (ETS/HCS/ATA, A/C) (ESP & SPS) | On left rear corner of engine compartment. See Figure . |
| Pulse Module/Traction Systems (ASR, ETS) & SPS | On left rear corner of engine compartment. See Figure . |
| Relay Module (ESP & SPS) | On right rear of engine compartment. |
| Relay Module (E320) | On right rear corner of engine compartment. See Figure . |
| Relay Module (IFI, Base Function) (E300D) | On right rear of engine compartment. See Figure . |
| Relay Module/Traction Systems (ASR, ETS) & SPS | On right rear of engine compartment. See Figure . |
| Right Infrared Transmitter & Receiver | At top of right "B" pillar. |
| Transmission Control Module | In module box, on right rear of engine compartment. |
| Xenon Headlamp Control Modules | Behind each headlamp. |
| Xenon Headlamp Ignition Modules | Behind each headlamp. |
