Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Adaptive Damping Control Unit | Right front footwell. See Figure. |

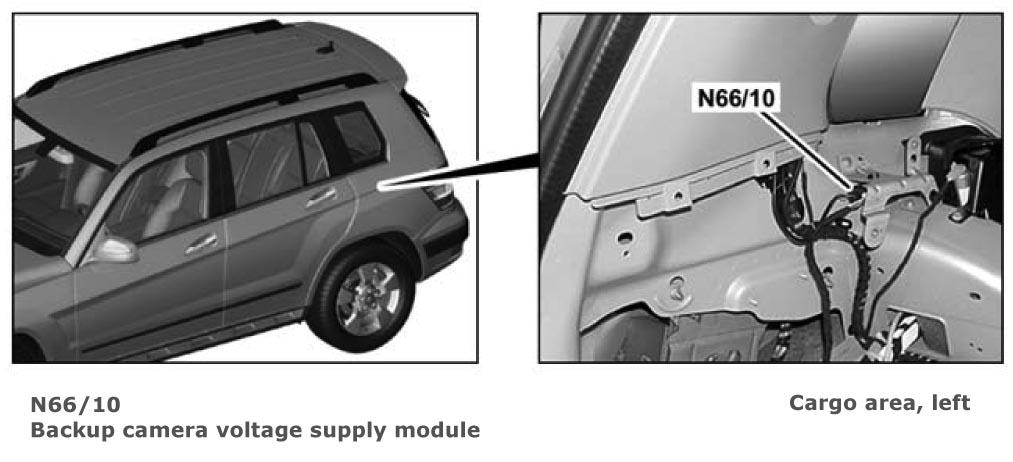

| Backup Camera Voltage Supply Module | Left rear cargo area. See Figure. |
| Blower Regulator | Blower motor. See Figure. |

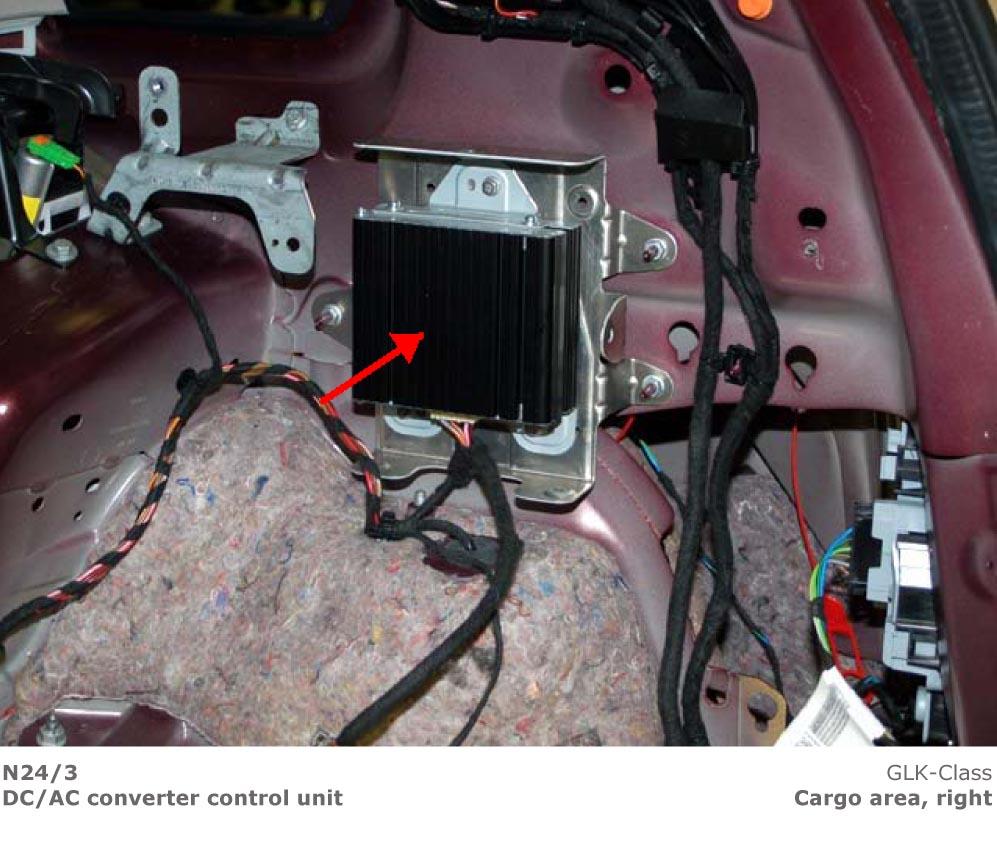

| DC/AC Converter Control Unit | Right side cargo area. See Figure. |
| Electric Steering Lock Control Unit | Steering column. See Figure. |
| Electronic Selector Lever Module Control Module | Under center console. See Figure. |
| Electronic Stability Program Control Unit | Left front engine compartment. See Figure. |
| Electronic Transmission Control Control Unit | Right front footwell. See Figure. |
| Emergency Call System Control Unit | Center front trunk/cargo area. See Figure. |
| Fuel Pump Control Module | Under right rear seat. See Figure. |
| KEYLESS GO Control Unit | Right side trunk/cargo area. See Figure. |
| ME-SFI (ME) Control Module | Top center engine. See Figure. |
| Panoramic Sliding Roof Control Module | Left front roof. See Figure. |
| PARKTRONIC Control Unit | Left front footwell. See Figure. |
| Right Fuel Pump Control Unit (N118/4) | Right side trunk/cargo area. See Figure. |
| Satellite Digital Audio Radio (SDAR) Control Unit | Center front cargo area/trunk. See Figure. |
| Sound System Amplifier Control Unit | Left side trunk/cargo area. See Figure. |
| Steering Column Module Control Unit | Top of steering column. See Figure. |
| Steering Wheel Gear Shift Signal Processing Module | Inside steering wheel. |
| Supplemental Restraint System Control Unit | Under front center console. See Figure. |
| Tire Pressure Monitor Control Unit | Left side trunk/cargo area. See Figure. |
| Traction System Hydraulic Unit | Left front engine compartment. See Figure. |
| Weight Sensing System Control Unit | Under front passenger seat. See Figure. |
| Xenon Headlight Control Module (Left/Right) | Behind respective headlight. |
| Xenon Headlight Ignition Module (Left/Right) | Behind respective headlight. |
