Component Locations

COMPONENT LOCATIONS

Component	Location
Dropping Resistor	See Fig 1

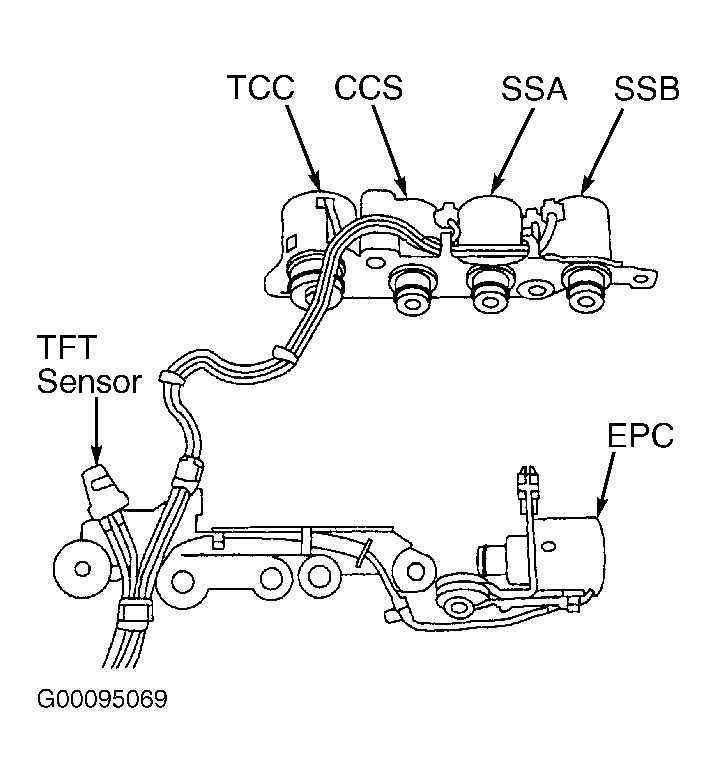

Electronic Pressure Control Solenoid	Part Of Solenoid Assembly, Mounted To Valve Body (See Figure )
Output Shaft Speed Sensor	See Fig 2
Powertrain Control Module	Behind Glove Box
Shift Solenoids (SSA & SSB)	Part Of Solenoid Assembly, Mounted To Valve Body (See Figure )
Torque Converter Clutch Solenoid	Part Of Solenoid Assembly, Mounted To Valve Body (See Figure )
Throttle Position Sensor	See Fig 3
Transmission Fluid Temperature Sensor	Part Of Solenoid Assembly, Mounted To Valve Body (See Figure )
Transmission Range Switch	See Fig 4

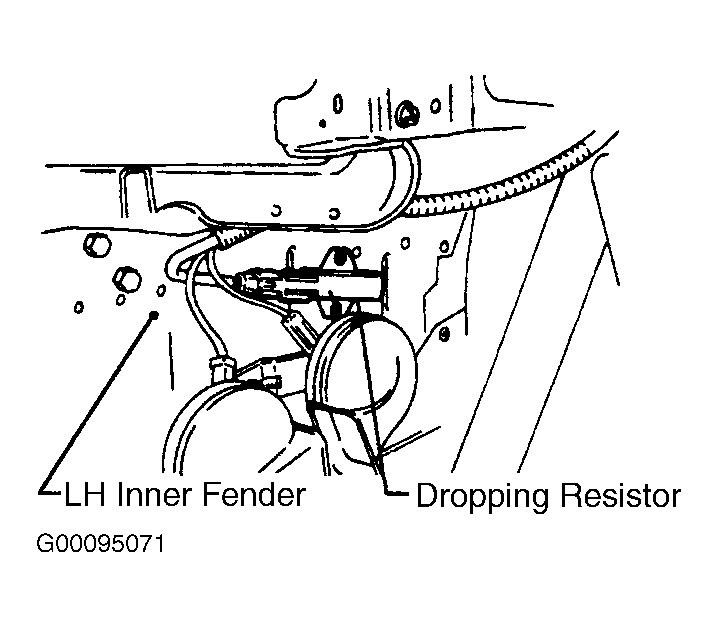

Fig 1: Identifying Dropping Resistor Location

Courtesy of NISSAN MOTOR CO., U.S.A.

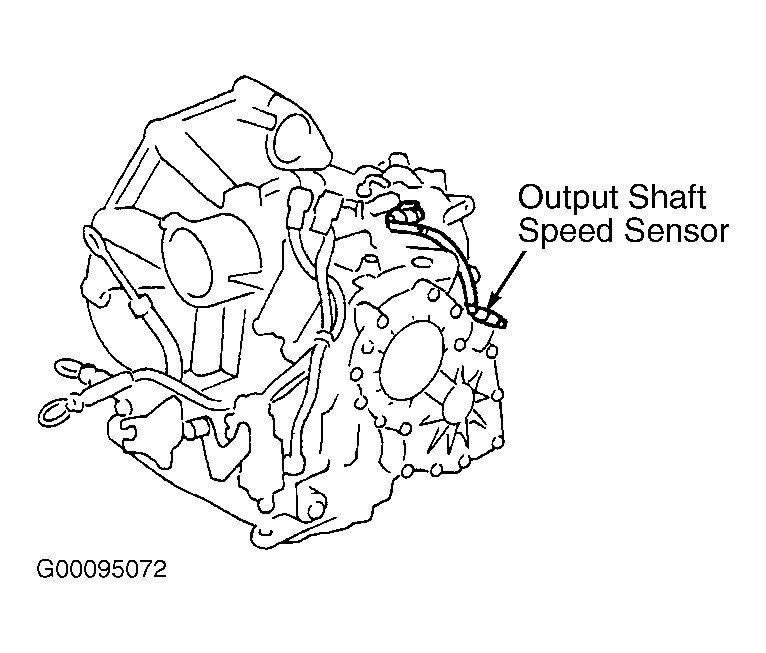

Fig 2: Identifying Output Shaft Speed Sensor Location

Courtesy of NISSAN MOTOR CO., U.S.A.

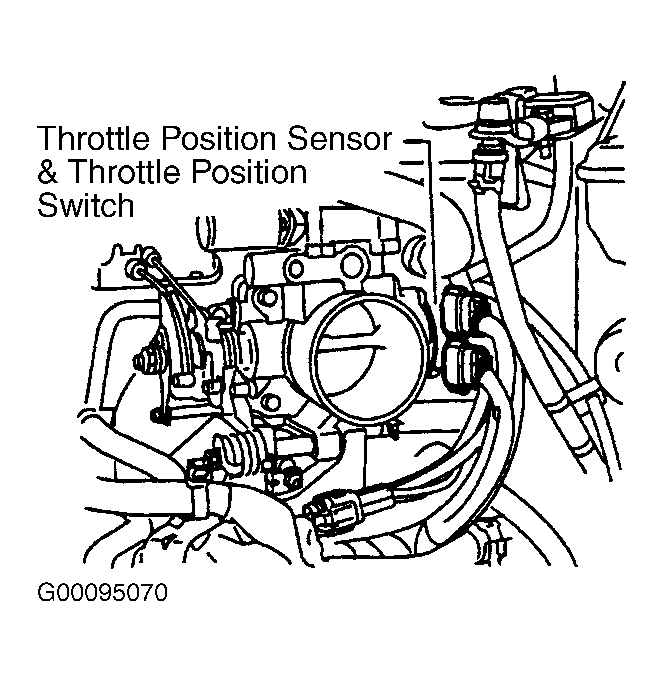

Fig 3: Identifying TP Sensor Location

Courtesy of NISSAN MOTOR CO., U.S.A.

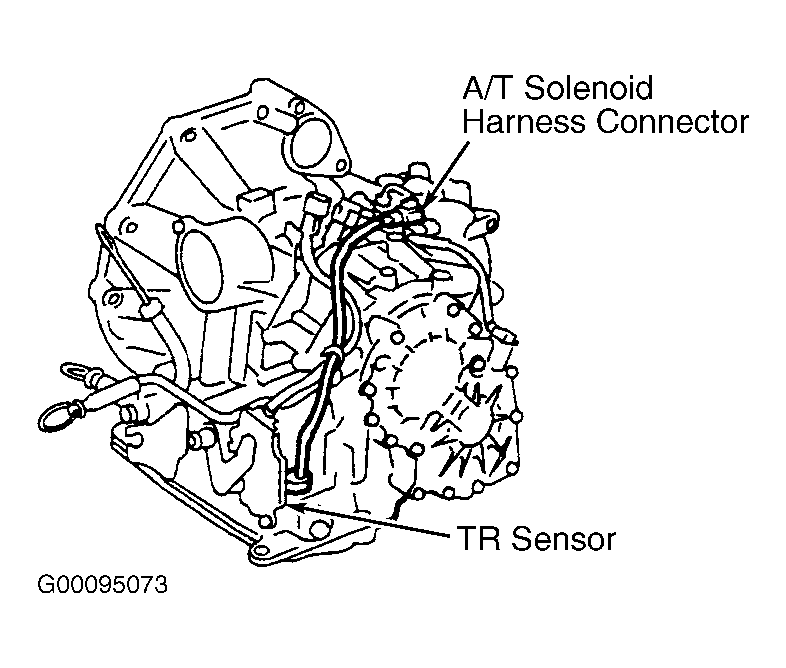

Fig 4: Identifying TR Sensor Location

Courtesy of NISSAN MOTOR CO., U.S.A.
