Component Locations
NOTE:
For more information on fuses and circuit breakers, see FUSES & CIRCUIT BREAKERS
article in ELECTRICAL.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Computer Module (MALL) | Under Right Side Of Instrument Panel. See Fig 1 . |
| Data Link Connector (DLC) | Under Left Of Instrument Panel, On Instrument Panel Sound Insulator |
| IP Fuse Block (Left Hand) | Under Left Of Instrument Panel |
| IP Fuse Block (Right Hand) | Under Right Side Of Instrument Panel. See Fig 3 . |

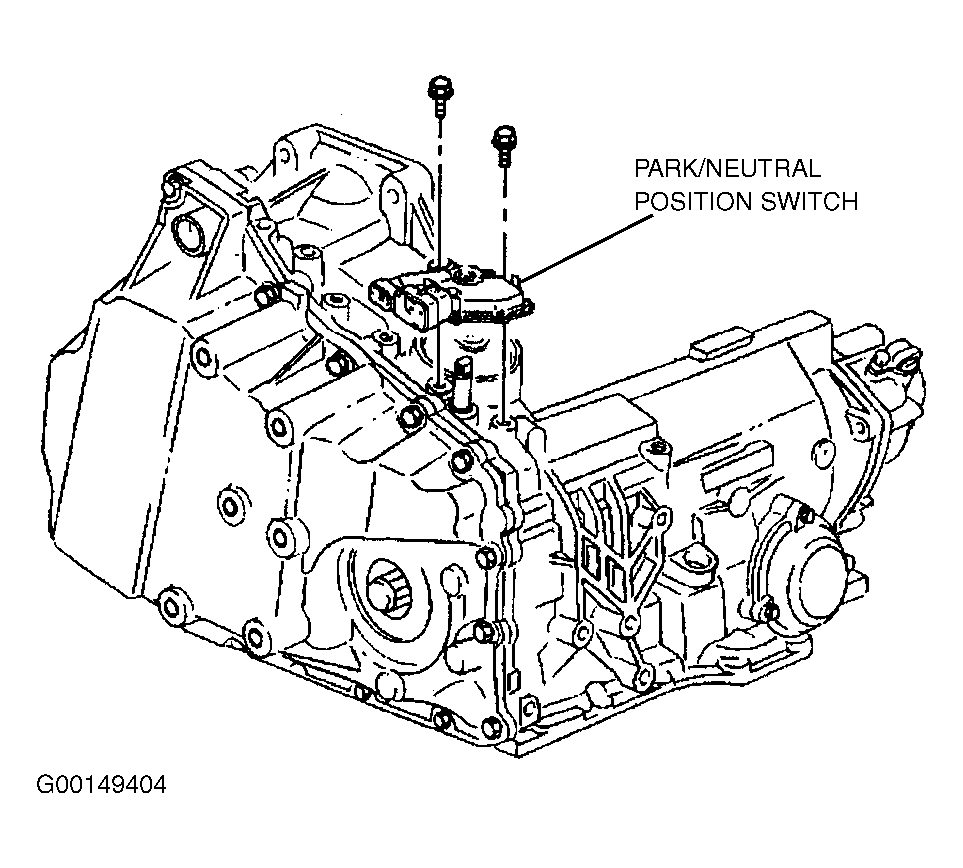

| Park/Neutral Position (PNP) Switch | Left Of Transaxle, Below EGR Valve. See Fig 2 |

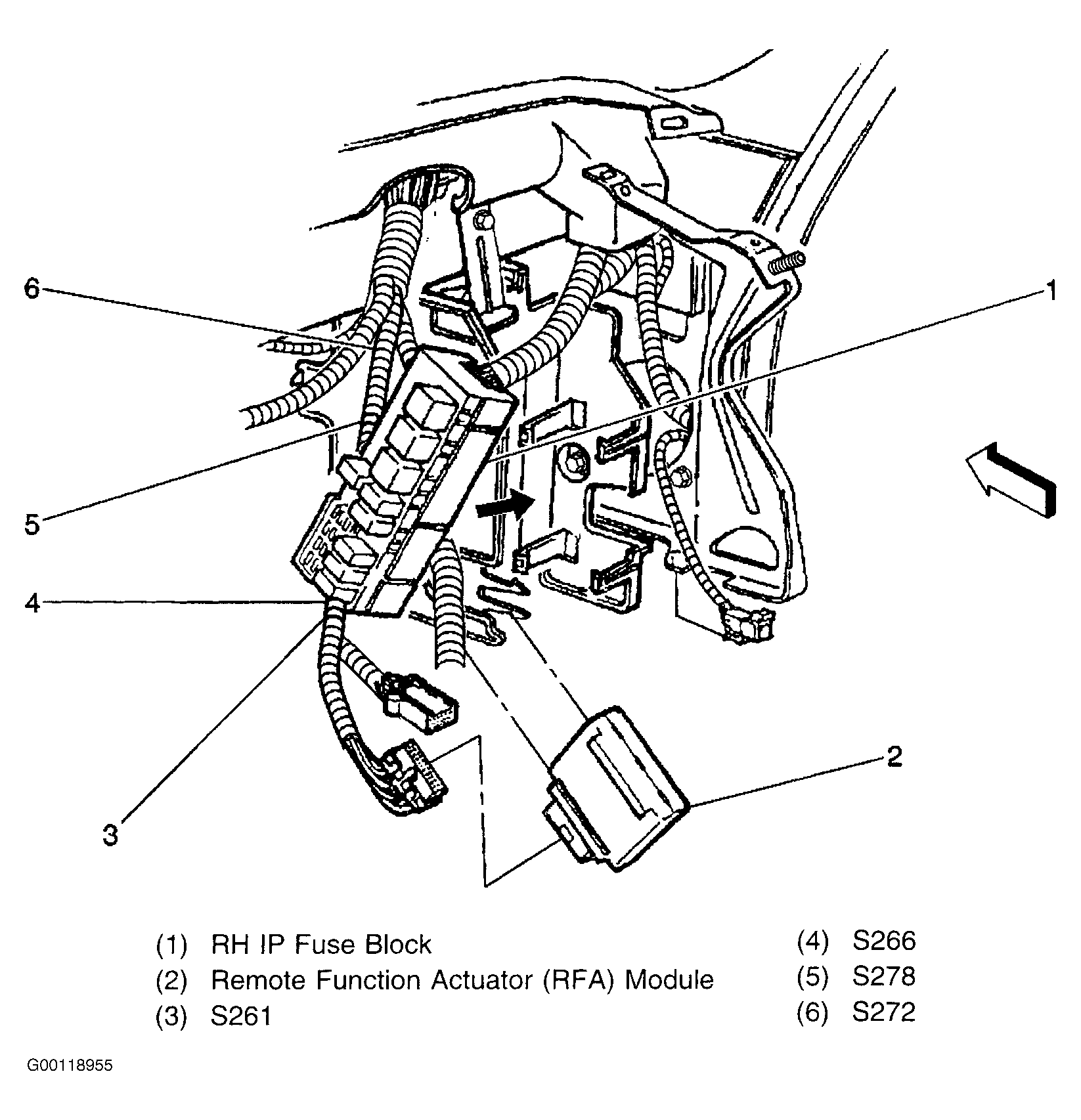

| Remote Function Actuator (RFA) Module | Under Right Of Instrument Panel. See Fig 3 |
| G202 | Left Front Of Passenger Compartment, Behind Left Kick Panel Trim Plate. See Fig 4 |
| P100 | Left Rear Of Engine Compartment, Near Left Front Strut Tower |
| S208 | In Body Harness, Approximately 6 cm (2.3 in) From Center Instrument Panel Harness Channel Breakout |

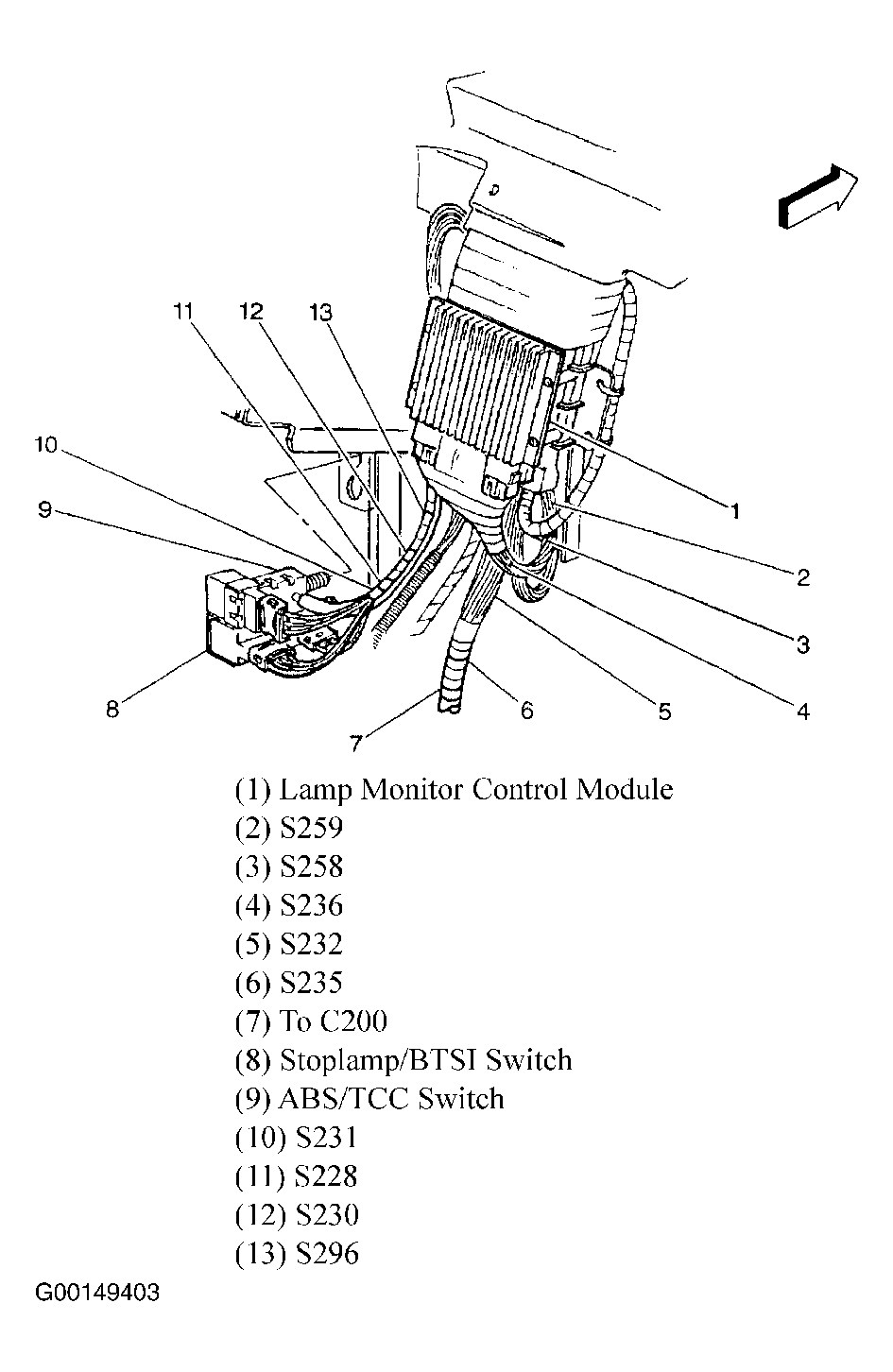

| S225 | In Body Harness, Approximately 49.5 cm (19.4 in) From Top Edge Of Left Kick Panel Channel. See Fig 4 |

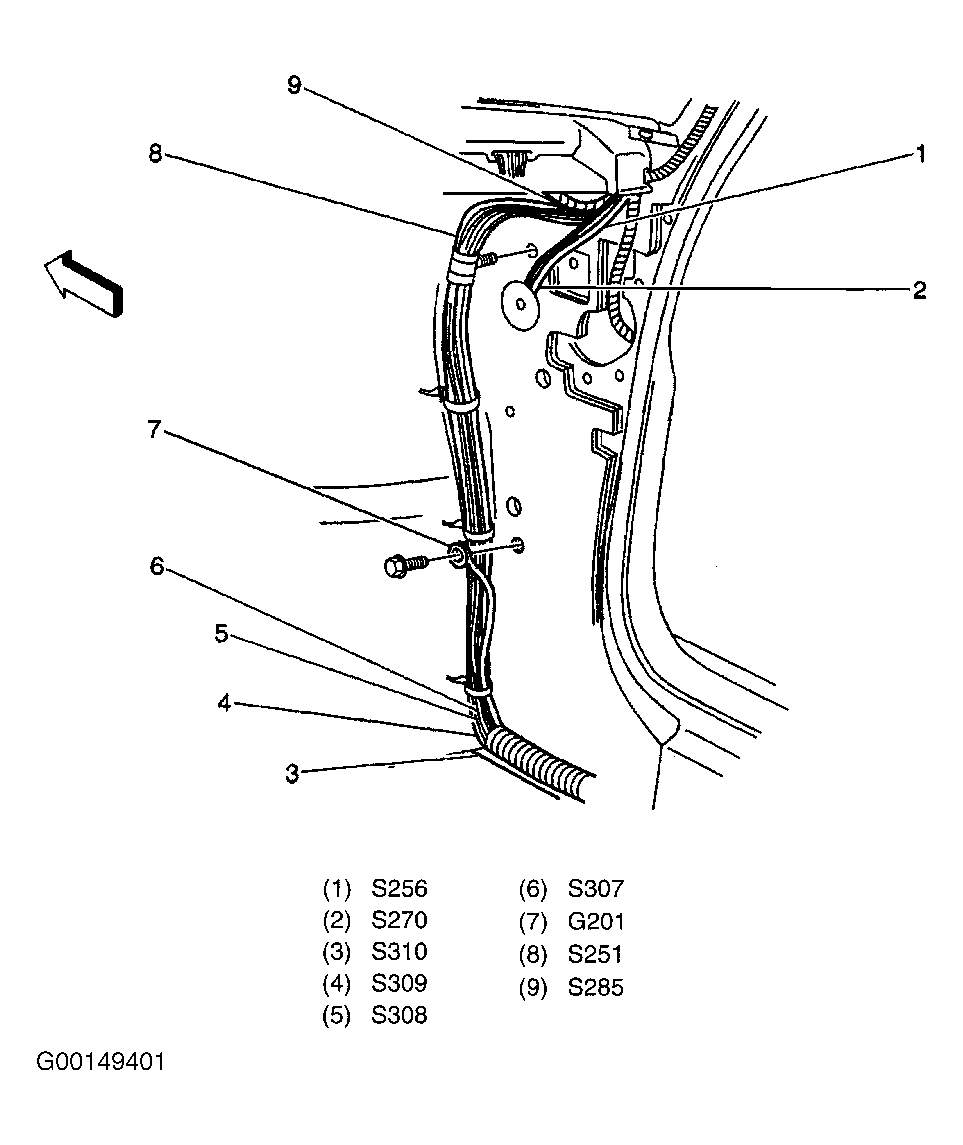

| S251 | In Body Harness, Approximately 10 cm (3.9 in) From Right Instrument Panel Harness Channel End. See Fig 5 |
| S278 | In Body Harness, Approximately 42.5 cm (16.7 in) From Remote Function Actuator Module Breakout. See Fig 3 |
| S296 | In Body Harness, Approximately 13 cm (5.1 in) From Center Instrument Panel Harness Channel Breakout. See Fig 6 |
