Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|

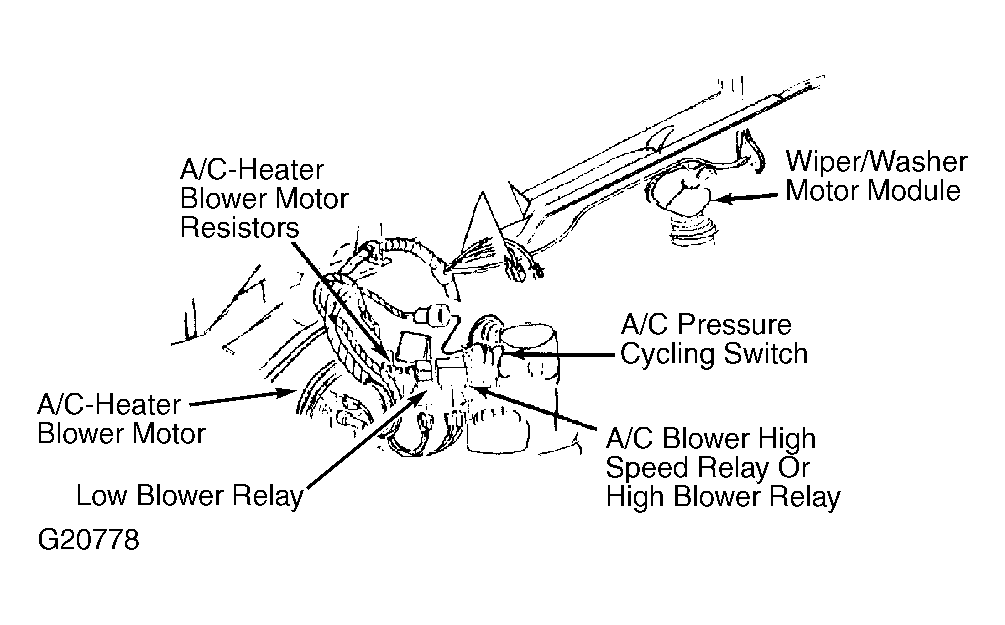

| A/C-Heater Blower Resistors | On blower housing near motor. See Figure. | |
| ALDL Connector | On convenience center bracket. | |
| Audio Alarm Assembly | On convenience center. | |

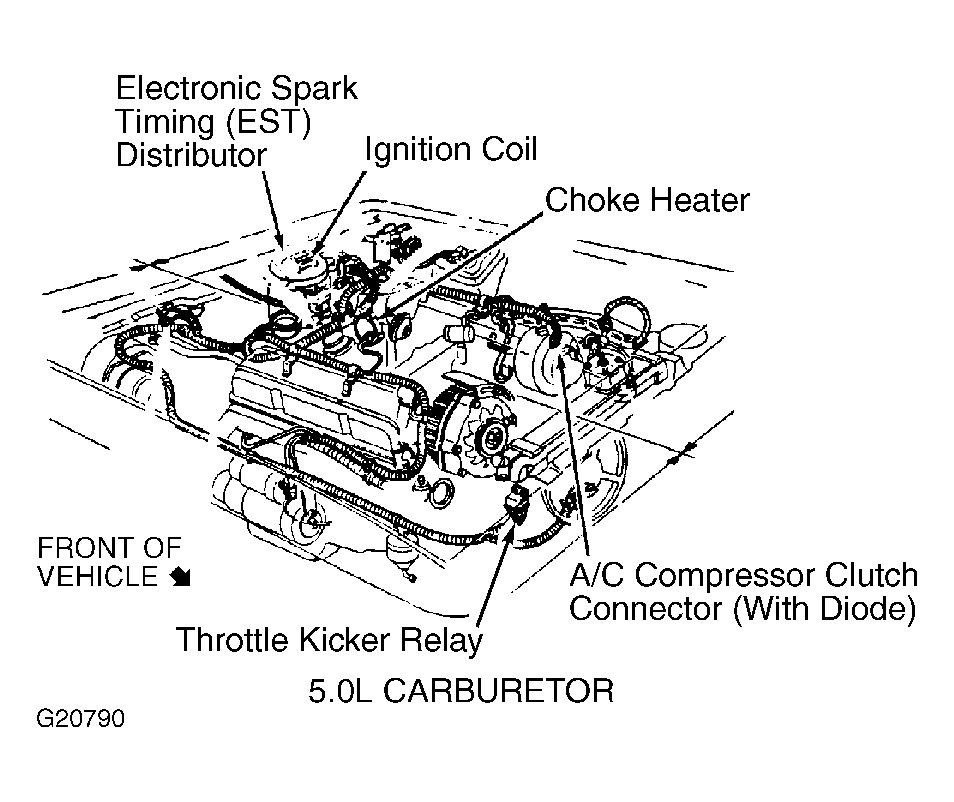

| Choke Heater | On side of carburetor. See Figure. | |
| Cold Start Injector (2.8L) | On right rear top of engine. | |
| Cold Start Injector (5.0L EFI) | On left top side of engine. | |
| Convenience Center | Under dashboard to right of steering column. | |
| Cruise Control Servo | In left front corner of engine compartment. | |
| Diagnostic Dwell Meter Connector (V6) | Taped on ECM harness behind right valve cover. | |
| Diagnostic Dwell Meter Connector (V8) | Taped on ECM harness behind right front shock tower. | |
| EGR Diagnostic Connector | On top rear of engine. | |
| Fuse Block | Under dashboard at left of steering column. | |
| Fusible Links | ||
| A (Red-V6) Lights | At starter solenoid. | |
| A (Rust-V8) Lights | At starter solenoid. | |
| B (Red-V6) Ignition, Accy. & High Speed Blower Relay | At starter solenoid. | |
| B (Rust-V8) Ignition, Accy. & High Speed Blower Relay | At starter solenoid. | |
| C (Orange-V8) Elec. Control Module | Behind battery. | |
| D (Red-V8 Camaro) Cooling Fan Rly. | Behind battery. | |
| D (Red-V8 Firebird) Headlight Door Module | On left side of cowl. | |
| E (Red-V6 Camaro) Cooling Fan Rly. | At junction block, near battery. | |
| E (Red-V8 Firebird) Headlight Door Module | On left side of cowl. | |
| F (Rust-V8 Firebird) Cooling Fan Relay | On left side of cowl. | |
| G (Red-V6 Camaro) Charging System | At starter solenoid. | |
| G (Rust-V8 Camaro) Charging System | At starter solenoid. | |
| G (Red-V8 Firebird) Foglight Relay | On left side of cowl. | |
| H (Rust-V6 & V8 Camaro) Foglight Relay | Left front corner of engine compartment. | |
| H (Red-V8 Firebird) Charging System | At starter solenoid. | |
| J (Red-V6 Firebird) Cooling Fan Relay | At junction box, near right radiator support. | |
| J (Rust-V8 Firebird) Charging System | At starter solenoid. | |
| Headlight Circuit Breaker | In headlight switch. | |
| Heater Blower Motor Radio Capacitor | On blower assembly in engine compartment. | |
| Heater Blower Resistors | On blower motor housing. | |
| Ignition Radio Capacitor | Behind left dashboard above fuse block. | |
| In-Line Diodes A/C Compressor Clutch | Taped inside compressor clutch connector. See Figure & 12. | |
| In-Line Diodes Alternator (Isolation) | In wiring harness near fuse block. | |
| In-Line Fuses Fuel Pump | On right front wheelwell. See Figure & 16. | |
| In-Line Fuses (Hatch - Pull Down) | Behind upper left side of dashboard. | |

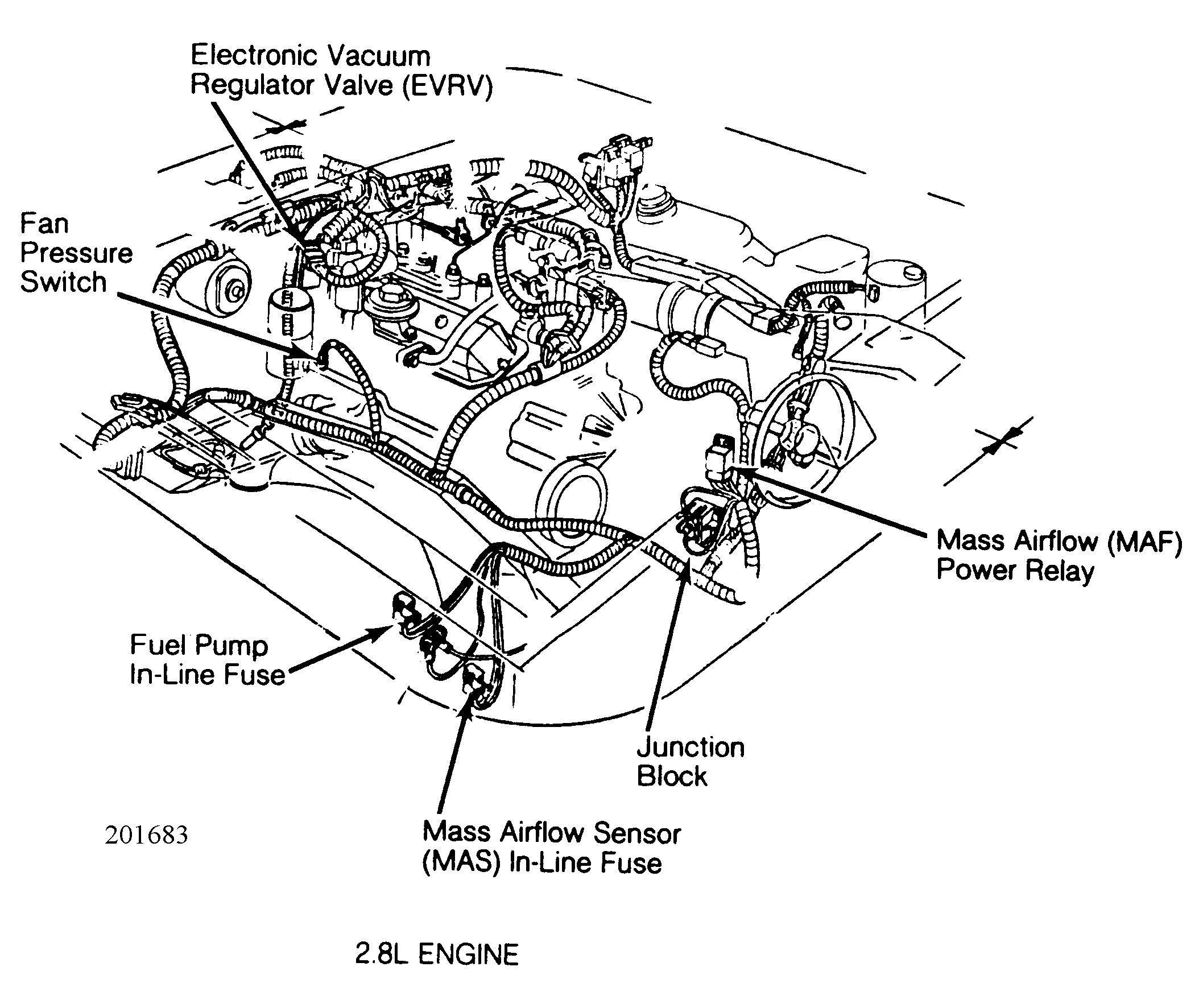

| In-Line Fuses Mass Airflow (MAF) Sensor (2.8L) | In right front corner of engine compartment. See Figure & 16. | |
| In-Line Fuses Mass Airflow (MAF) Sensor (5.0L EFI) | Near positive cable behind battery. | |
| In-Line Fuse: Power Seat | Under driver's seat. | |

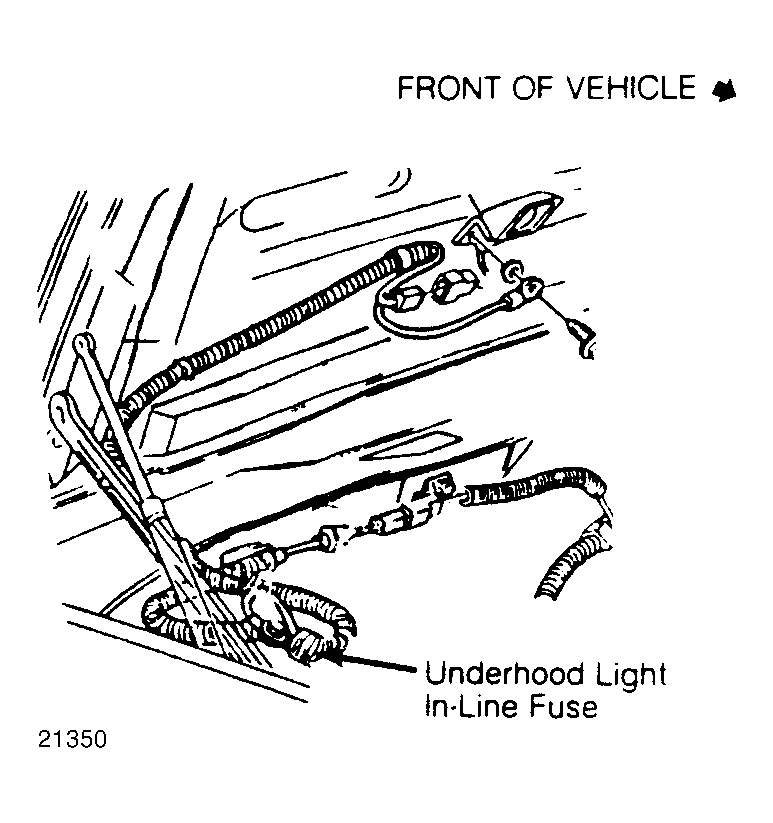

| In-Line Fuse: Underhood Light | On right side of firewall by fusible link J. See Figure. | |
| Junction Block | On right side of radiator support. See Figure & 16. | |
| Power Accy. Circuit Breaker | In fuse block. | |
| Power Window/Rear Wiper Circuit Breaker | In fuse block. | |
| Resistance Wire | Under left side of dashboard near ignition switch. | |
| Vehicle Speed Sensor Buffer | Taped to dashboard wiring harness near bulkhead connector. | |

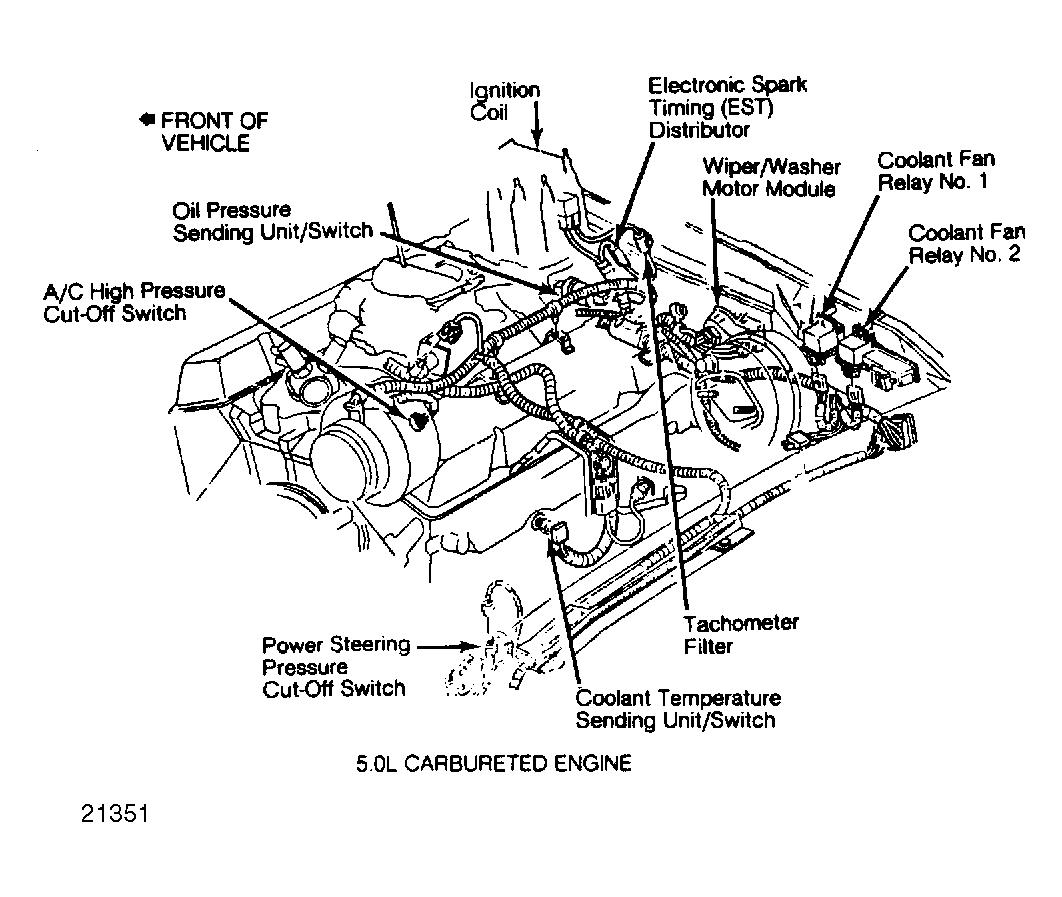

| Tachometer Filter | On rear of engine near distributor. See Figure & 12. | |
