Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

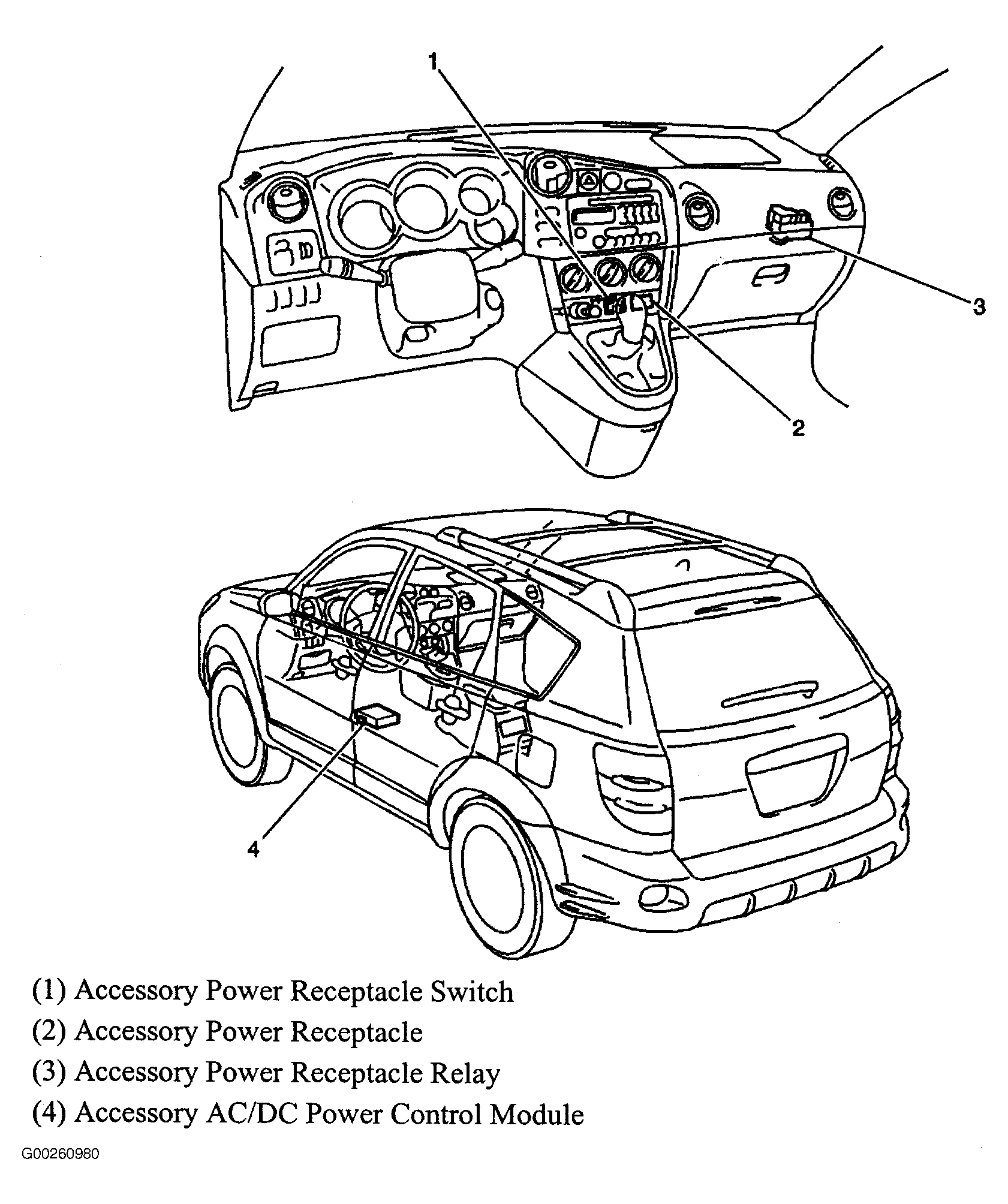

| Accessory AC/DC Power Control Module | Under driver's seat. See Figure. |

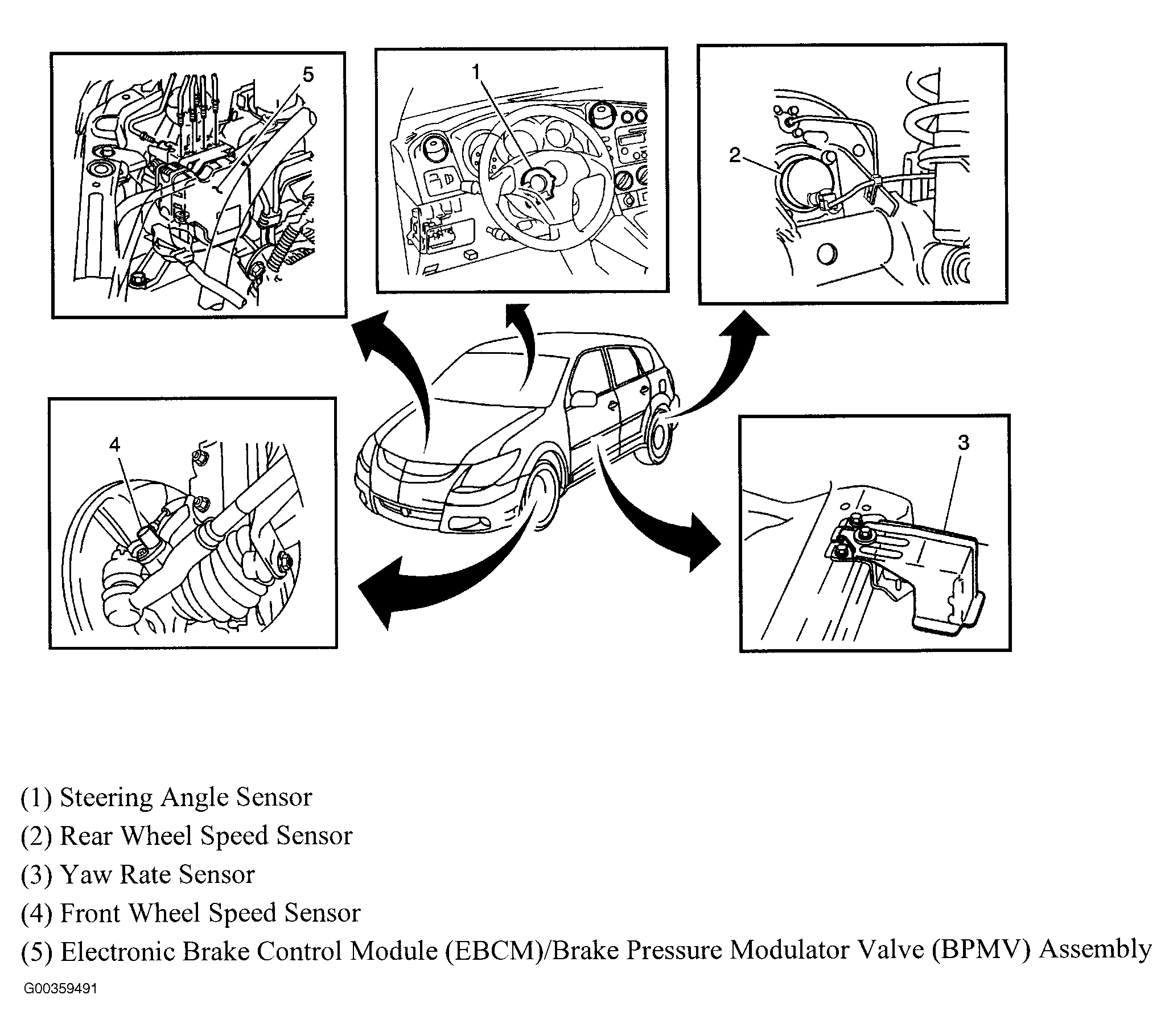

| Brake Pressure Modulator Valve (BPMV) Assembly | At right front side of engine compartment. See Figure. |

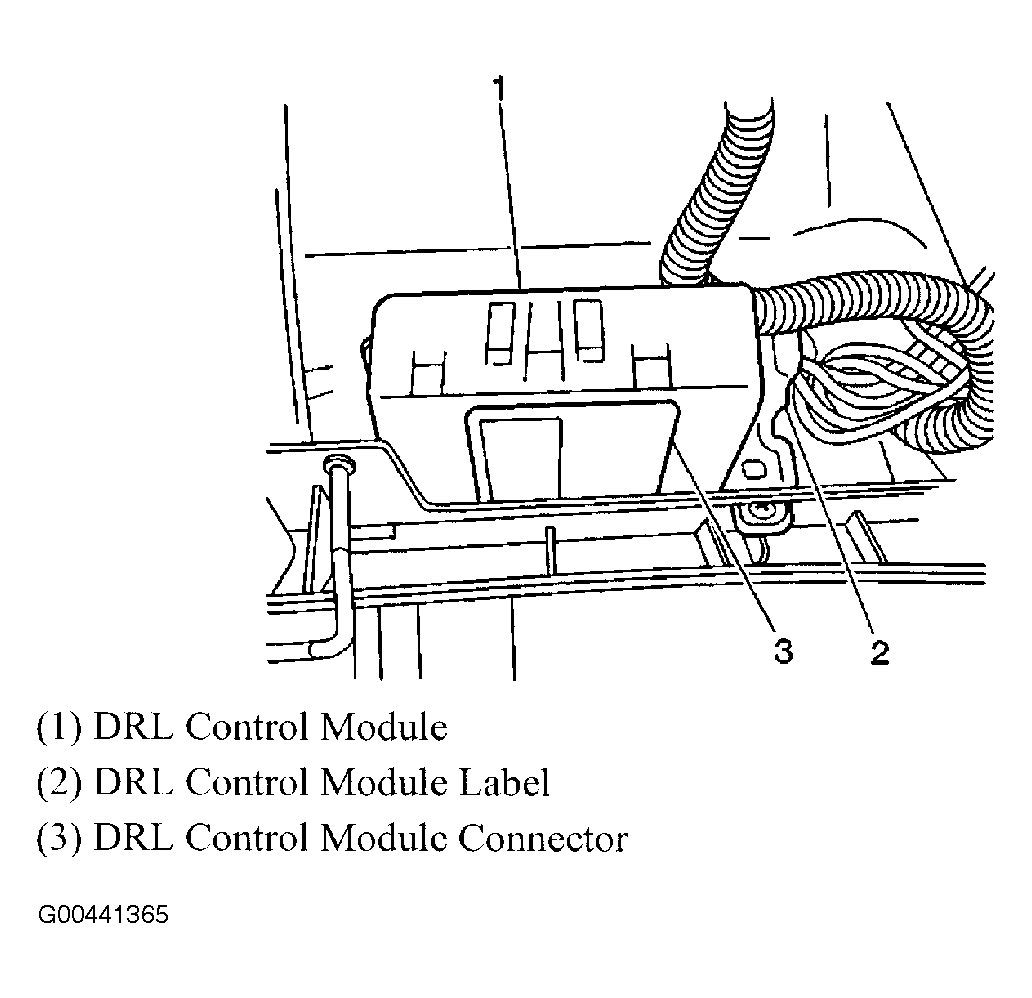

| DRL Control Module | At right side of steering column, above brake pedal. See Figure. |

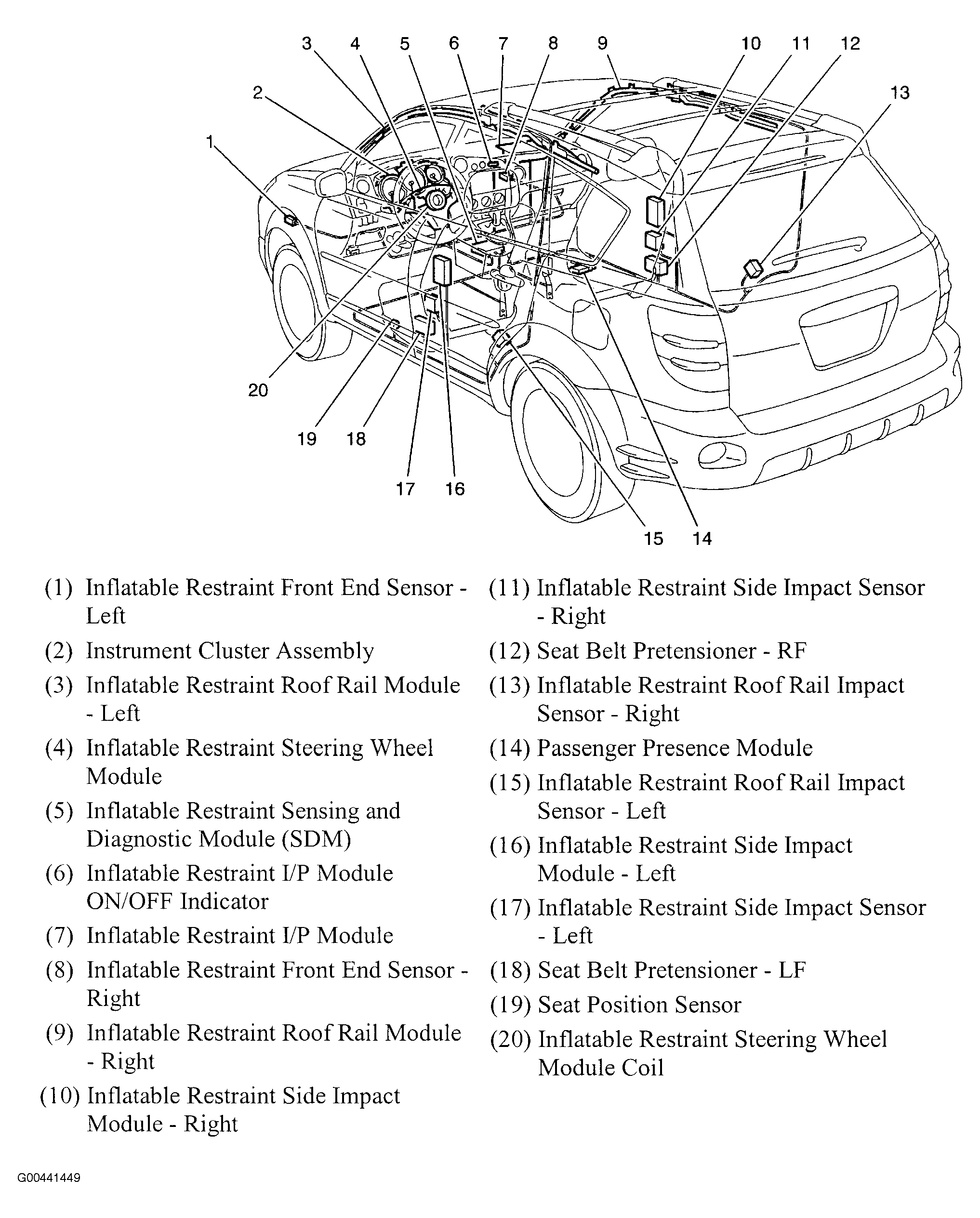

| Inflatable Restraint I/P Module | At top right of dash. See Figure. |
| Inflatable Restraint Roof Rail Module - Left | Above left doors. See Figure. |
| Inflatable Restraint Roof Rail Module - Right | Above right doors. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | At front center of console, below shifter assembly. See Figure. |
| Inflatable Restraint Side Impact Module - Left | At base of left "B" pillar. See Figure. |
| Inflatable Restraint Side Impact Module - Right | At base of right "B" pillar. See Figure. |
| Inflatable Restraint Steering Wheel Module | In steering wheel. See Figure. |

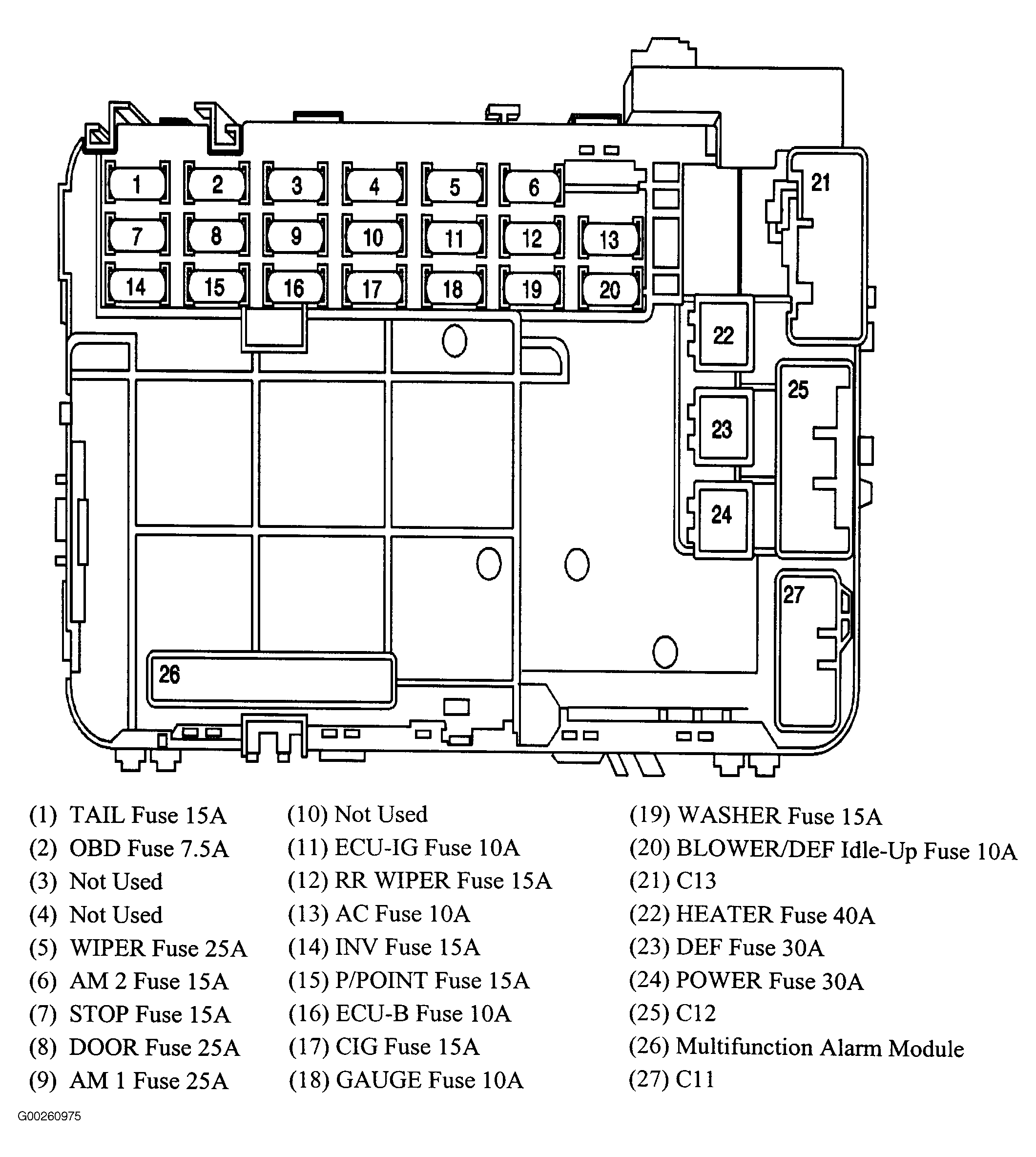

| Multifunction Alarm Module | Behind left side of dash, mounted to dash fuse block. See Figure. |
| Passenger Presence Module | Under front passenger seat. See Figure. |

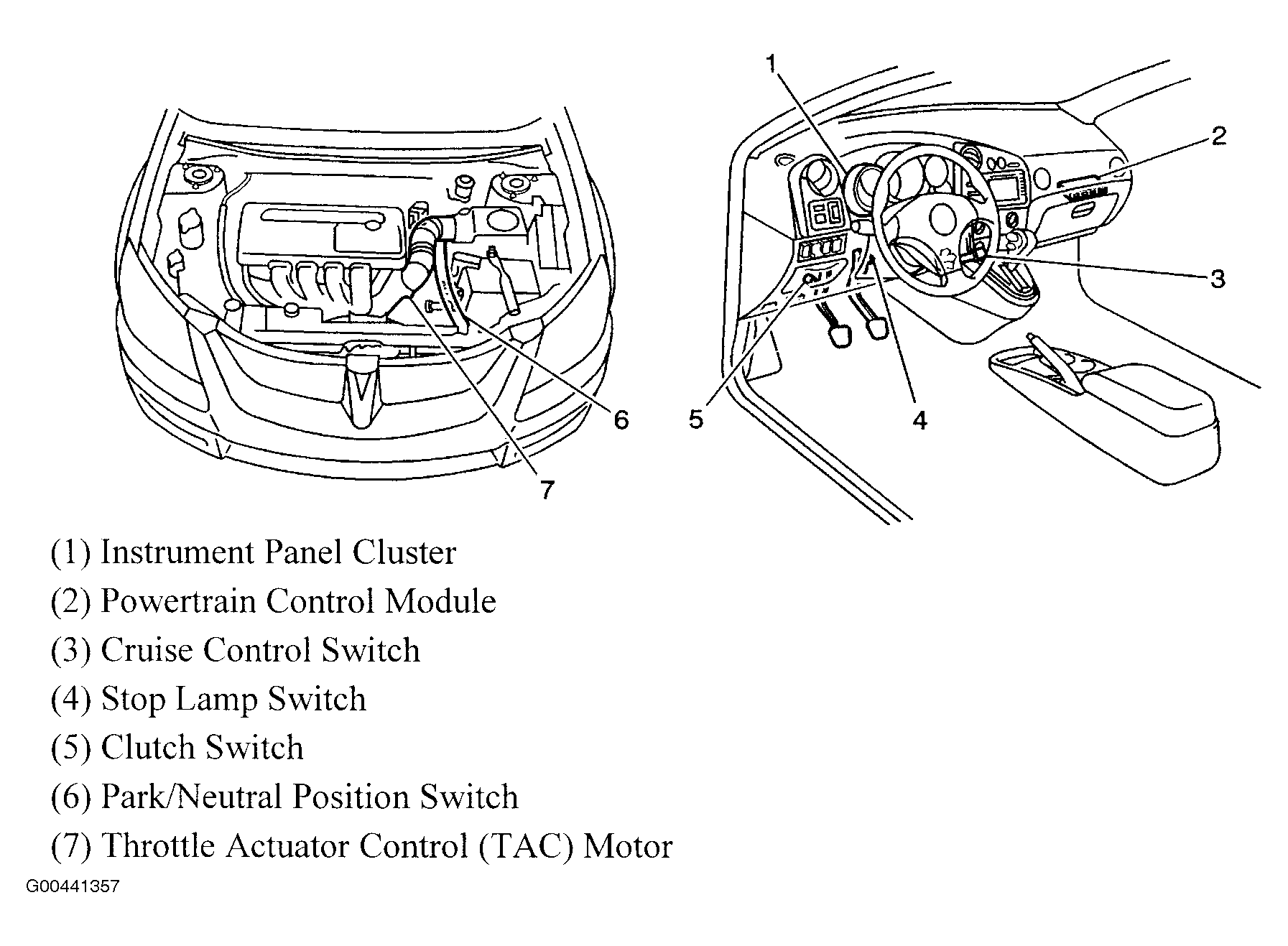

| Powertrain Control Module (PCM) | Behind right side of dash. See Figure. |

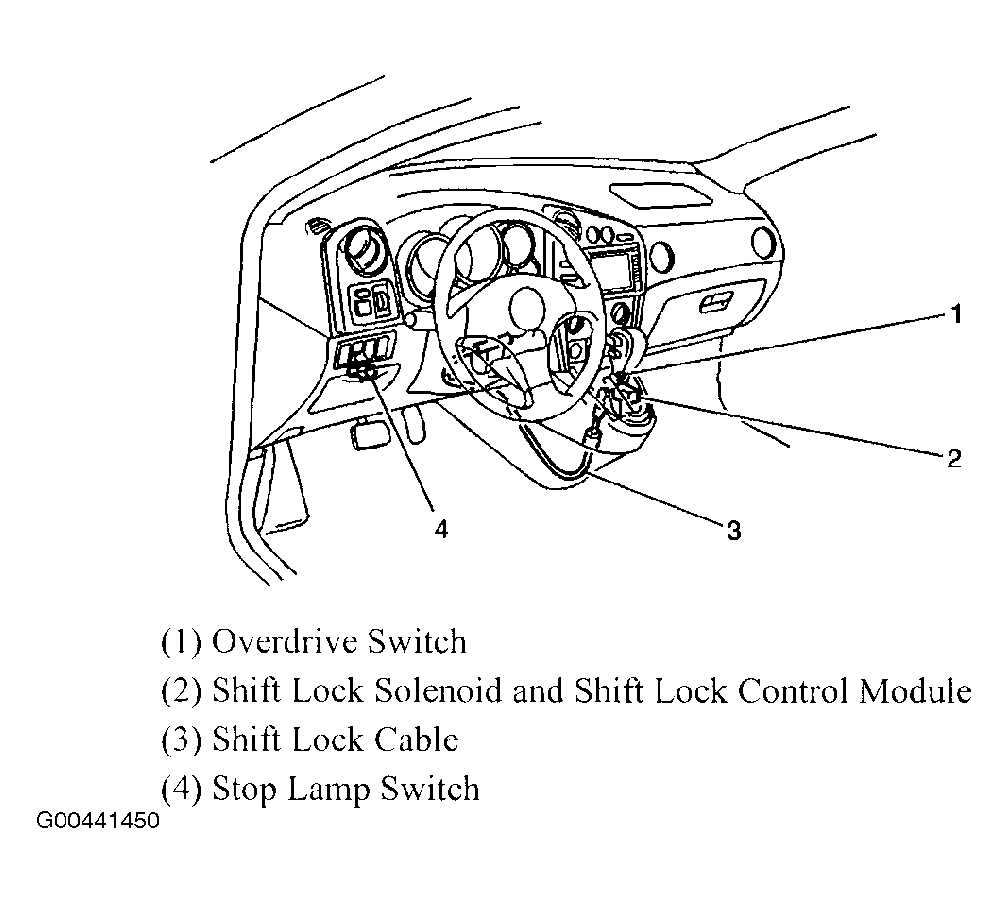

| Shift Lock Control Module | Under center console, attached to right side of shift lever. See Figure. |
| Theft Deterrent Control Module | Behind right side of dash. See Figure. |
| Throttle Actuator Control (TAC) Module | LF of engine, attached to throttle body. See Figure. |

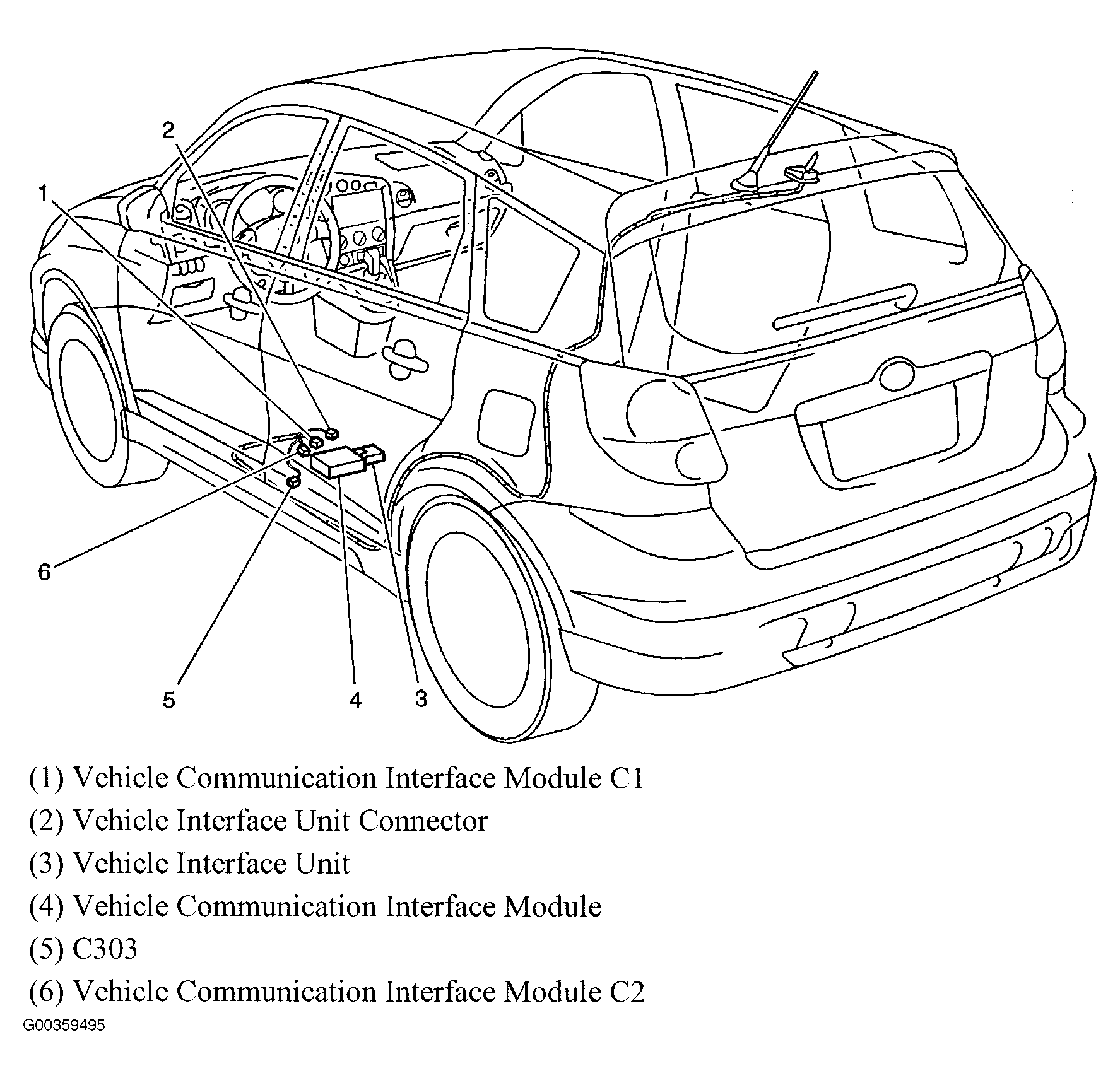

| Vehicle Communication Interface Module | Under driver seat. See Figure. |
