Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

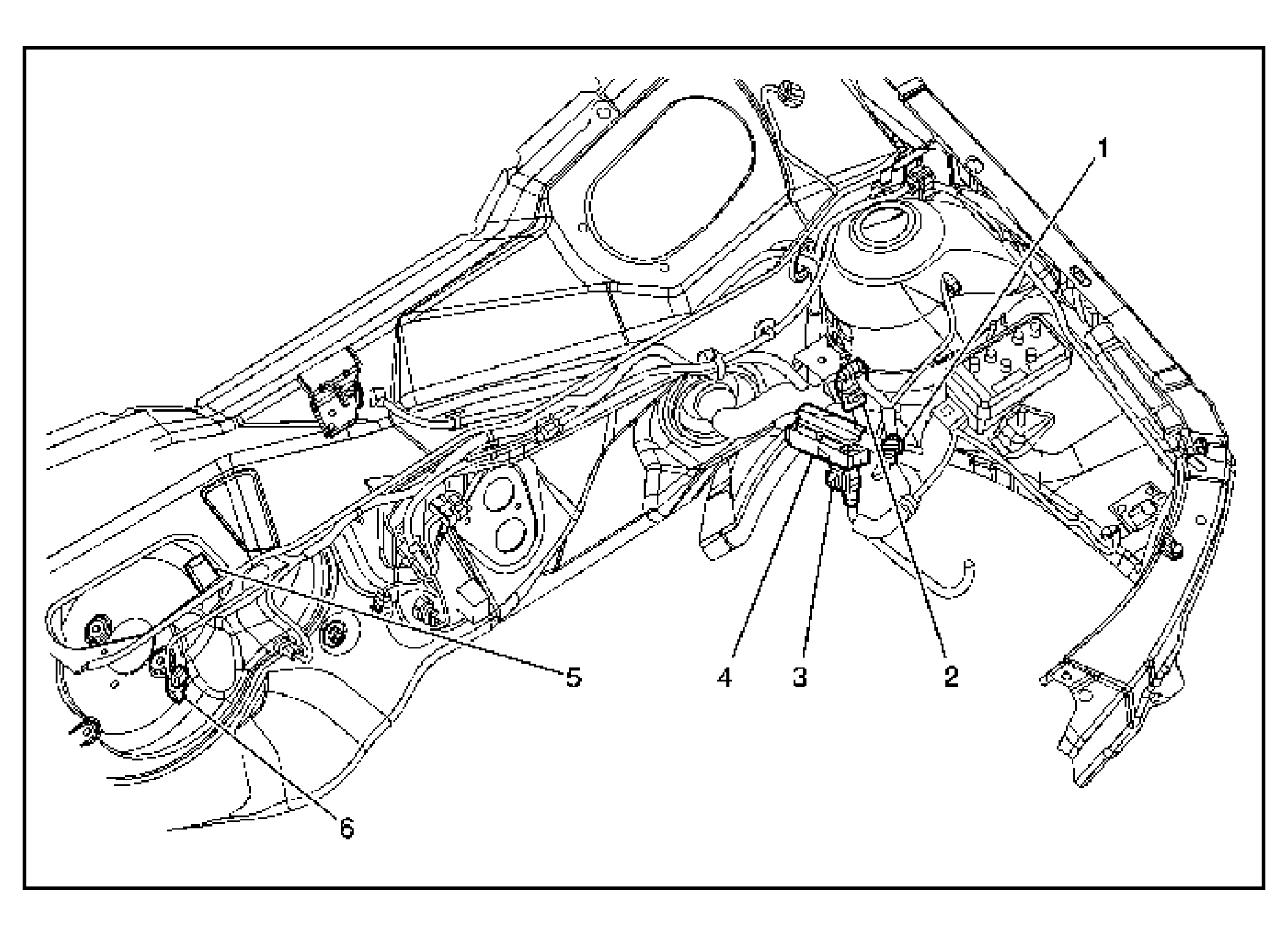

| Electronic Brake Control Module (EBCM) (4) | Left rear of engine compartment. See Figure. |

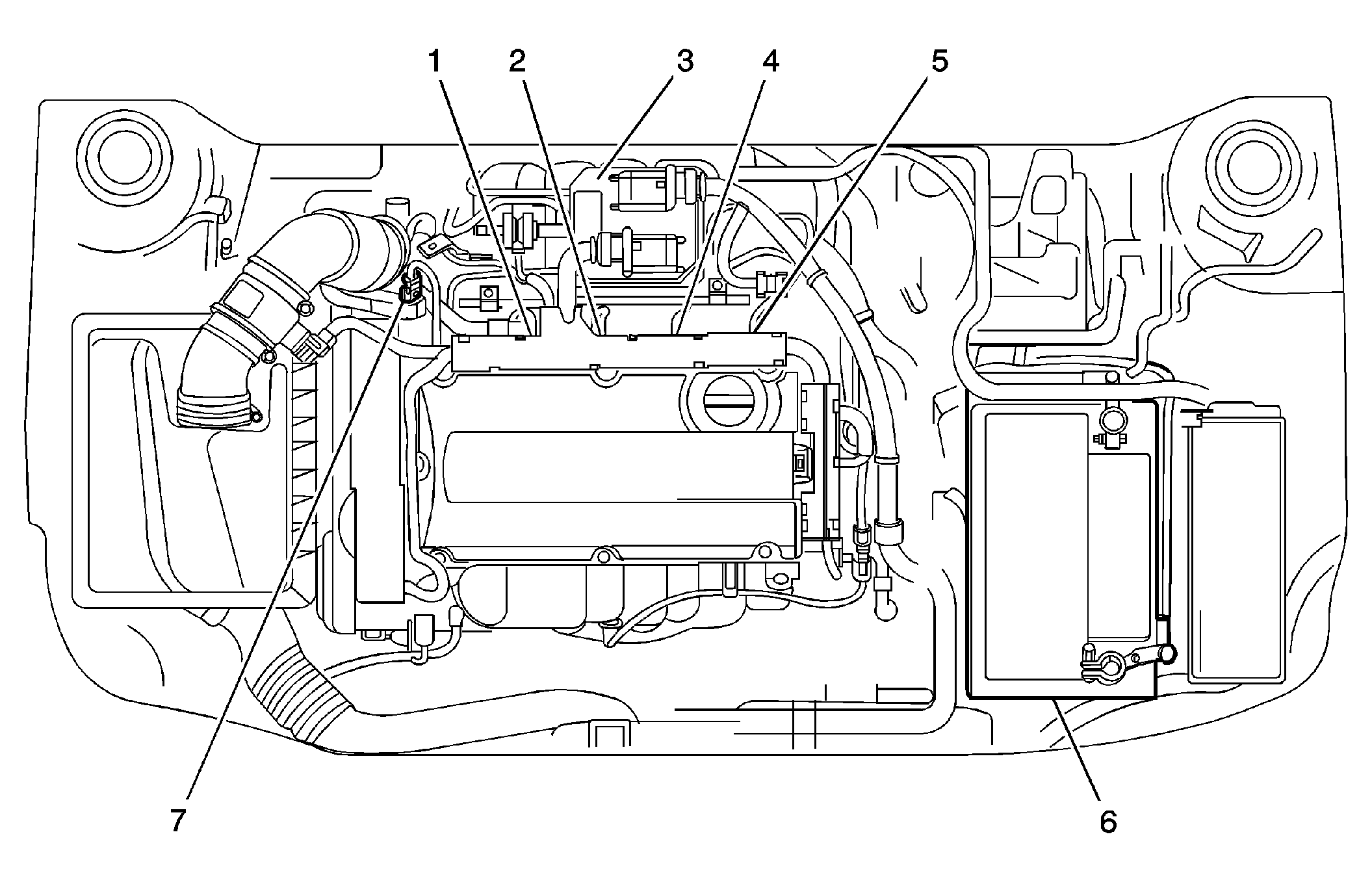

| Engine Control Module (ECM) (3) | Center rear of engine compartment. See Figure. |
| Heated Seat Control Module (Driver) | Under driver's seat. |
| Heated Seat Control Module (Passenger) | Under front passenger's seat. |

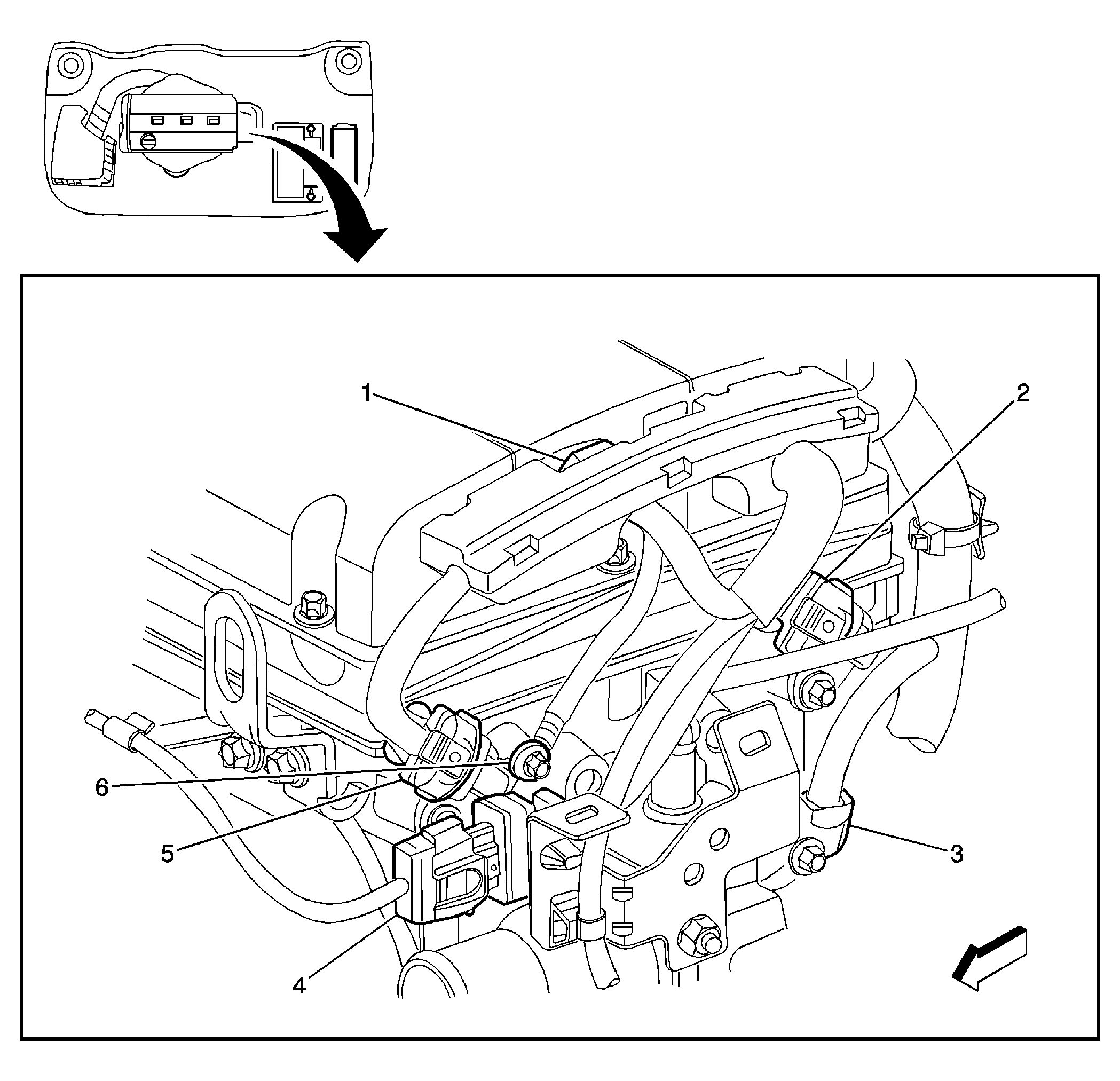

| Ignition Control Module (ICM) (1) | Top rear of engine. See Figure. |
| Inflatable Restraint Front Passenger Presence System (PPS) Module | Under front passenger's seat. |
| Inflatable Restraint Sensing And Diagnostic Module (SDM) | Under center console. |

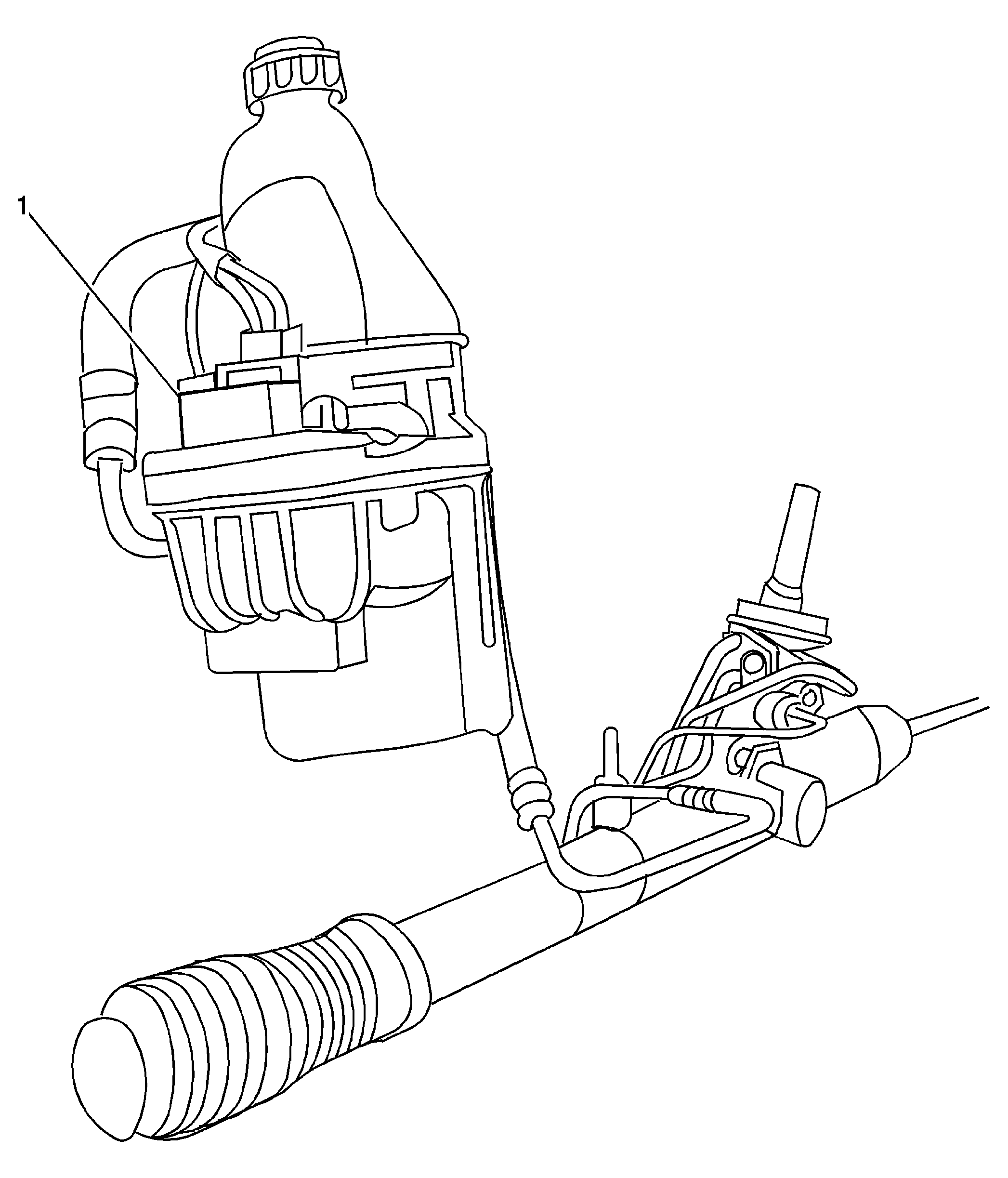

| Power Steering Control Module (PSCM) (1) | On power steering unit. See Figure. |

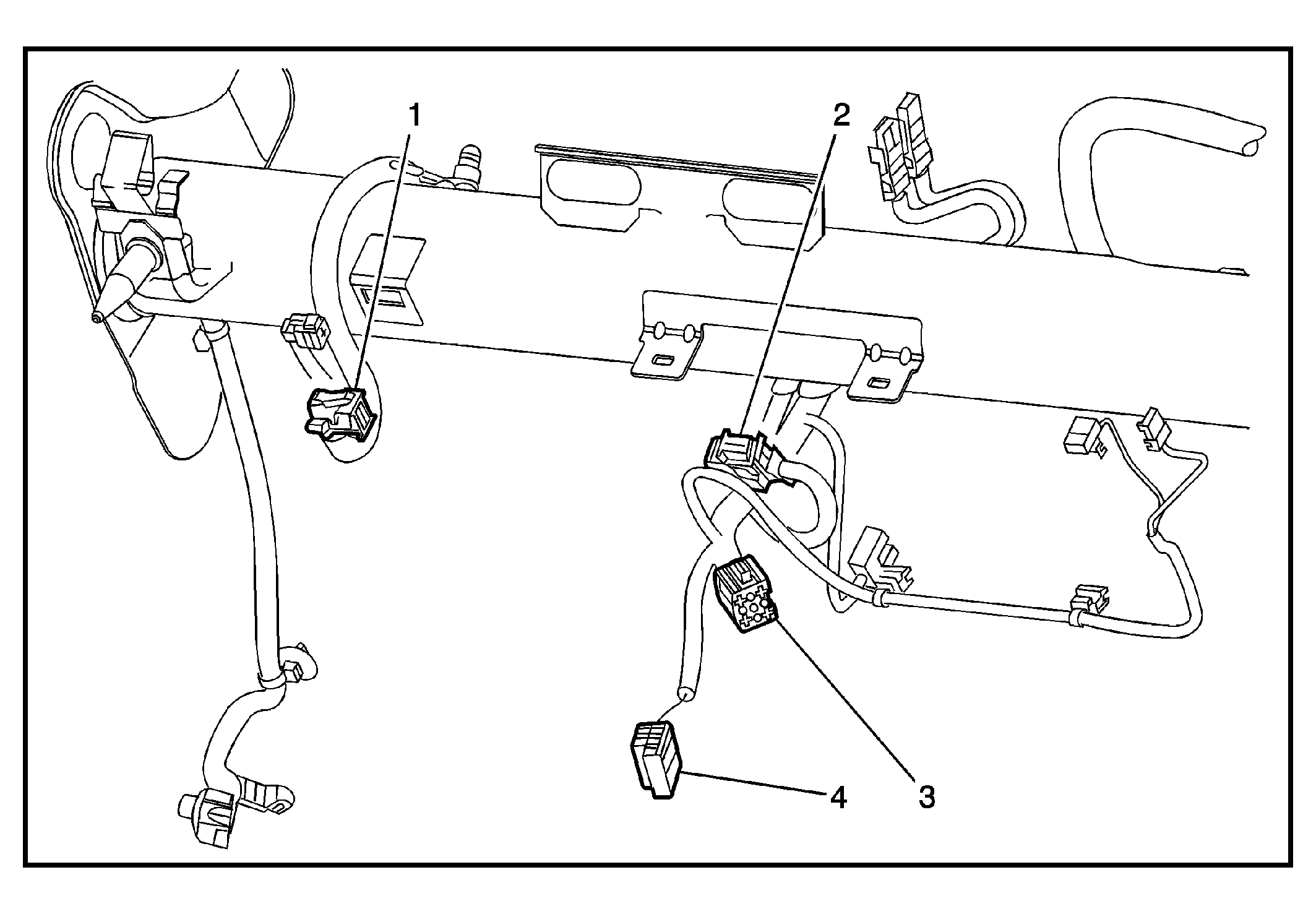

| Steering Column Control Module (2) | Left side of dash. See Figure. |
| Sunroof Control Module | Center front of roof. |
| Sunroof Shade Module | Center rear of roof. |
| Tire Pressure Module (2) | Right side of dash. See Figure. |

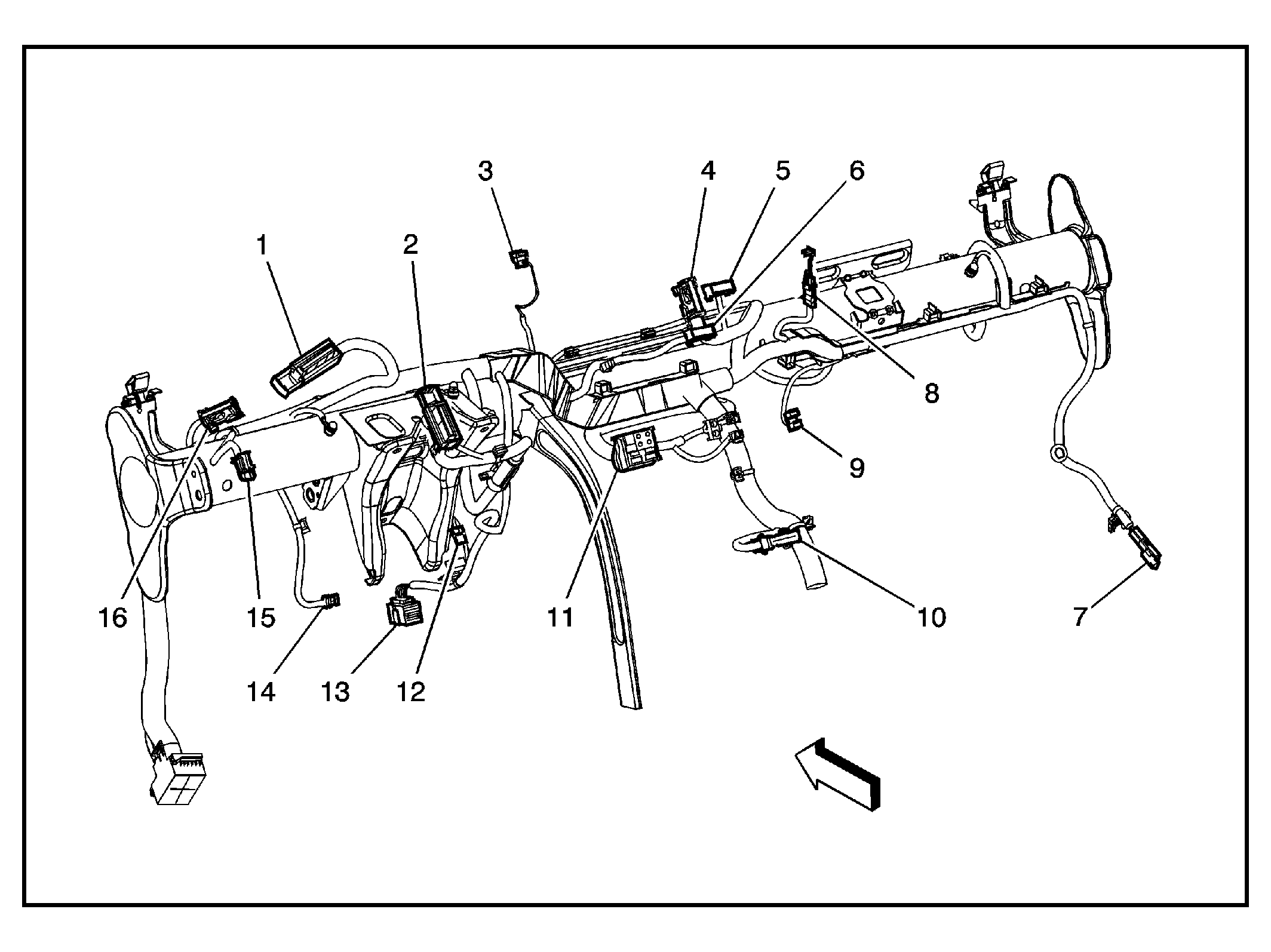

| Vehicle Communication Interface Module (VCIM) (Left) (16) | Left side of dash. See Figure. |
| Vehicle Communication Interface Module (VCIM) (Right) (1) | Right side of dash. See Figure. |
