Component Locations

COMPONENT LOCATIONS

Component Location
Body Computer Module (BCM) Behind Top Right Side Of Instrument Panel, Behind Glove Box. See Fig 1
Fuse Block At Left Front Of Console. See Fig 2
Interior Relay Center Below Right Front Of Console. See Fig 3
Power Window Motors In Front Of Respective Doors., See Fig 4
C200 (56 Cavities) Behind Right Side Of Instrument Panel, Near Right Shroud. See Fig 5
G301 At Top Of Left Shroud. See Fig 6
G312 At Center Of Passenger Compartment, Between Front Seats. See Fig 6
P500 At Center Front Of Left Door. See Fig 4
P600 At Center Front Of Right Door, See Fig 4
S226 In Dash Harness, Behind Center Of Instrument Panel, In Interior Relay Center Breakout.
S227 In Dash Harness, Behind Right Side Of Instrument Panel, At Shroud, In Dash Channel, See Fig 5
S317 In Main Body Harness, Below Right Side Of Right Front Seat. See Fig 7
S318 In Main Body Harness, Below Left Front Seat. See Fig 6
S535 In Main Body Harness, In Front Of Left Door. See Fig 4

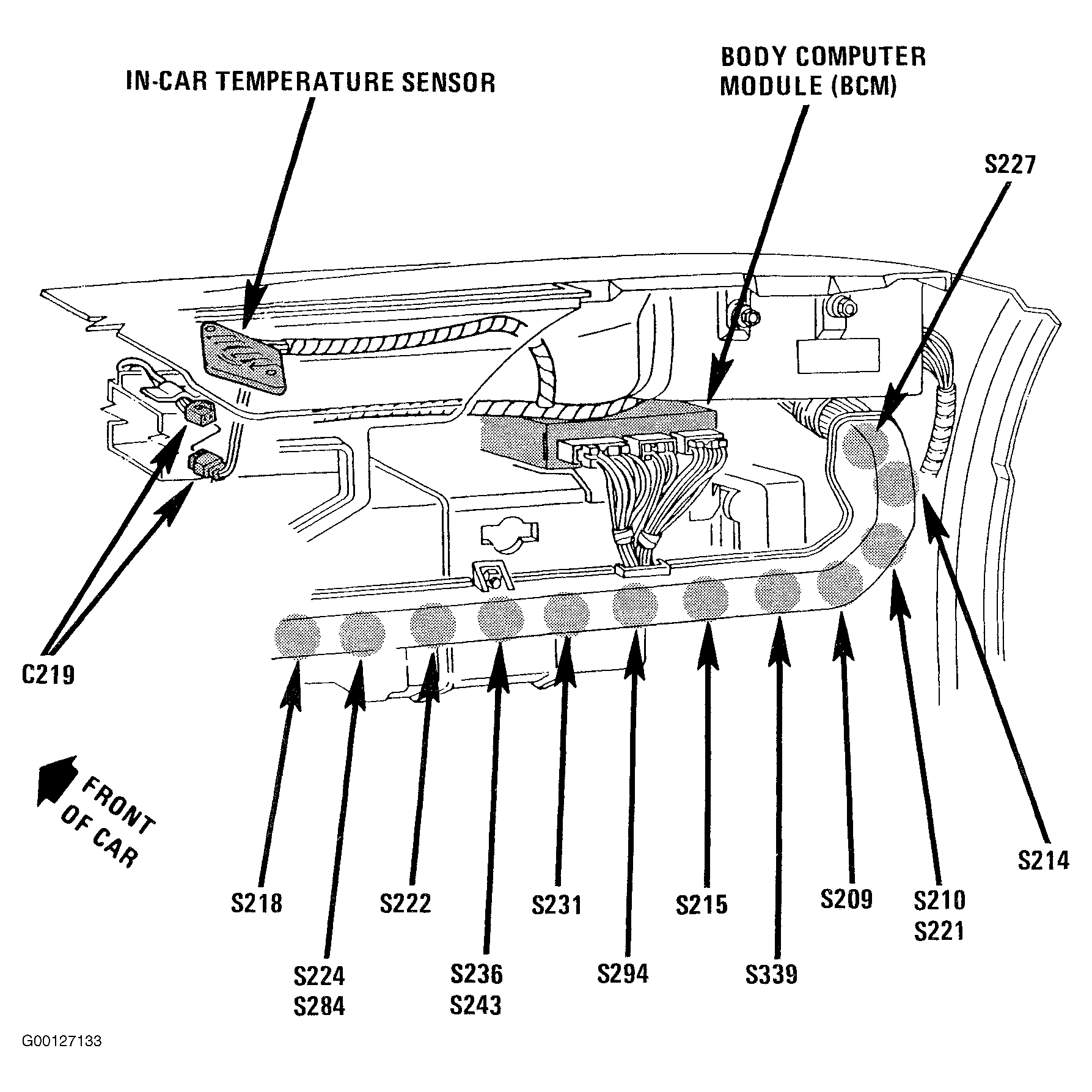

Fig 1: Locating Body Control Module (BCM)
G00127133Courtesy of GENERAL MOTORS CORP.

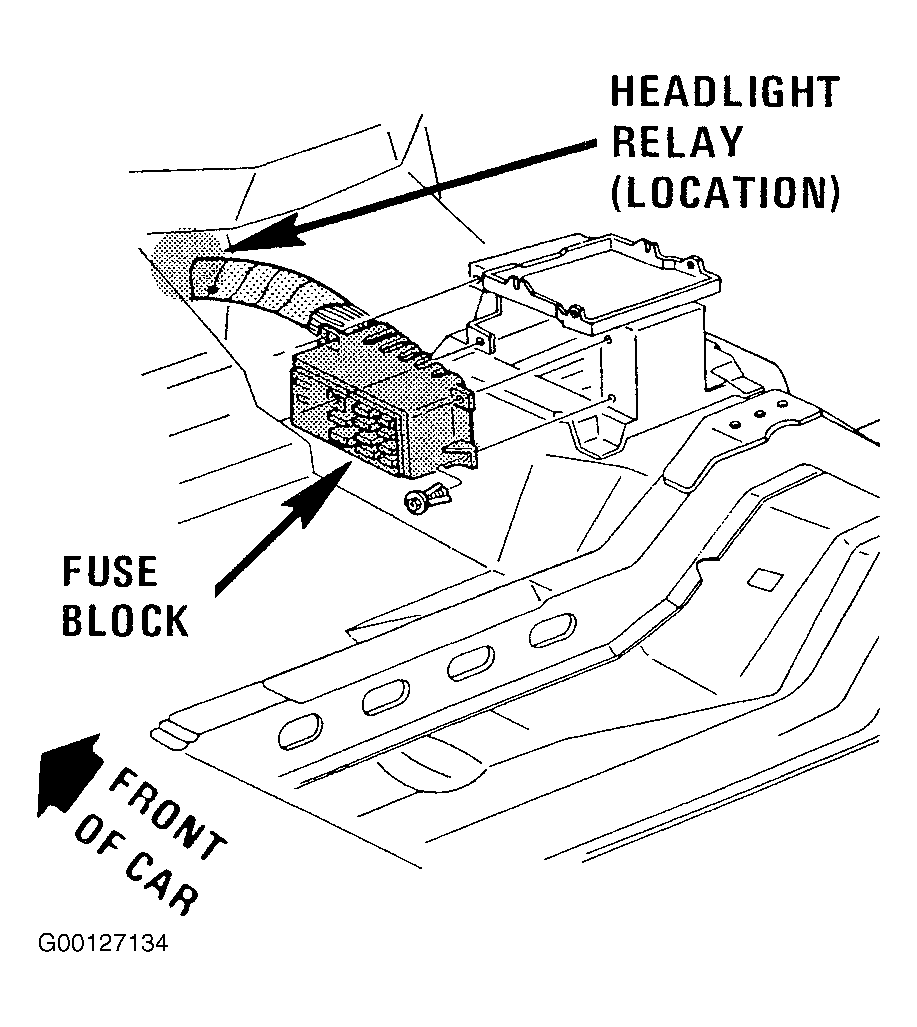

Fig 2: Locating Fuse Block
G00127134Courtesy of GENERAL MOTORS CORP.

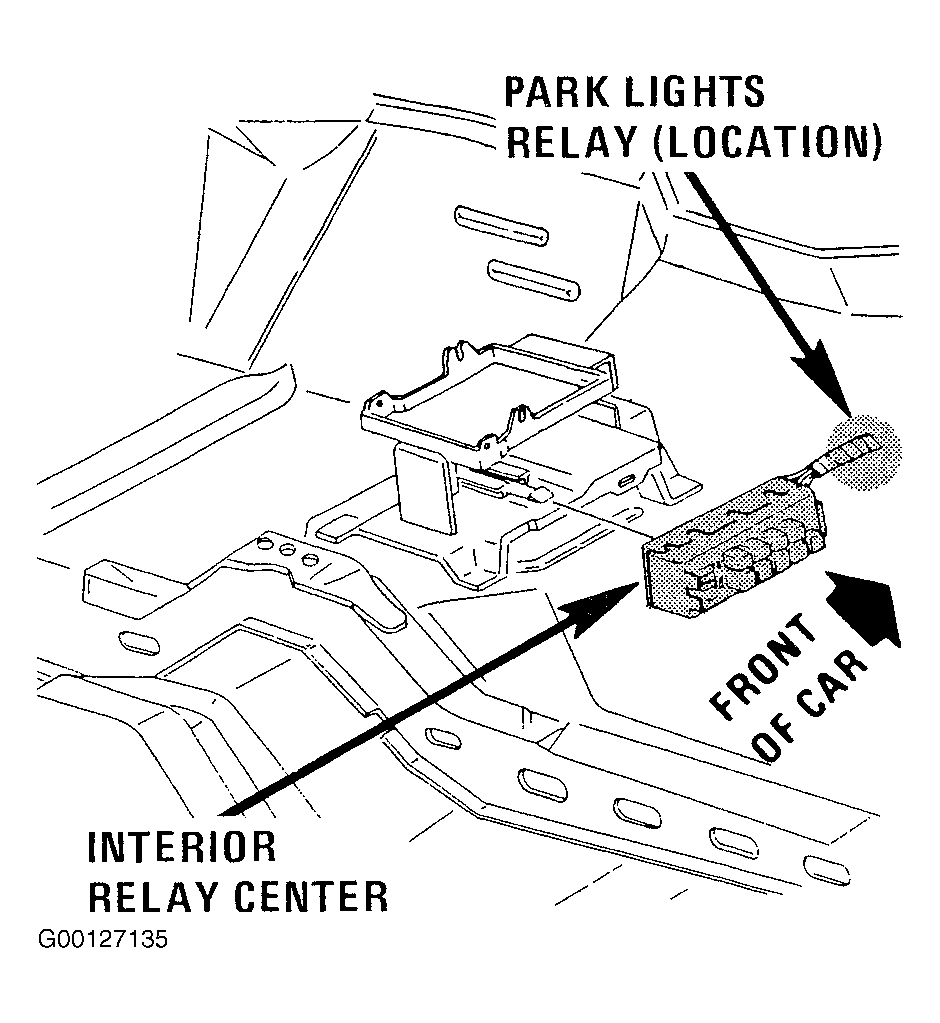

Fig 3: Locating Interior Relay Center
G00127135Courtesy of GENERAL MOTORS CORP.

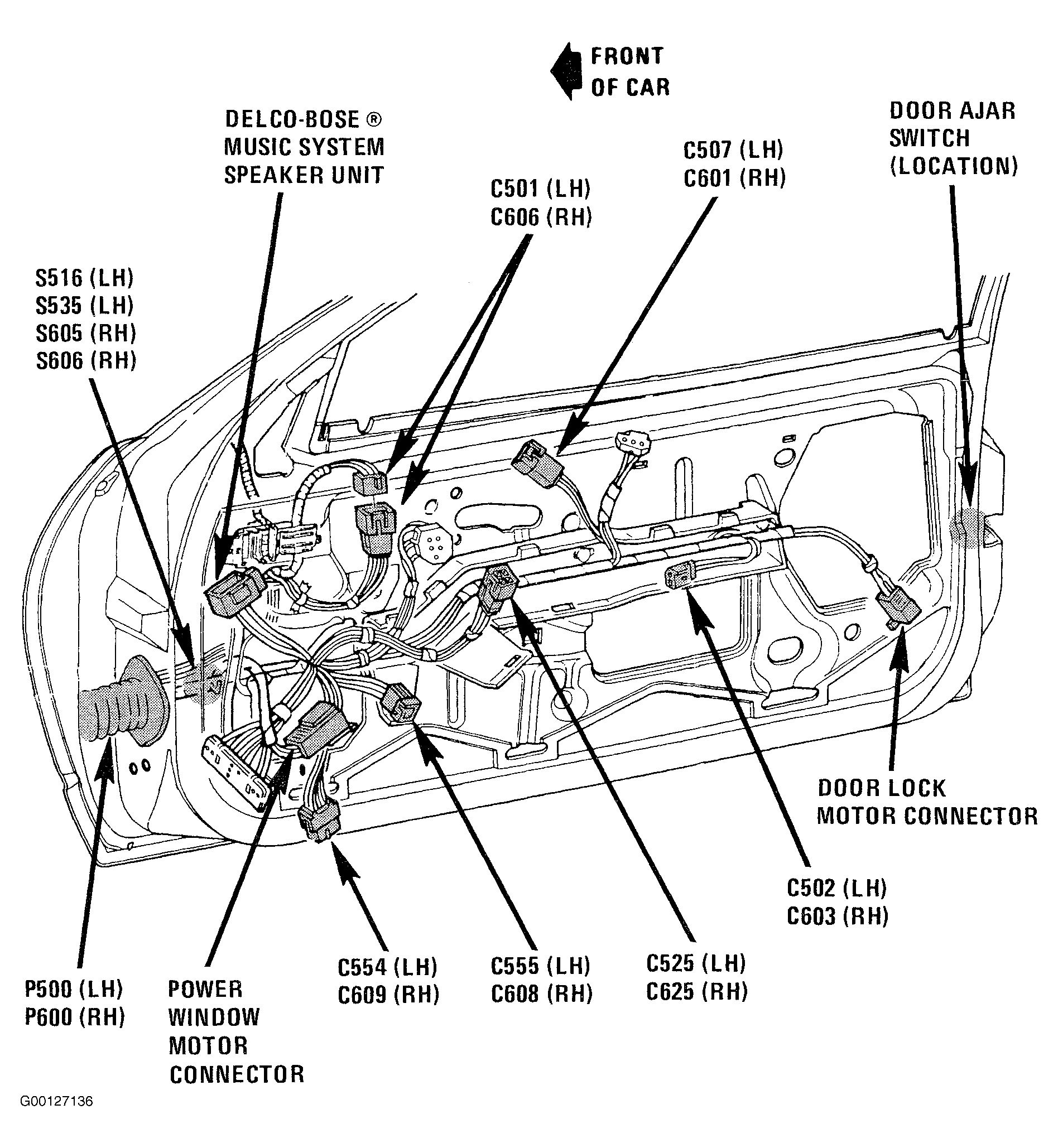

Fig 4: Locating Power Window Motor, Pass Through Grommet P500 & P600 & Splice S535
G00127136Courtesy of GENERAL MOTORS CORP.

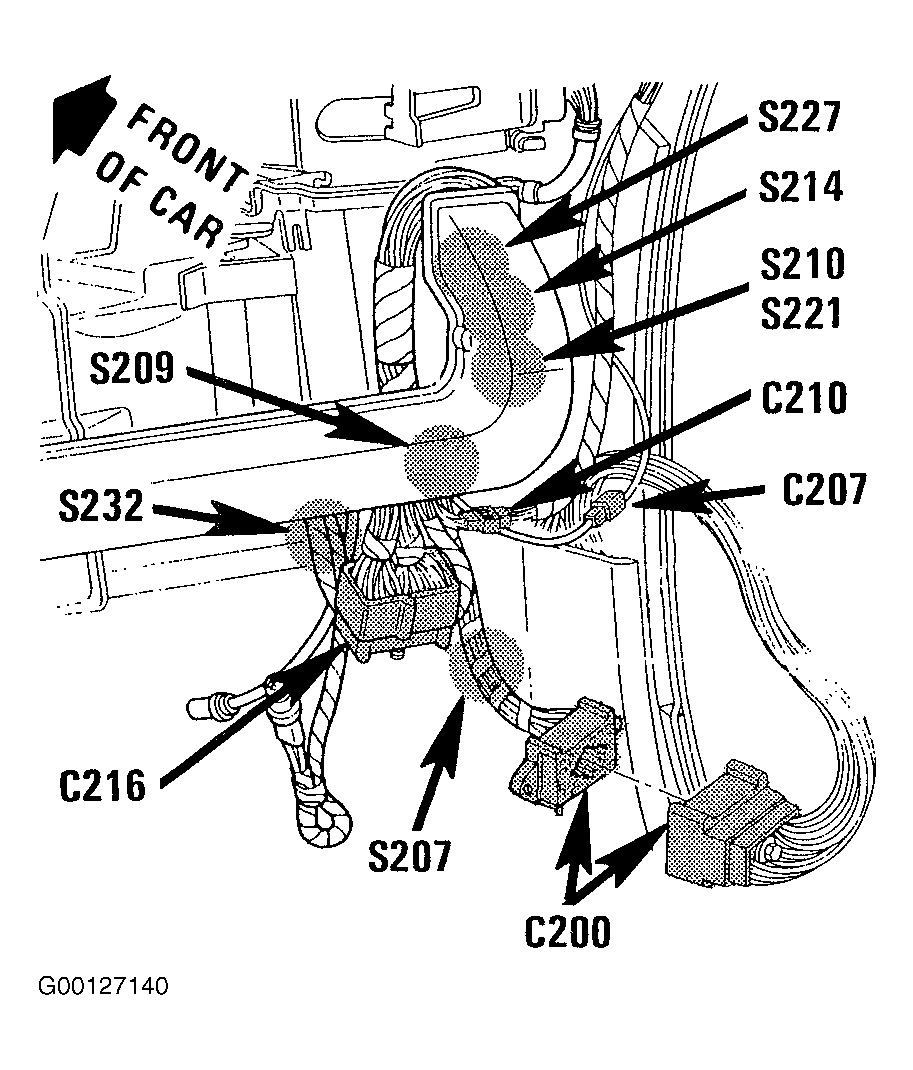

Fig 5: Locating Connector C200 & Splice S227
G00127140Courtesy of GENERAL MOTORS CORP.

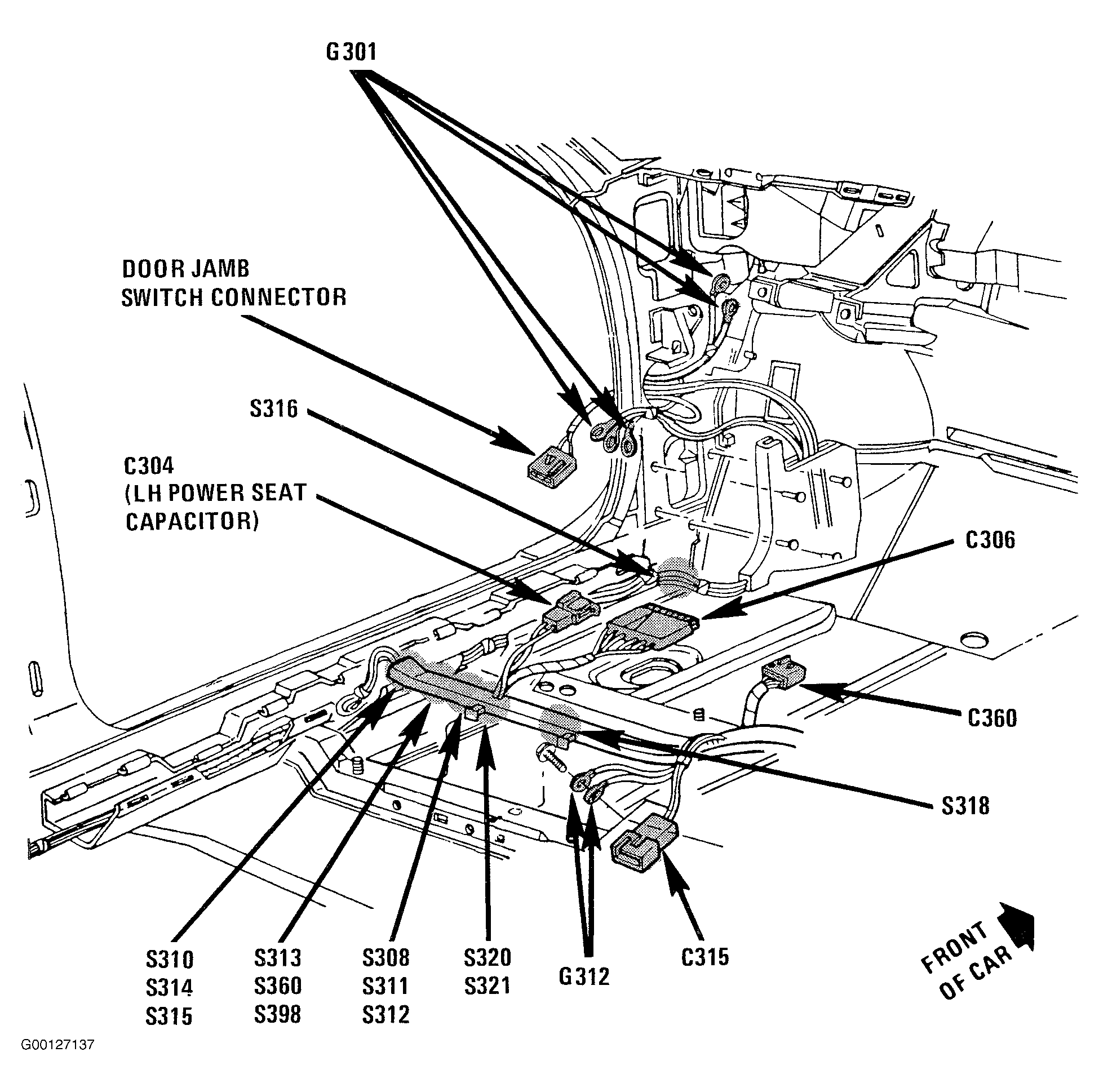

Fig 6: Locating Ground G301 & G312 & Splice S318
G00127137Courtesy of GENERAL MOTORS CORP.

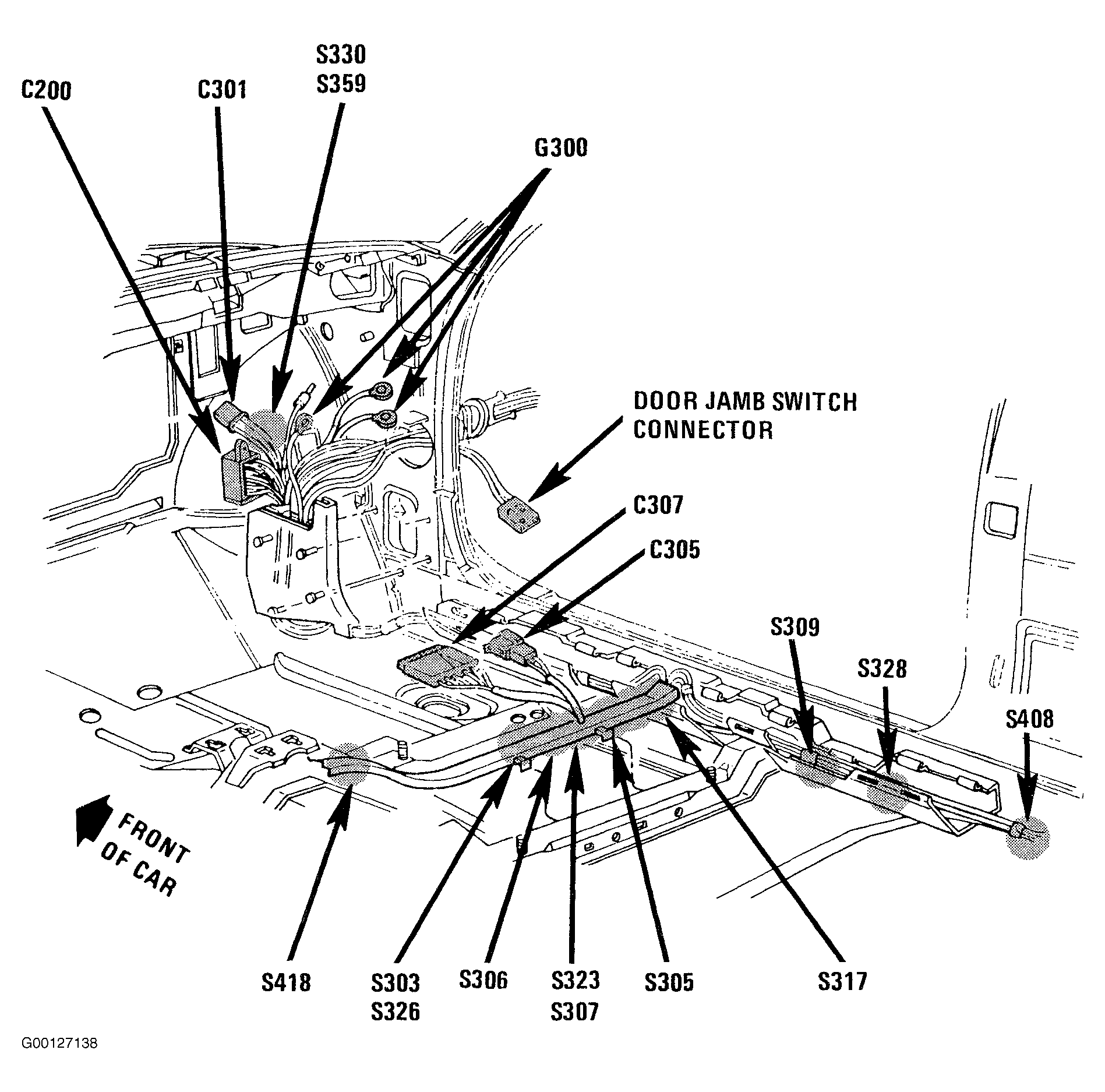

Fig 7: Locating Splice S317
G00127138Courtesy of GENERAL MOTORS CORP.
