Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|

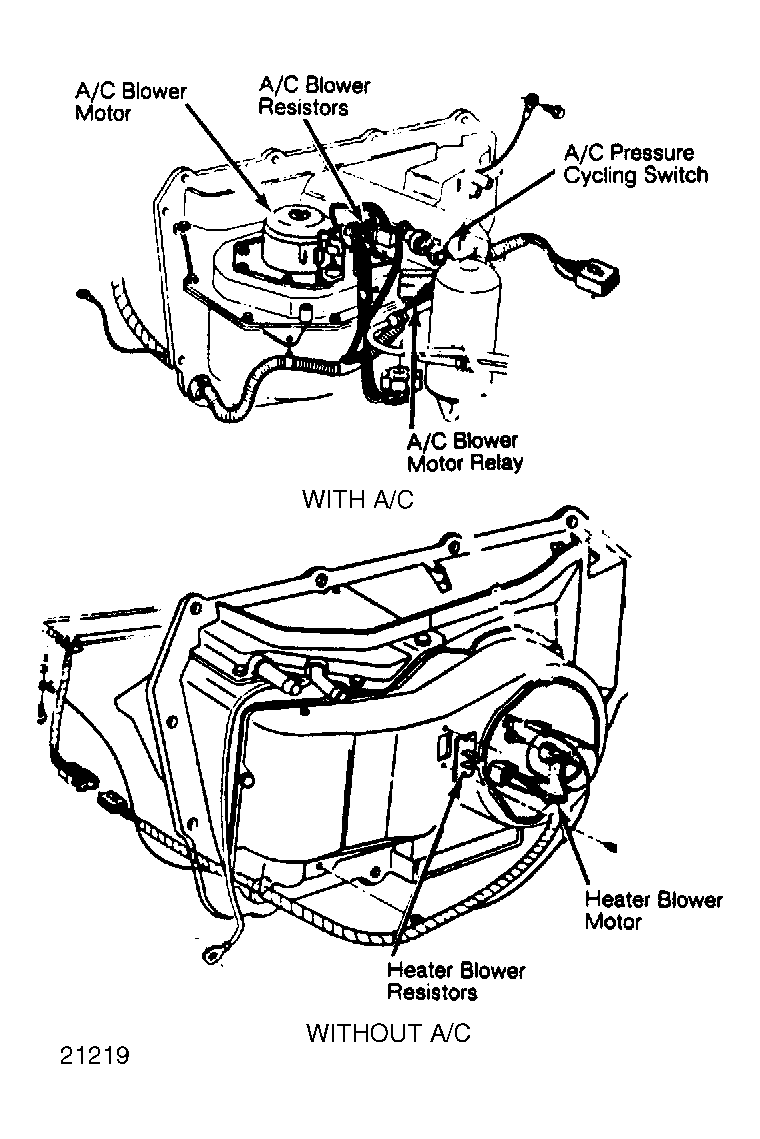

| A/C-Heater Blower Motor Resistors | On evaporator case in engine compartment. See Figure. | |

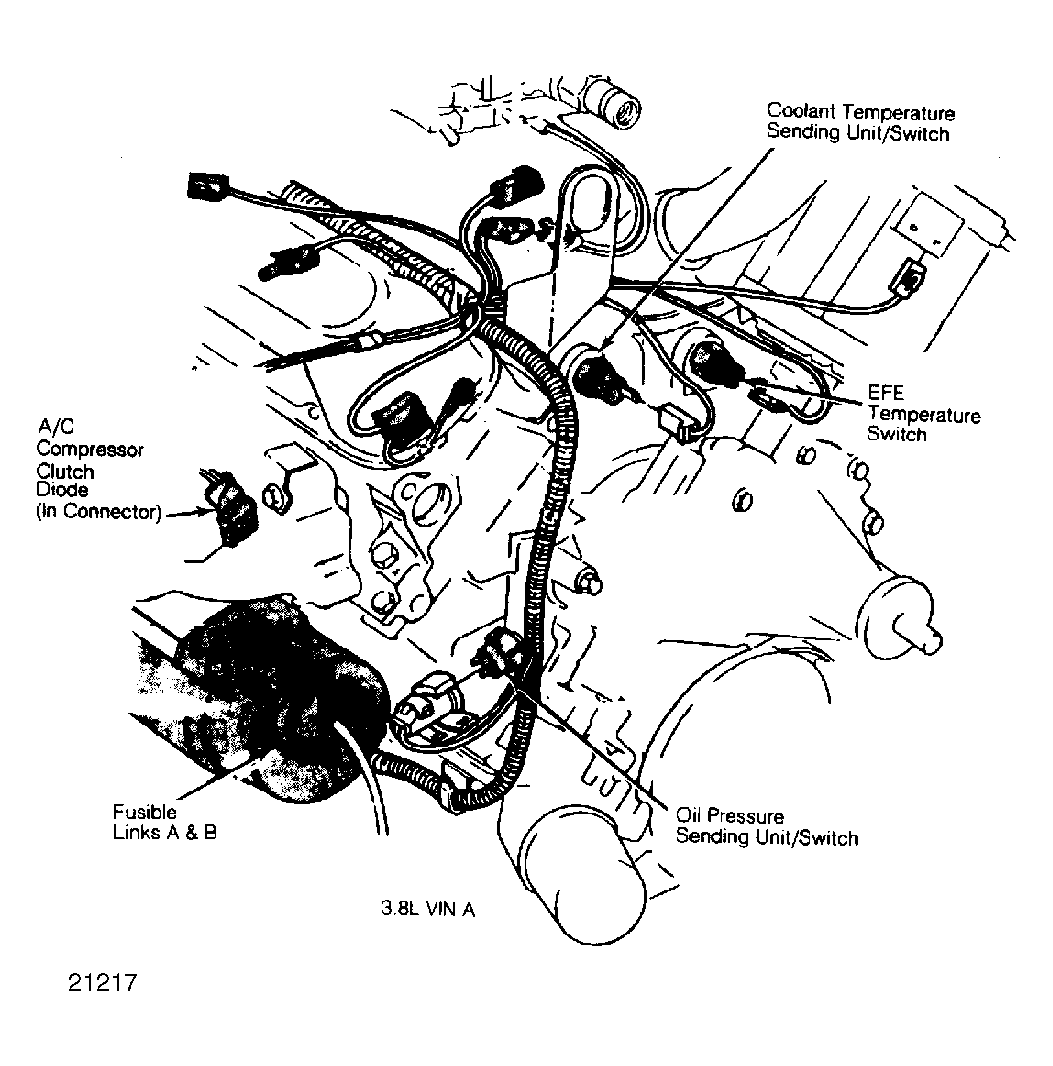

| A/C Compressor Clutch Diode | Taped inside compressor connector on front of compressor. See Figure. | |
| ALDL Connector | On bottom of dash, to left of center. | |
| Convenience Center (Except Regal) | Under left side of dash, near light switch. See Figure. | |
| Convenience Center (Regal) | Left of radio. See Figure. | |

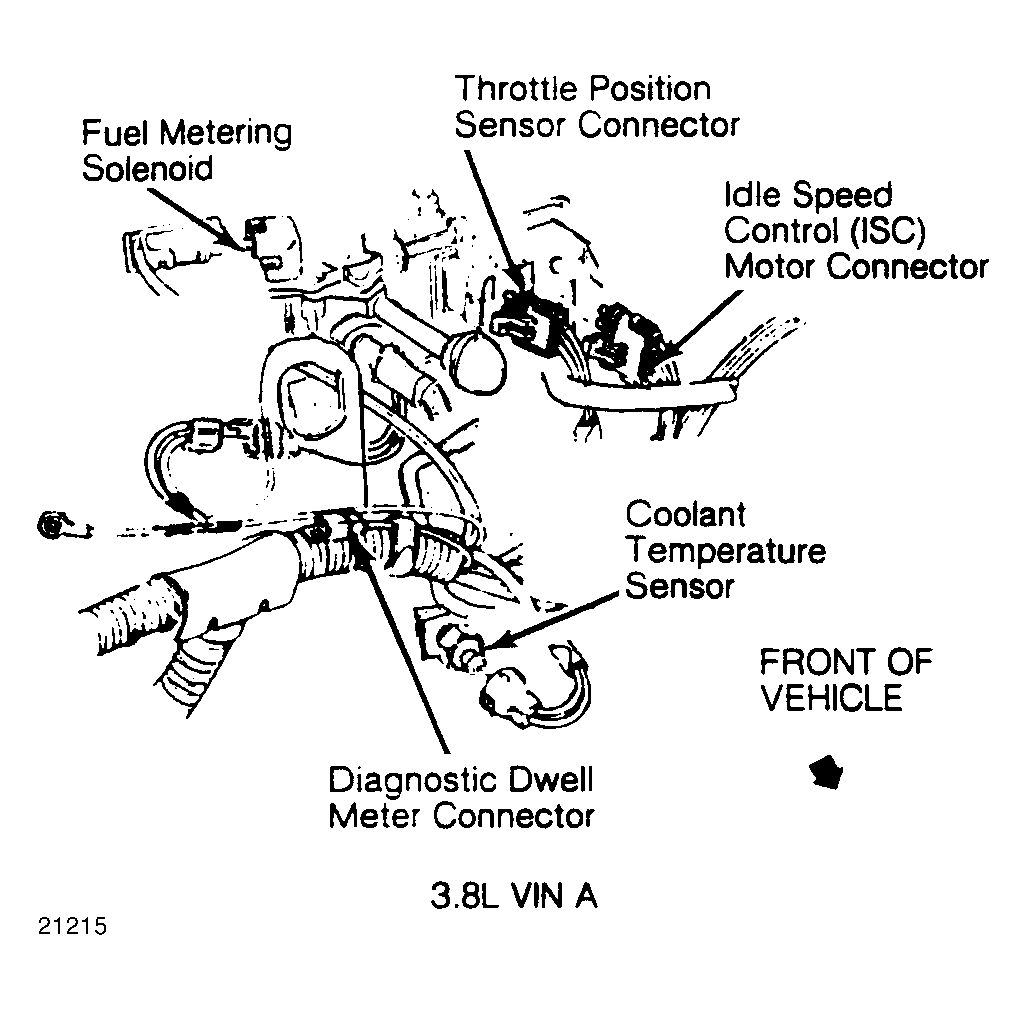

| Diagnostic Dwell Meter Connector | Strapped to wiring harness at right front top of engine. See Figure. | |

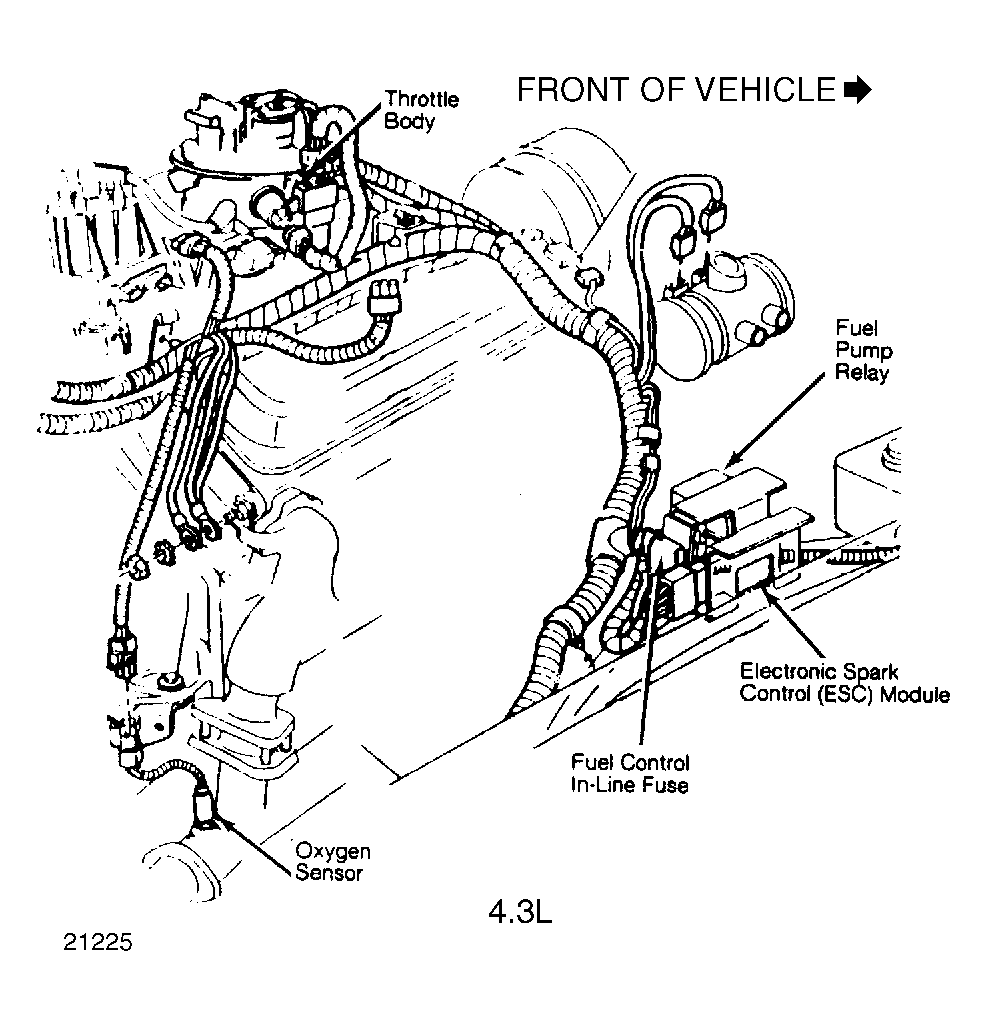

| Fuel Control In-Line Fuse (EFI) | On bracket next to ESC module. See Figure & 7. | |

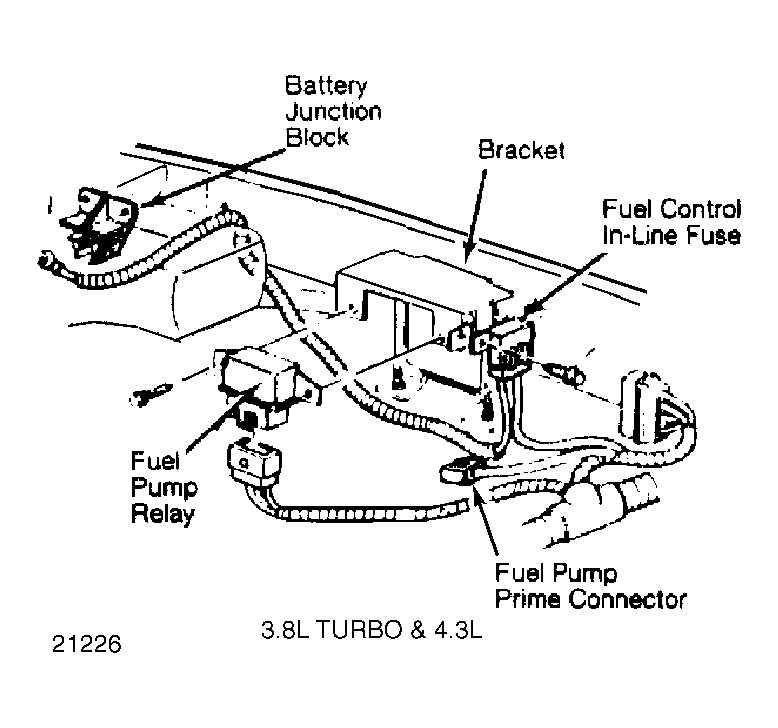

| Fuel Pump Prime Connector (EFI) | In wiring harness near fuel control in-line fuse. See Figure. | |

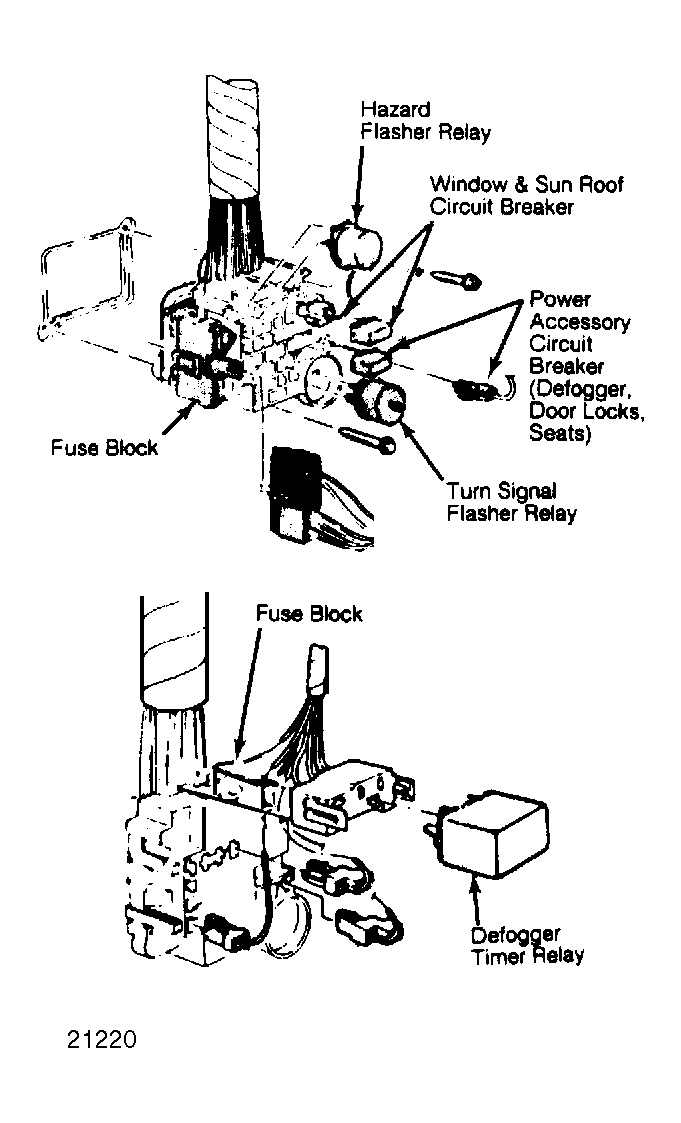

| Fuse Block | Under left side of dash. See Figure. | |
| Fusible Links | ||
| A (Red) A/C Blower | At starter solenoid. See Figure. | |
| B (Red) Light Switch | At starter solenoid. See Figure. | |
| C (Red) Turbo Level Control | Behind alternator. | |
| D (Red) Regal V6 EFE Relay | Behind alternator. | |
| E (Green) Turbo Cooling Fan | Near starter solenoid. | |
| J (Orange) Turbo ECM | Next to battery. | |

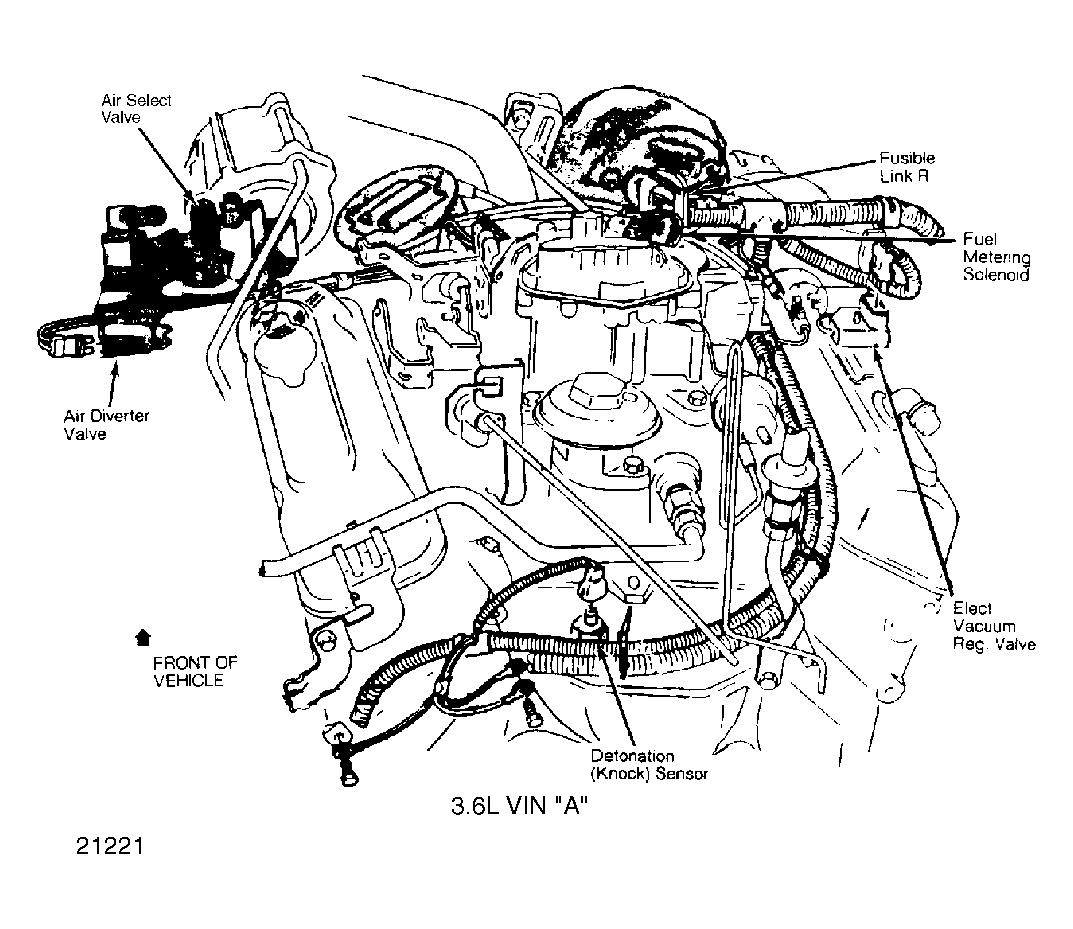

| R (Red) Pontiac V6 EFE Relay | Behind alternator. See Figure. | |
| Power Accessory Circuit Breaker | Above turn signal flasher relay in fuse block. See Figure. | |
| Theft Deterrent Diode | Behind left side of dash, in connector "C857". | |
| Theft Deterrent In-Line Fuses | Taped to instrument panel harness, right of glove box. | |

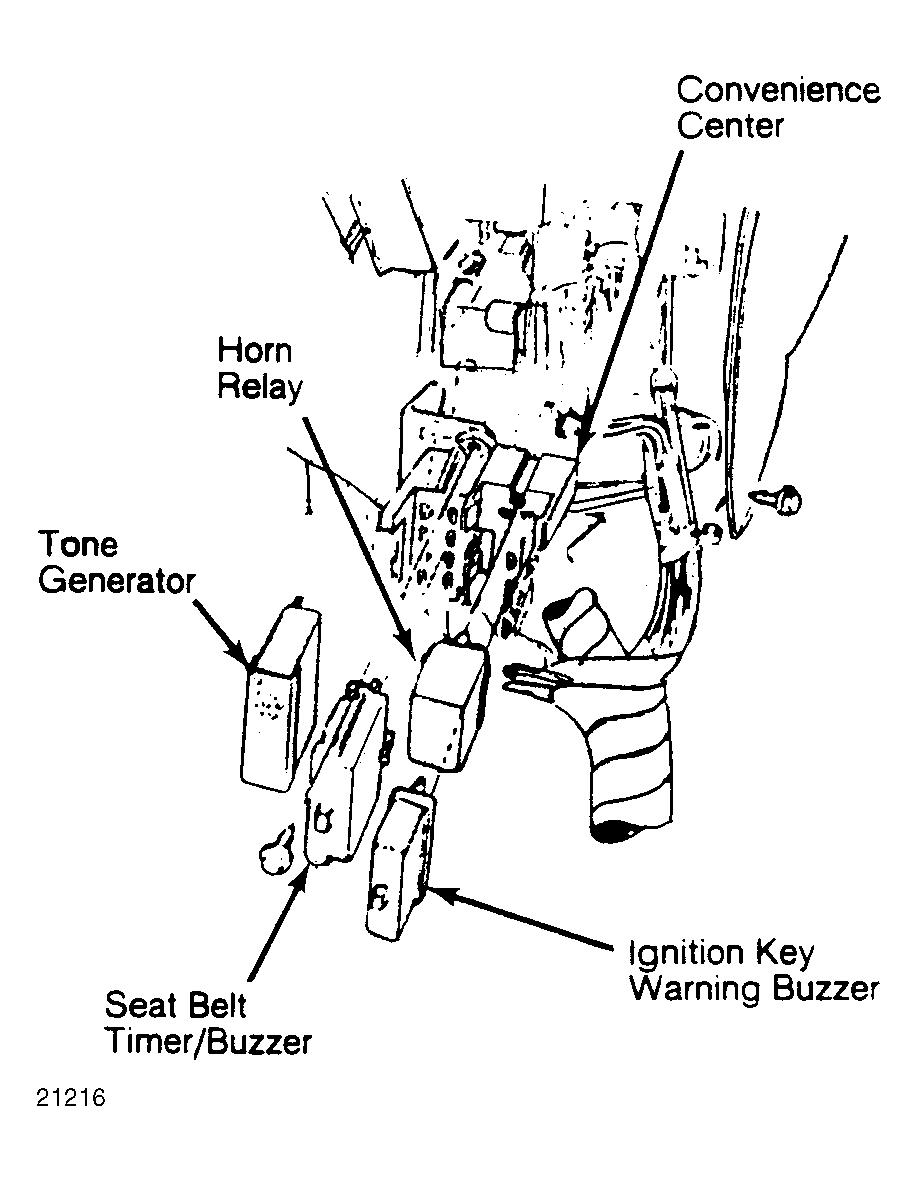

| Tone Generator | Behind left side of dash, in convenience center. See Figure. | |
| Twilight Sentinel Amplifier | Under dash, to right of radio. | |
| Twilight Sentinel Photocell | At top center of dash. | |
| Vehicle Speed Buffer | Under left side of dash, to right of steering column. | |
| Window & Sun Roof Circuit Breaker | At top right corner of fuse block, second row. See Figure. | |
