Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Auxiliary Blower Motor Control Processor | In rear HVAC module, behind right rear interior panel. See Figure . |

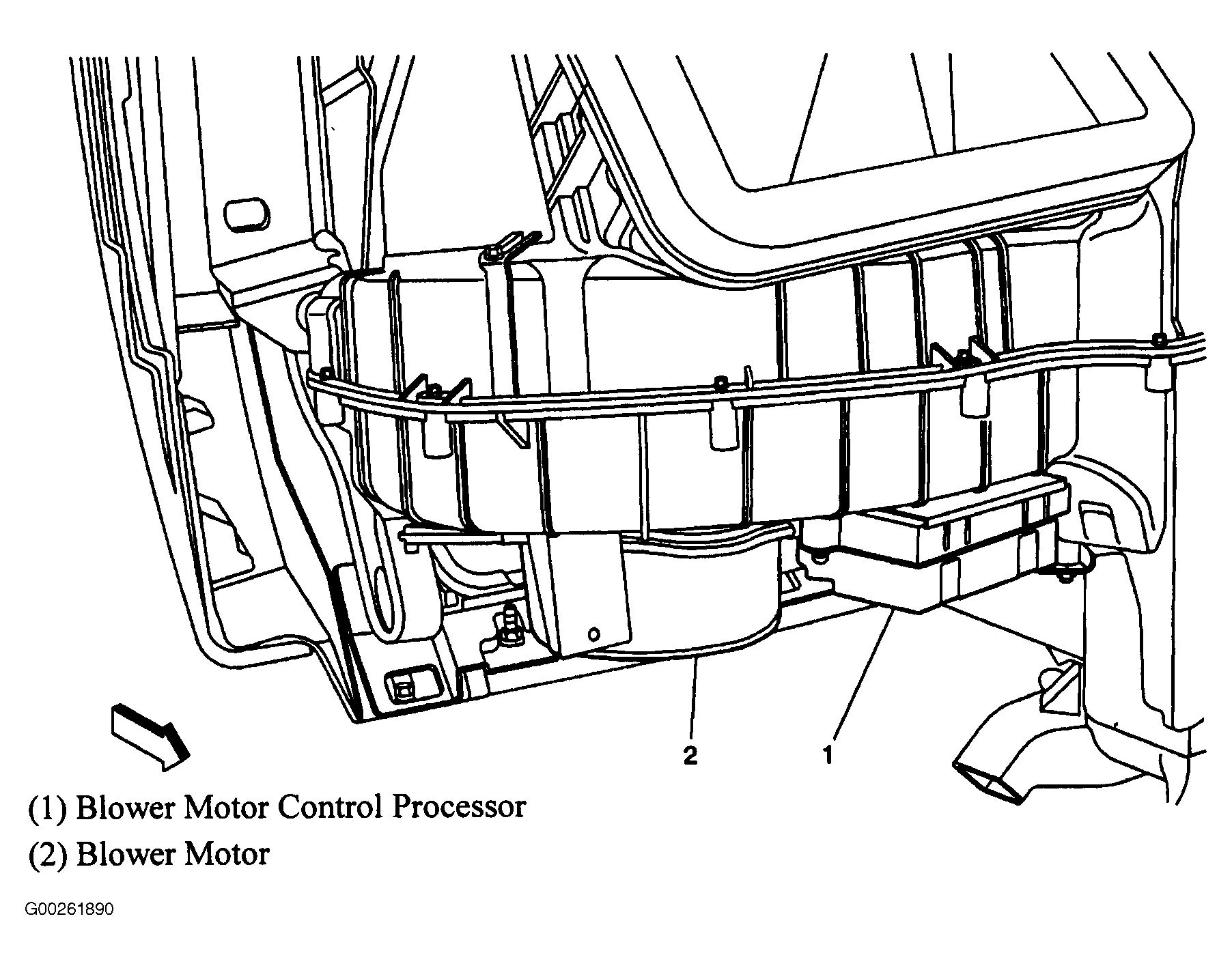

| Blower Motor Control Processor | Lower right side of dash. See Figure . |

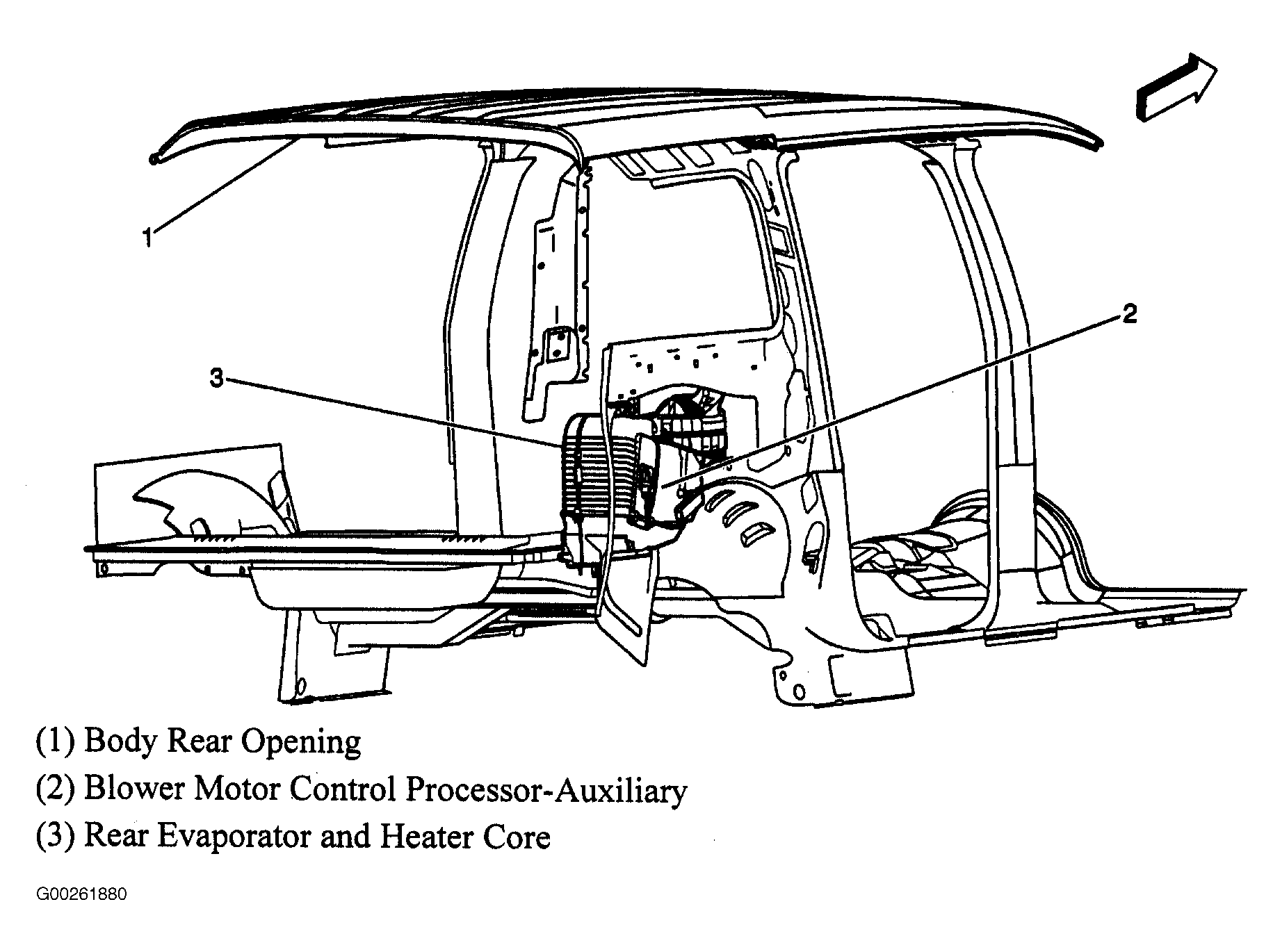

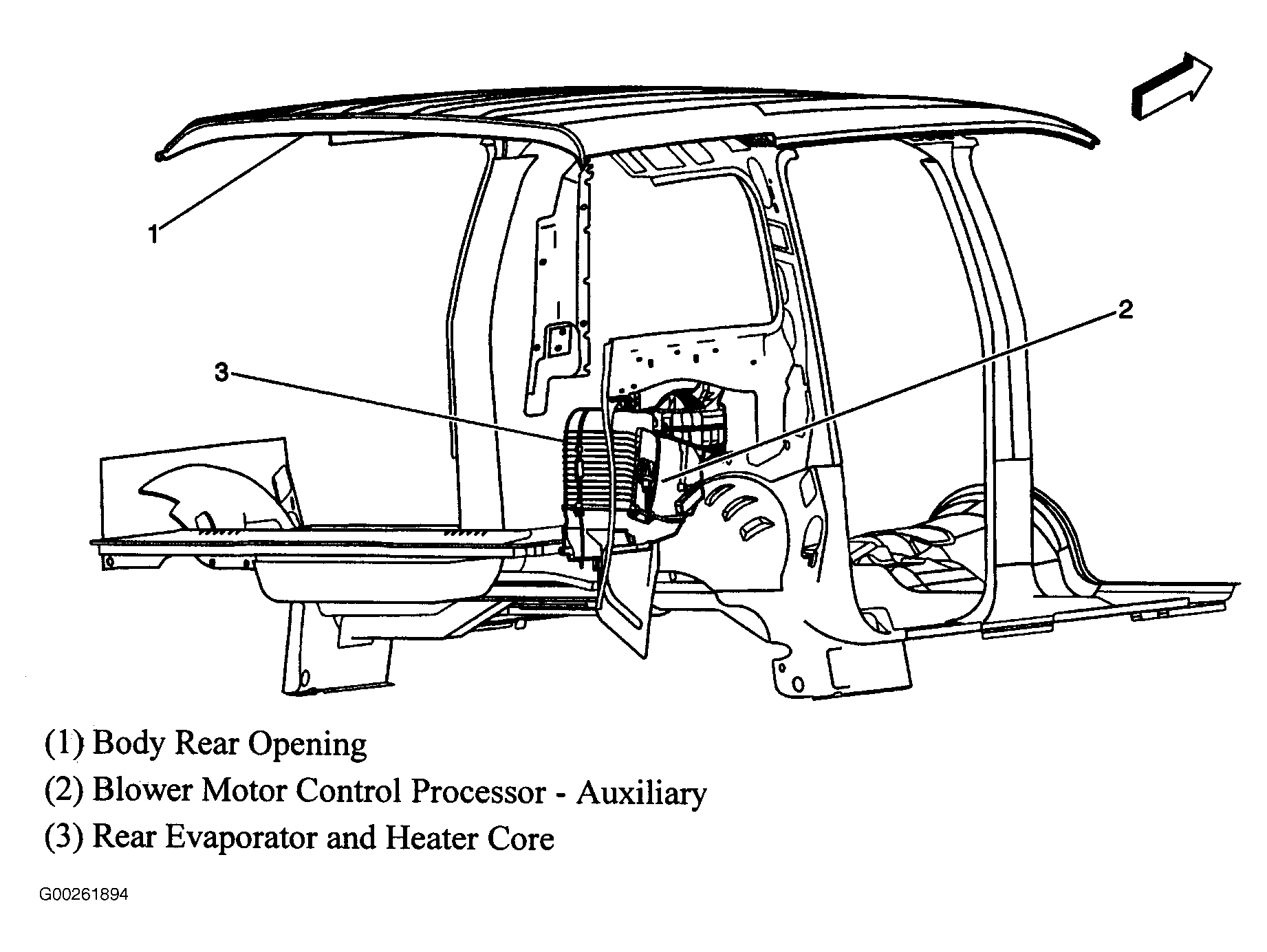

| Blower Motor Control Processor-Auxiliary | Right rear of luggage compartment. See Figure . |

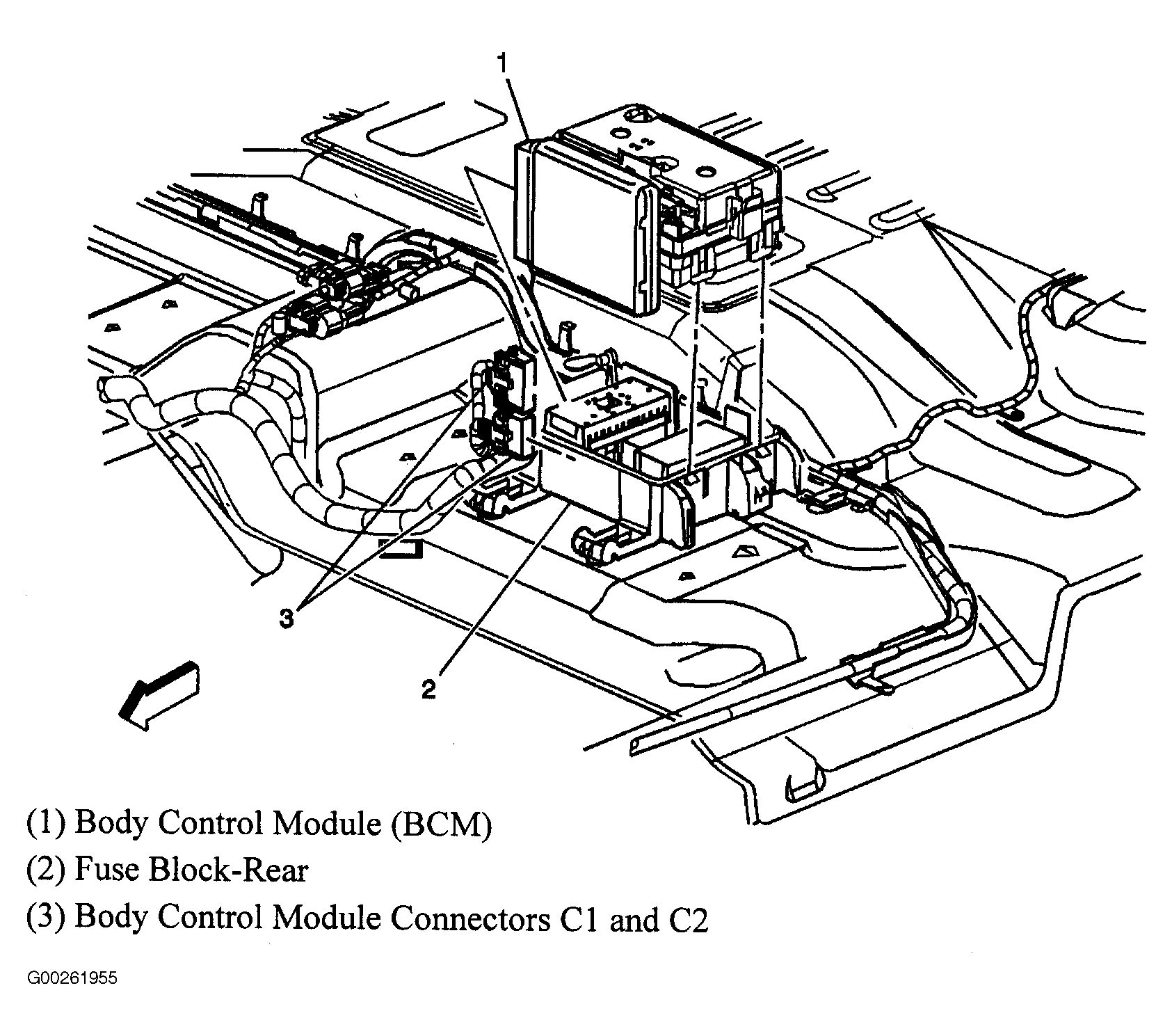

| Body Control Module (BCM) | Beneath left rear seat, on rear fuse block. See Figure . |
| Body Control Module Connectors | Beneath left rear seat, on rear fuse block. See Figure . |
| Driver Door Module (DDM) | Below driver's door switch panel. See Figure . |

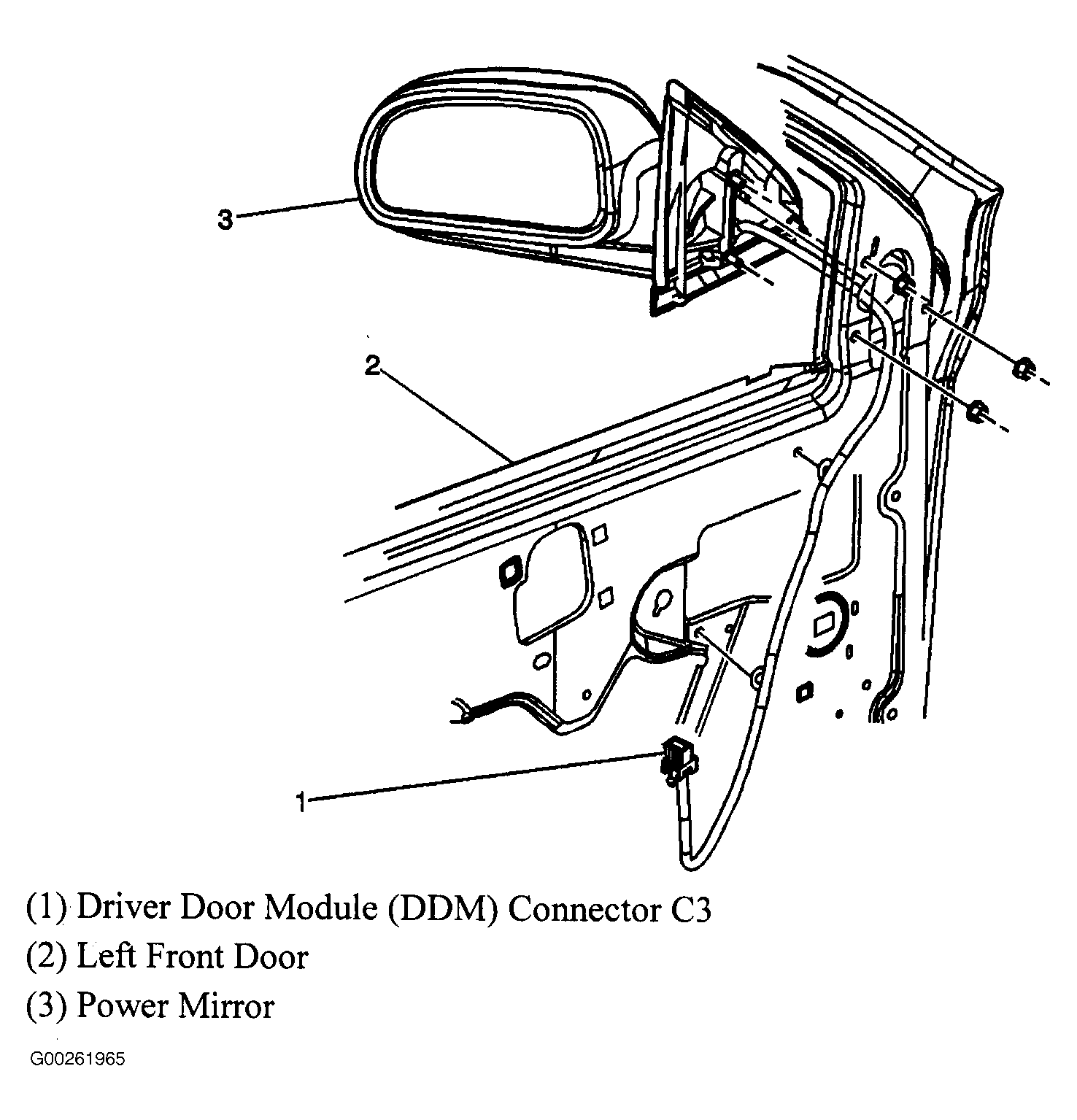

| Driver Door Module (DDM) Connector | In left front door. See Figure . |
| Electronic Brake Control Module (EBCM) | On inner left frame rail, beside transmission. See Figure . |
| Electronic Brake Control Module (EBCM) Connector | On inner left frame rail, beside transmission. See Figure . |

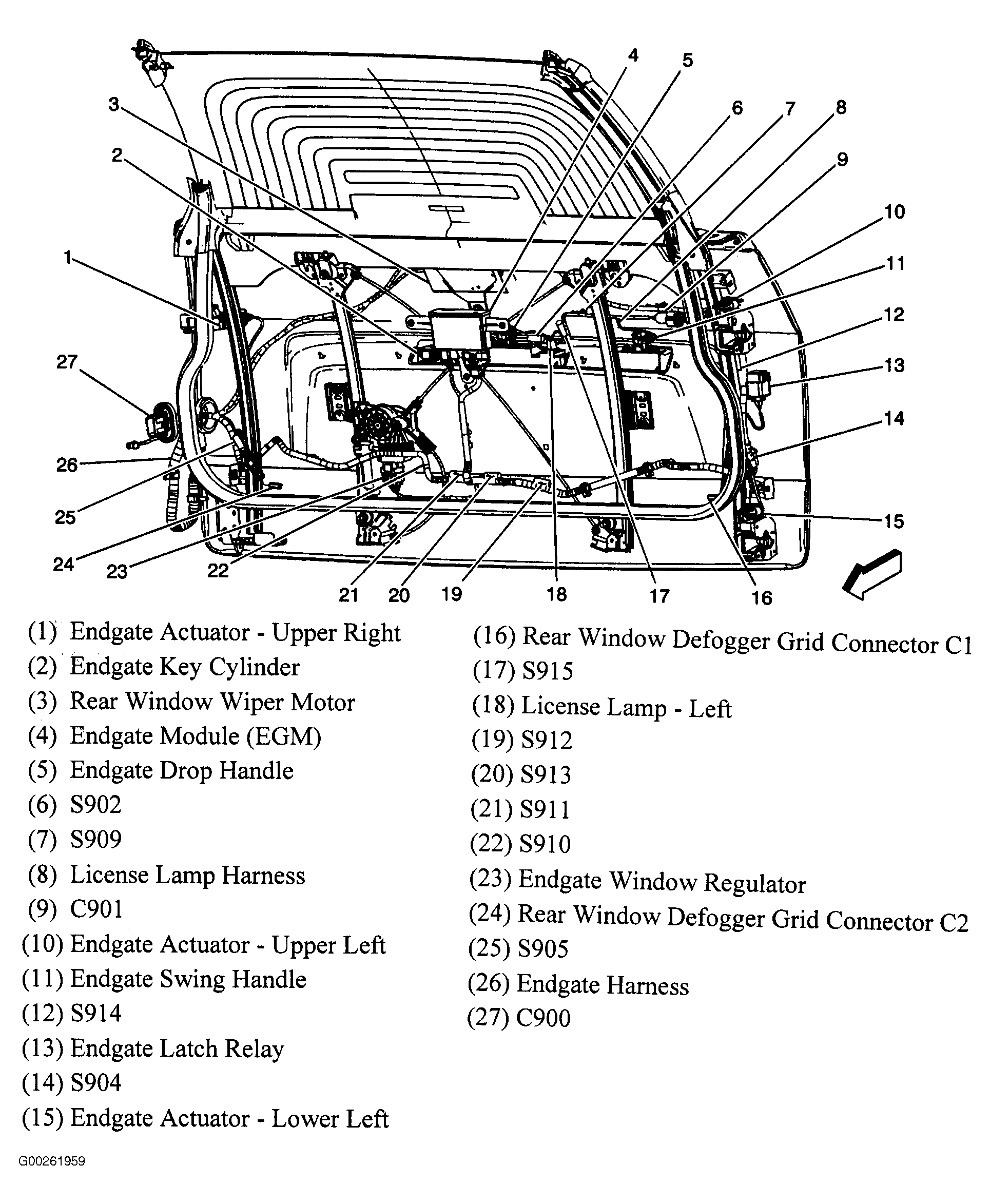

| Endgate Module (EGM) | At center of endgate. See Figure . |
| Front Passenger Door Module (FPDM) | Below front passenger door switch panel. See Figure . |
| Headlamp Driver Module | On underhood fuse block. |

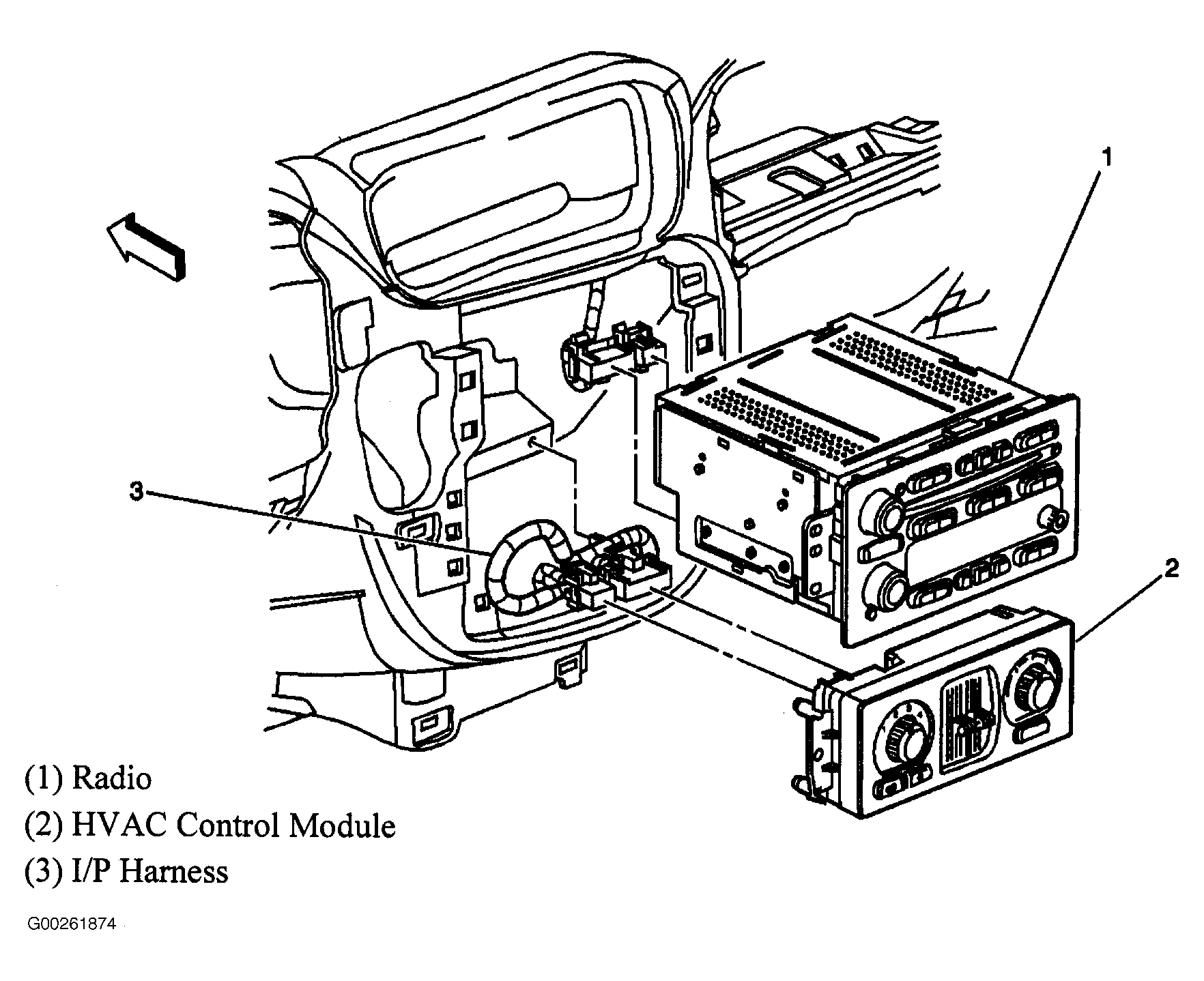

| HVAC Control Module | Center of dash. See Figure . |

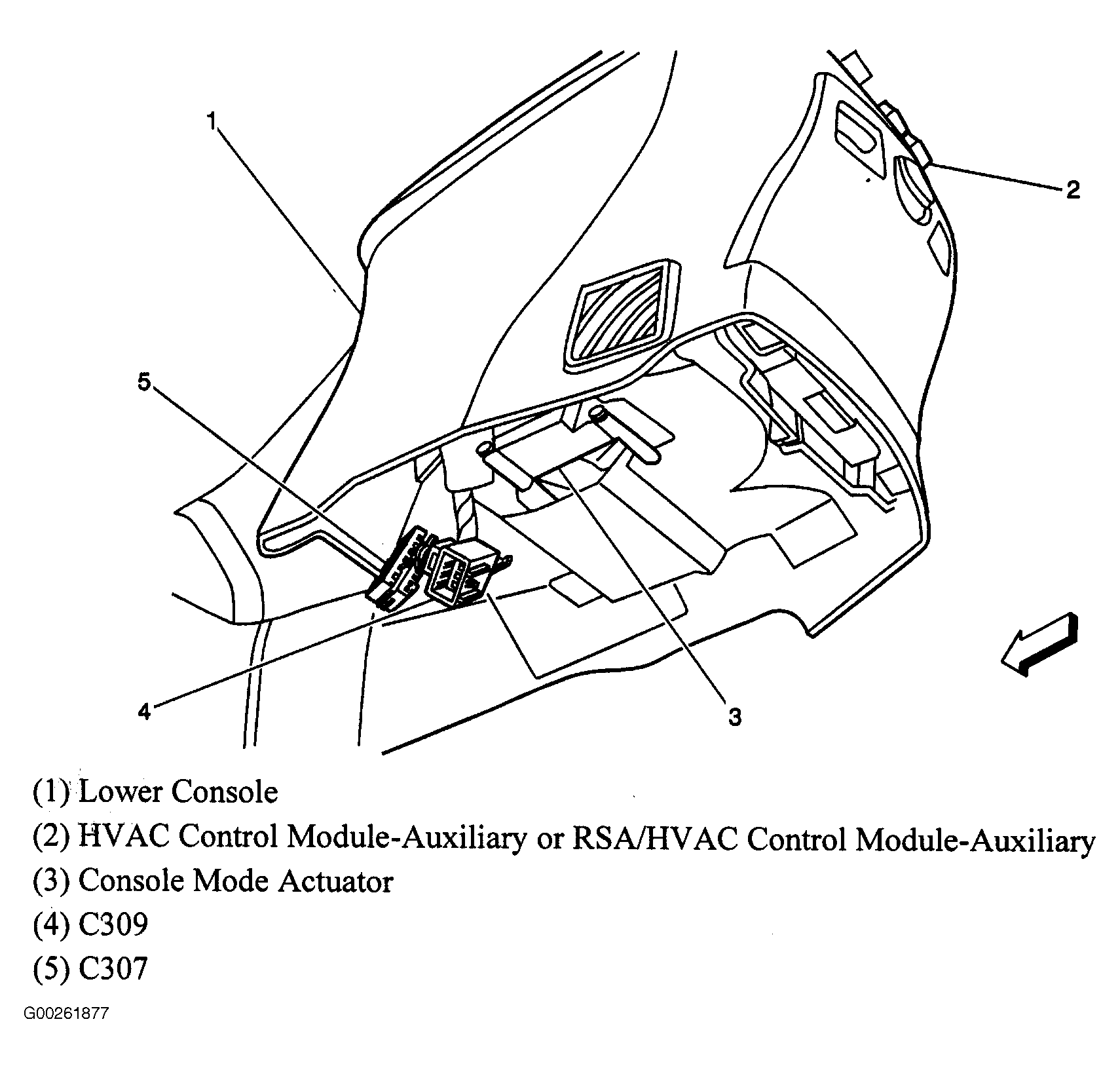

| HVAC Control Module-Auxiliary | Under lower console. See Figure . |
| Ignition Coil/Module (6) | On top of valve cover, above respective cylinder. |

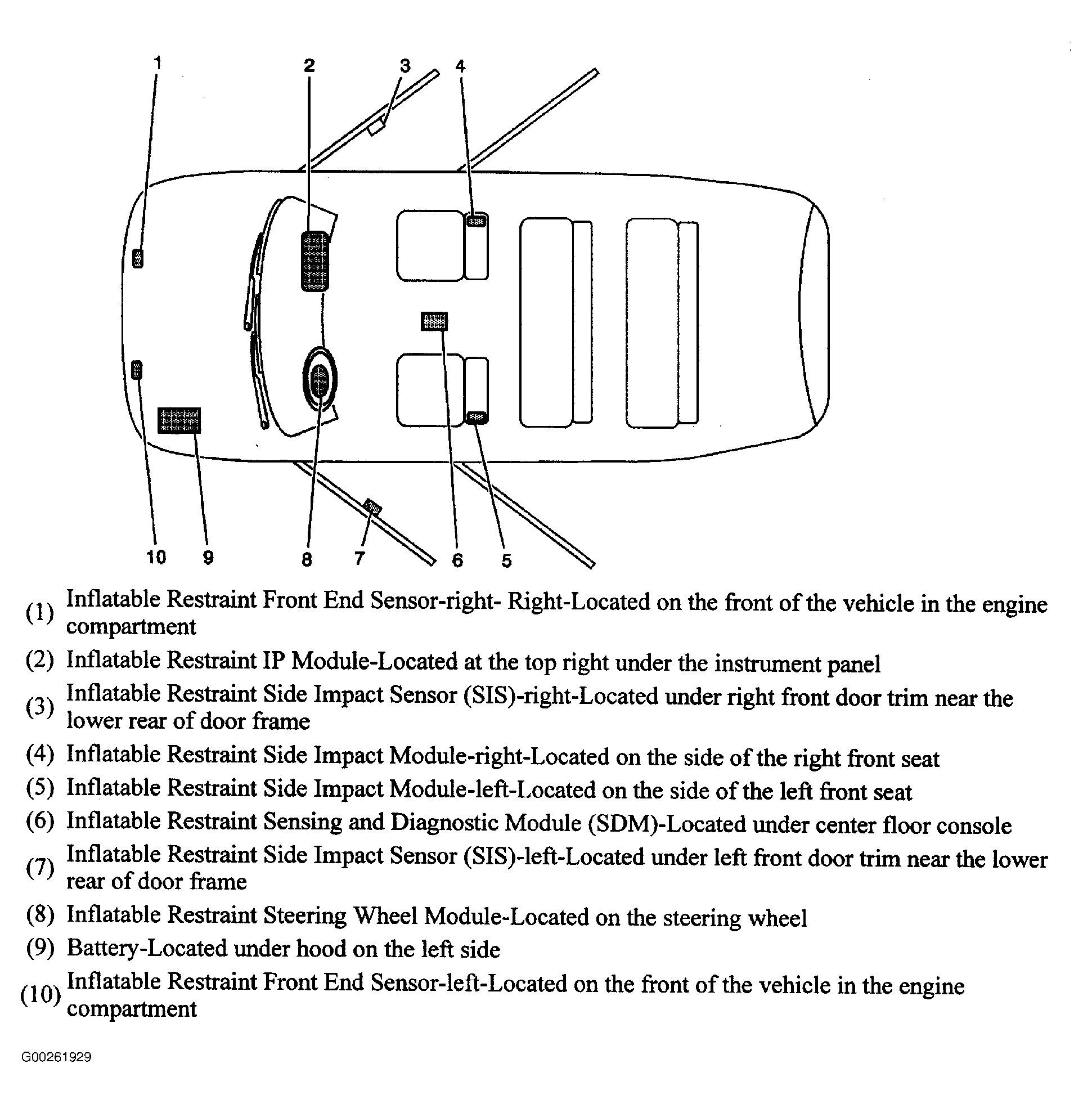

| Inflatable Restraint I/P Module | Right side of dash. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below rear of center console. See Figure . |
| Inflatable Restraint Side Impact Module-Left | Left side of driver's seat. See Figure . |

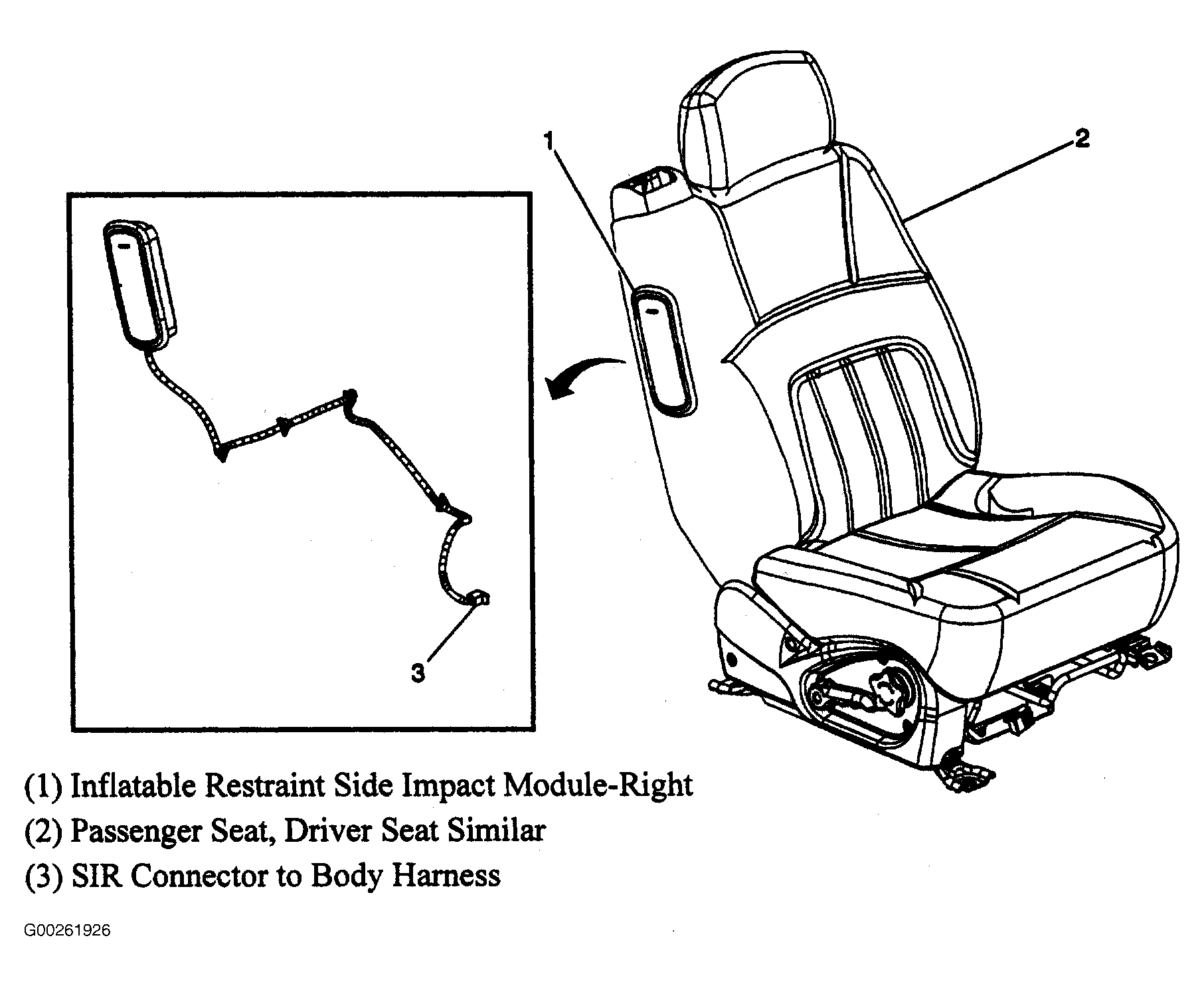

| Inflatable Restraint Side Impact Module-Right | In right front seat back. See Figure . |
| Inflatable Restraint Side Impact Sensing Module (Left) | In left front seat back. |
| Inflatable Restraint Steering Wheel Module | In steering wheel. See Figure . |

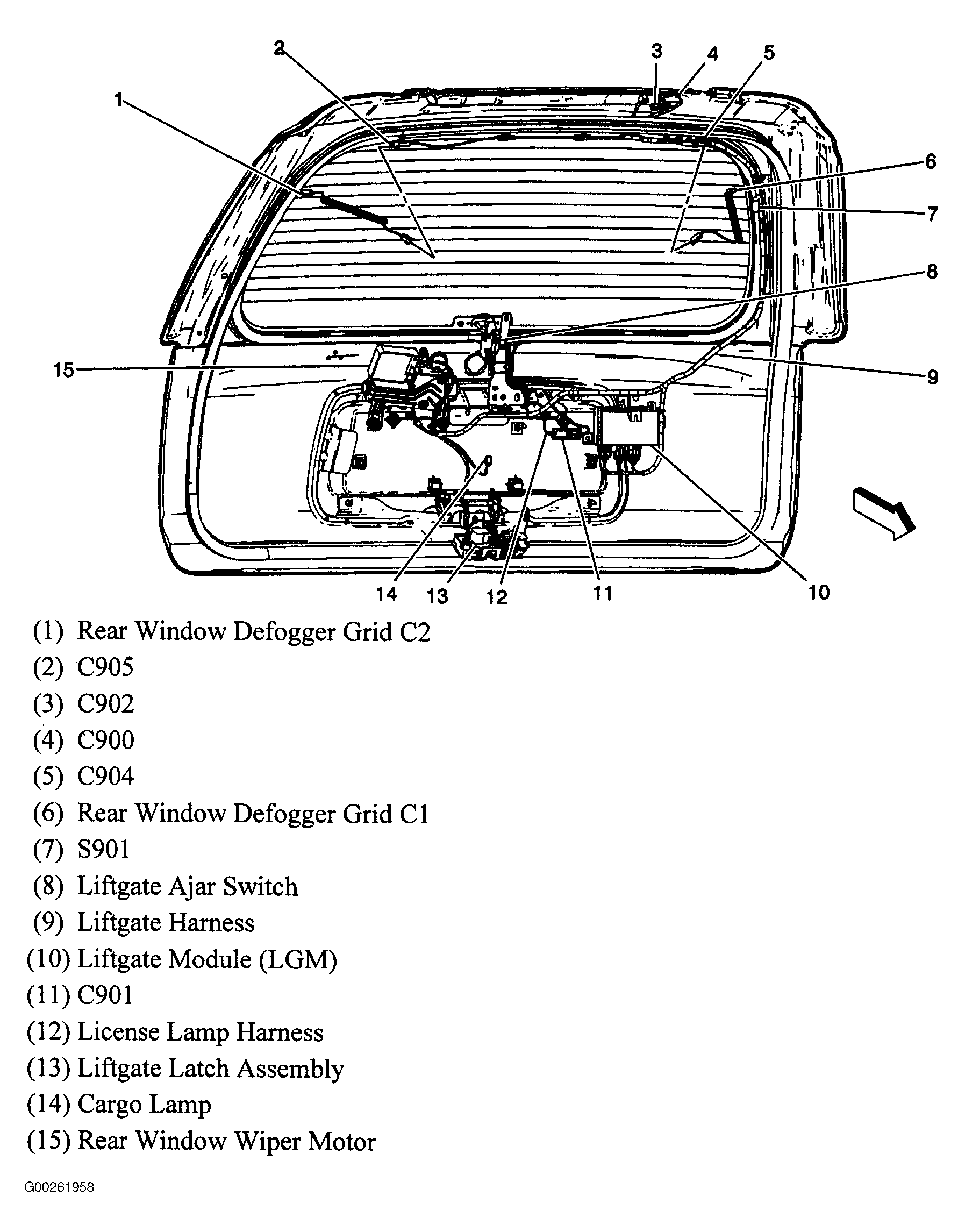

| Liftgate Module (LGM) | In center of liftgate. See Figure . |

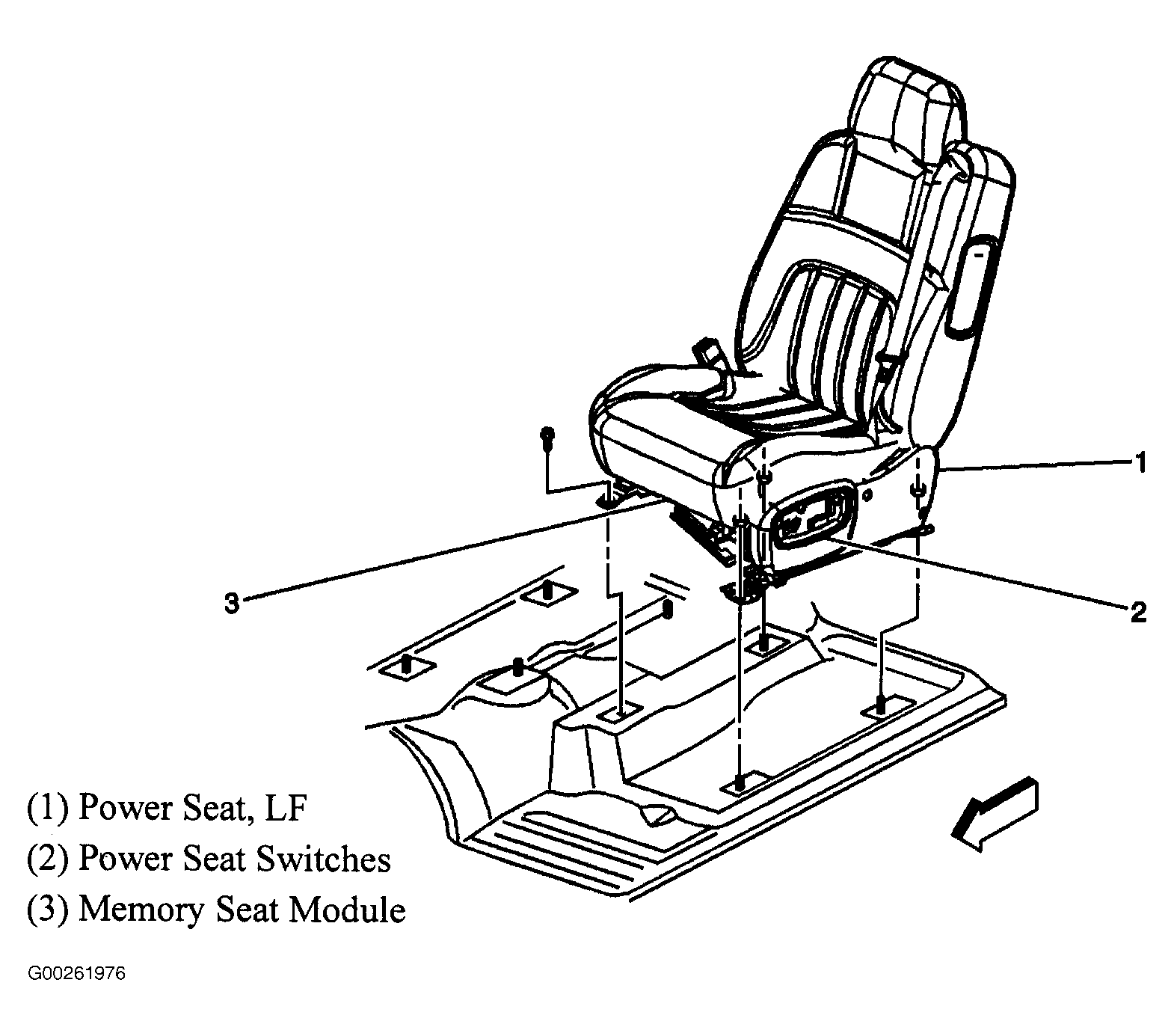

| Memory Seat Module | Below left front seat. See Figure . |
| Powertrain Control Module (PCM) (4.2L) | On upper left side of engine. |
| Powertrain Control Module (PCM) (5.3L) | Near lower left front of engine. |
| RSA/HVAC Control Module | Below center console. See Figure . |
| Sunroof Module | At rear of sunroof assembly. See Figure . |
| Transfer Case Shift Control Module | Behind lower left side of dash. |

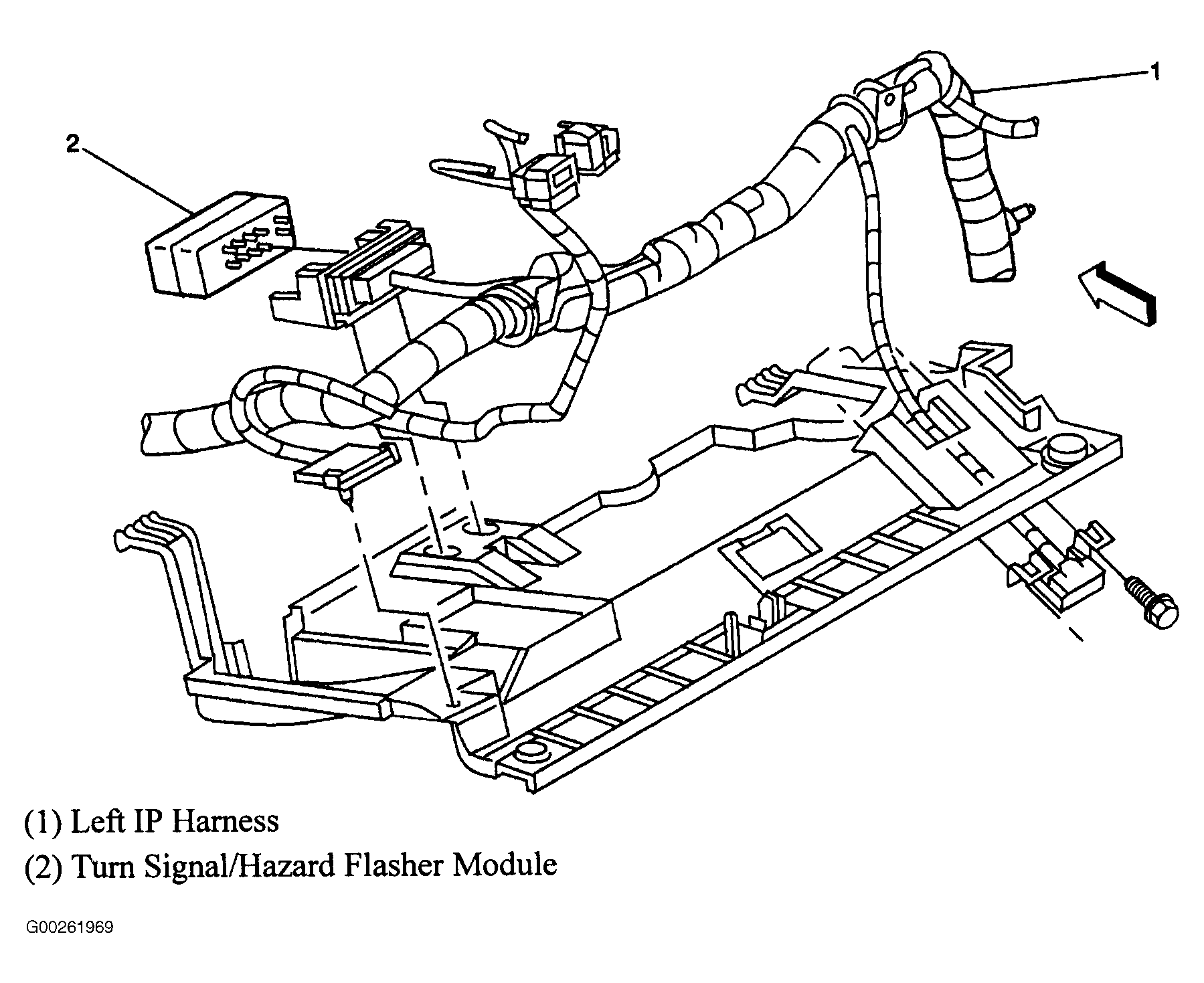

| Turn Signal/Hazard Flasher Module | Behind lower left side of dash. See Figure . |

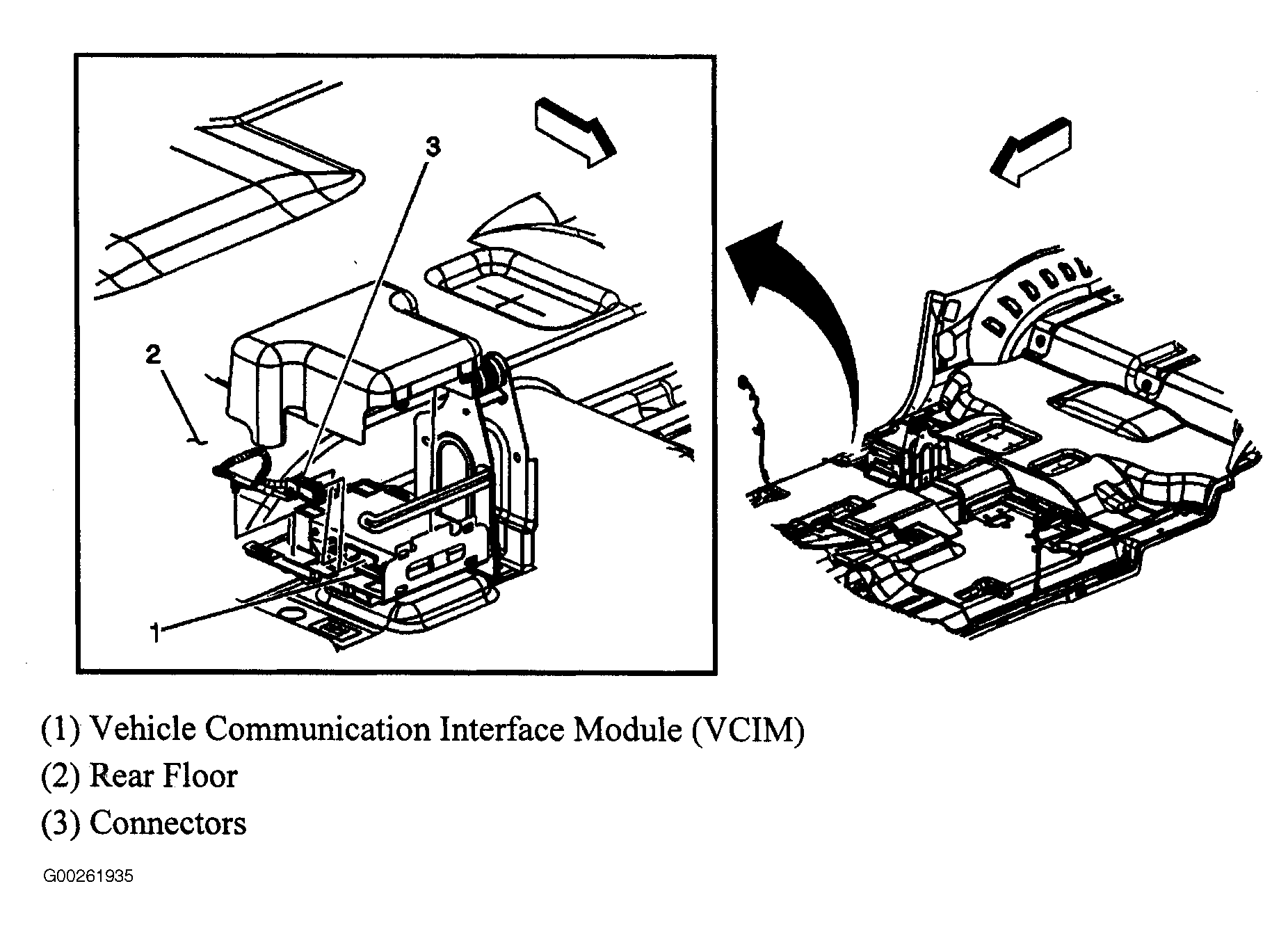

| Vehicle Communication Interface Module (VCIM) (Long Wheelbase) | Right rear floor pan. See Figure . |
| Vehicle Communication Interface Module (VCIM) (Short Wheelbase) | Under right rear seat. See Figure . |
