Splice Locations: Index

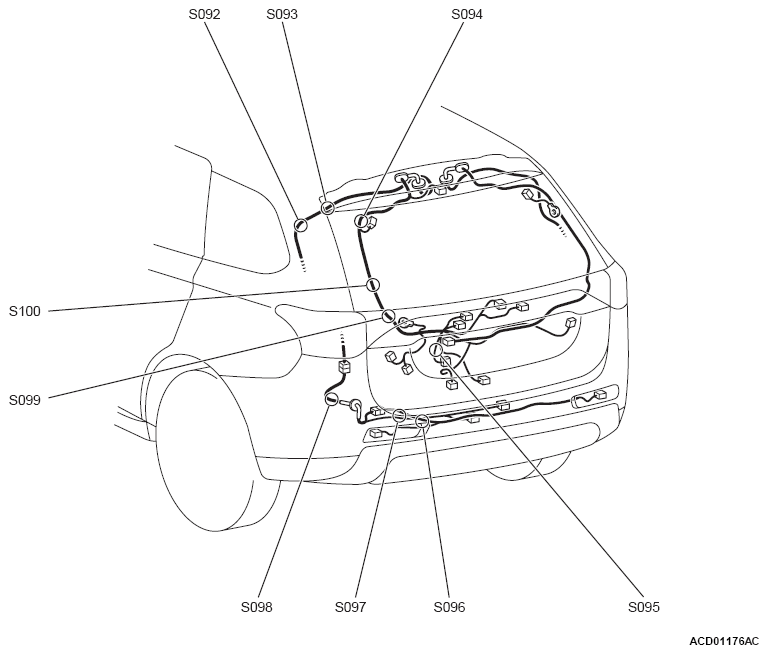

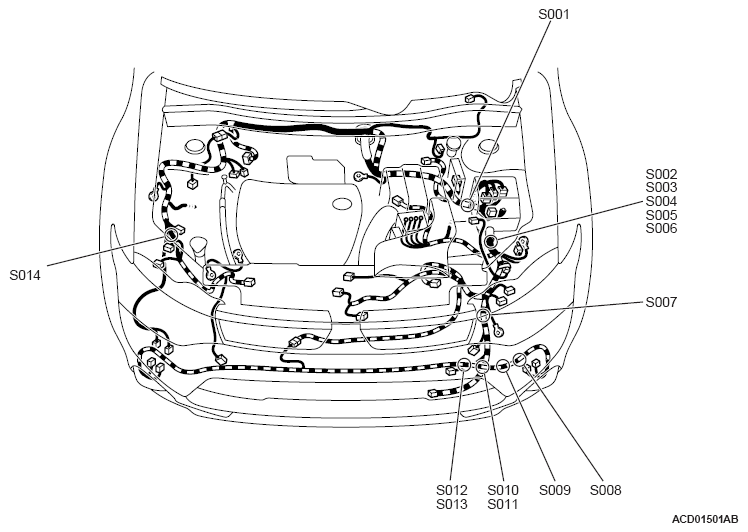

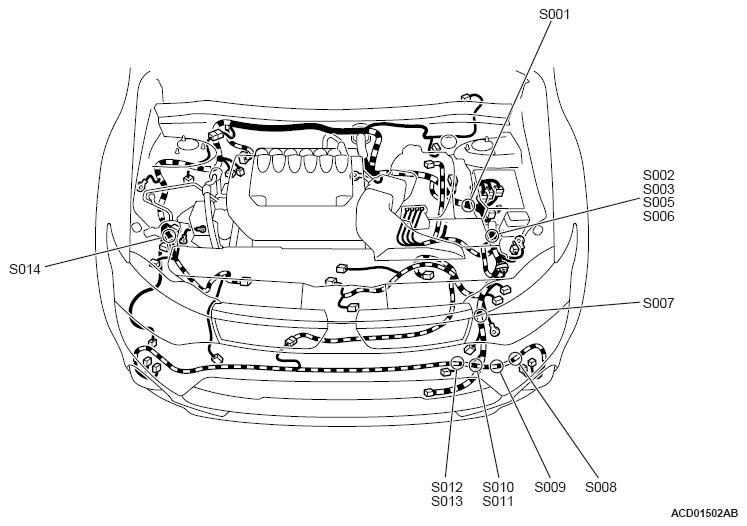

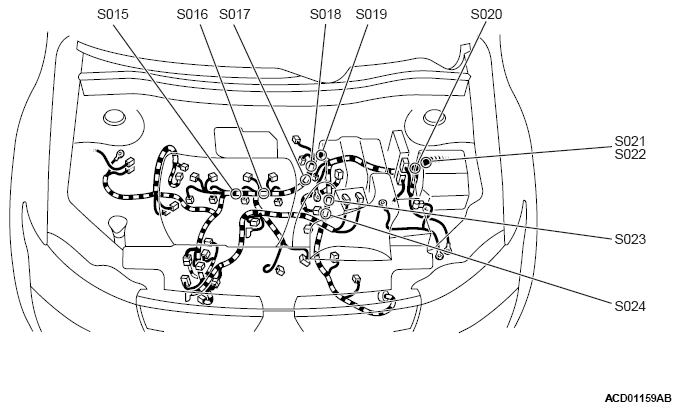

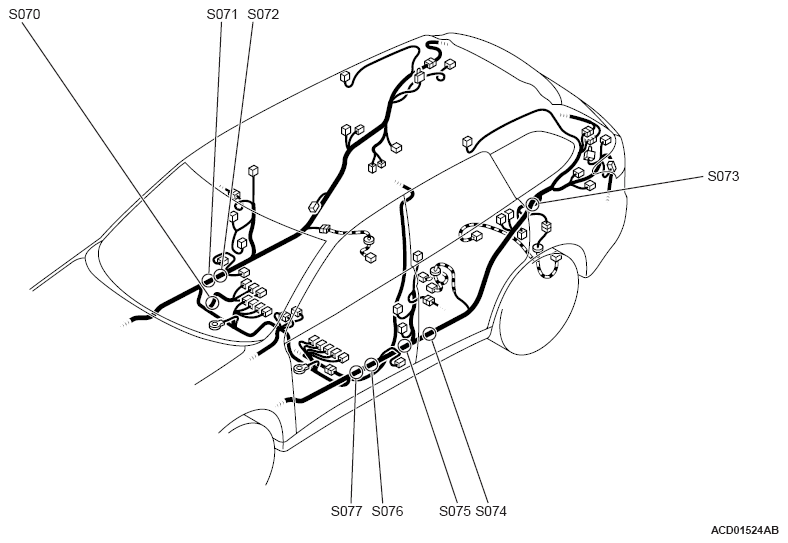

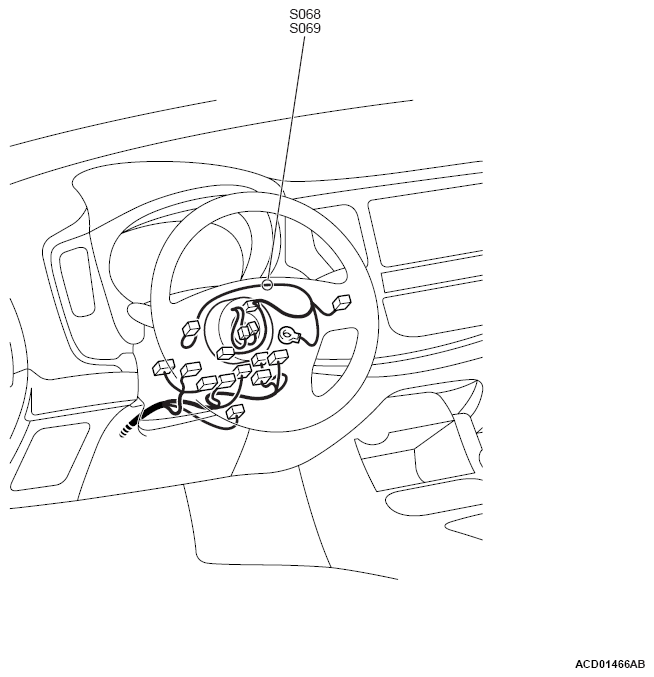

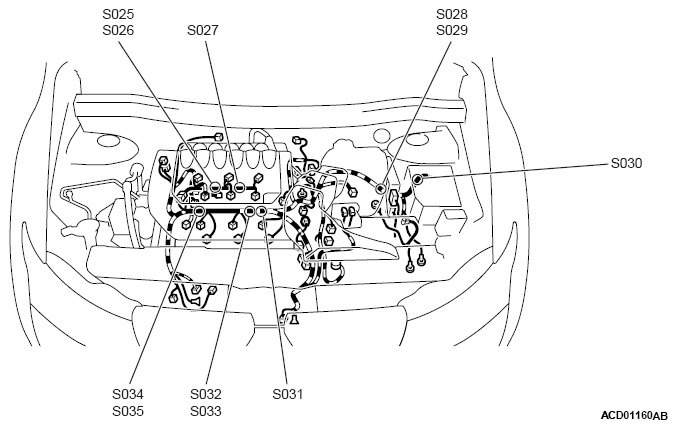

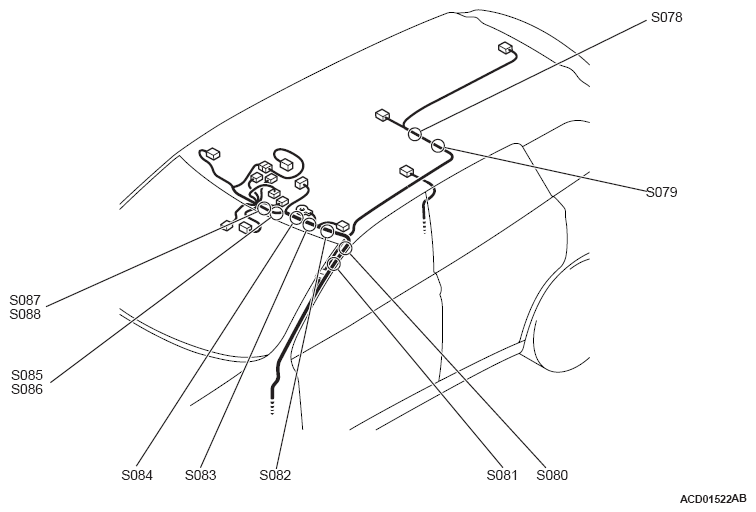

This index shows the illustration where the splice locations are.
Splice Location No.
Figure Reference
S001
Figure
Figure
S002
Figure
Figure
S003
Figure
Figure
S004
Figure
S005
Figure
Figure
S006
Figure
Figure
S007
Figure
Figure
S008
Figure
Figure
S009
Figure
Figure
S010
Figure
Figure
S011
Figure
Figure
S012
Figure
Figure
S013
Figure
Figure
S014
Figure
Figure
S015
Figure
S016
Figure
S017
Figure
S018
Figure
S019
Figure
S020
Figure
S021
Figure
S022
Figure
S023
Figure
S024
Figure
S025
Figure
S026
Figure
S027
Figure
S028
Figure
S029
Figure
S030
Figure
S031
Figure
S032
Figure
S033
Figure
S034
Figure
S035
Figure

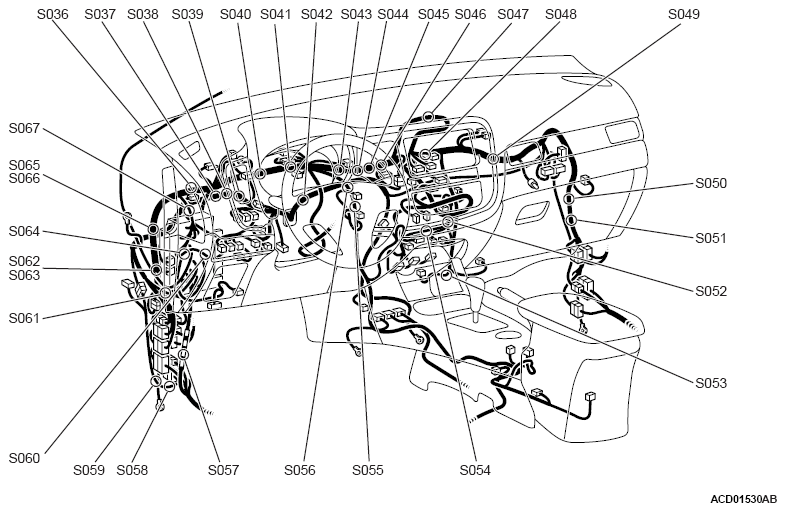

S036
Figure
S037
Figure
S038
Figure
S039
Figure
S040
Figure
S041
Figure
S042
Figure
S043
Figure
S044
Figure
S045
Figure
S046
Figure
S047
Figure
S048
Figure
S049
Figure
S050
Figure
S051
Figure
S052
Figure
S053
Figure
S054
Figure
S055
Figure
S056
Figure
S057
Figure
S058
Figure
S059
Figure
S060
Figure
S061
Figure
S062
Figure
S063
Figure
S064
Figure
S065
Figure
S066
Figure
S067
Figure
S068
Figure
S069
Figure
S070
Figure
S071
Figure
S072
Figure
S073
Figure
S074
Figure
S075
Figure
S076
Figure
S077
Figure
S078
Figure
S079
Figure
S080
Figure
S081
Figure
S082
Figure
S083
Figure
S084
Figure
S085
Figure
S086
Figure
S087
Figure
S088
Figure

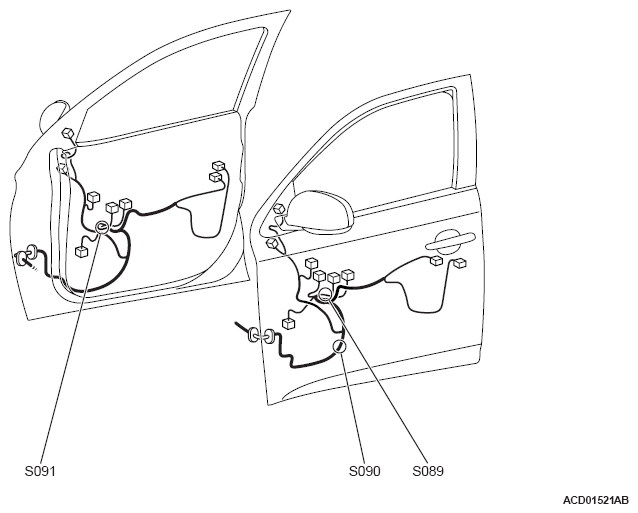

S089
Figure
S090
Figure
S091
Figure
S092
Figure
S093
Figure
S094
Figure
S095
Figure
S096
Figure
S097
Figure
S098
Figure
S099
Figure
S100
Figure
