Control Units
CONTROL UNITS LOCATION

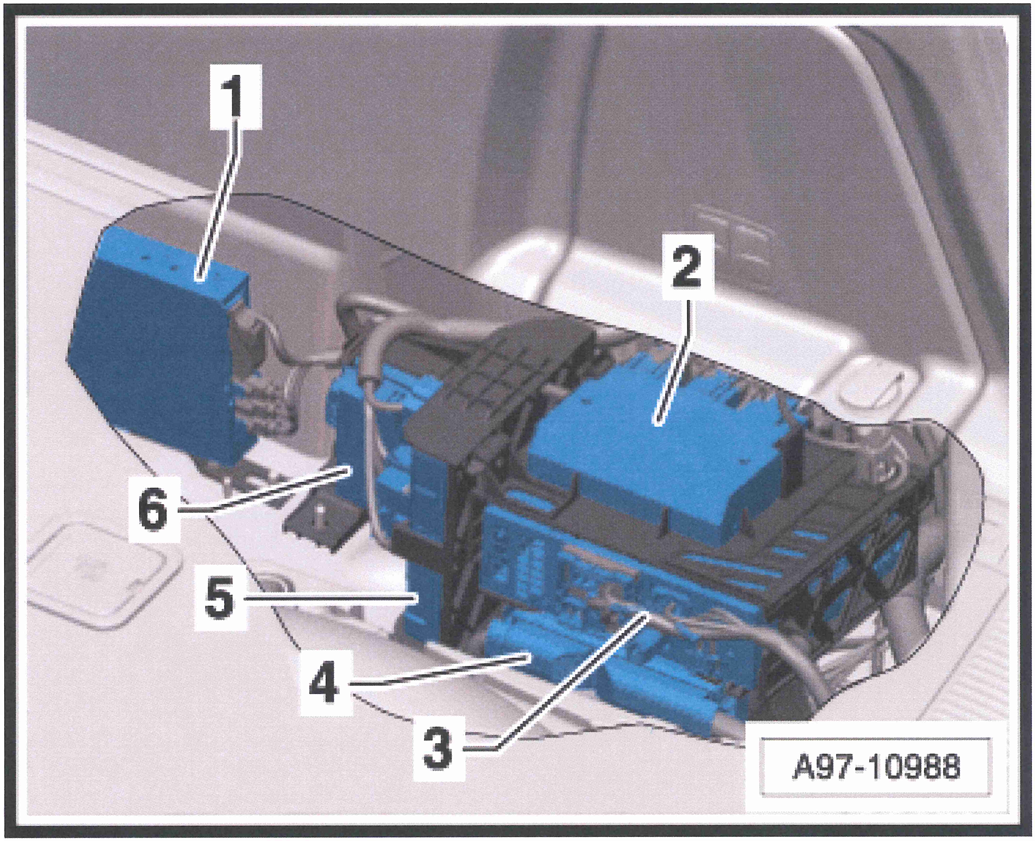

| Component | Location |
|---|---|
| ABS Control Module | In right plenum chamber. See Figure. |
| Access/Start Control Module | Integral to steering column lock actuator. |
| Airbag Control Module | In center console. See Figure. |
| Battery Monitoring Control Module | Battery negative post. |
| Comfort System Central Control Module 2 (6) | Right side of luggage compartment. See Figure. |
| Comfort System Central Control Module (5) | Right side of luggage compartment. See Figure. |
| Digital Sound System Control Module | Right rear of luggage compartment. See Figure. |
| Digital Sound System Control Module (1) | Right side of luggage compartment. See Figure. |
| Directional Stabilization Assistance Control Module | Top center of windshield. |
| Driver's Door Control Module | In driver's door, behind inner trim panel. See Figure. |
| Engine Control Module (ECM) | Right rear of engine compartment. See Figure. |
| Engine Management Control Module | Under driver's seat, by battery. See Figure. |
| Fresh Air Blower Control Module | Under passenger side dash panel. See Figure. |
| Front Passenger's Door Control Module | In front passenger's door, behind inner trim panel. See Figure. |
| Front Passenger's Seat Control Module (1) | At front passenger's seat. See Figure. |
| Fuel Pump (FP) Control Module | Under vehicle, at front of fuel tank. See Figure. |

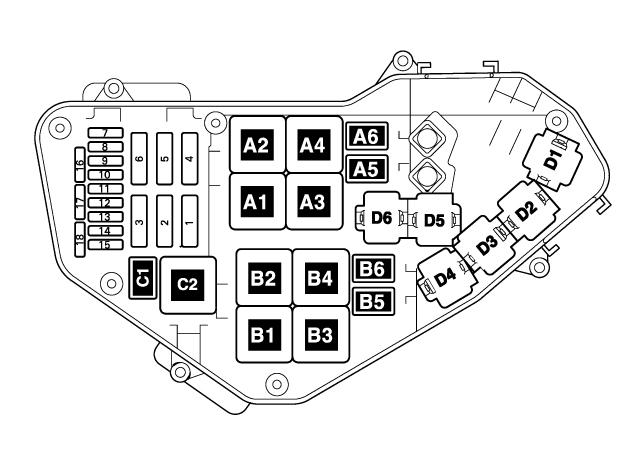

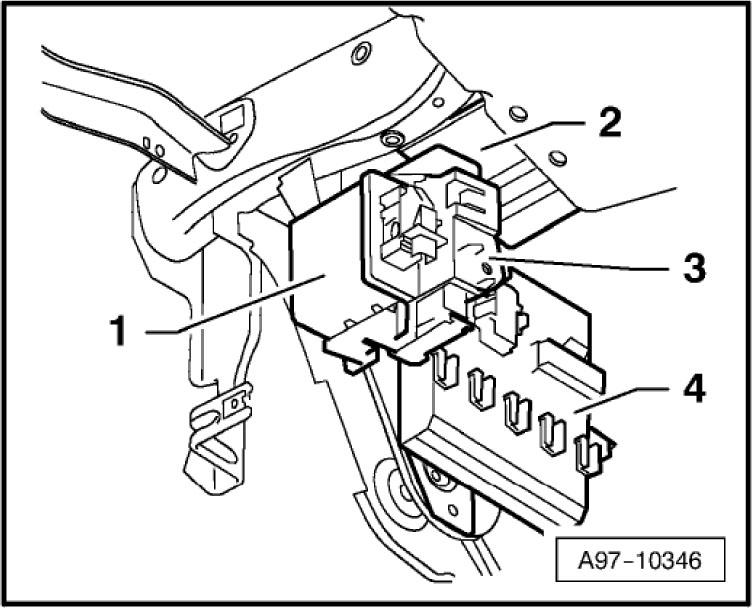

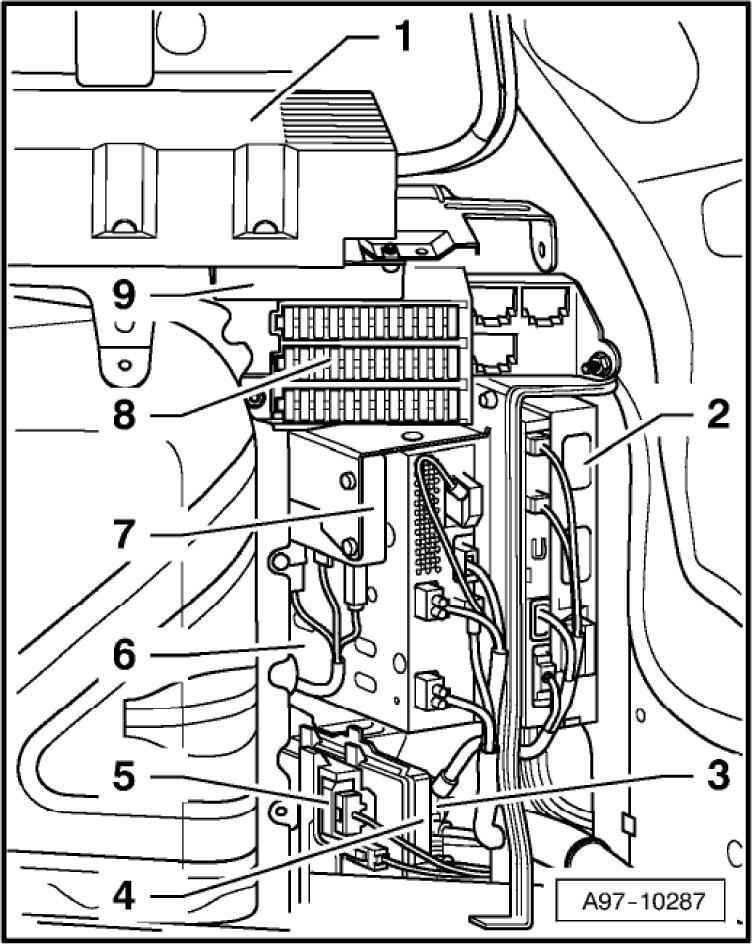

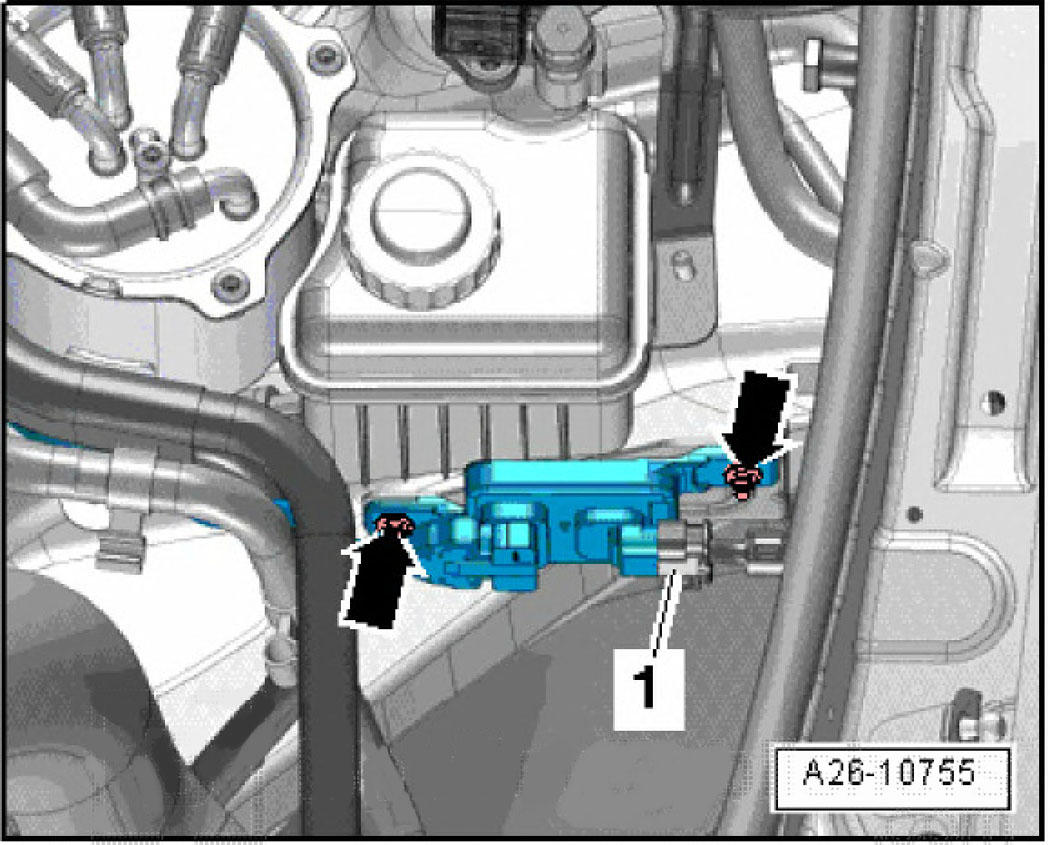

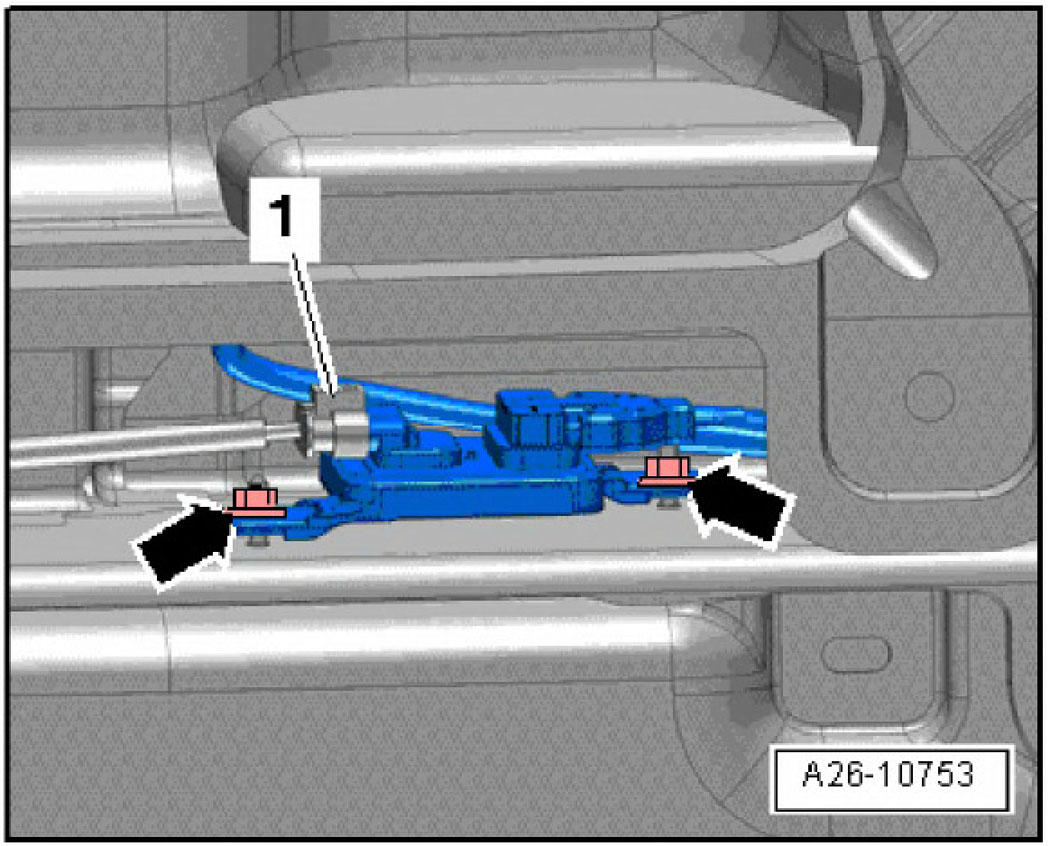

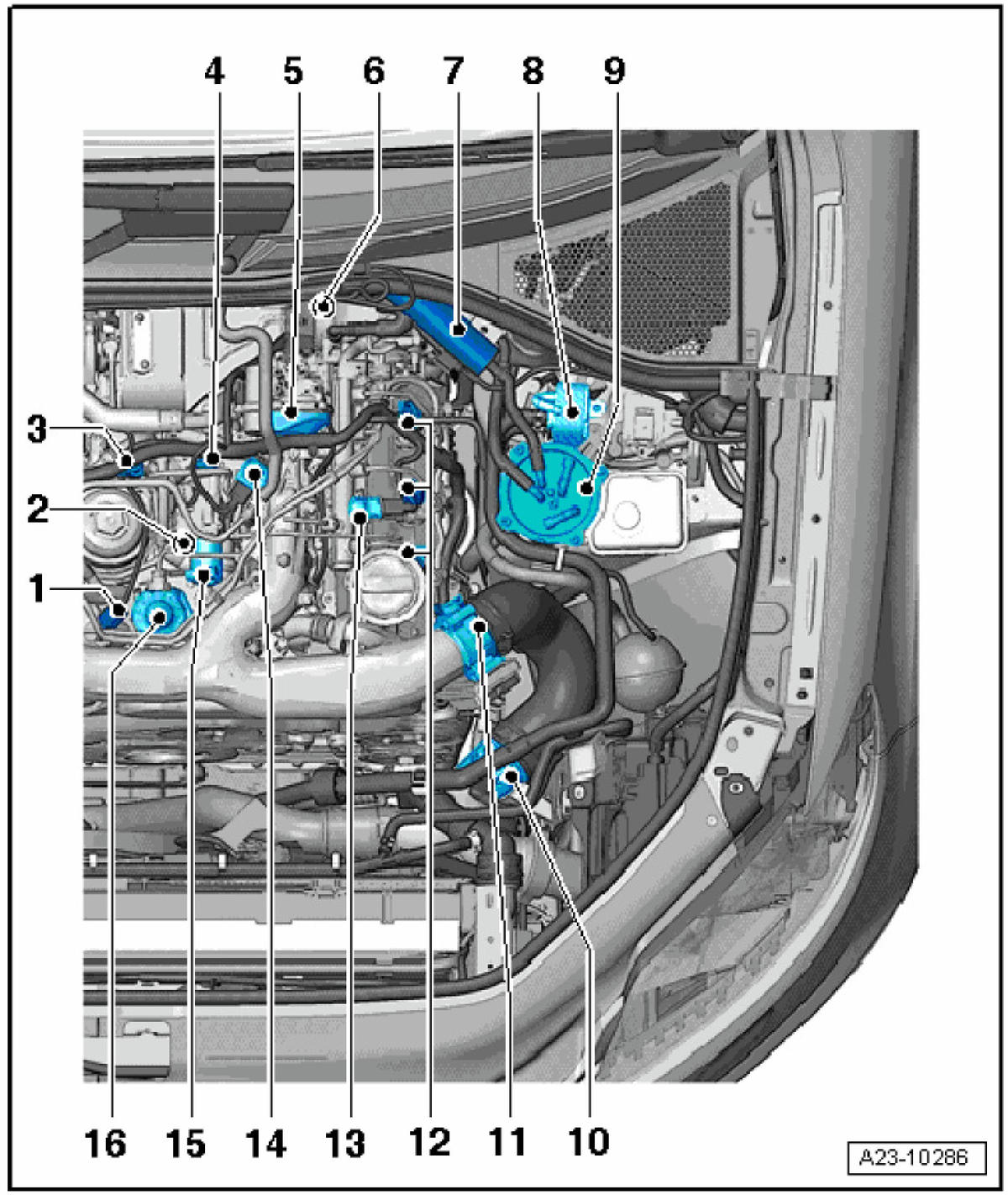

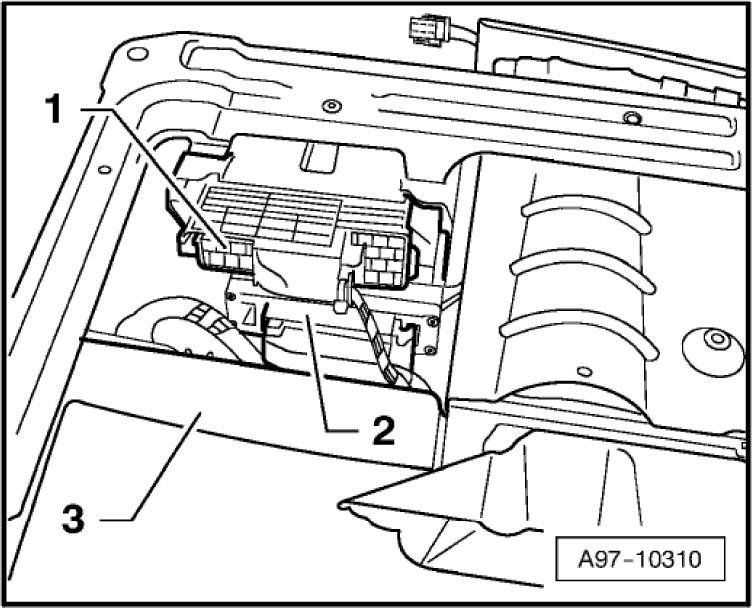

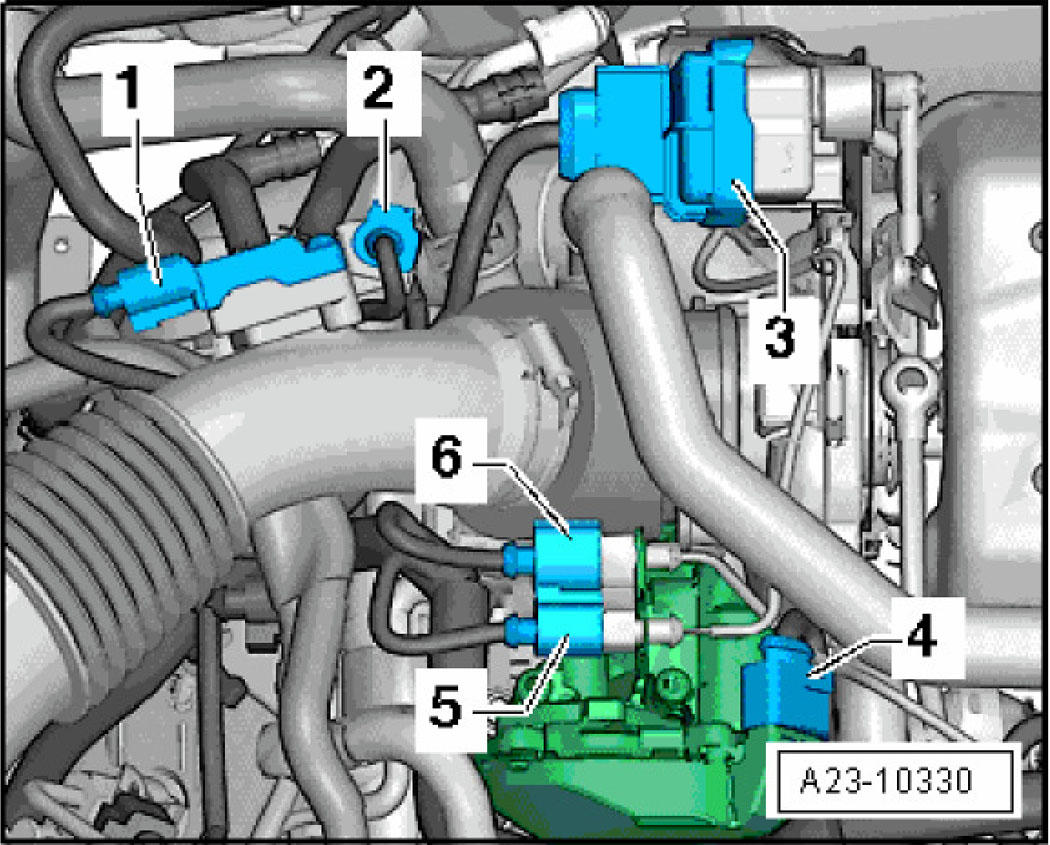

| Glow/Time Control Module 2 (A3) | In E-Box relay & fuse panel. See Figure. |
| Headlight Range Control Module (1) | Behind left side of dash. See Figure. |
| Lane Change Assistance Control Modules | In rear bumper cover. |
| Left Rear Door Control Module | In left rear door, behind inner trim panel. See Figure. |
| Level Control System Control Module (4) | Right side of luggage compartment. See Figure. |
| Navigation System W/CD Drive Control Module (5) | Right side of luggage compartment. |
| NOx-Sensor Control Module (1) | Left side of engine compartment. See Figure. |
| NOx-Sensor 2 Controller (1) | Under rear of vehicle. See Figure. |
| Parking Aid Control Module (3) | Right side of luggage compartment. See Figure. |
| Passenger Memory Seat Control Module | Under front passenger seat. |
| Power Sunroof Control Module | Front of headliner, integral with sunroof motor. See Figure. |
| Rear Fresh Air Blower Control Module (W/ Rear A/C) | Left rear of luggage compartment. See Figure. |
| Rear View Camera Control Module (1) | Right side of luggage compartment. See Figure. |
| Right Rear Door Control Module | In rear door, behind inner trim panel. See Figure. |
| Throttle Valve Control Module (Diesel) (11) | Left side of engine. See Figure. |
| Throttle Valve Control Module (Except Diesel) | At back of intake manifold. See Figure. |
| Tire Pressure Monitoring Control Module (3) | Behind left side of dash. See Figure. |
| Towing Recognition Control Module (2) | Right side of luggage compartment. |
| Transmission Control Module (TCM) (2) | Under front passenger's seat. See Figure. |
| Turbocharger (TC) 1 Control Module (3) | At turbocharger. See Figure. |
| Vehicle Electrical System Control Module 2 (1) | Under front passenger's seat. See Figure. |
| Vehicle Electrical System Control Module (4) | Behind left side of dash. See Figure. |
