Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

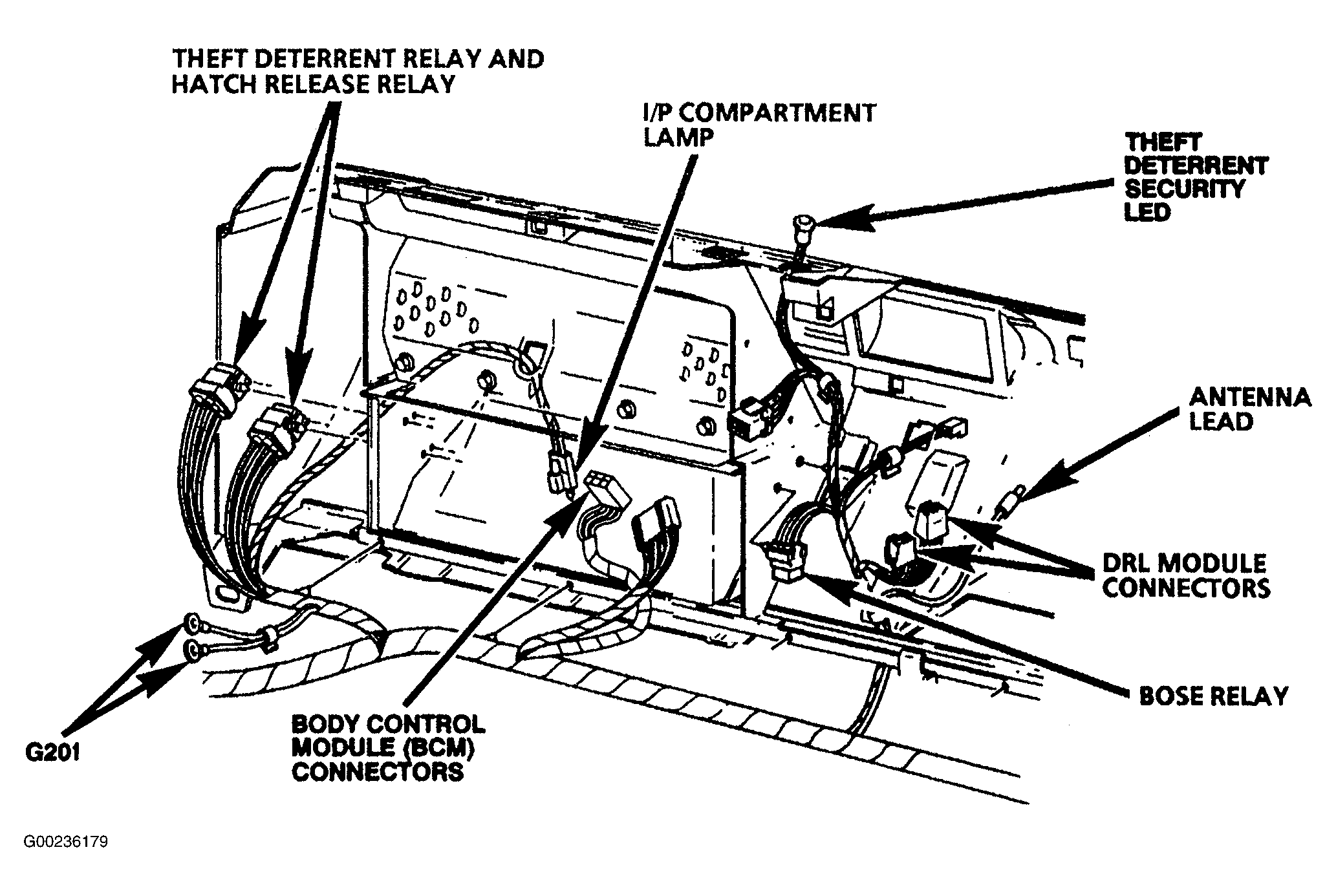

| Body Control Module (BCM) | Figure Mounted to HVAC module, above right dash insulator panel. |
| Cruise Control Module | Figure In engine compartment, on left frame rail, forward of wheelwell. |

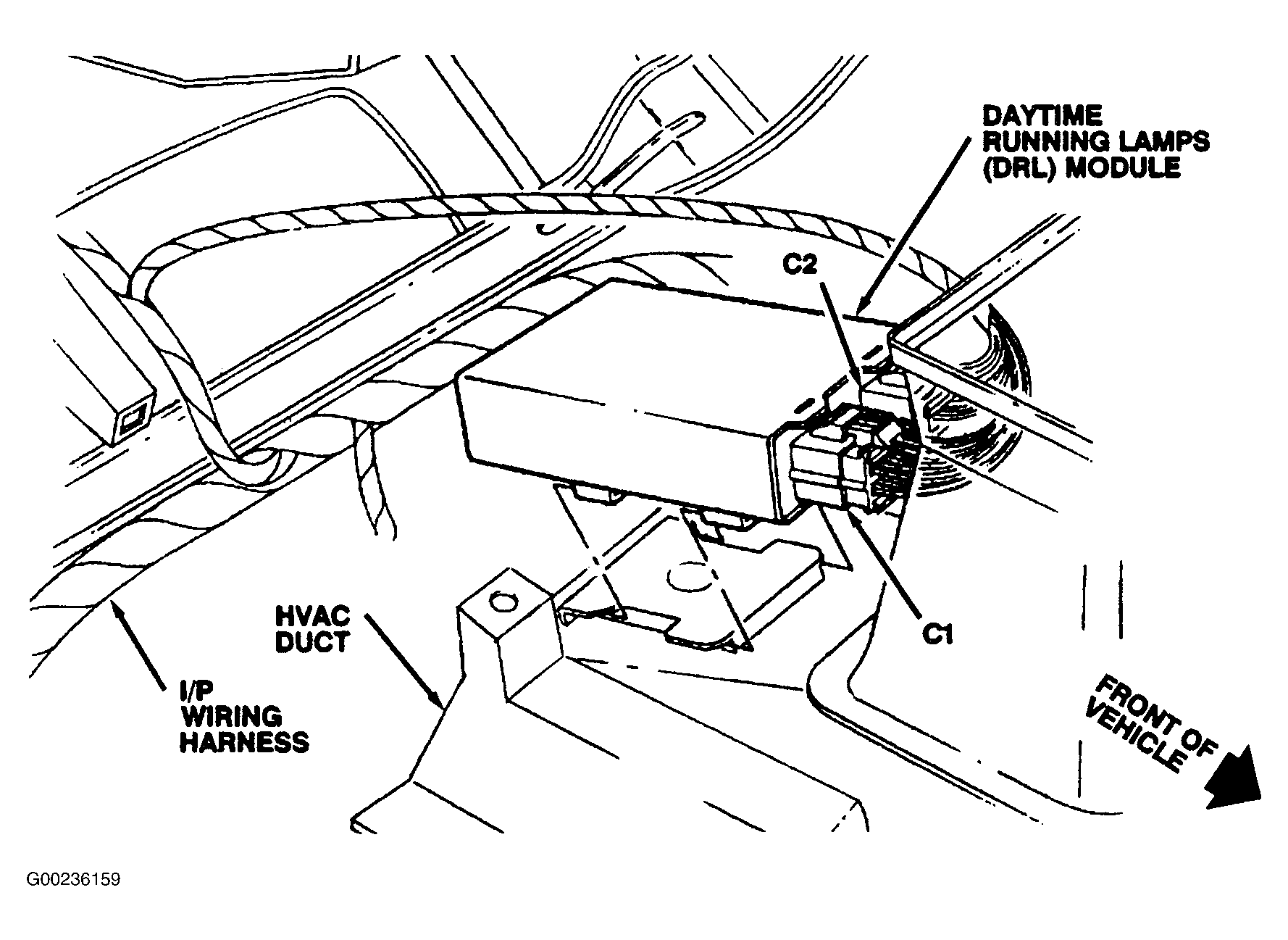

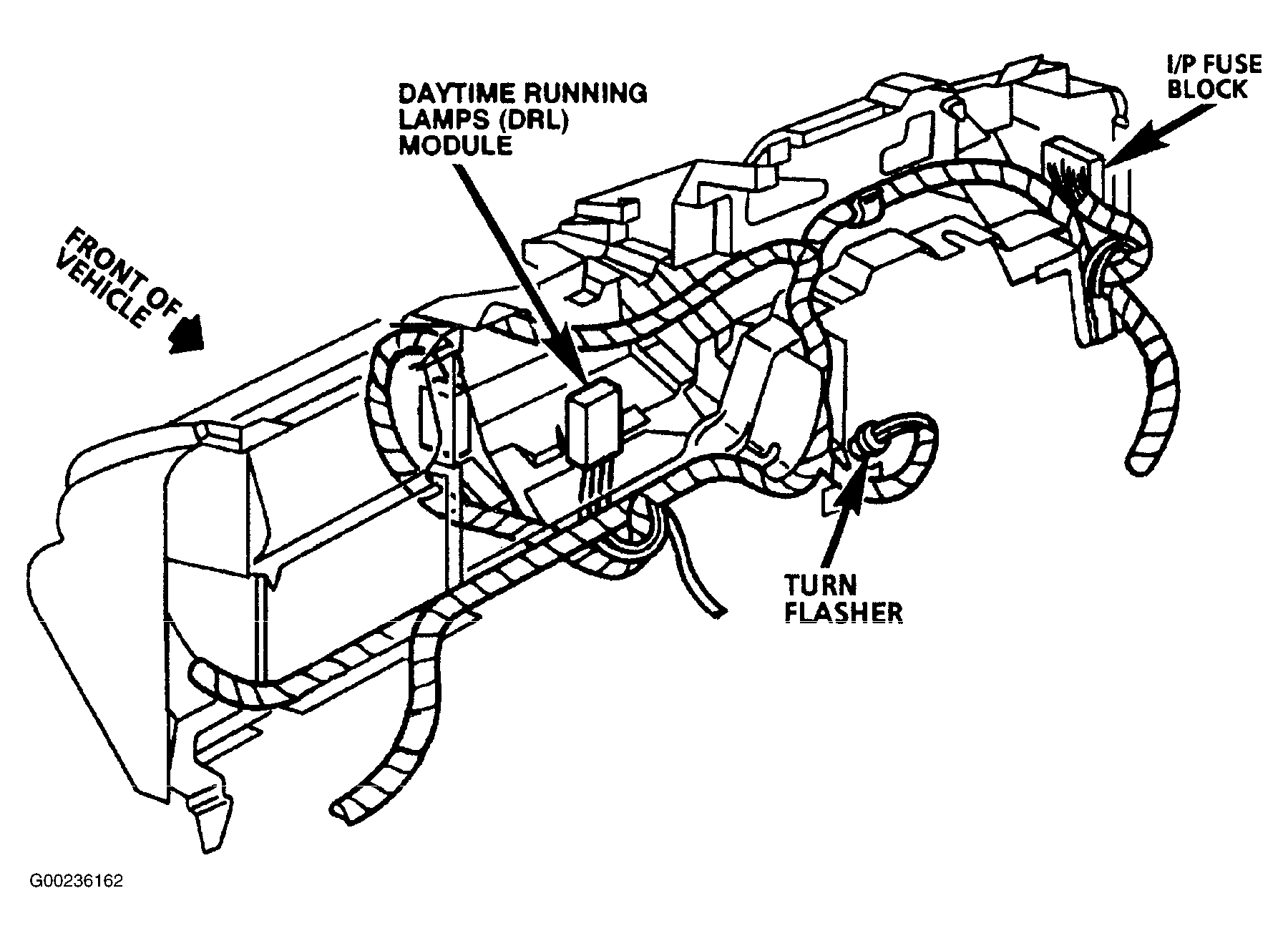

| Daytime Running Lamps (DRL) Module | Figure Or Figure Mounted behind radio & HVAC controls, left of I/P compartment. |

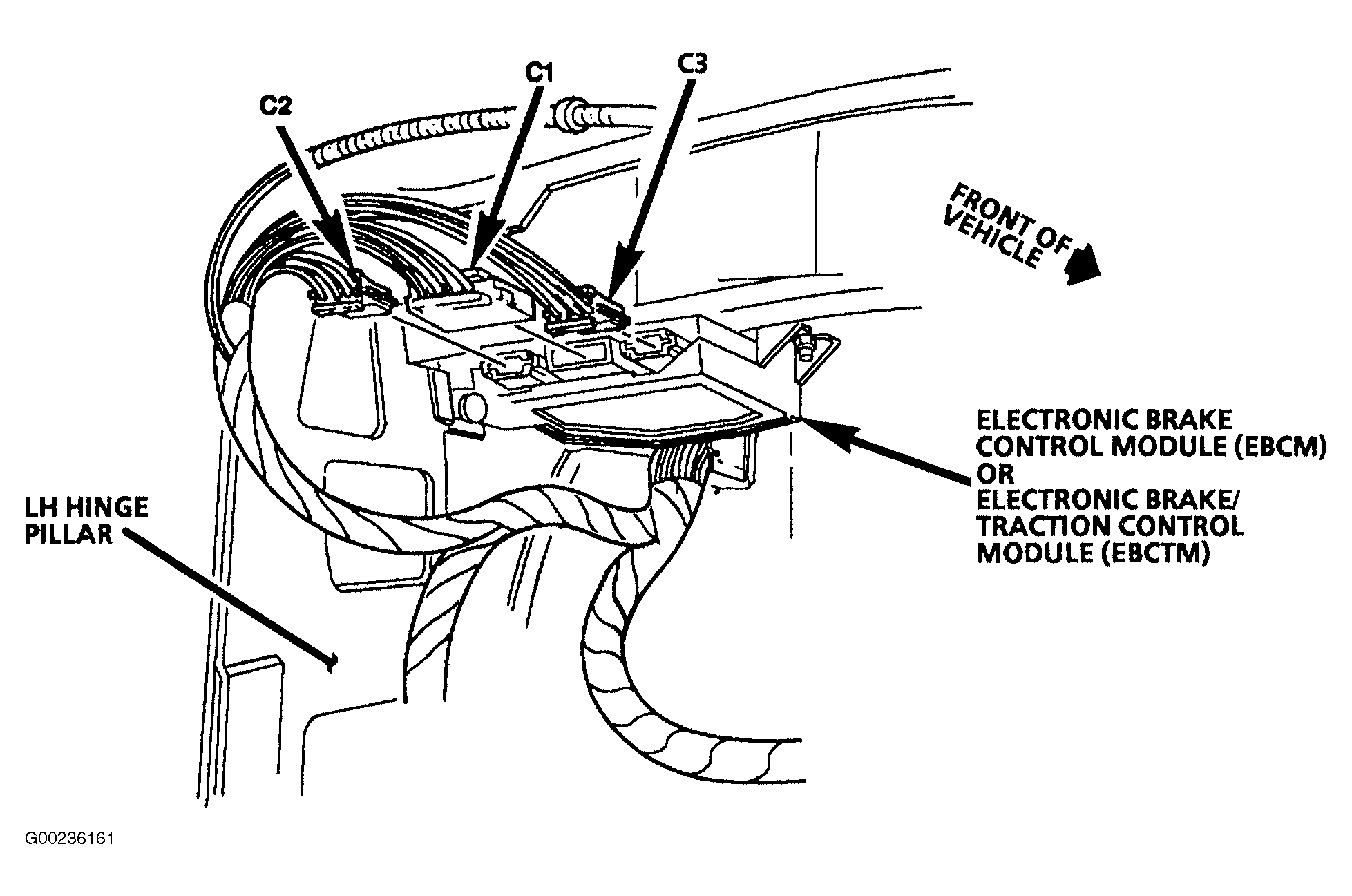

| Electronic Brake Control Module (EBCM) | Figure Under left side of dash, near kick panel. |
| Electronic Brake/Traction Control Module (EBTCM) | Figure Under left side of dash. |

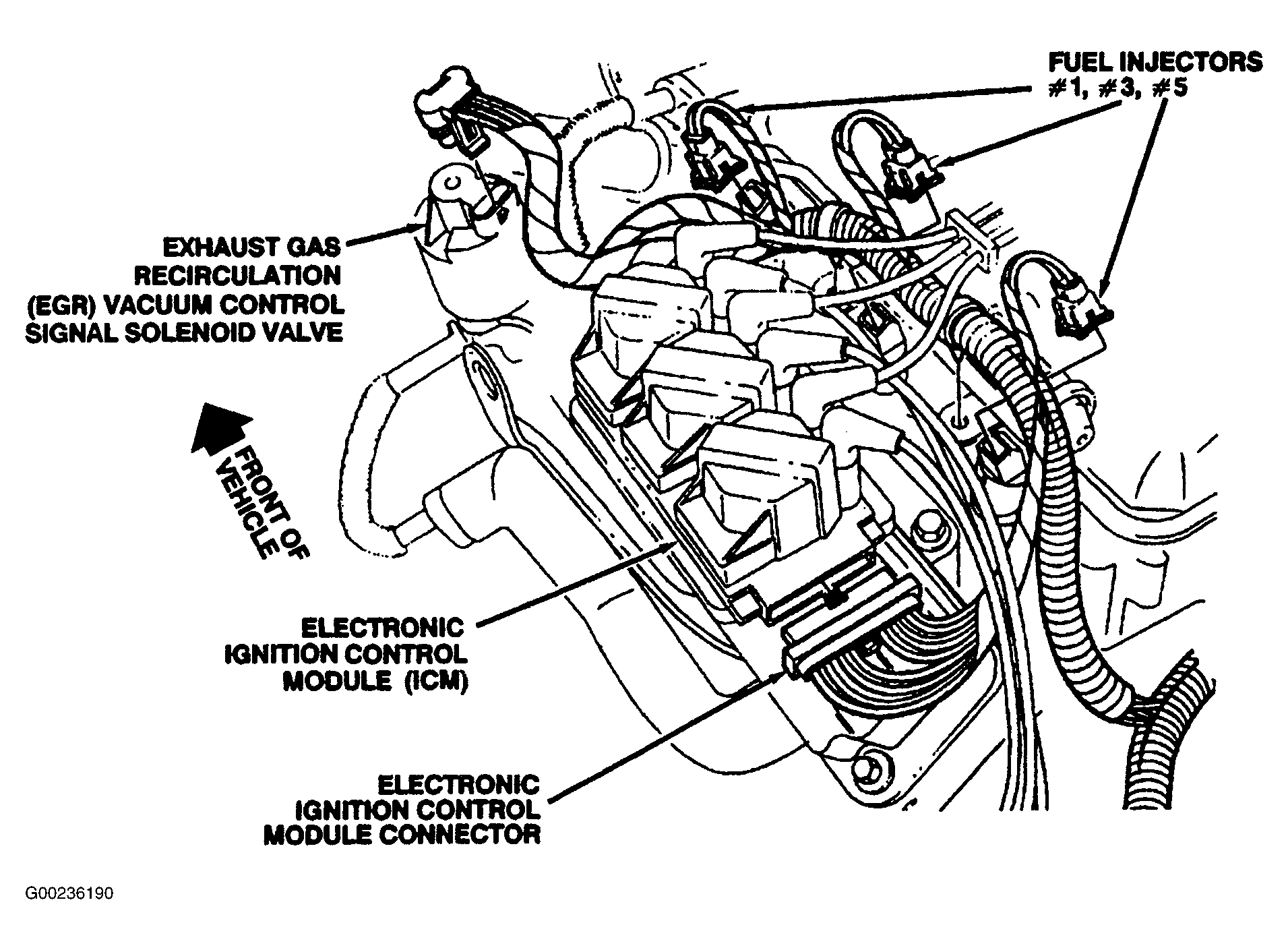

| Electronic Ignition Control Module (ICM) (3.8L VIN K) | Figure & Figure At front end of left cylinder head. |

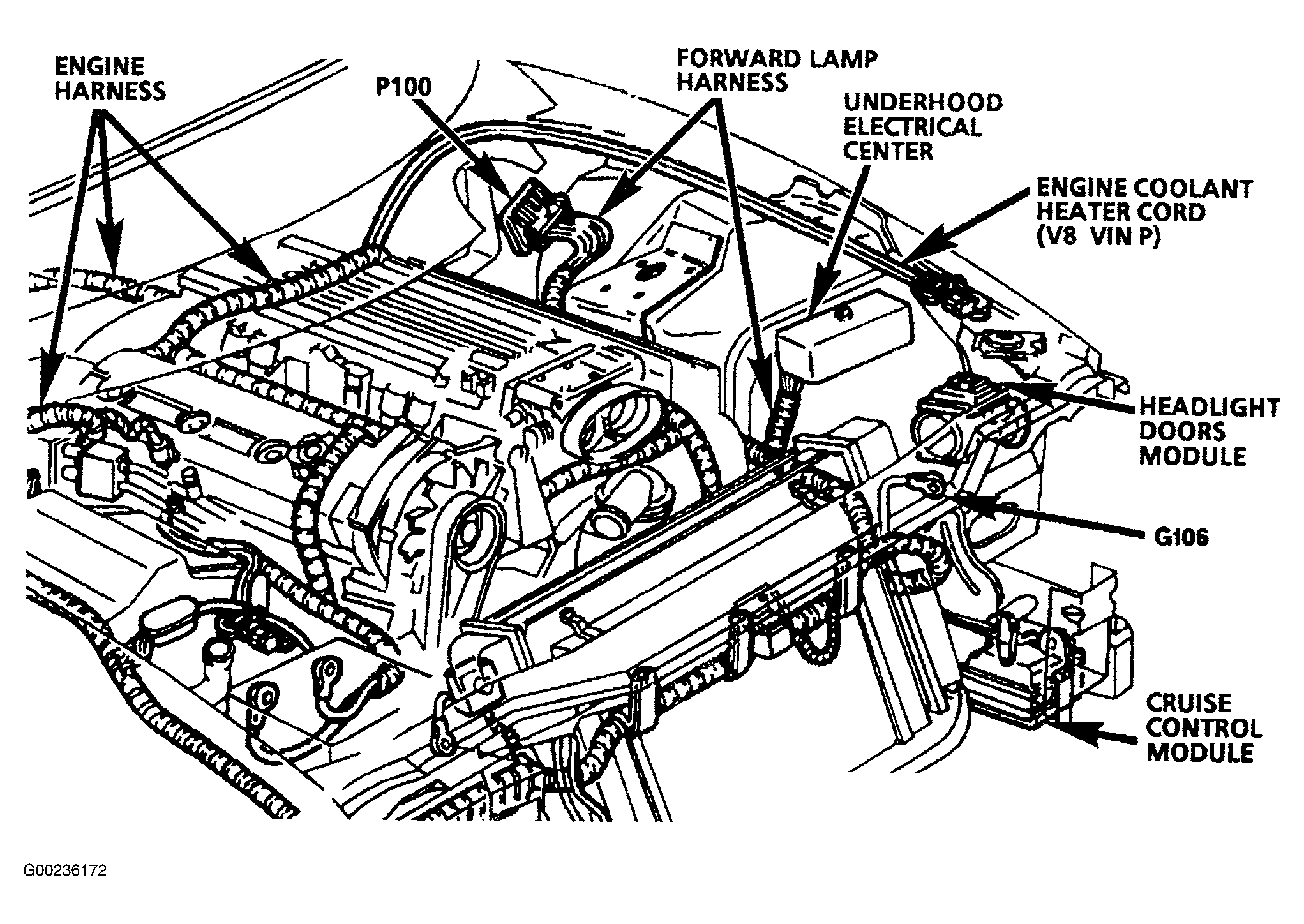

| Headlamp Doors Module (Firebird) | Figure In engine compartment, forward of left wheelwell. |

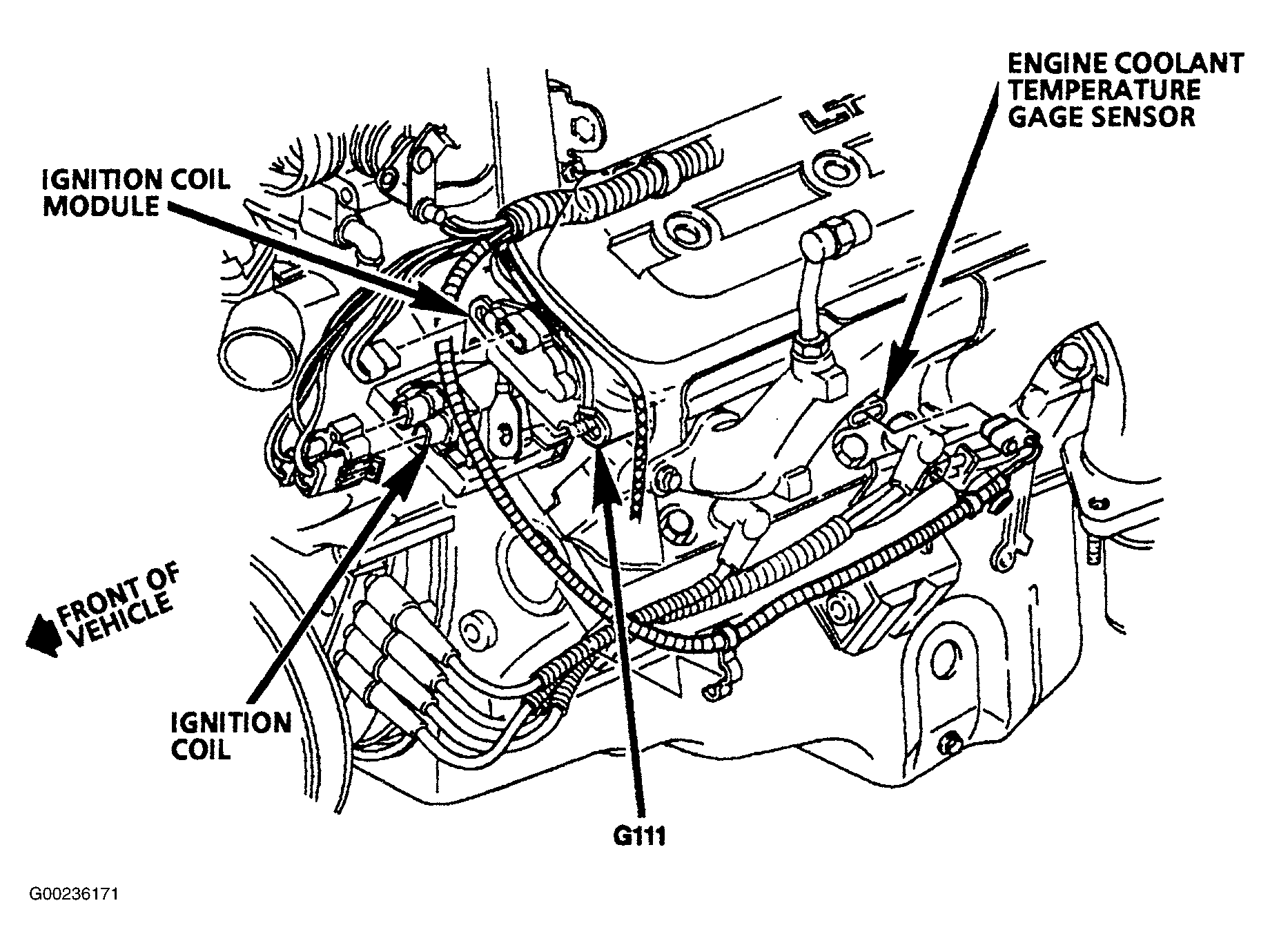

| Ignition Coil Module (5.7L VIN P) | Figure Front left side of engine. |

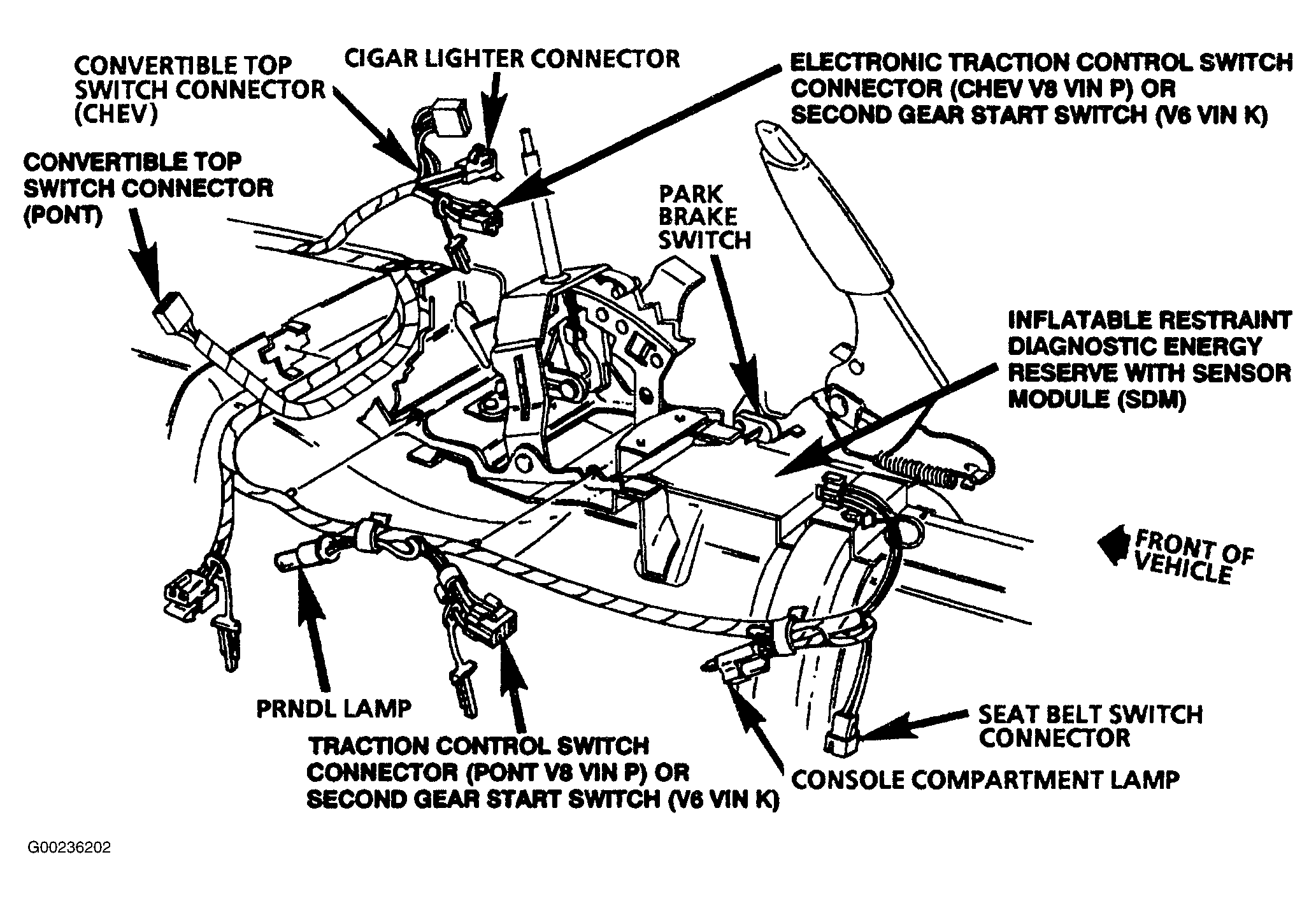

| Inflatable Restraint Diagnostic Energy Reserve Module (DERM) | Figure Top of rear console. |

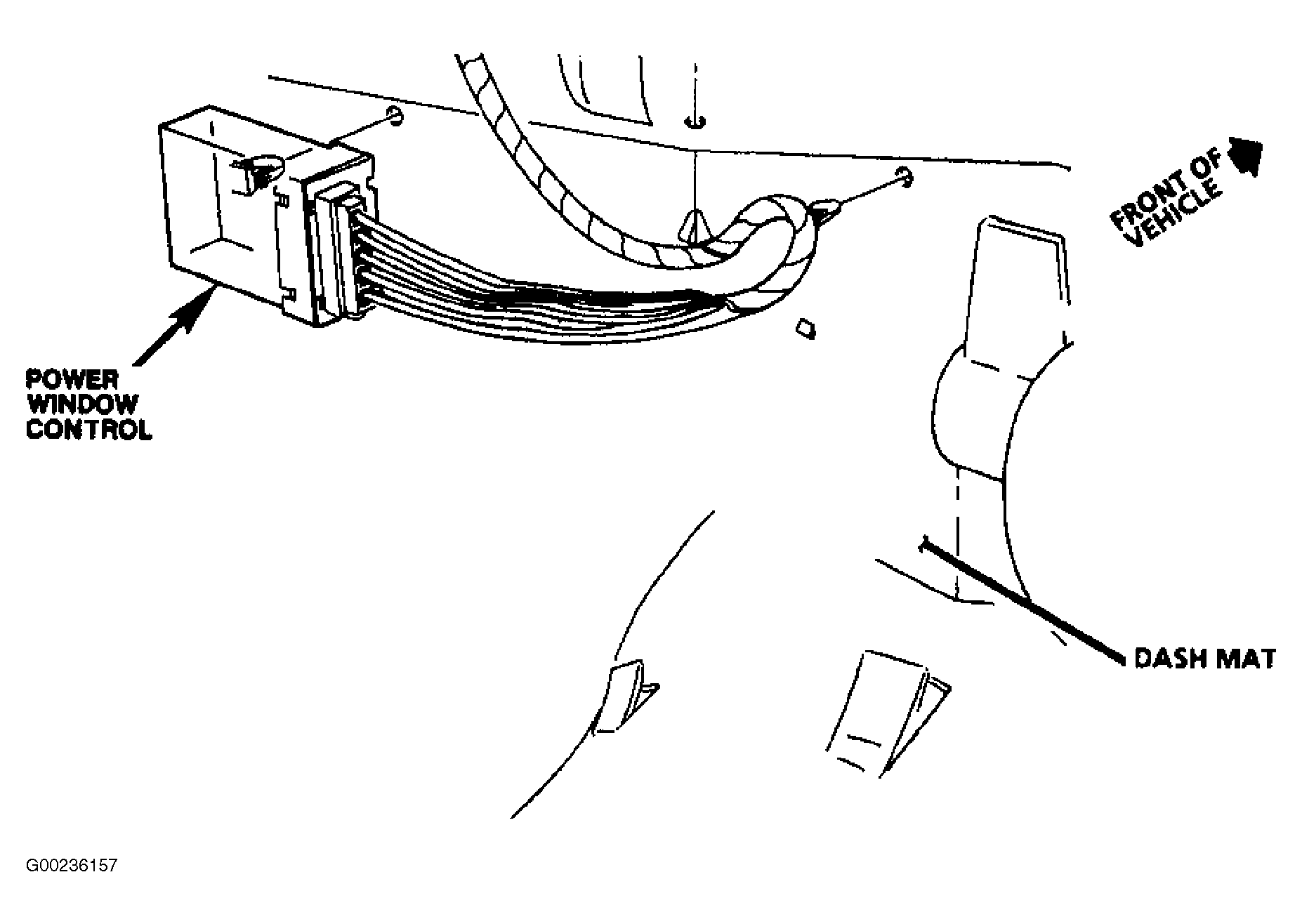

| Power Window Control Module | Figure On center of dash mat, above floor tunnel. |

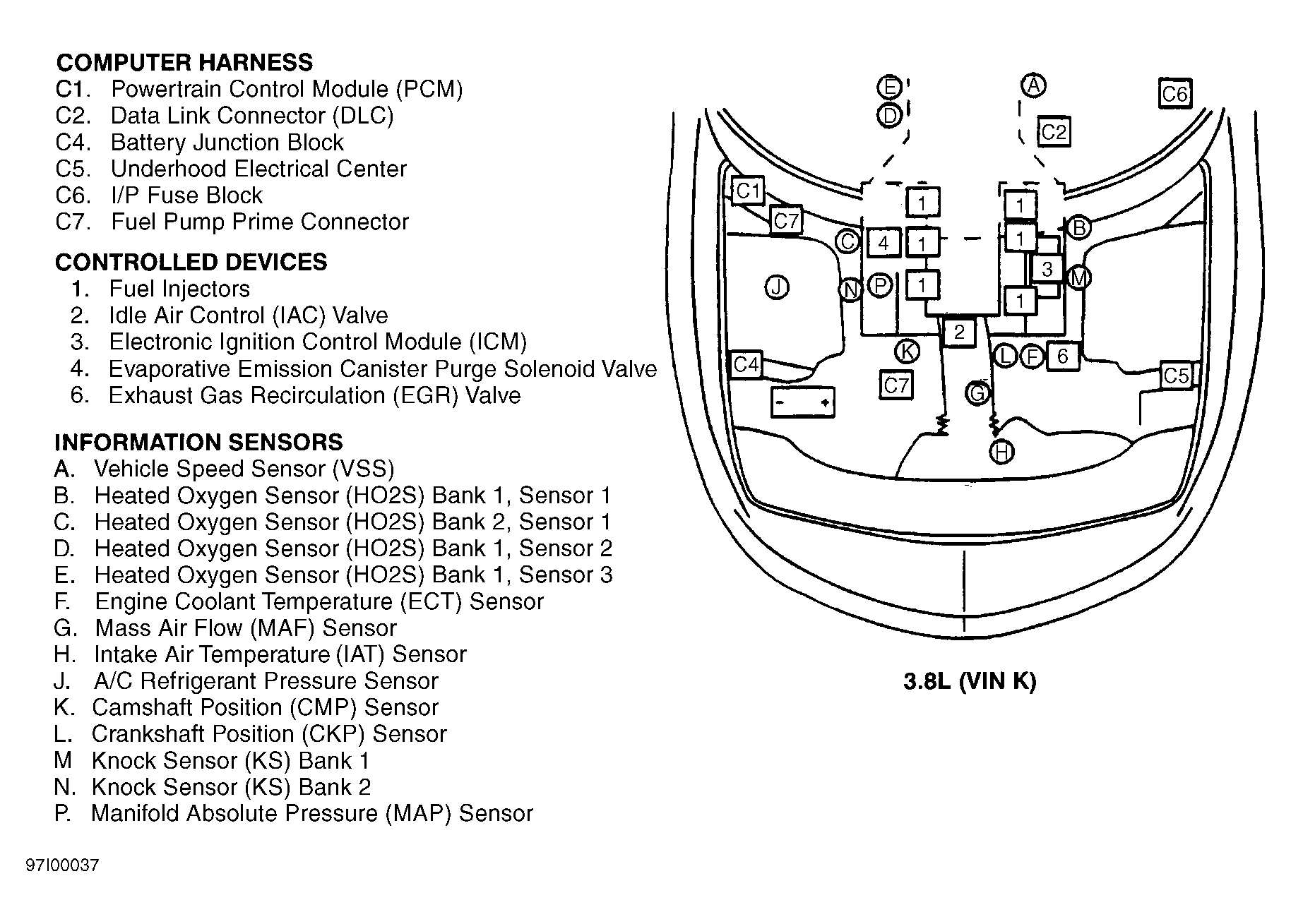

| Powertrain Control Module (PCM) (3.8L VIN K) | Figure & Figure In engine compartment, behind right strut tower. |

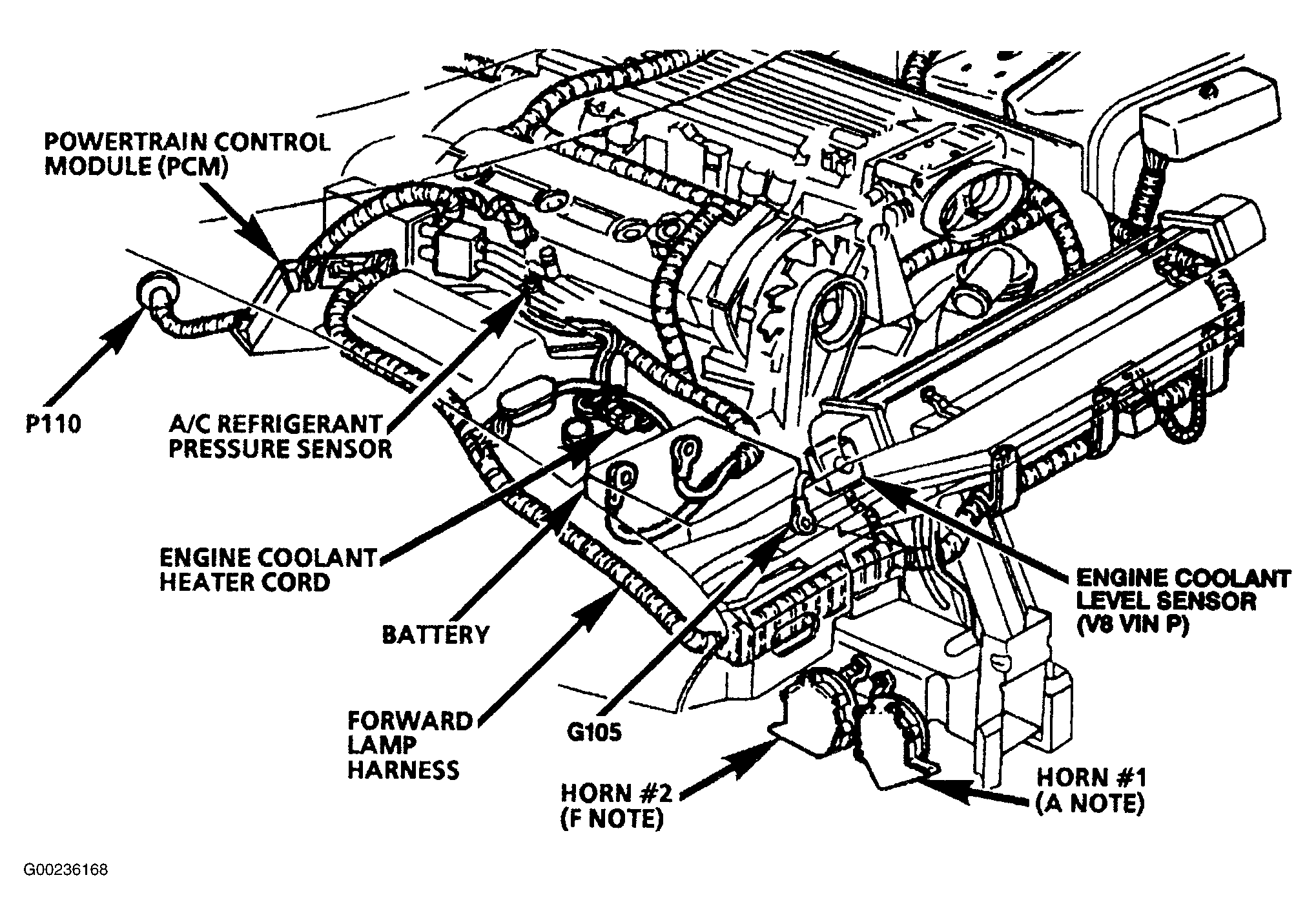

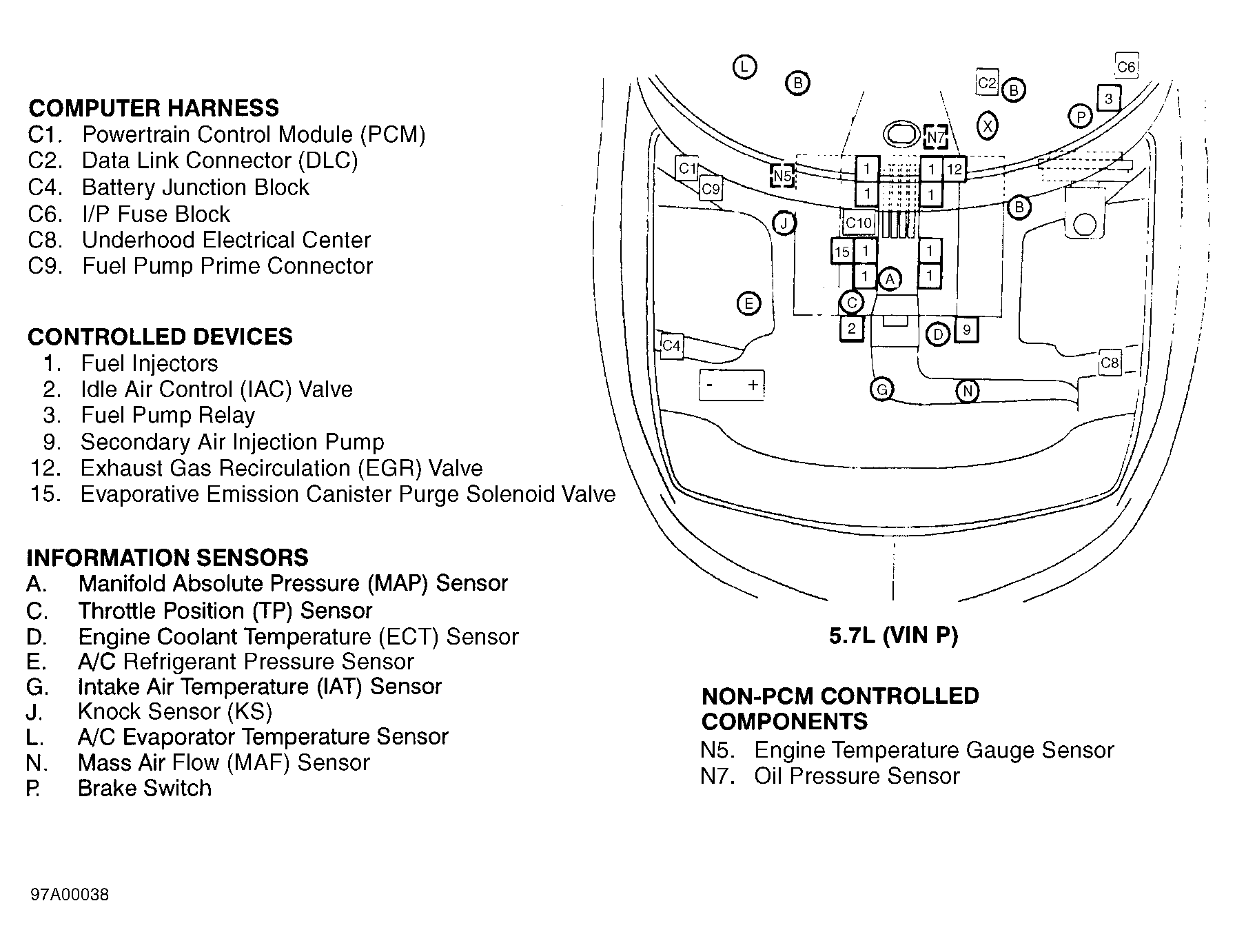

| Powertrain Control Module (PCM) (5.7L VIN P) | Figure & Figure In engine compartment, behind right strut tower. See . |
