Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

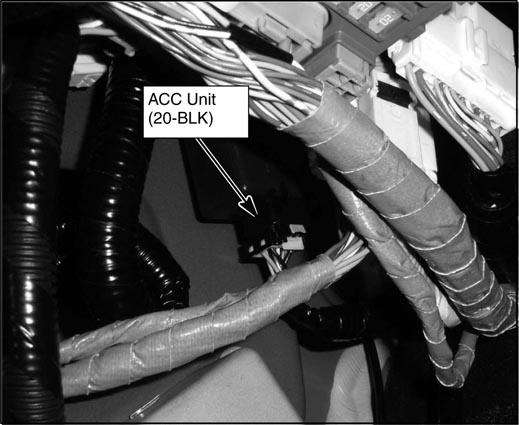

| ACC Unit | Left side of dash. See Figure. |

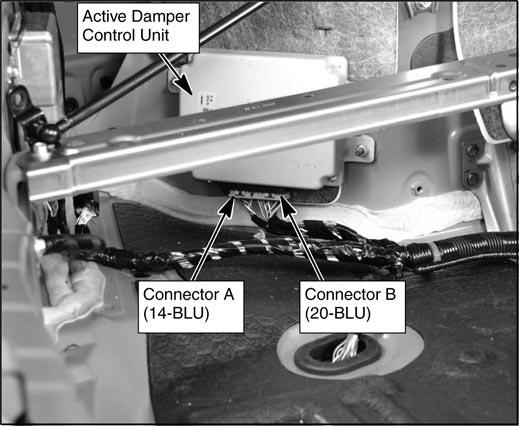

| Active Damper Control Unit | Left side of cargo area. See Figure. |

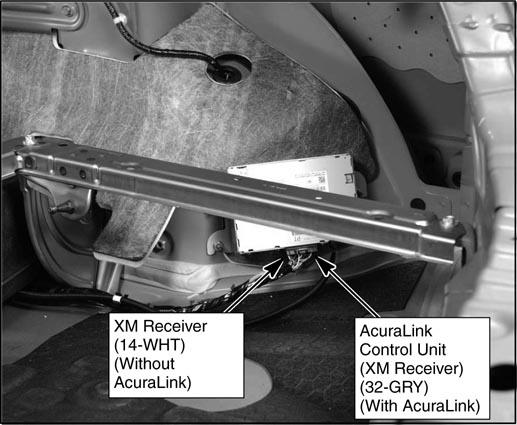

| AcuraLink Control Unit (XM Receiver) | Right side of cargo area. See Figure. |

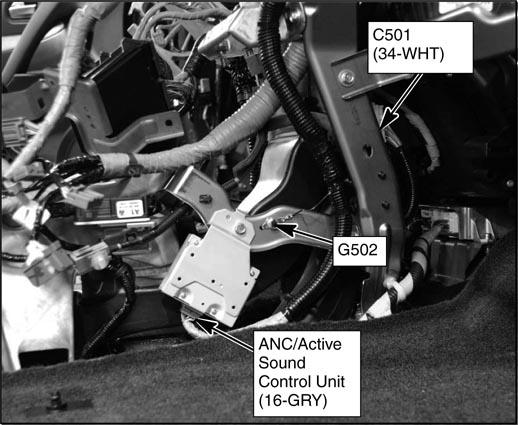

| ANC/Active Sound Control Unit | Middle of dash. See Figure. |
| Back-Up Sensor Control Unit | Right rear of cargo area. See Figure. |

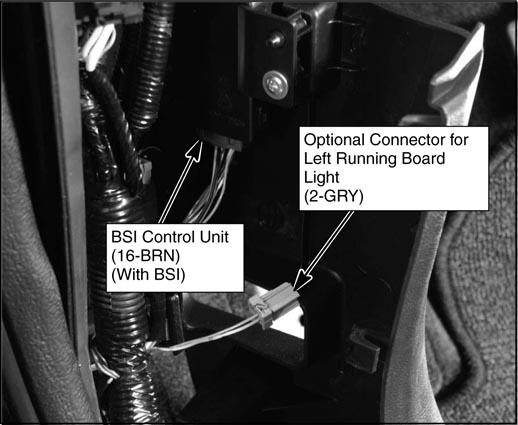

| BSI Control Unit | Left kick panel. See Figure. |

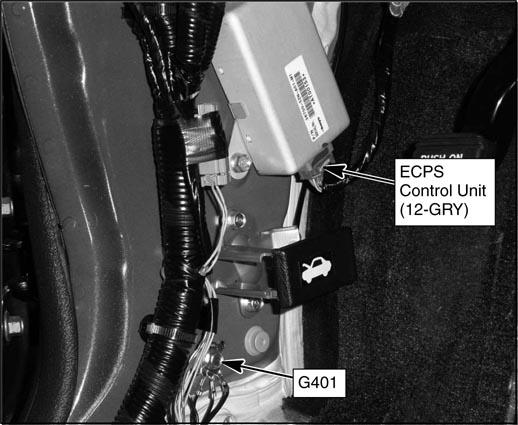

| ECPS Control Unit | Left kick panel. See Figure. |

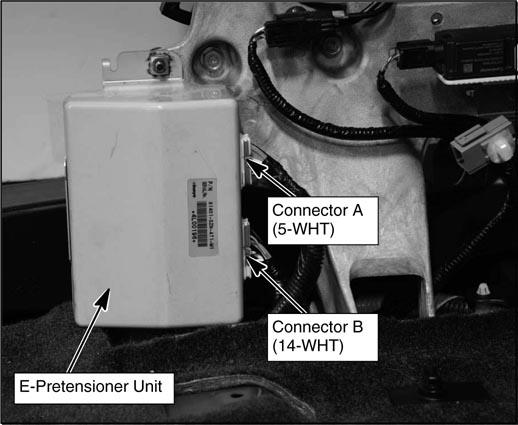

| E-Pretensioner Unit | Under center console. See Figure. |

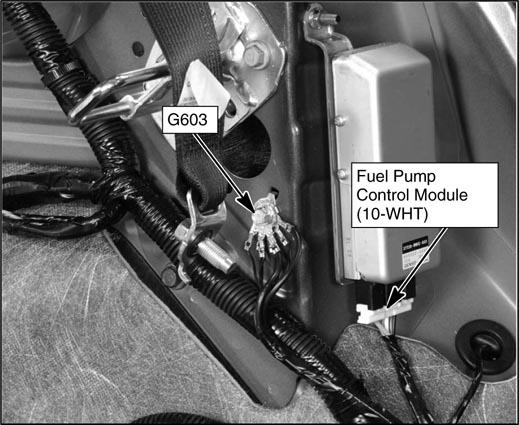

| Fuel Pump Control Module | Left "C" pillar. See Figure. |

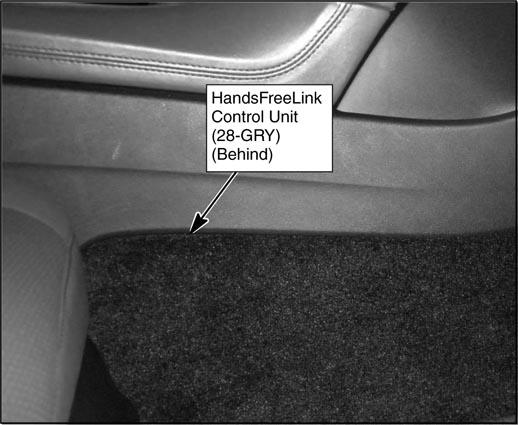

| HandsFreeLink Control Unit | Under center console. See Figure. |

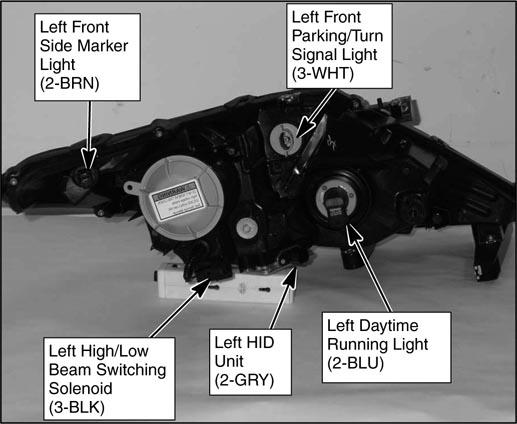

| HID Unit (Left) | Behind left headlight. See Figure. |

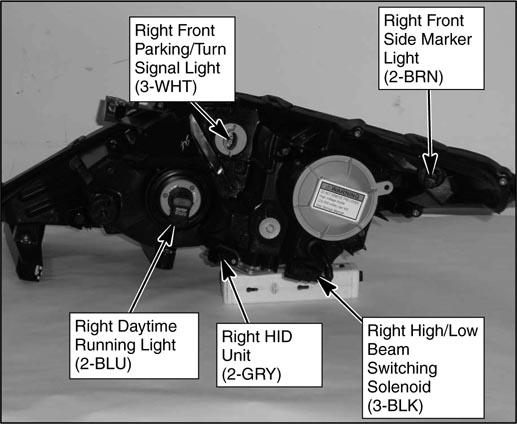

| HID Unit (Right) | Behind right headlight. See Figure. |

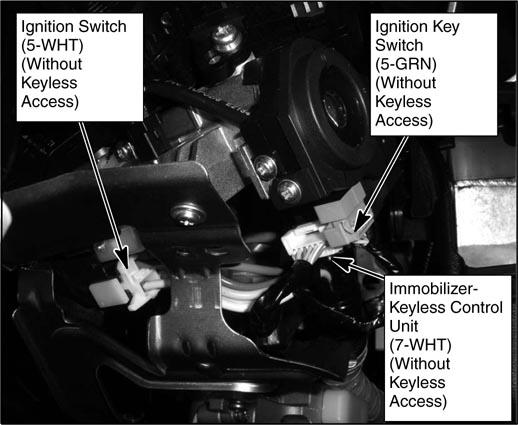

| Immobilizer-Keyless Control Unit | In steering column. See Figure. |

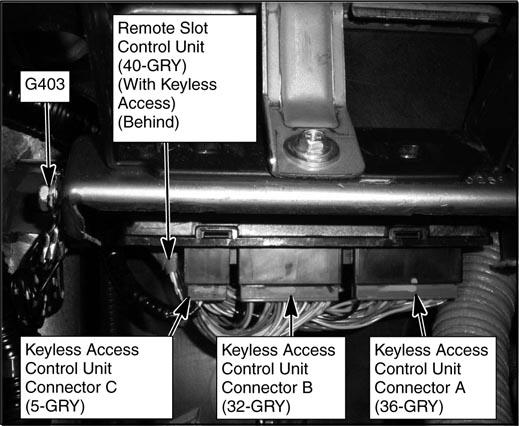

| Keyless Access Control Unit | Middle of dash. See Figure. |

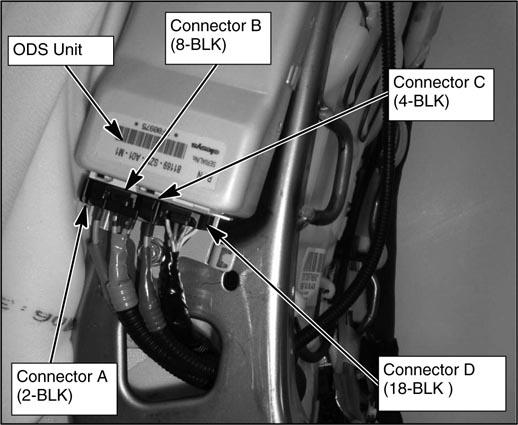

| ODS Unit | Left side of front passenger's seat back. See Figure. |

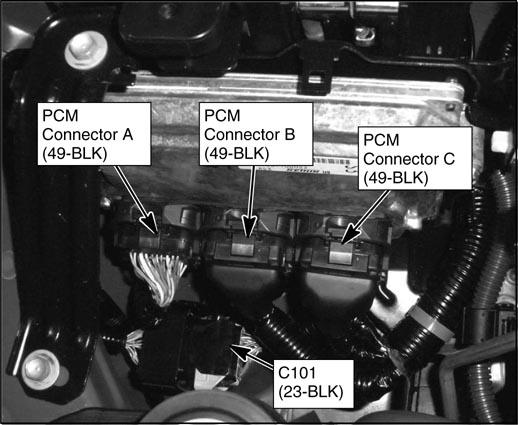

| PCM | Right front of engine compartment. See Figure. |

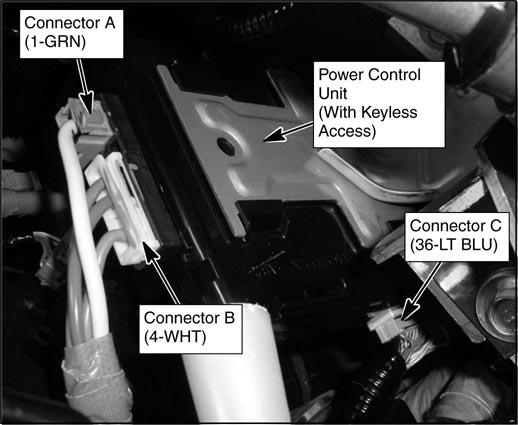

| Power Control Unit (Keyless Access) | Left side of dash. See Figure. |

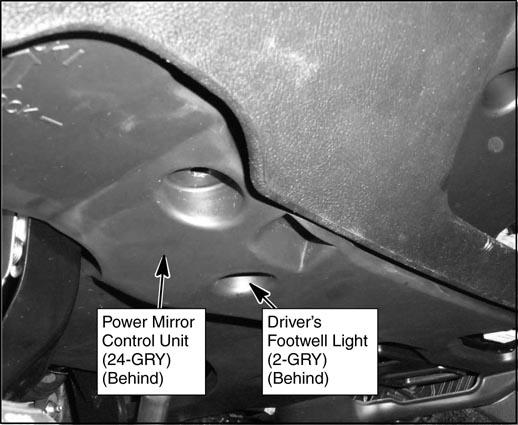

| Power Mirror Control Unit | Left side of dash. See Figure. |

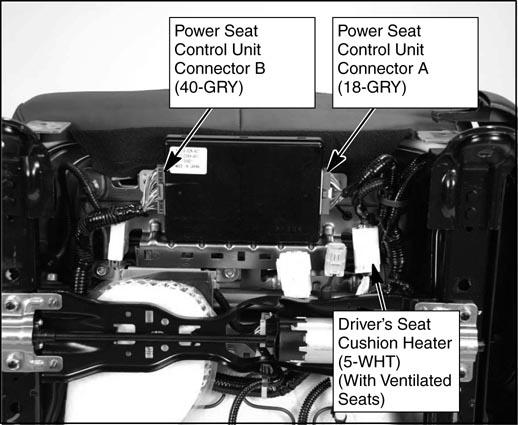

| Power Seat Control Unit | Under driver's seat. See Figure. |

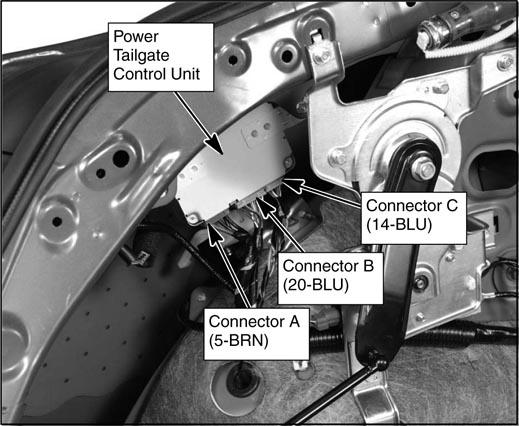

| Power Tailgate Control Unit | Left side of cargo area. See Figure. |

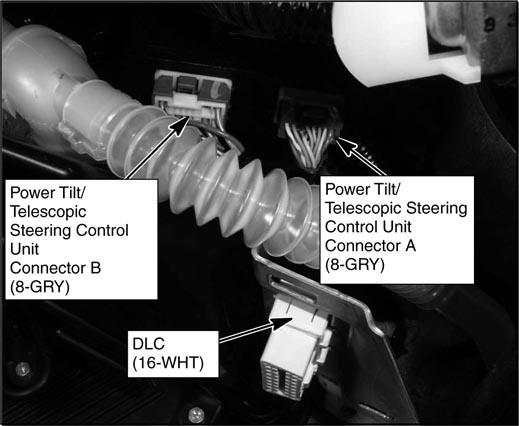

| Power Tilt/Telescopic Steering Control Unit | Under left side of dash. See Figure. |

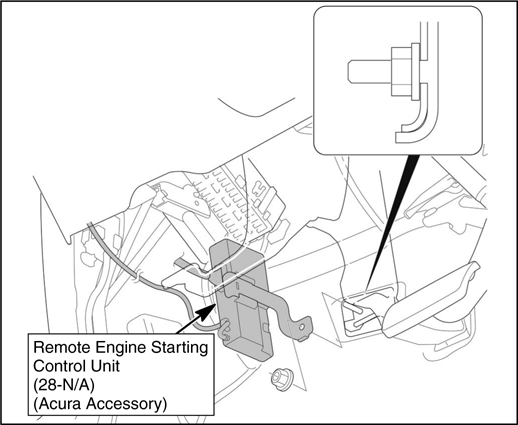

| Remote Engine Starting Control Unit | Under left side of dash. See Figure. |
| Remote Slot Control Unit | Middle of dash. See Figure. |

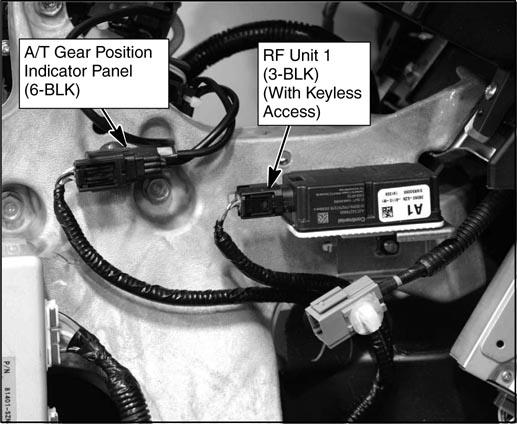

| RF Unit 1 | Under center console. See Figure. |

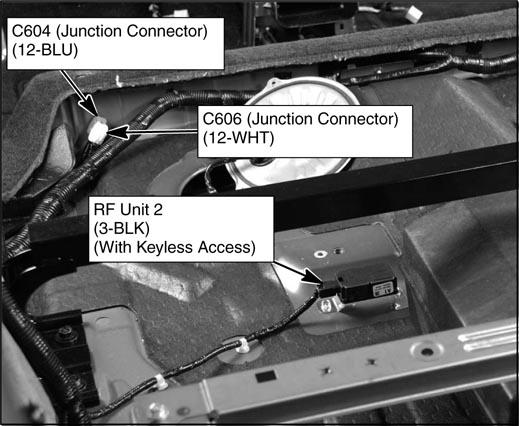

| RF Unit 2 | Under rear seat. See Figure. |

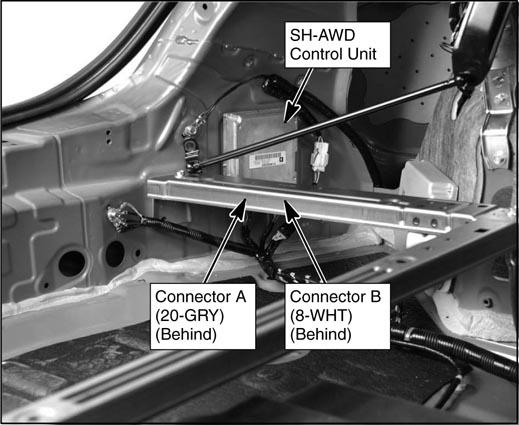

| SH-AWD Control Unit | Left side of cargo area. See Figure. |

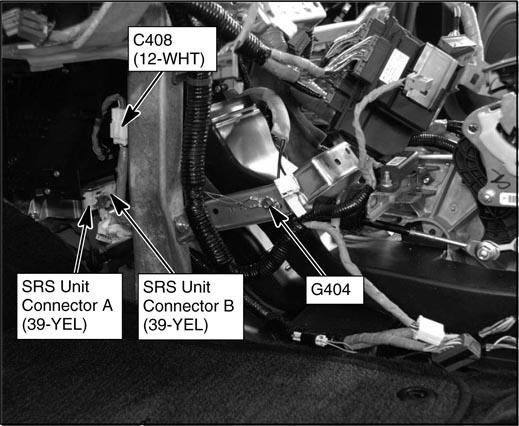

| SRS Unit | Lower center of dash. See Figure. |

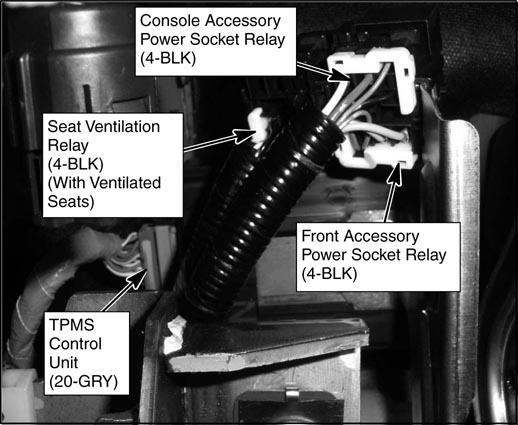

| TPMS Control Unit | Under left side of dash. See Figure. |

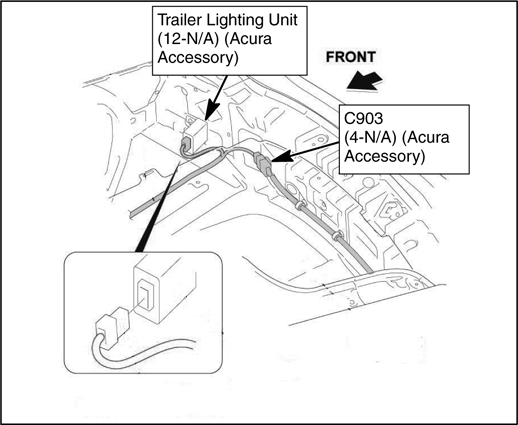

| Trailer Lighting Unit | Right rear of cargo area. See Figure. |

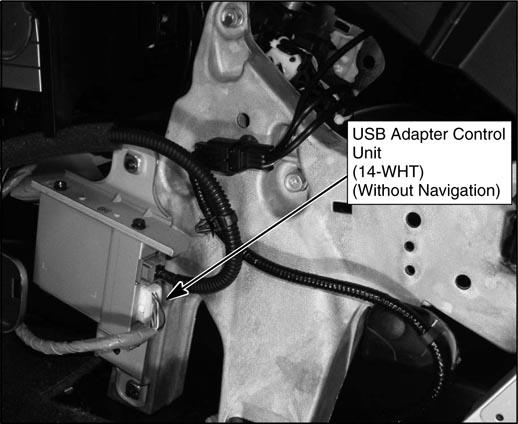

| USB Adapter Control Unit | Under center console. See Figure. |

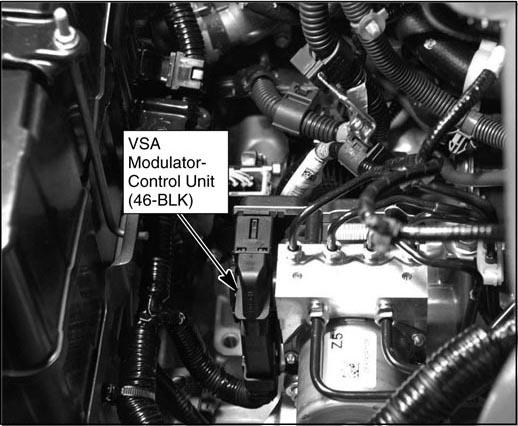

| VSA Modulator-Control Unit | Left side of engine compartment. See Figure. |
