Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Blower Motor Control Module | Near blower motor. See Figure . |
| Body Control Module (BCM) | Right of glove box. See Figure . |
| Electronic Brake Control Module (EBCM) | Left front corner of engine compartment. See Figure . |
| Electronic Suspension Control (ESC) Module | Behind right wheelwell. See Figure . |
| Engine Control Module (ECM) | Left side of engine compartment. See Figure . |
| Ignition Coil/Module 1, 3, 5 & 7 | Top right side of engine. See Figure . |
| Ignition Coil/Module 2 | Top left side of engine. See Figure . |
| Ignition Coil/Module 4, 6 & 8 | Top left side of engine. See Figure . |
| Ignition Control Module | At left front of engine, under ignition coils. See Figure . |
| Inflatable Restraint I/P Module | Right side of dash. See Figure . |
| Inflatable Restraint Passenger Presence System (PPS) Module | Under front passenger's seat. See Figure . |
| Inflatable Restraint Roof Rail Module (Left) | Left roof rail. See Figure . |
| Inflatable Restraint Roof Rail Module (Right) | Right roof rail. See Figure . |
| Inflatable Restraint Side Impact Module (Left) | Left side of driver's seat back. See Figure . |
| Inflatable Restraint Side Impact Module (Right) | Right side of front passenger's seat back. See Figure . |
| Inflatable Restraint Steering Wheel Module | In steering wheel. See Figure . |
| Memory Seat Module | On underside of driver's seat, on seat adjuster frame. See Figure . |
| Object Alarm Module (UFR) | On right rear wheelwell. See Figure . |
| Remote Control Door Lock Receiver (RCDLR) | Under center of rear package shelf. See Figure . |
| Seat Back Ventilation Heat & Cool Module (Driver) | Right side of driver's seat back. See Figure . |
| Seat Cushion Ventilation Heat & Cool Module (Driver) | Under right side of driver's seat. See Figure . |
| Sunroof Control Module | Rear of sunroof opening. See Figure . |

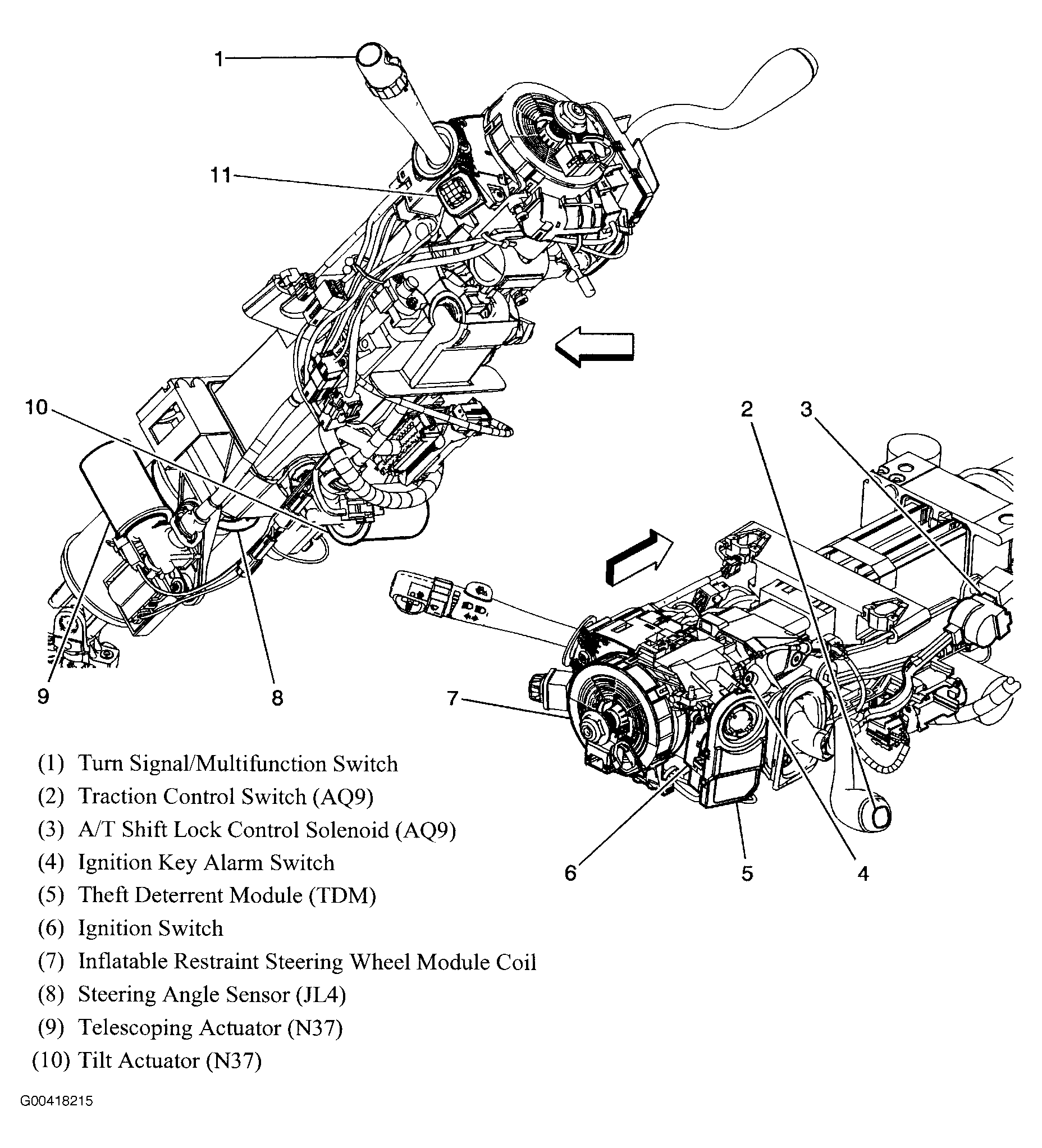

| Theft Deterrent Module (TDM) | In steering column. See Figure . |
| Throttle Actuator Control (TAC) Module | On throttle body assembly. See Figure . |
| Vehicle Communication Interface Module (VICM) | On right front of trunk, attached to seat back brace. See Figure . |
| Windshield Heated Washer Fluid Module | Right side of firewall. See Figure . |
