Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

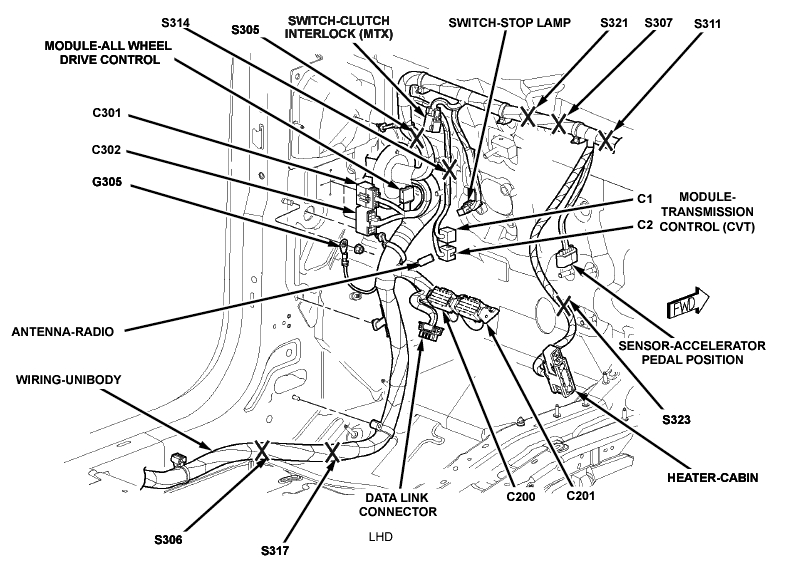

| All Wheel Drive (AWD) Control Module | Behind left kick panel. See Figure. |
| Anti-Lock Brakes Module (Left) | Left rear of engine compartment. See Figure. |

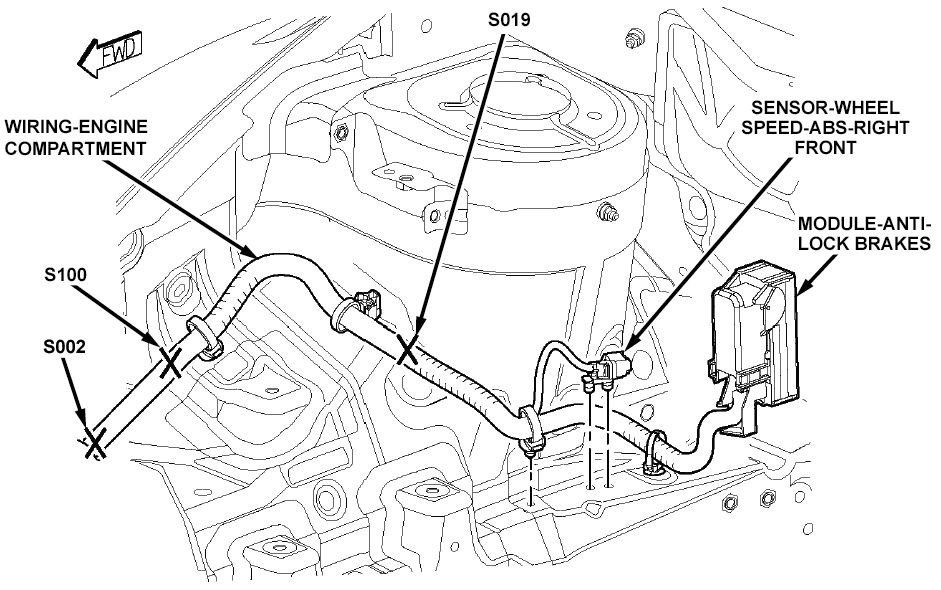

| Anti-Lock Brakes Module (Right) | Right rear of engine compartment. See Figure. |

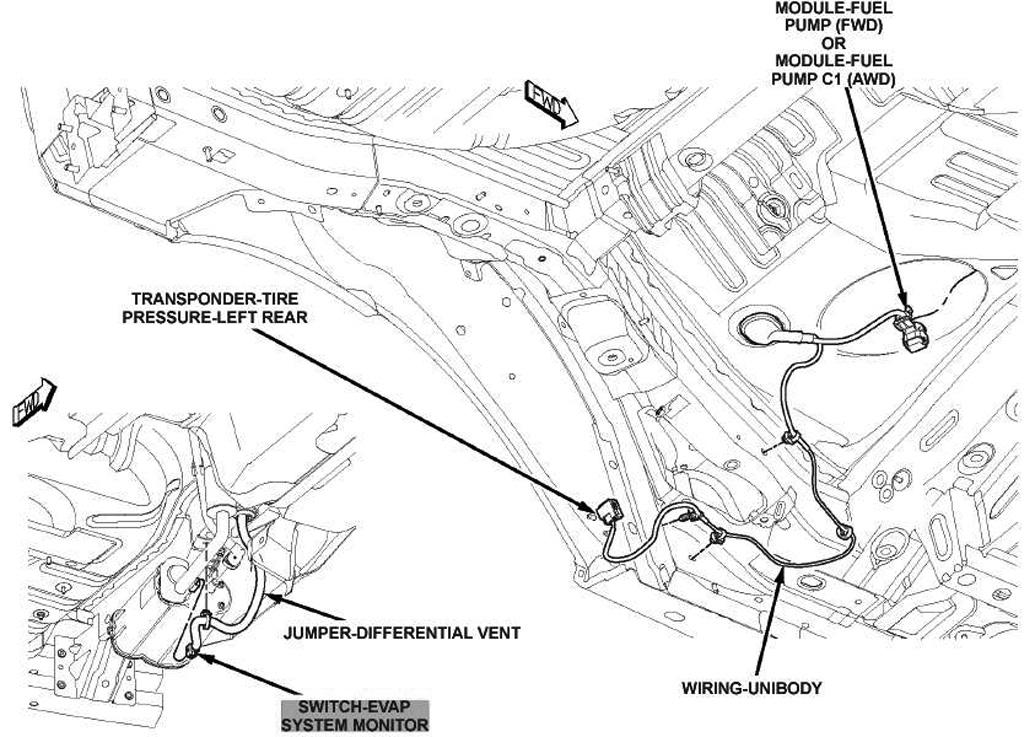

| Fuel Pump Module | Top left side of fuel tank. See Figure. |

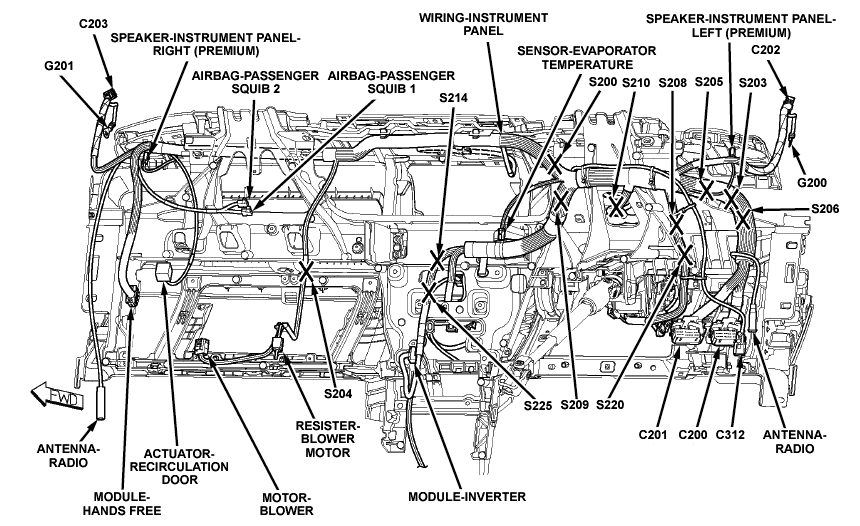

| Hands Free Module | Under left end of dash. See Figure. |
| Inverter Module | Behind lower center of dash. See Figure. |

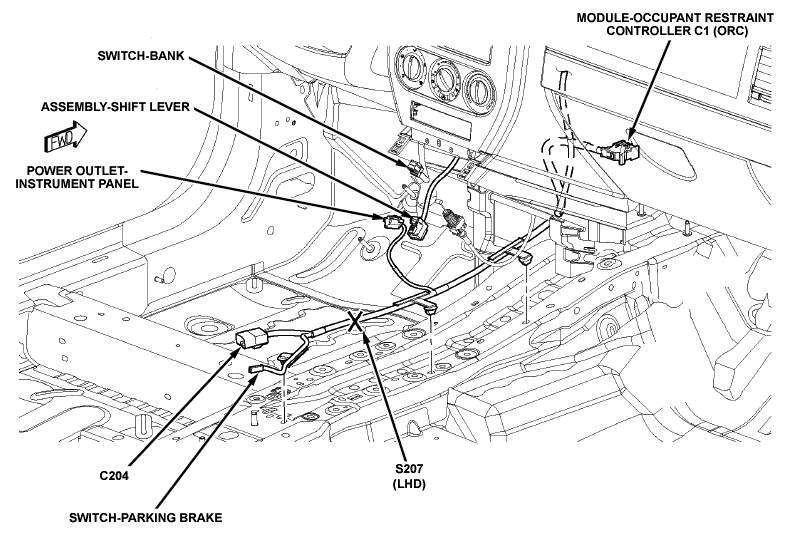

| Occupant Restraint Controller Module | Under front of center console. See Figure. |

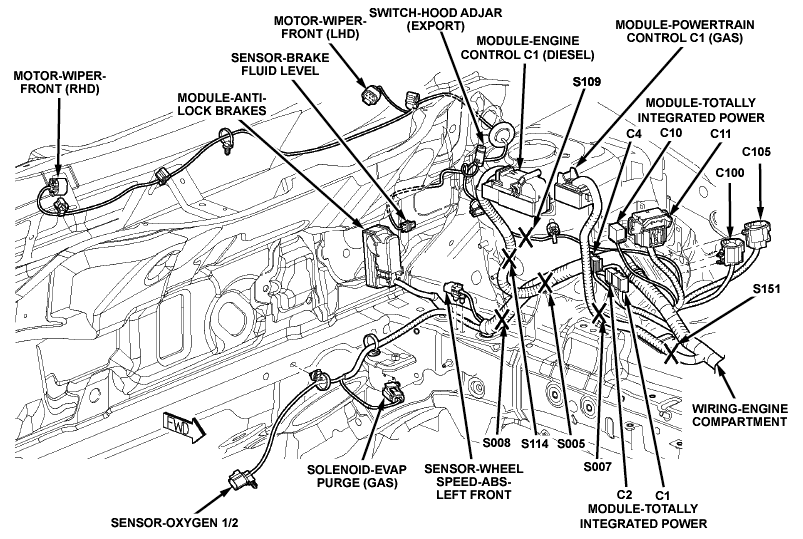

| Powertrain Control Module | Left rear of engine compartment. See Figure. |

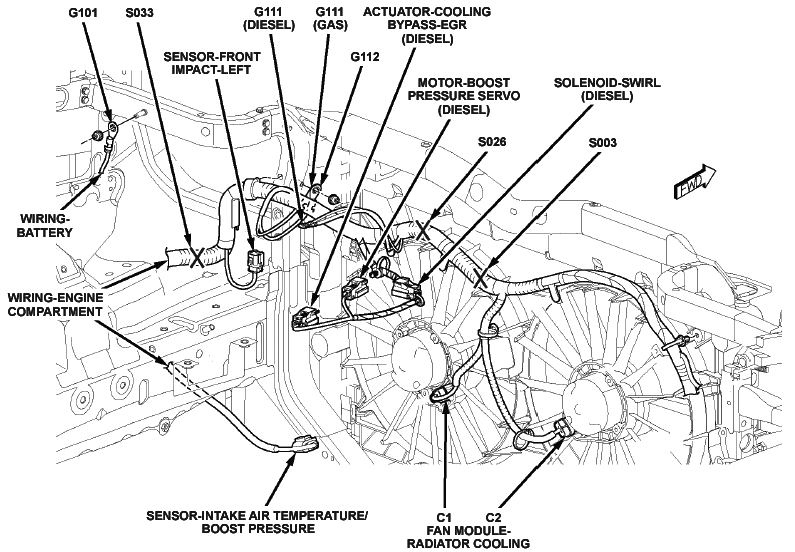

| Radiator Cooling Fan Module | Left/right cooling fan motor. See Figure. |

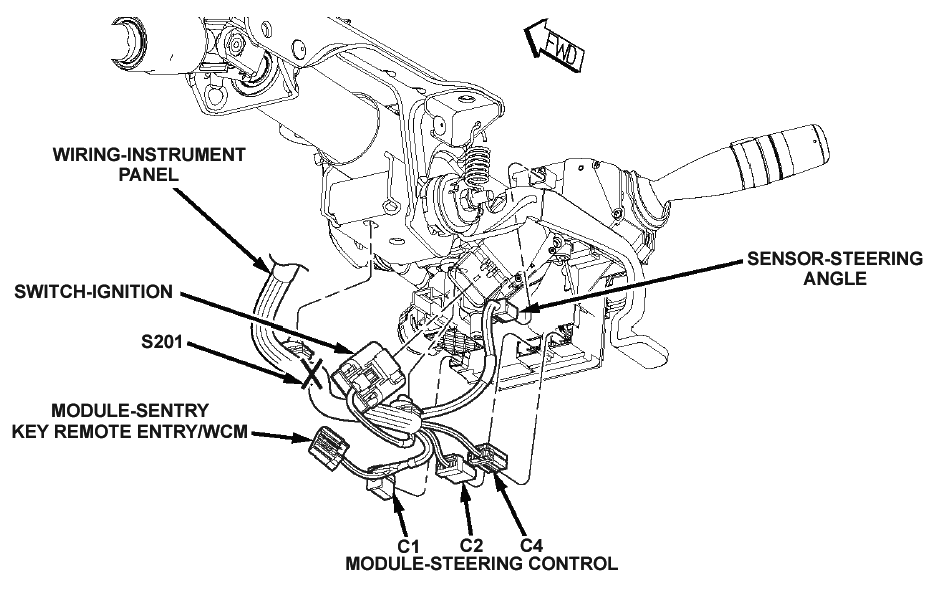

| Remote Entry/WCM Sentry Key Module | Under steering column. See Figure. |
| Steering Control Module | Steering column. See Figure. |
| Totally Integrated Power Module | Left side of engine compartment. See Figure. |
| Transmission Control Module | Behind left side of dash. See Figure. |
