Control Units

CONTROL UNITS LOCATION

Component	Location

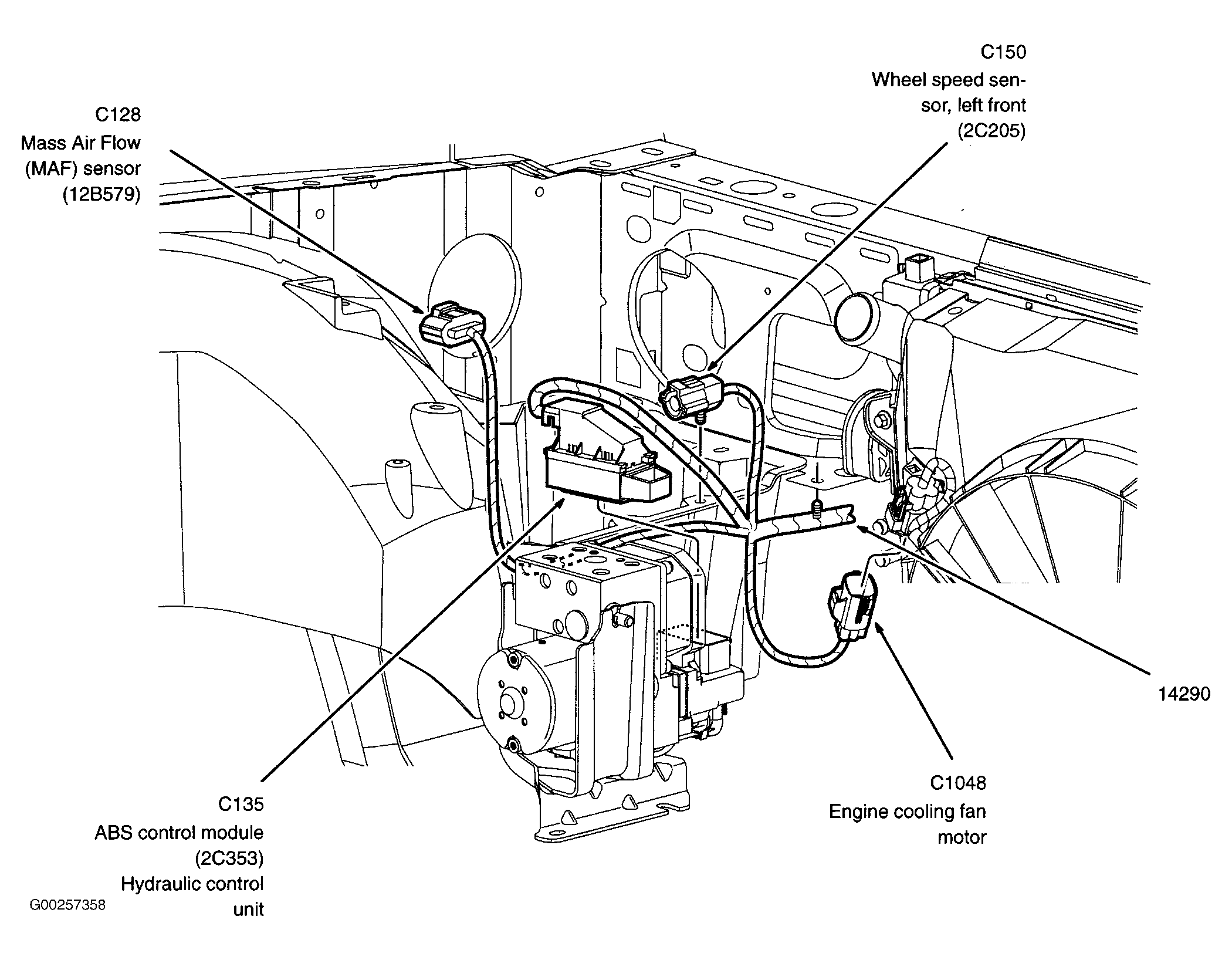

ABS Control Module	Left side of engine compartment. See Figure .

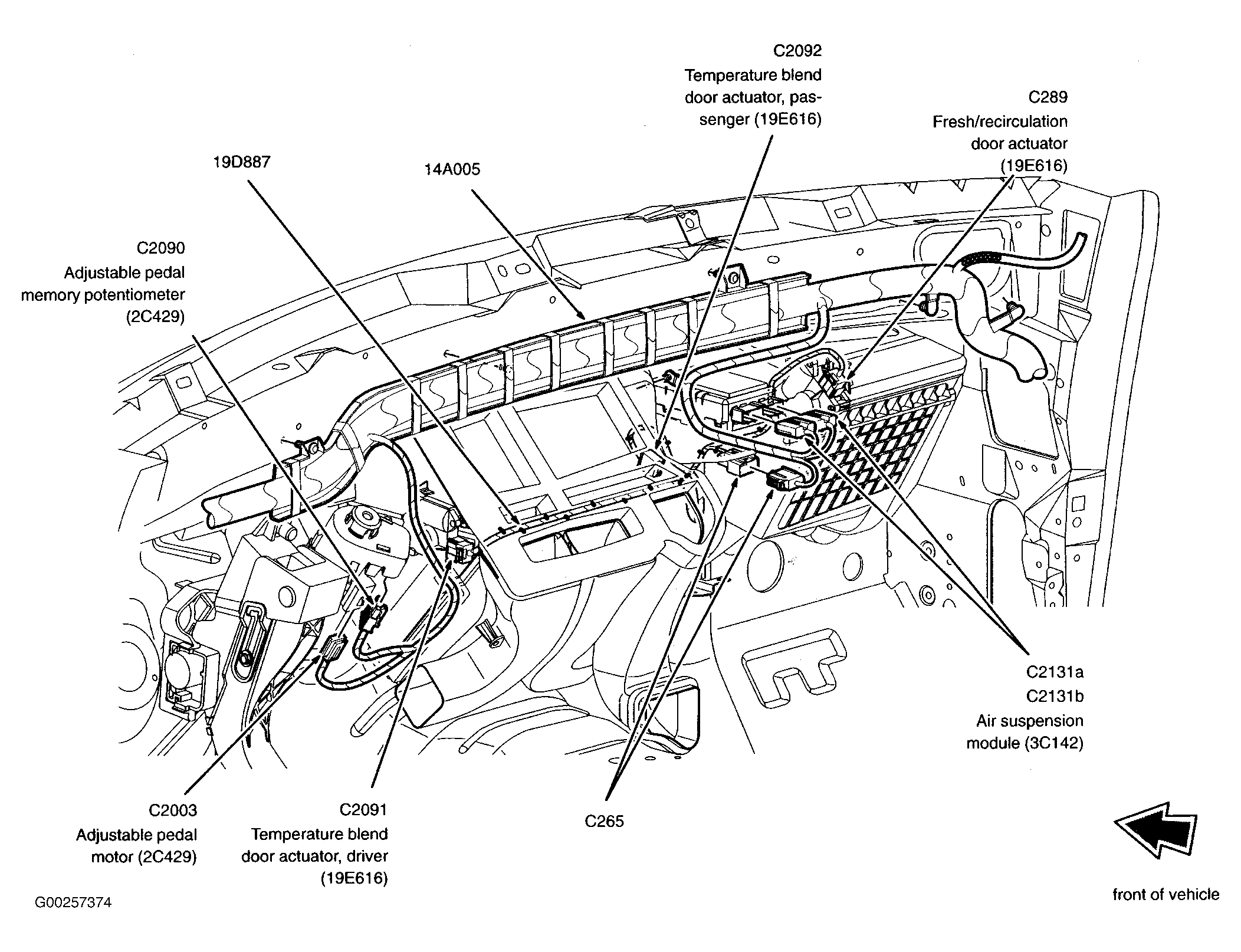

Air Suspension Module	Under lower center of dash. See Figure .
Audio/Navigation Control Unit	Behind center of dashboard. See Figure .

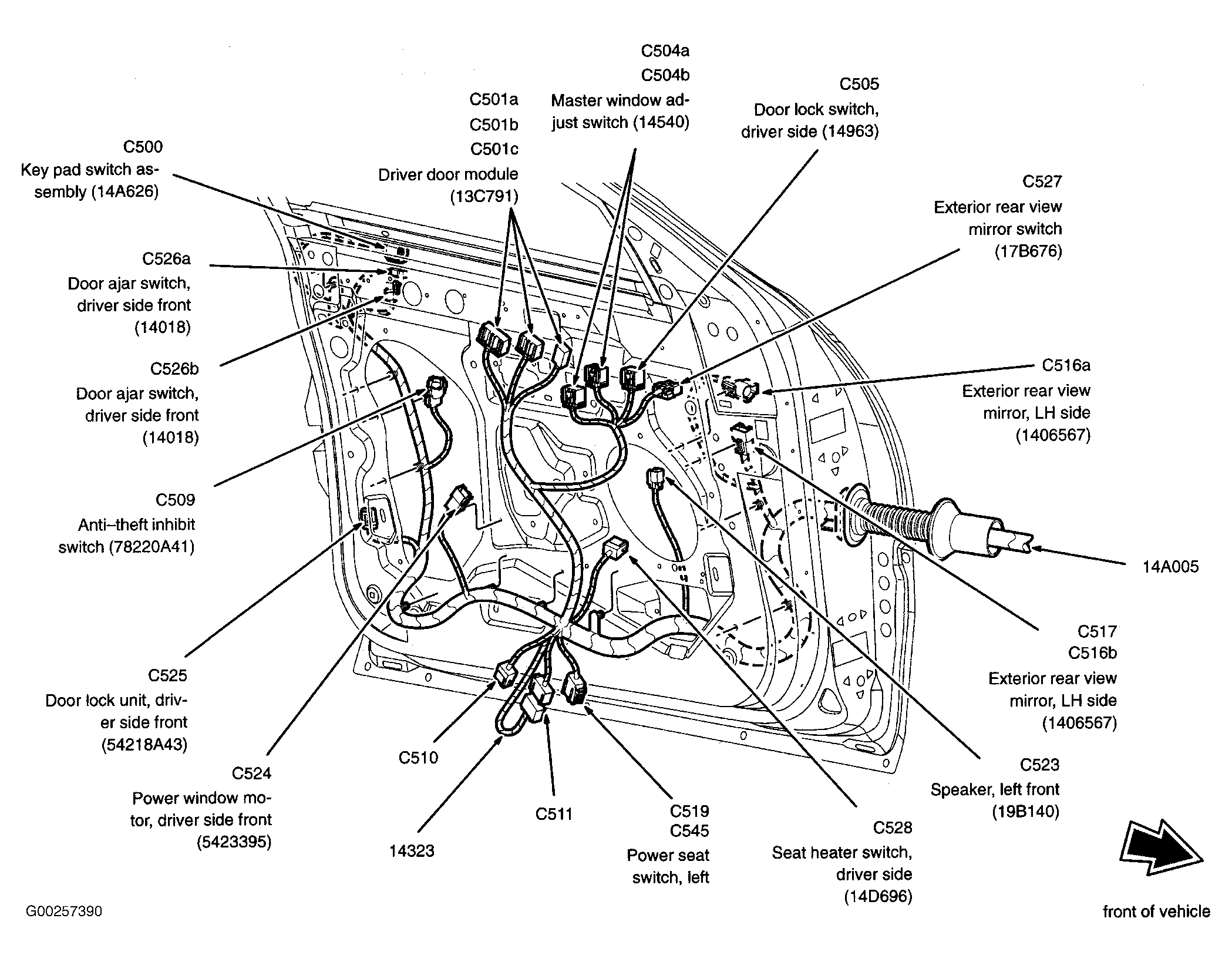

Driver Door Module	In top front of left front door. See Figure .

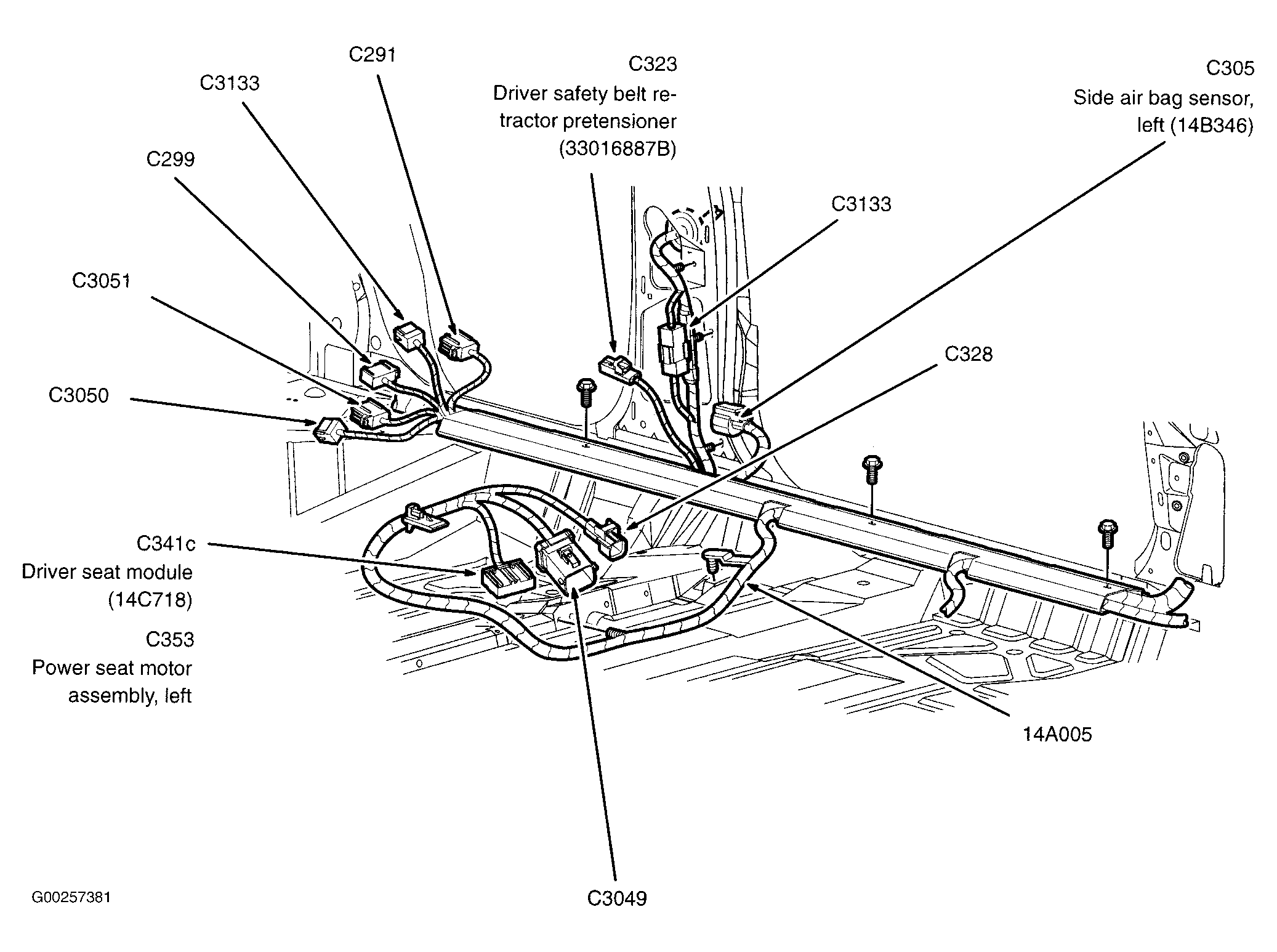

Driver Seat Module	Under driver's seat. See Figure .

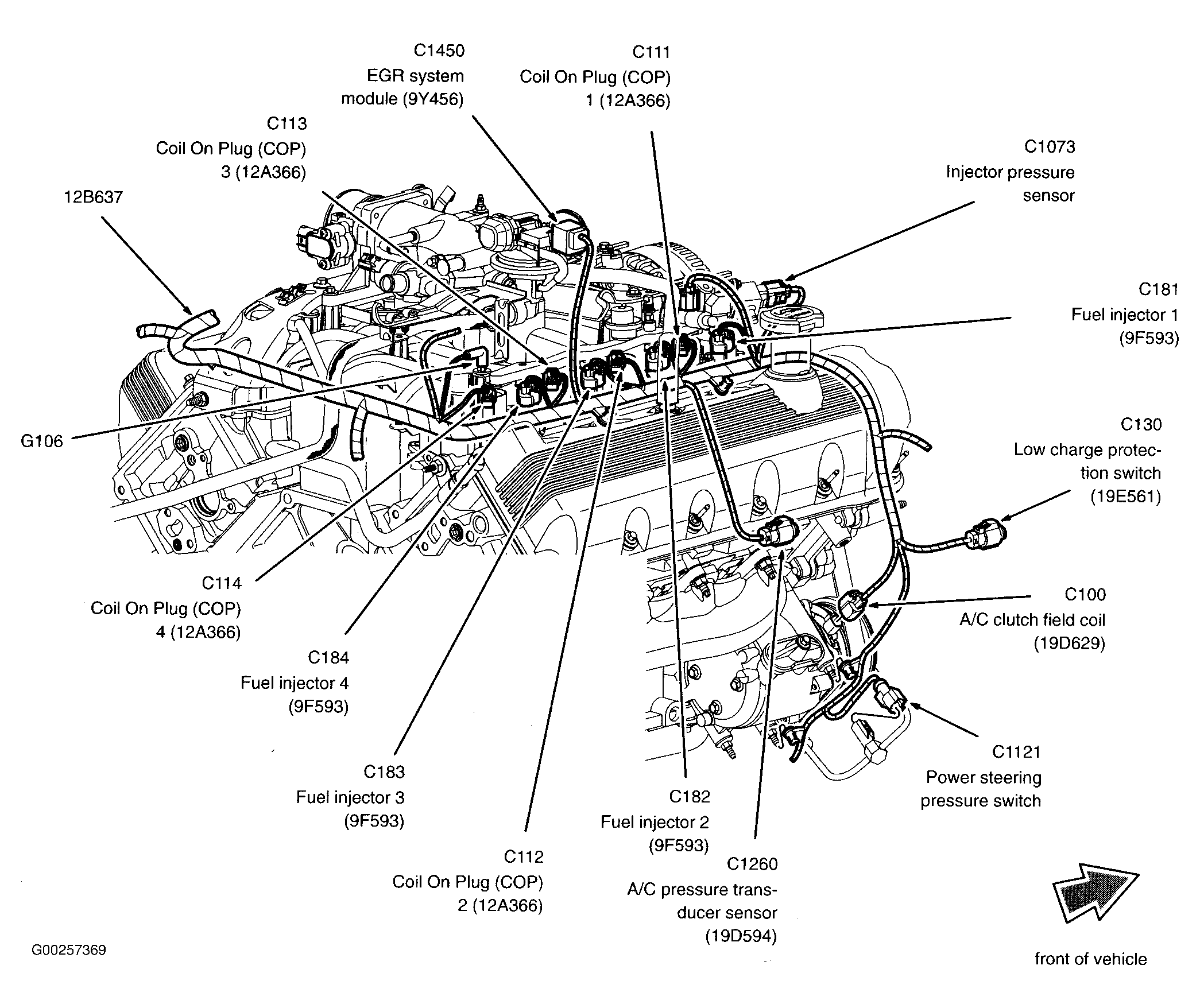

EGR System Module	Top of engine. See Figure .

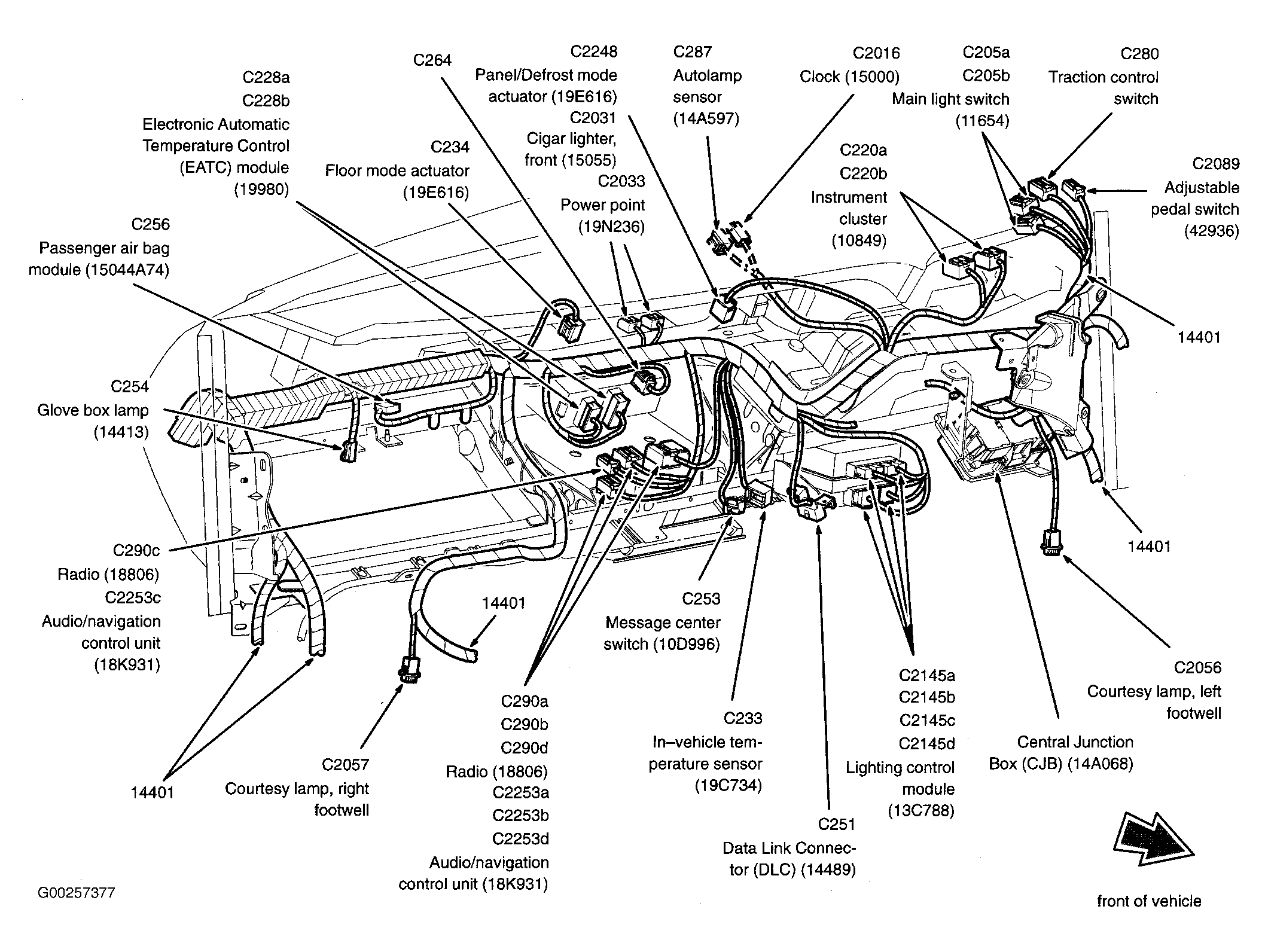

Electronic Automatic Temperature Control (EATC) Module	Behind center of dash. See Figure .

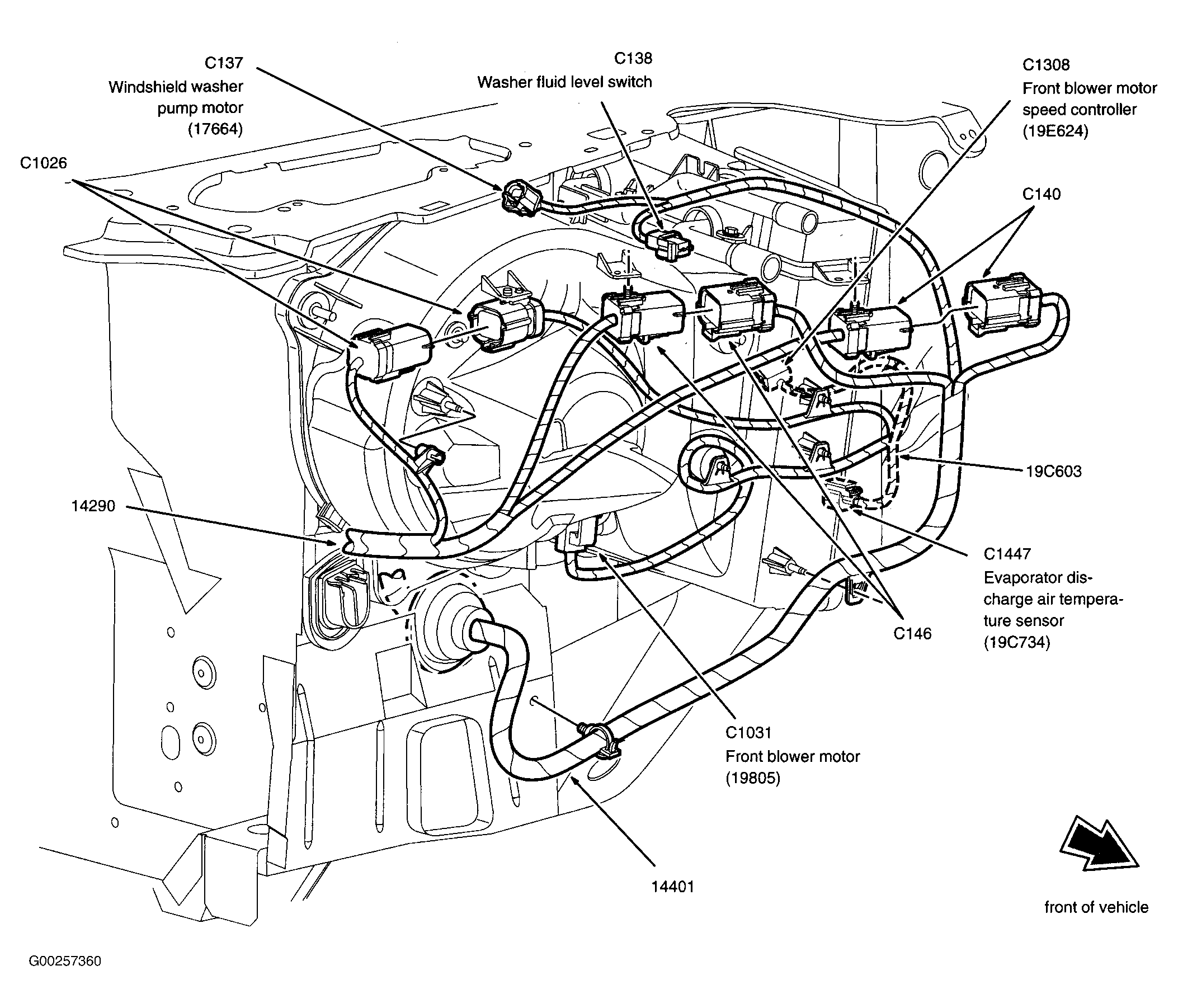

Front Blower Motor Speed Controller	In right rear of engine compartment, on evaporator housing. See Figure .

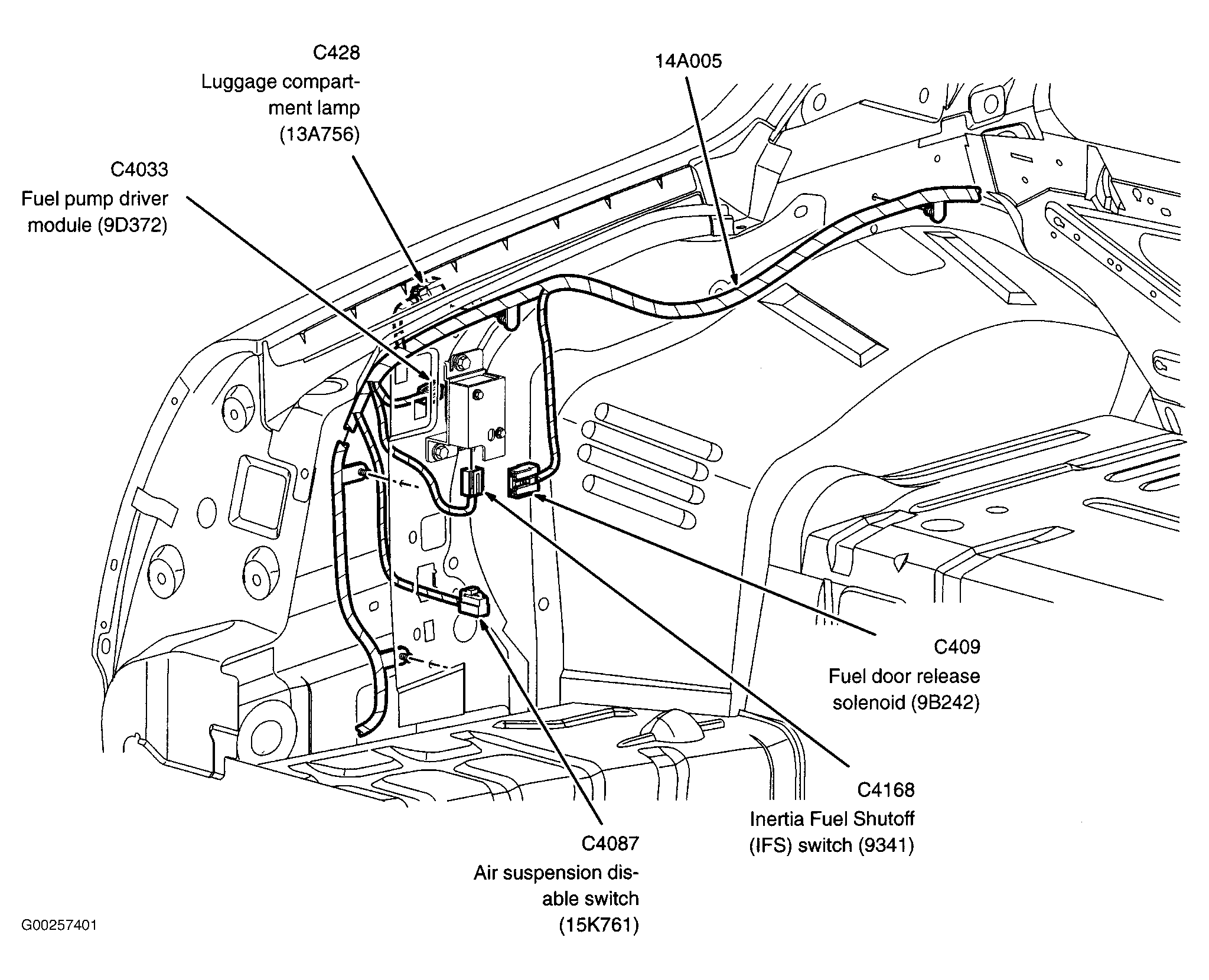

Fuel Pump Driver Module	At left side of trunk. See Figure .

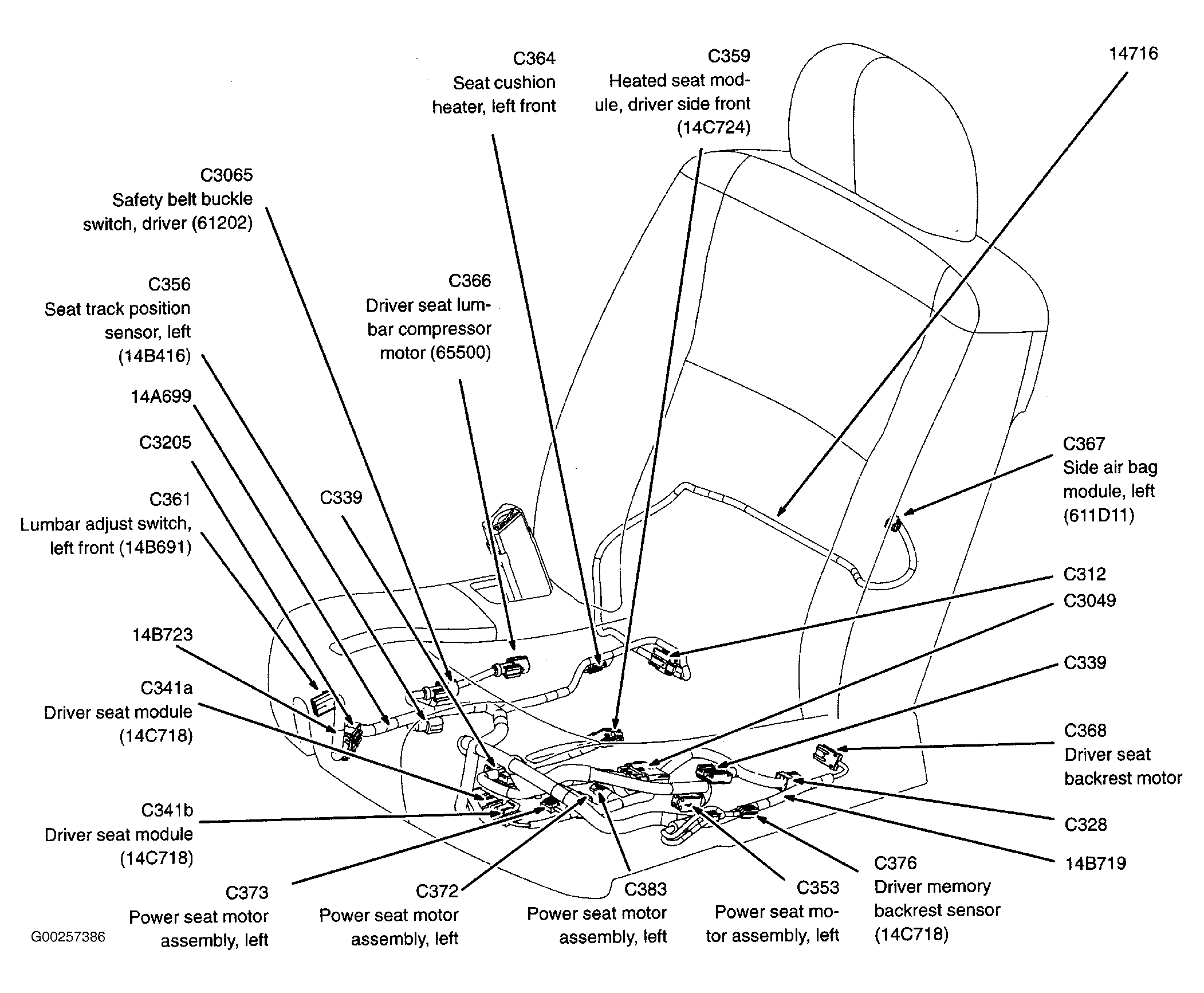

Heated Seat Module, Driver Side Front	Under driver's seat. See Figure .

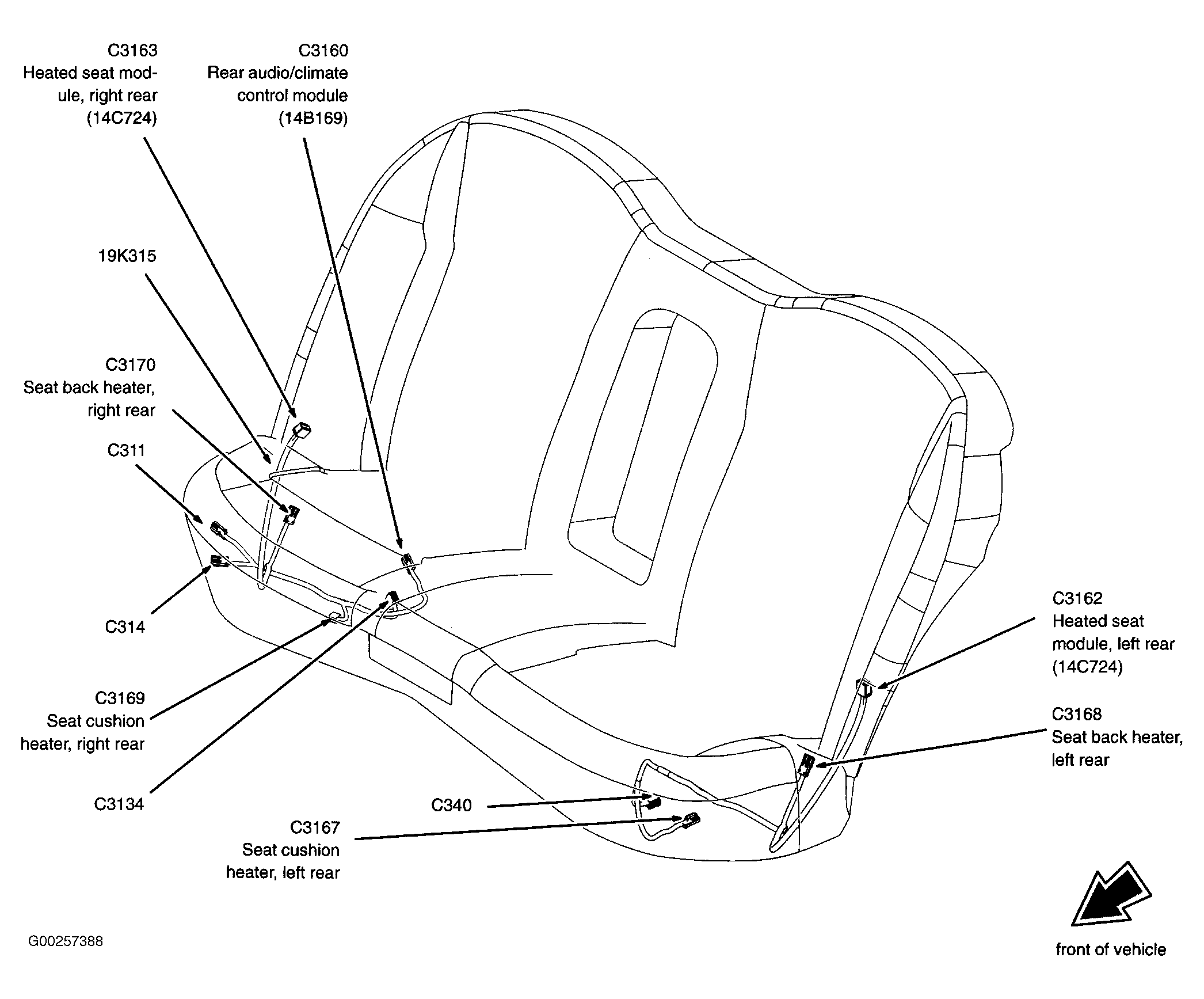

Heated Seat Module, Left Rear	In left rear seat. See Figure .
Heated Seat Module, Passenger Side Front	Under passenger's seat. See Figure .
Heated Seat Module, Right Rear	In right rear seat. See Figure .
Hydraulic Control Unit	Left side of engine compartment. See Figure .

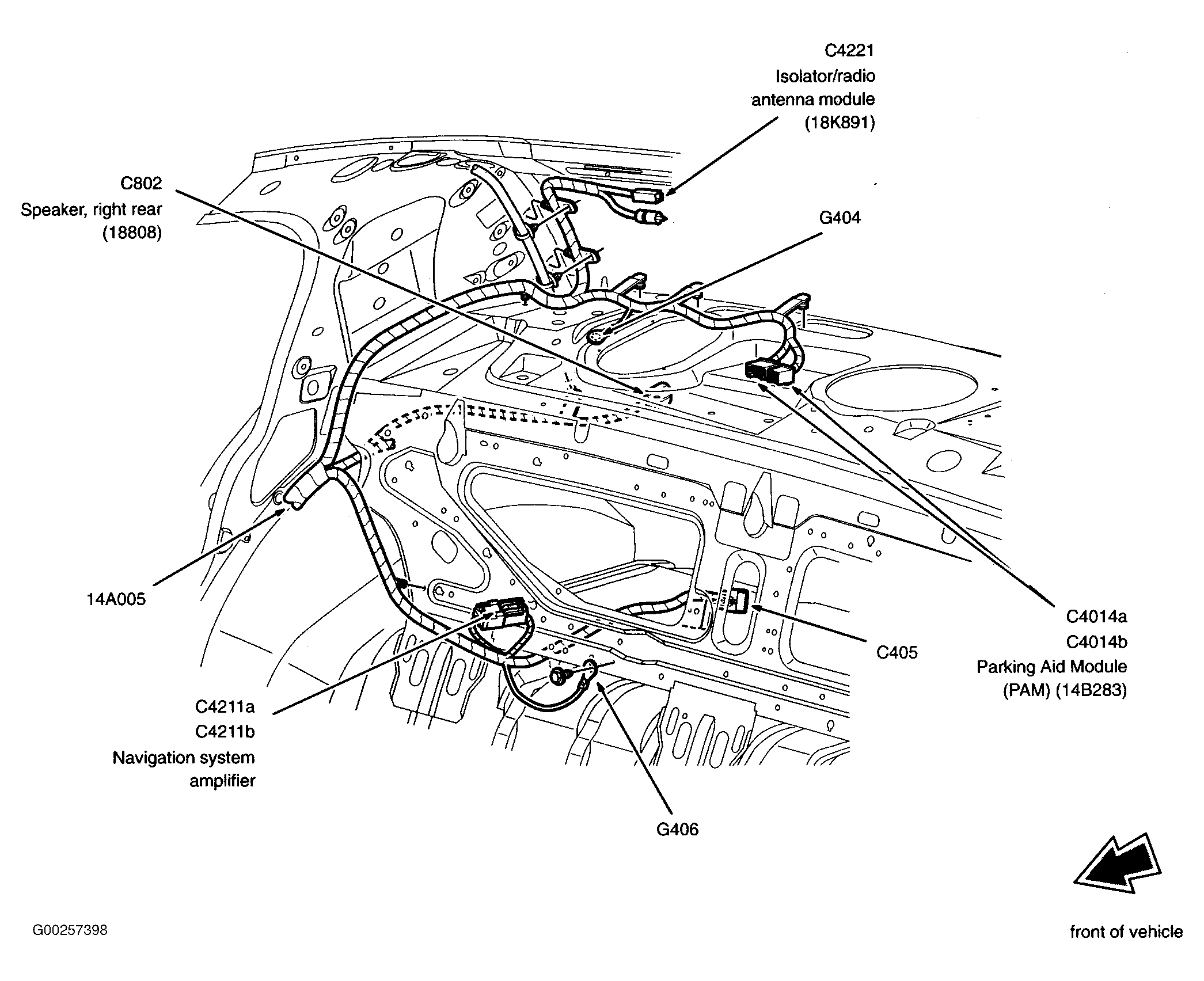

Isolator/Radio Antenna Module	Center of trunk. See Figure .
Lighting Control Module	Under lower left side of dash. See Figure .
Navigation Module	Center of trunk. See Figure .

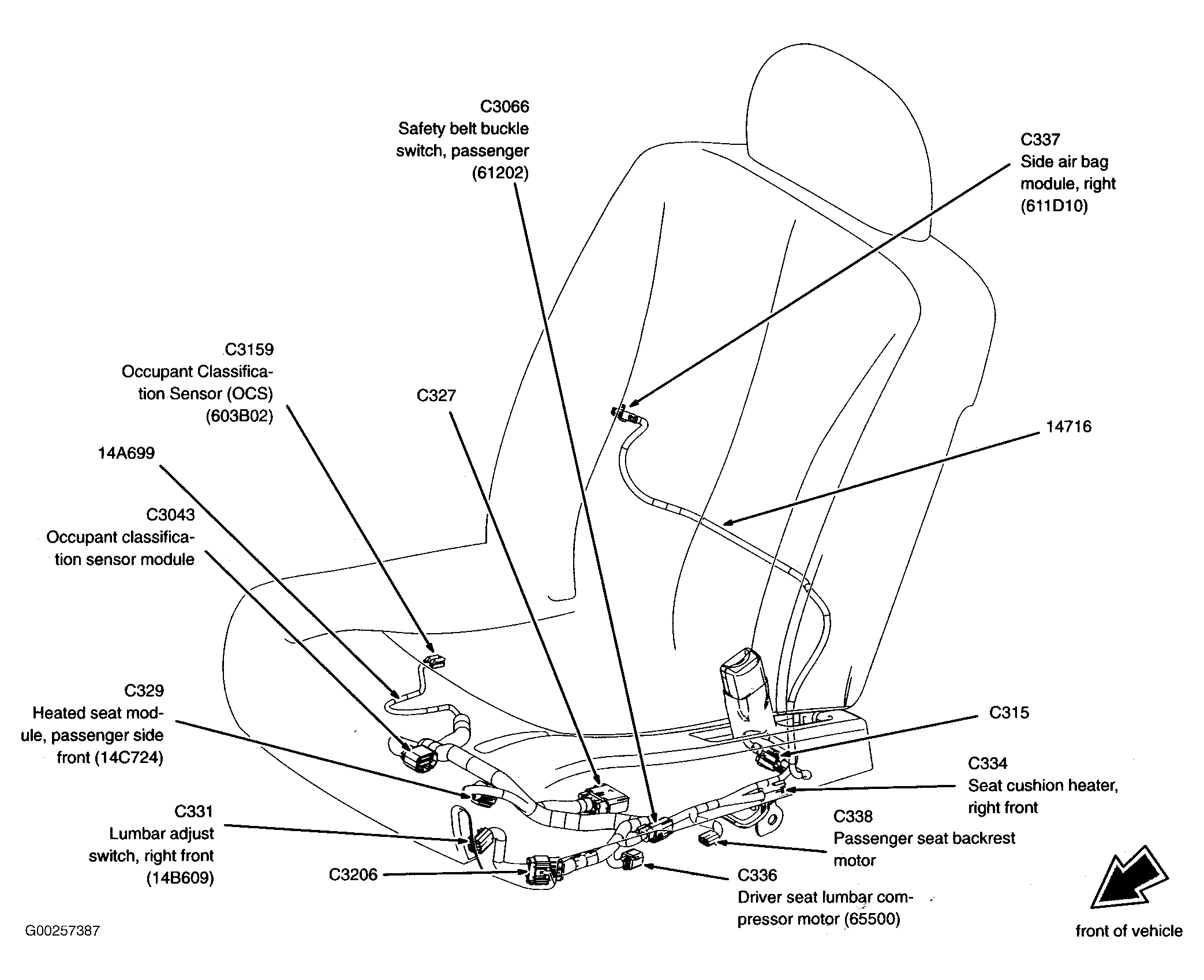

Occupant Classification Sensor Module	In passenger's seat. See Figure .
Parking Aid Module	At right side of trunk. See Figure .

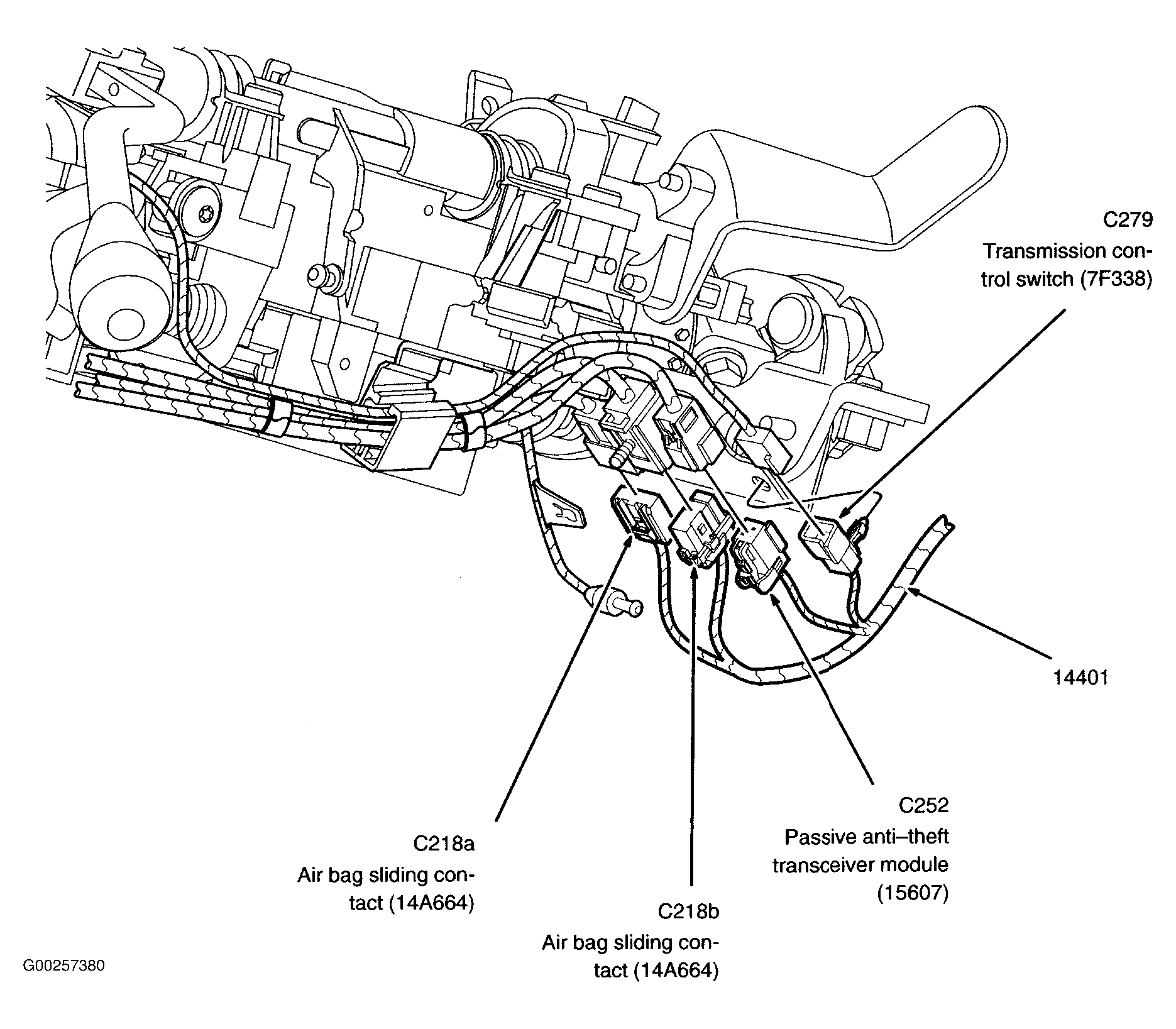

Passive Anti-Theft Transceiver Module	At top of steering column. See Figure .

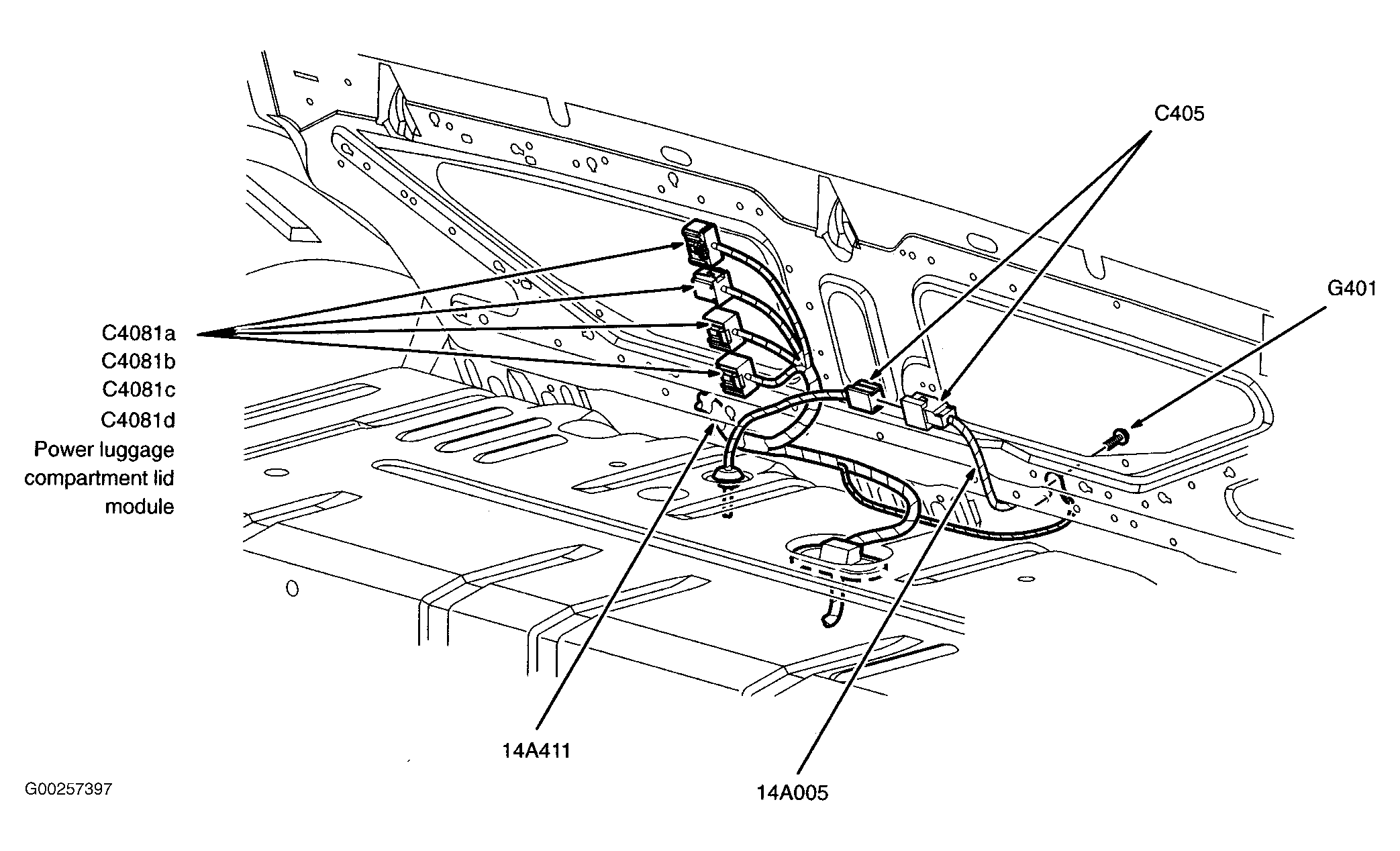

Power Luggage Compartment Lid Module	Left side of trunk. See Figure .

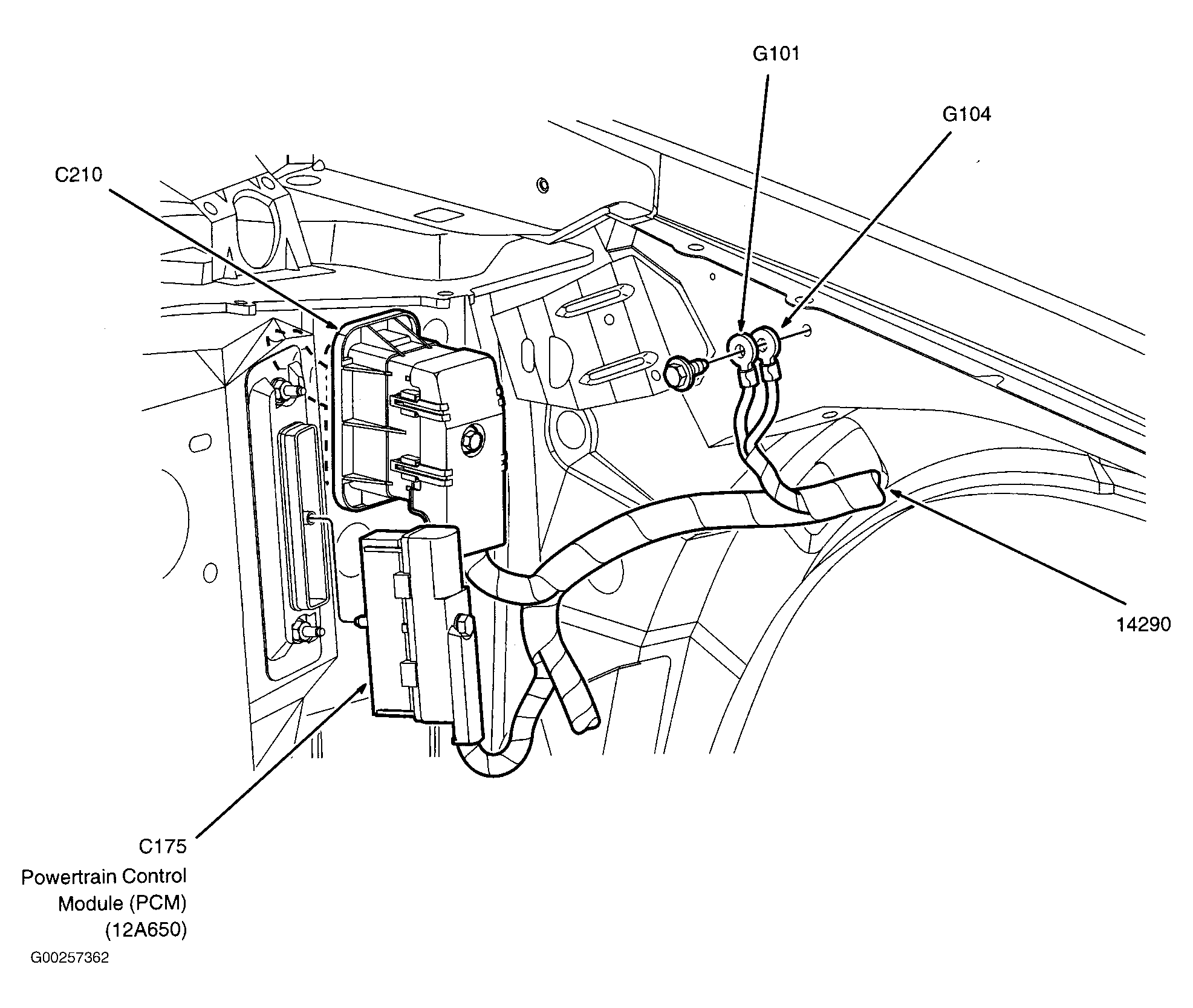

Powertrain Control Module	Left rear side of engine compartment, on firewall. See Figure .

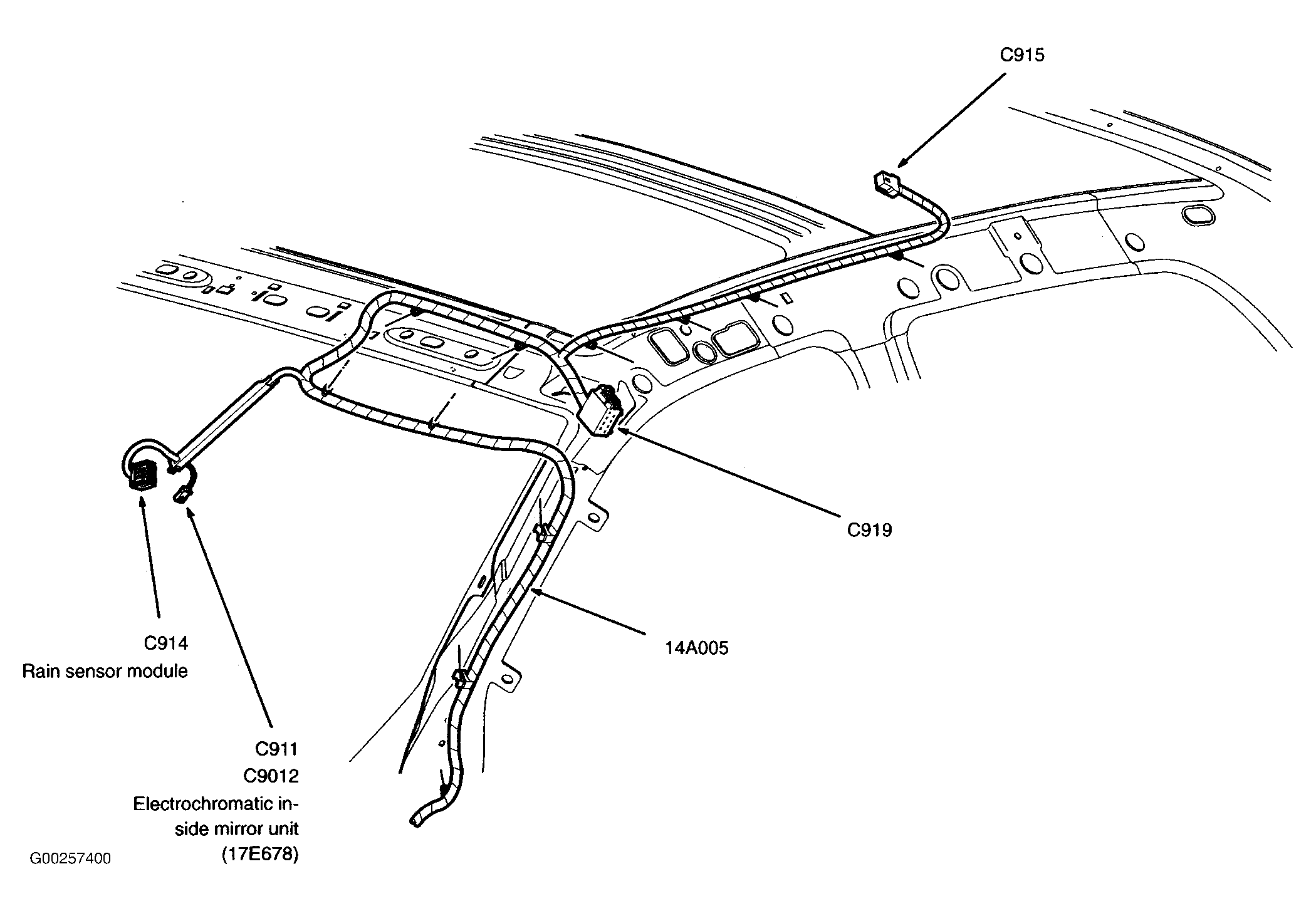

Rain Sensor Module	Center front of roof. See Figure .
Rear Audio/Climate Control Module	Under right rear seat. See Figure .

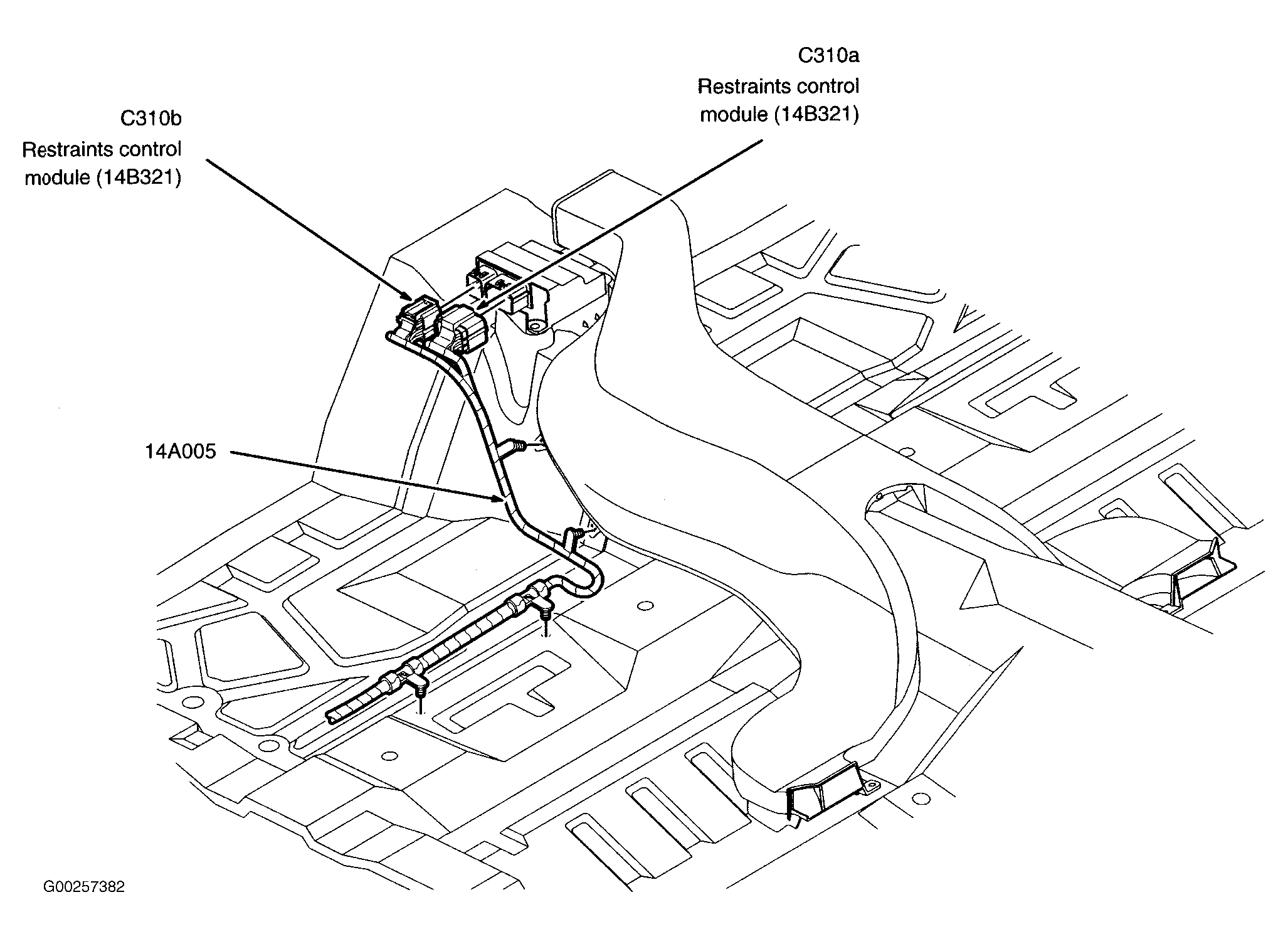

Restraints Control Module	At center floorpan. See Figure .

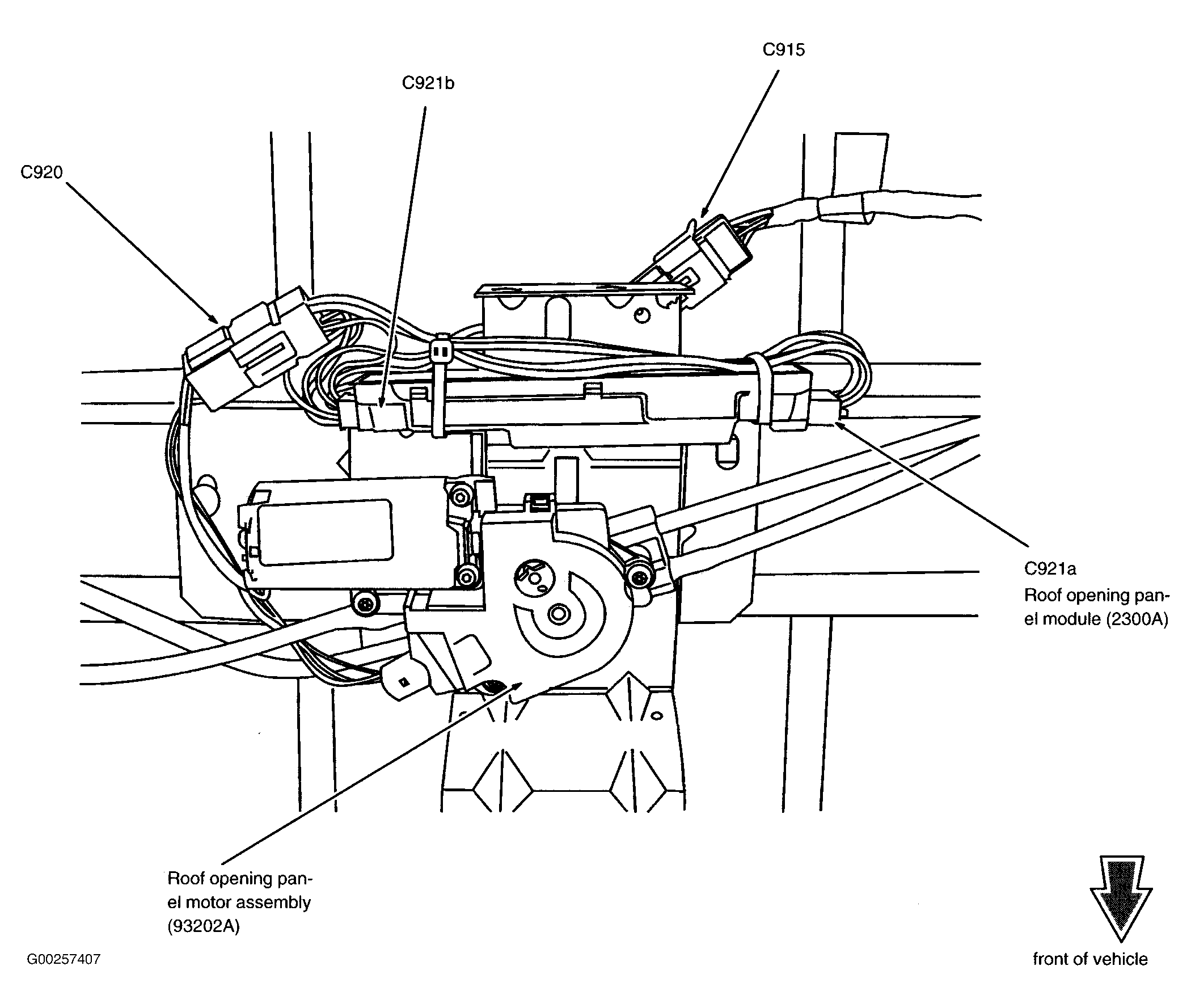

Roof Opening Panel Module	At center front of roof. See Figure .

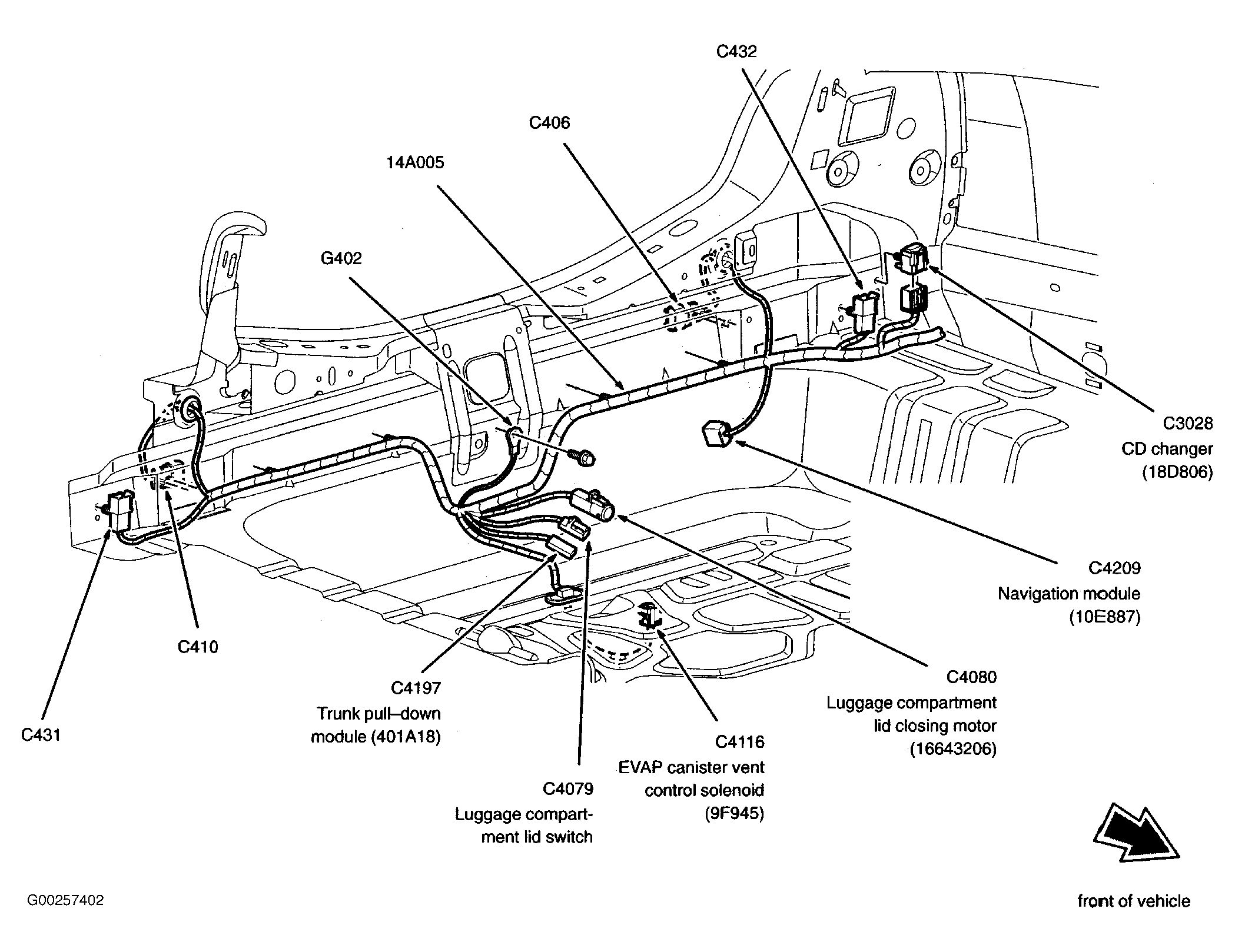

Trunk Pull-Down Module	Center rear of trunk. See Figure .
