Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

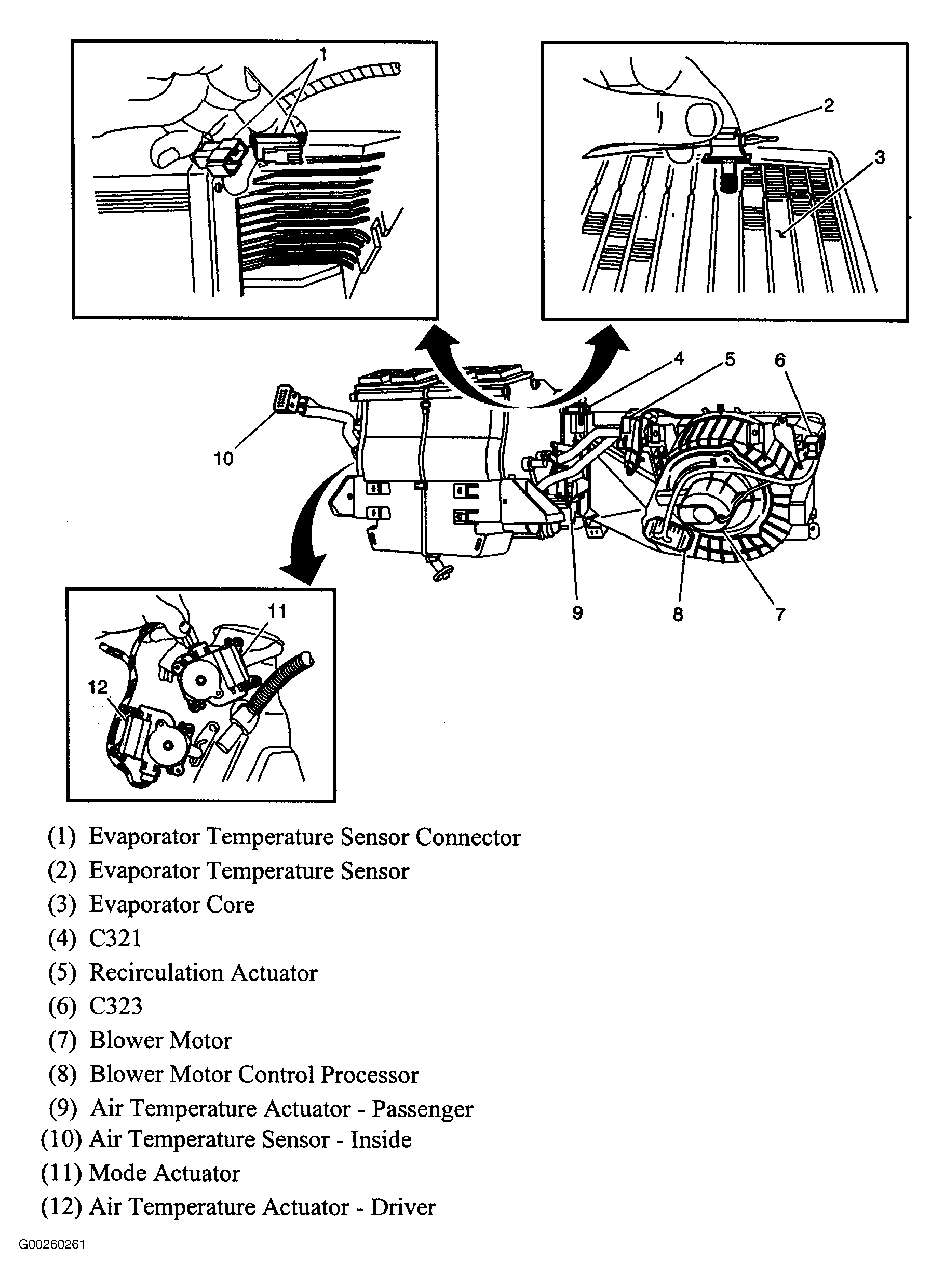

| Blower Motor Control Processor | On lower left side of blower motor. See Figure. |
| Dash Integration Module | Under right side of dash, above right closeout/insulator panel. |
| Driver Door Module | On left door, under door trim. |

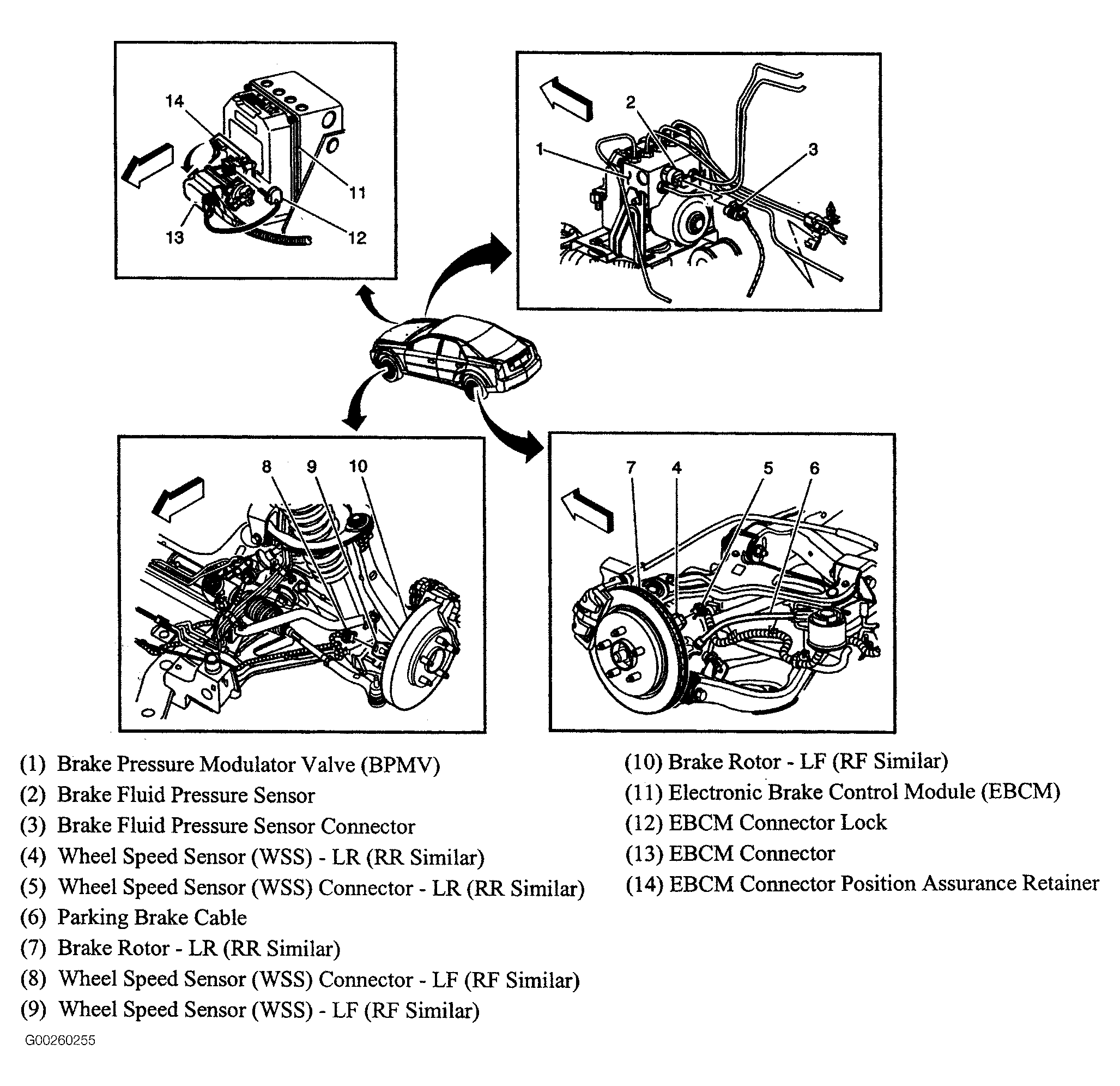

| EBCM Connector | On electronic brake control module. See Figure. |
| Electronic Brake Control Module (EBCM) | At right front corner of engine compartment. See Figure. |

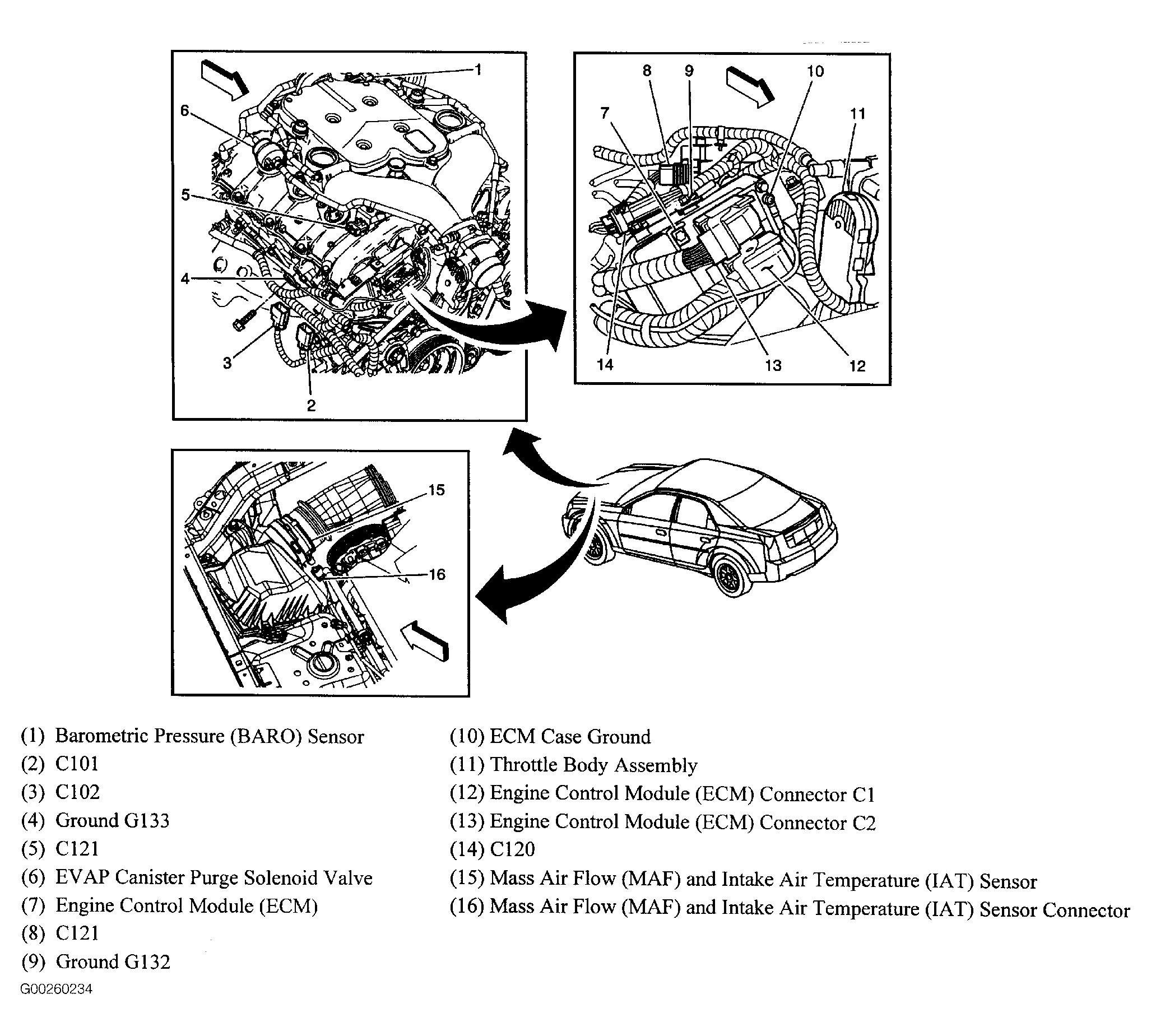

| Engine Control Module (ECM) Case Ground (2.8L/3.6L) | Front of right valve cover. See Figure. |
| Engine Control Module (ECM) Connectors (2.8L/3.6L) | Front of right valve cover. See Figure. |
| Engine Control Module (ECM) (2.8L/3.6L) | Front of right valve cover. See Figure. |
| Front Passenger Door Module | On right front door, under door trim panel. |
| Heated Seat Module (Driver's) | Under driver's seat. |
| Heated Seat Module (Passenger's) | Under passenger's seat. |
| HVAC Control Module | Behind center of dash, below radio. |
| Ignition Control Module Bank No. 1 | On top right side of engine. |
| Ignition Control Module Bank No. 2 | On top left side of engine. |

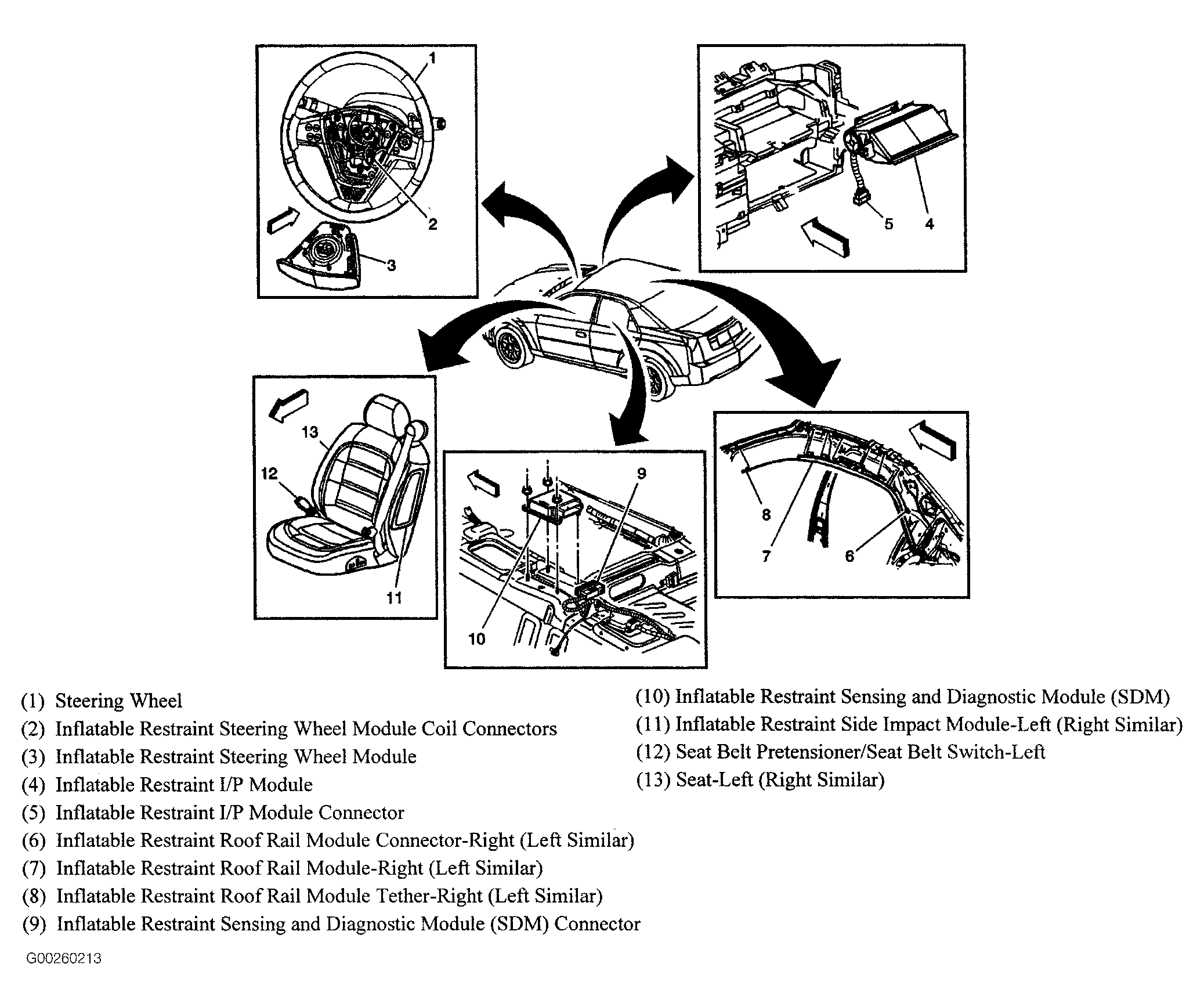

| Inflatable Restraint I/P Module | Above glove box. See Figure. |
| Inflatable Restraint I/P Module Connector | On inflatable restraint I/P module. See Figure. |
| Inflatable Restraint Roof Rail Module Connector (Right, Left Similar) | On right inflatable restraint roof rail module. See Figure. |

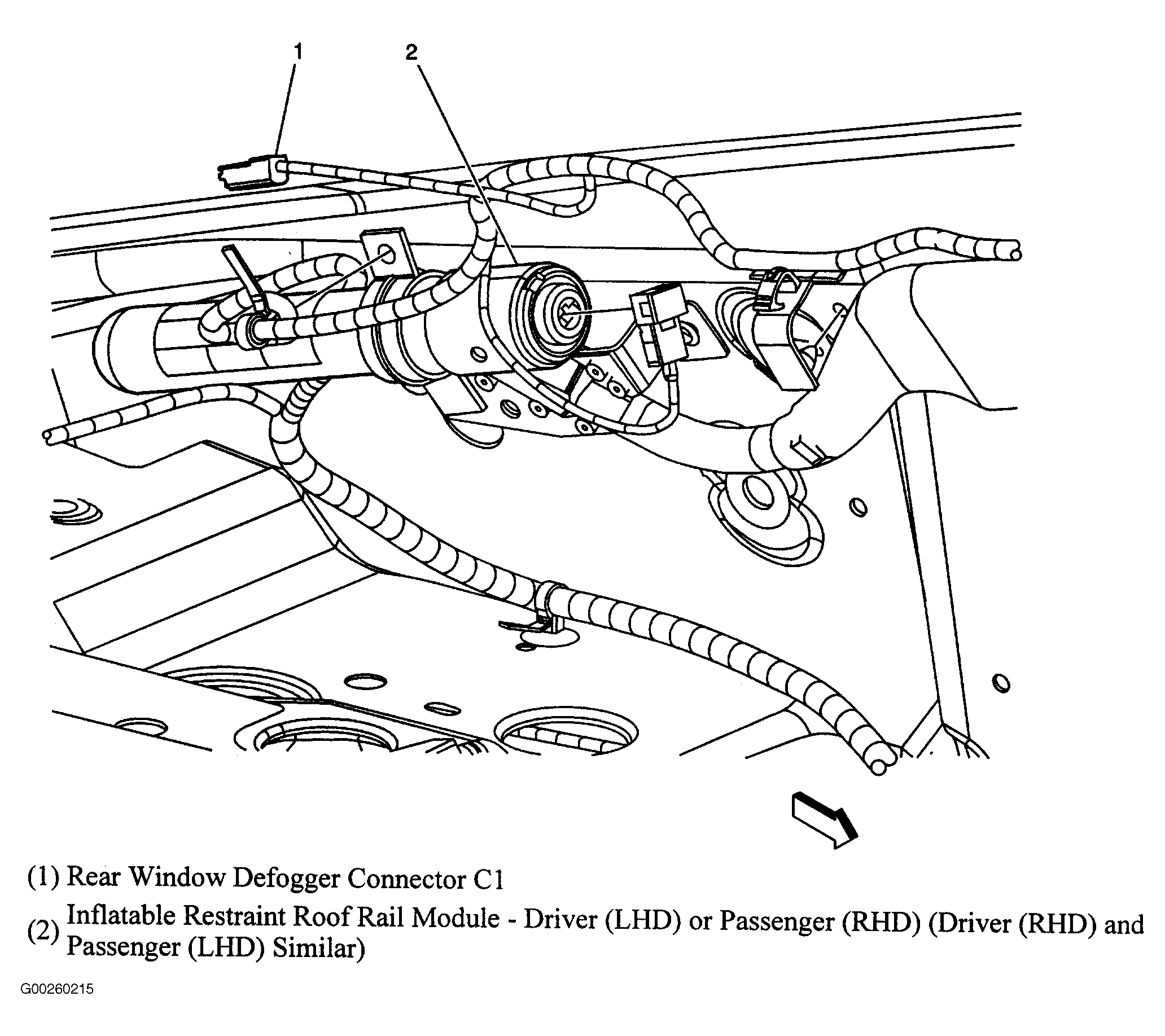

| Inflatable Restraint Roof Rail Module (Driver) | Above left "C" pillar. See Figure. |
| Inflatable Restraint Roof Rail Module (Right, Left Similar) | Above right "B" pillar. See Figure. |

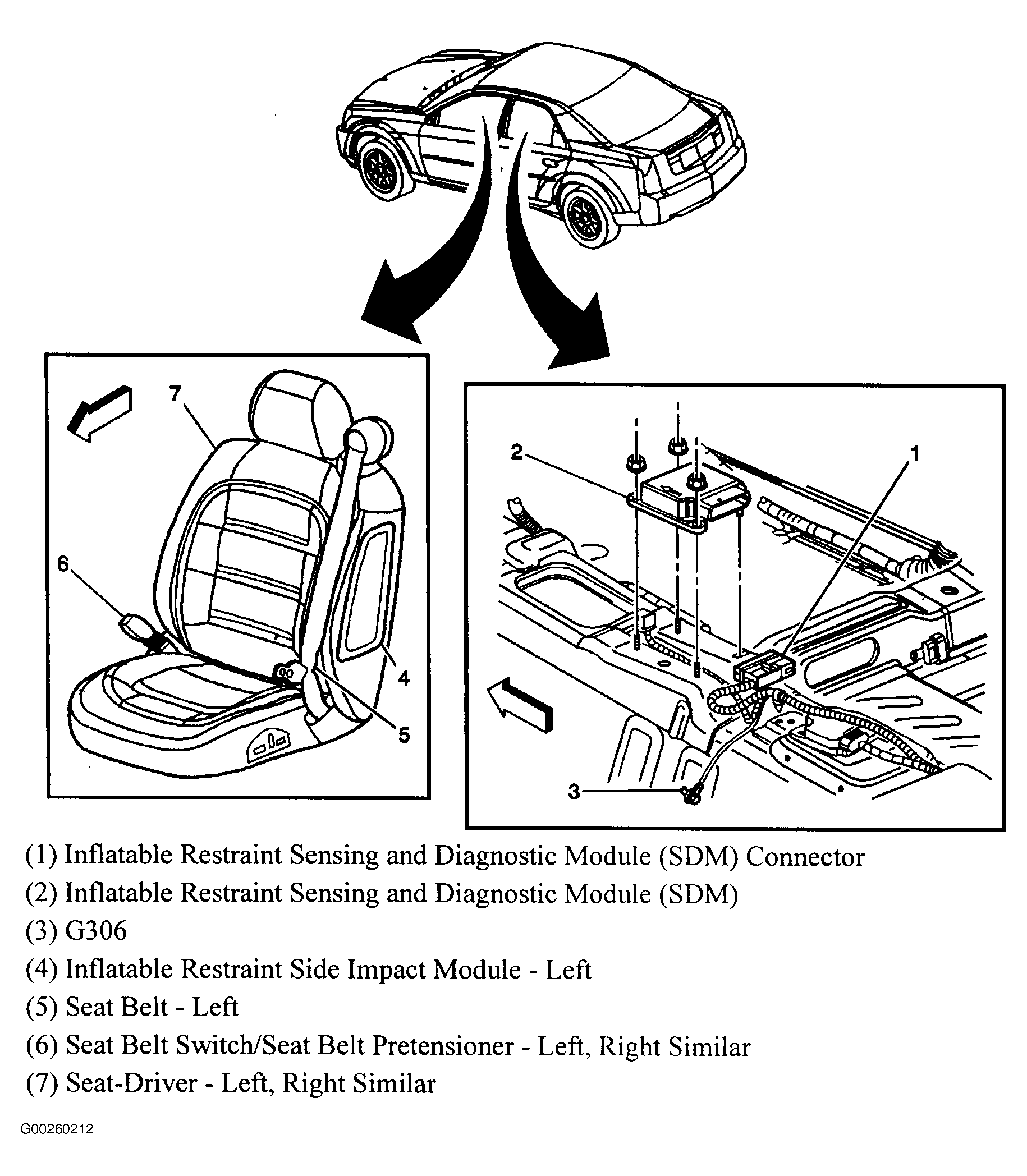

| Inflatable Restraint Sensing & Diagnostic Module | Under center console. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module Connector | Under center console. See Figure. |
| Inflatable Restraint Side Impact Module (Left) | On left side of left front seat. |
| Inflatable Restraint Side Impact Module (Right) | On right side of right front seat. |

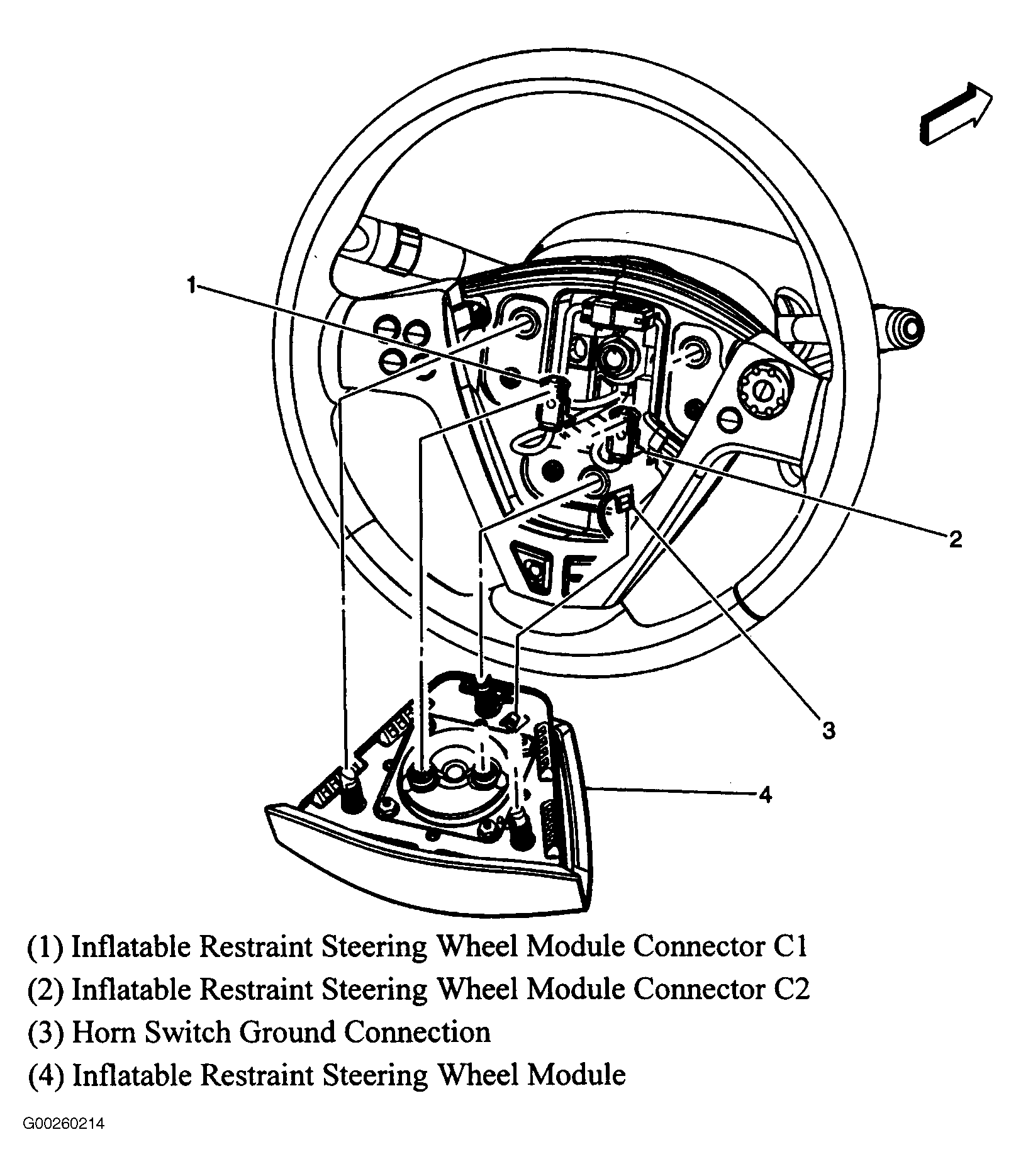

| Inflatable Restraint Steering Wheel Module | On steering wheel. See Figure. |
| Inflatable Restraint Steering Wheel Module Connector | On inflatable restraint steering wheel module. See Figure. |
| Left Rear Door Module | Under door trim panel. |
| Memory Seat Module (Driver's) | Under driver's seat. |
| Powertrain Control Module (PCM) (5.7L) | Lower left front corner of vehicle, behind front bumper fascia. |

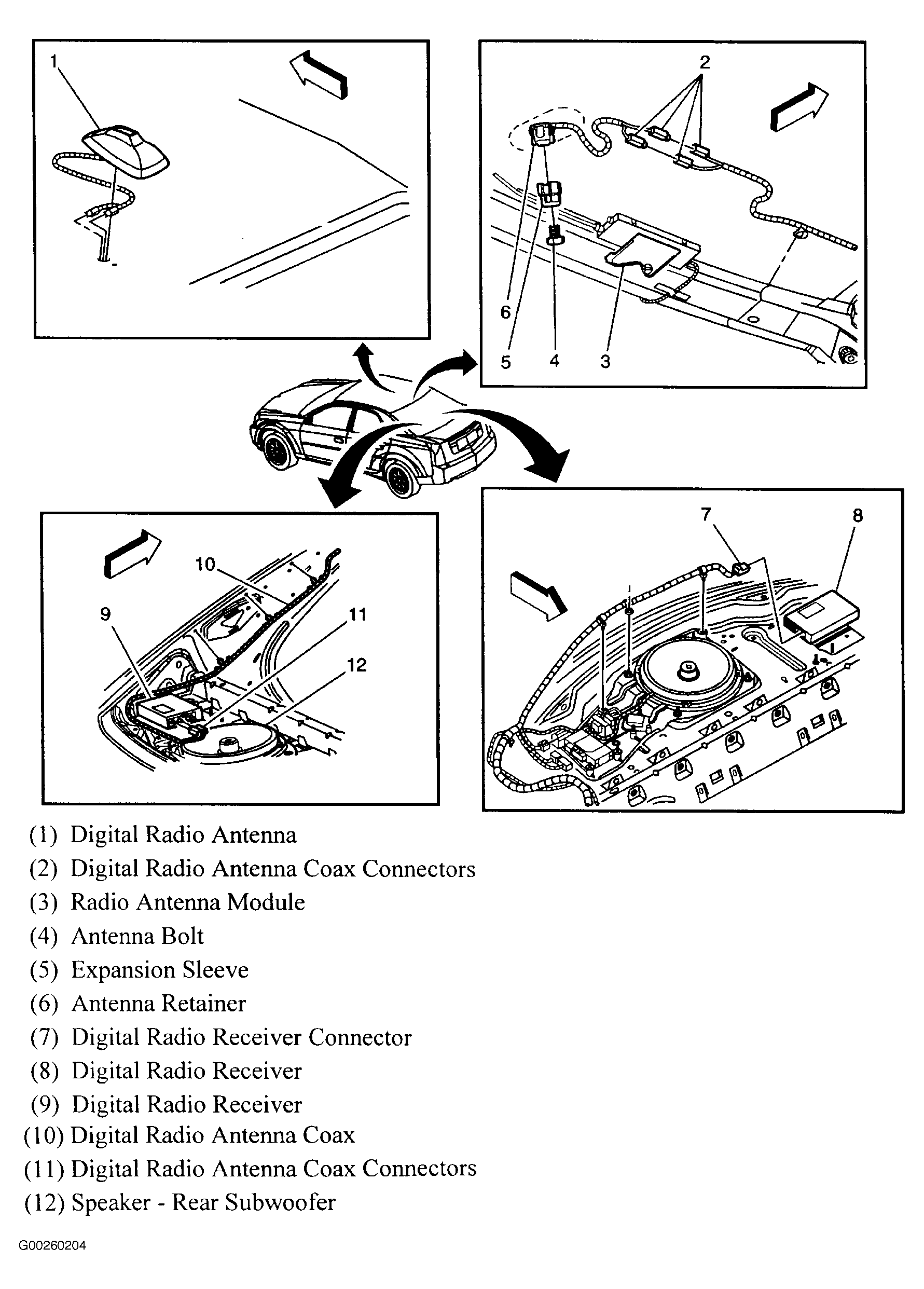

| Radio Antenna Module | Above headliner, near rear window. See Figure. |
| Rear Integration Module | Under package shelf trim panel. |

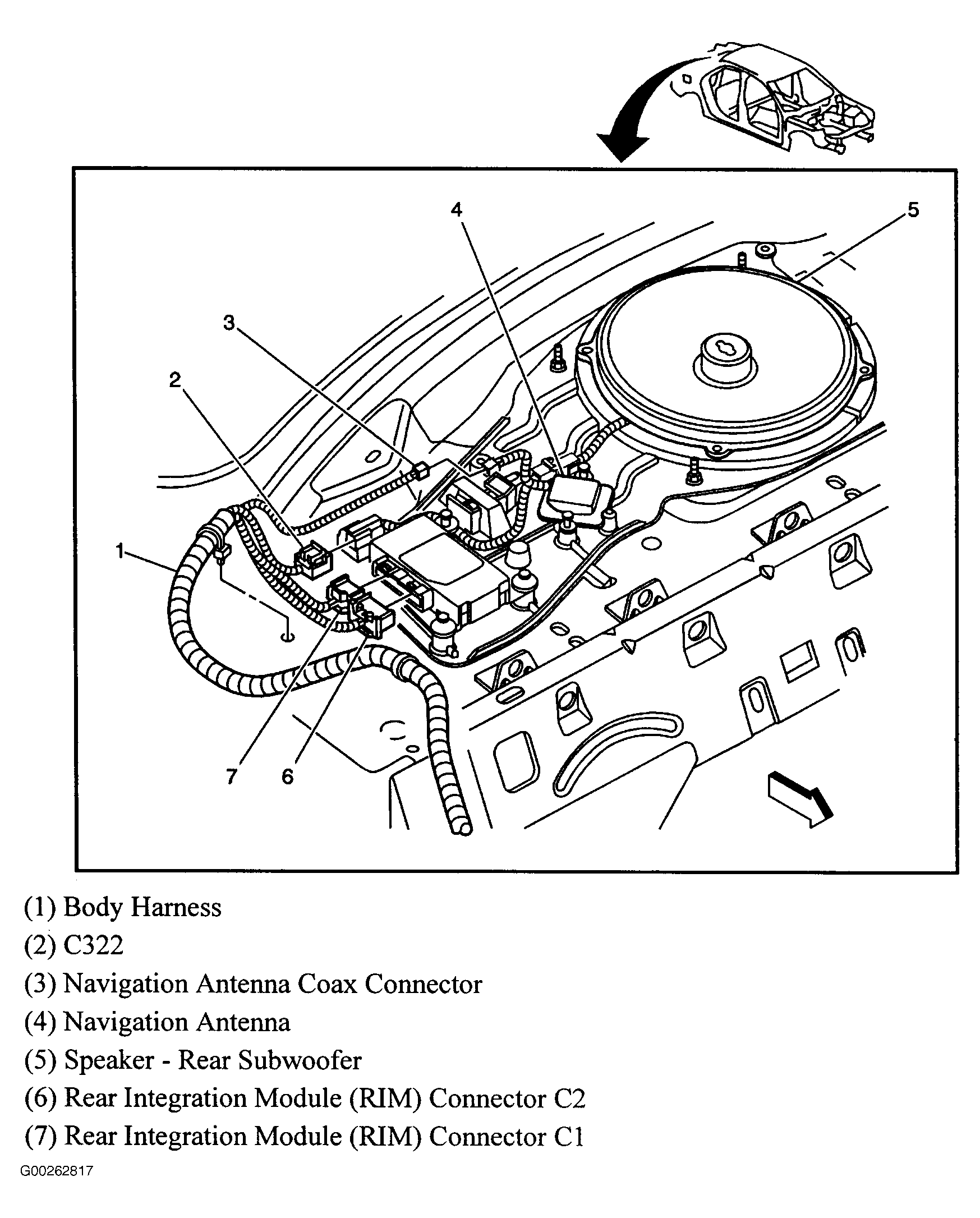

| Rear Integration Module (RIM) Connector | Right side of rear package tray. See Figure. |
| Right Rear Door Module | On right rear door, under door trim panel. |

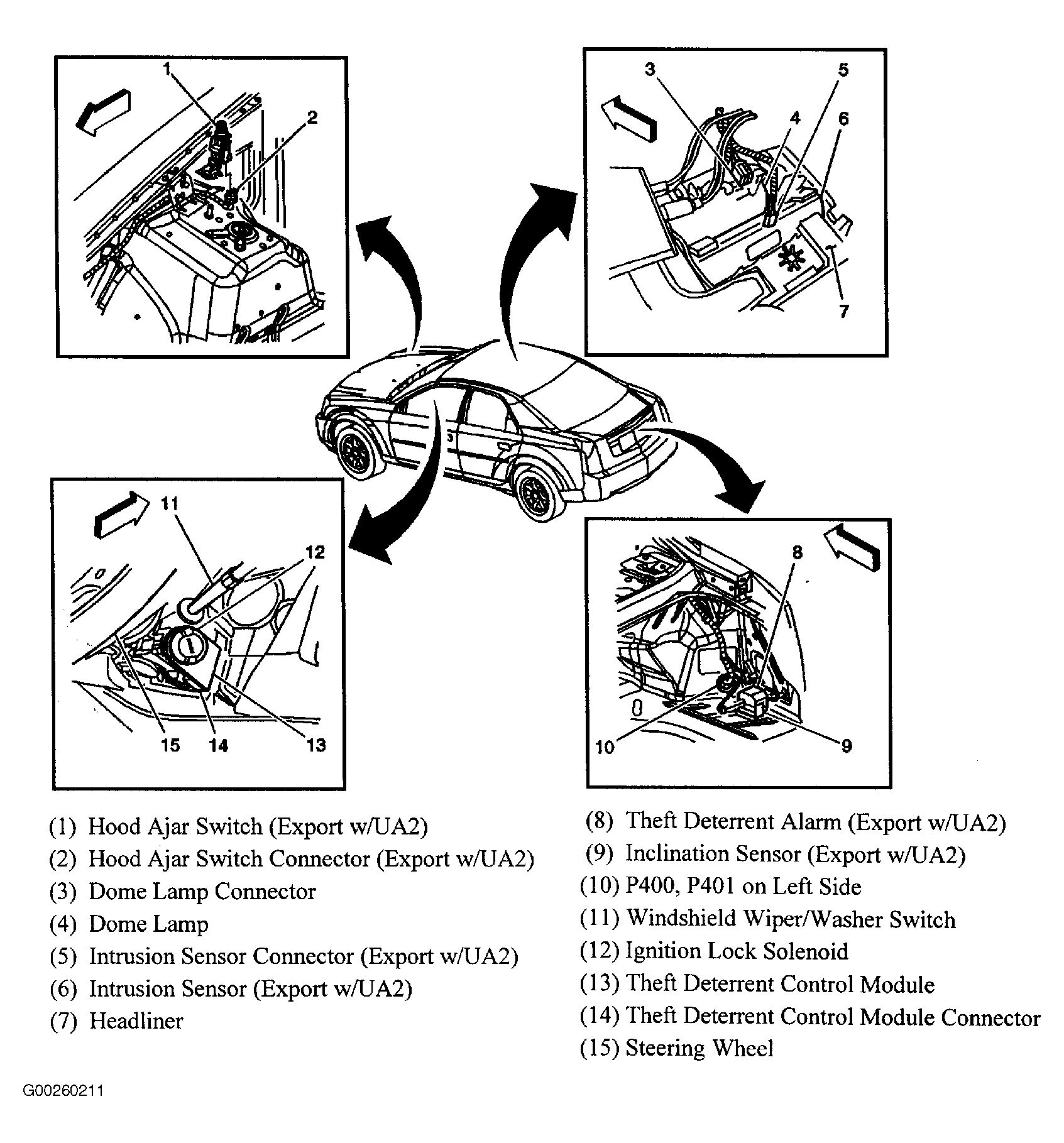

| Theft Deterrent Control Module | At top of steering column. See Figure. |
| Theft Deterrent Control Module Connector | On theft deterrent control module. See Figure. |

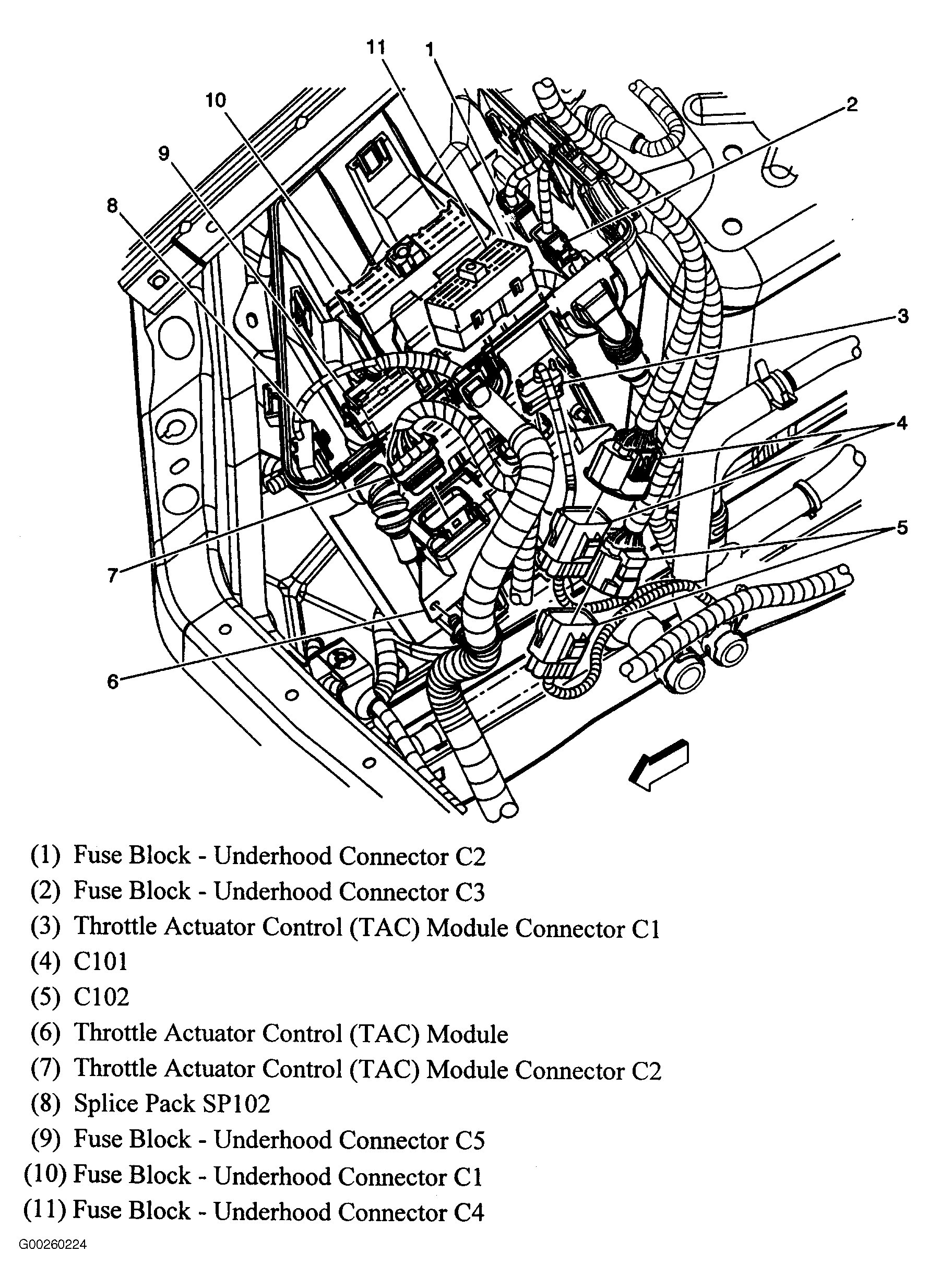

| Throttle Actuator Control (TAC) Module | Right front of engine compartment. See Figure. |
| Throttle Actuator Control (TAC) Module Connector | On throttle actuator control module. See Figure. |

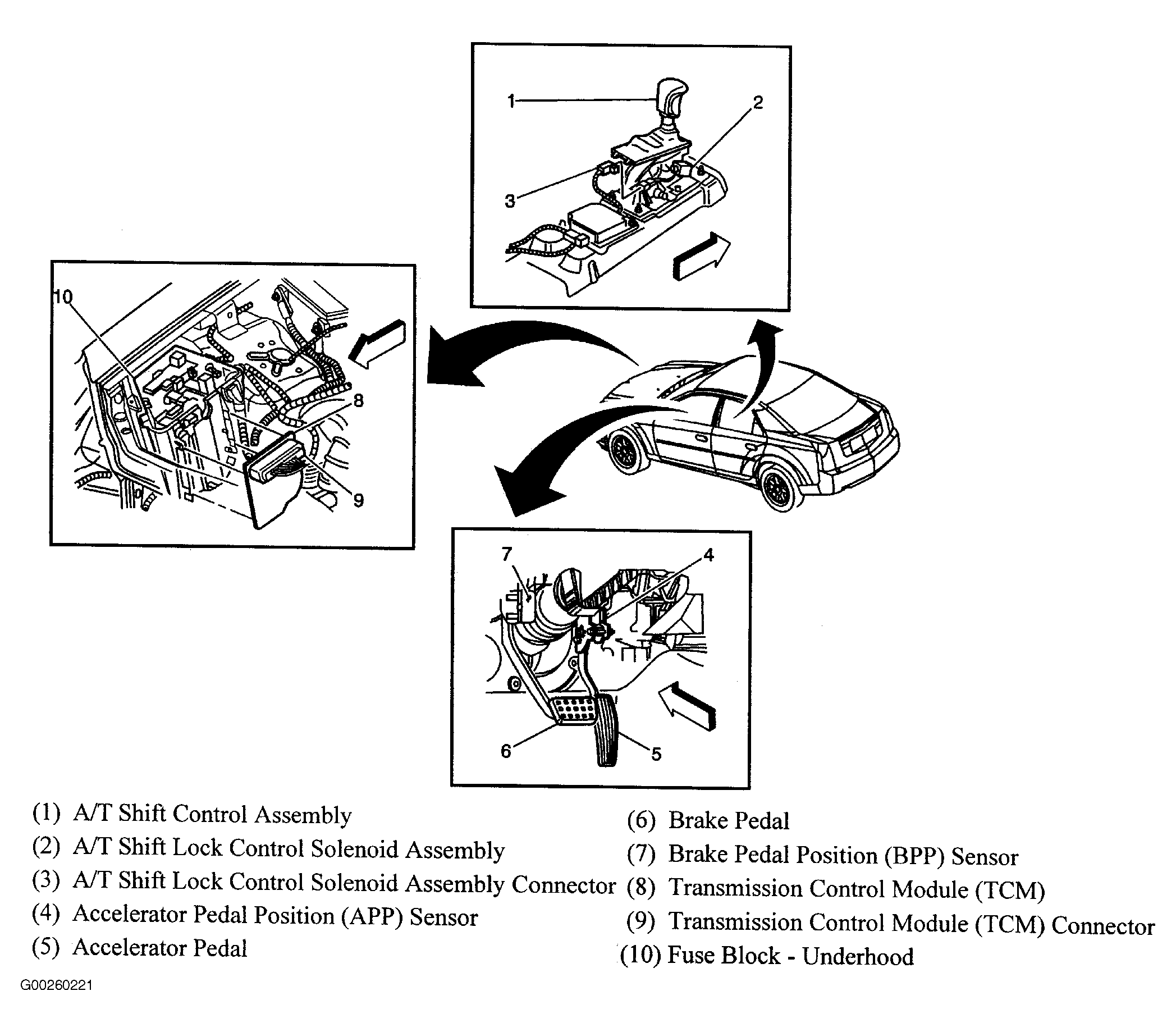

| Transmission Control Module (TCM) | At right front of engine compartment. See Figure. |
| Transmission Control Module (TCM) Connector | On transmission control module. See Figure. |

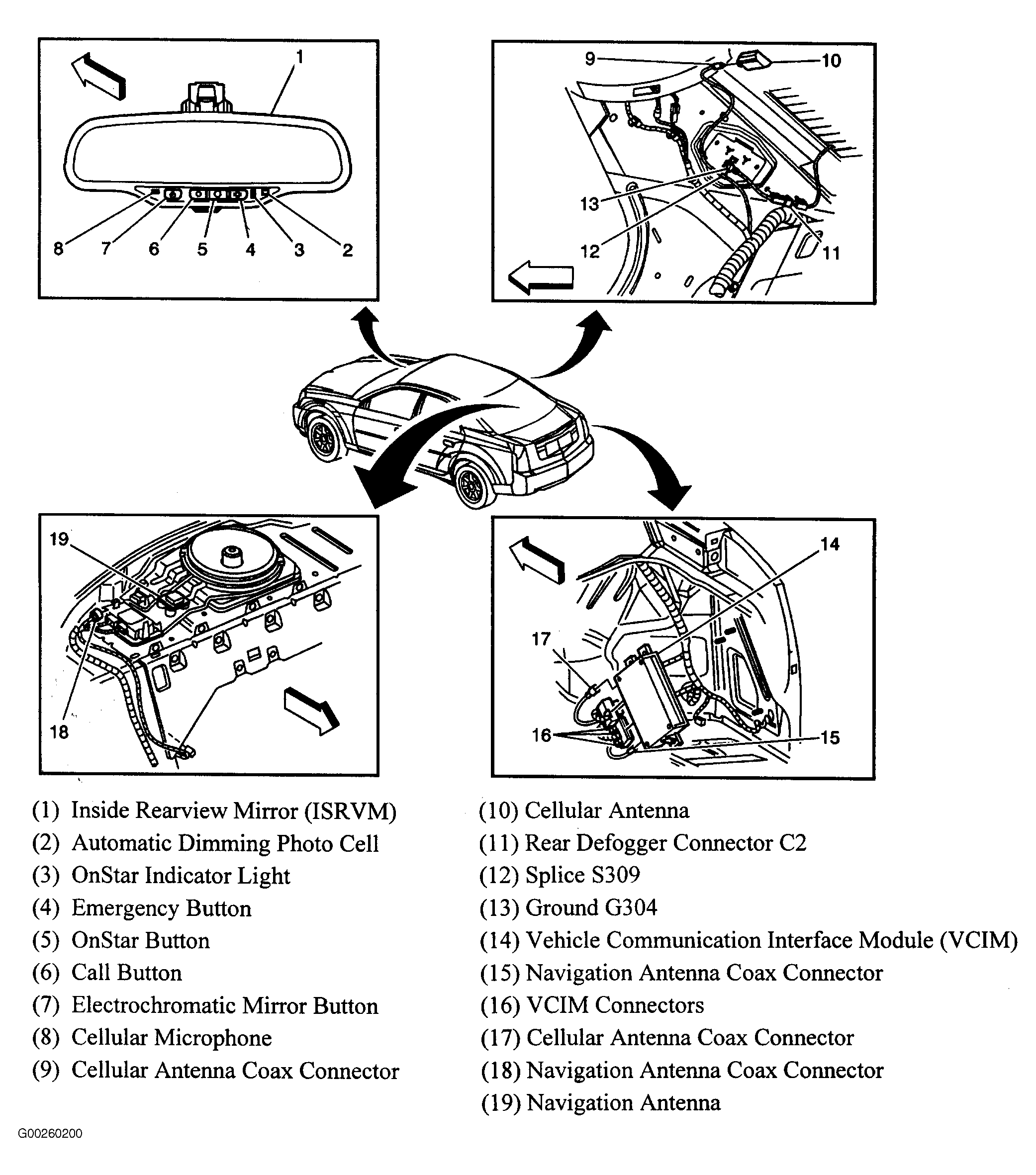

| Vehicle Communication Interface Module (VCIM) | In rear compartment, behind right strut tower. See Figure. |
| Vehicle Communication Interface Module (VCIM) Connectors | On vehicle communication interface module. See Figure. |
