Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

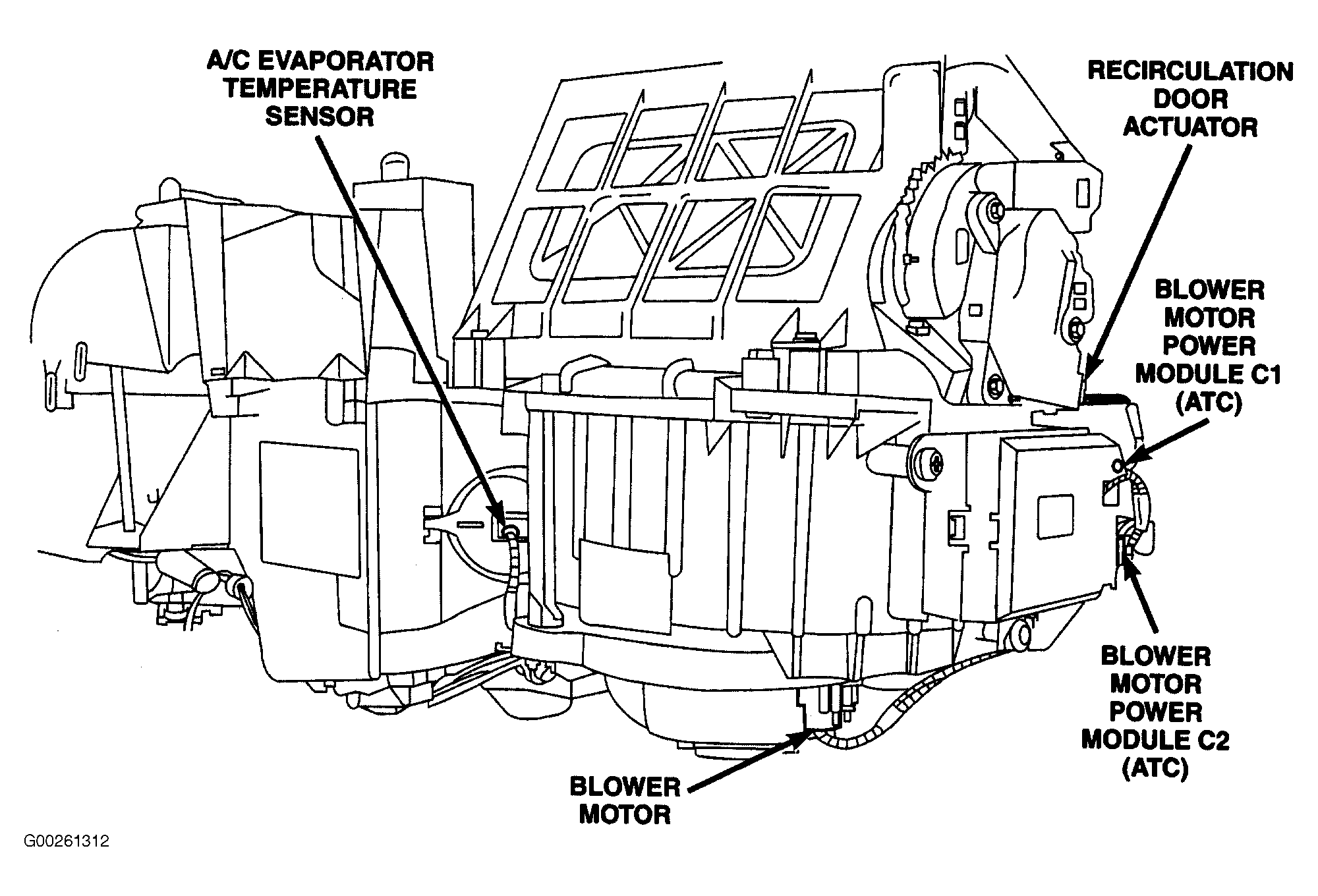

| Blower Motor Power Module | Right front fender. See Figure . |

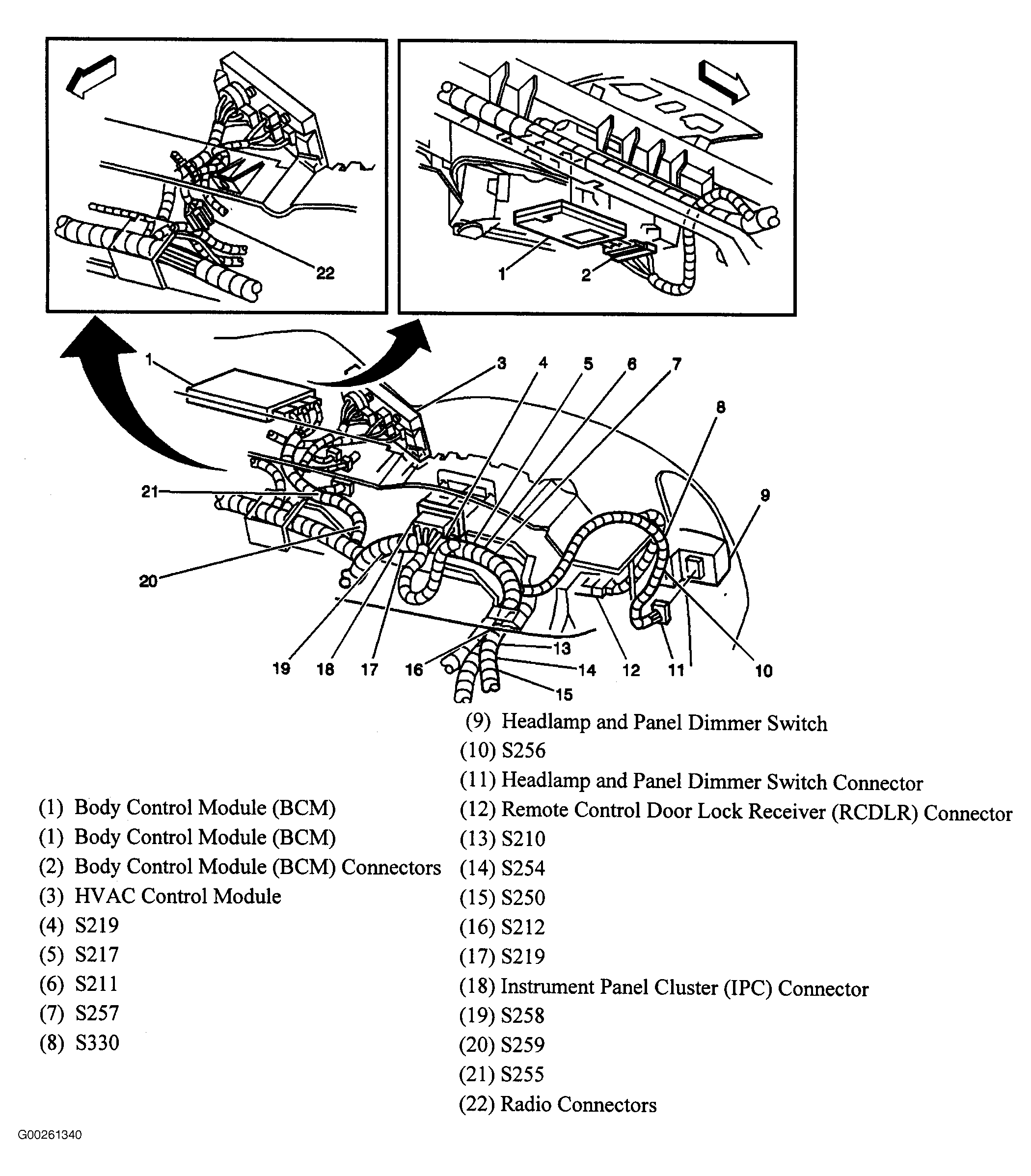

| Body Control Module (BCM) | Above radio. See Figure . |

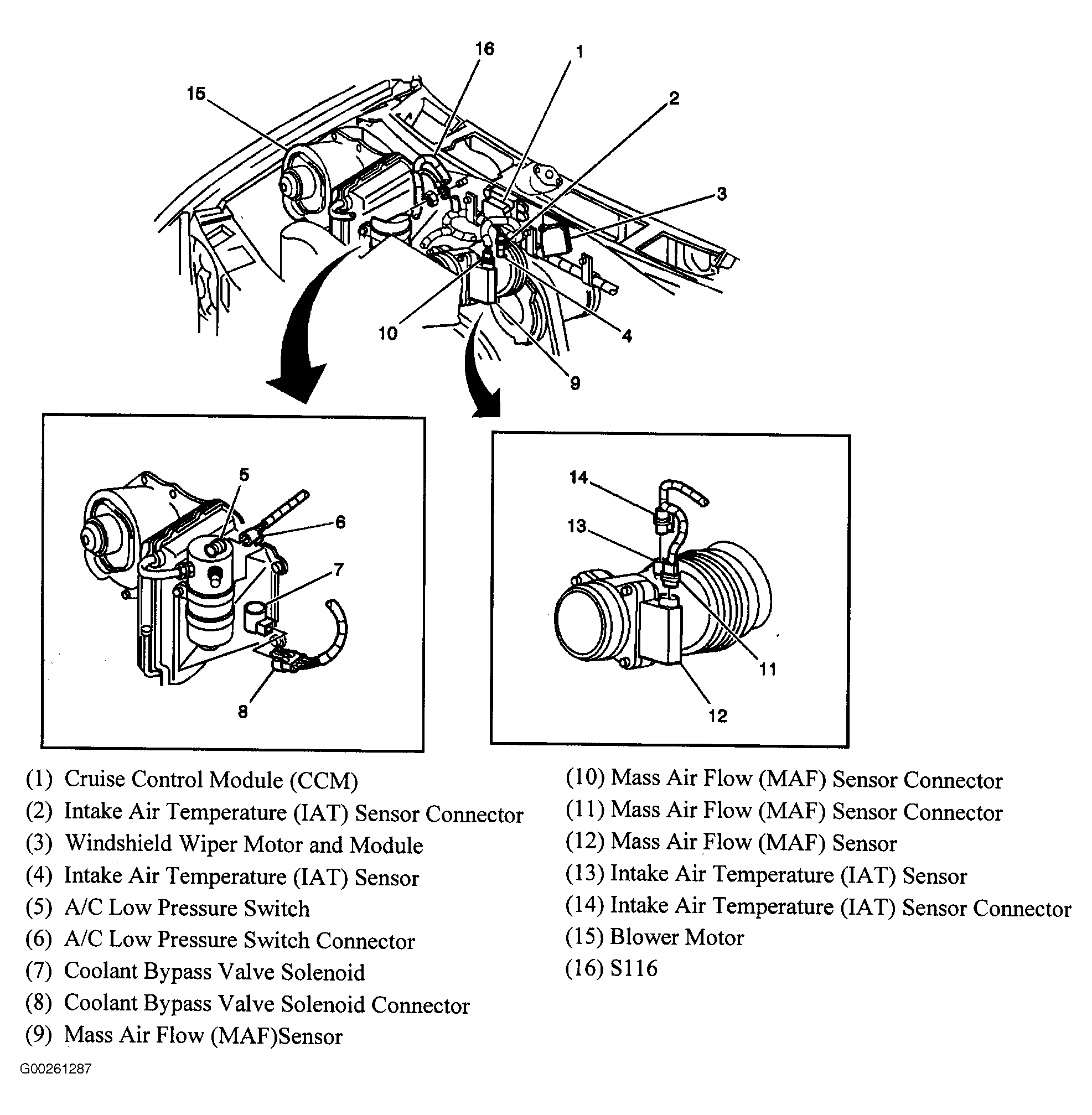

| Cruise Control Module | Center front of firewall, near windshield wiper module. See Figure . |

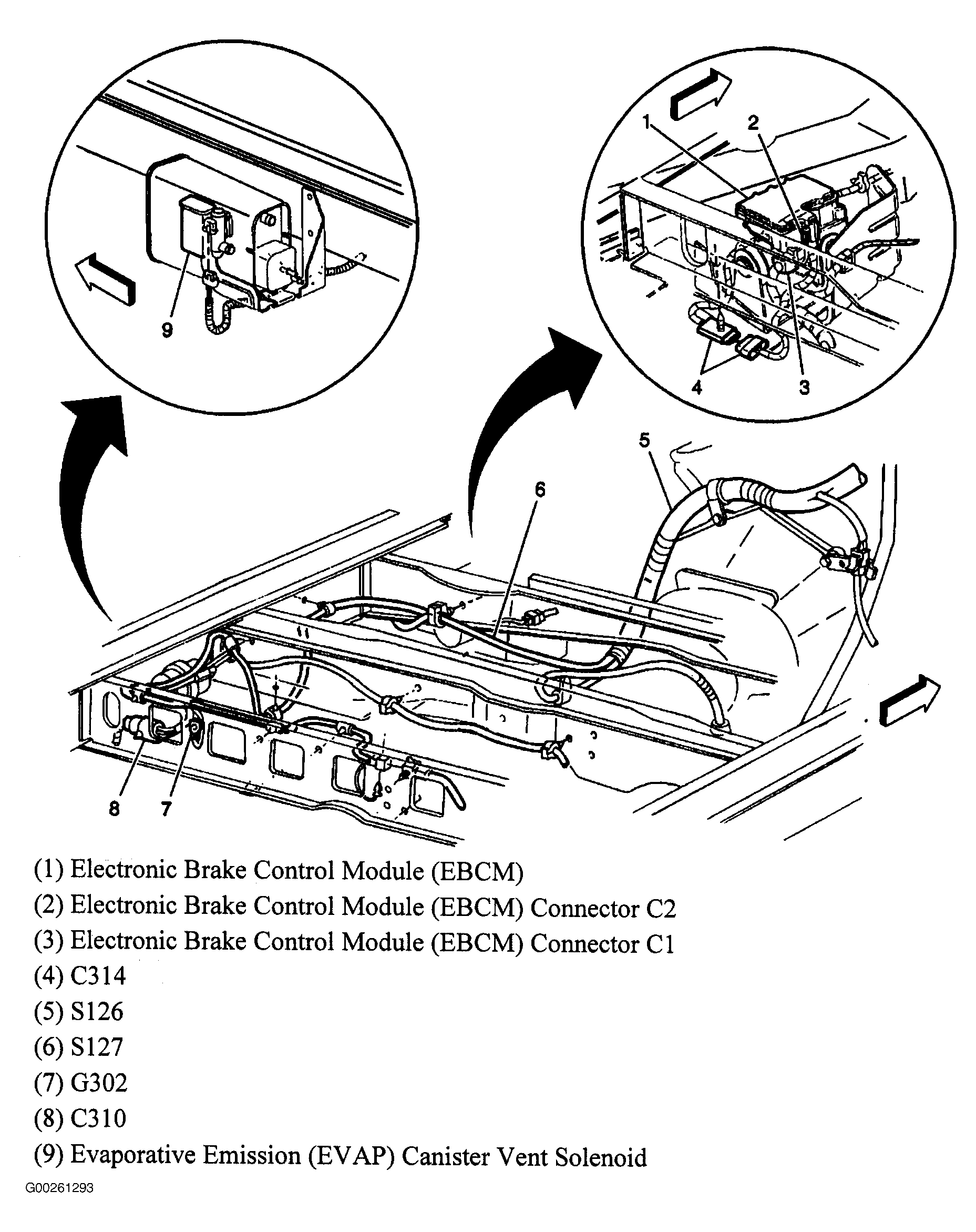

| Electronic Brake Control Module (EBCM) | On left front side of frame, left of transmission. See Figure . |

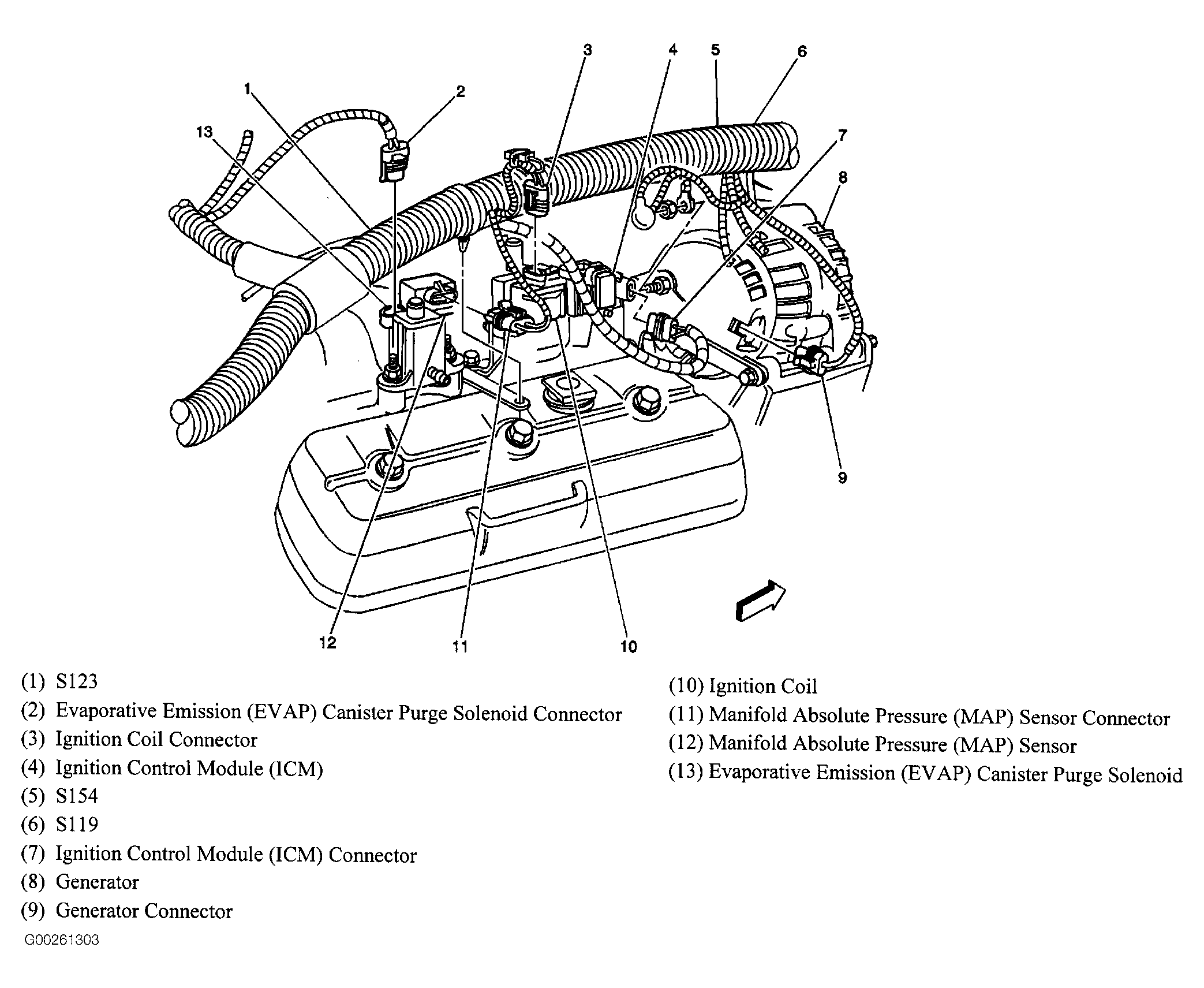

| Ignition Control Module (ICM) | Top of engine, front of coil. See Figure . |

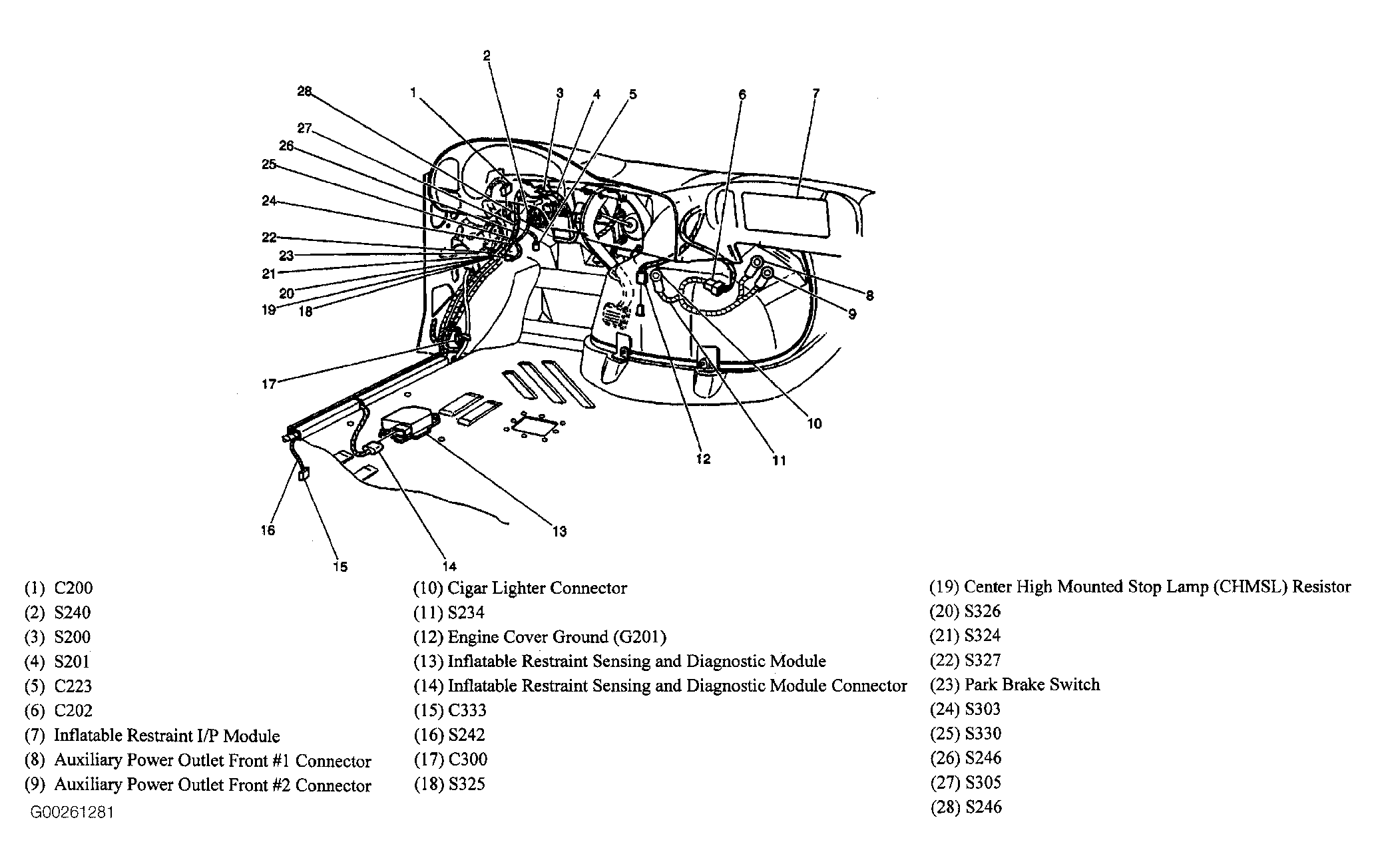

| Inflatable Restraint I/P Module | Right side of dash. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module | Under driver's seat. See Figure . |

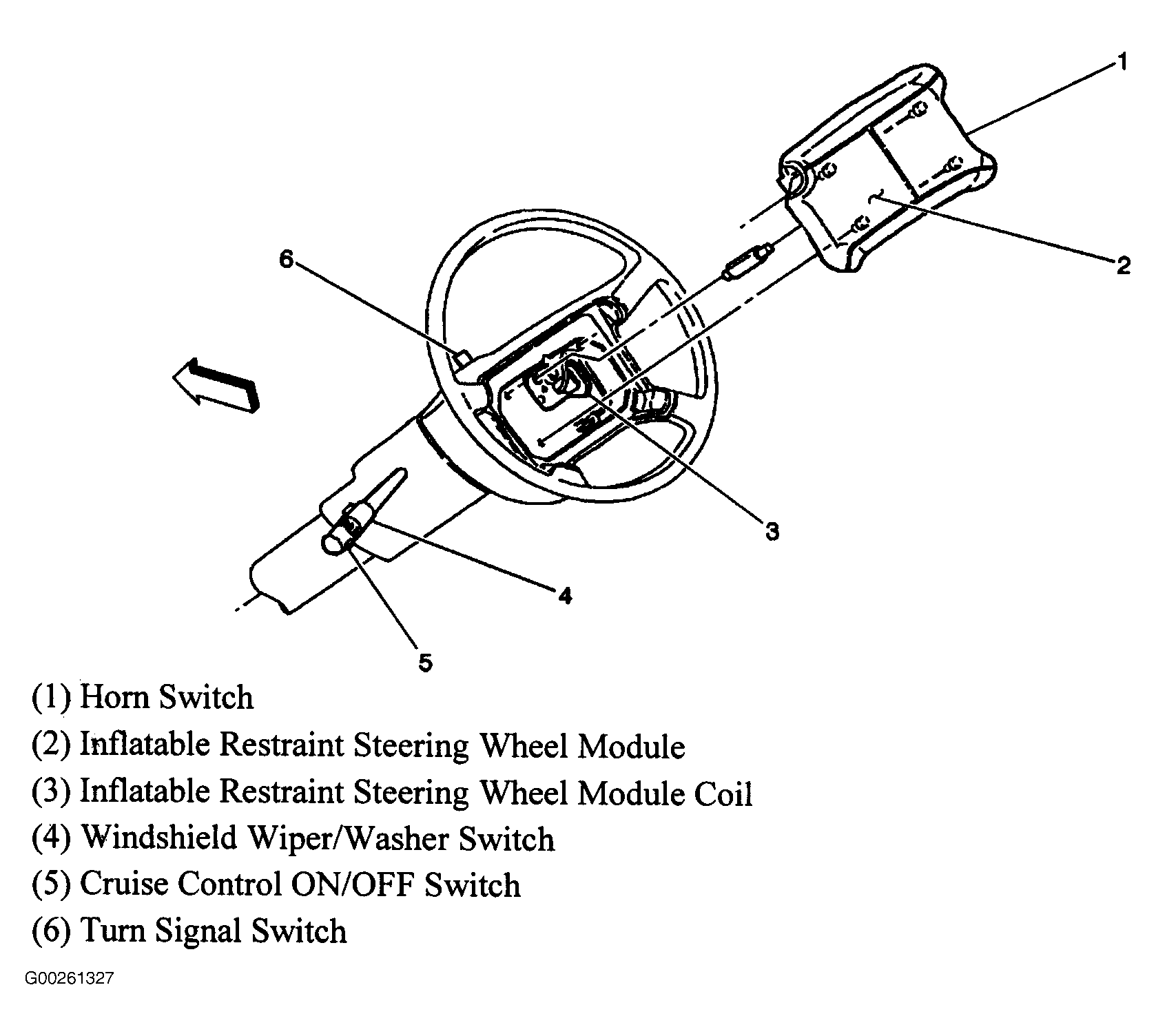

| Inflatable Restraint Steering Wheel Module | Top of steering wheel. See Figure . |

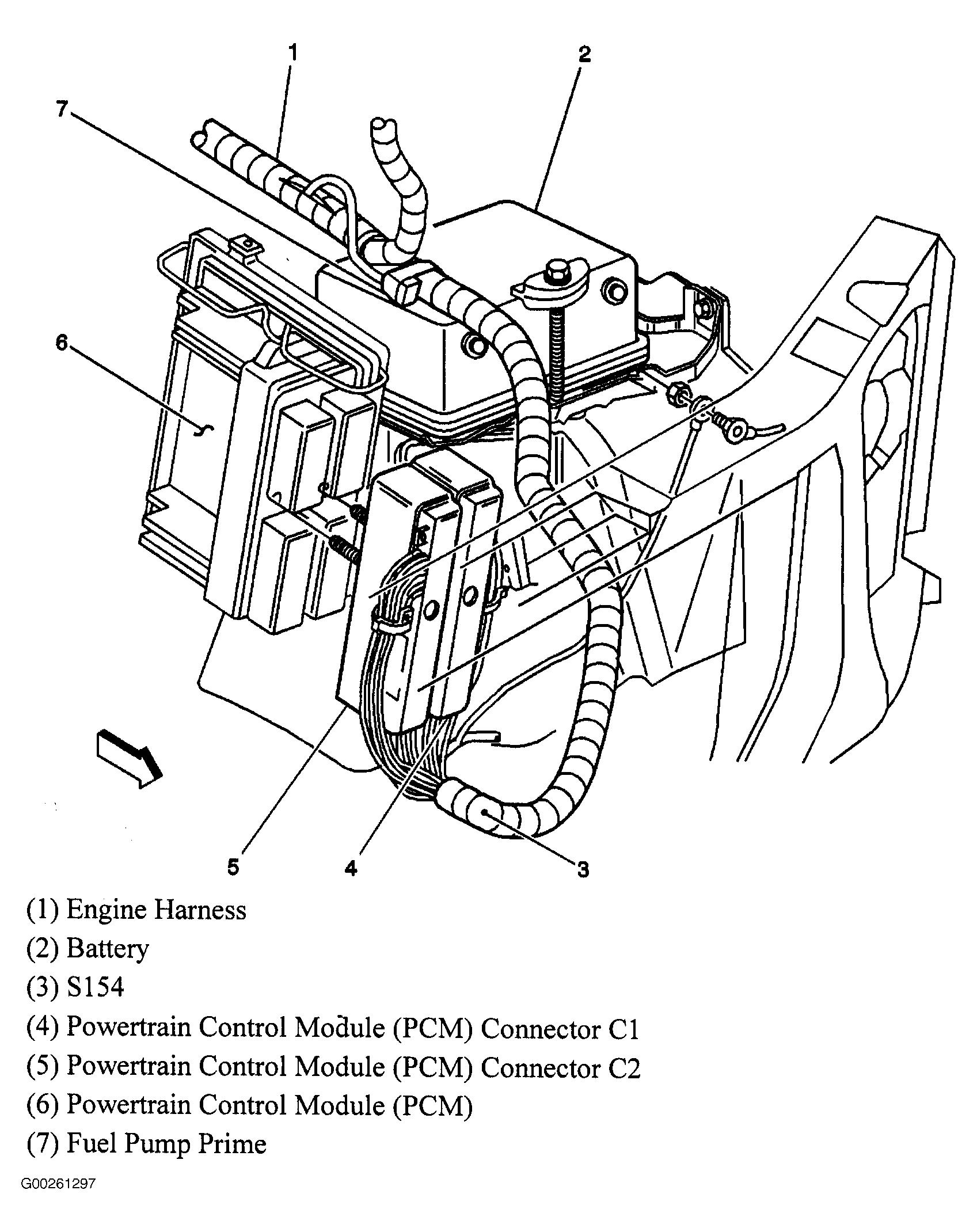

| Powertrain Control Module (PCM) | Below underhood fuse block, on left side of firewall. See Figure . |

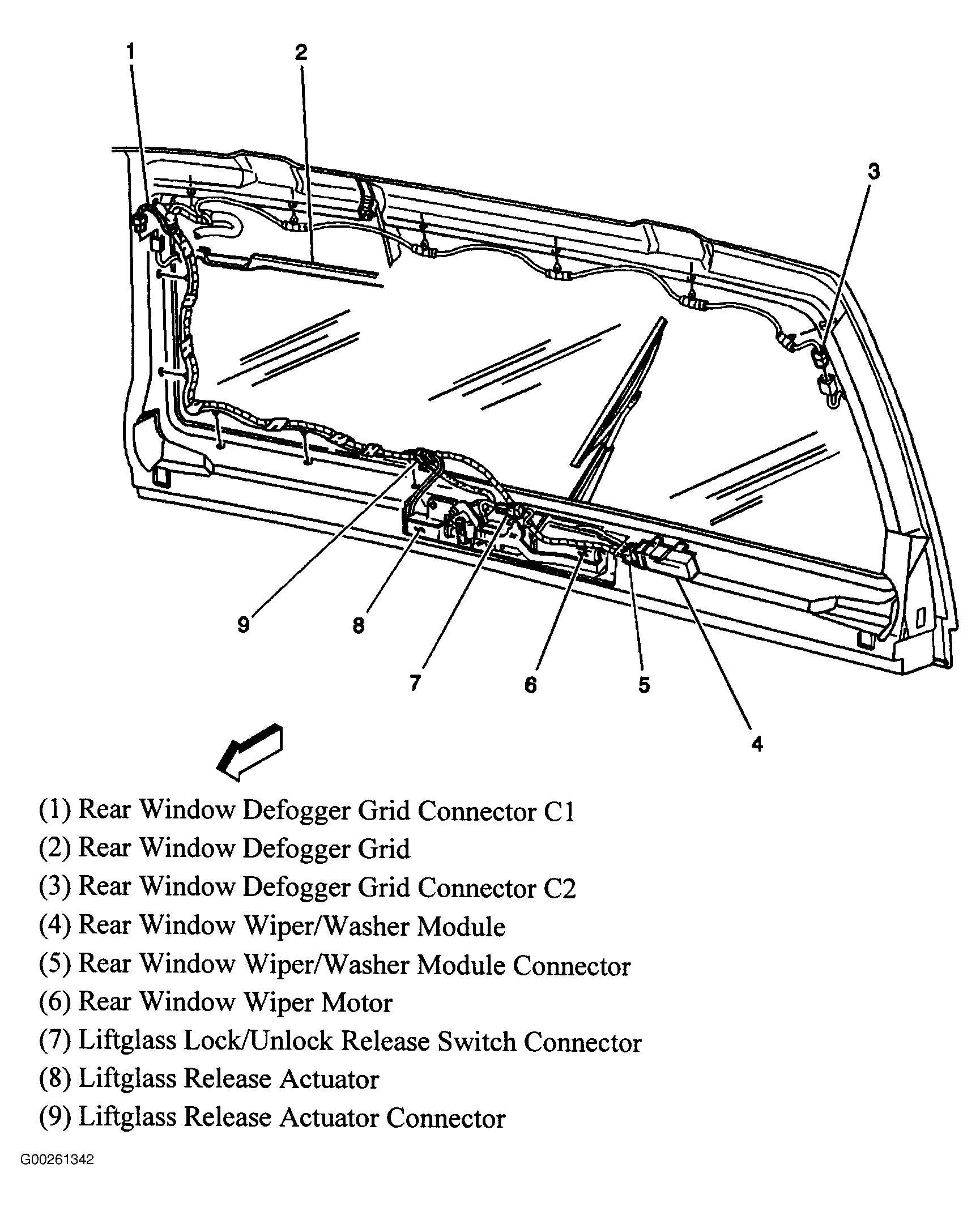

| Rear Window Wiper/Washer Module | In left side of liftgate. See Figure . |

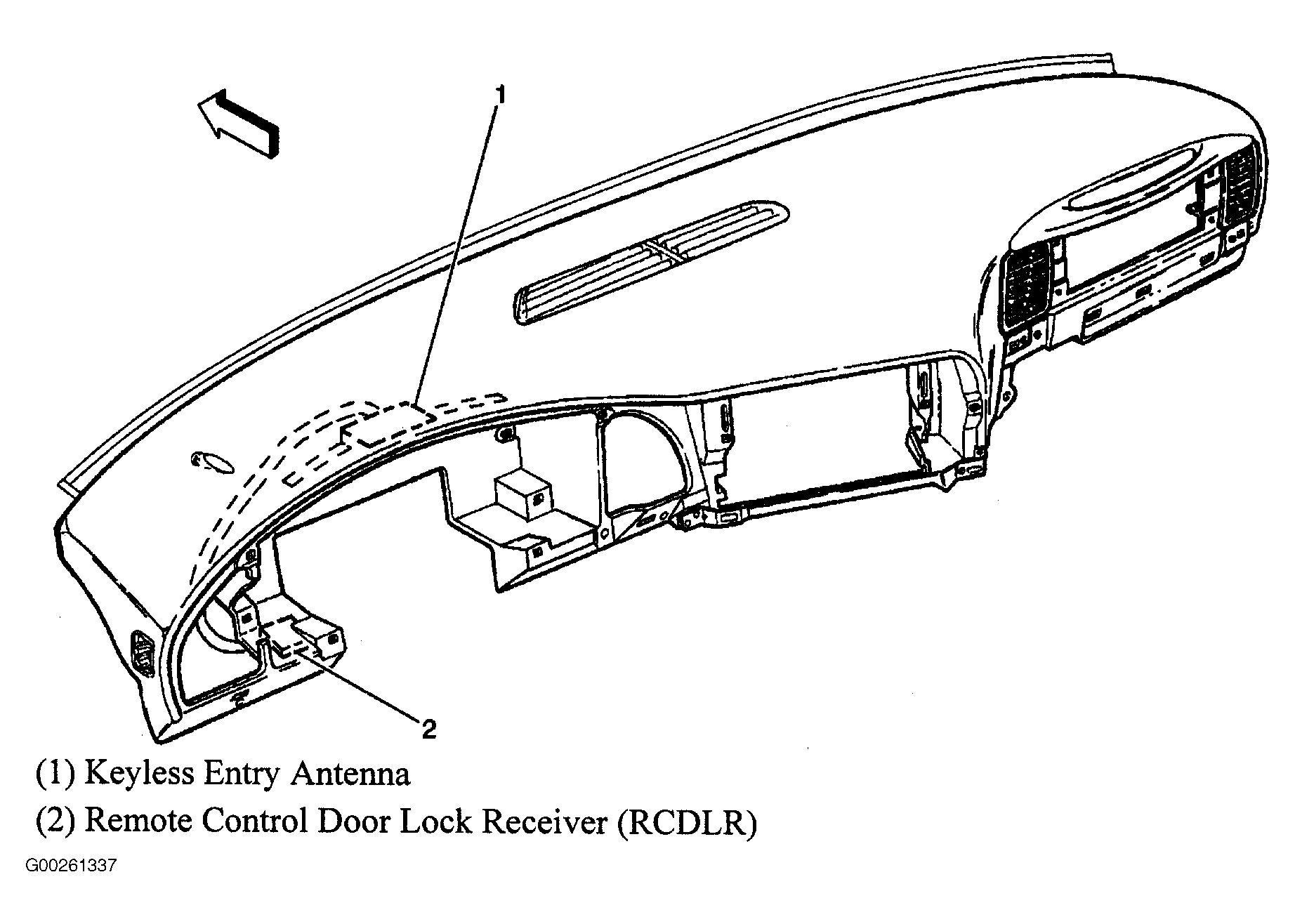

| Remote Control Door Lock Receiver (RCDLR) | Left of instrument cluster. See Figure . |

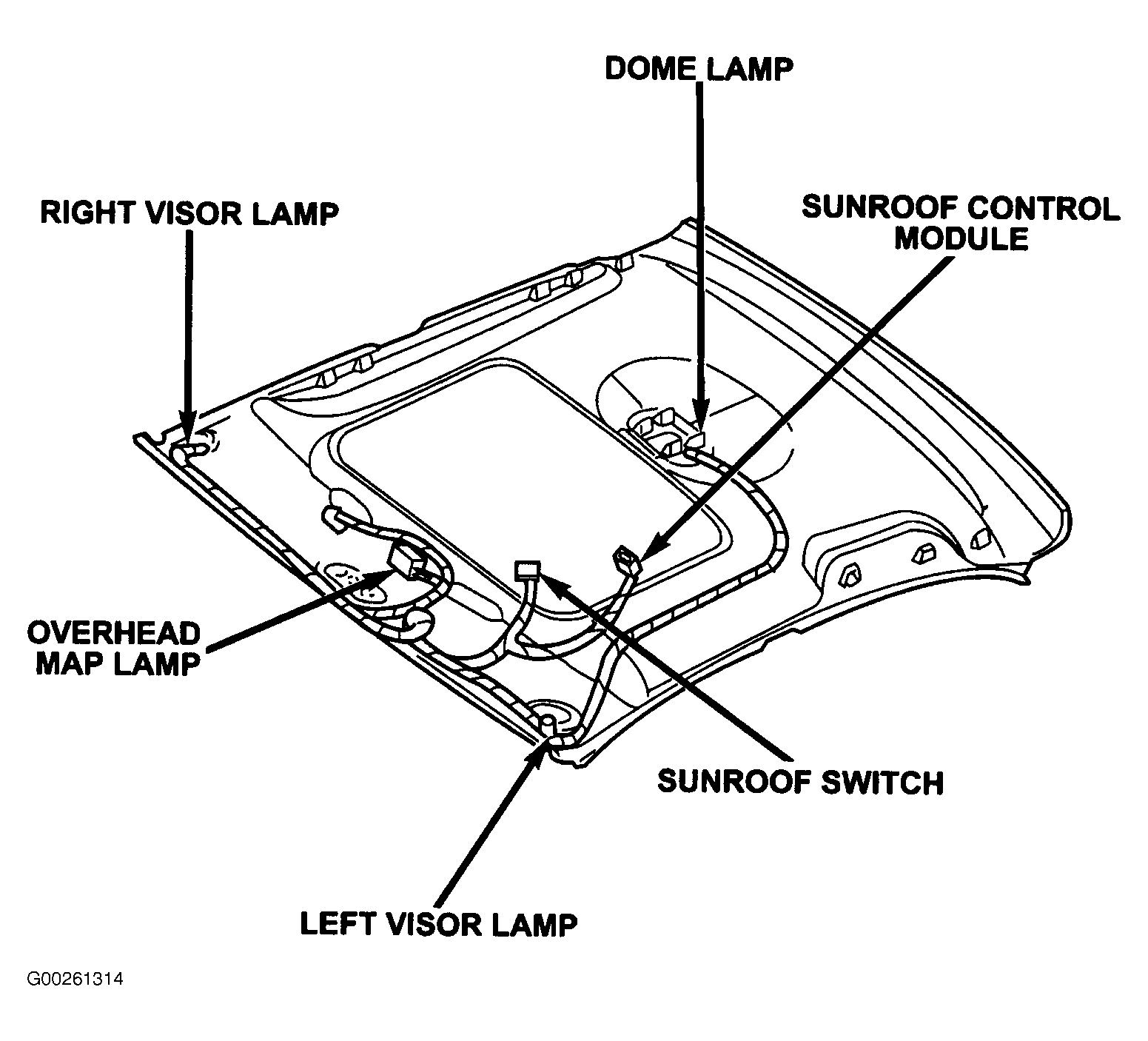

| Sunroof Control Module | Left side of sunroof. See Figure . |

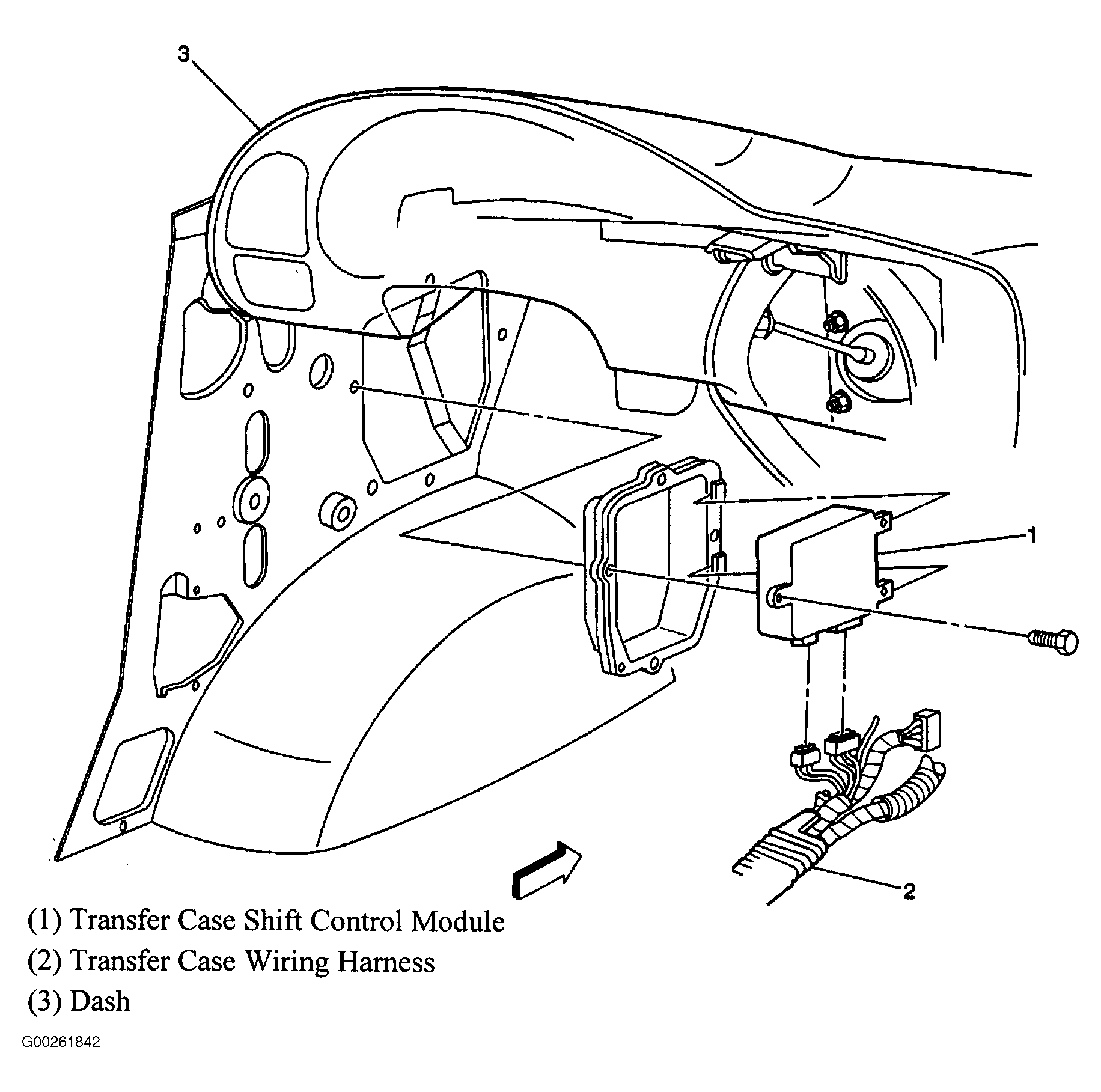

| Transfer Case Shift Control Module | Behind left kick panel. See Figure . |

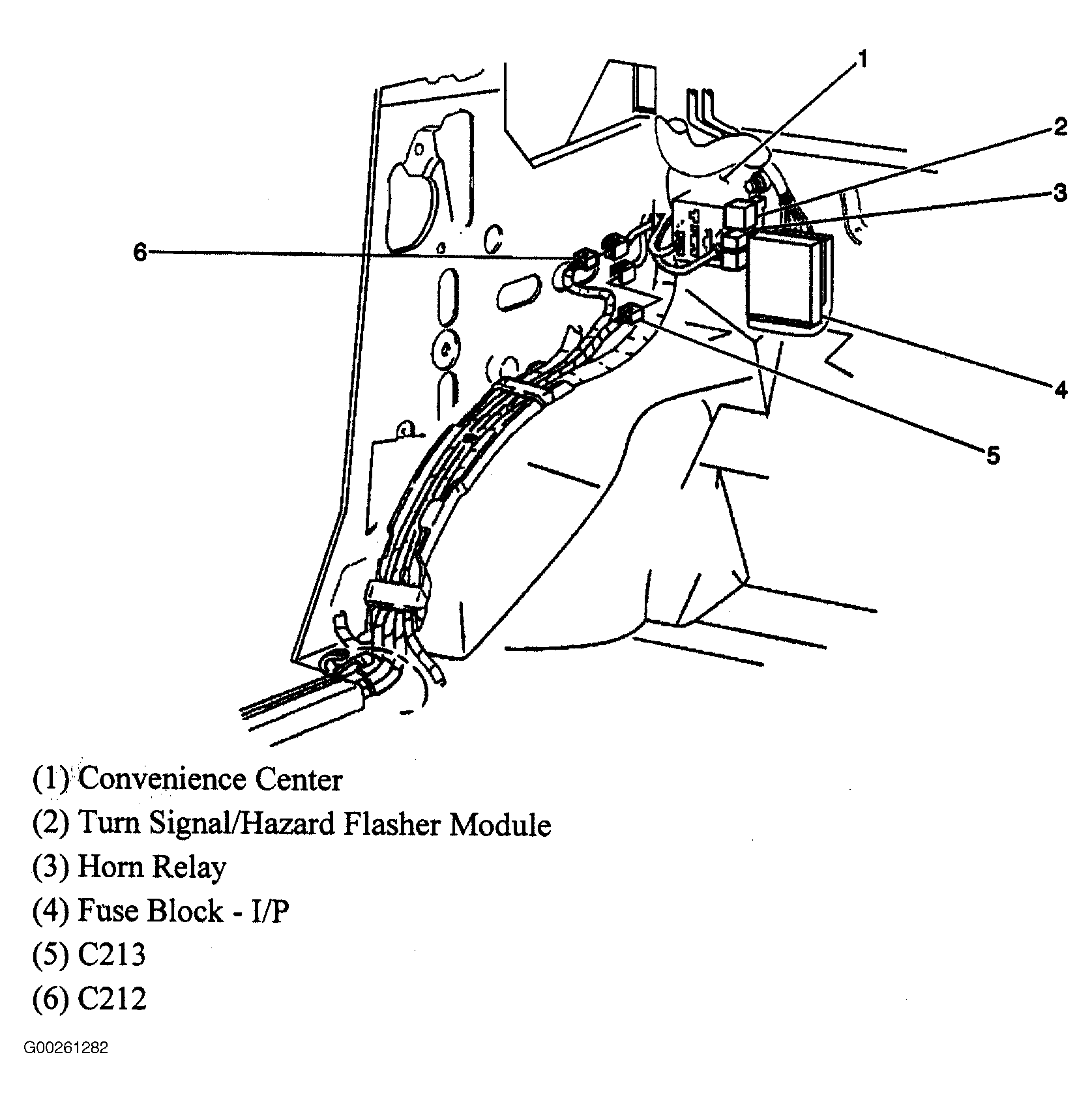

| Turn Signal/Hazard Flasher Module | On convenience center. See Figure . |
| Windshield Wiper Motor & Module | On center of firewall, next to cruise control module. See Figure . |
