Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

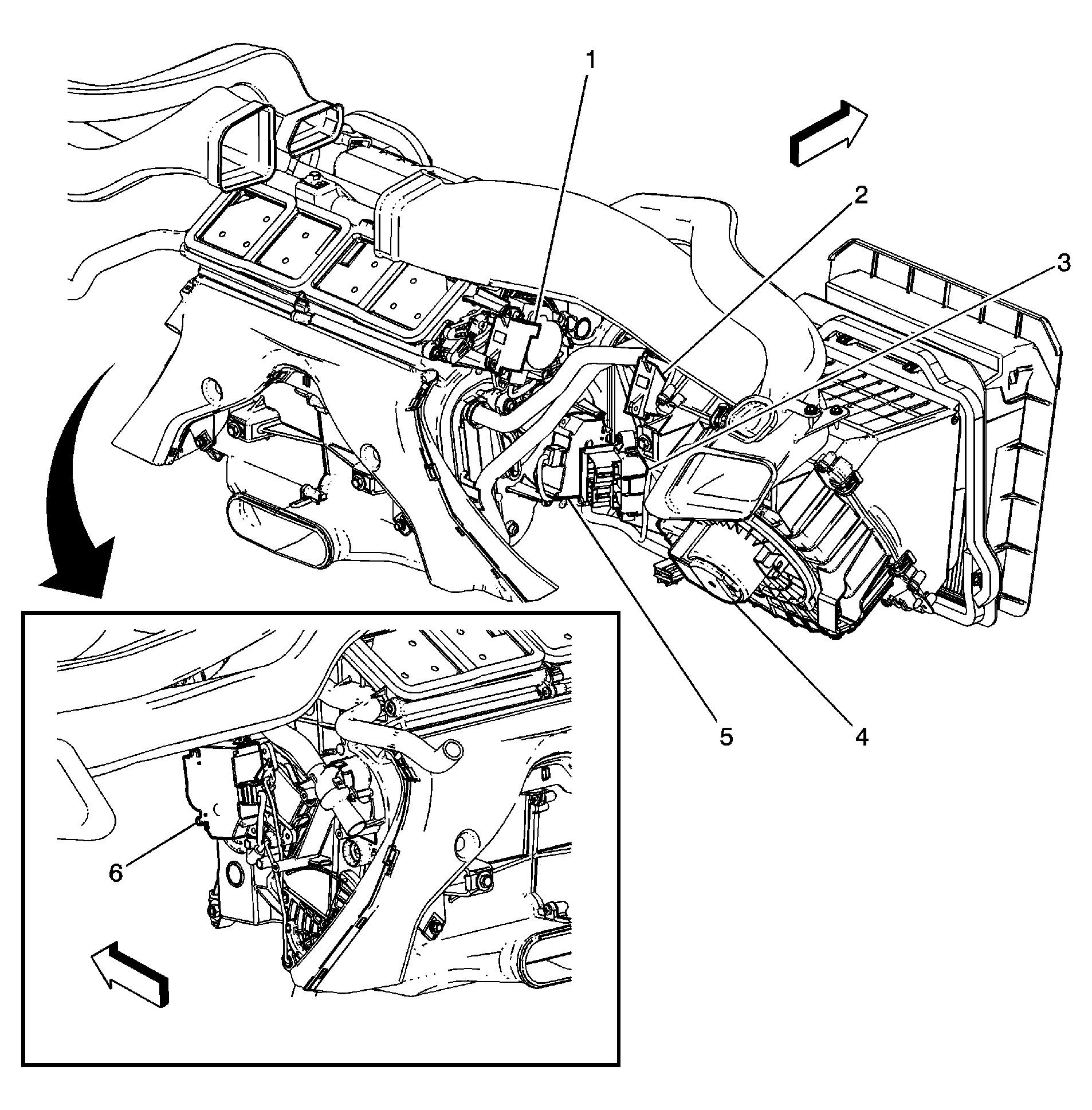

| Blower Motor Control Module (3) | Lower left side of blower motor. See Figure. |

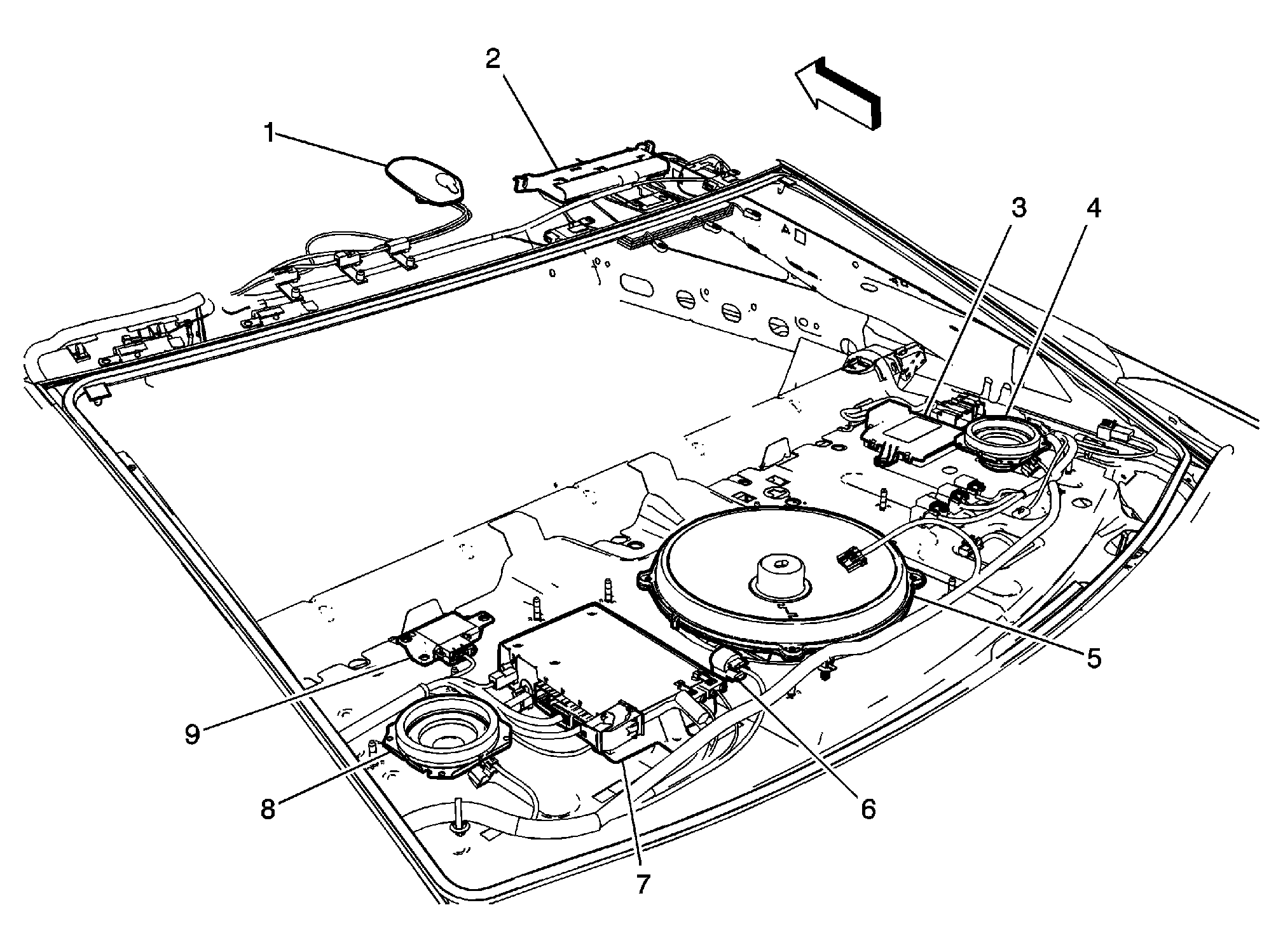

| Compass Module (9) | Left side of rear shelf. See Figure. |
| Dash Integration Module (DIM) | Right side of dash. See Figure. |
| Electronic Brake Control Module (EBCM) | Right front corner of engine compartment. See Figure. |

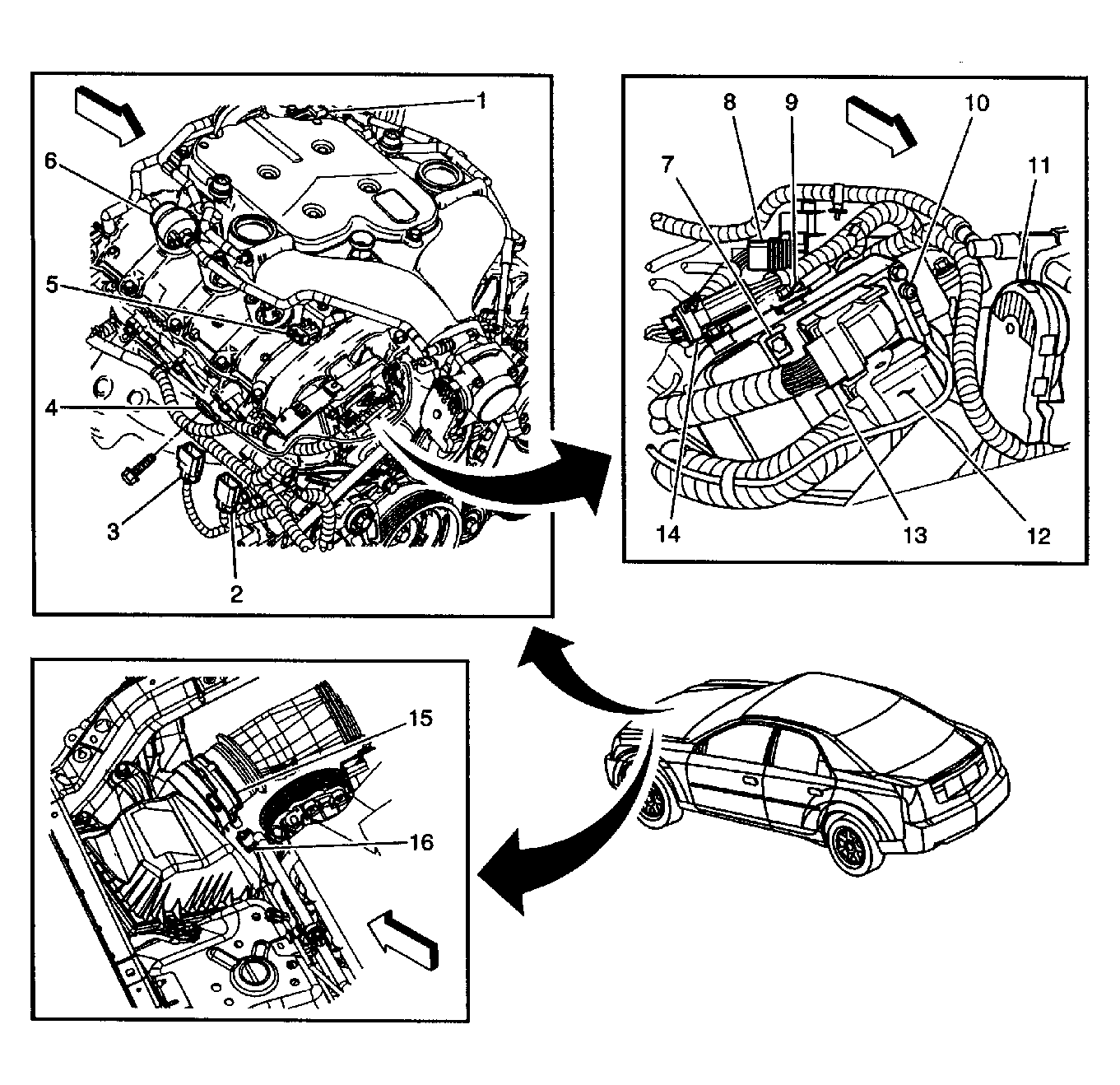

| Engine Control Module (ECM) (7) | Front of right valve cover. See Figure. |
| Front Passenger Door Module (FPDM) (DDM Similar) | Respective front door. |
| Headlight Module | Front of engine compartment. |
| Heated Seat Module (Driver's) | Under driver's seat. See Figure. |
| Heated Seat Module (Passenger) | Under front passenger's seat. See Figure. |
| HVAC Control Module | Center of dash. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under center console. See Figure. |
| Memory Seat Module (MSM) | Under driver's seat. |
| Radio Antenna Module | Center rear of headliner. See Figure. |
| Rear Integration Module (RIM) | Under package shelf. See Figure. |
| Rear Object Sensor Control Module (3) | Right side of rear shelf. See Figure. |
| Right Rear Door Module (RRDM) (LRDM Similar) (5) | Respective rear door. See Figure. |
| Sunroof Module | Rear of sunroof assembly. See Figure. |
| Theft Deterrent Control Module | Top of steering column. See Figure. |
| Tire Pressure Module (2) | Left side of luggage compartment. See Figure. |
| Transmission Control Module (TCM) | Right front of engine compartment. See Figure. |
| Turn Signal/Hazard Flasher Module | Left side of dash. See Figure. |
| Vehicle Communication Interface Module (VCIM) (15) | Behind right rear strut tower. See Figure. |
| Windshield Wiper/Washer Module | Left rear of engine compartment. See Figure. |
