Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

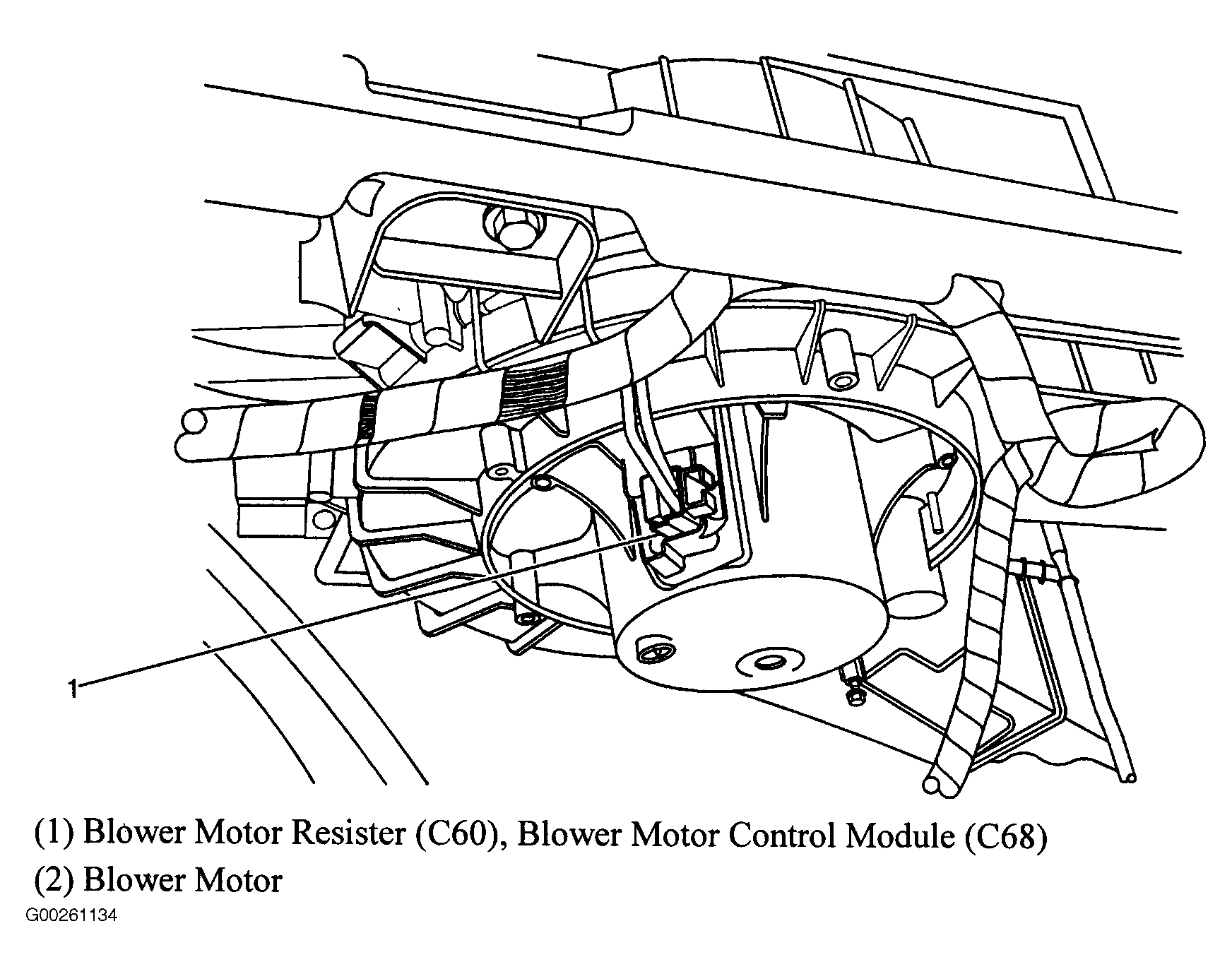

| Blower Motor Control Module (C68) | Right side of dash, on rear of HVAC case. See Figure. |

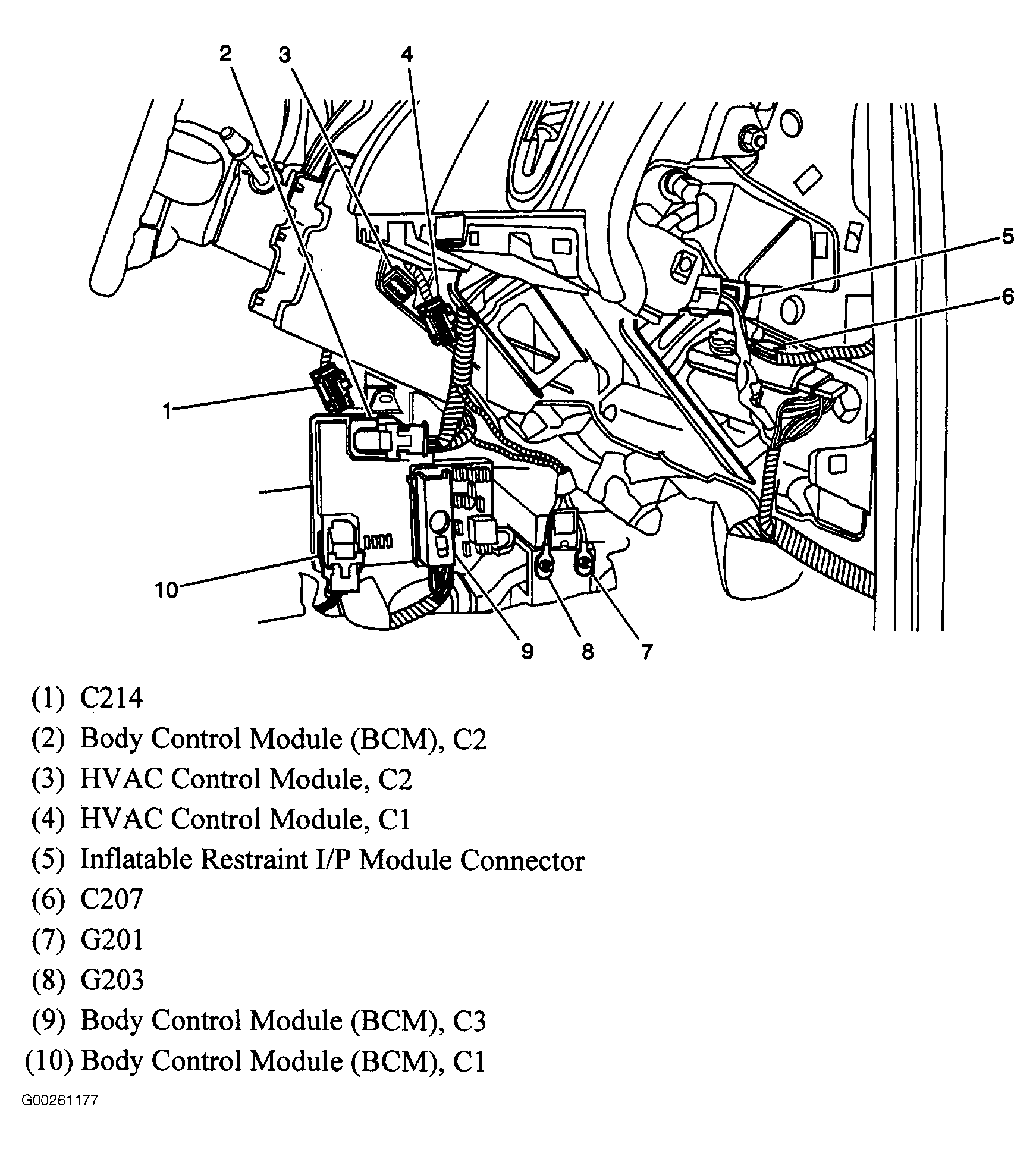

| Body Control Module (BCM) | Below right side of dash, near blower motor. See Figure. |
| Electronic Brake Control Module (EBCM) | Inside left front fender. See Figure. |
| HVAC Control Module | Center of dash. See Figure. |

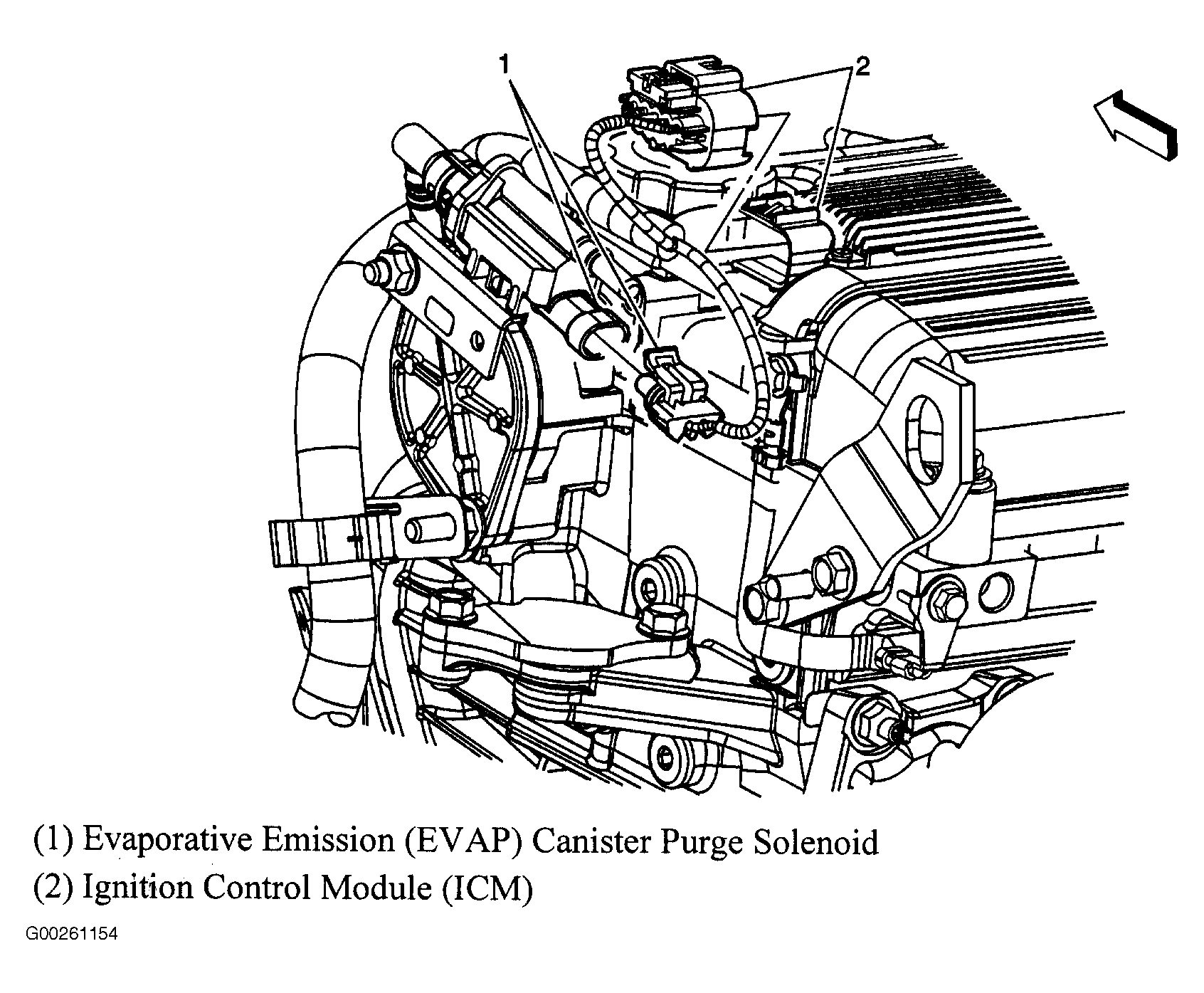

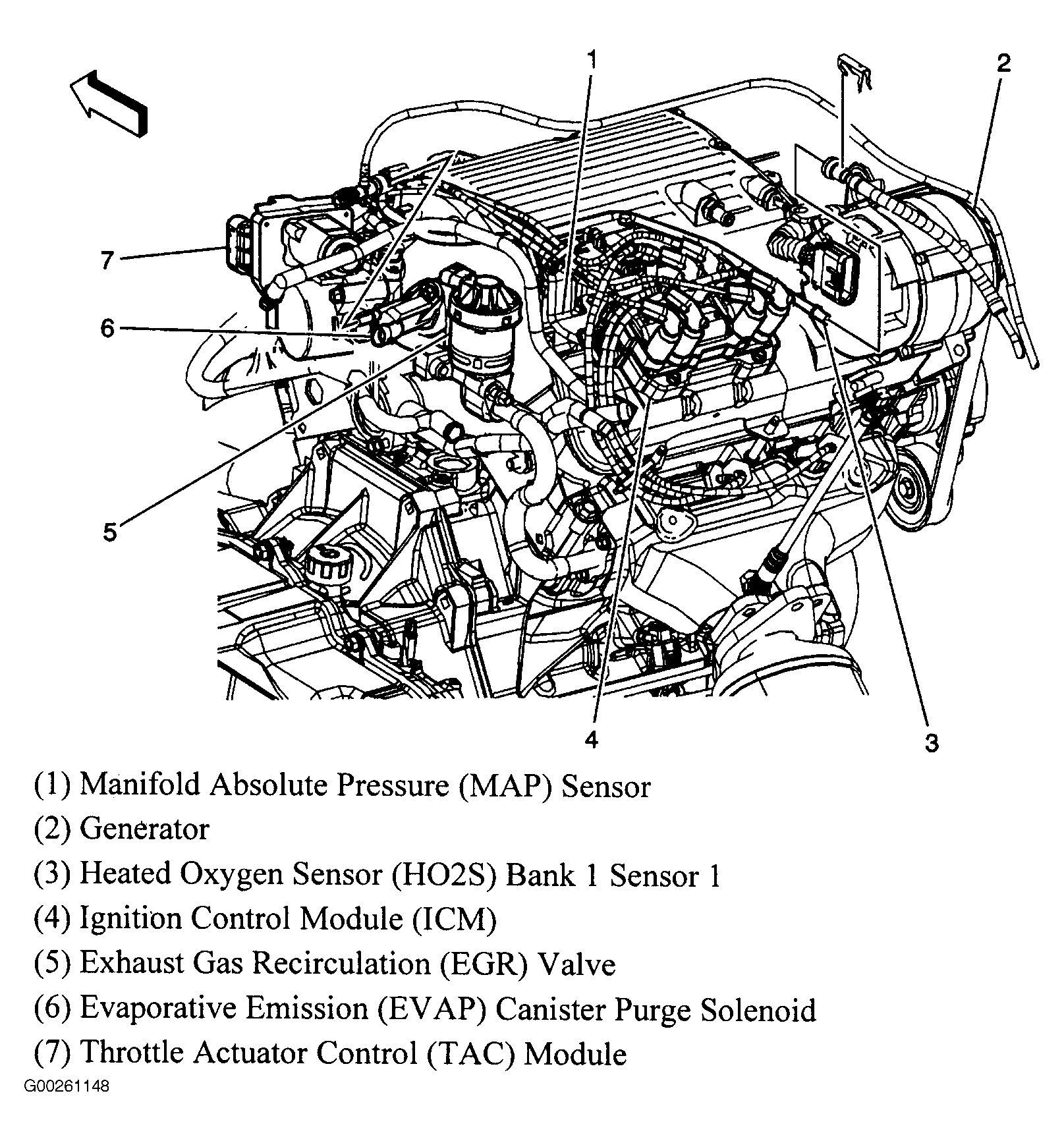

| Ignition Control Module (ICM) (2.2L VIN F) | Top rear of engine. See Figure. |
| Ignition Control Module (ICM) (3.5L VIN 8) | On top right side of engine. See Figure. |

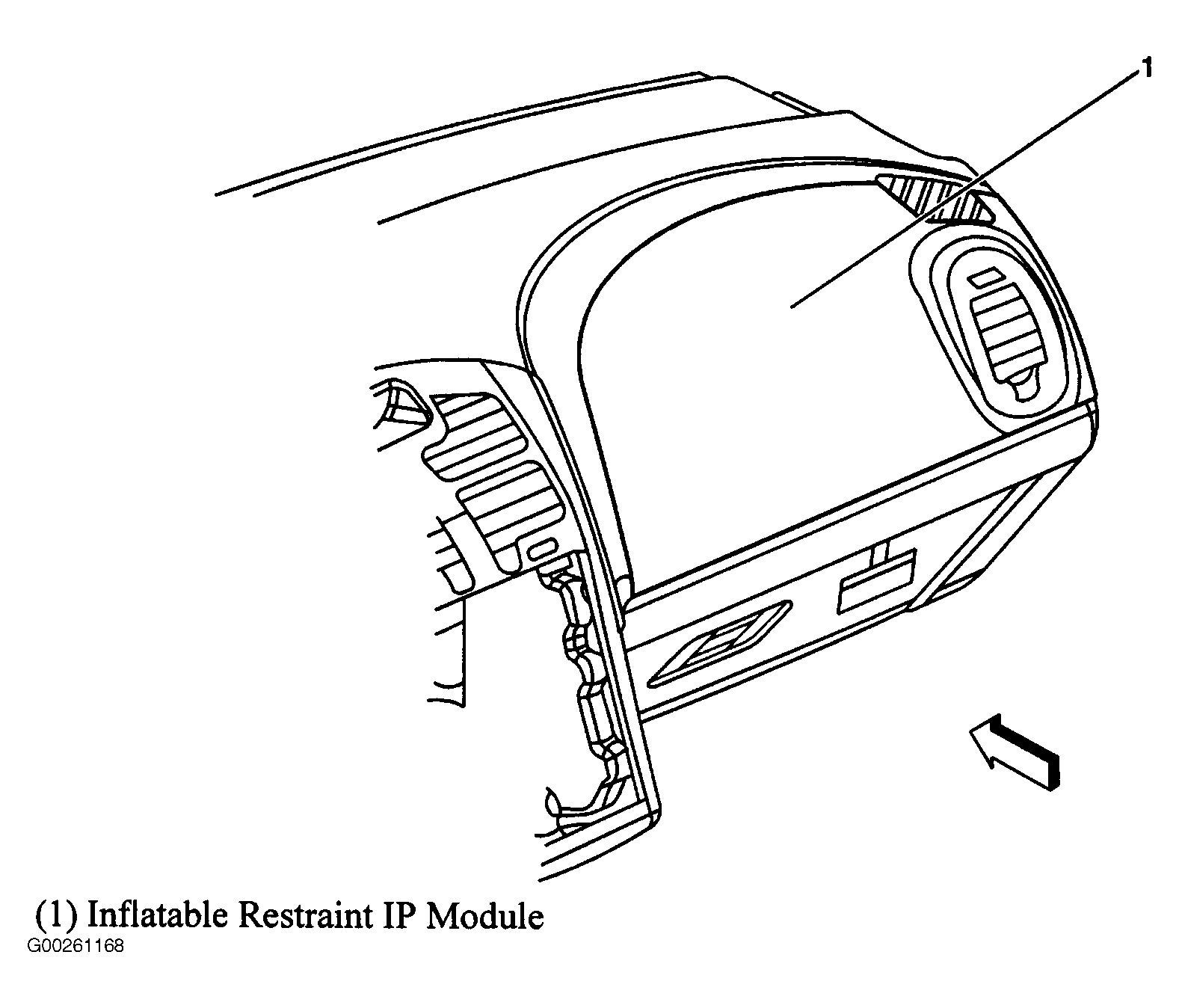

| Inflatable Restraint I/P Module | Above glove box. See Figure. |

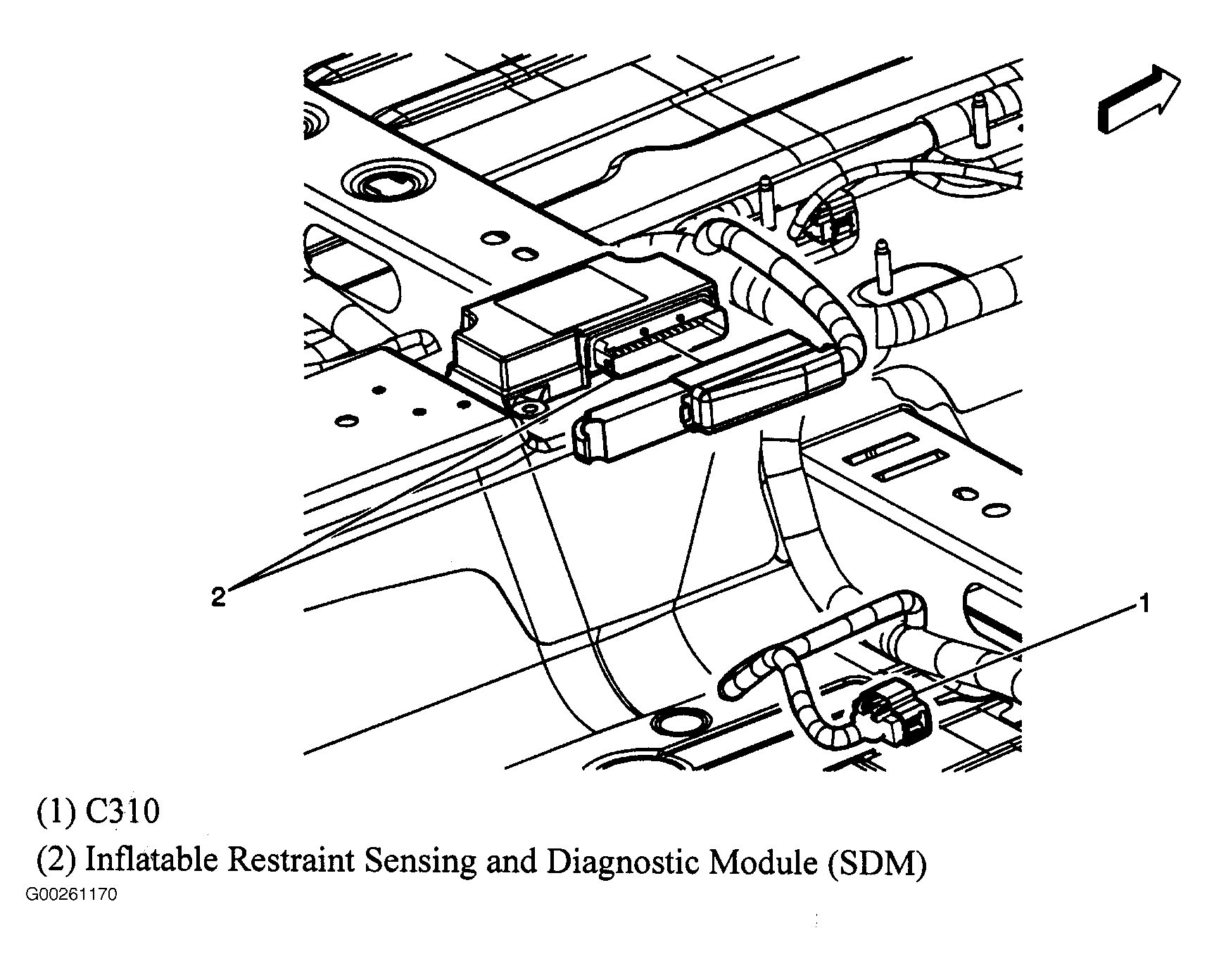

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under center console, under carpet. See Figure. |

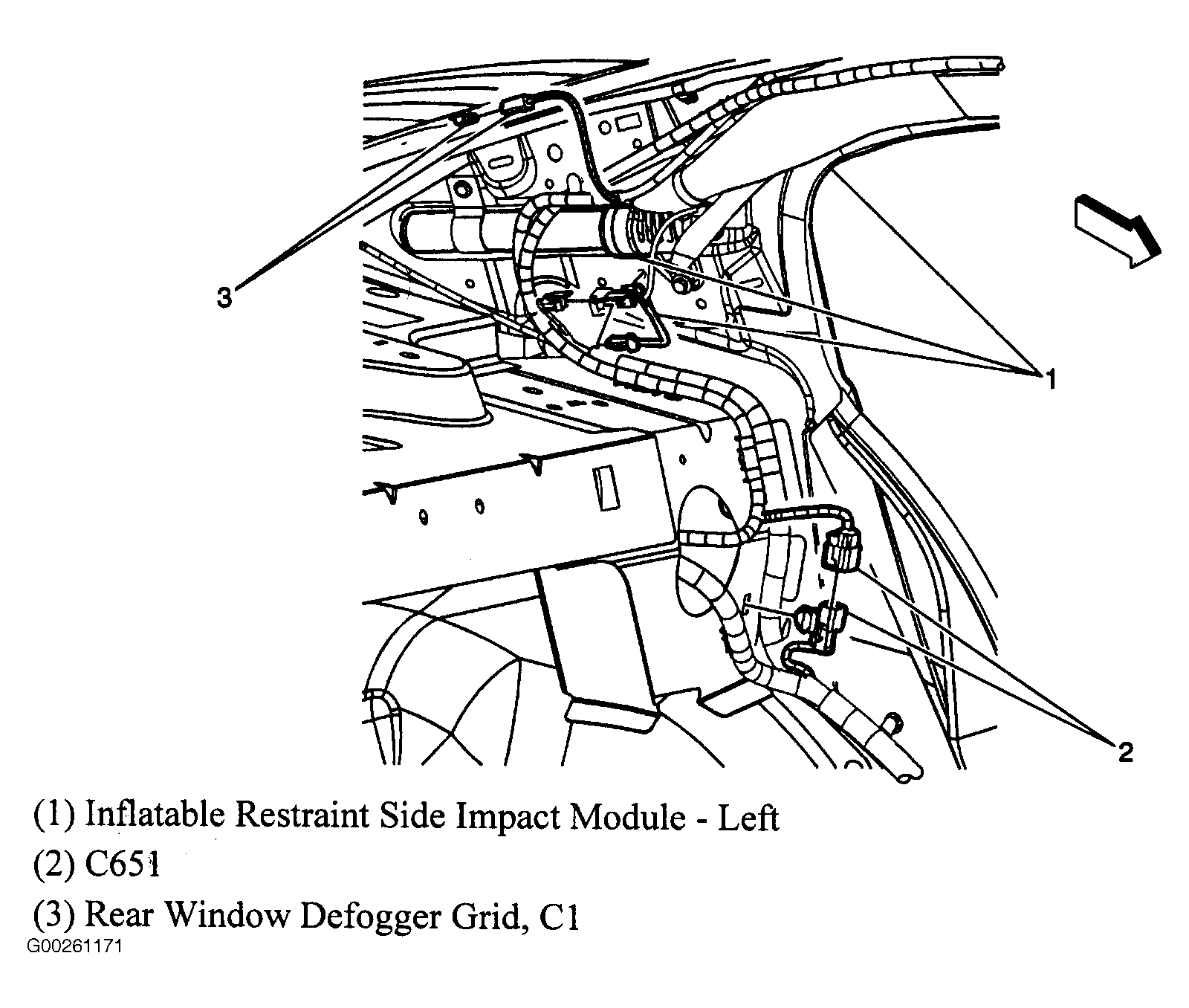

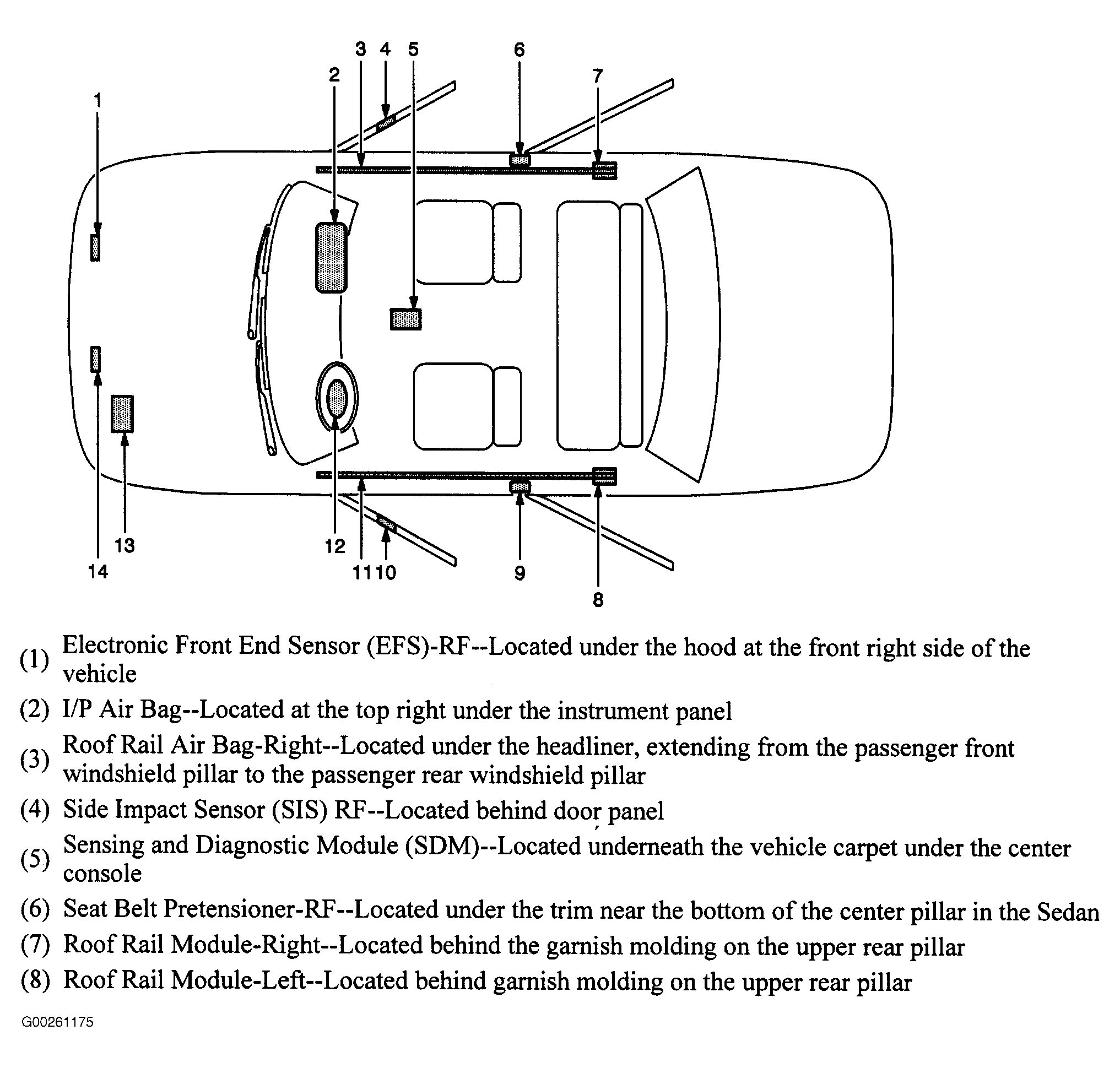

| Inflatable Restraint Side Impact Module-Left (Extended Sedan) | At left "C" pillar. See Figure. |
| Inflatable Restraint Side Impact Module-Left (Sedan) | At left "C" pillar. See Figure. |

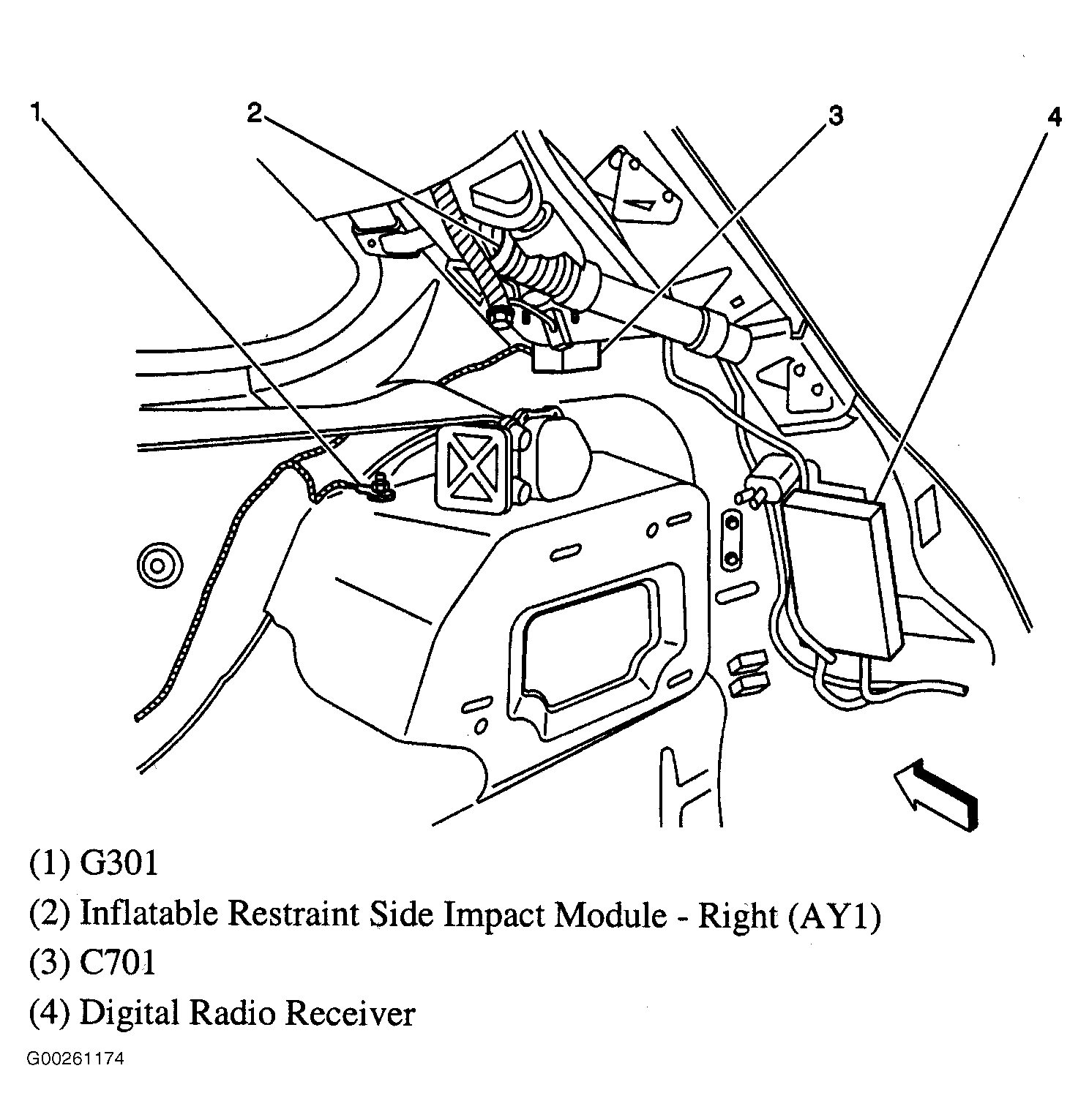

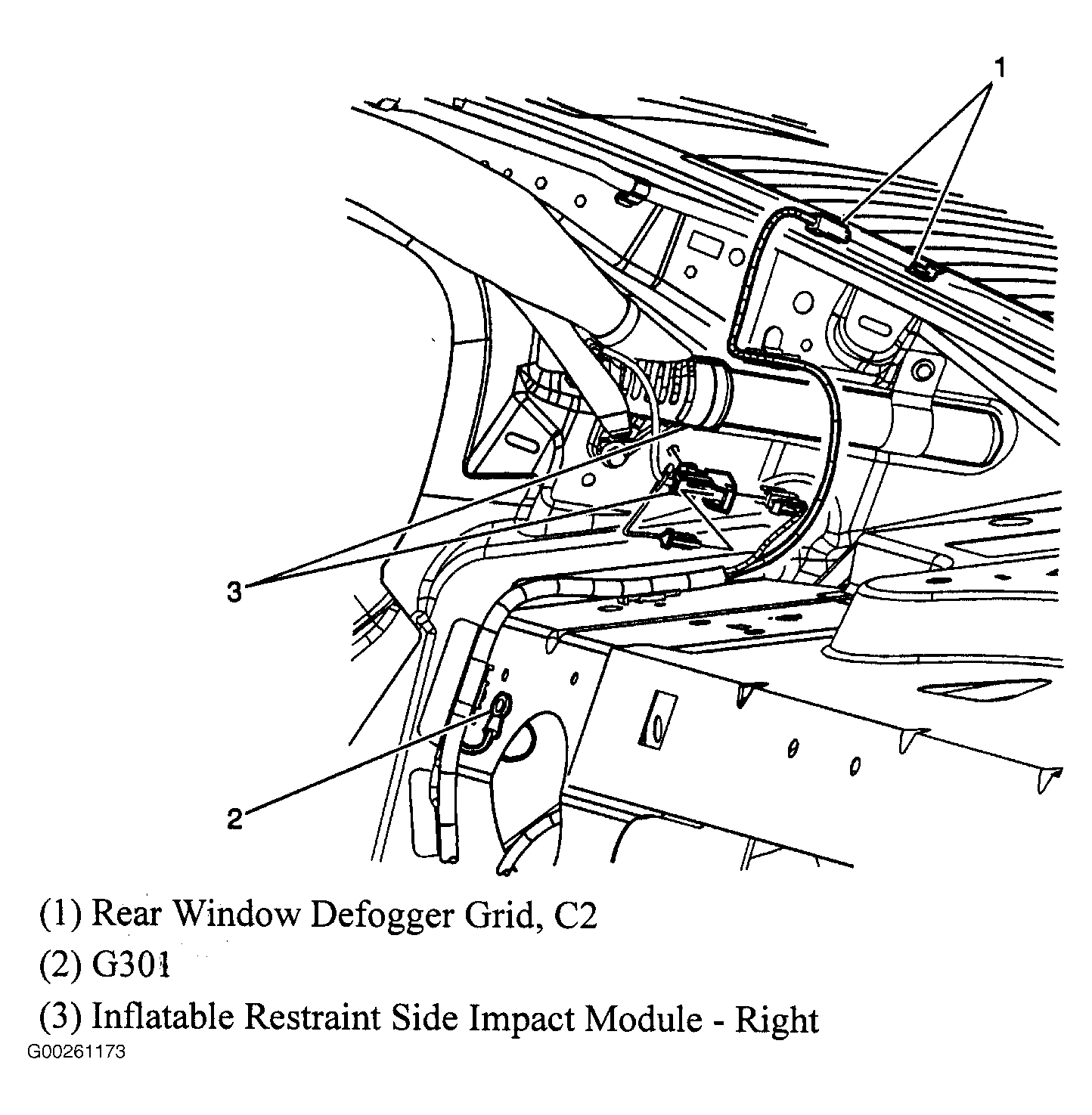

| Inflatable Restraint Side Impact Module-Right (Extended Sedan) | At right "C" pillar. See Figure. |
| Inflatable Restraint Side Impact Module-Right (Sedan) | At right "C" pillar. See Figure. |

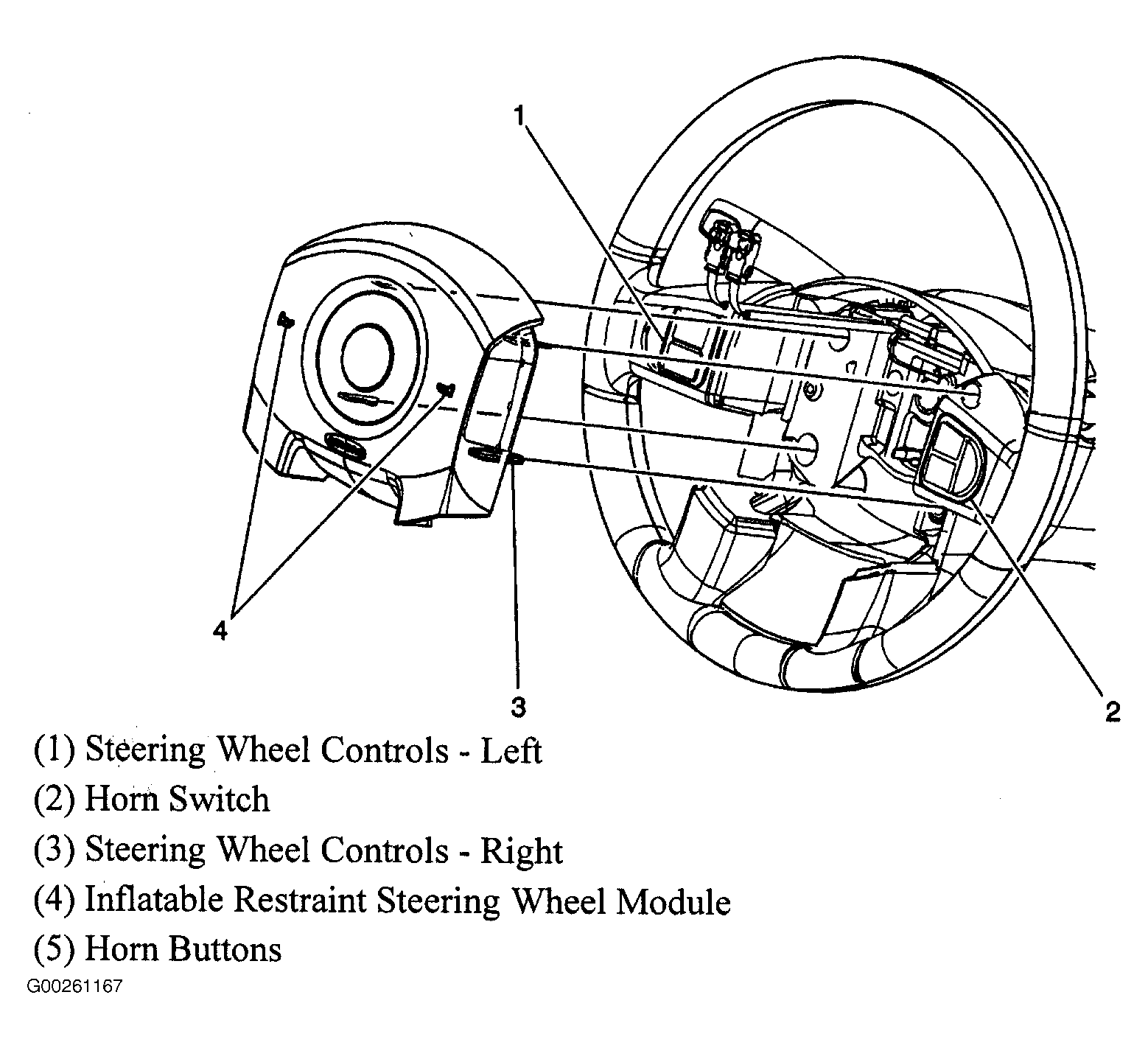

| Inflatable Restraint Steering Wheel Module | Under horn pad. See Figure. |

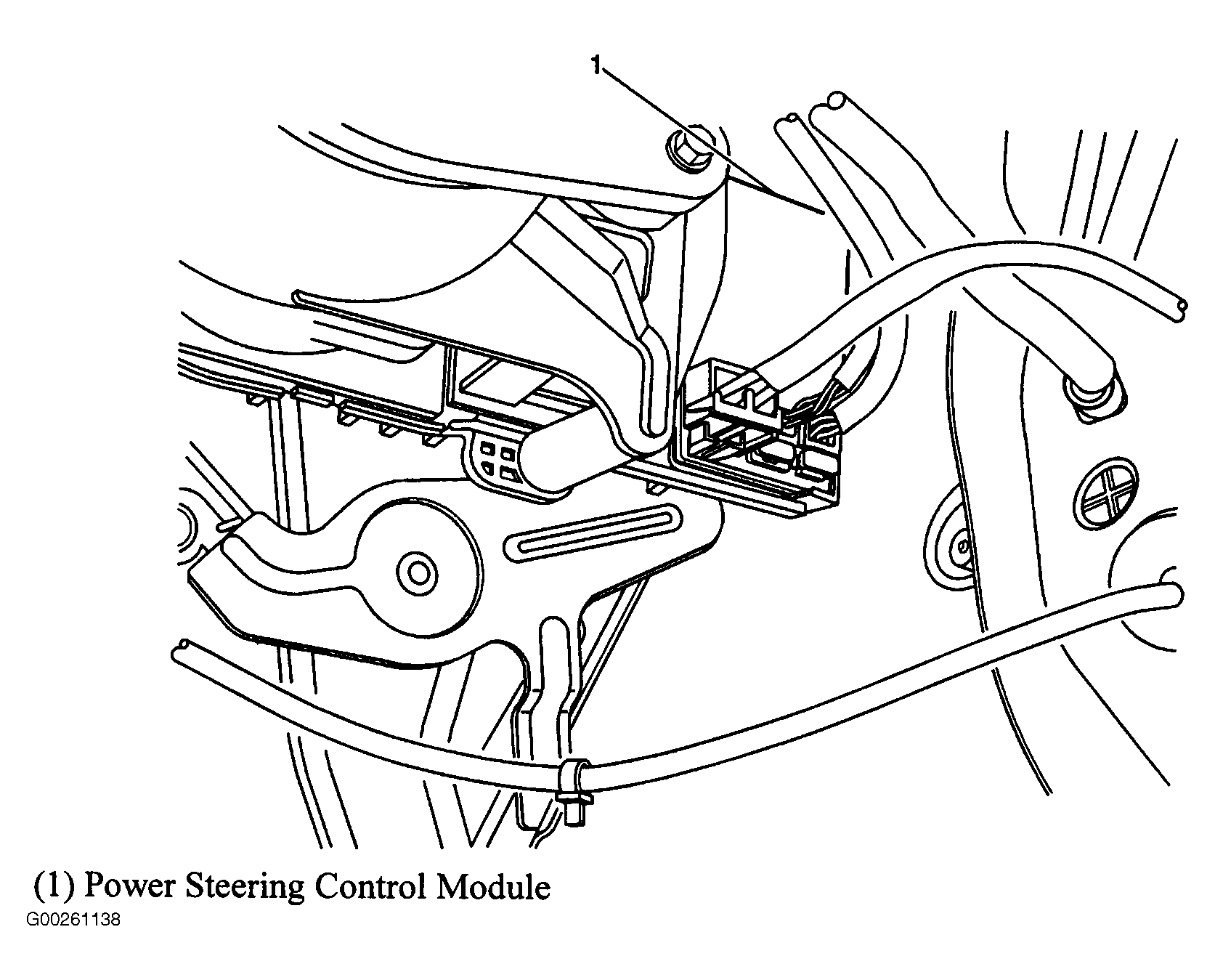

| Power Steering Control Module | Left of steering column. See Figure. |

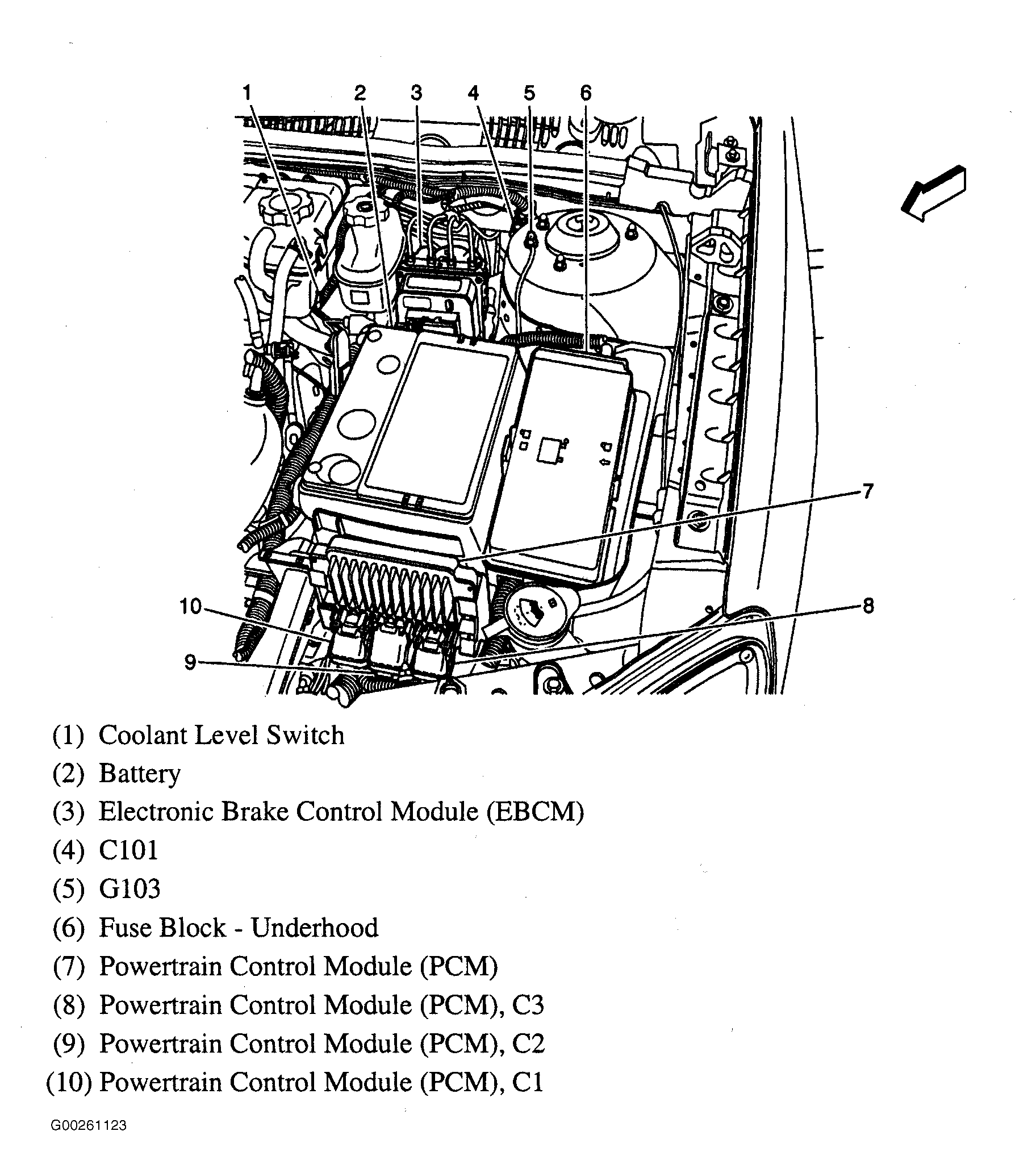

| Powertrain Control Module (PCM) | Front of battery. See Figure. |

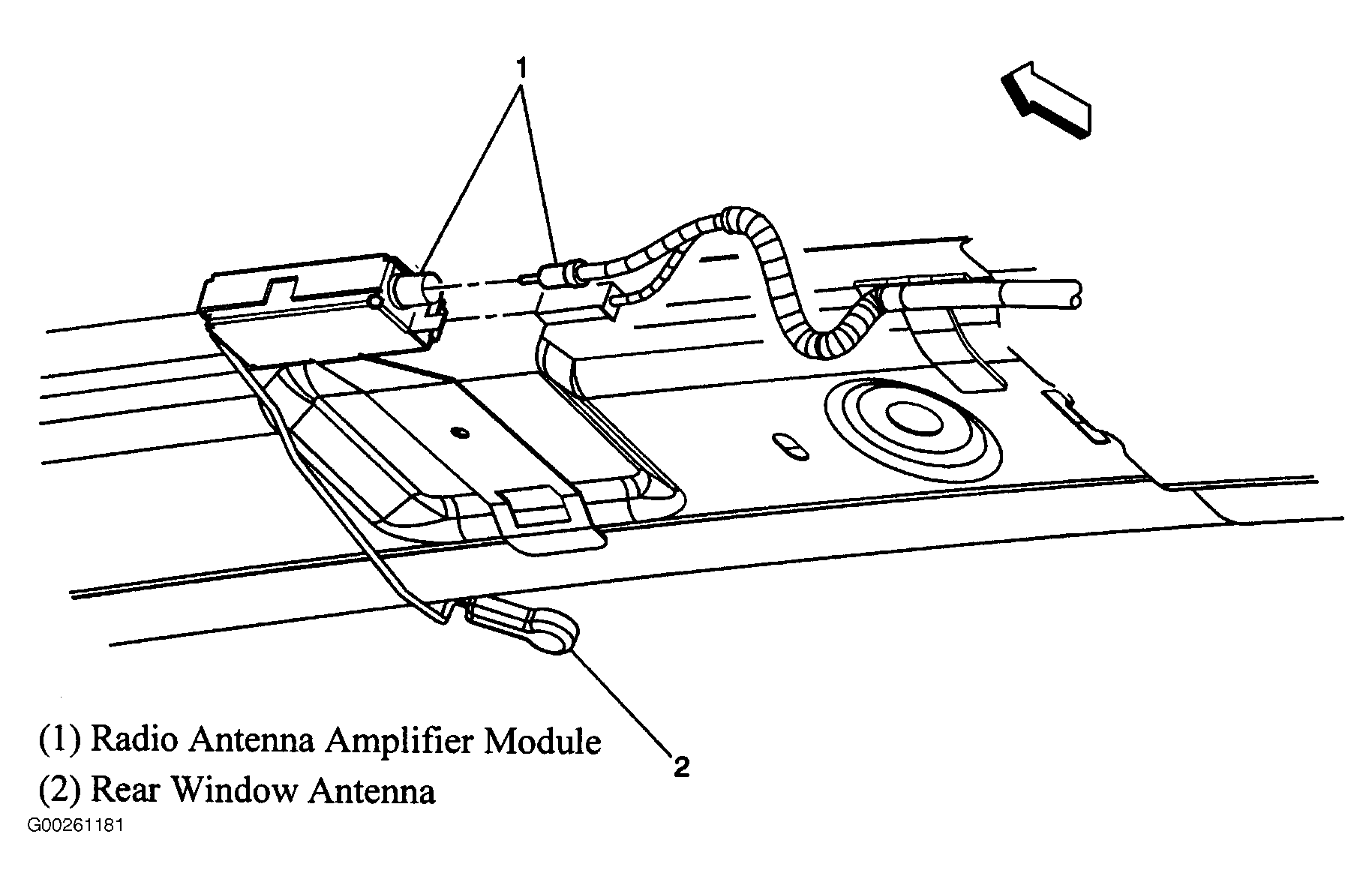

| Radio Antenna Amplifier Module (Sedan) | Above rear glass, under left side of headliner. See Figure. |

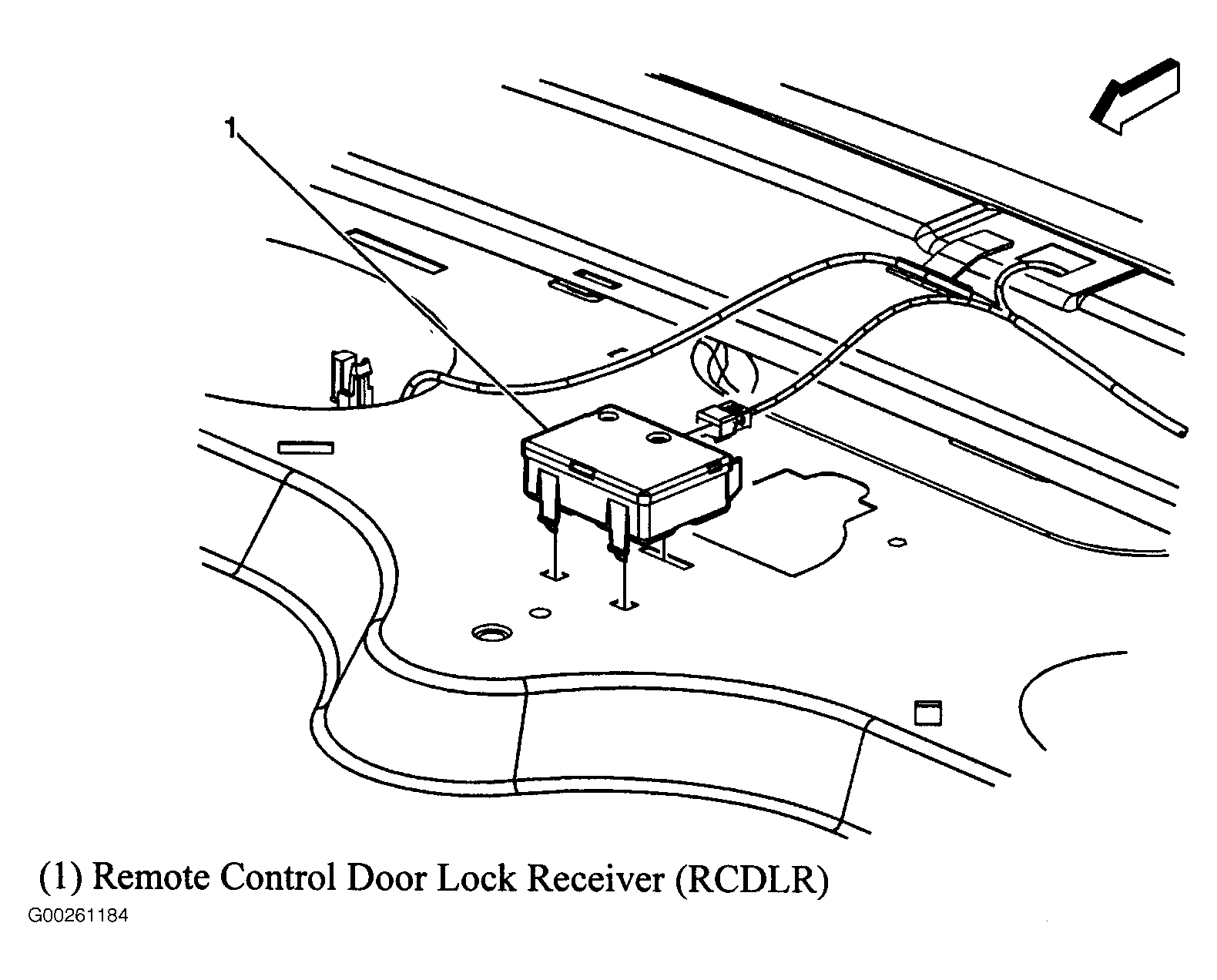

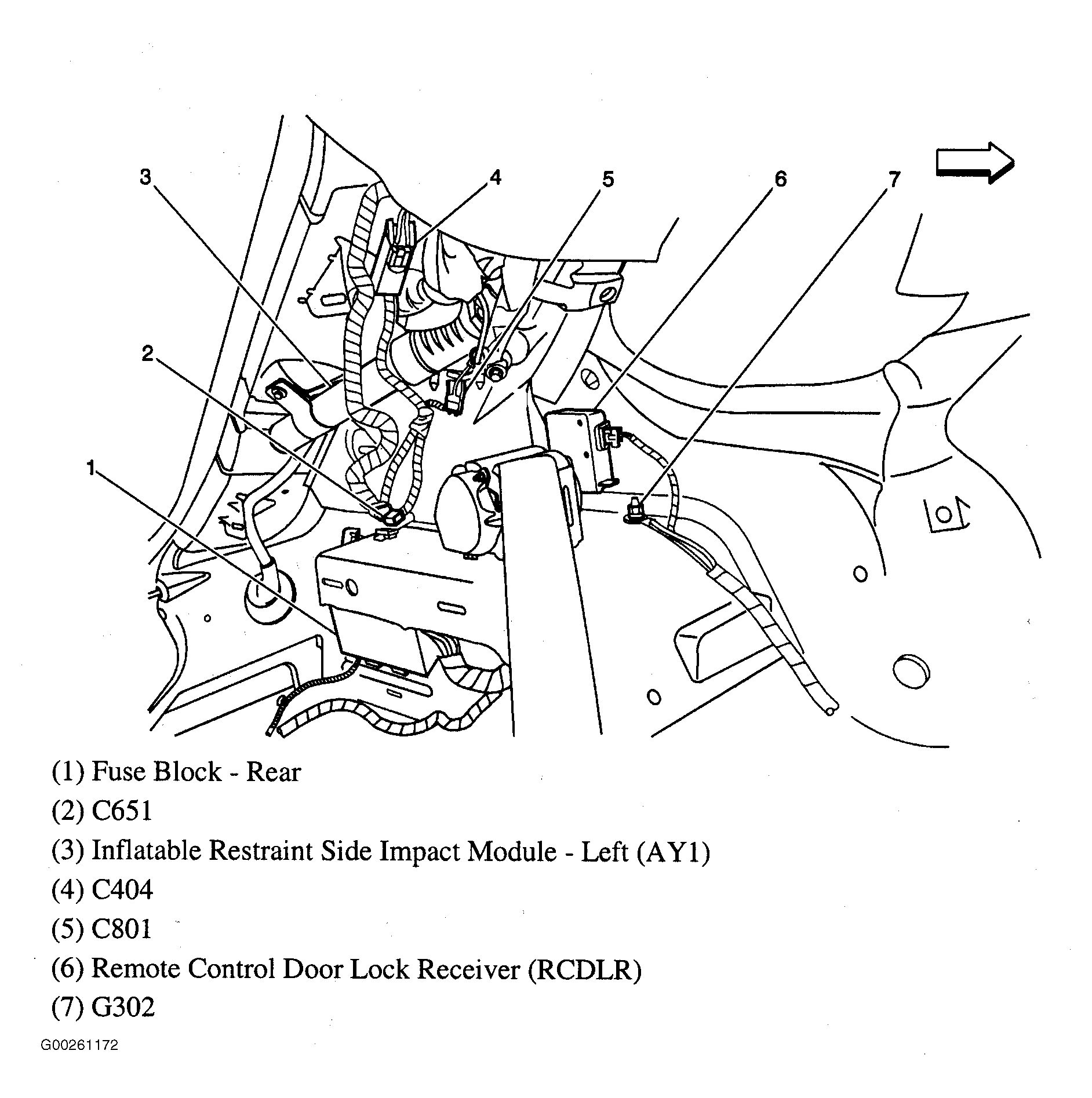

| Remote Control Door Lock Receiver (RCDLR) (Extended Sedan) | On rear package shelf. See Figure. |
| Remote Control Door Lock Receiver (RCDLR) (Sedan) | On rear package shelf. See Figure. |
| Roof Rail Module-Left | On upper left "C" pillar. See Figure. |
| Roof Rail Module-Right | On upper right "C" pillar. See Figure. |

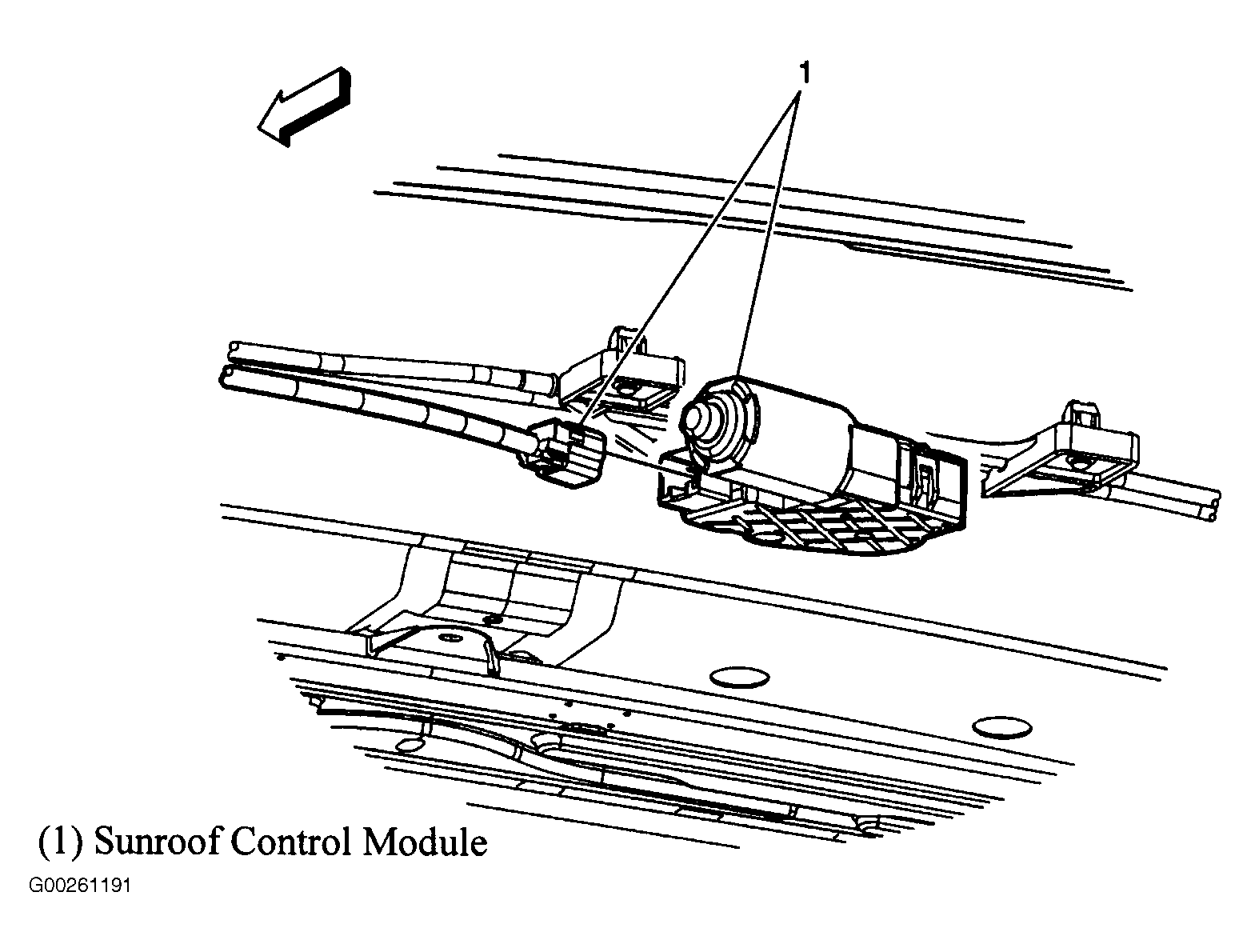

| Sunroof Control Module | Rear of sunroof. See Figure. |

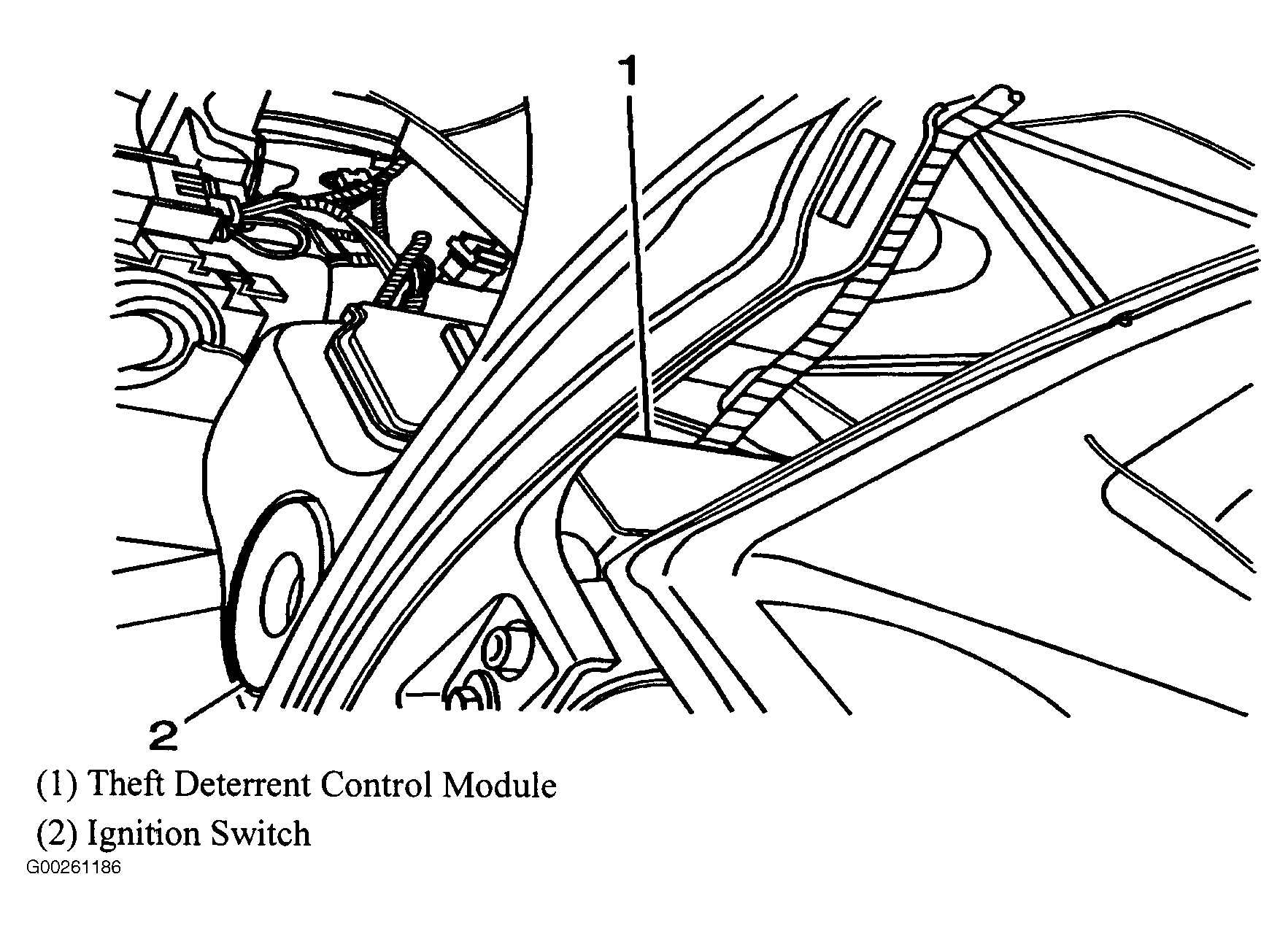

| Theft Deterrent Module | Attached to ignition key cylinder housing. See Figure. |

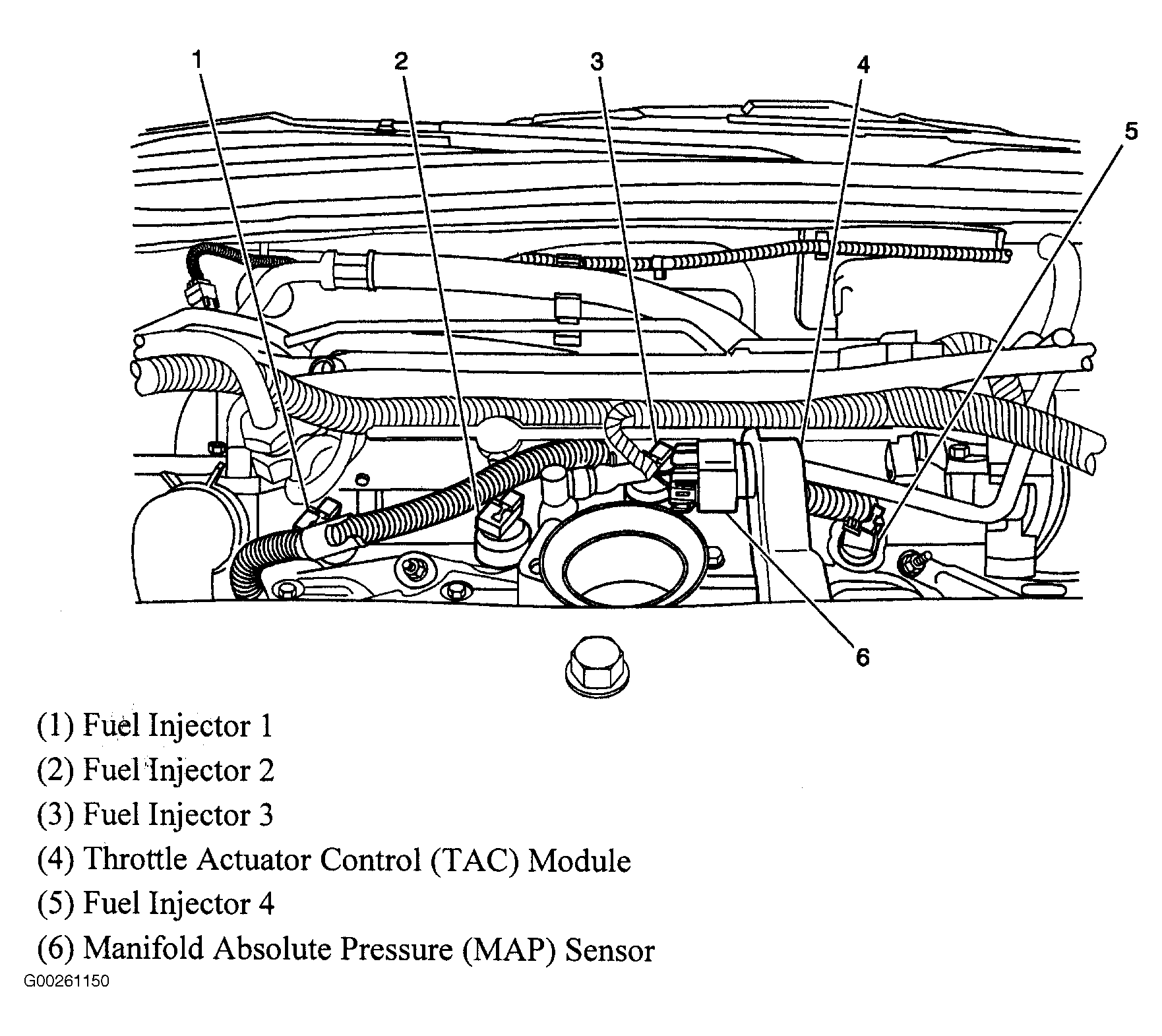

| Throttle Actuator Control (TAC) Module (2.2L VIN F) | On upper intake manifold. See Figure. |
| Throttle Actuator Control (TAC) Module (3.5L VIN 8) | On intake manifold. See Figure. |
