Input Shaft: Assembly

The snap rings that are used on the input shaft are available in select fit sizes. Use the thickest snap ring that fits in each snap ring groove.

1. Place input shaft into shop press.
2. Install 3rd gear caged needle bearing. (Fig 1).

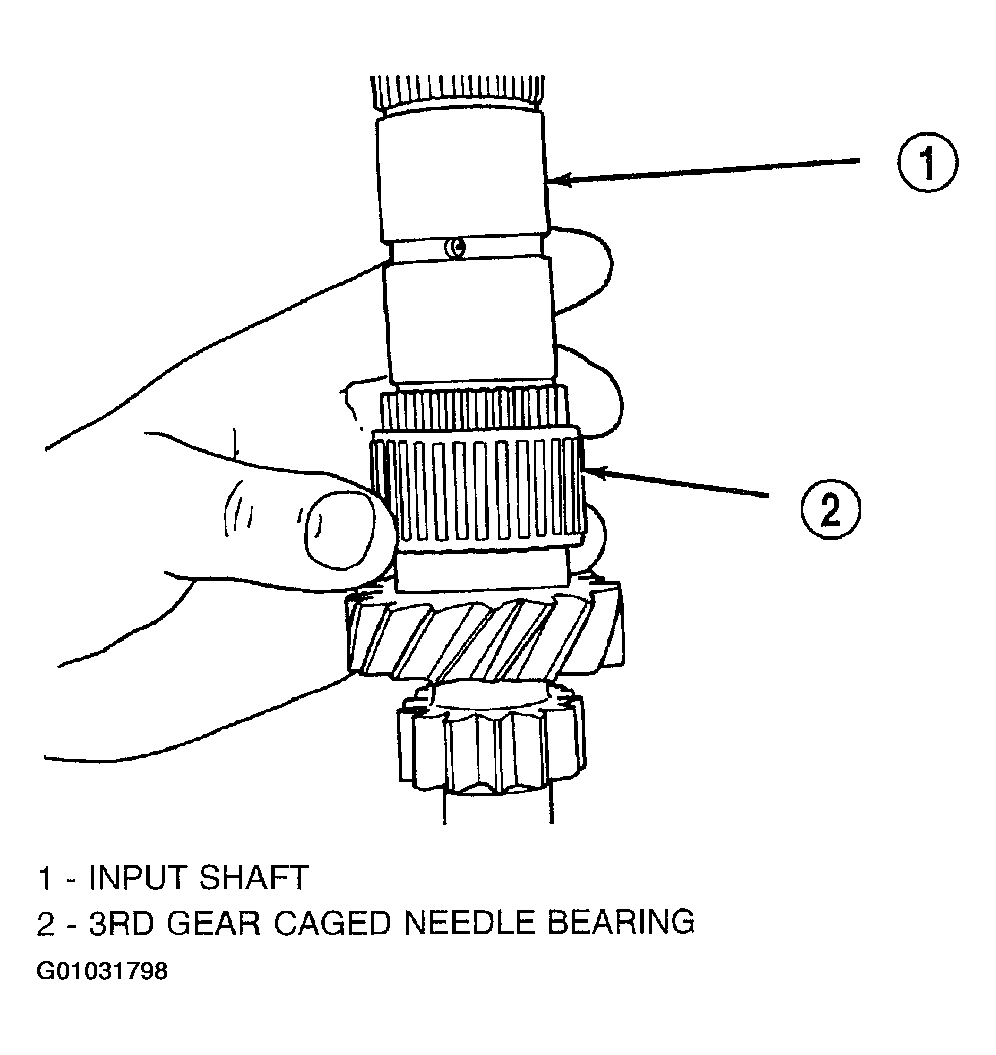

   Fig 1: Installing 3rd Gear Caged Needle Bearing

   Courtesy of DAIMLERCHRYSLER CORP.
3. Install 3rd gear and 3-4 synchronizer onto input shaft. Install Tool #C-3717 over input shaft and press on synchronizer hub and 3rd gear. (Fig 2). The synchronizer hub has the letter "U" stamped on the top face of the hub. This designates that the hub must be installed with the U facing upward.

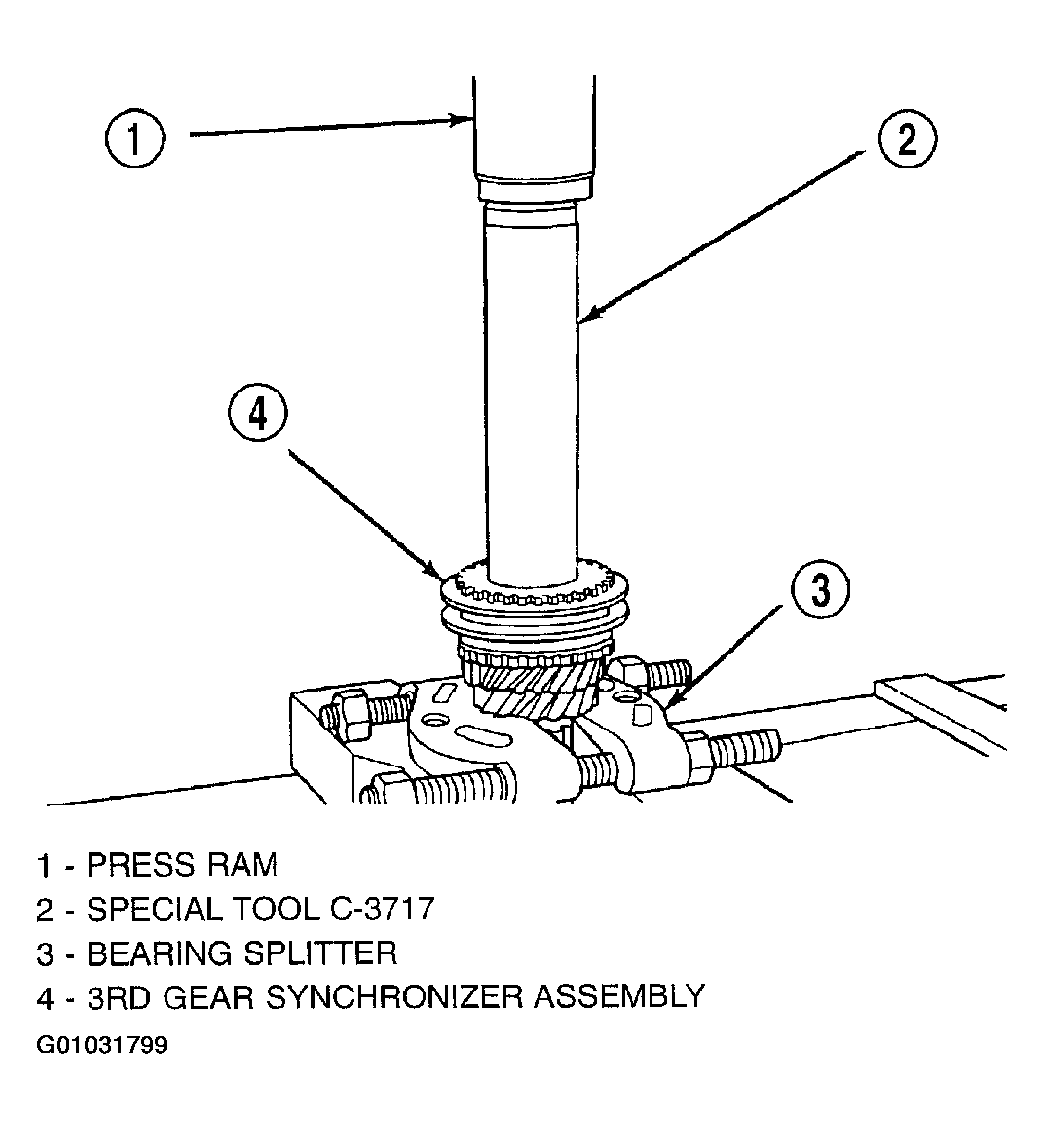

   Fig 2: Pressing On 3rd Gear Synchronizer Hub

   Courtesy of DAIMLERCHRYSLER CORP.
4. Install 3-4 synchronizer snap ring into slot on input shaft.
5. Install blocking ring into 3-4 synchronizer. Install 4th gear caged needle bearing.
6. Install 4th gear onto input shaft.
7. Install 4-5 split thrust washer separation pin. (Fig 3).

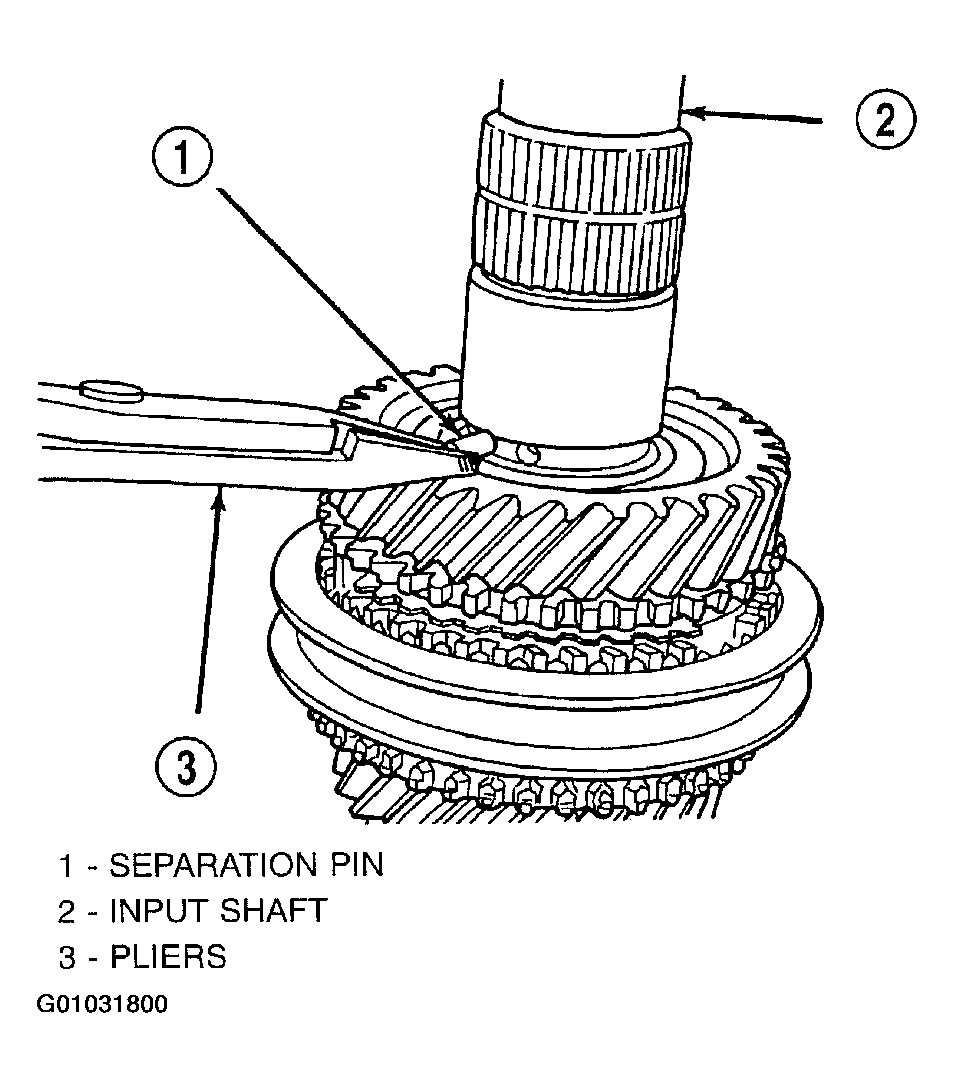

   Fig 3: Installing Split Thrust Washer Separation Pin

   Courtesy of DAIMLERCHRYSLER CORP.
8. Install split thrust washer onto input shaft. (Fig 4).

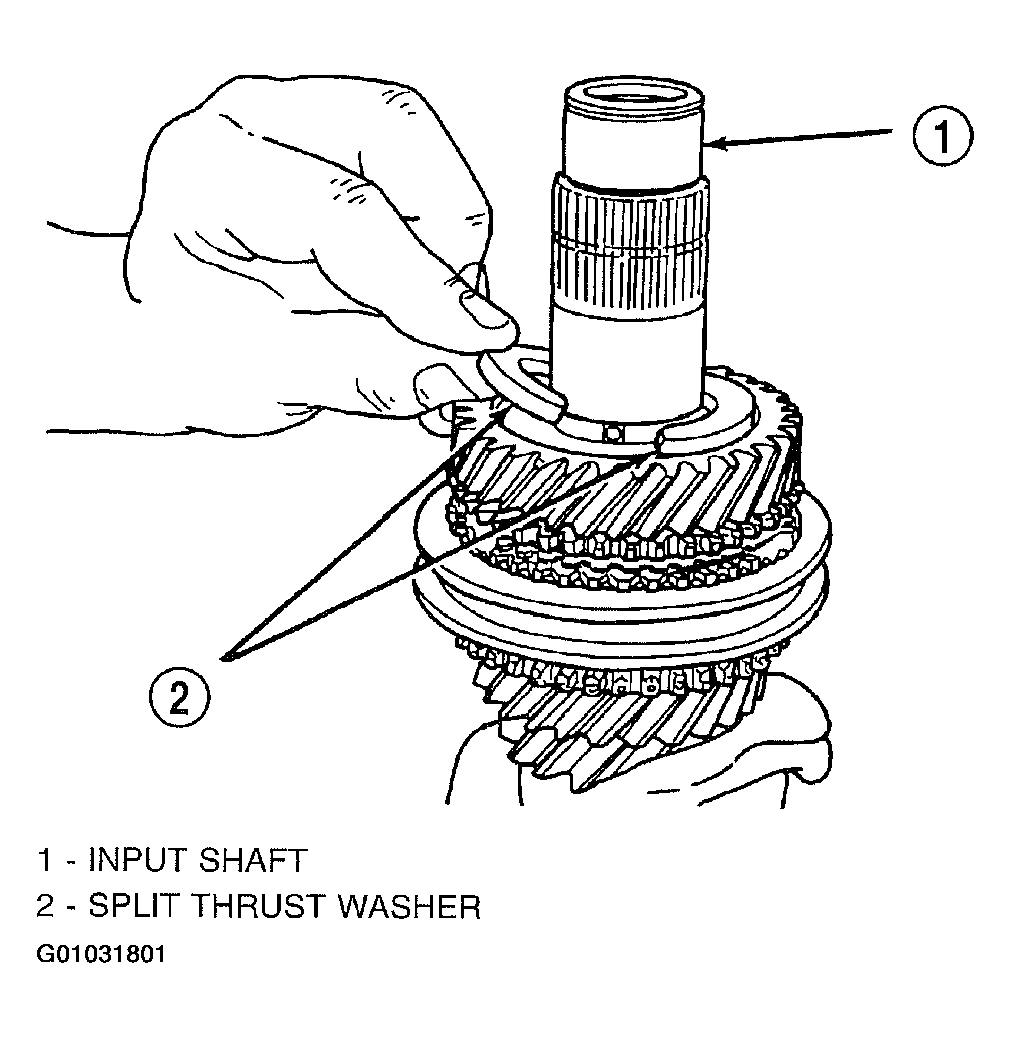

   Fig 4: Installing Split Thrust Washer

   Courtesy of DAIMLERCHRYSLER CORP.
9. Install split thrust washer ring. (Fig 5).

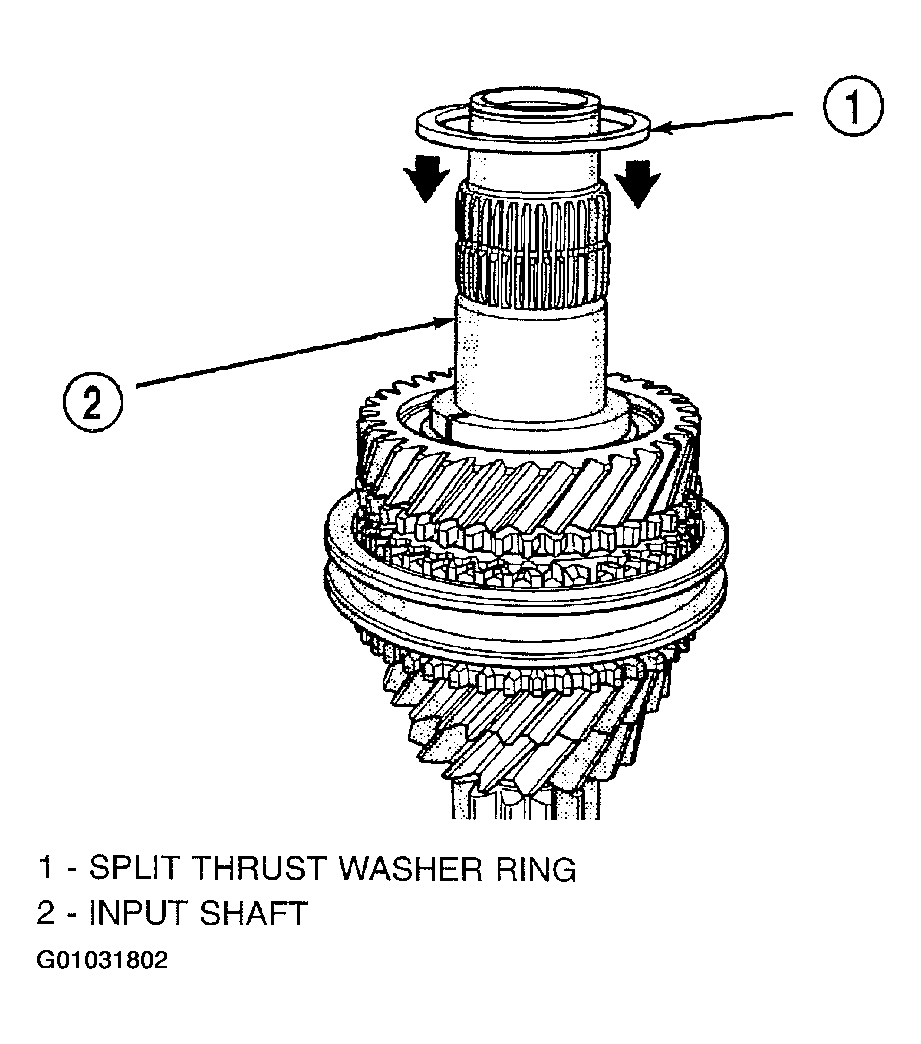

   Fig 5: Installing Split Thrust Washer Ring

   Courtesy of DAIMLERCHRYSLER CORP.
10. Install 5th gear caged needle bearing. (Fig 6).

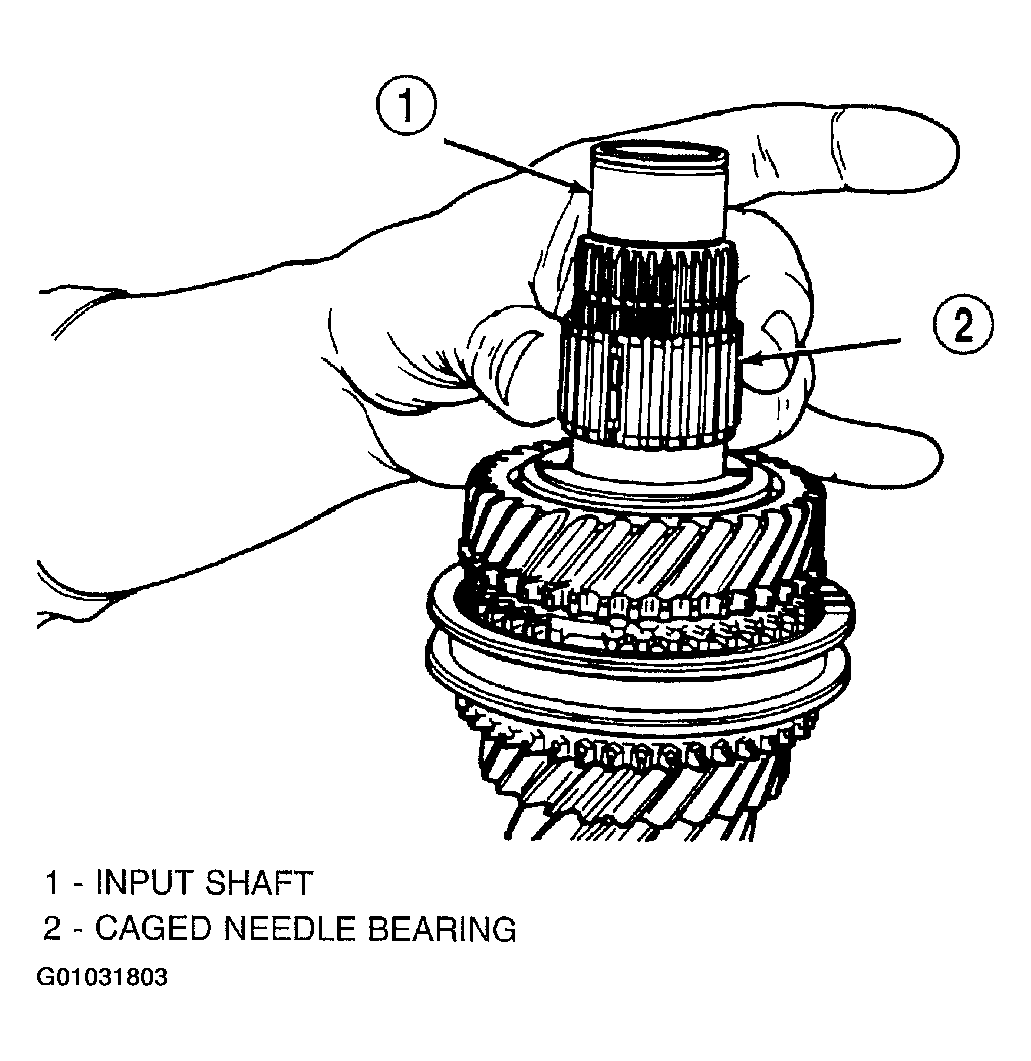

    Fig 6: Installing Caged Needle Bearing

    Courtesy of DAIMLERCHRYSLER CORP.
11. Using special tool #C-3717, install 5th speed gear and synchronizer. (Fig 7). The 5th gear synchronizer hub has the letter S  stamped on the top face of the hub. This designates that the hub must be installed with the S  facing upward.

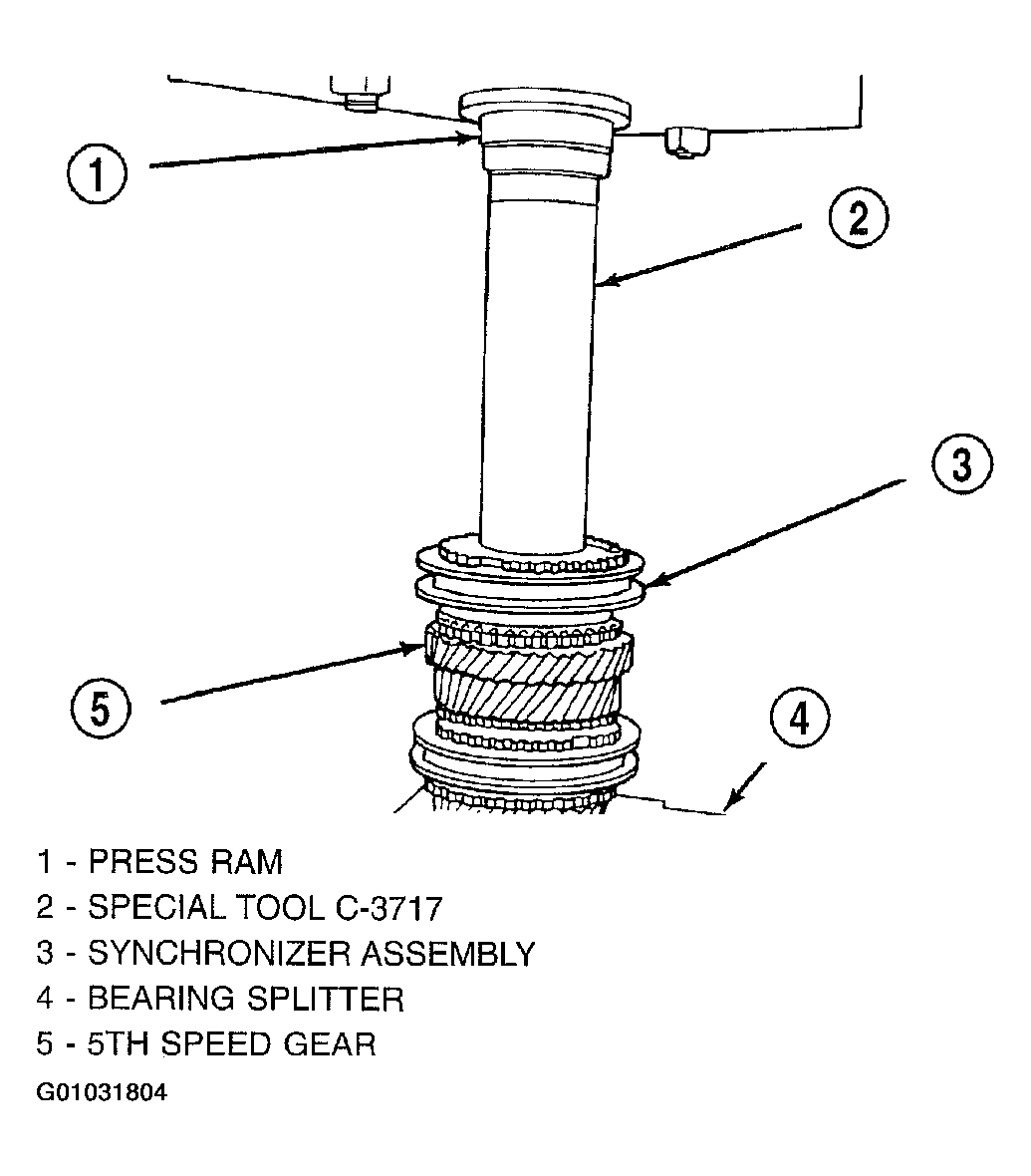

    Fig 7: Installing 5th Speed Gear

    Courtesy of DAIMLERCHRYSLER CORP.
12. Install 5th gear synchronizer snap ring. (Fig 8).

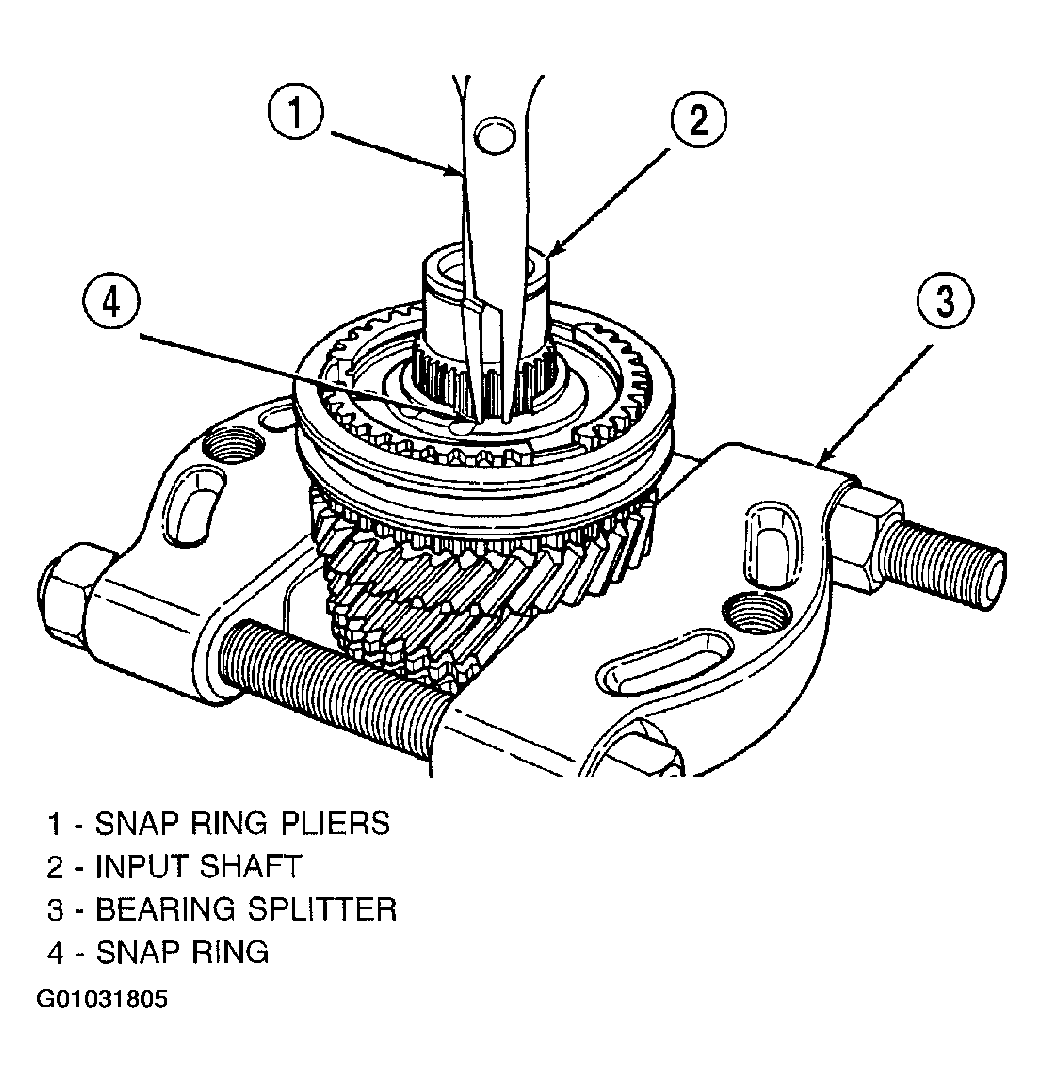

    Fig 8: Installing 5th Gear Synchronizer Snap Ring

    Courtesy of DAIMLERCHRYSLER CORP.
