Manual Transmissions: Differential: Assembly: Notes

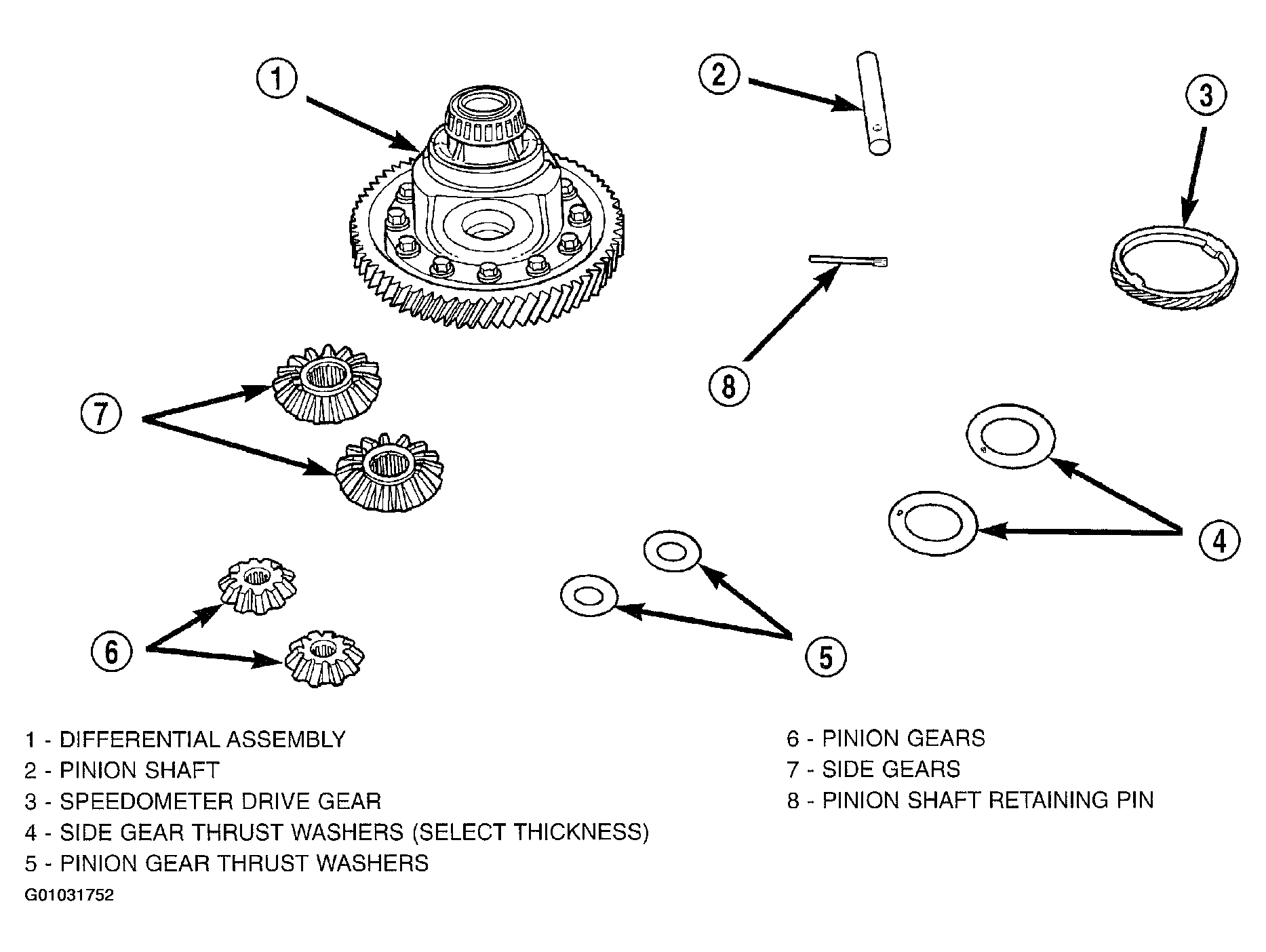

Assemble side gears, pinion gears and thrust washers (Figure) into case through opening and rotating into position.

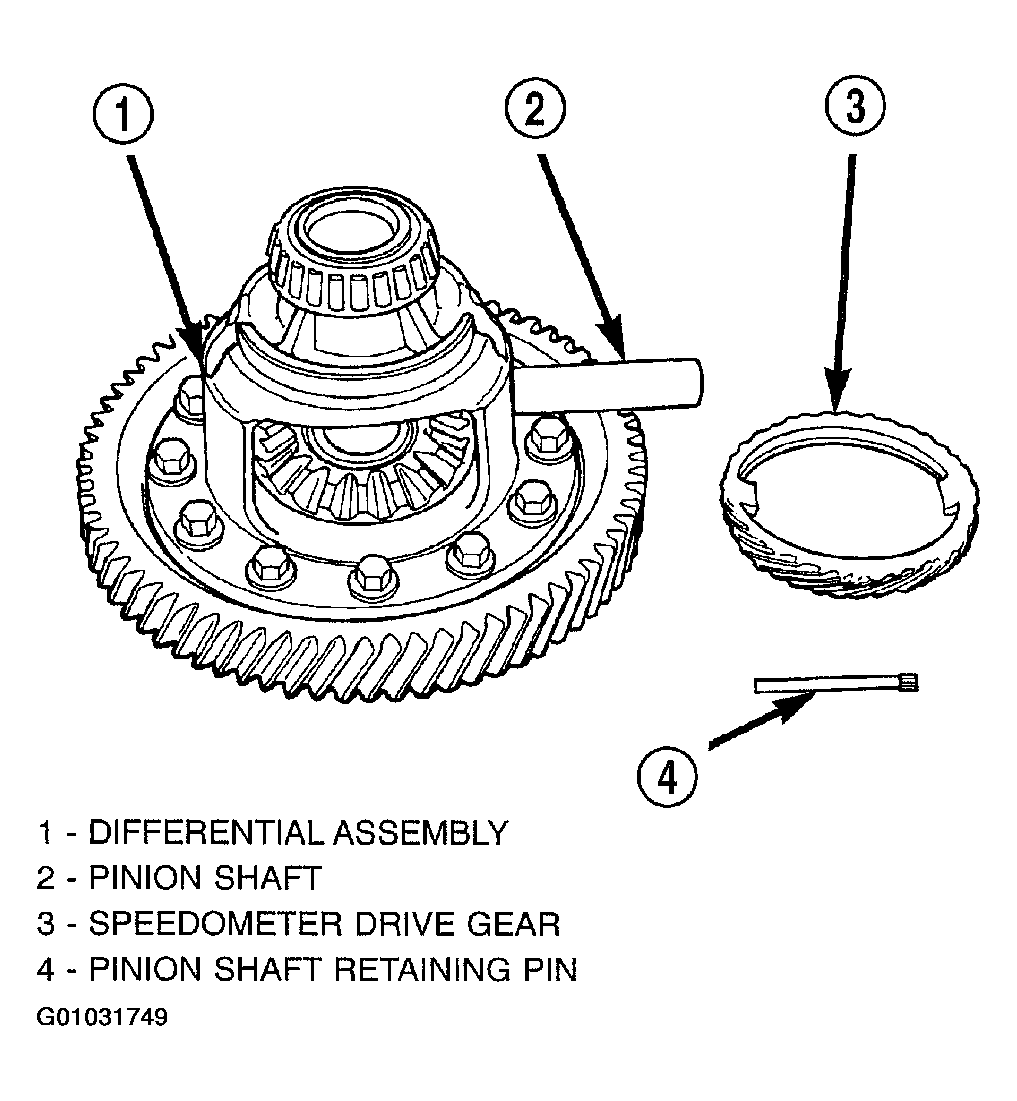

Install pinion shaft. (Figure).
Using hammer and suitable punch, install pinion shaft retaining pin. (Fig 1).

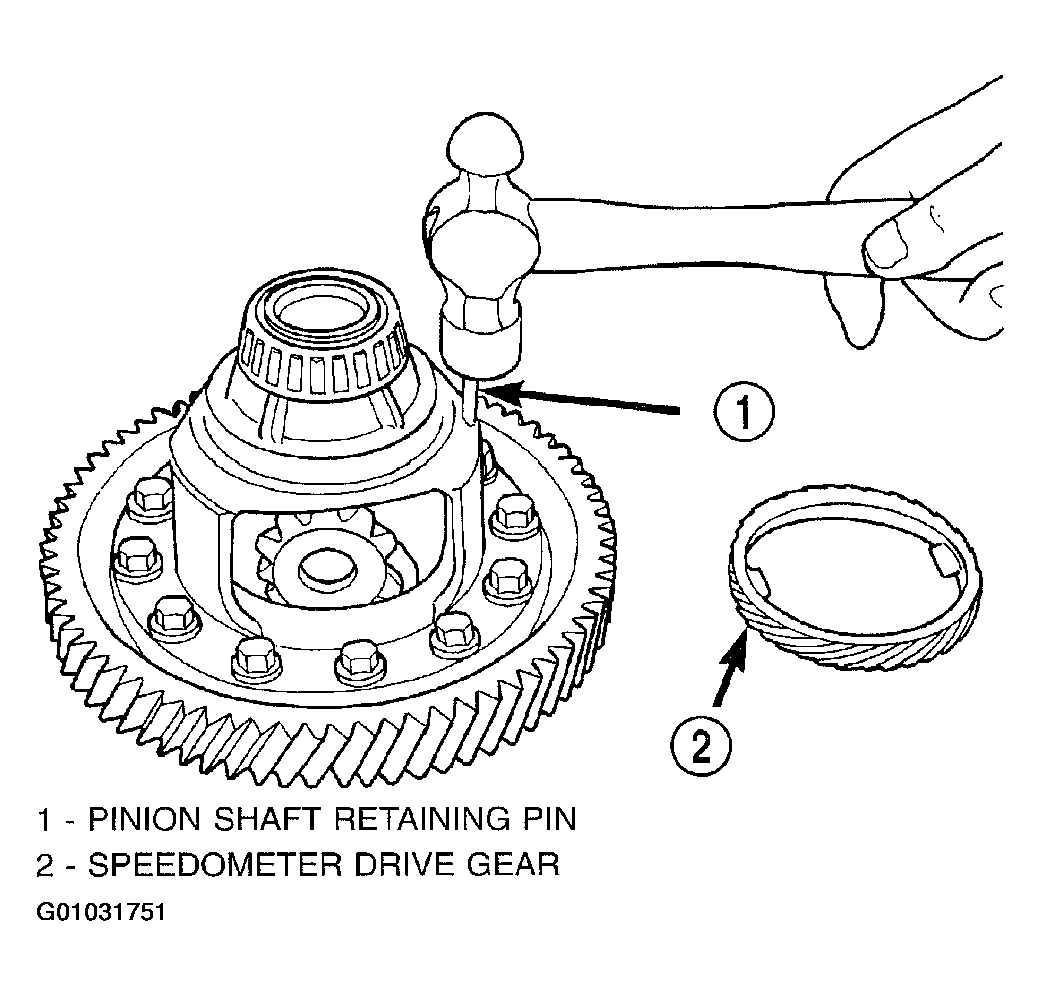

Fig 1: Installing Retaining Pin
Courtesy of DAIMLERCHRYSLER CORP.
Stake case to retain pin as shown in (Fig 2).

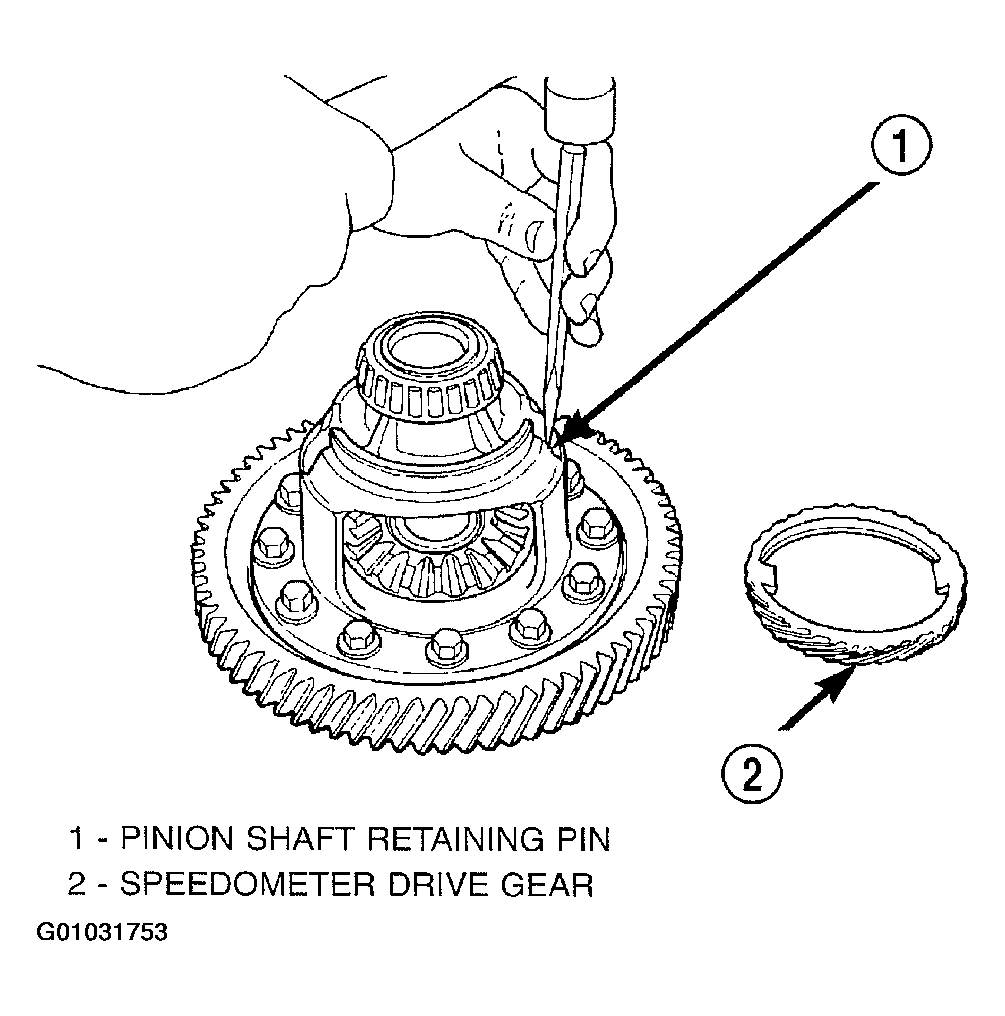

Fig 2: Staking Retaining Pin
Courtesy of DAIMLERCHRYSLER CORP.
Using an arbor press, Handle C-4171, and Tool L-4410, install differential side bearings to ring gear and case side. (Fig 3 and Fig 4 ).

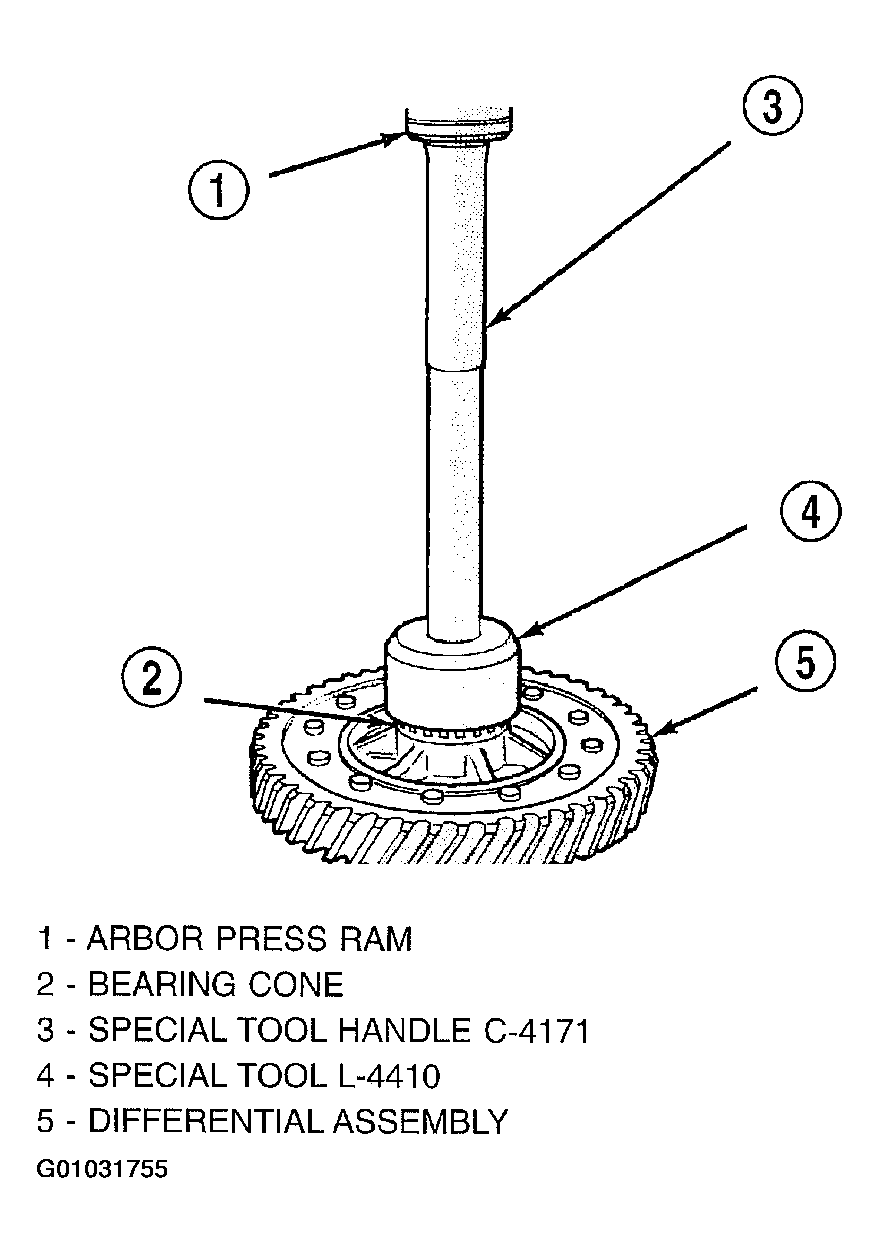

Fig 3: Installing Differential Bearing Cone To Differential. Case Side
Courtesy of DAIMLERCHRYSLER CORP.

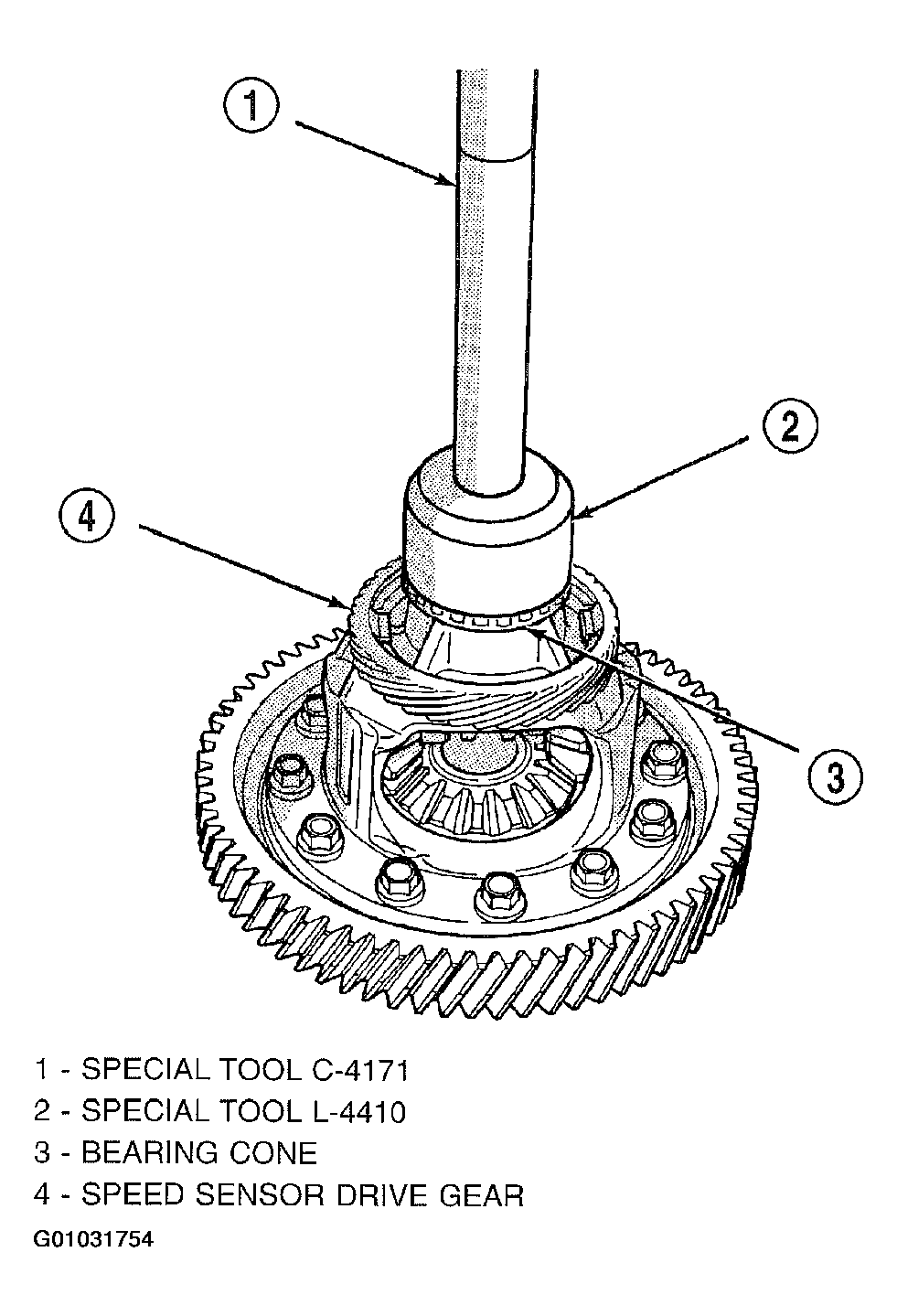

Fig 4: Installing Differential Bearing Cone To Ring Gear Side
Courtesy of DAIMLERCHRYSLER CORP.
Install speedometer drive gear to case. (Fig 5).

Fig 5: Installing Speedometer Drive Gear
Courtesy of DAIMLERCHRYSLER CORP.
Using an arbor press, steel block, and Tool L-4440, press speedometer drive gear onto differential case. (Fig 6 and Fig 7 ).

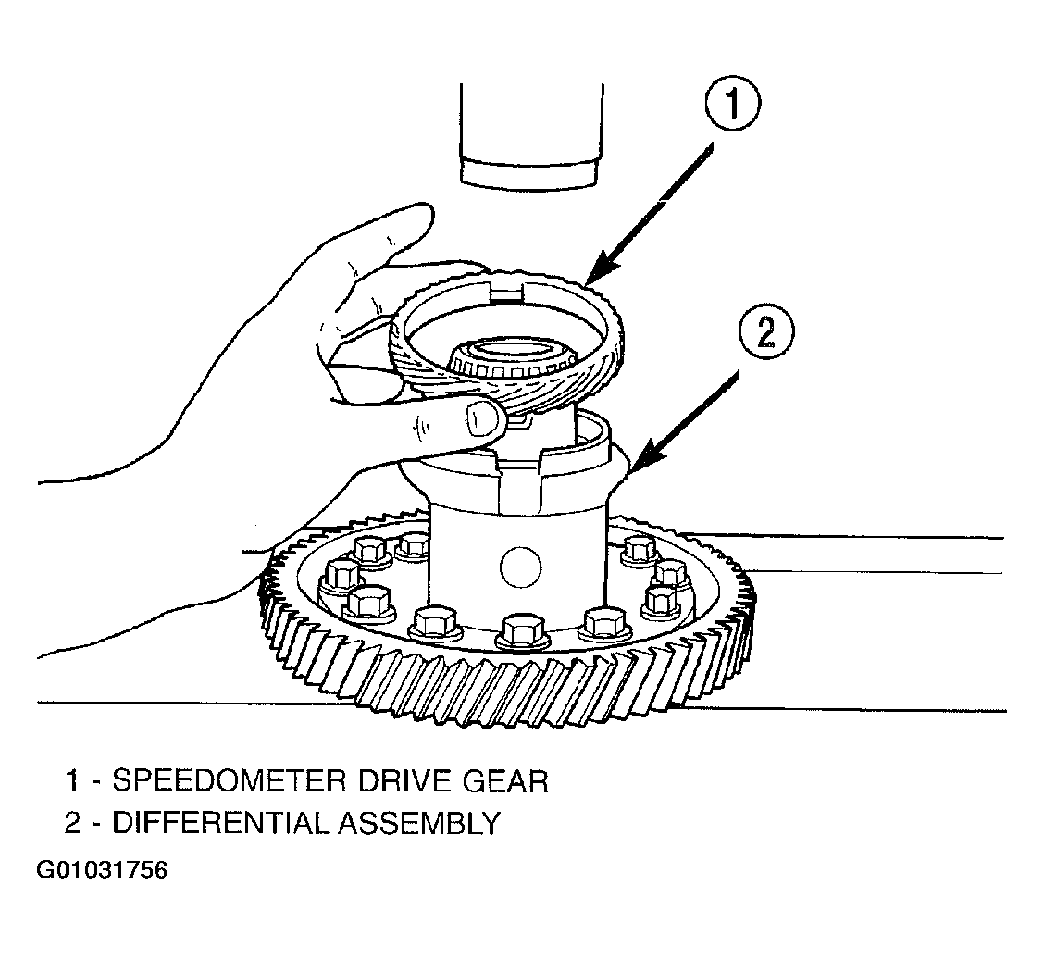

Fig 6: Positioning Drive Gear On Differential
Courtesy of DAIMLERCHRYSLER CORP.

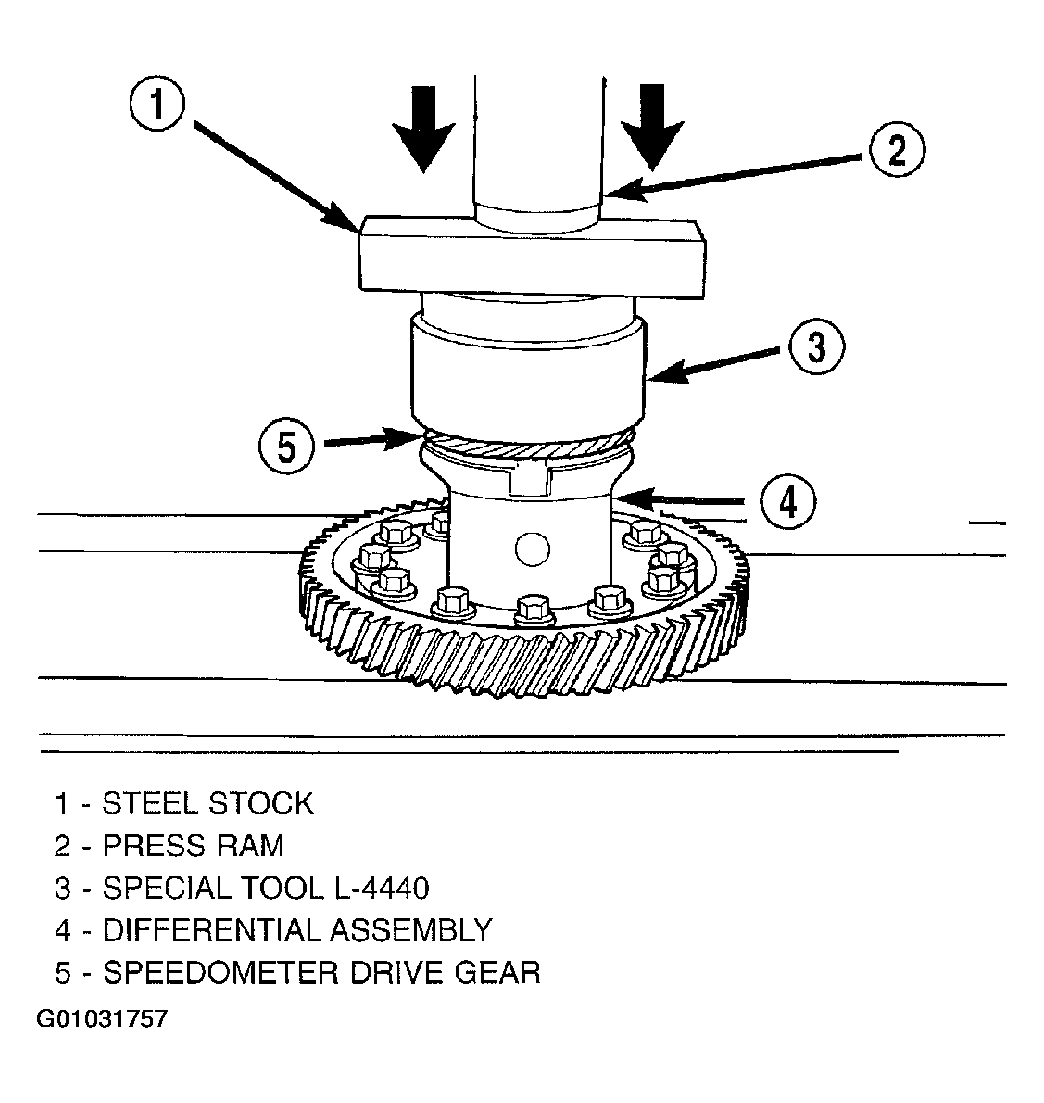

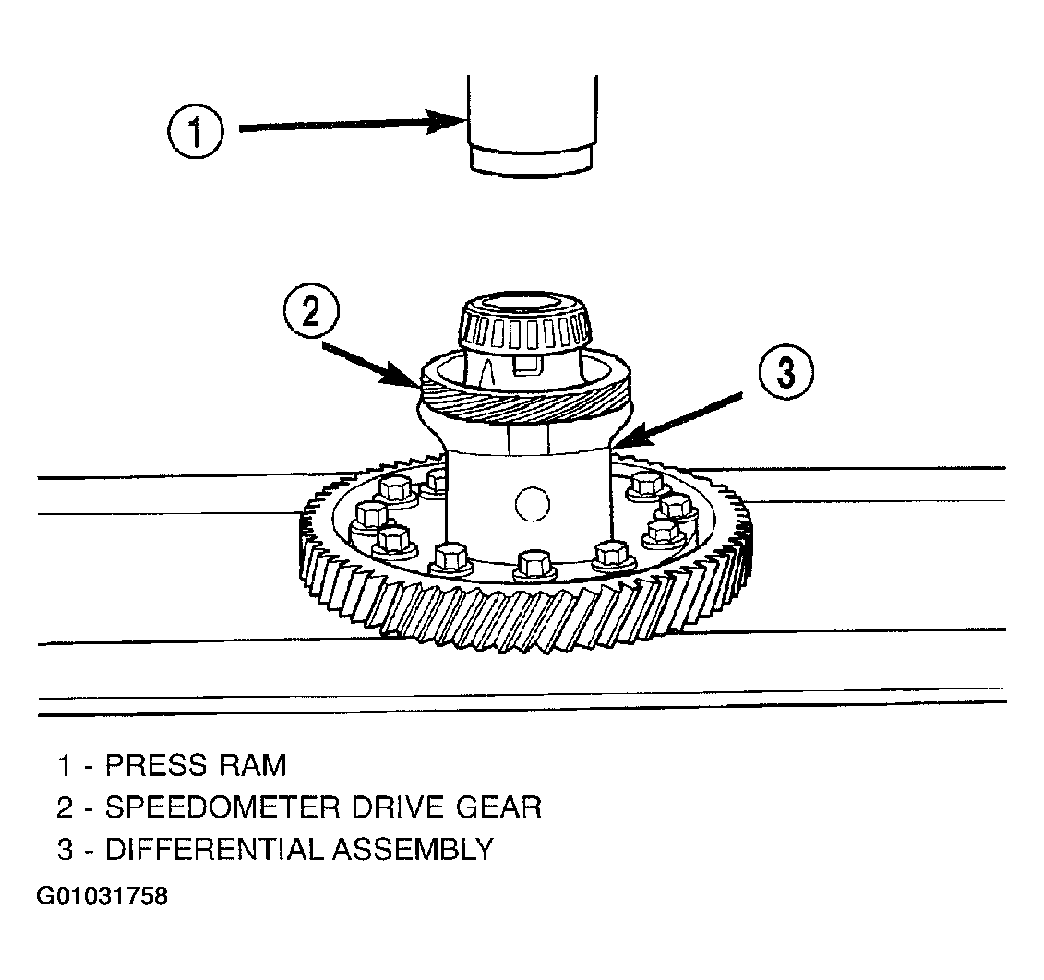

Fig 7: Pressing Drive Gear Onto Differential
Courtesy of DAIMLERCHRYSLER CORP.
Install ring gear to differential case. Install new bolts and torque to 81 N.m (60 ft. lbs.). (Fig 8).

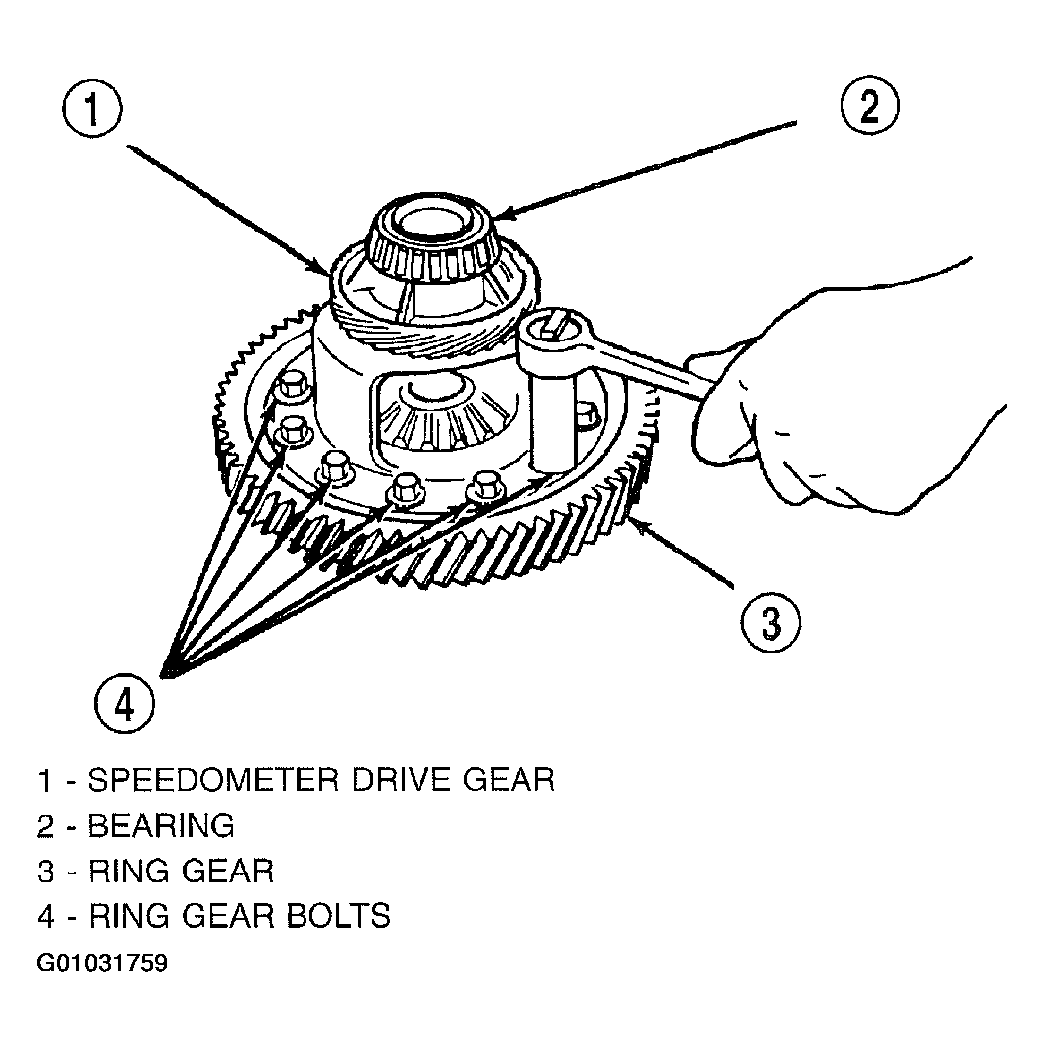

Fig 8: Installing Ring Gear & Bolts
Courtesy of DAIMLERCHRYSLER CORP.
