Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

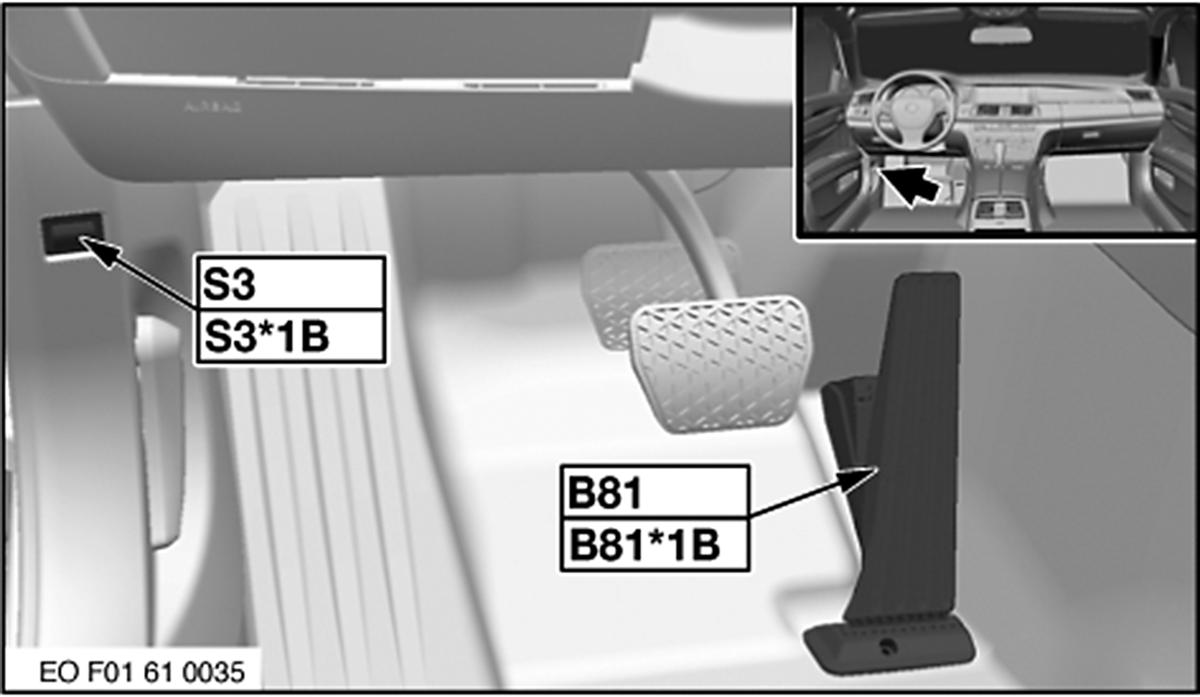

| Accelerator Pedal Module (B81) | On accelerator pedal bracket. See Figure. |

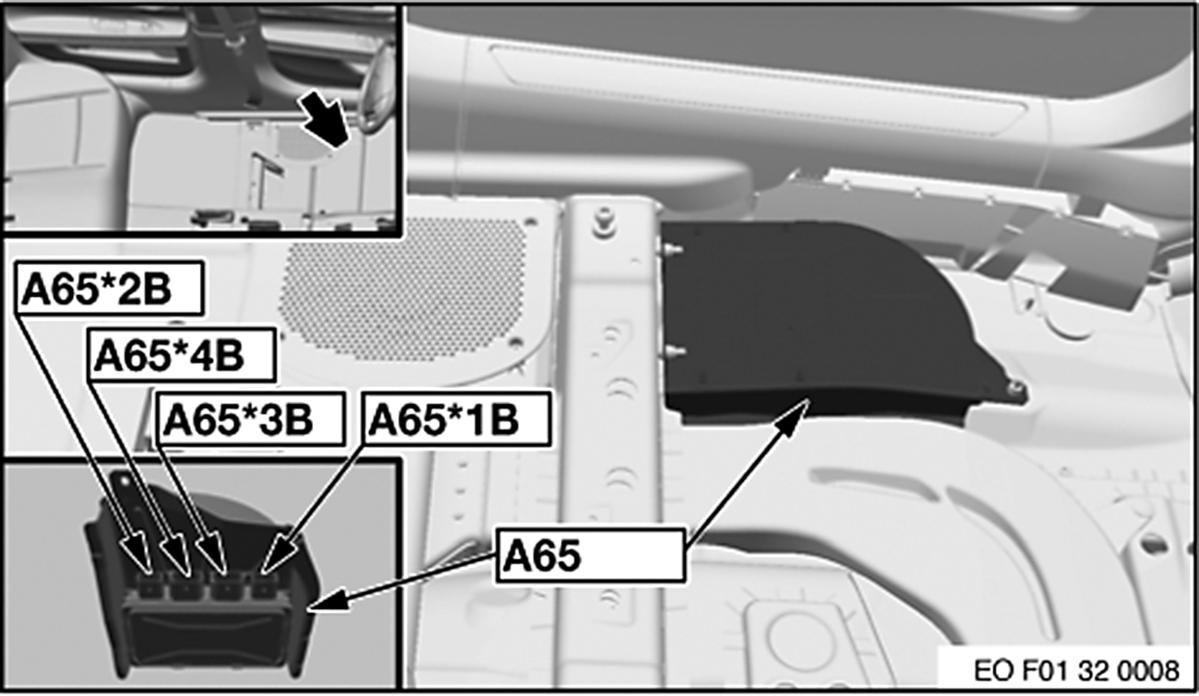

| Active Steering (A65) | Under driver's footwell. See Figure. |

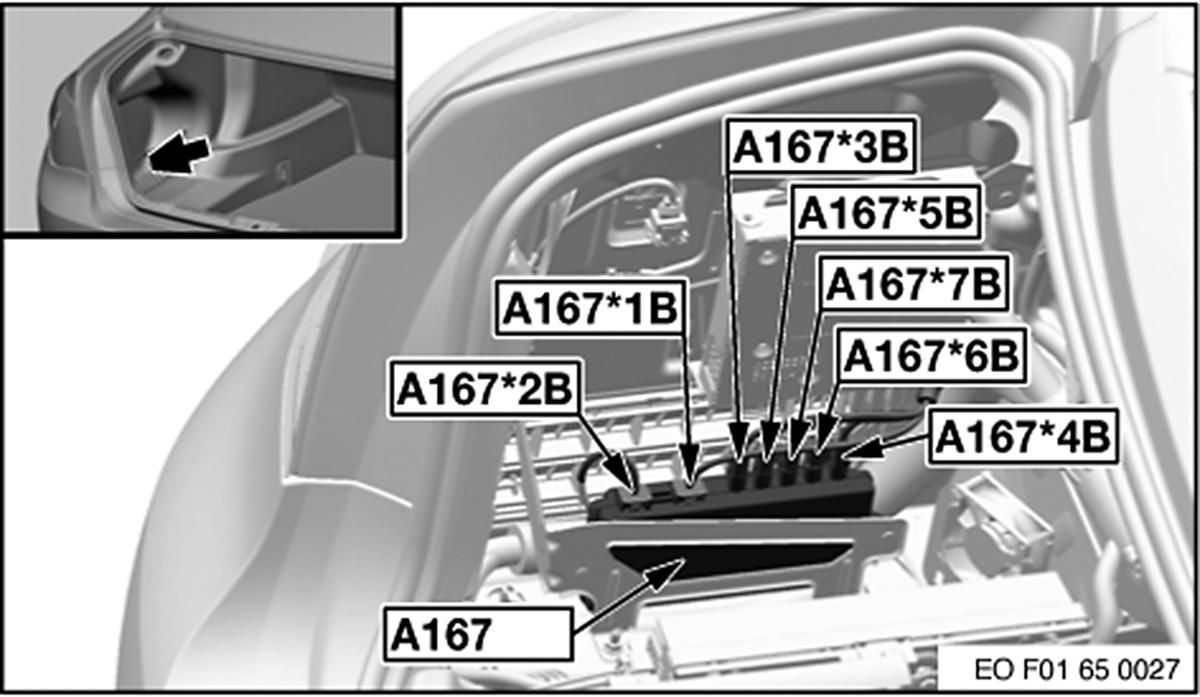

| All-Round Vision Camera (A167) | Left rear of luggage compartment. See Figure. |

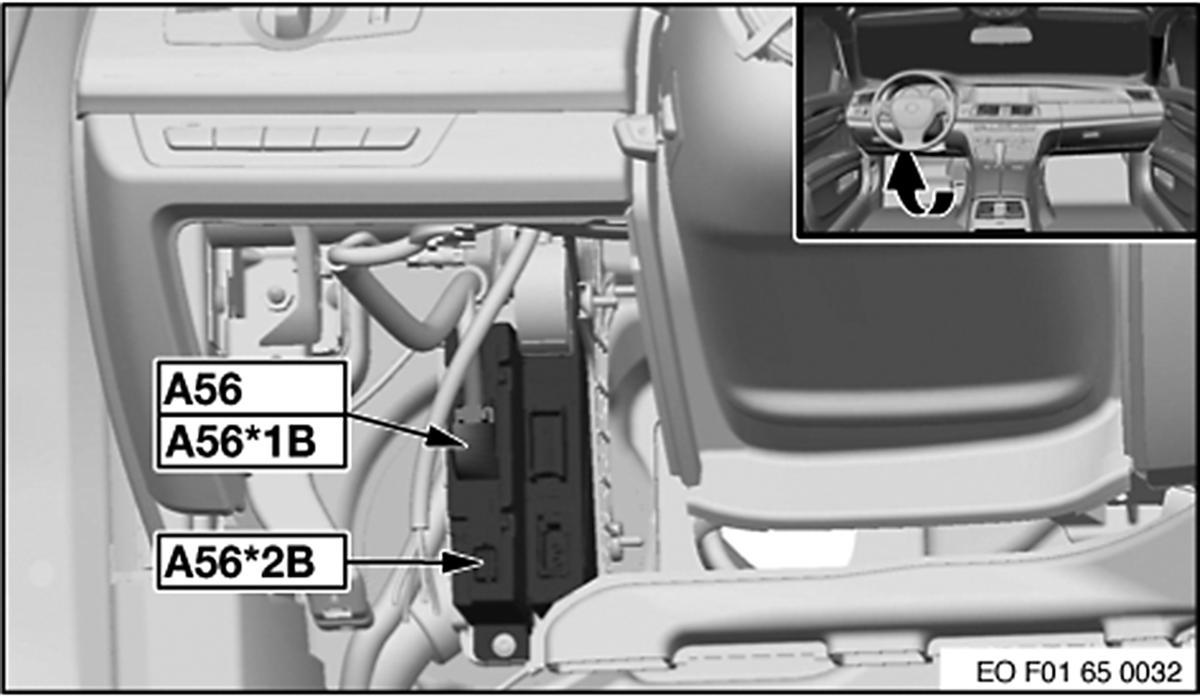

| Camera-Based Driver Assistance Systems (A56) | Lower left end of dash. See Figure. |

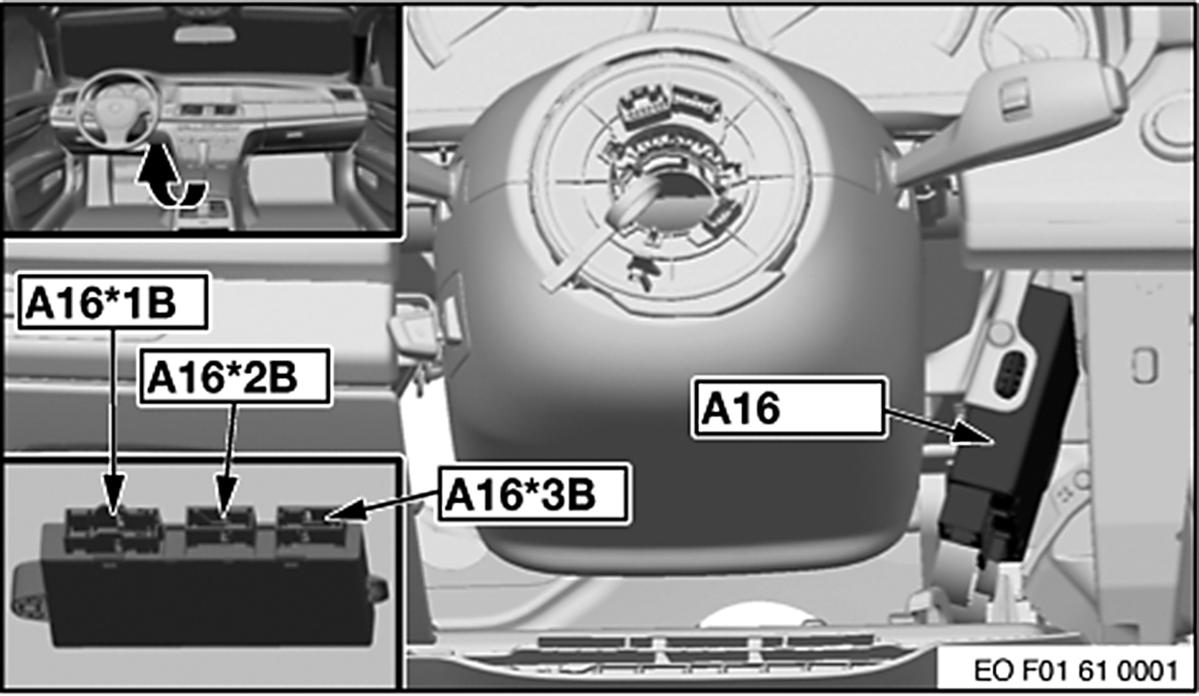

| Car Access System (A16) | Right of steering column. See Figure. |

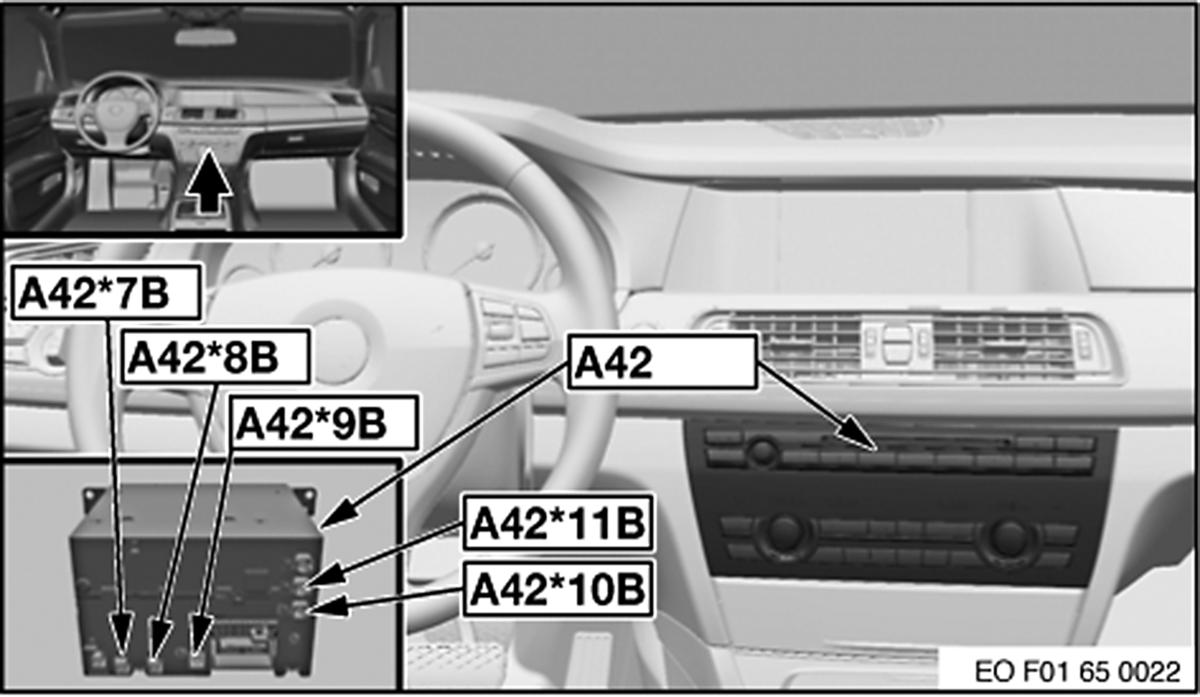

| Car Information Computer (A42) | Center of dash. See Figure. |

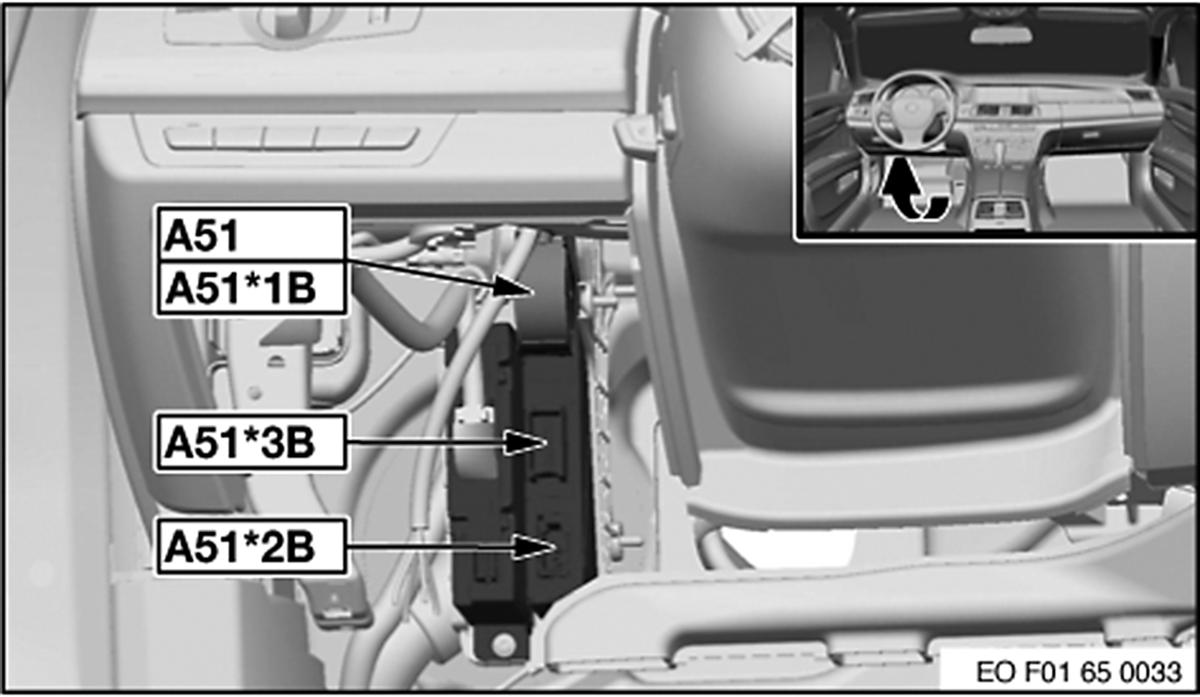

| Central Gateway Module (A51) | Lower left end of dash. See Figure. |

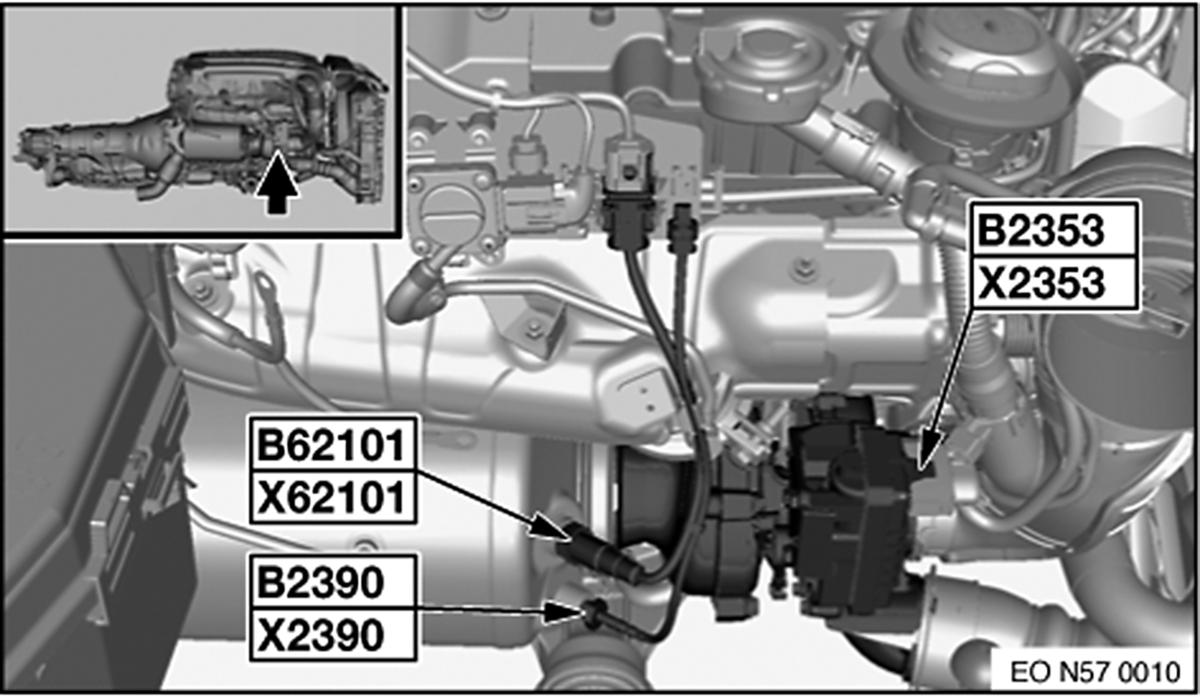

| Charge Air Pressure Controller (B2353) | Lower right of engine. See Figure. |

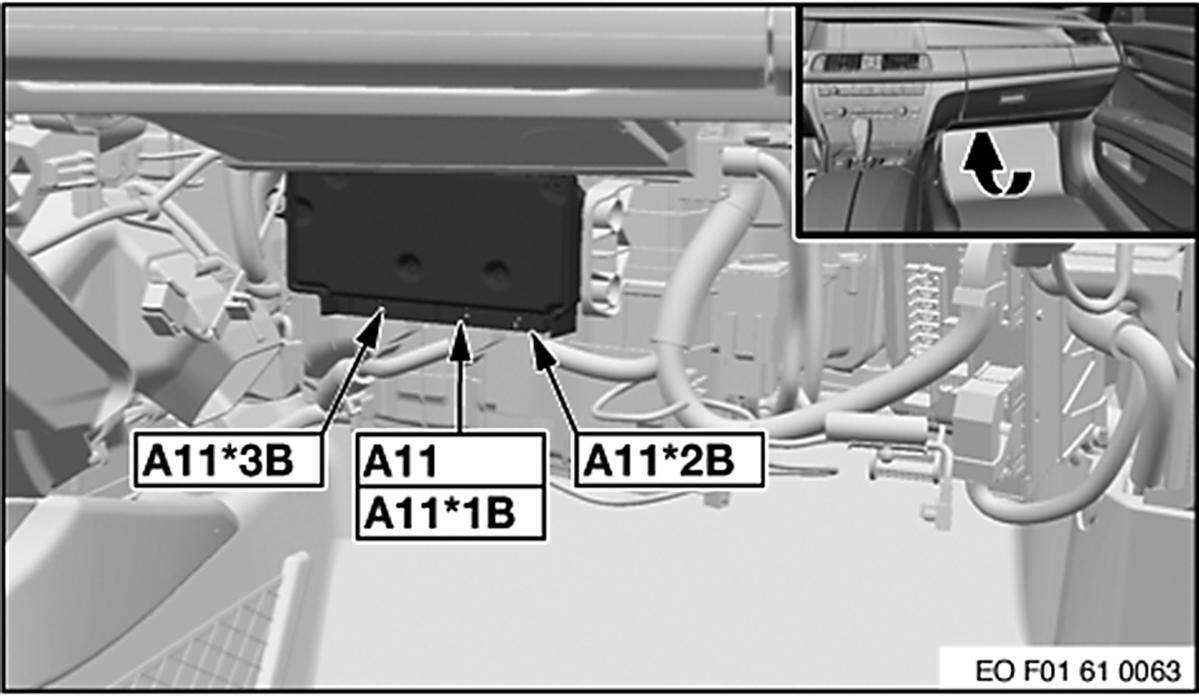

| Crash Safety Module (A11) | Under right side of dash. See Figure. |

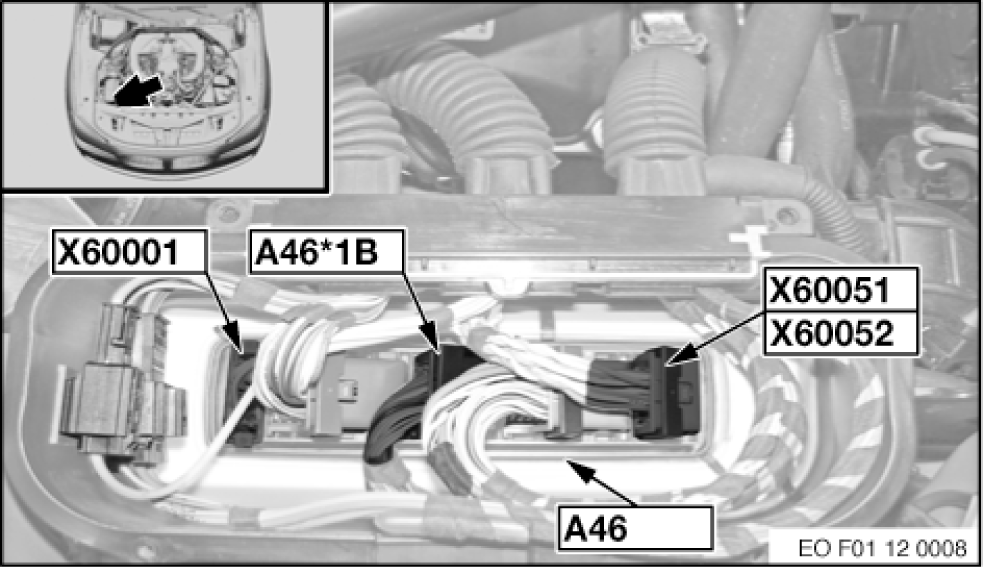

| Digital Motor Electronics (A46) | Right front of engine compartment. See Figure. |

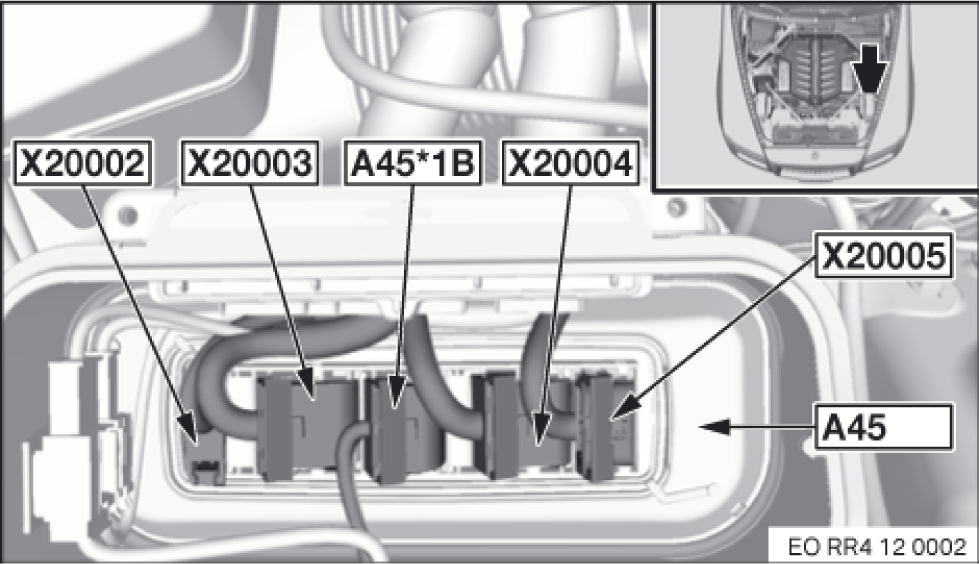

| Digital Motor Electronics 2 (A45) | Left side of engine compartment. See Figure. |

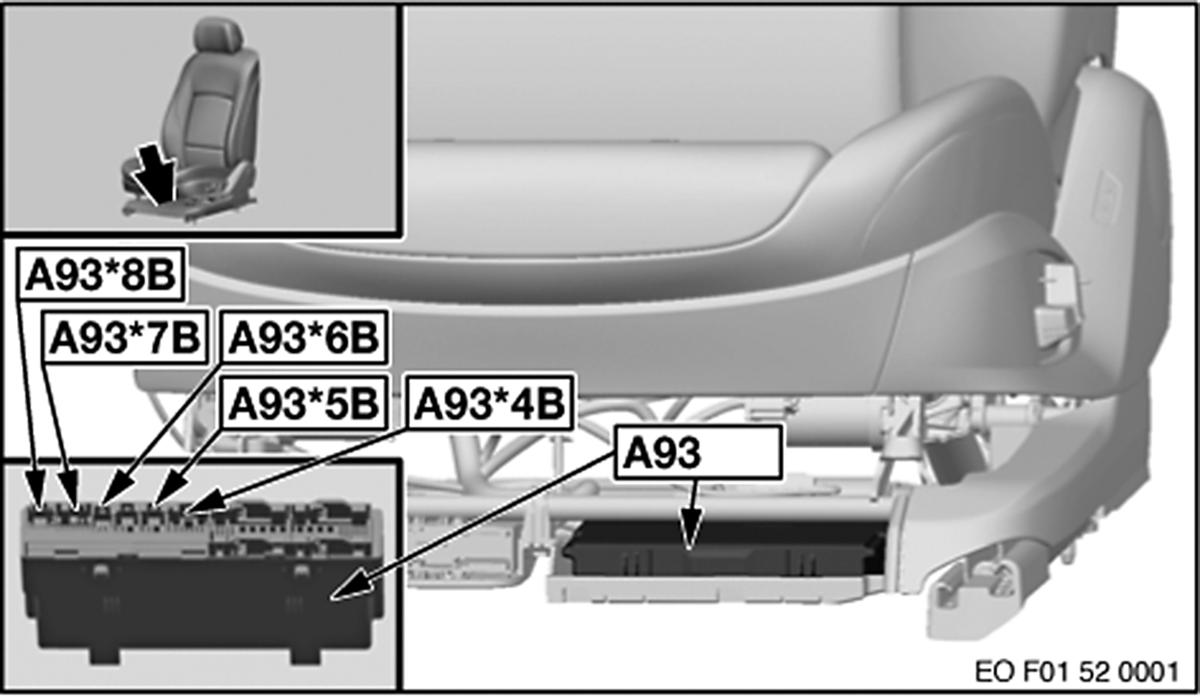

| Driver's Seat Module (A93) | Under driver's seat. See Figure. |

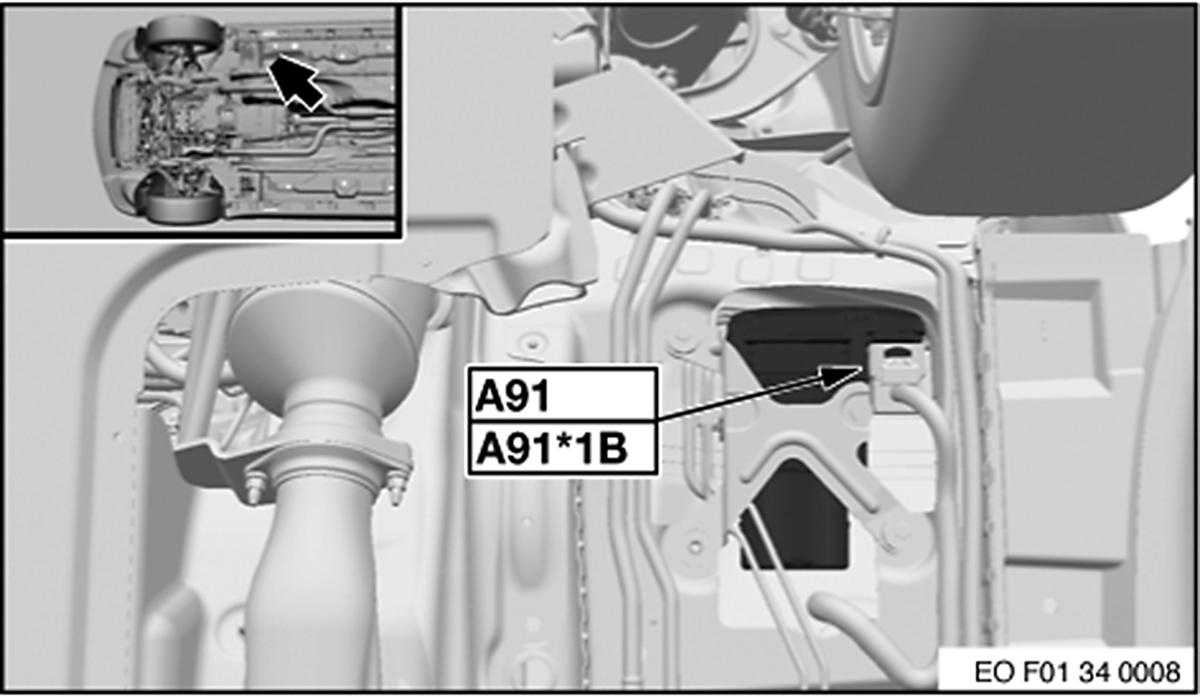

| Dynamic Stability Control (DSC) (A91) | Right of catalytic converter. See Figure. |

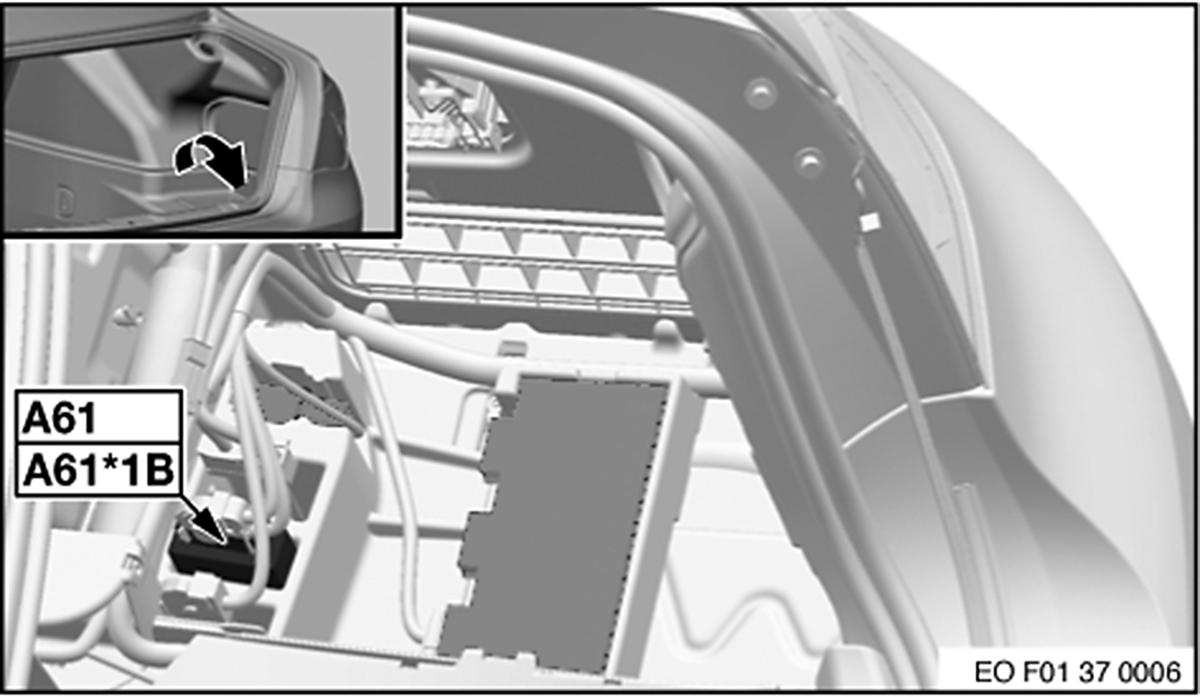

| Electronic Ride-Height Control (A61) | Right side of luggage compartment. See Figure. |

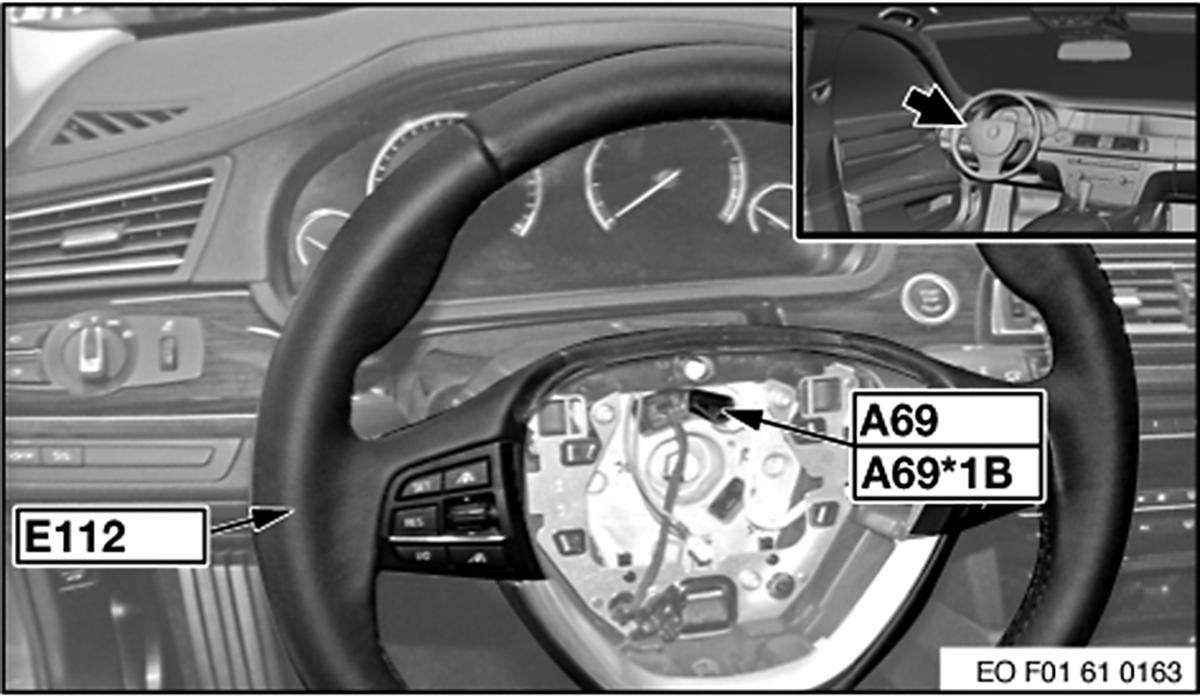

| Electronic Steering Wheel Module (A69) | Top of steering column. See Figure. |

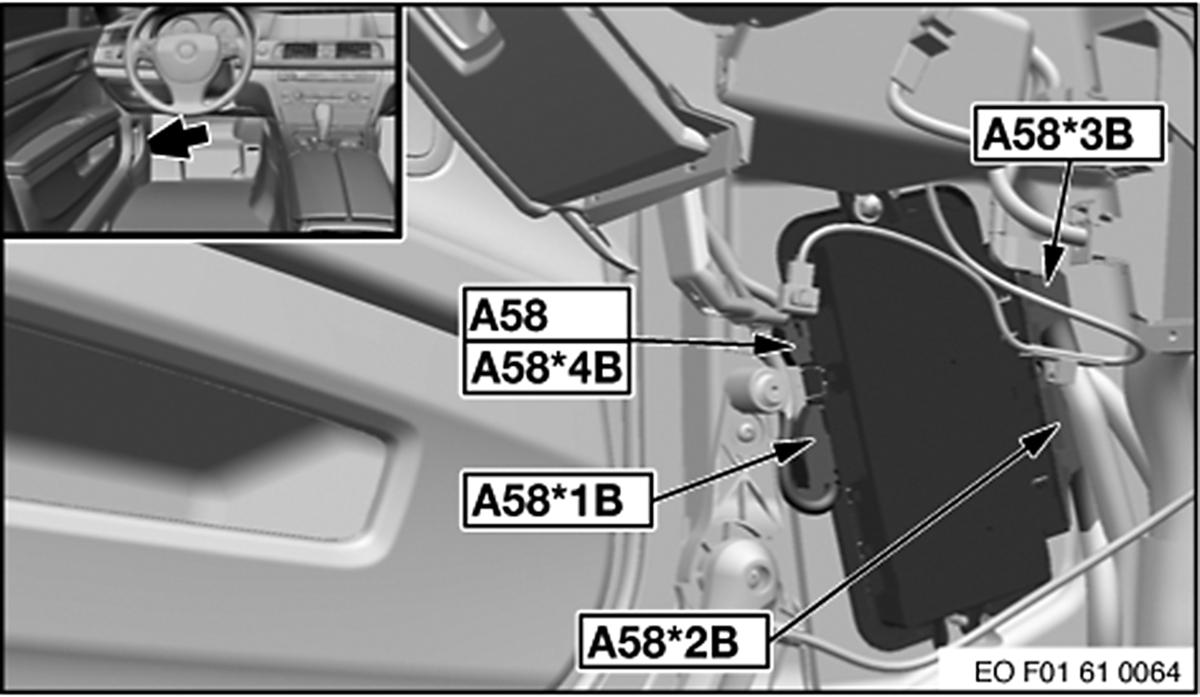

| Footwell Module (A58) | Left kick panel. See Figure. |

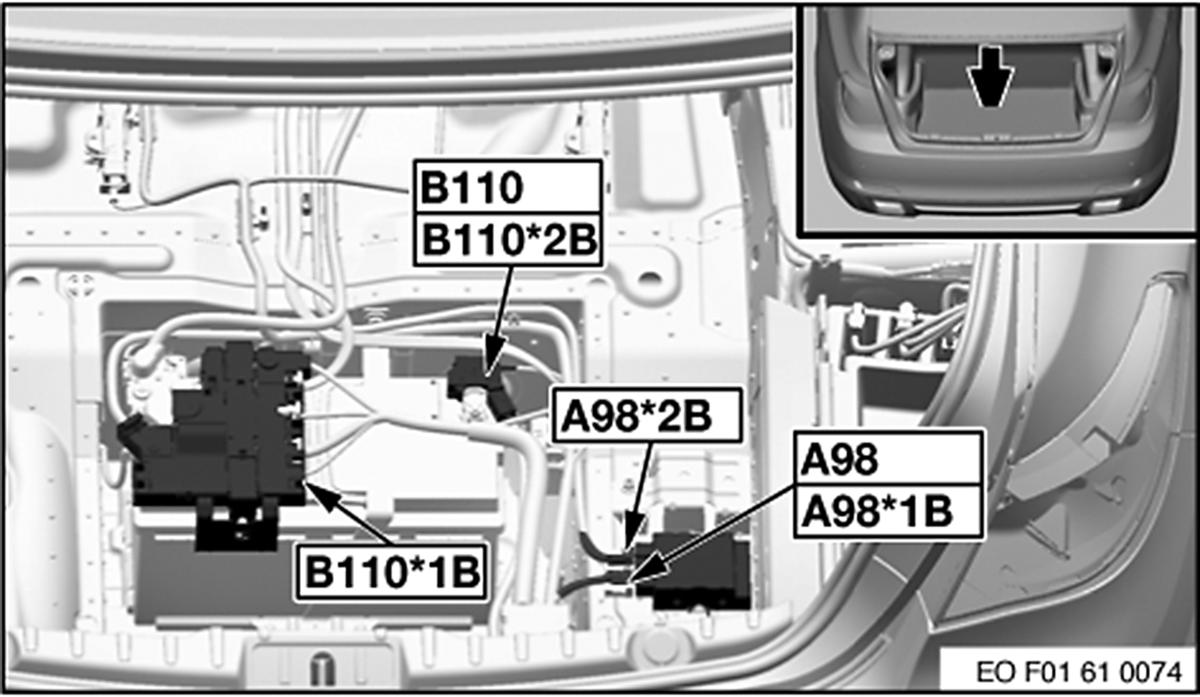

| Fuel Pump Control (EKPS) (A98) | Right rear of luggage compartment. See Figure. |

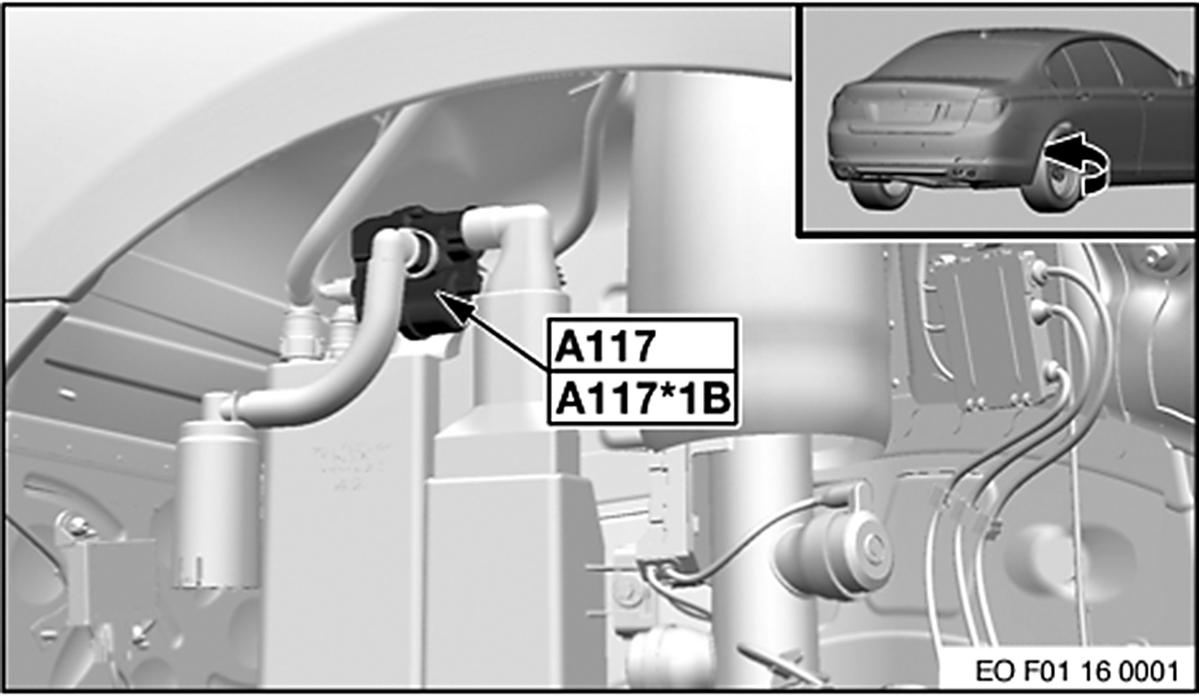

| Fuel Tank Leakage Diagnosis Module (A117) | Right rear wheelwell. See Figure. |
| Fully Automatic Trailer Tow Hitch (A123) | Right rear of luggage compartment. See Figure. |
| Heated Rear Window Lockout Circuit (A124) | Behind center rear seat headrest. See Figure. |

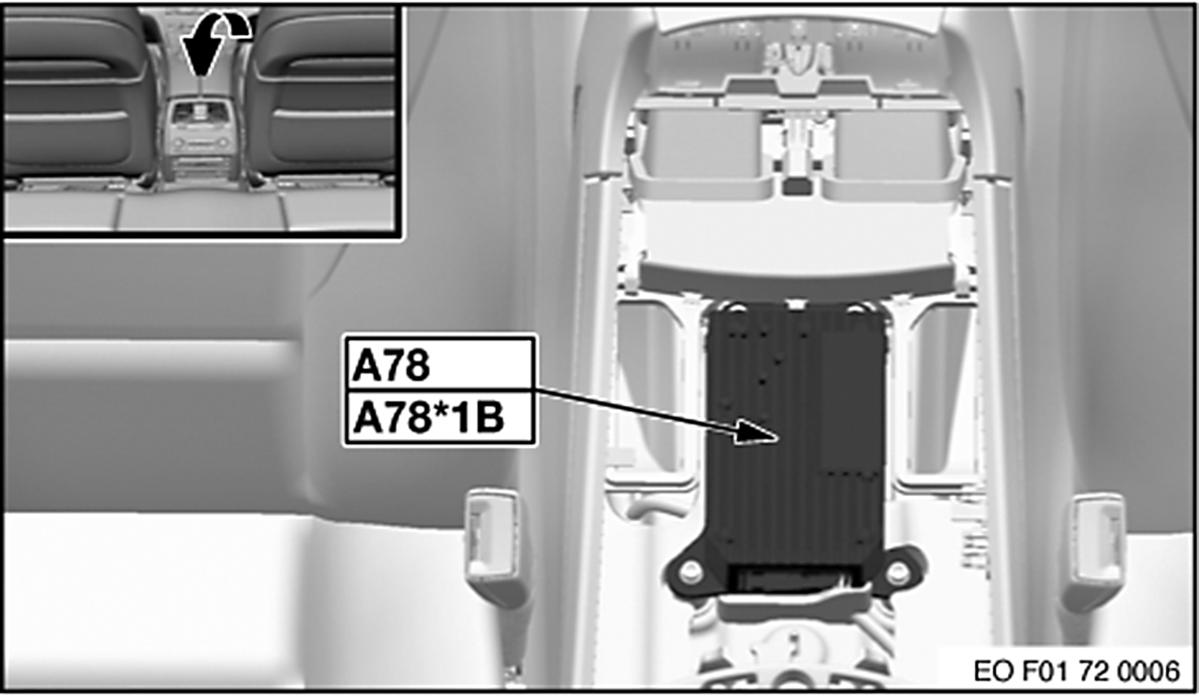

| Integrated Chassis Management (A78) | Center console. See Figure. |

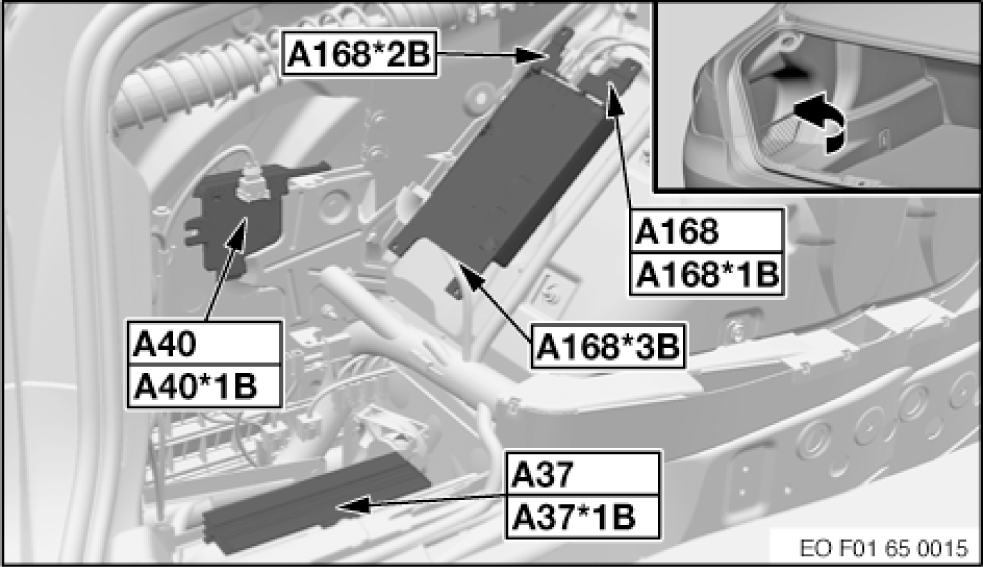

| Interface Box (A168) | Left side of luggage compartment. See Figure. |

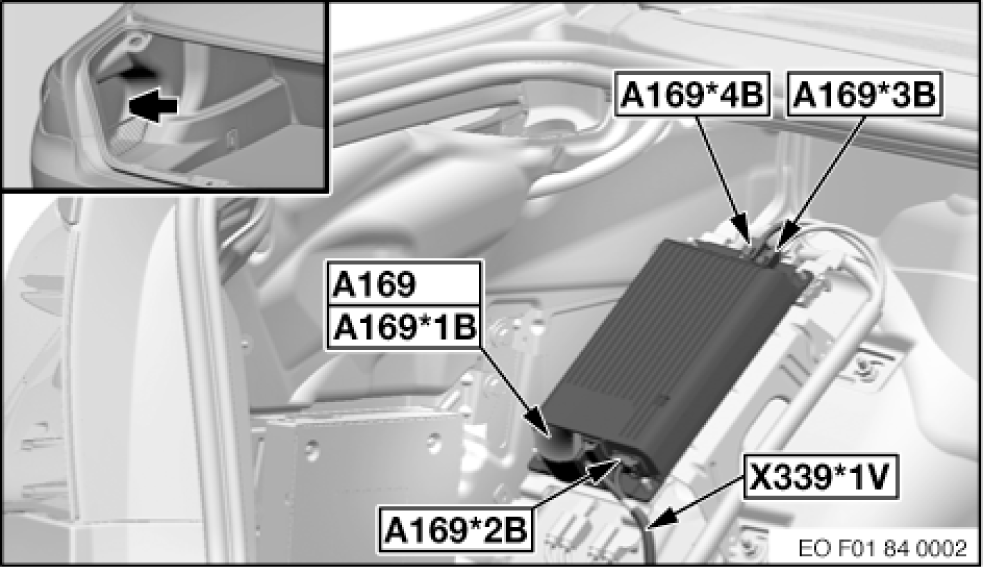

| Interface Box High (A169) | Left side of luggage compartment. See Figure. |

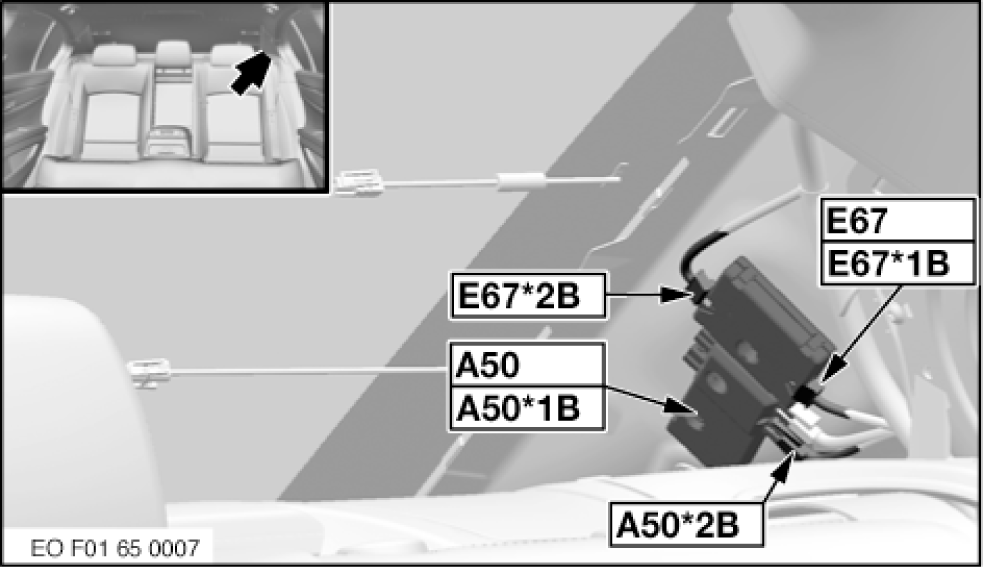

| Lockout Circuit - Heated Rear Window Ground (A50) | Left "C" pillar. See Figure. |

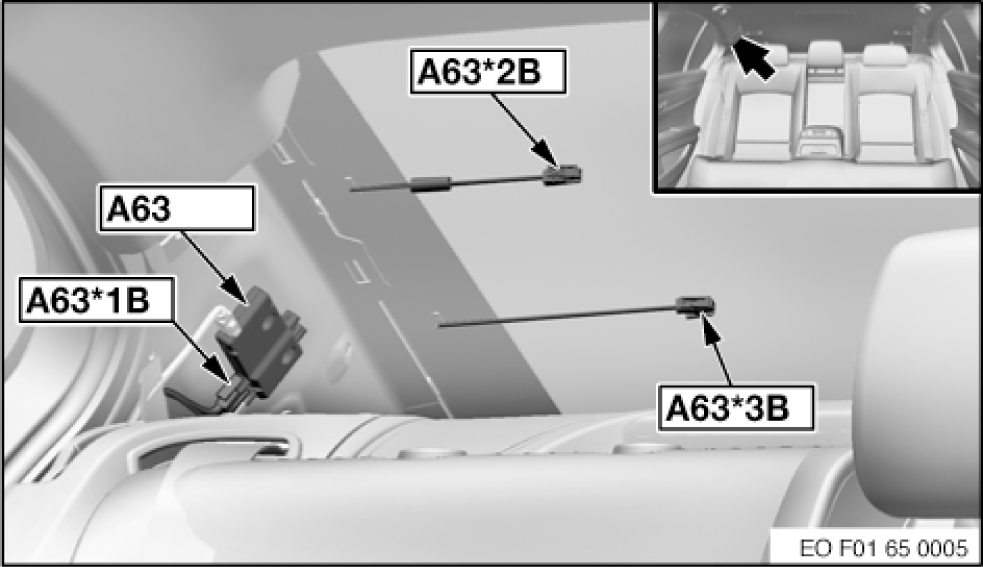

| Lockout Circuit 2 - Heated Rear Window (A63) | Right "C" pillar. See Figure. |

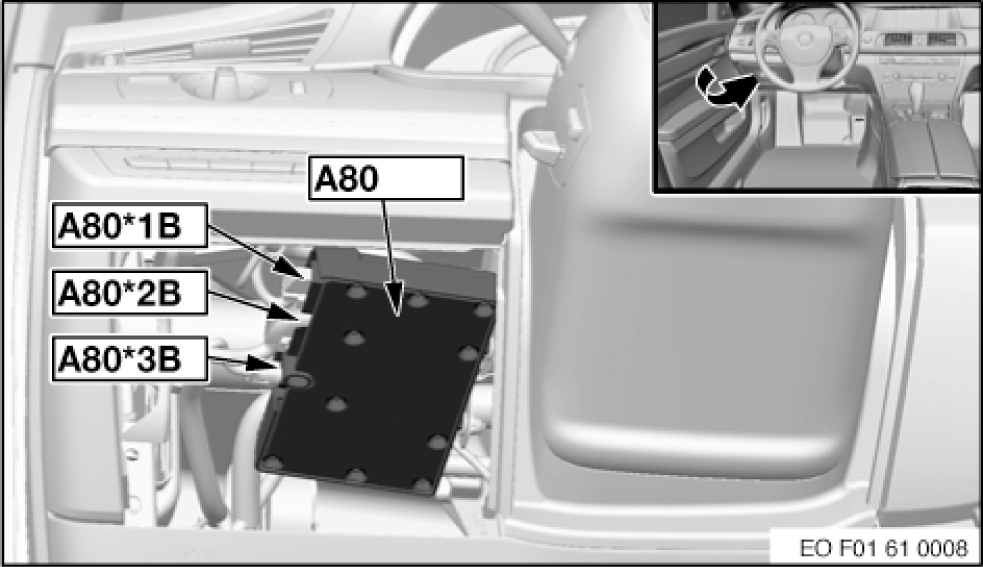

| Night Vision Electronics (A80) | Left side of dash. See Figure. |

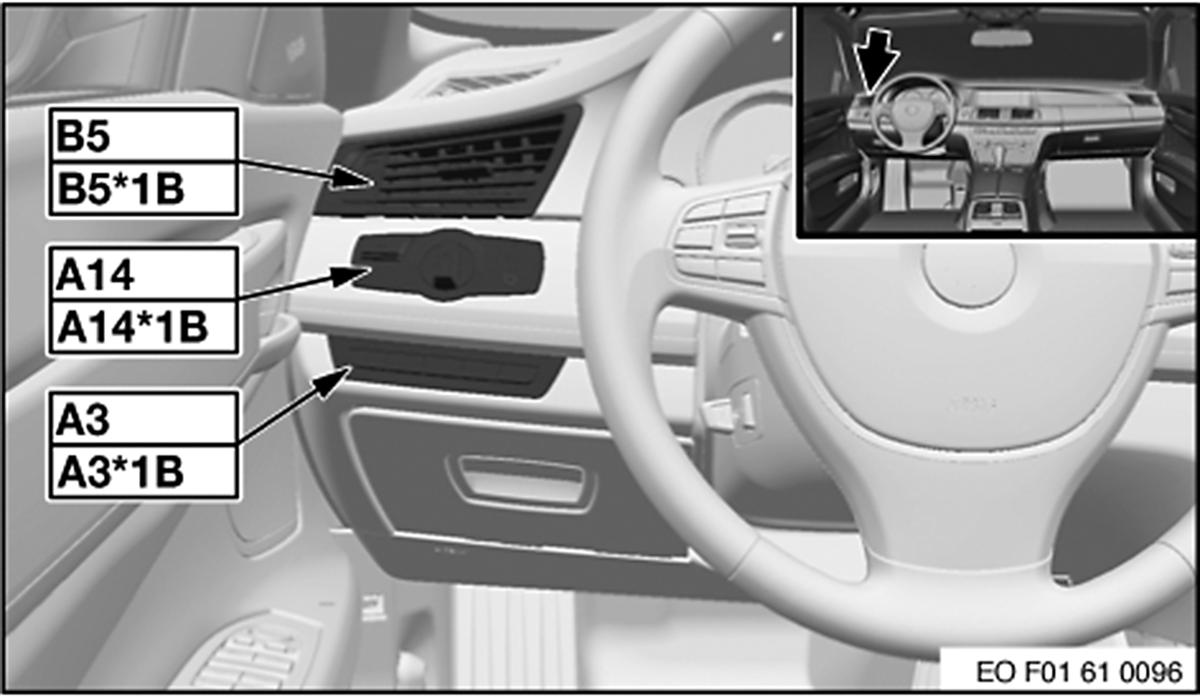

| Operation Unit, Driver Assistance System (A3) | Left side of dash. See Figure. |
| Panorama Camera (A167) | Right rear of luggage compartment. See Figure. |

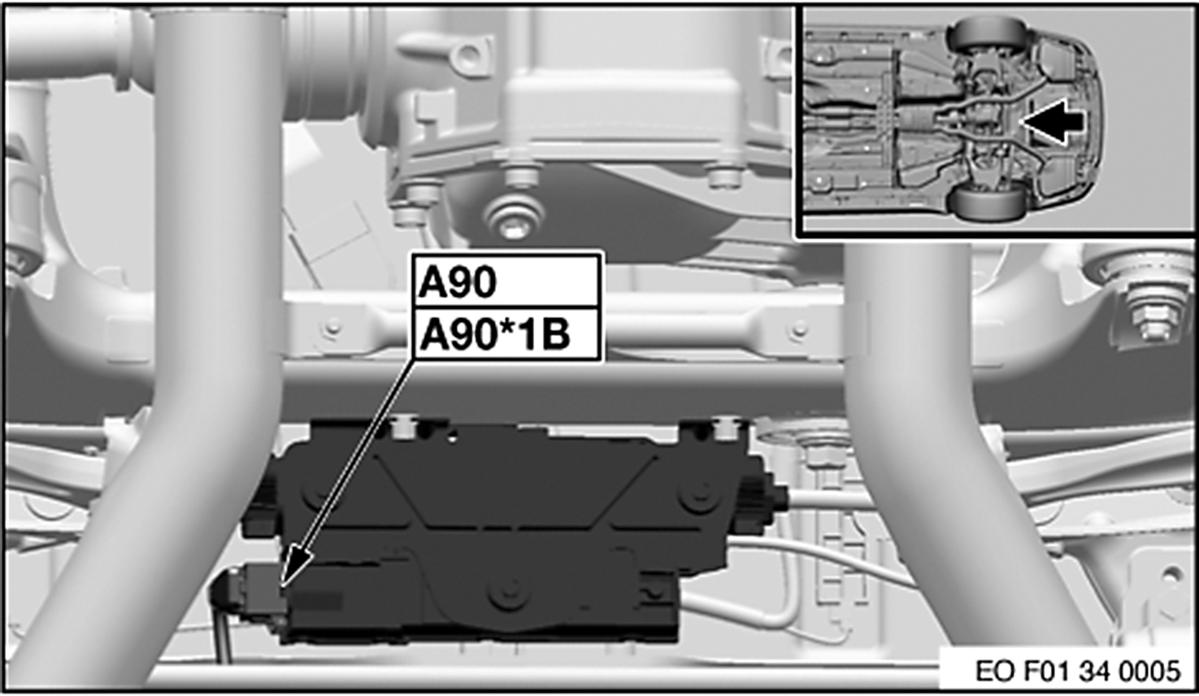

| Parking Brake Control Module (A90) | Bottom rear of engine compartment. See Figure. |

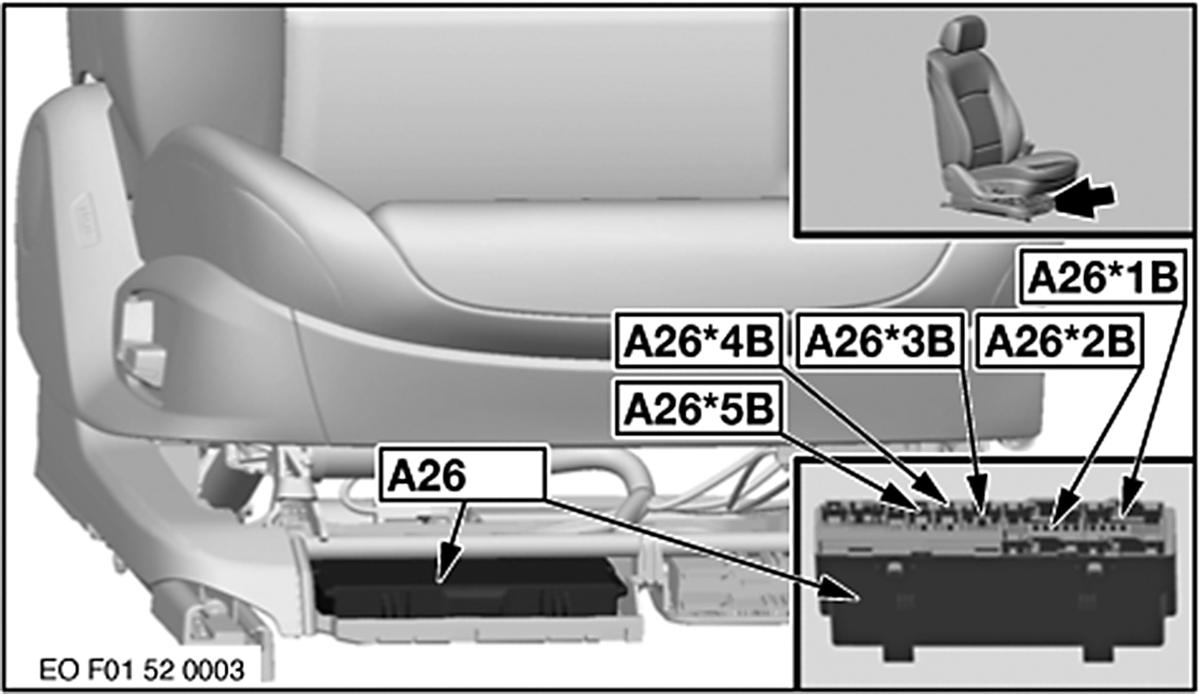

| Passenger's Seat Module (A26) | Under front passenger's seat. See Figure. |

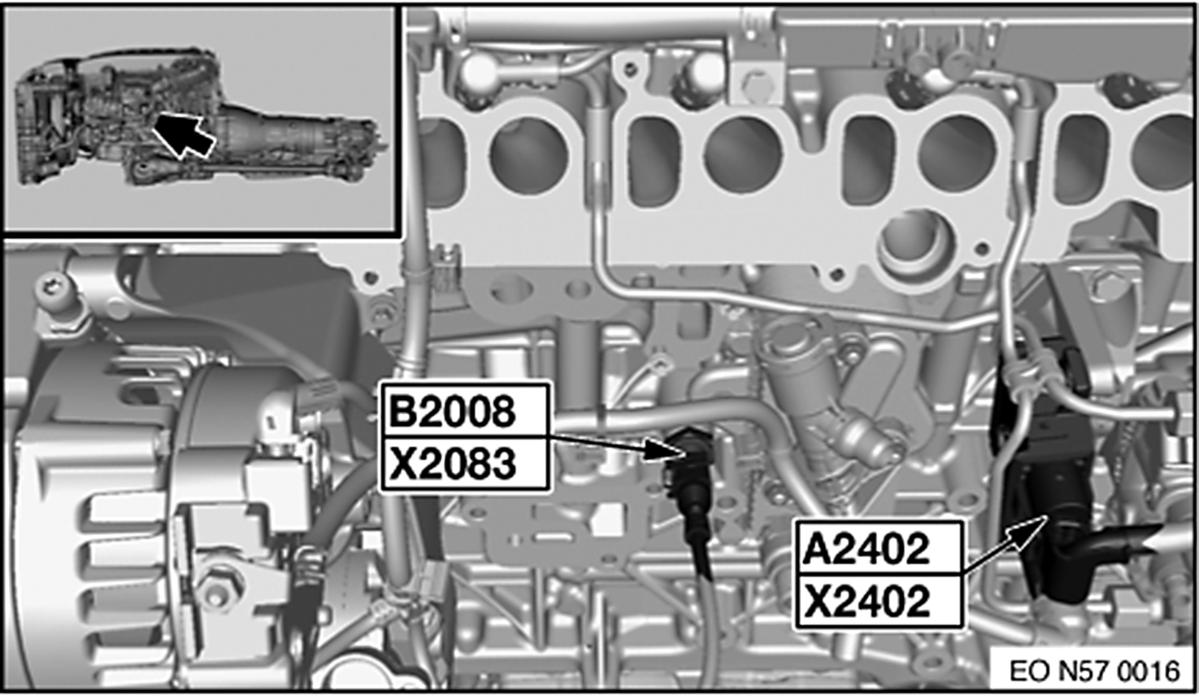

| Preheating Control Module (A2402) | Left side of engine. See Figure. |

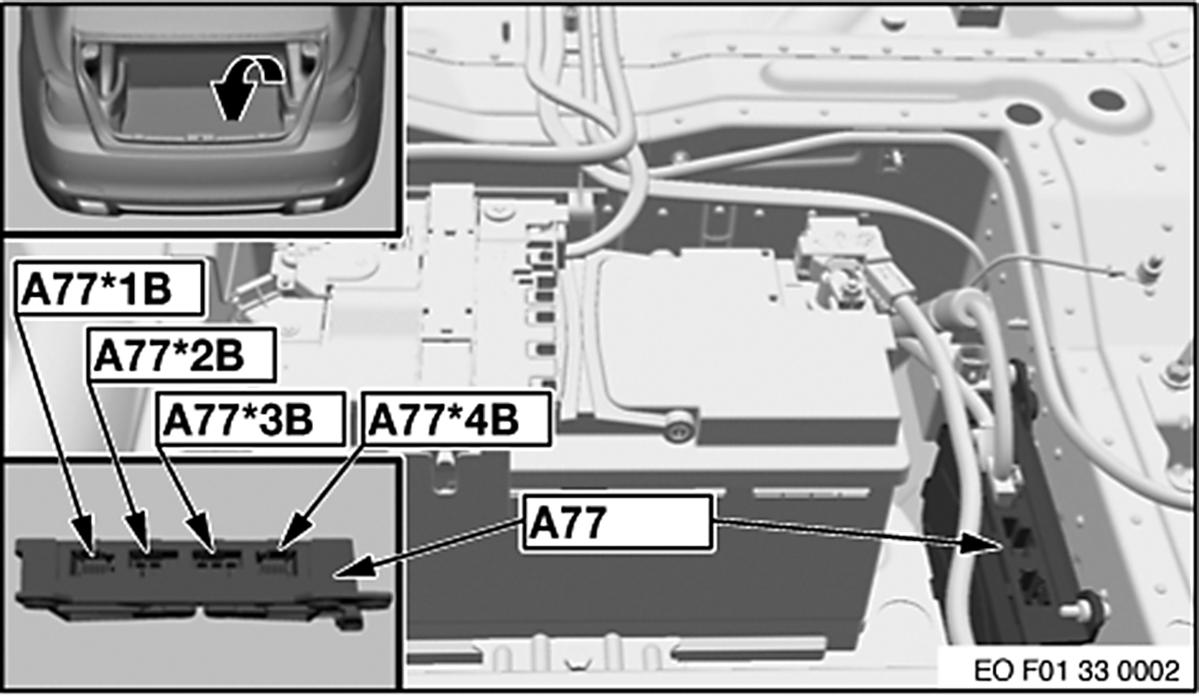

| Rear Axle King Pin Inclination Control (A77) | Right rear of luggage compartment. See Figure. |

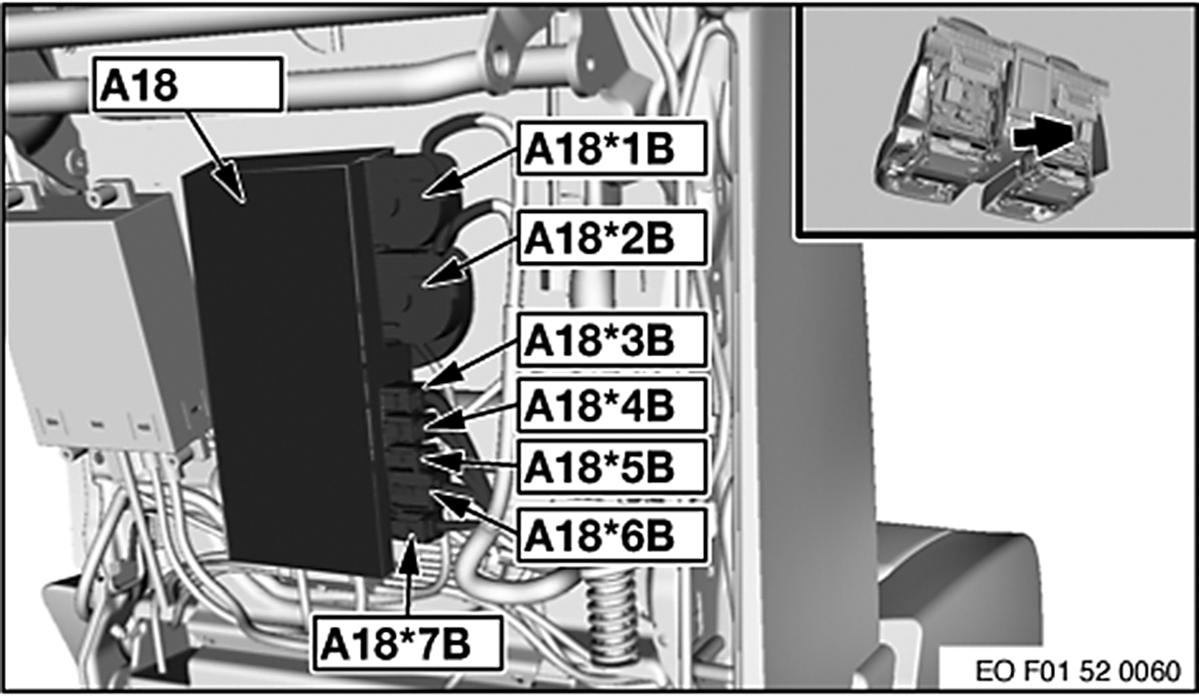

| Rear Driver's Side Seat Module (A18) | Under left rear seat. See Figure. |

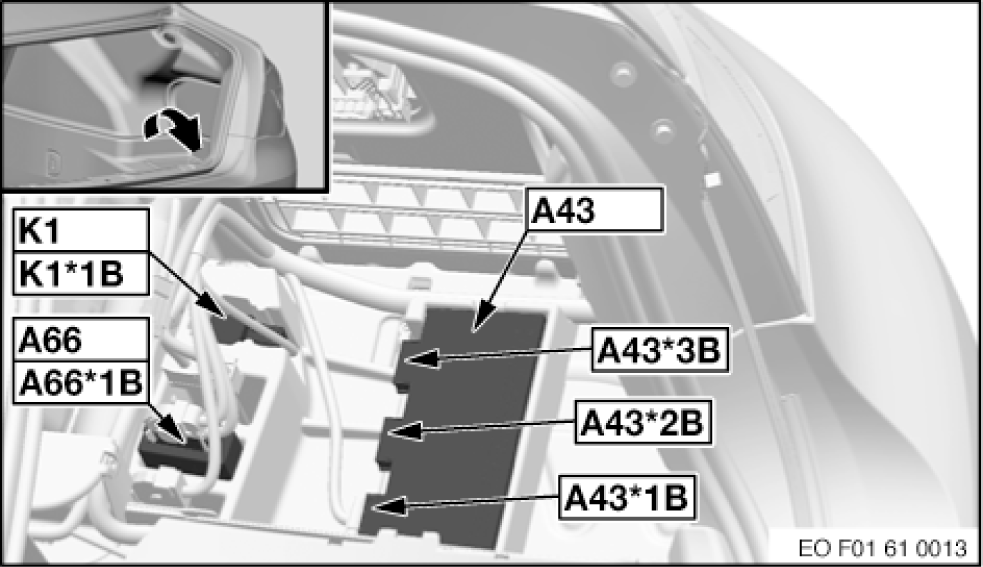

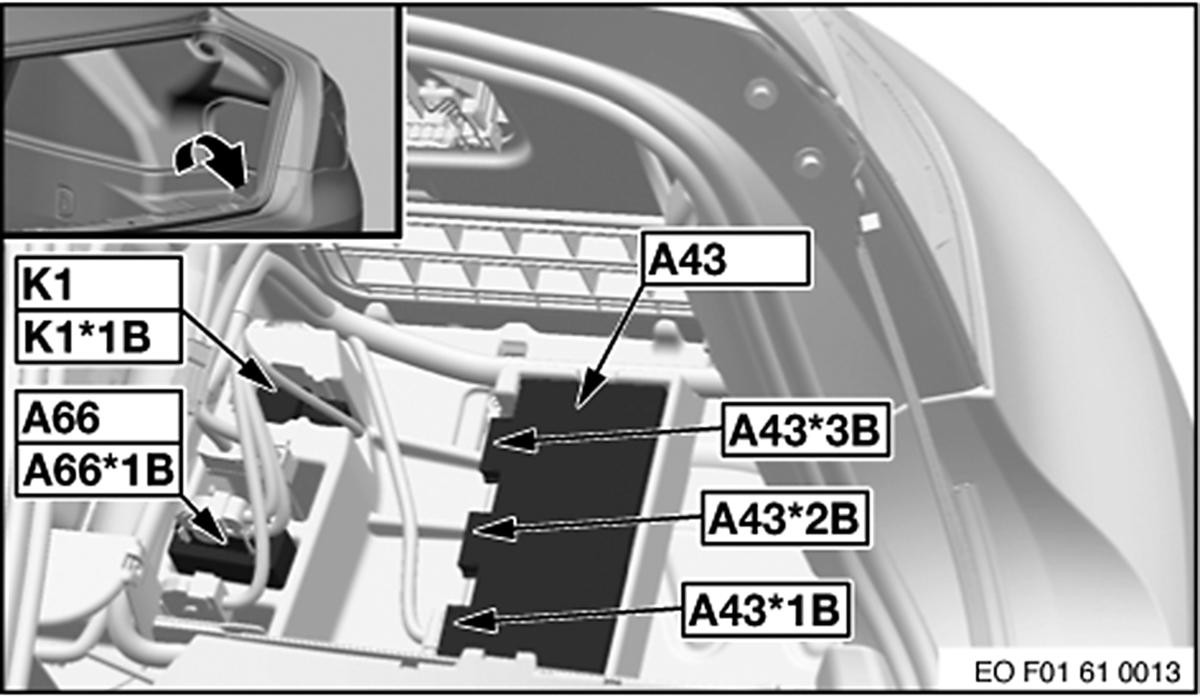

| Rear-Lid Lift (A43) | Right rear of rear compartment. See Figure. |

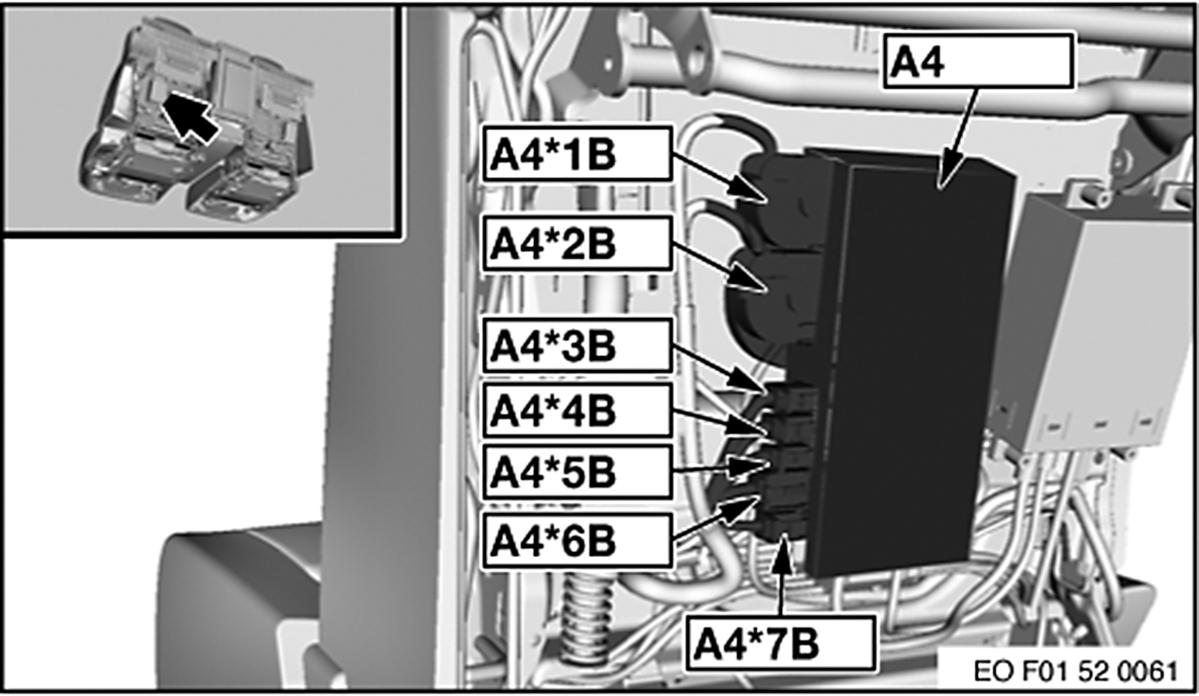

| Rear Passenger's Seat Module (A4) | Left side of left rear seat back. See Figure. |

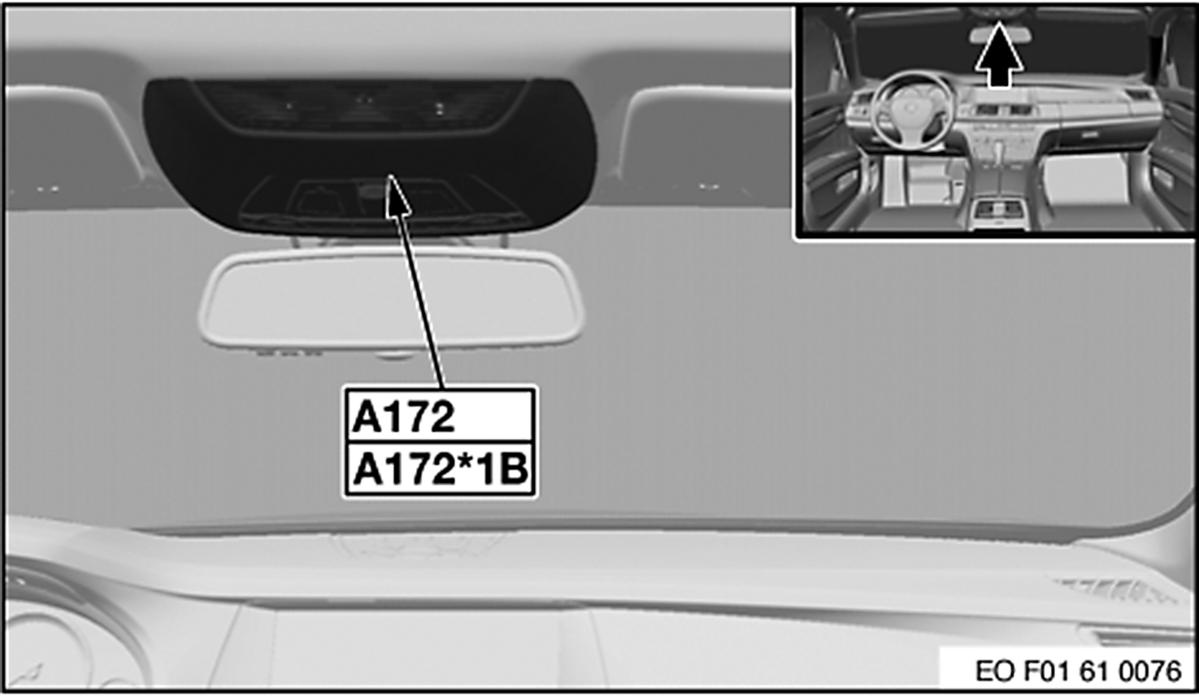

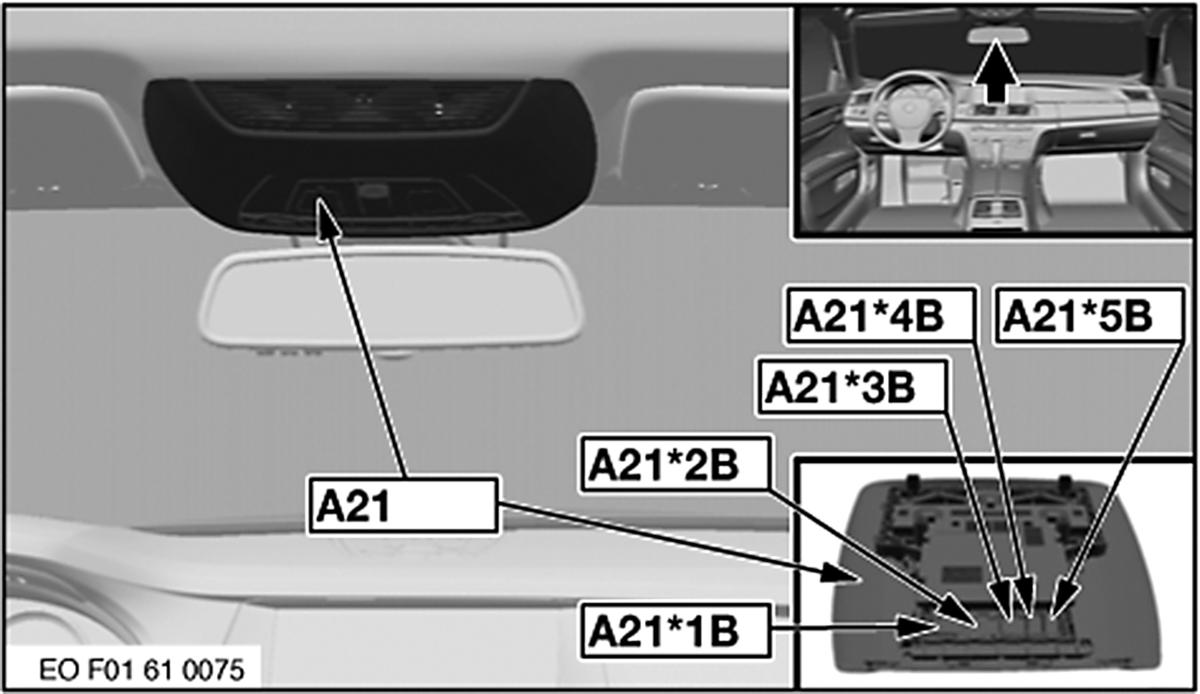

| Roof Function Module, Basic Variant (A172) | Center front of roof. See Figure. |
| Roof Function Module, High Variant (A21) | Center front of roof. See Figure. |

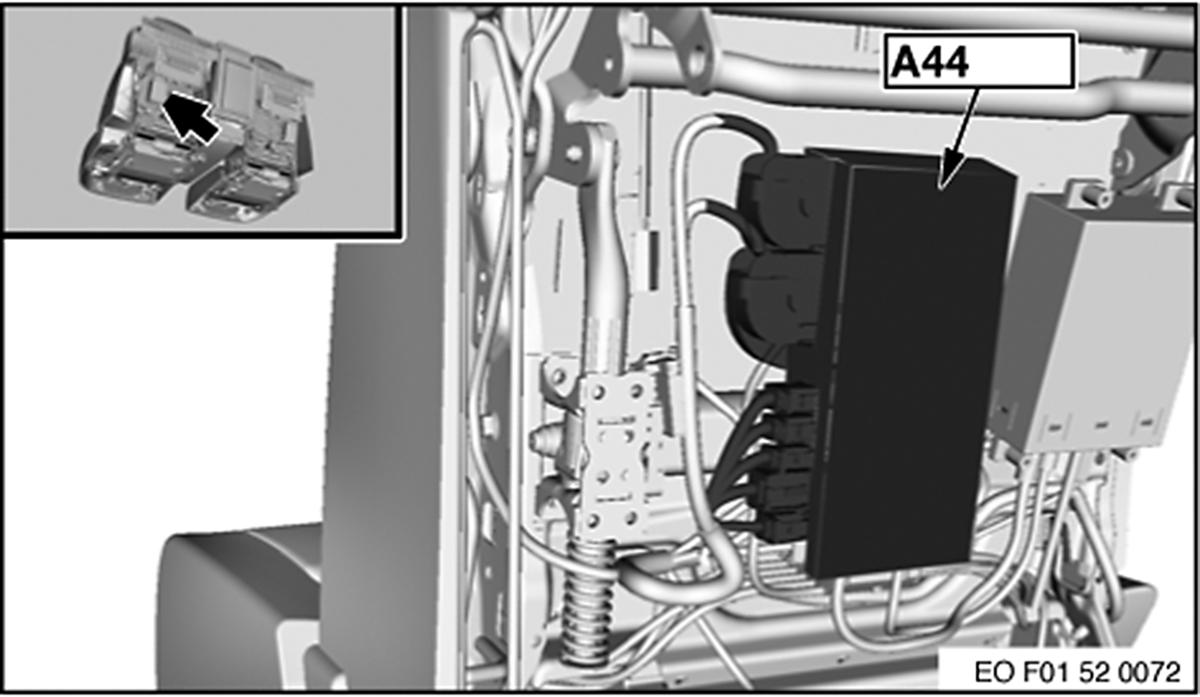

| Seat Heating Module, Rear Driver's Side (A44) | Left side of left rear seat back. See Figure. |

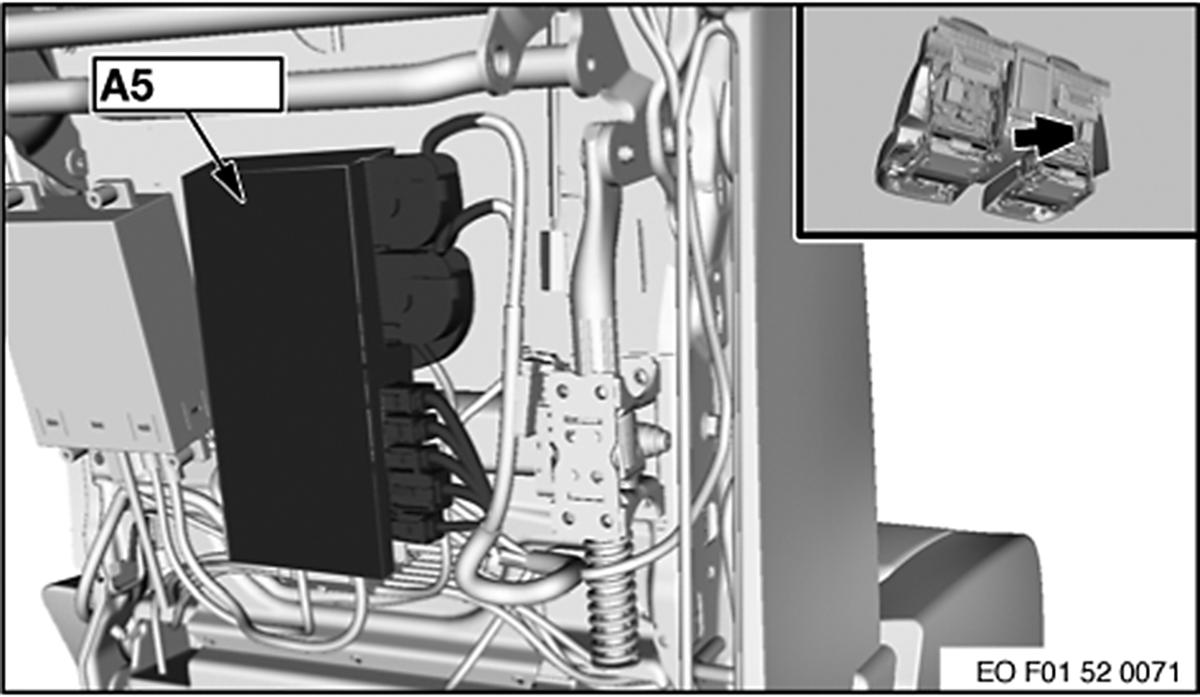

| Seat Heating Module, Rear Passenger's Side (A5) | Right side of right rear seat back. See Figure. |

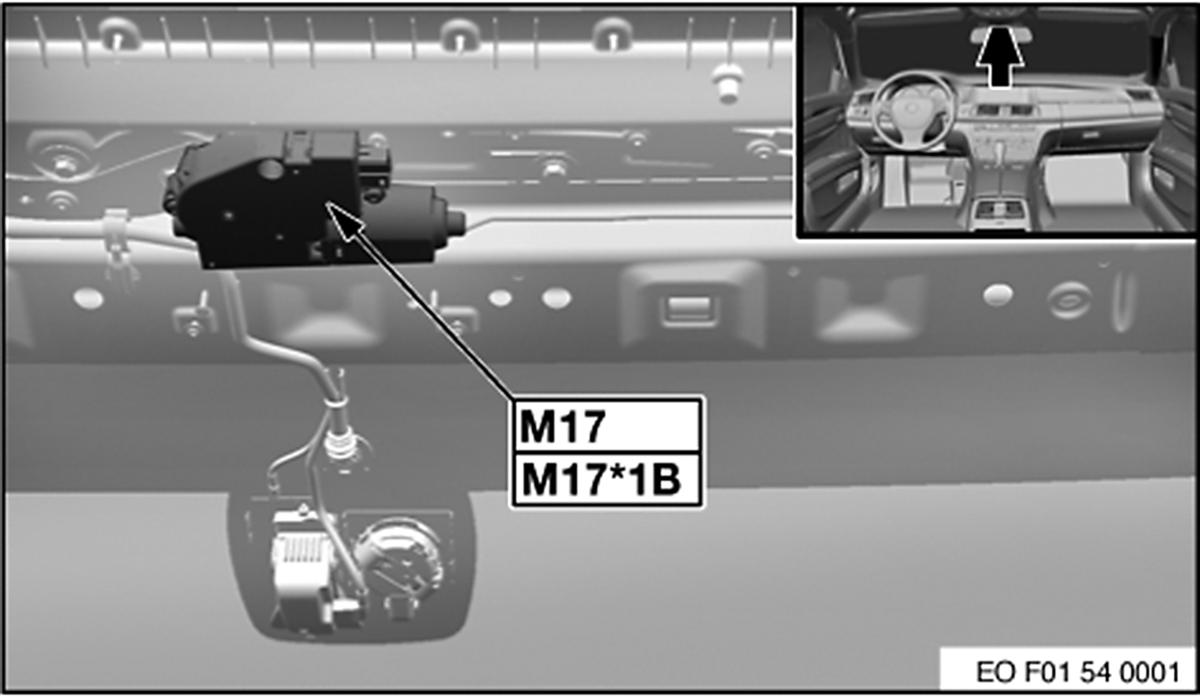

| Slide/Tilt Sunroof Drive Unit (M17) | Center front of roof. See Figure. |

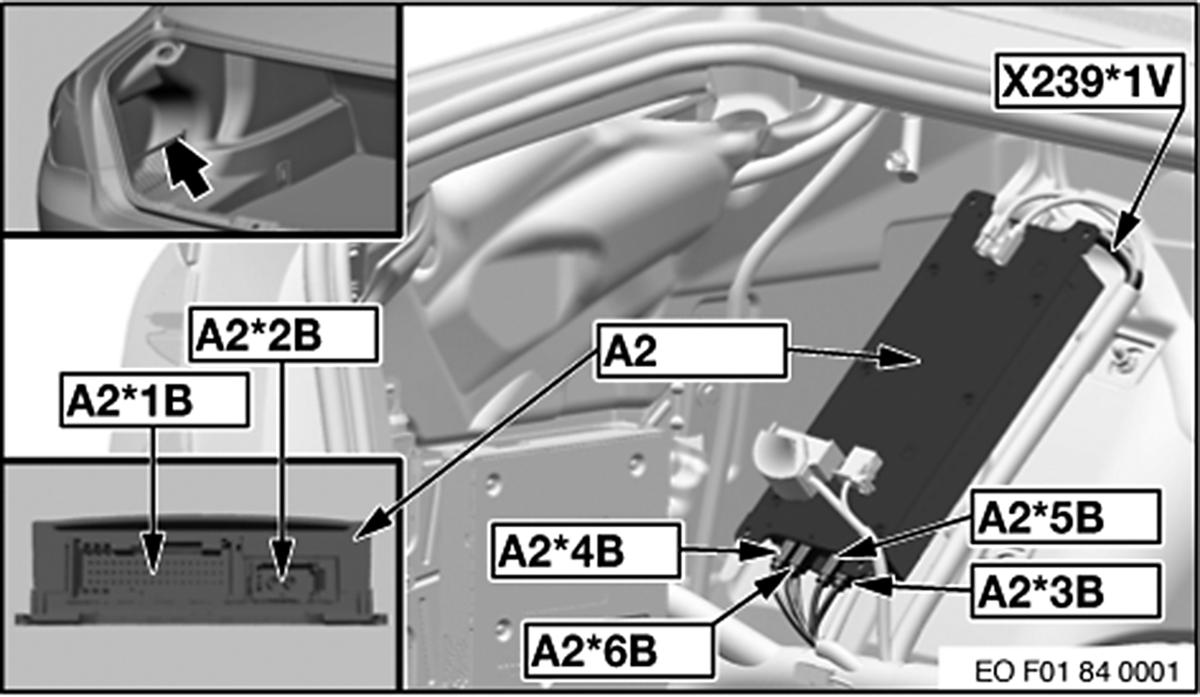

| Telematics Control Unit (A2) | Left side of luggage compartment. See Figure. |
| Tire Pressure Control (A66) | Right rear of luggage compartment. See Figure. |

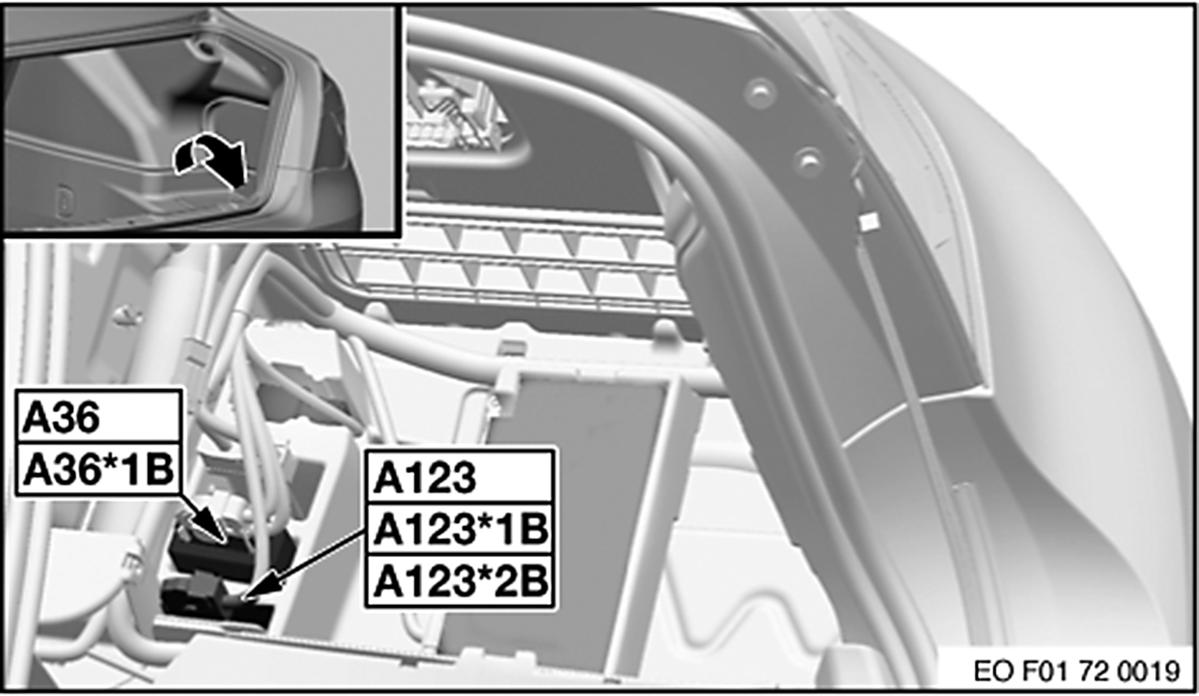

| Trailer Module (A36) | Right side of luggage compartment. See Figure. |

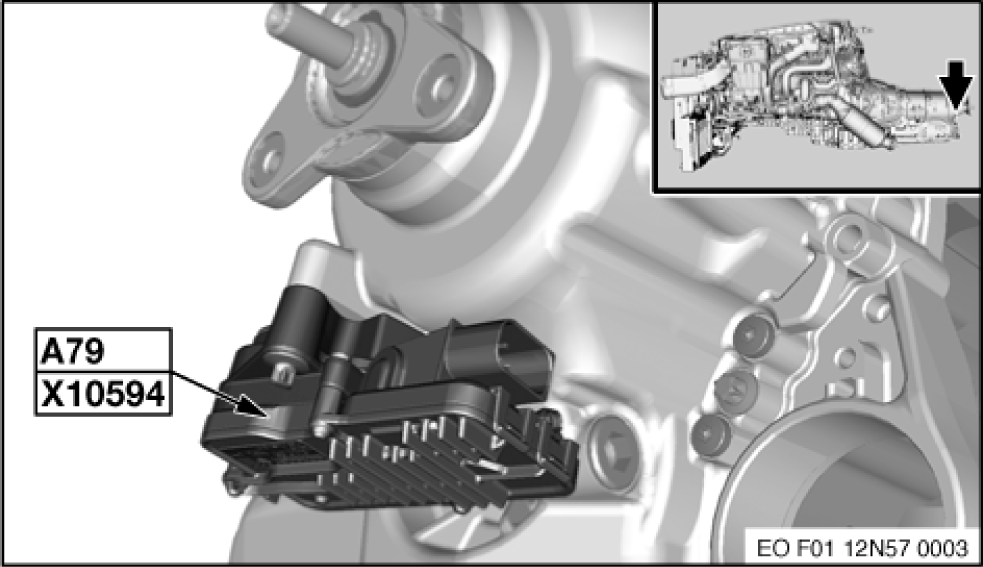

| Transfer Box (A79) | Rear of transmission. See Figure. |

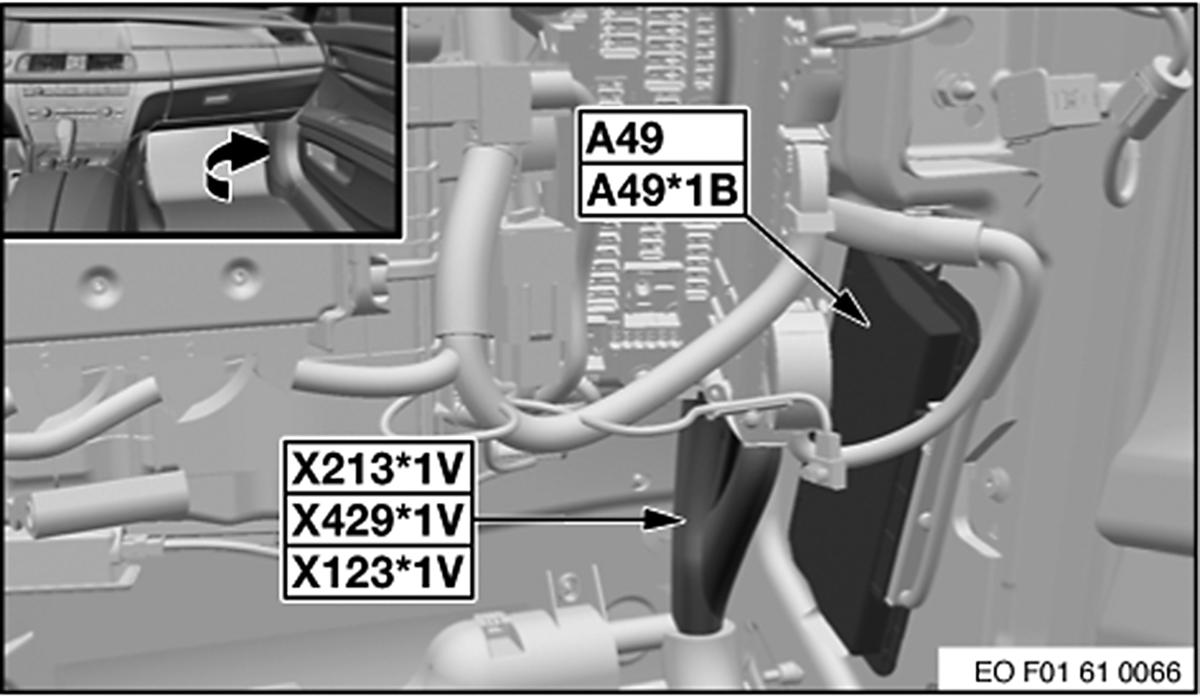

| Vertical Dynamics Management (A49) | Right kick panel. See Figure. |

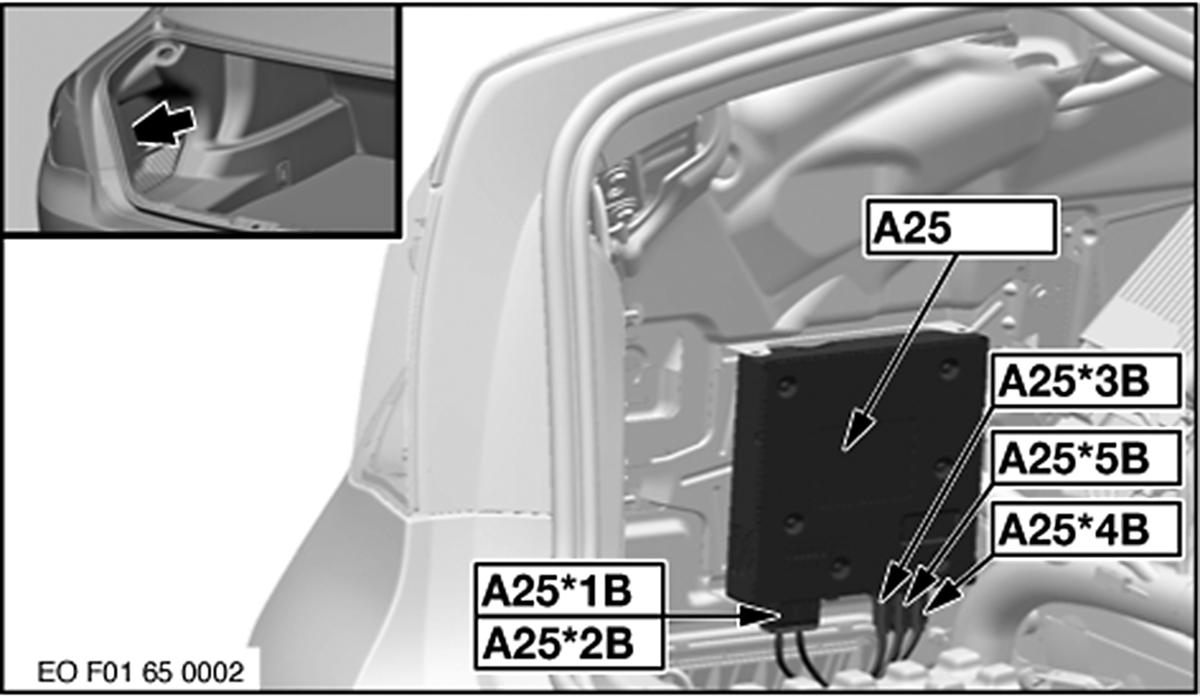

| Video Module (A25) | Left rear of luggage compartment. See Figure. |

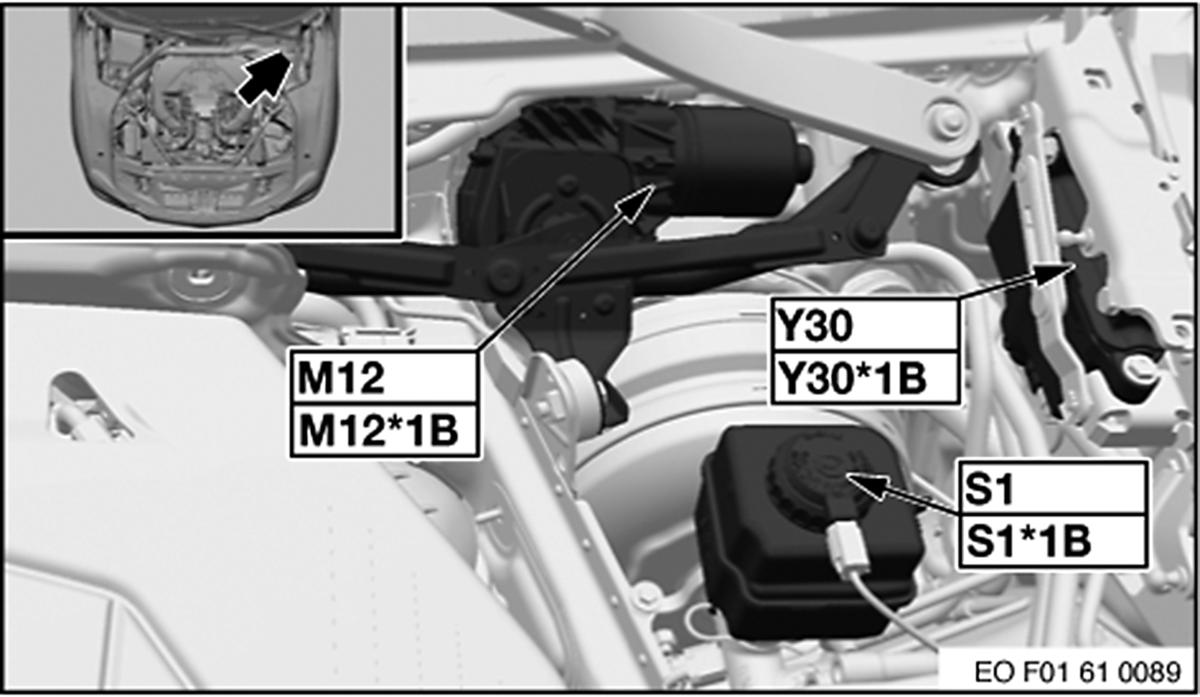

| Wiper Module (M12) | Left rear of engine compartment. See Figure. |
