Control Units
CONTROL UNITS LOCATION

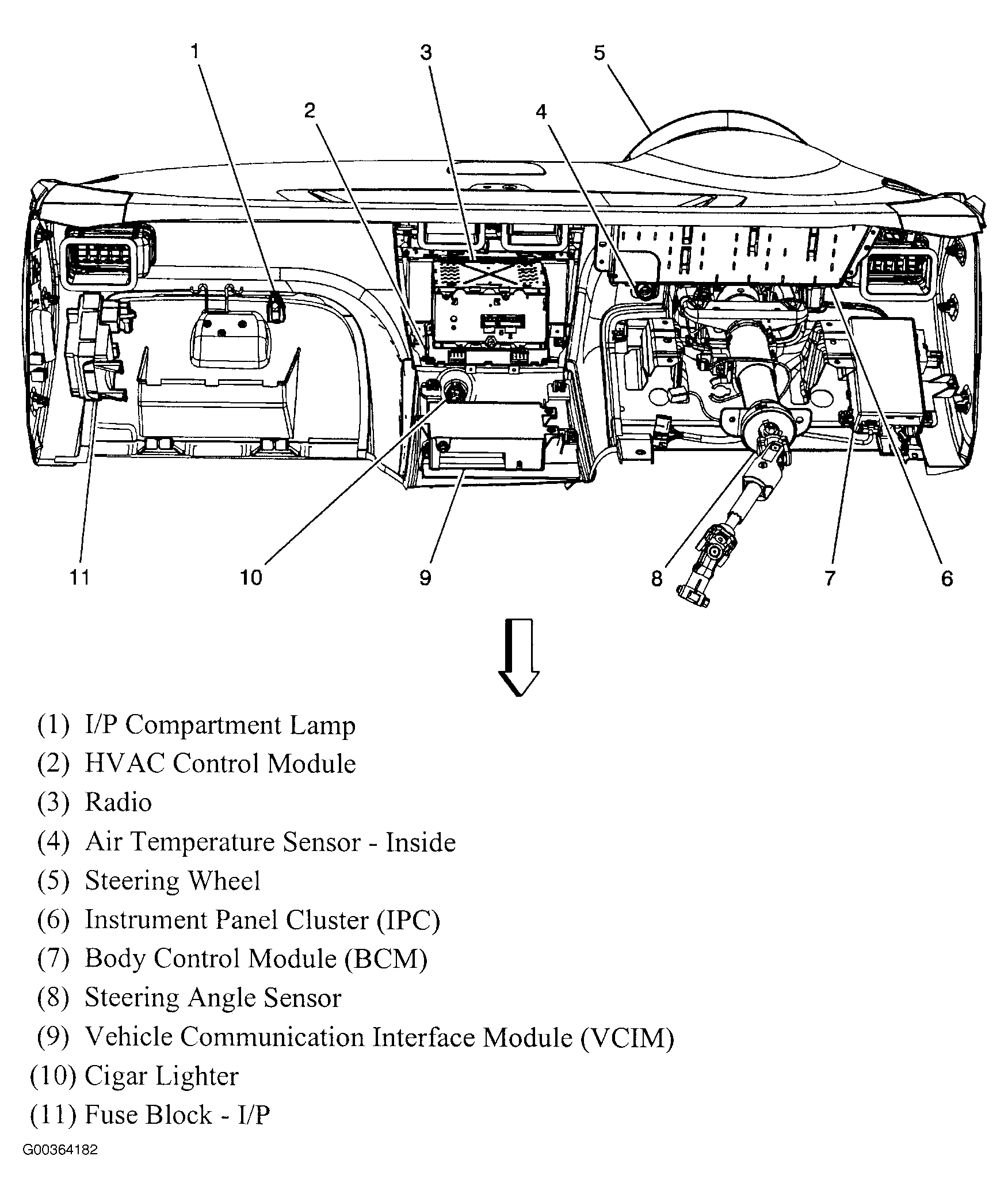

| Component | Location |
|---|---|
| Blower Motor Control Processor | On lower right side of dash. See Figure. |
| Body Control Module (BCM) | Behind left side of dash, left of steering column. See Figure. |
| Coolant Level Module | On right side of radiator. |
| Cruise Control Module | Front of left strut tower. |
| Daytime Running Lamps (DRL) Control Module | Behind left side of dash. |
| Driver Seat Heater Control Module | Below right side of driver's seat, mounted on seat track. |

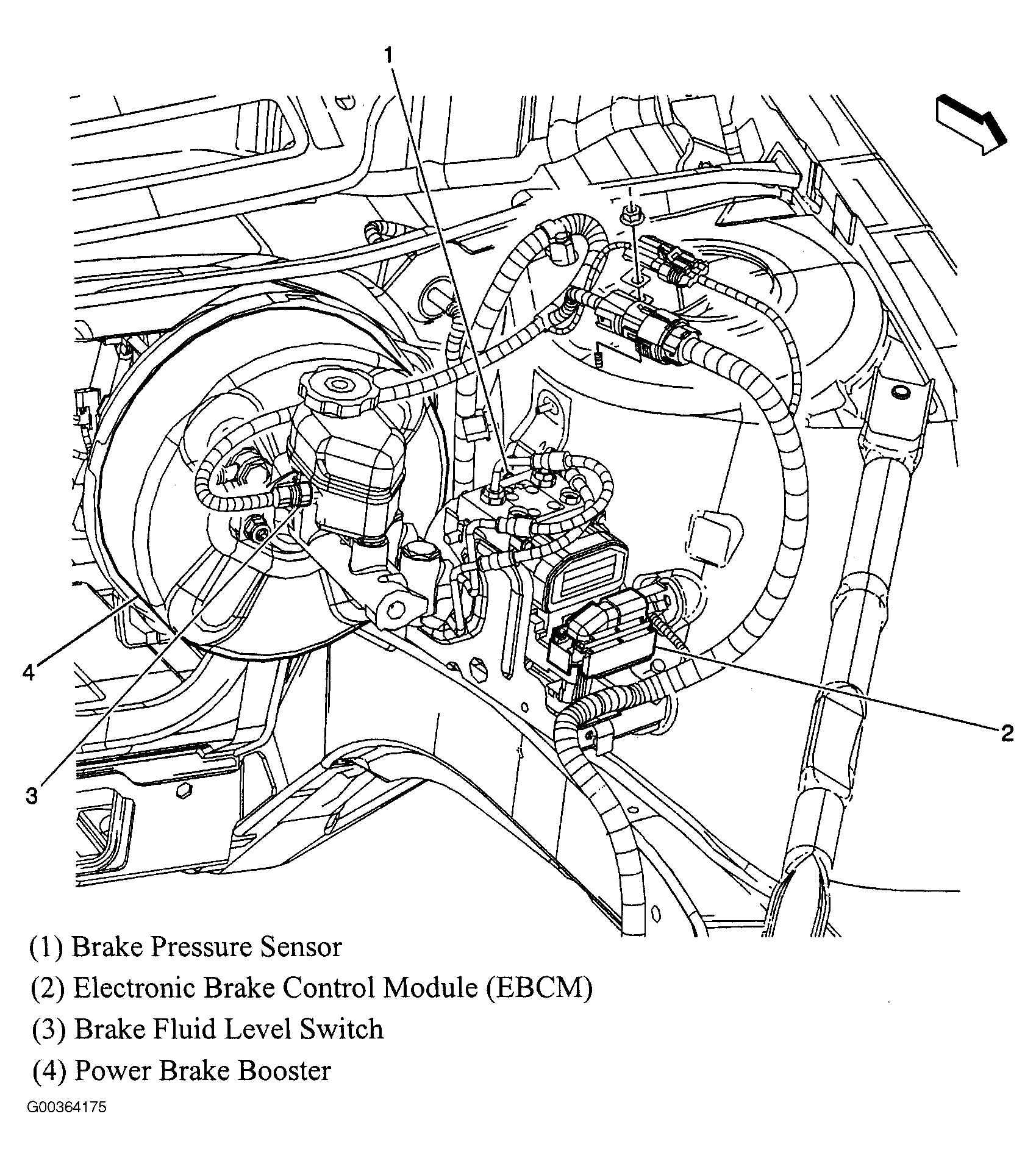

| Electronic Brake Control Module (EBCM) | Left side of engine compartment, part of brake pressure modulator valve. See Figure. |
| Electronic Compass Module | Top right side of rear package shelf. See Figure. |

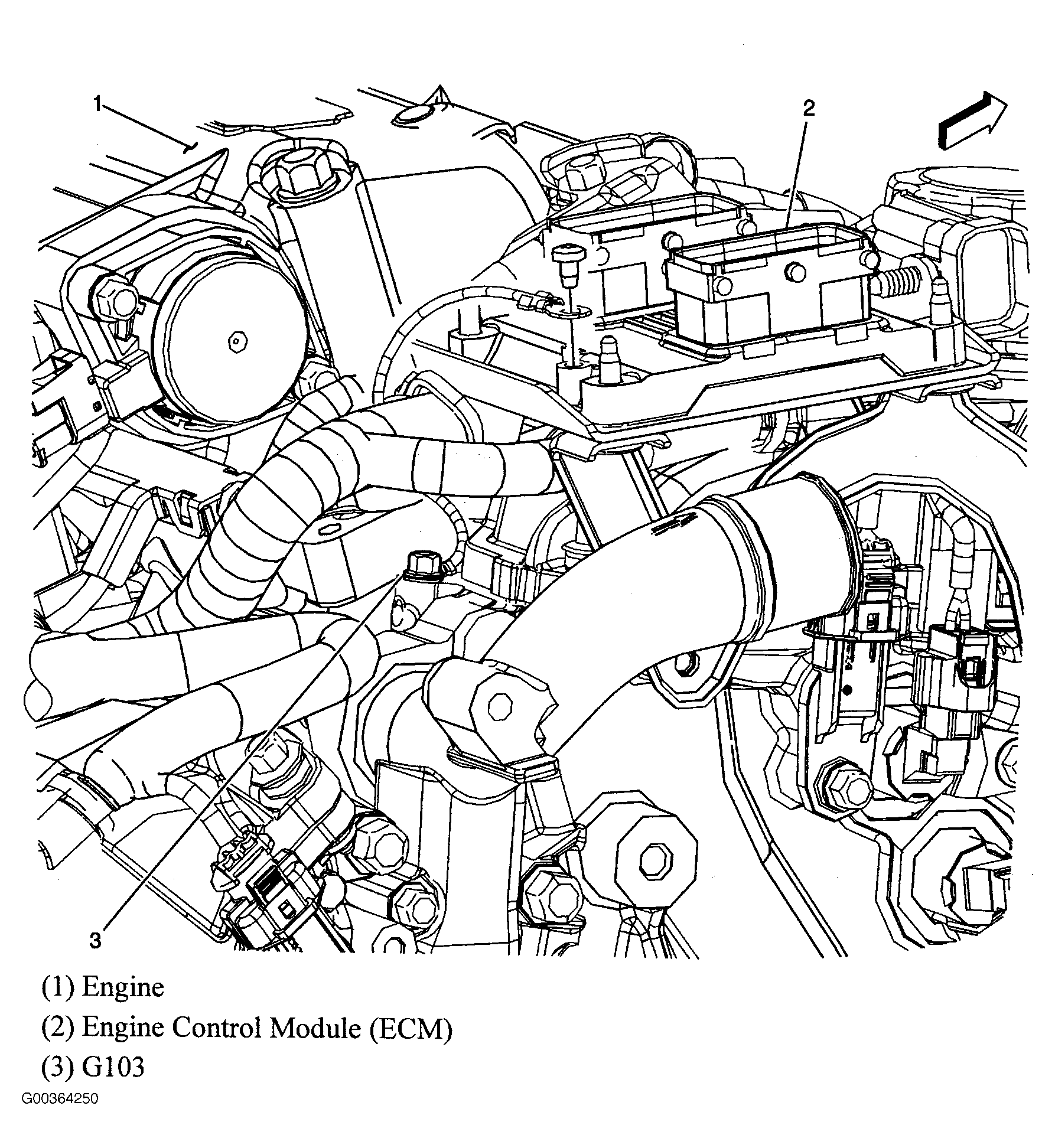

| Engine Control Module (ECM) (3.6L) | Top of engine. See Figure. |

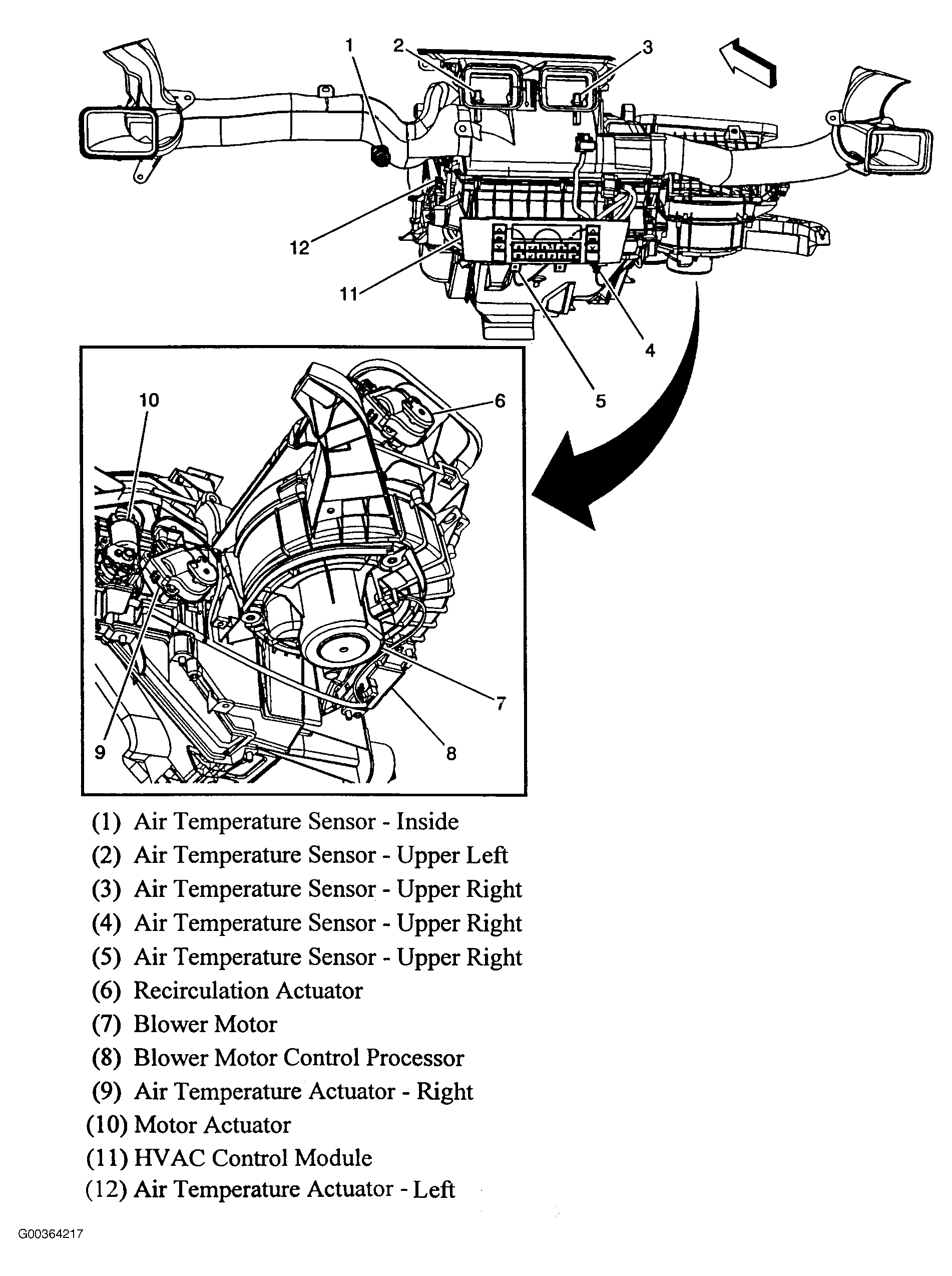

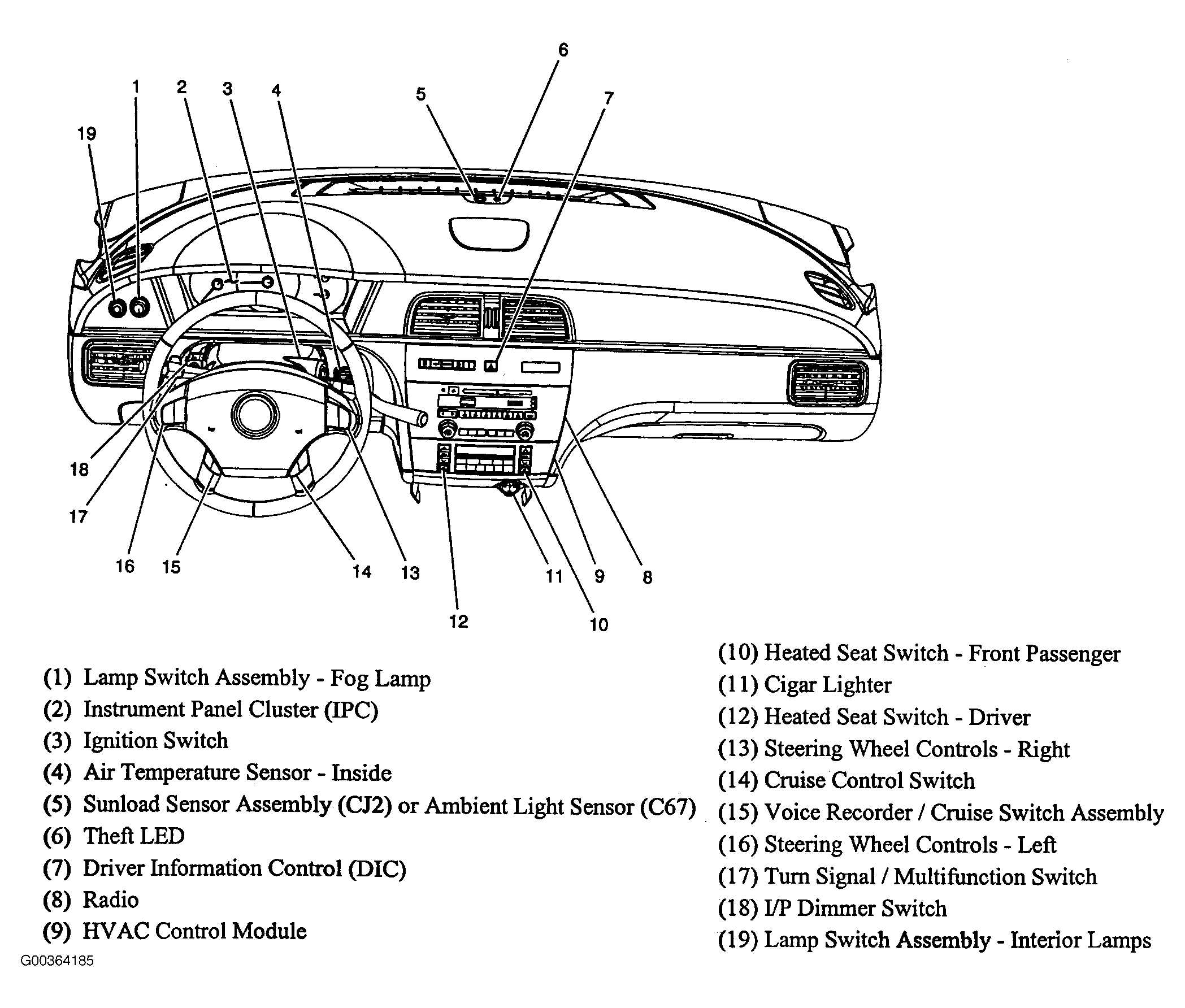

| HVAC Control Module | Center of dash. See Figure. |

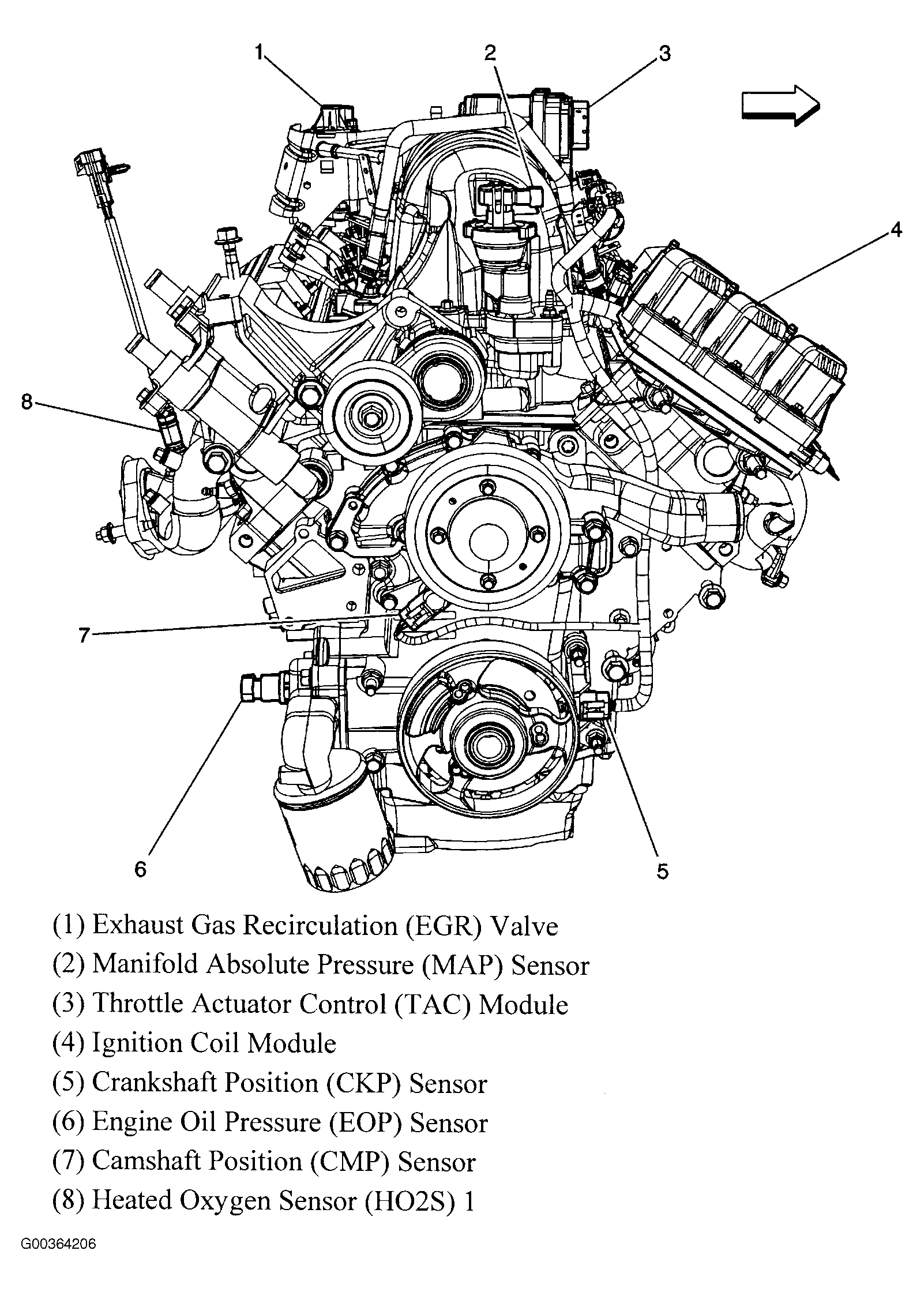

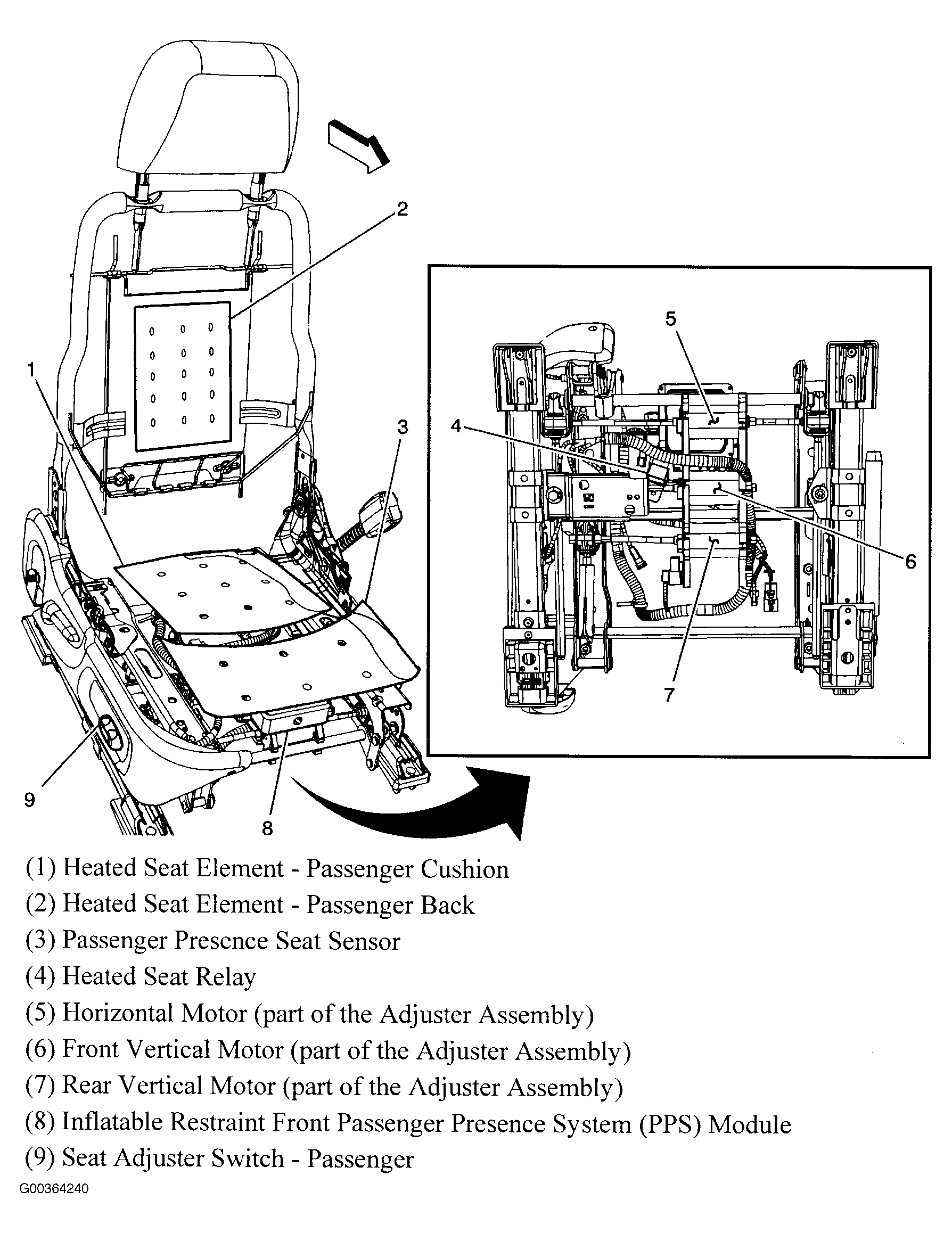

| Ignition Coil Module (ICM) (3.8L) | Top left front of engine. See Figure. |
| Inflatable Restraint Front Passenger Presence System (PPS) Module | Under front passenger's seat. See Figure. |
| Inflatable Restraint I/P Module | Behind right side of dash. See Figure. |
| Inflatable Restraint I/P Module Connector | Right side of dash. |

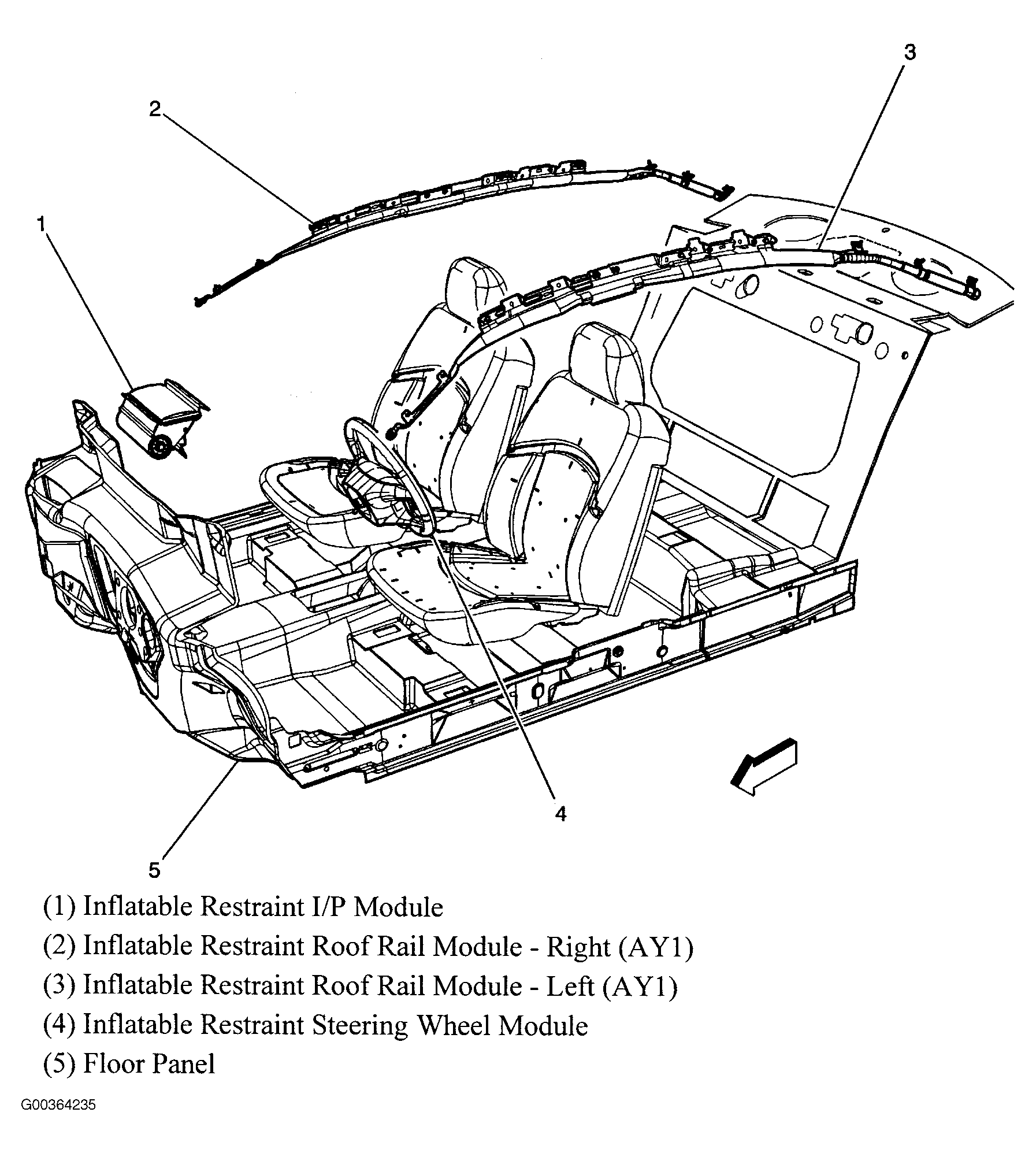

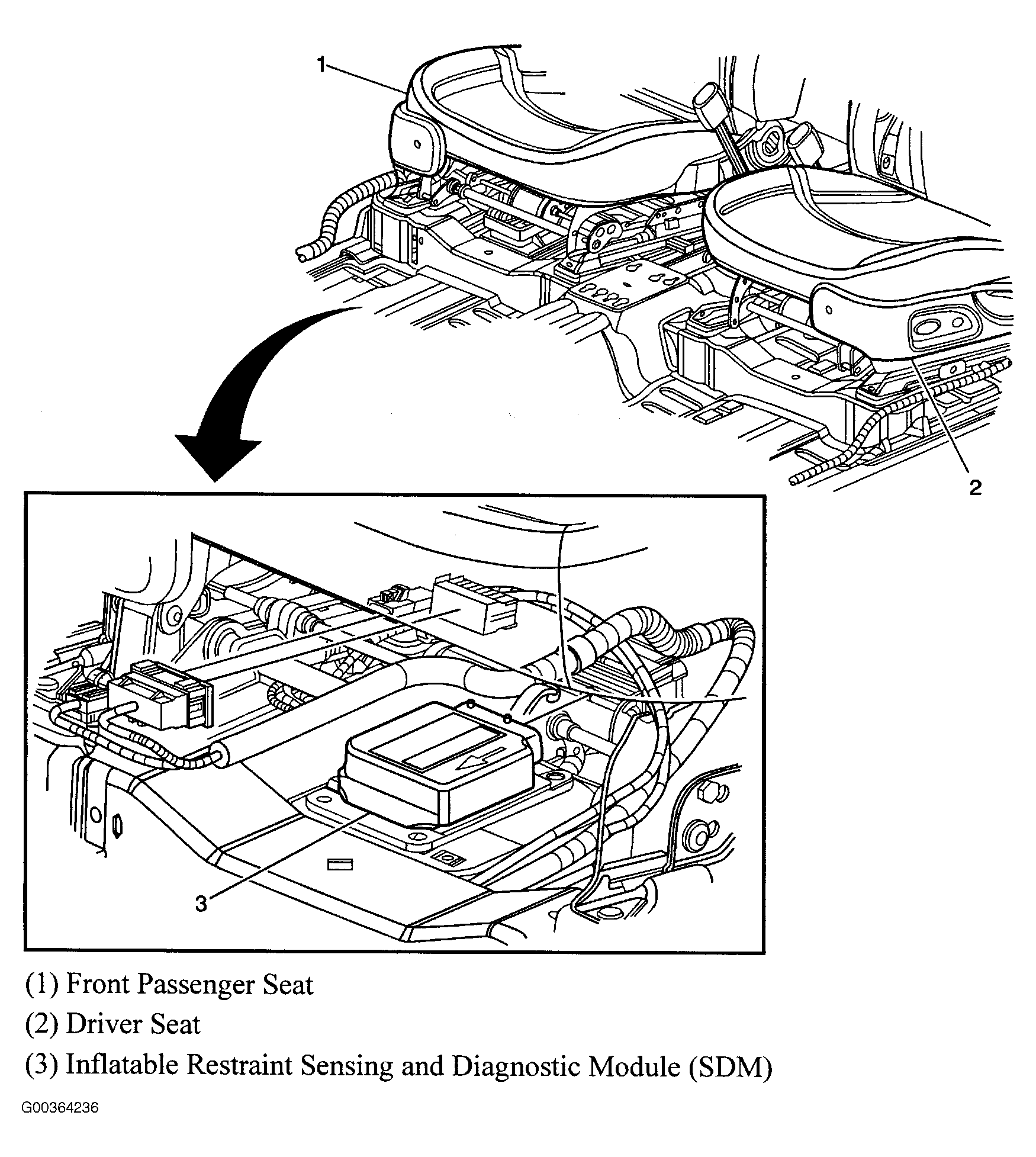

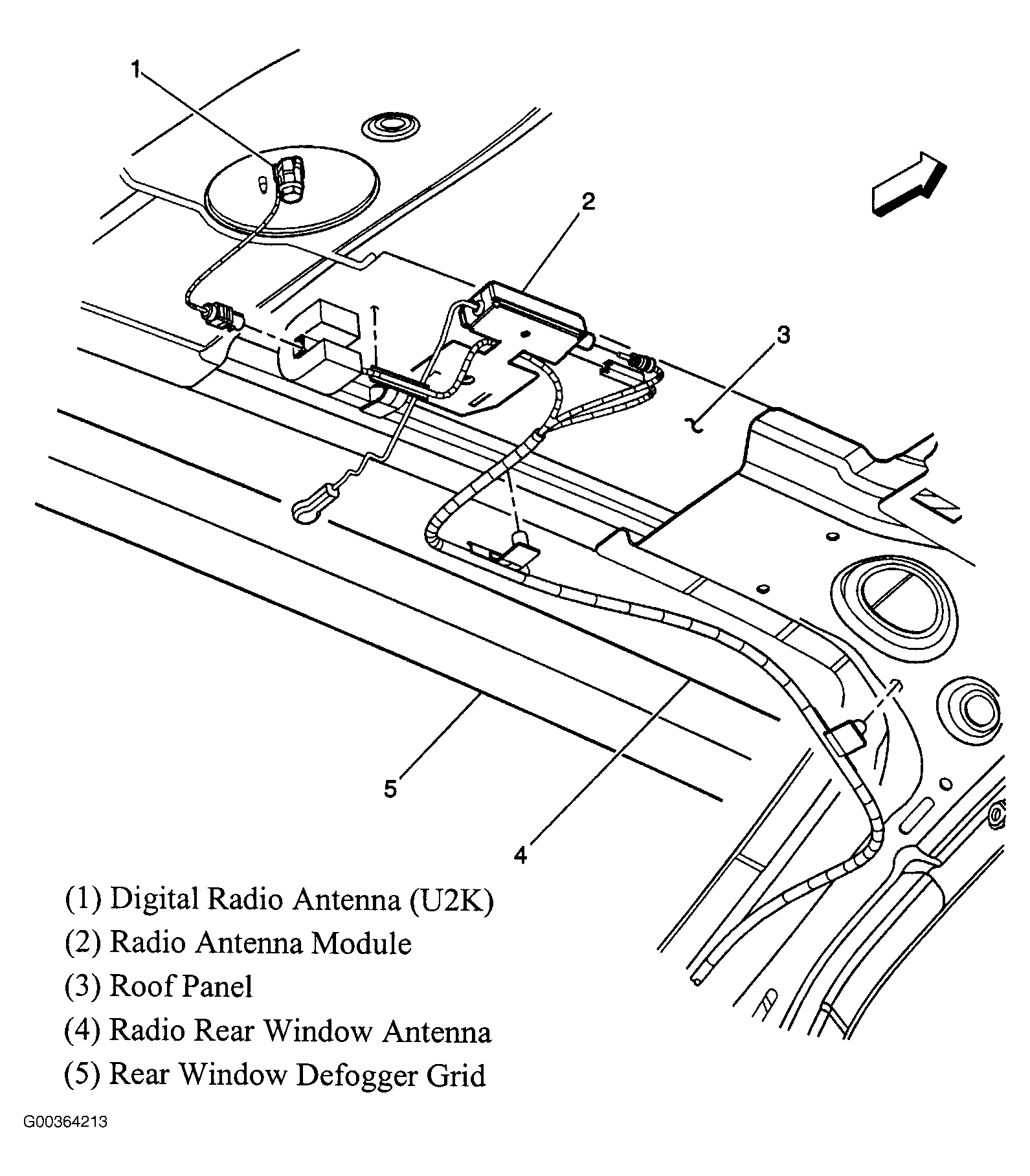

| Inflatable Restraint Roof Rail Module - Left | Left side roof line. See Figure. |
| Inflatable Restraint Roof Rail Module - Right | Right side roof line. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under right front seat. See Figure. |
| Inflatable Restraint Steering Wheel Module | In steering wheel assembly. See Figure. |
| Radio Antenna Module | Center rear of roof. See Figure. |
| Radio Rear Window Antenna | At top of rear window. See Figure. |

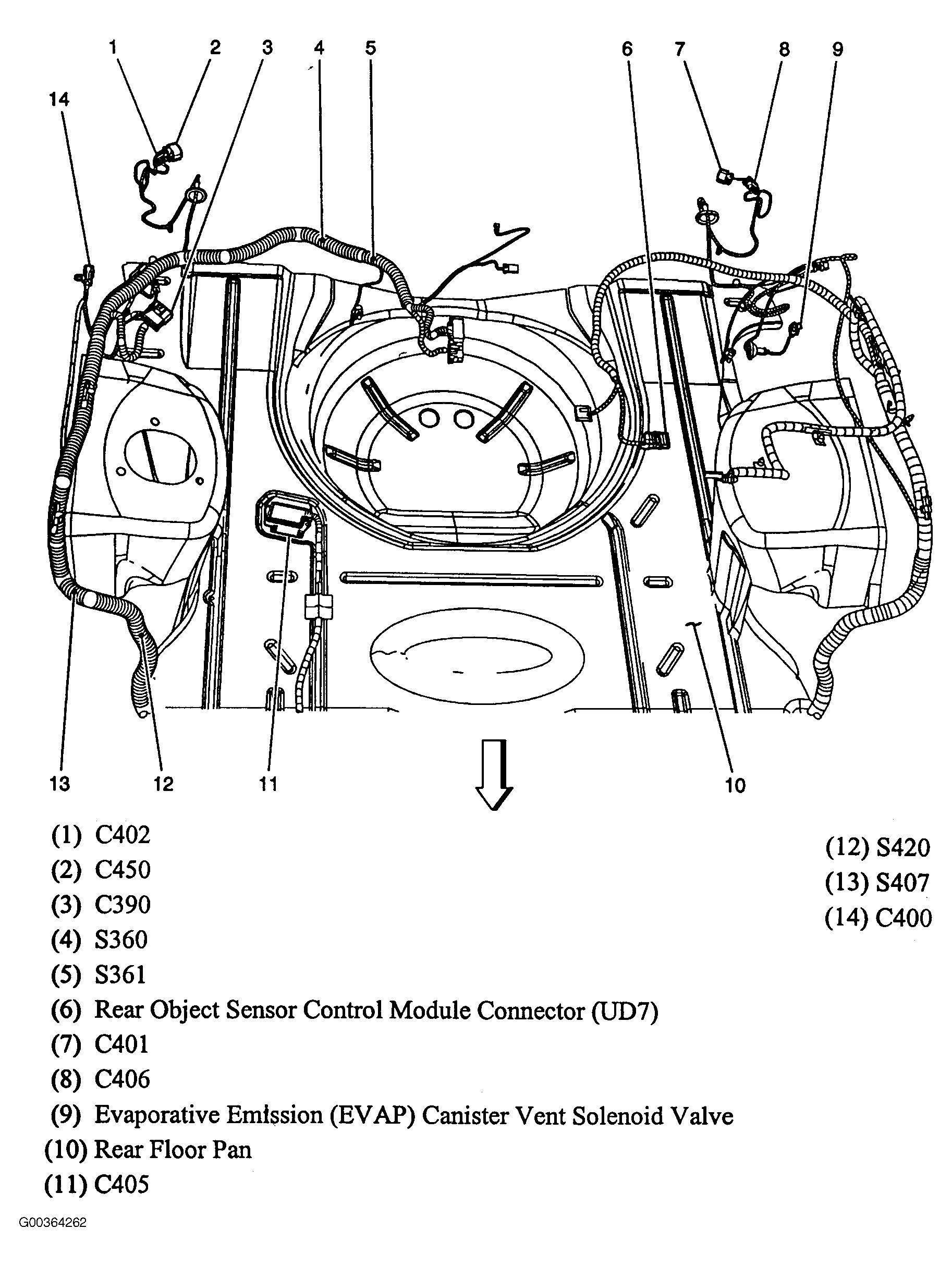

| Rear Object Sensor Control Module Connector | Left side of spare tire well. See Figure. |
| Rear Parking Assistant (RPA) Module | Center of rear package shelf. See Figure. |
| Rear Window Shelf | Center of rear package shelf. See Figure. |

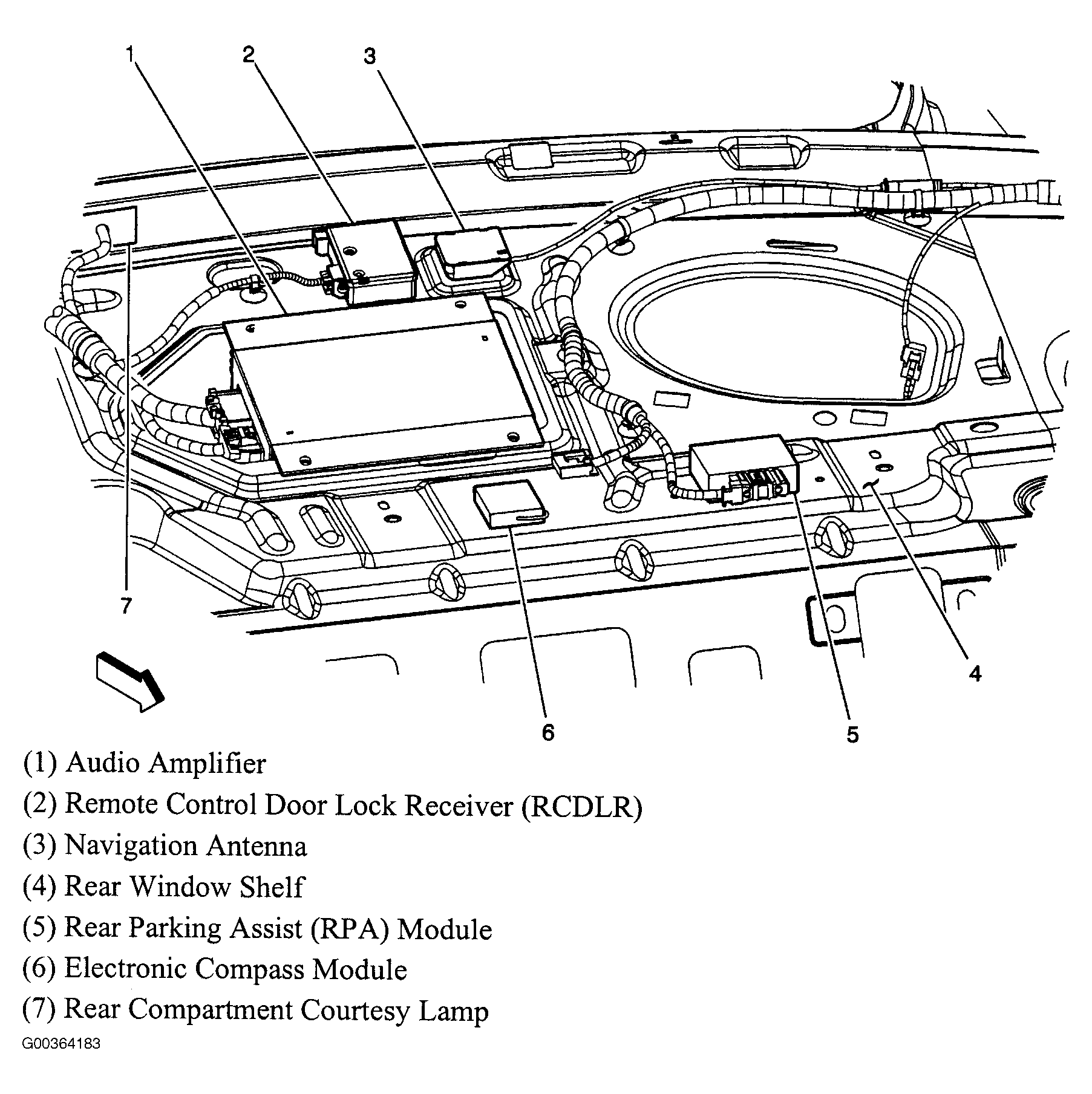

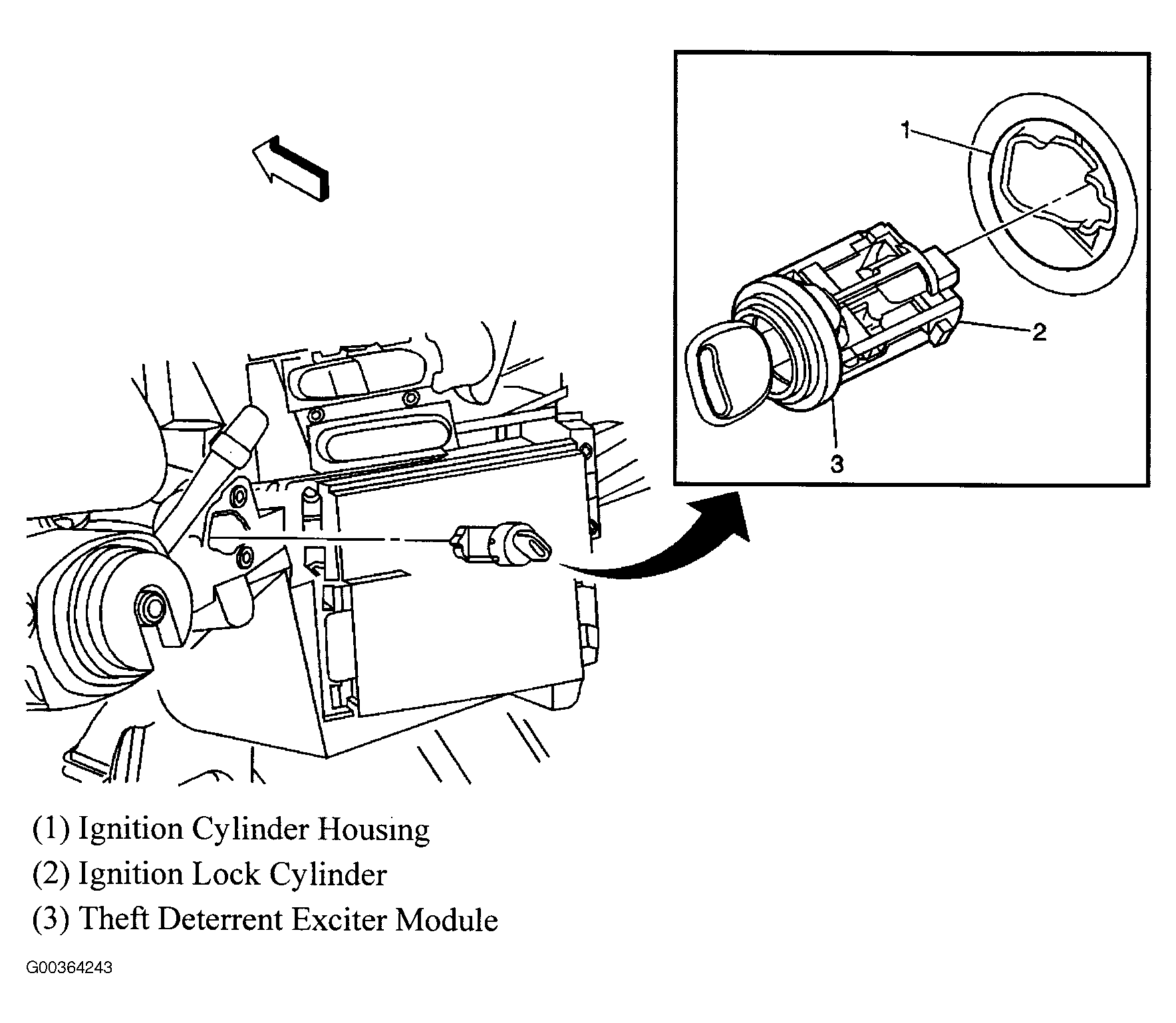

| Remote Control Door Lock Receiver (RCDLR) | On right side of rear package shelf. See Figure. |
| Theft Deterrent Exciter Module | Part of ignition key cylinder. See Figure. |

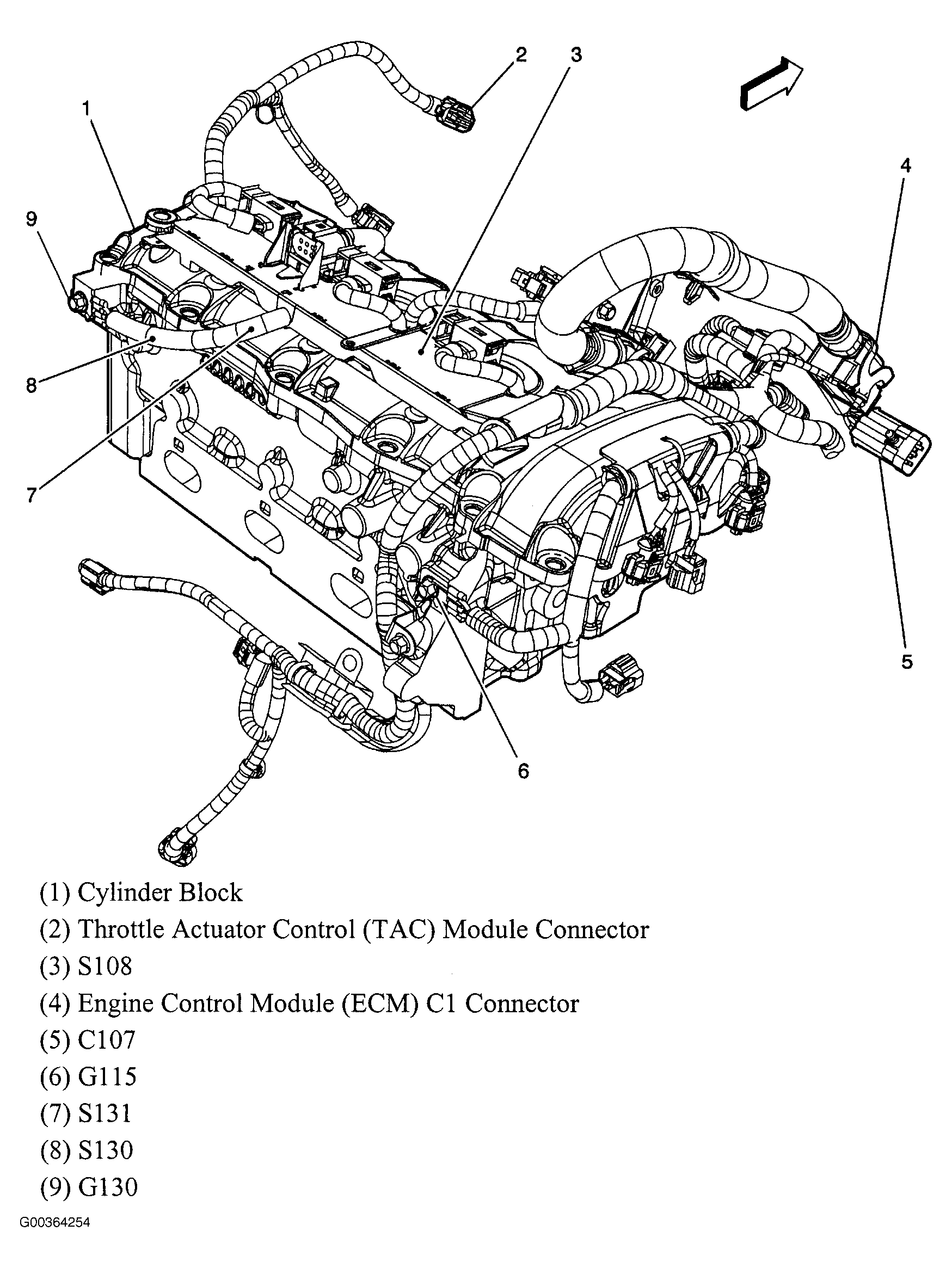

| Throttle Actuator Control (TAC) Module Connector (3.6L) | At throttle body. See Figure. |
| Vehicle Communications Interface Module (VCIM) | Behind center of dash. See Figure. |
| Vehicle Interface Unit | In trunk, on left wheelwell. |
