Miscellaneous Controls
MISCELLANEOUS CONTROLS
| Component | Component Location |
|---|---|

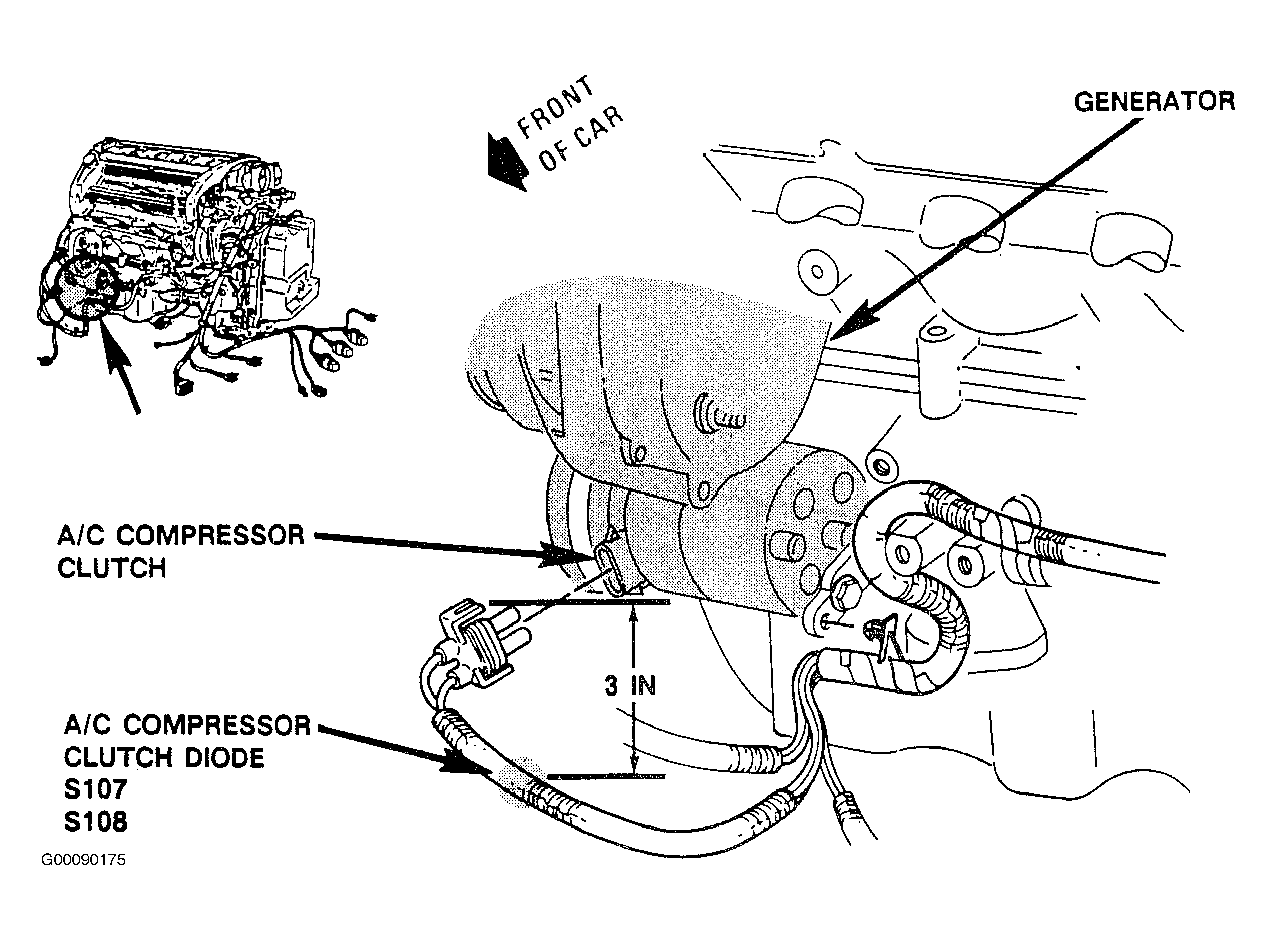

| A/C Compressor Clutch | Lower Right Front Of Engine. See Figure . |
| A/C Compressor Clutch Diode | Lower Right Front Of Engine. See Figure . |

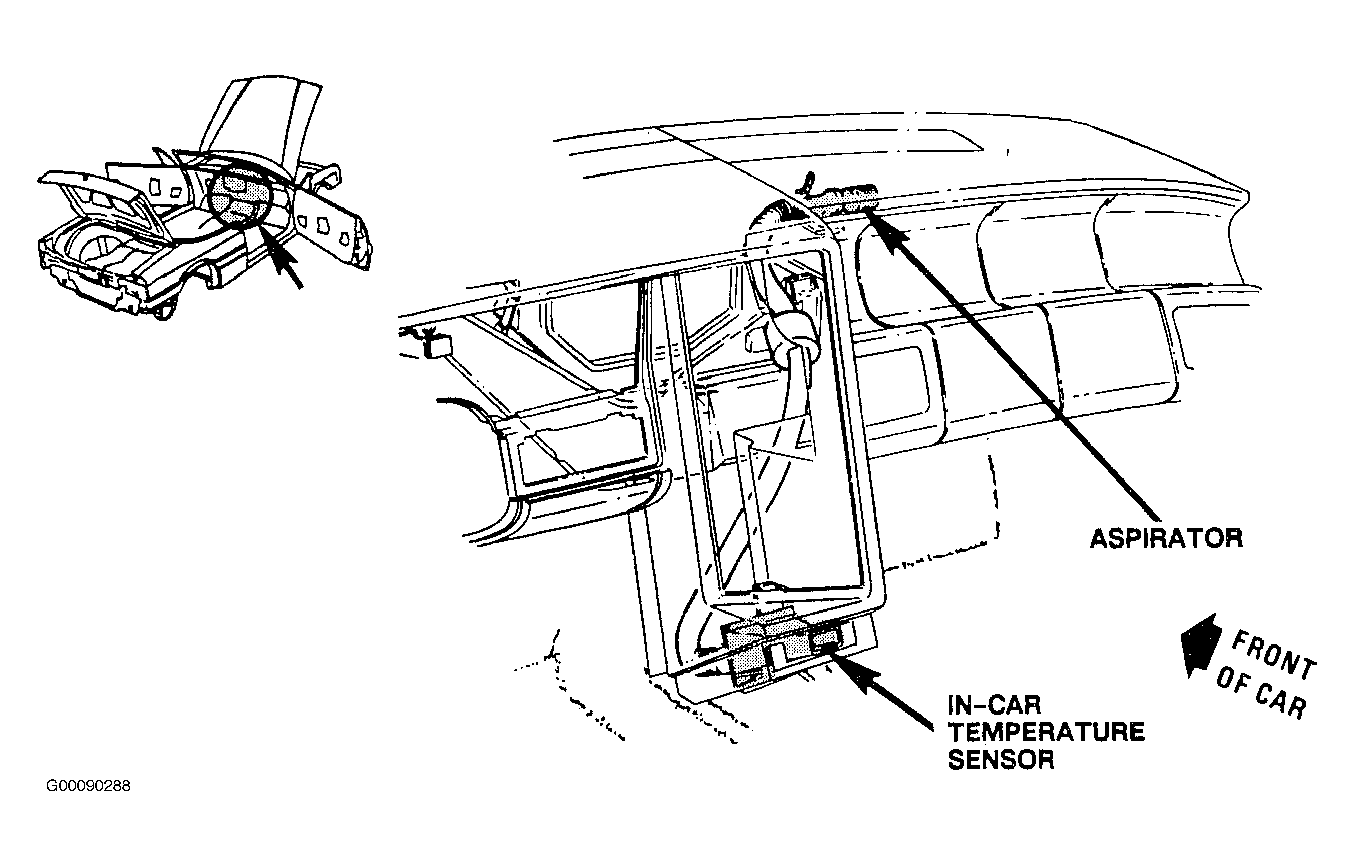

| Aspirator | Center Of Instrument Panel. See Figure . |
| Battery | Behind Passengers Seat. See Figure . |

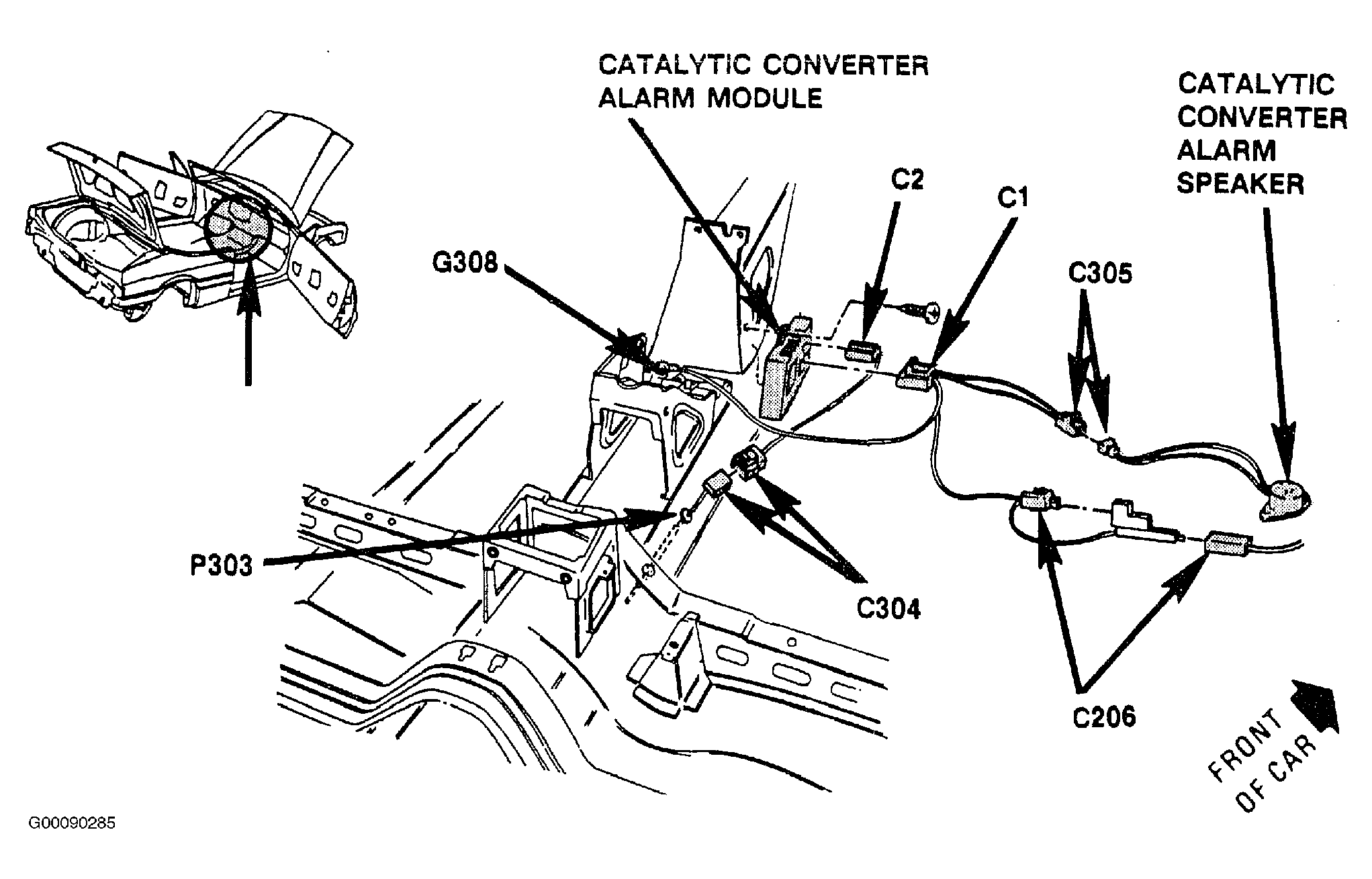

| Catalytic Converter Alarm Speaker | Under Right Side Of Instrument Panel. See Figure . |

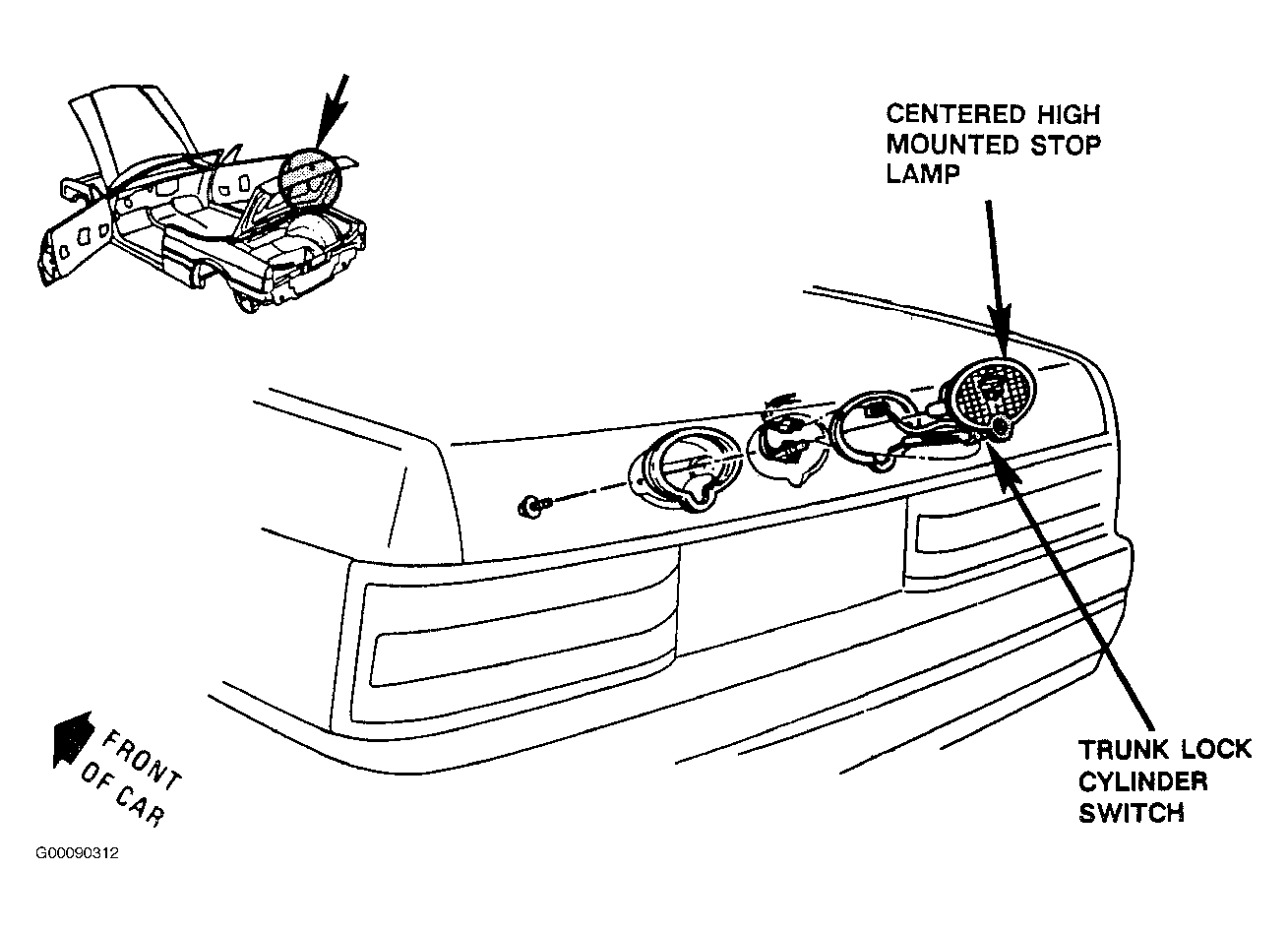

| Centered High Mounted Stop Lamp | Rear Of Trunk Lid. See Figure . |

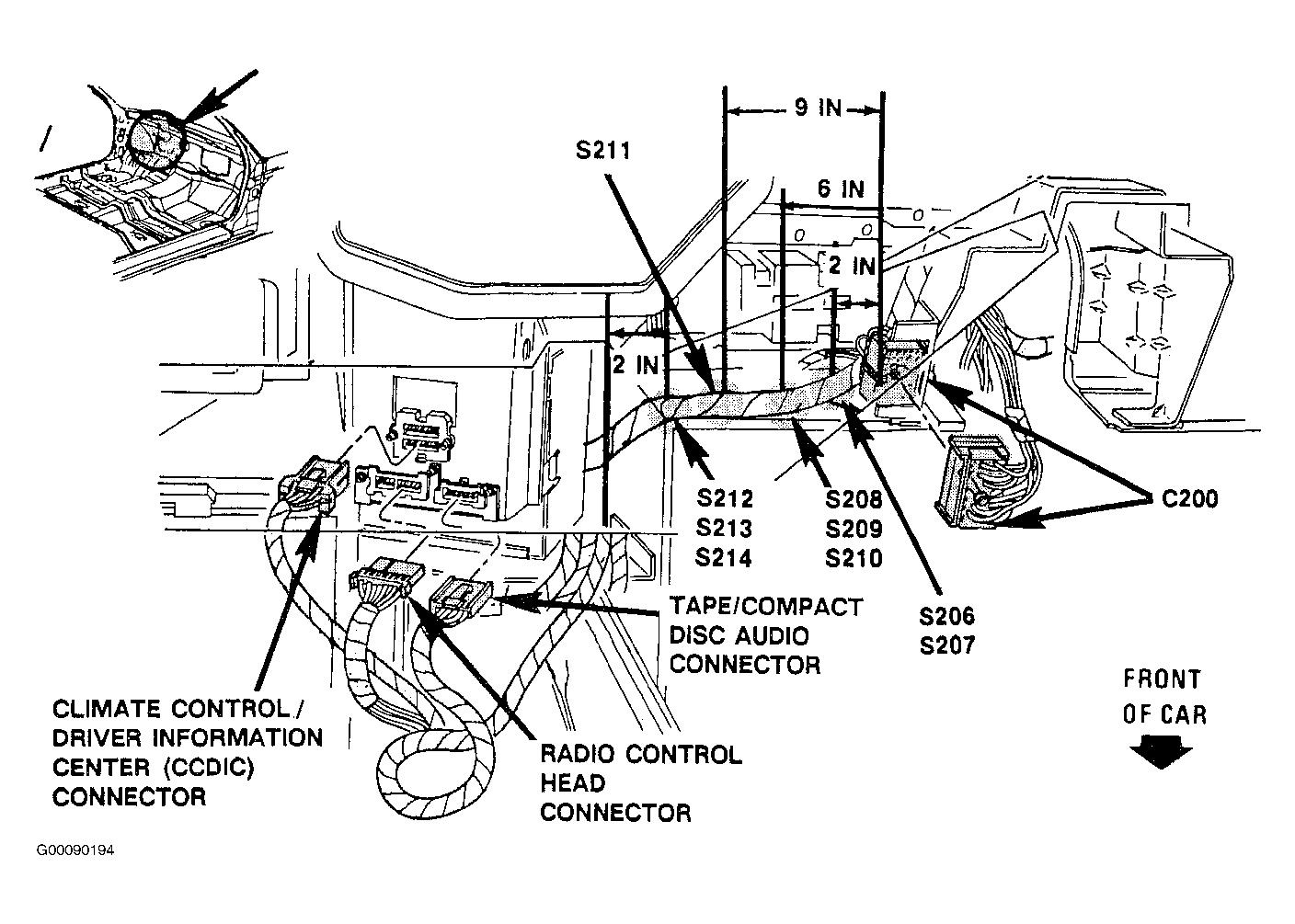

| Climate Control Driver Information Center (CCDIC) | Behind Left Side Of Instrument Panel. See Figure . |
| Data Link Connector (DLC) | Left Kick Panel. See Figure . |

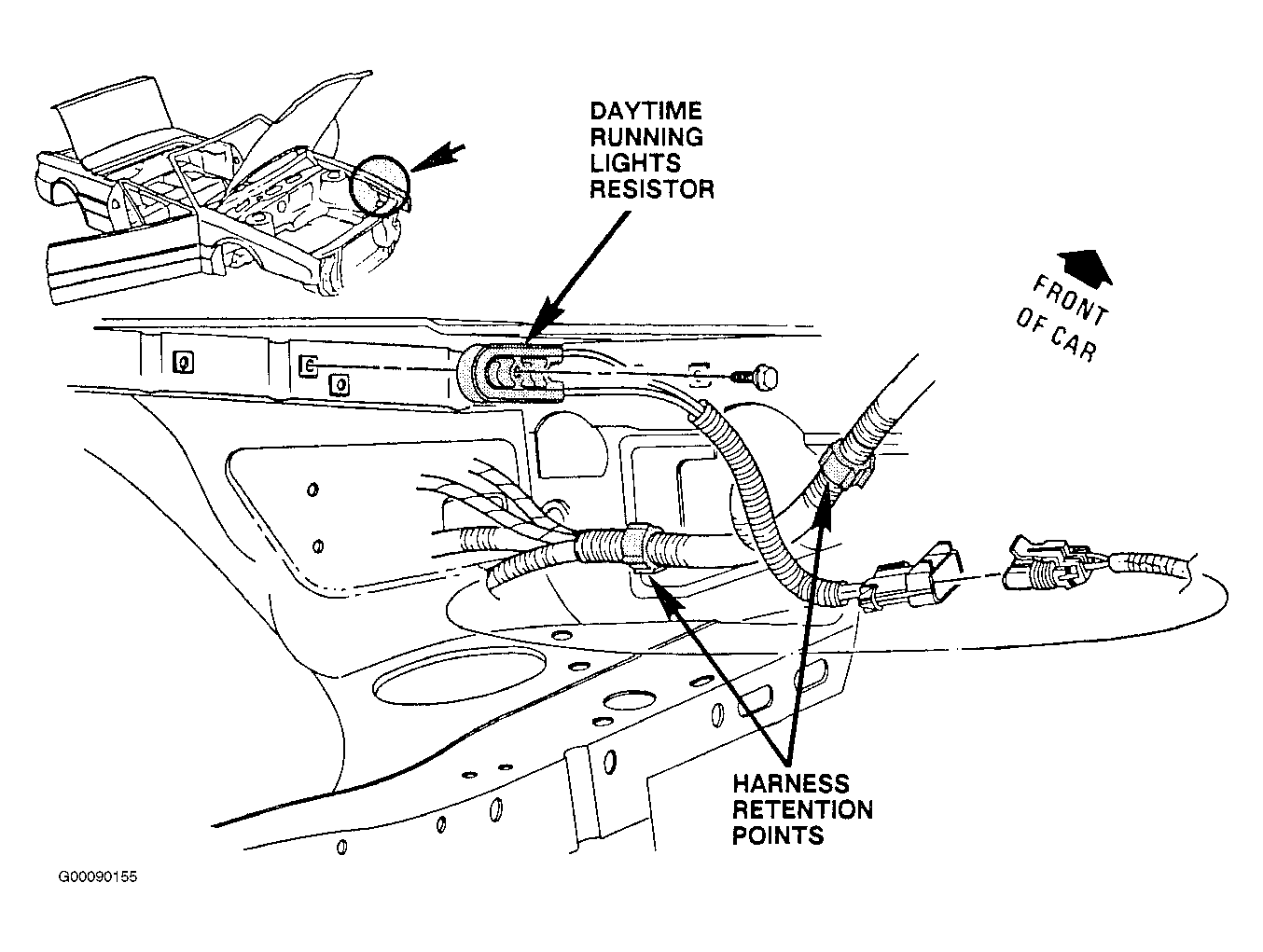

| Daytime Running Lights Resistor | Left Side Of Engine Compartment. See Figure . |
| Diode Assembly | Behind Center Of Console. See Figure . |

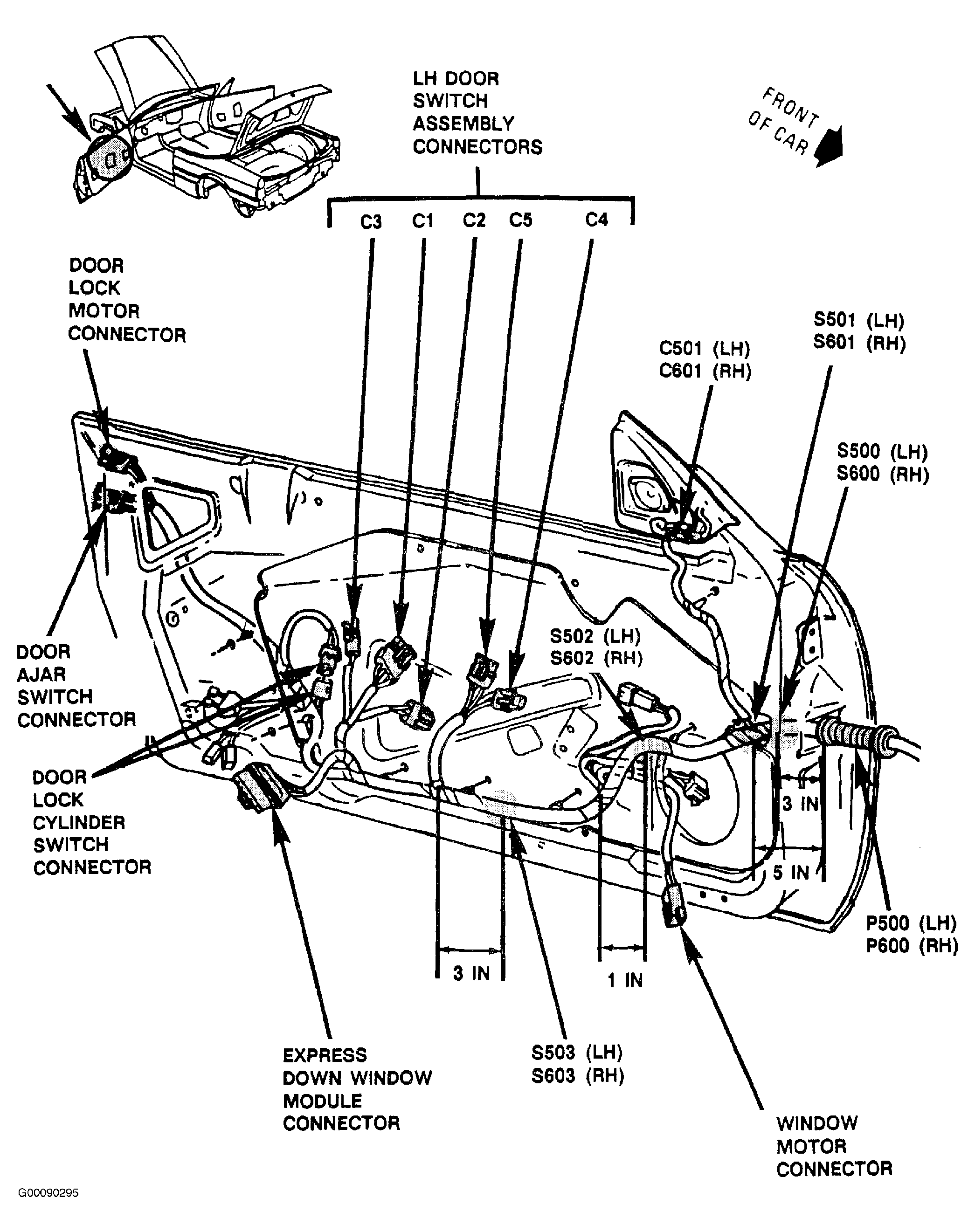

| Door Switch Assembly (Left Side) | Behind Respective Door. See Figure . |

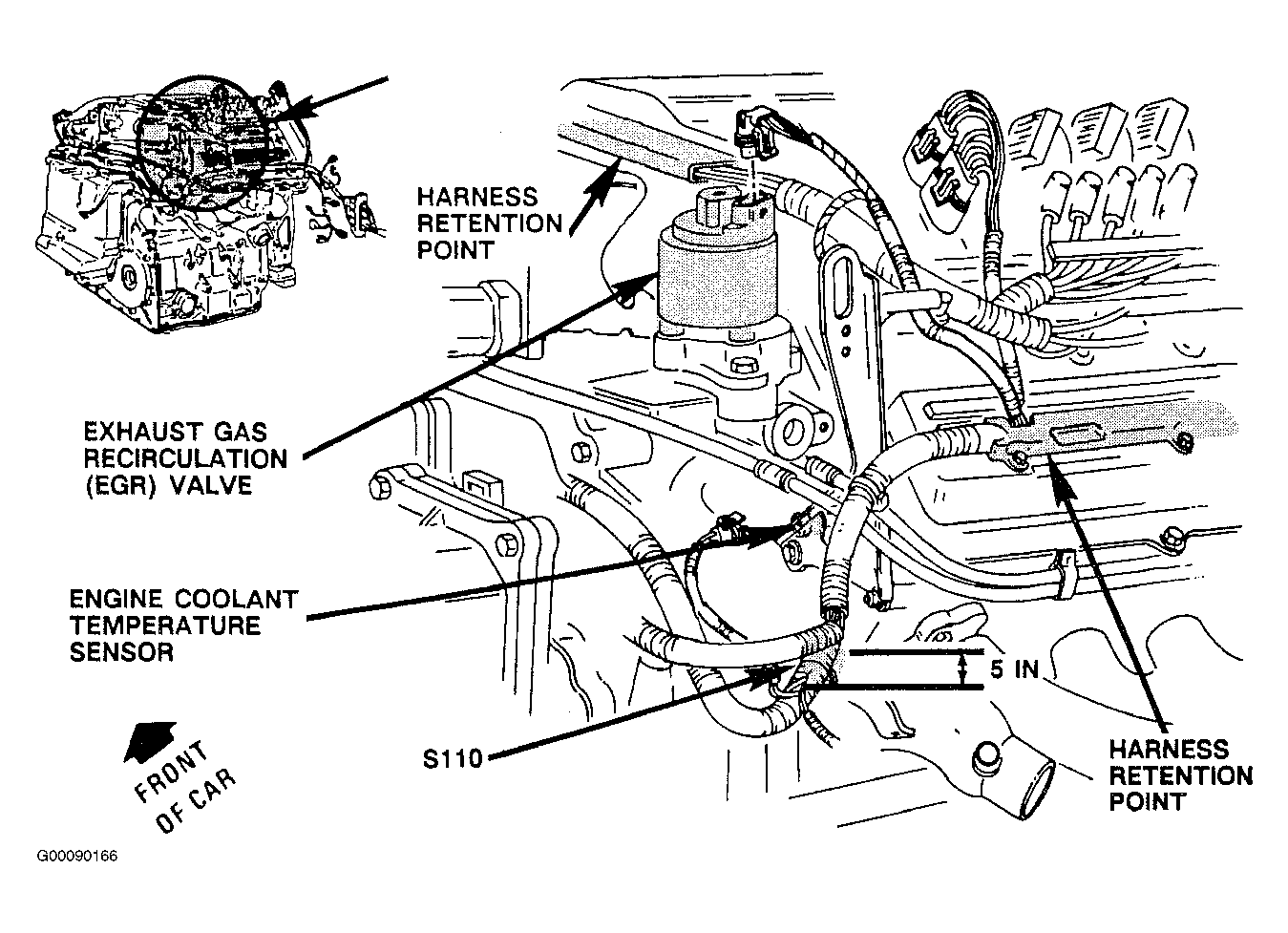

| Exhaust Gas Recirculation (EGR) Valve | Left Side Of Engine. See Figure . |
| Express Down Window Module | Behind Respective Door. See Figure . |

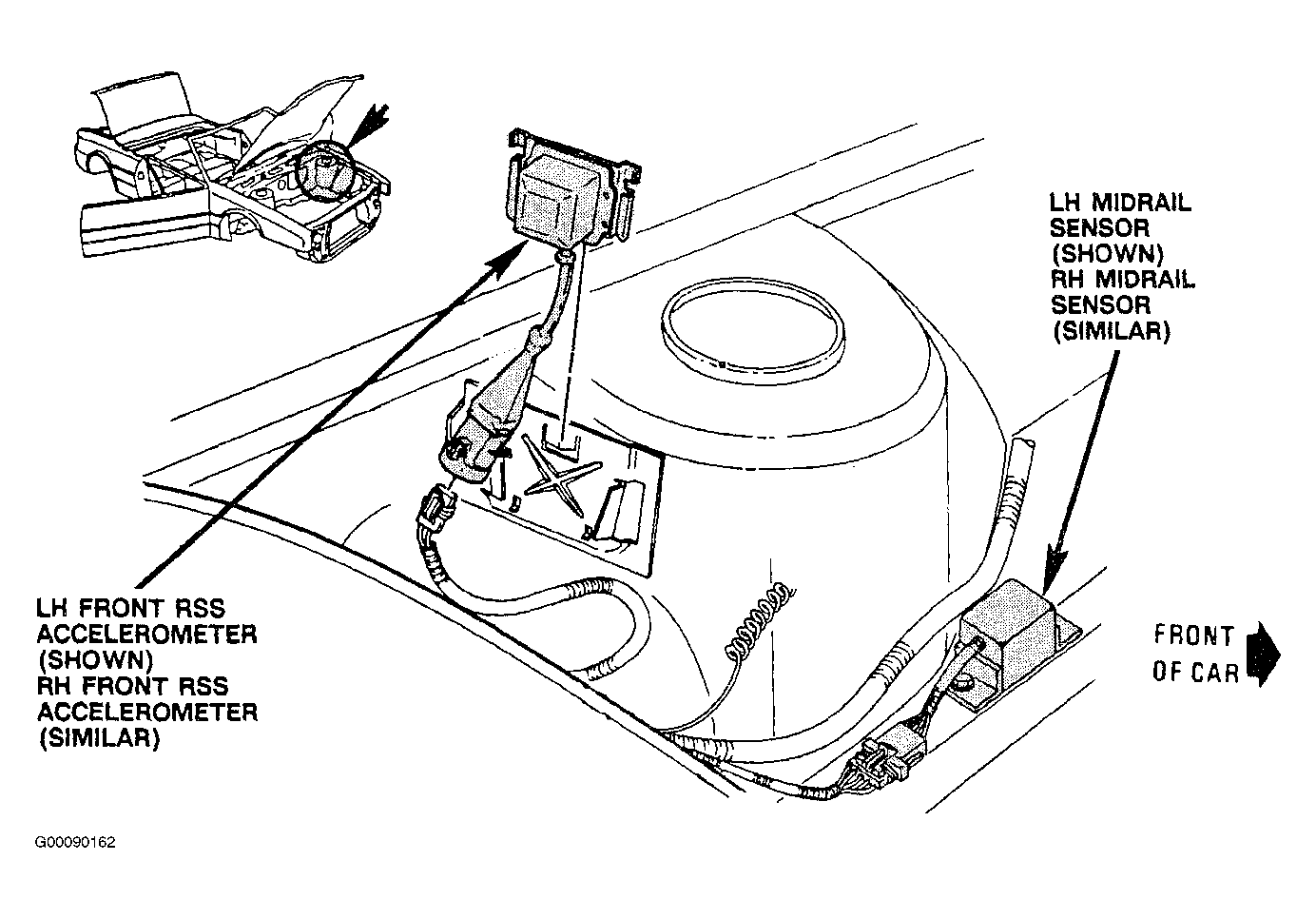

| Front RSS Accelerometer (Right/Left) | Left Rear Of Engine Compartment. See Figure . |

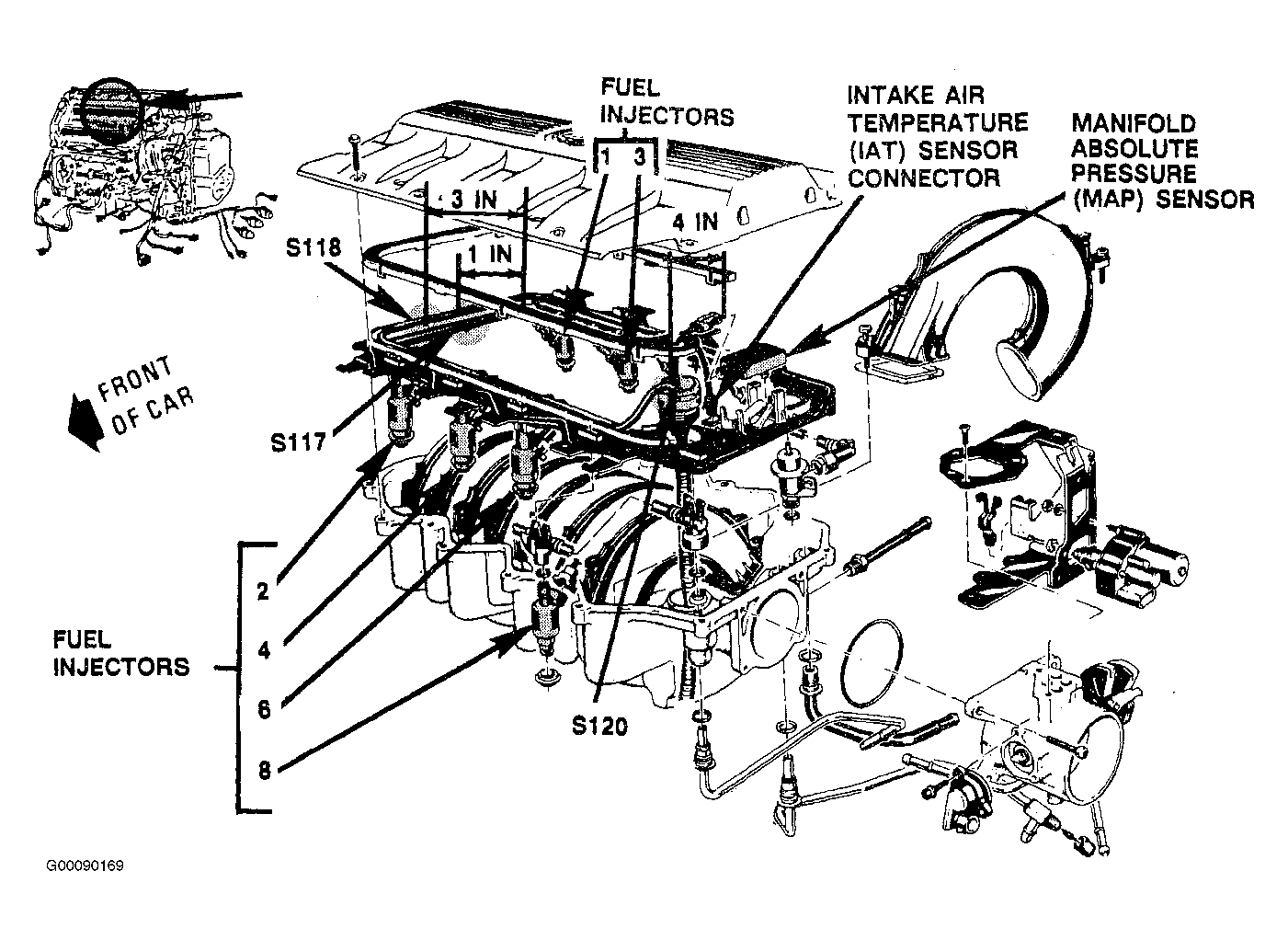

| Fuel Injectors | Top Of Engine. See Figure . |
| Fuel Tank Unit (Inside Fuel Tank) | Top Of Fuel Tank. See Figure . |

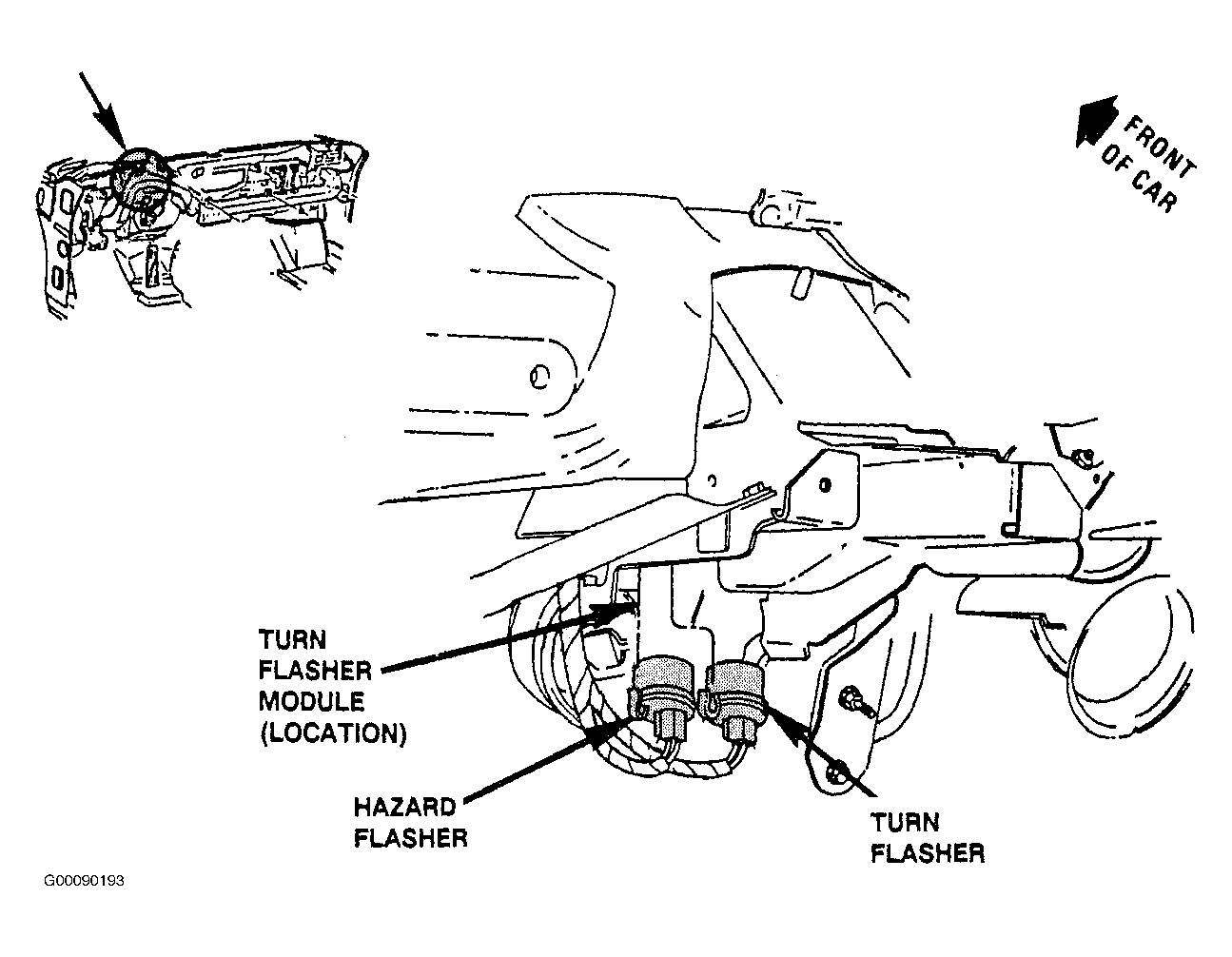

| Hazard Flasher | Behind Left Side Of Instrument Panel. See Figure . |

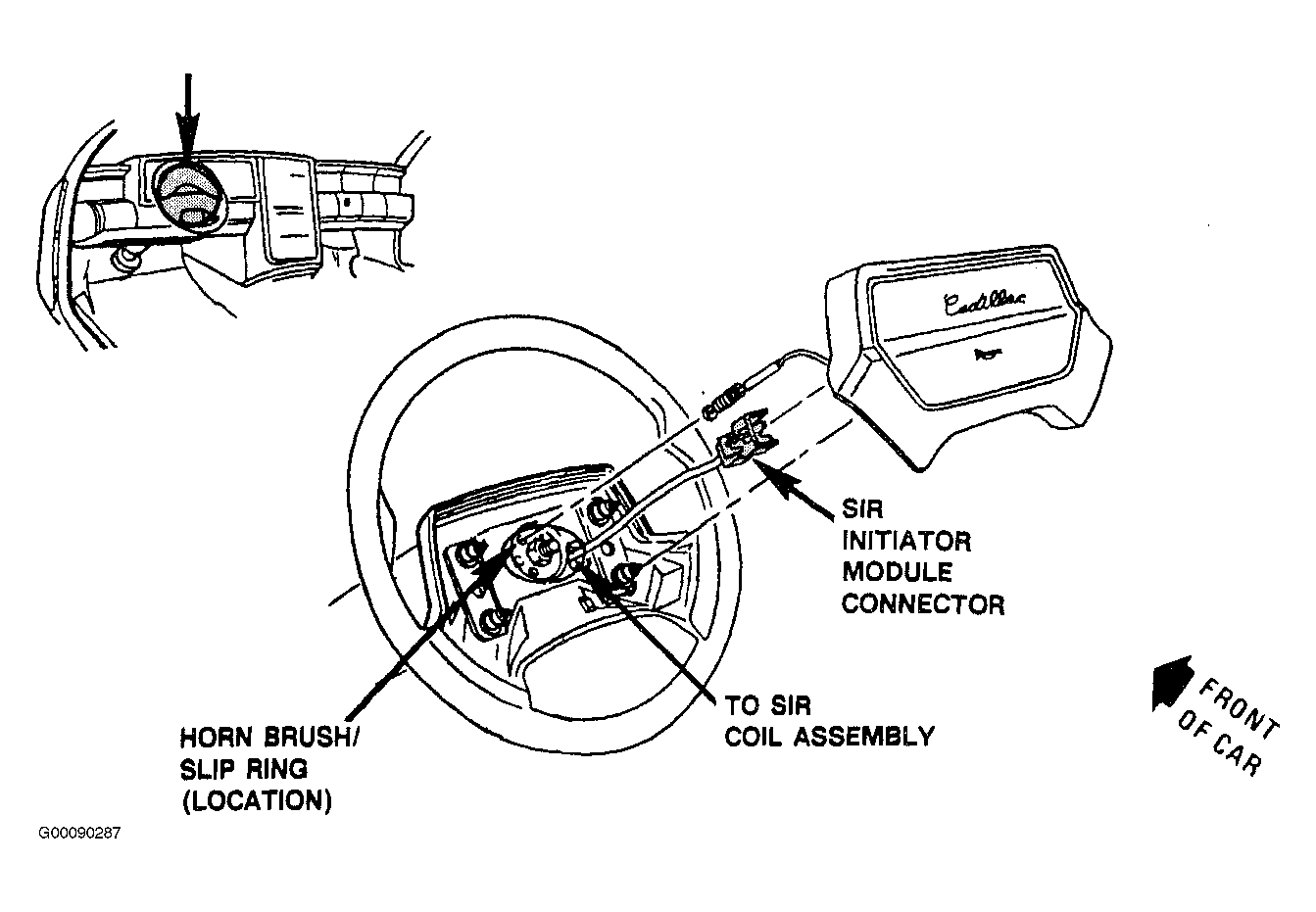

| Horn Brush/Slip Ring | In Steering Wheel. See Figure . |

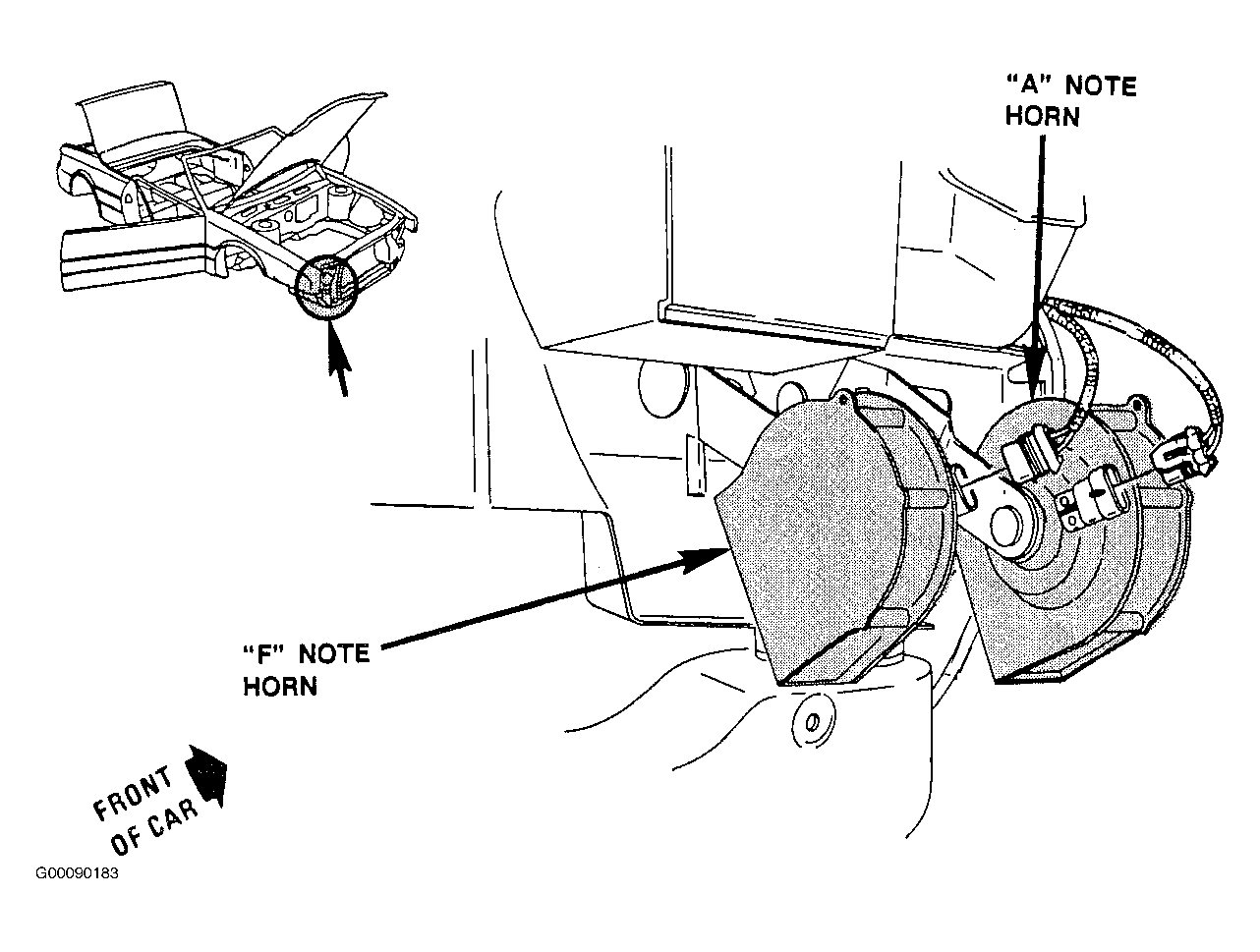

| Horns | Lower Right Front Of Car. See Figure . |

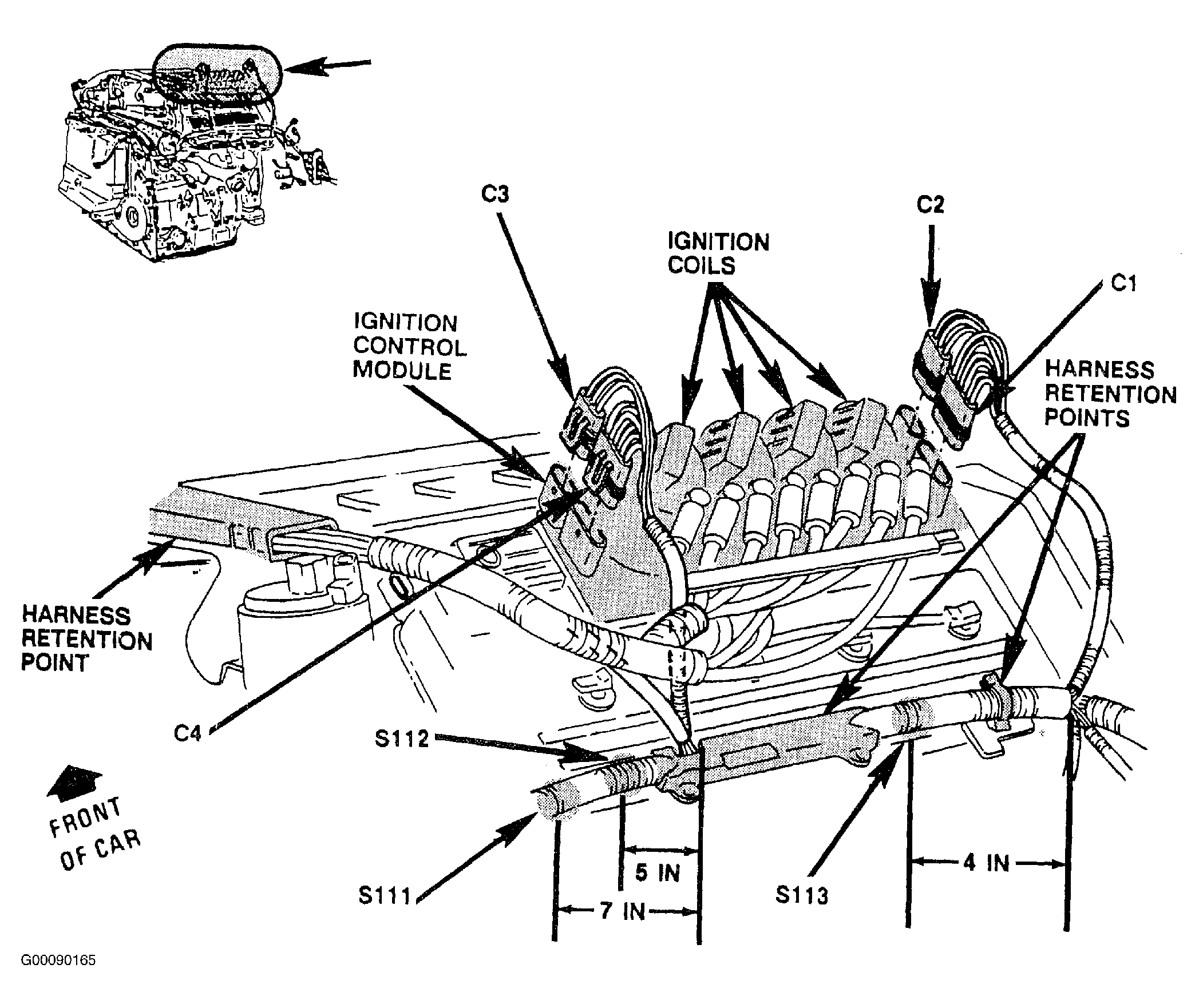

| Ignition Coils | Top Of Engine. See Figure . |
| Intake Air Temperature (IAT) Sensor | Top Of Engine. See Figure . |

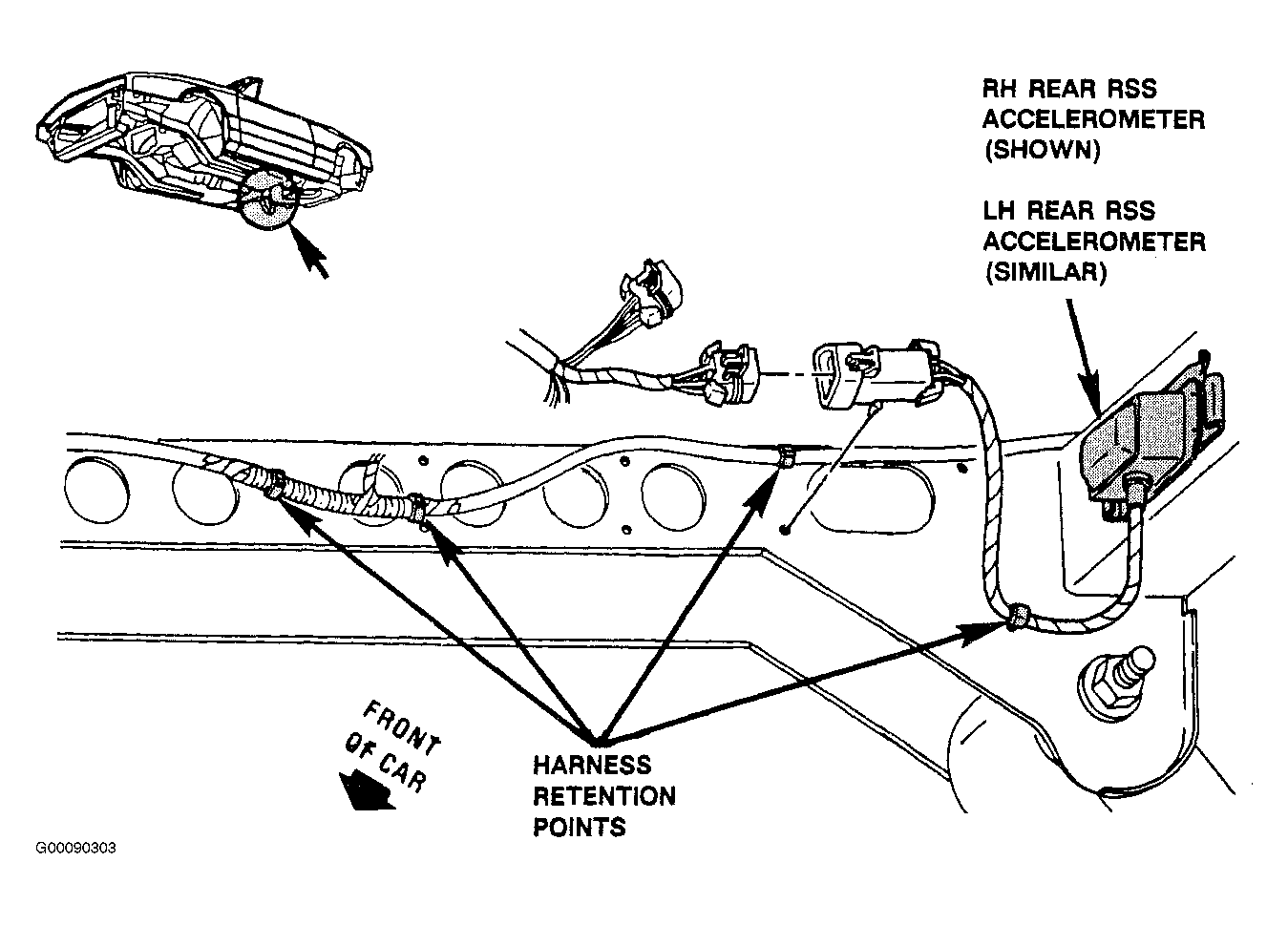

| Rear RSS Accelerometer | Right Side Of Rear Suspension. See Figure . |

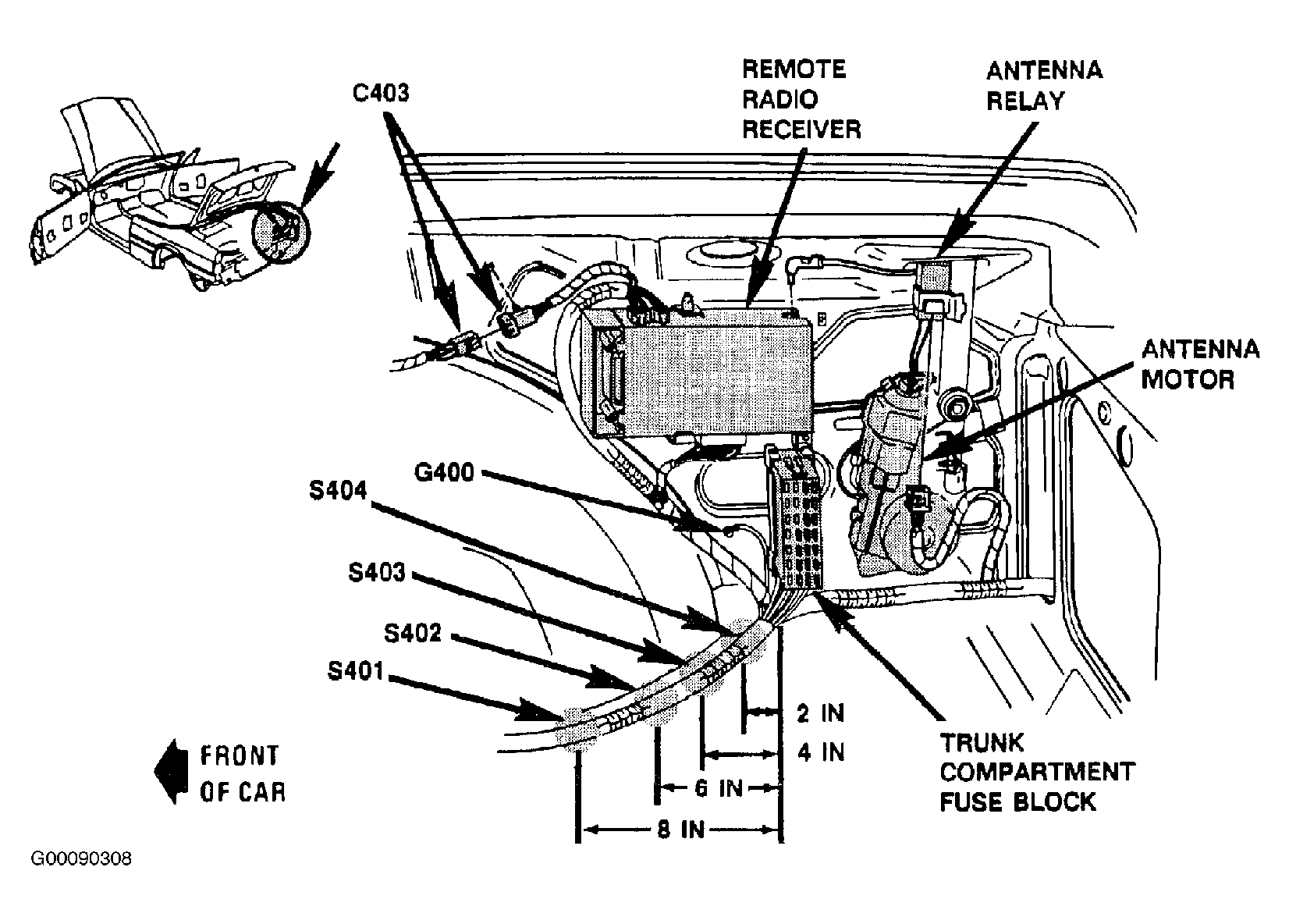

| Remote Radio Receiver | Right Side Of Trunk Compartment. See Figure . |
| Radio Control Head | Behind Left Side Of Instrument Panel. See Figure . |

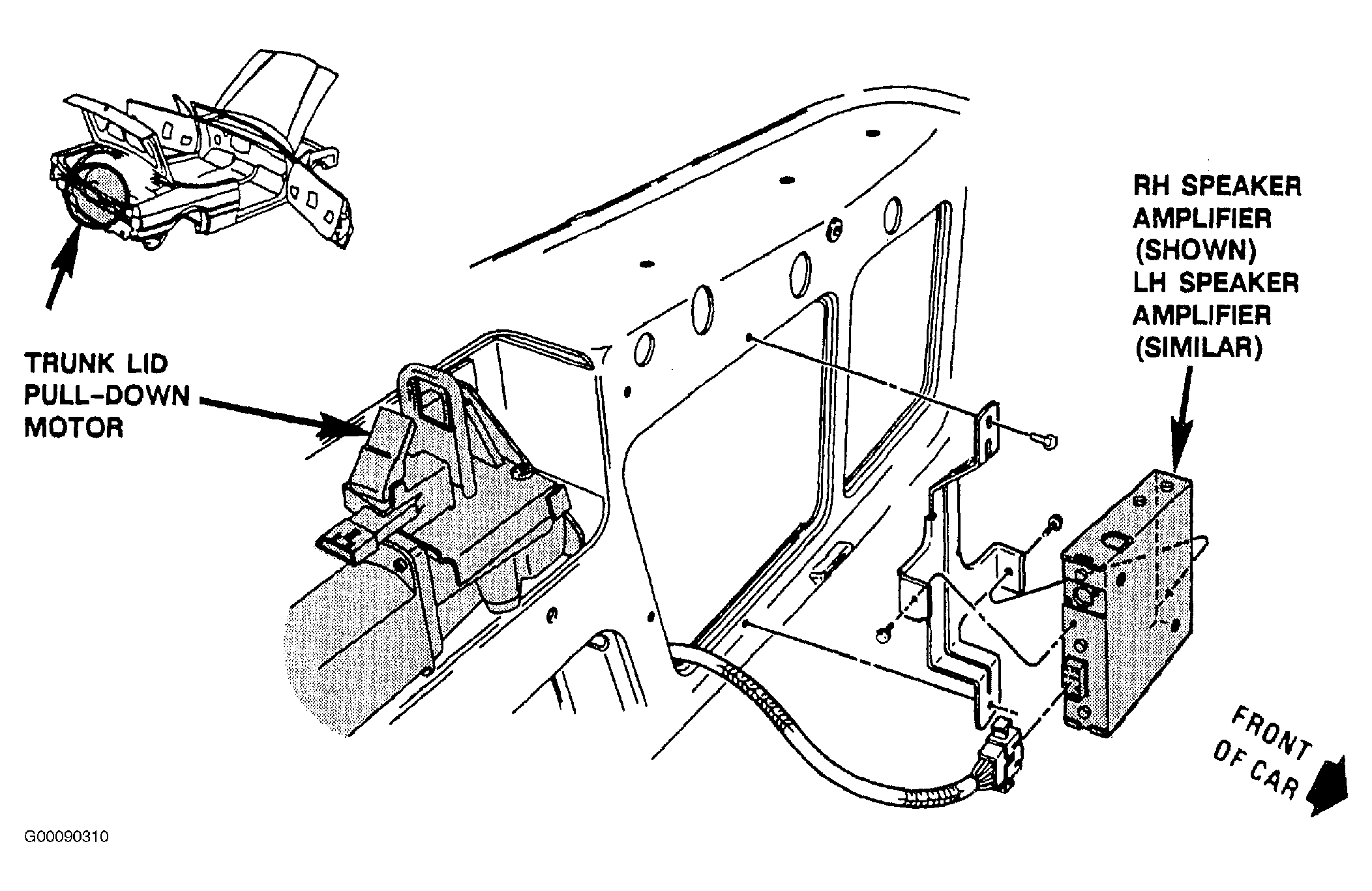

| Radio Speaker Amplifier | Right Rear Of Trunk Compartment. See Figure . |

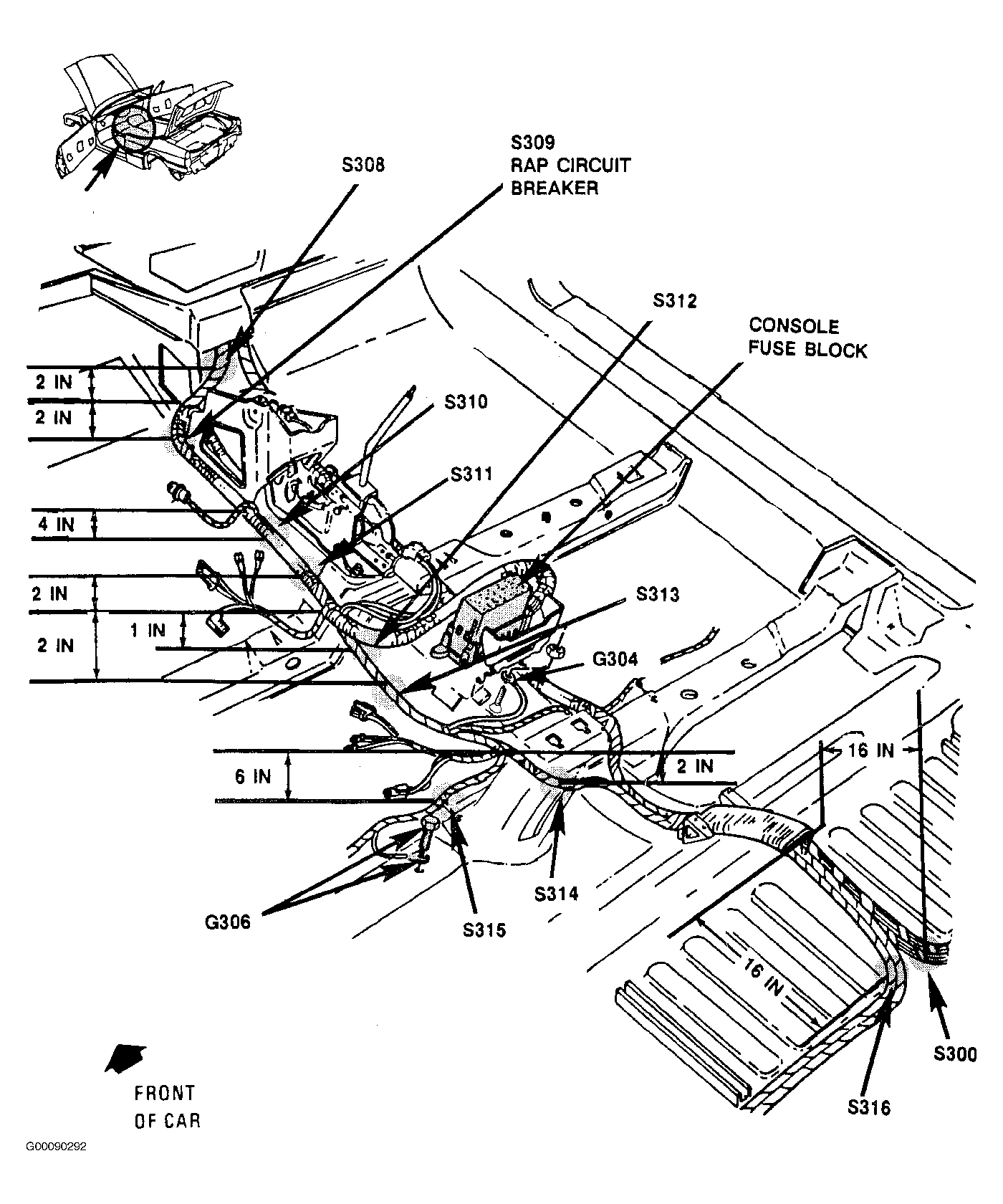

| Retained Accessory Power Circuit Speaker (RAP) | Under Console. See Figure . |

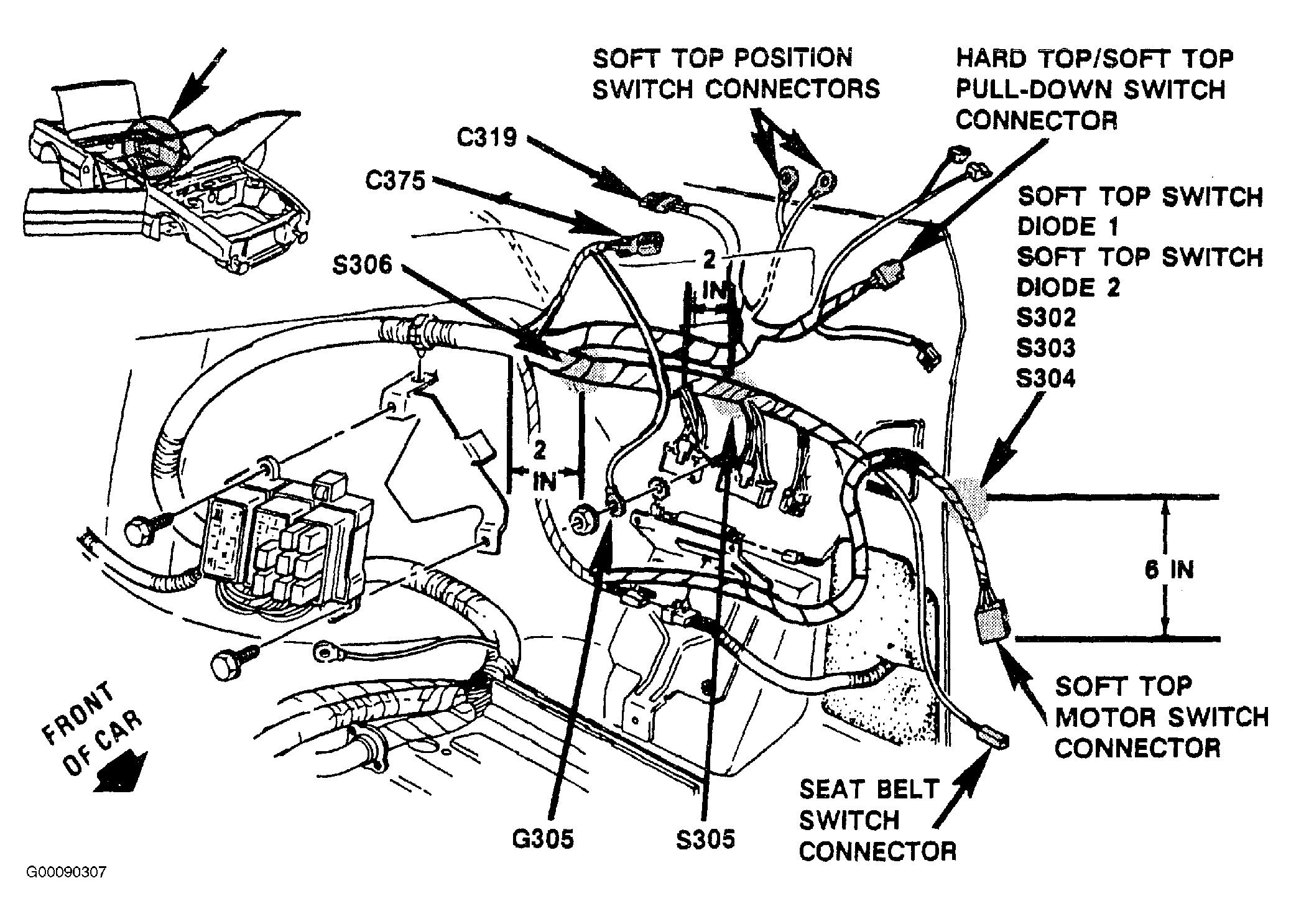

| Seat Belt Switch | Behind Drivers Seat. See Figure . |

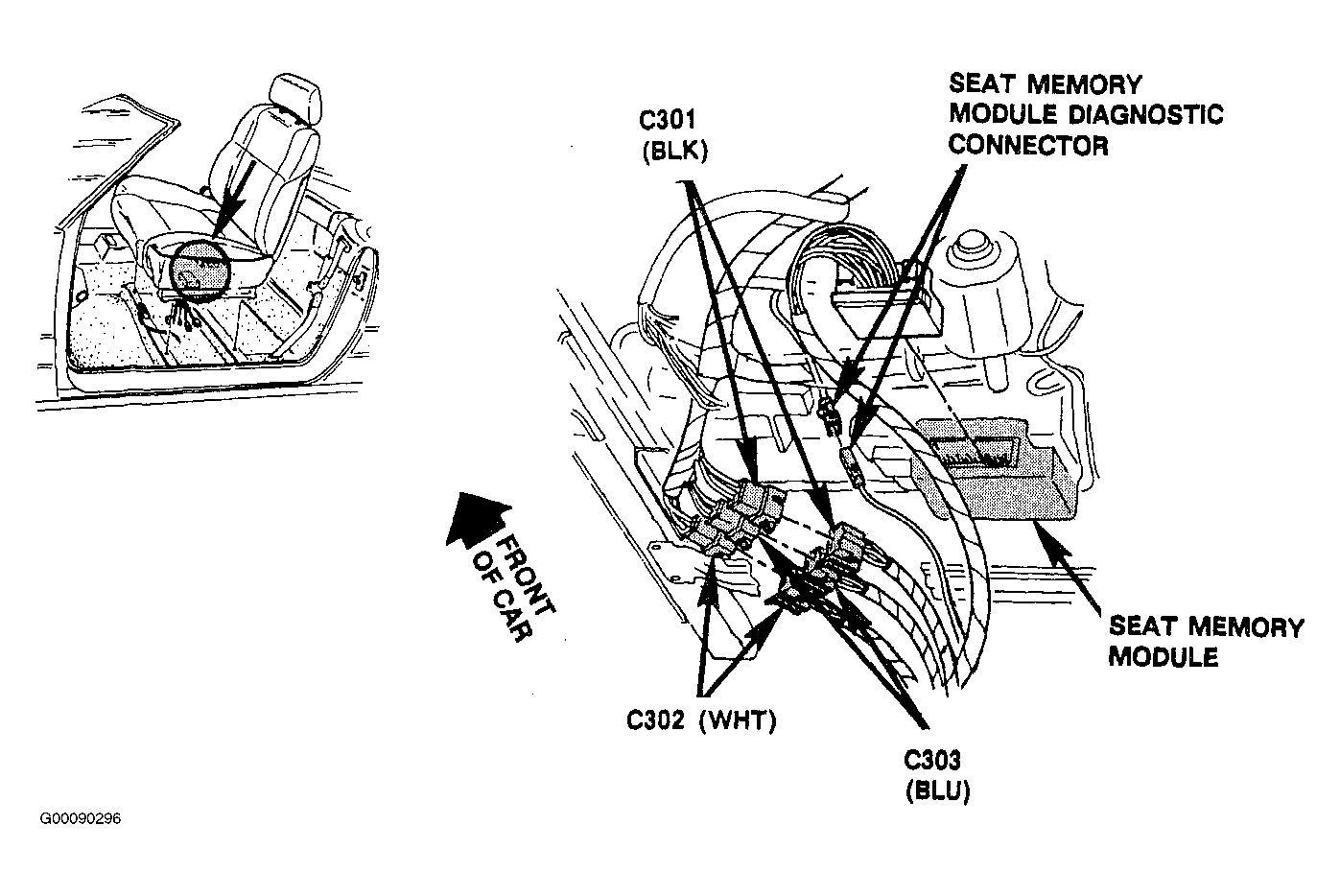

| Seat Memory Module Diagnostic Connector | Under Drivers Seat. See Figure . |
| SIR Coil Assembly | In Steering Wheel. See Figure . |
| SIR Initiator Module | In Steering Wheel. See Figure . |

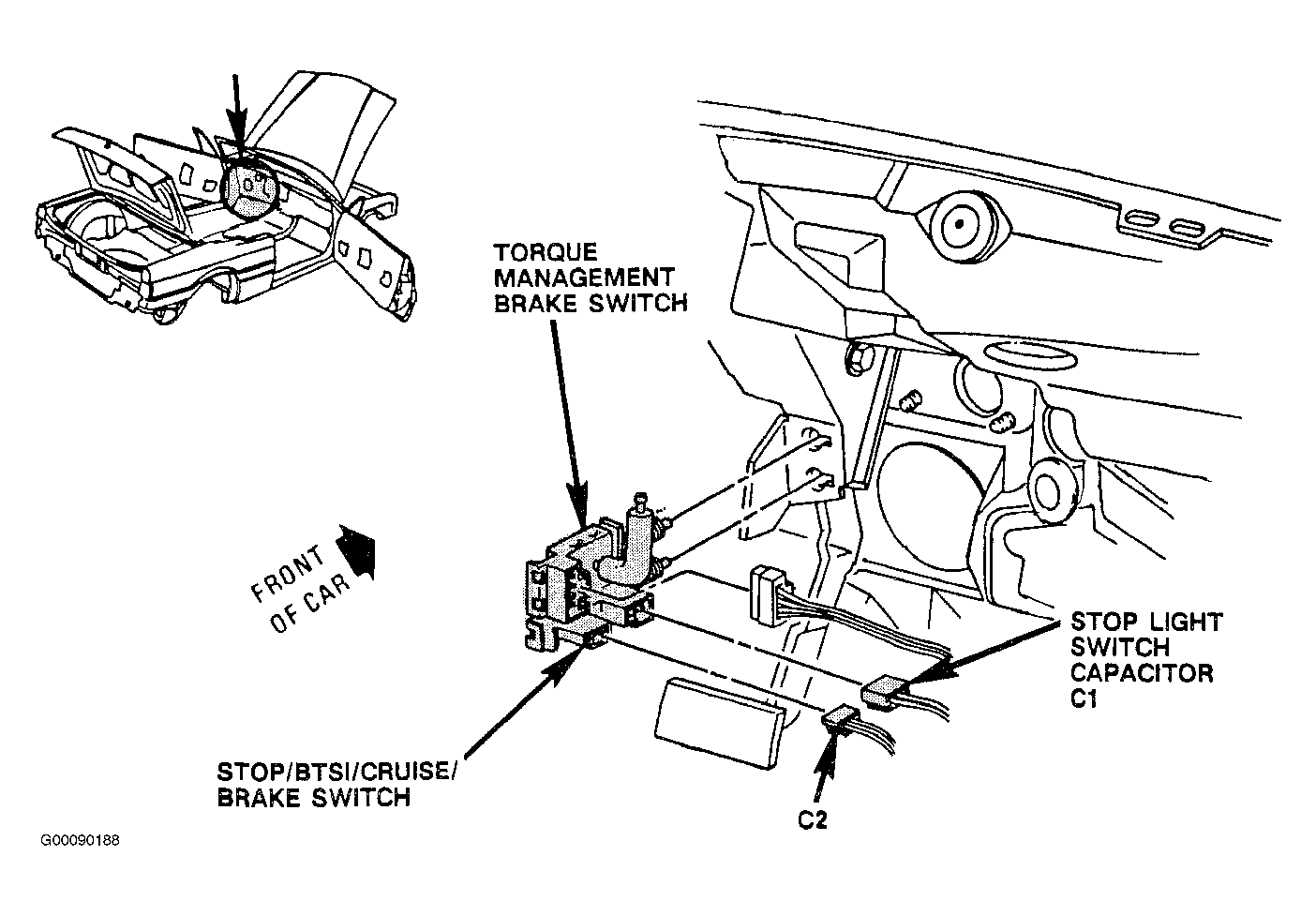

| Stop Light Switch Capacitor | Above Brake Pedal. See Figure . |
| Tape/Compact Disc Audio | Behind Left Side Of Instrument Panel. See Figure . |
| Turn Flasher | Behind Left Side Of Instrument Panel. See Figure . |
