Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

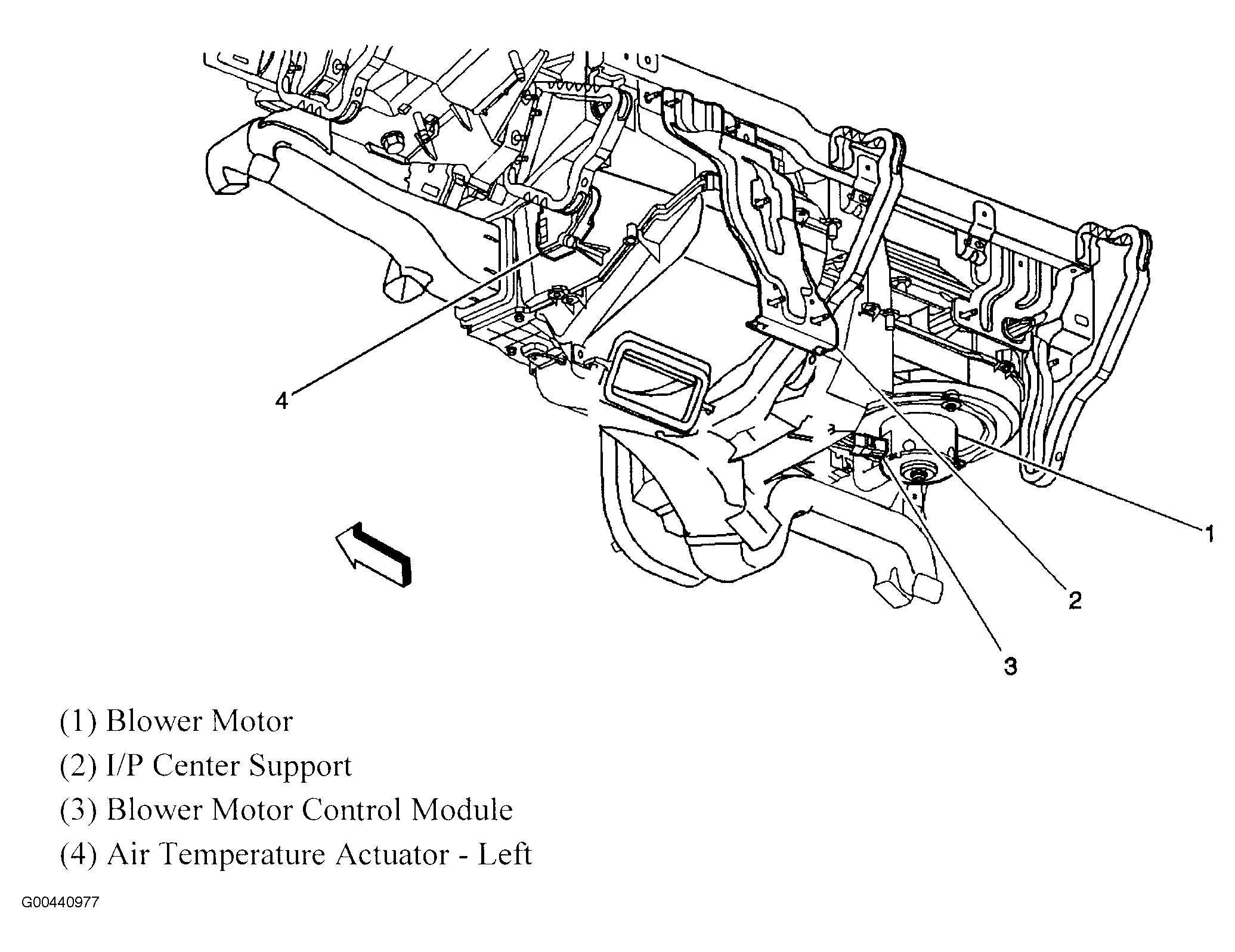

| Blower Motor Control Module | Below right side of dash. See Figure. |

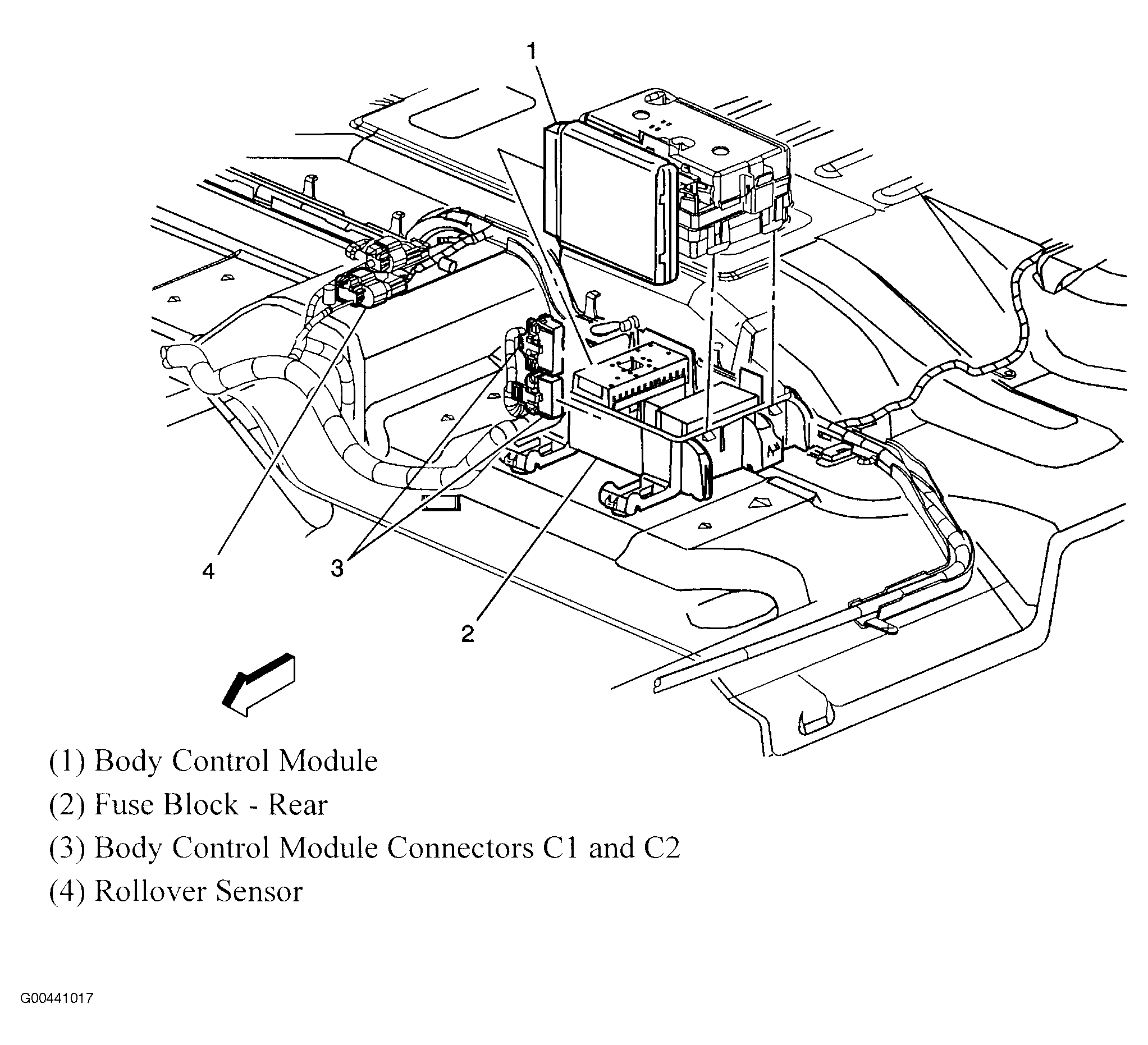

| Body Control Module (BCM) | Beneath left rear seat, on rear fuse block. See Figure. |
| Driver Door Module (DDM) | Below driver's door switch panel. |

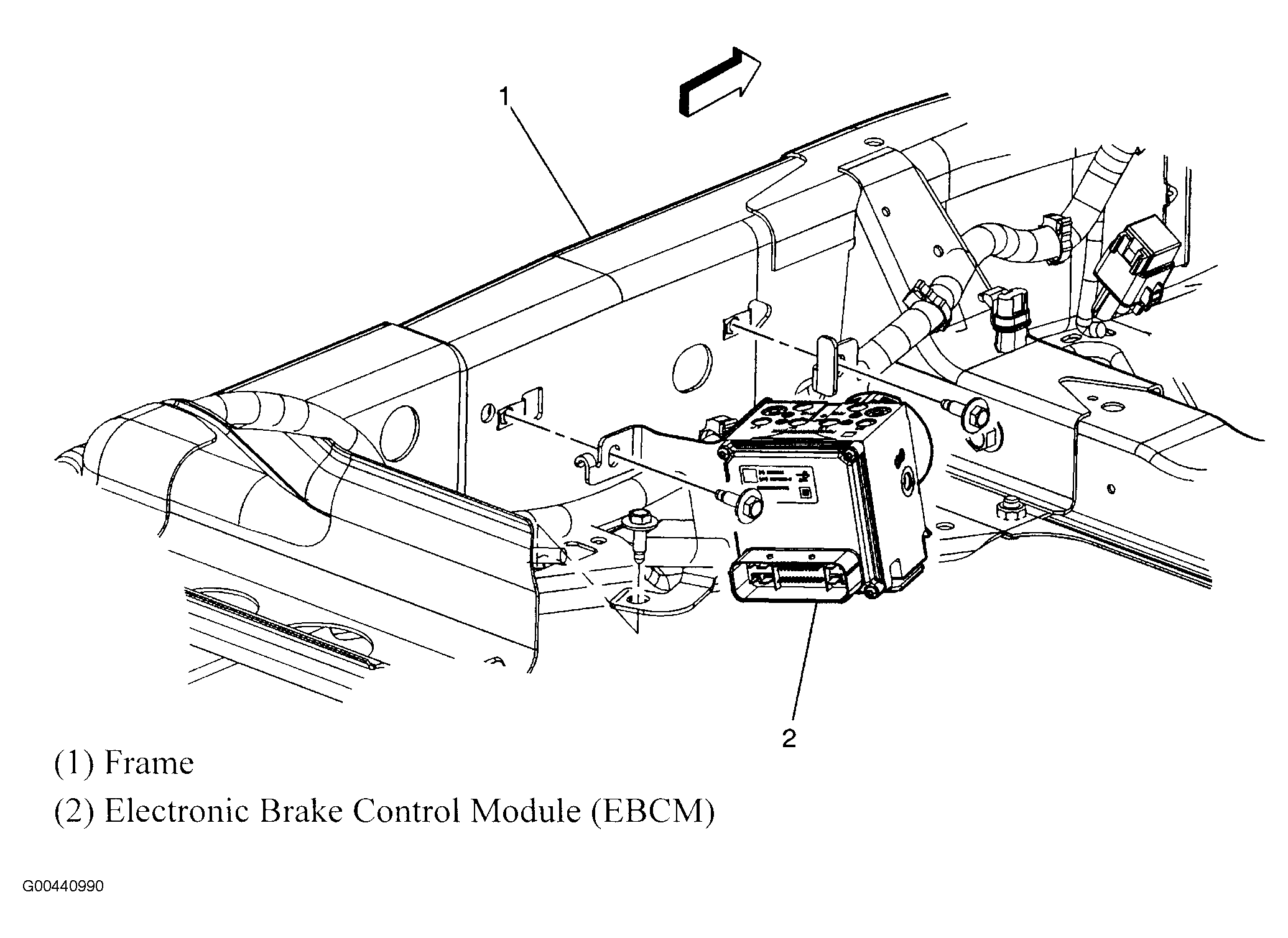

| Electronic Brake Control Module (EBCM) | On inner left frame rail, beside transmission. See Figure. |
| Engine Control Module (ECM) | Near lower left front of engine. See Figure. |
| Front Passenger Door Module (FPDM) | Below front passenger door switch panel. |

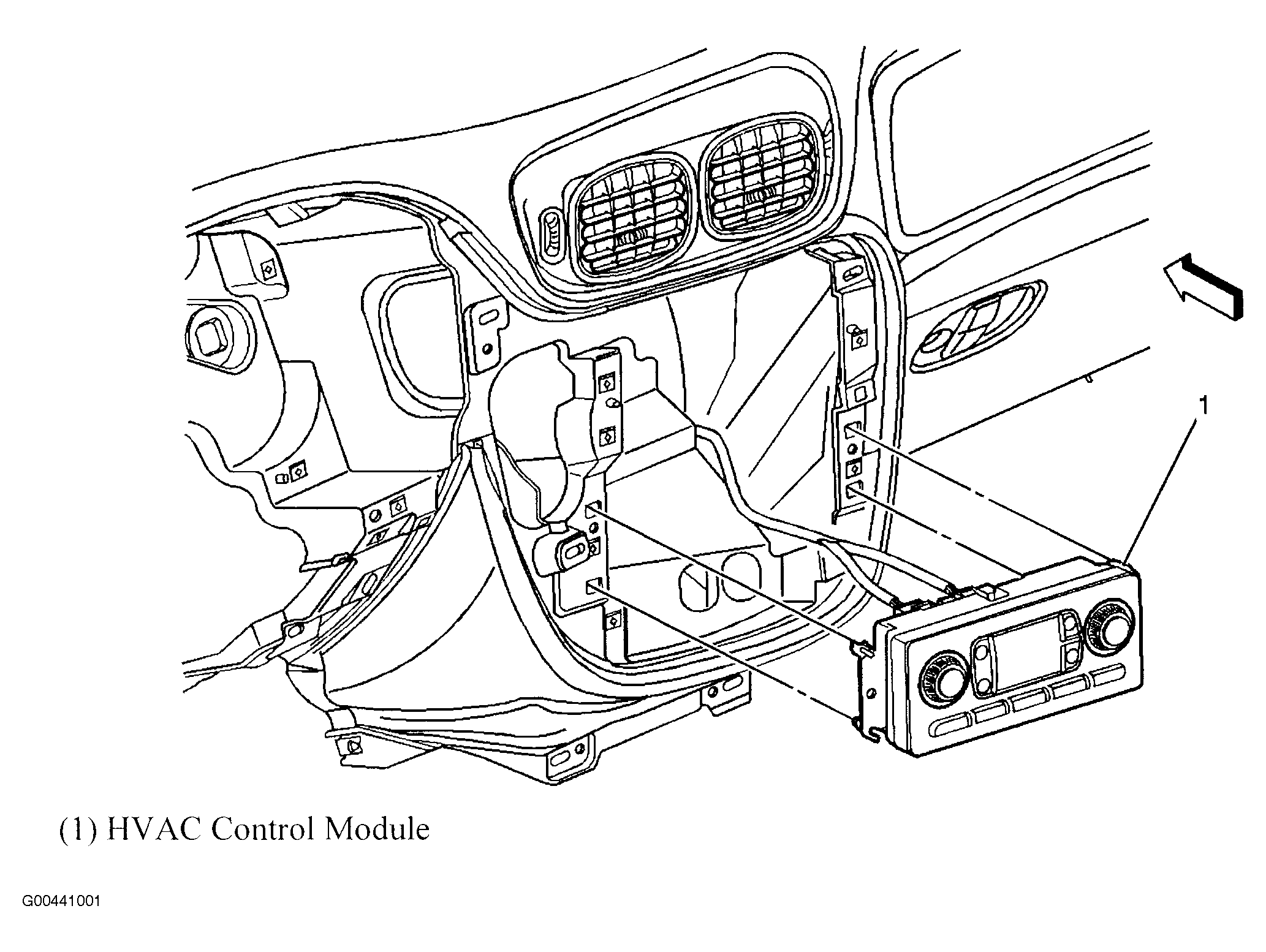

| HVAC Control Module (Automatic A/C) | Center of dash. See Figure. |

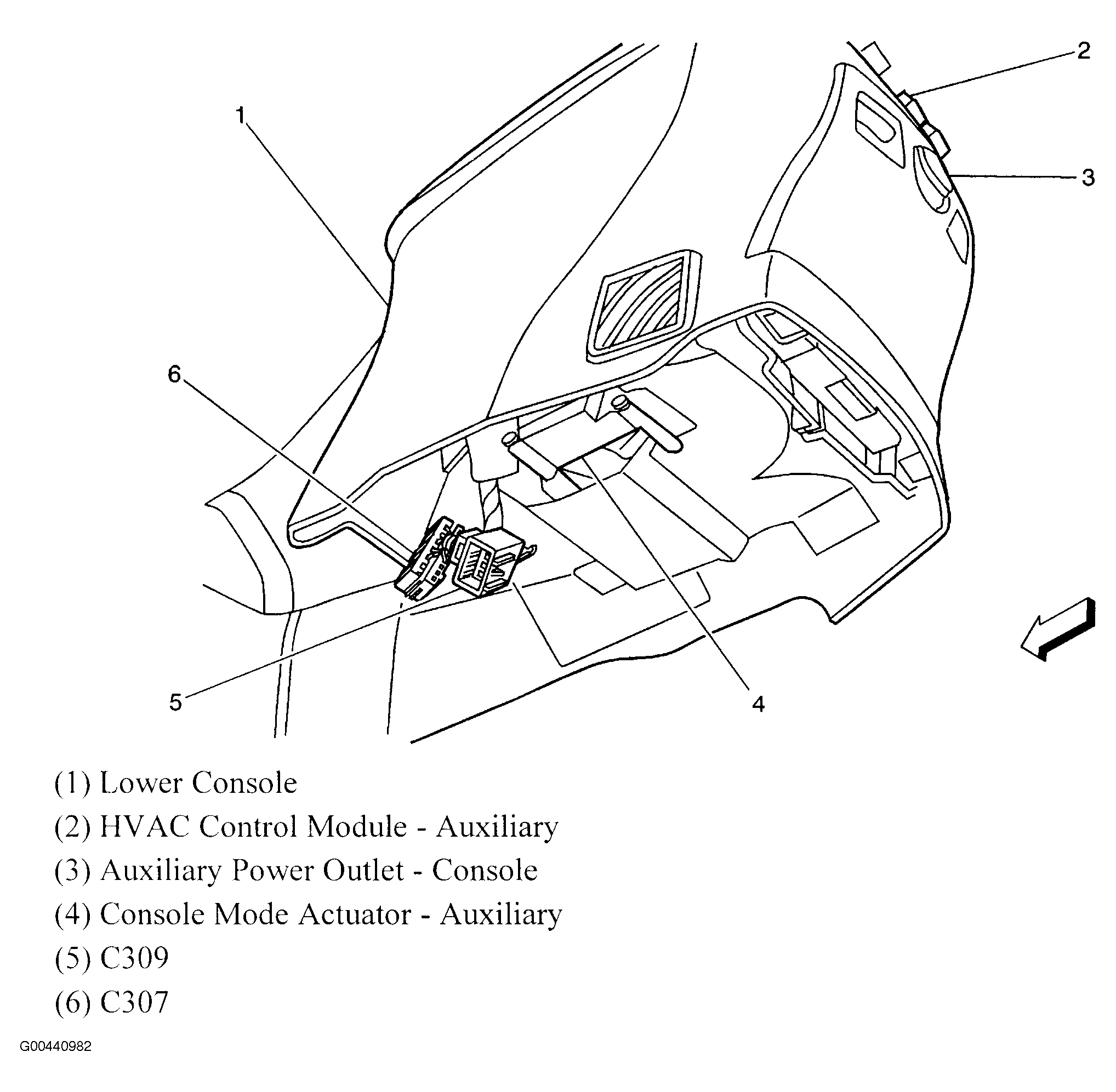

| HVAC Control Module-Auxiliary | Under lower console. See Figure. |
| HVAC Control Module (Manual A/C) | Center of dash. See Figure. |

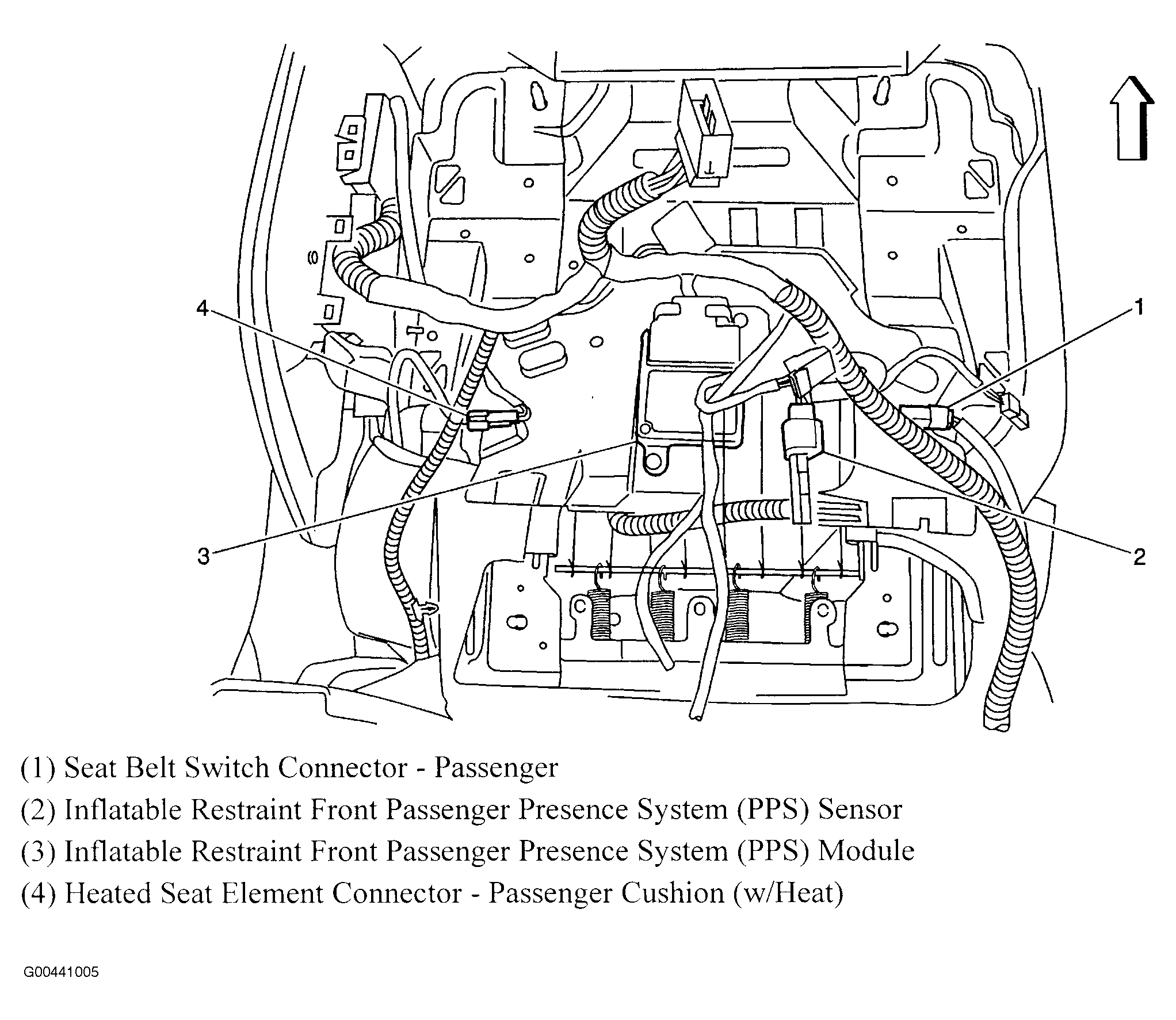

| Inflatable Restraint Front Passenger Presence System (PPS) Module | Under passenger seat. See Figure. |
| Inflatable Restraint I/P Module | Left side of dash. See Figure. |
| Inflatable Restraint Roof Rail Module - Left | In roof above driver door. |
| Inflatable Restraint Roof Rail Module - Right | In roof, above front passenger's door. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below rear of center console. See Figure. |
| Inflatable Restraint Steering Wheel Module | In steering wheel. See Figure. |
| Liftgate Module (LGM) | In center of liftgate. See Figure. |

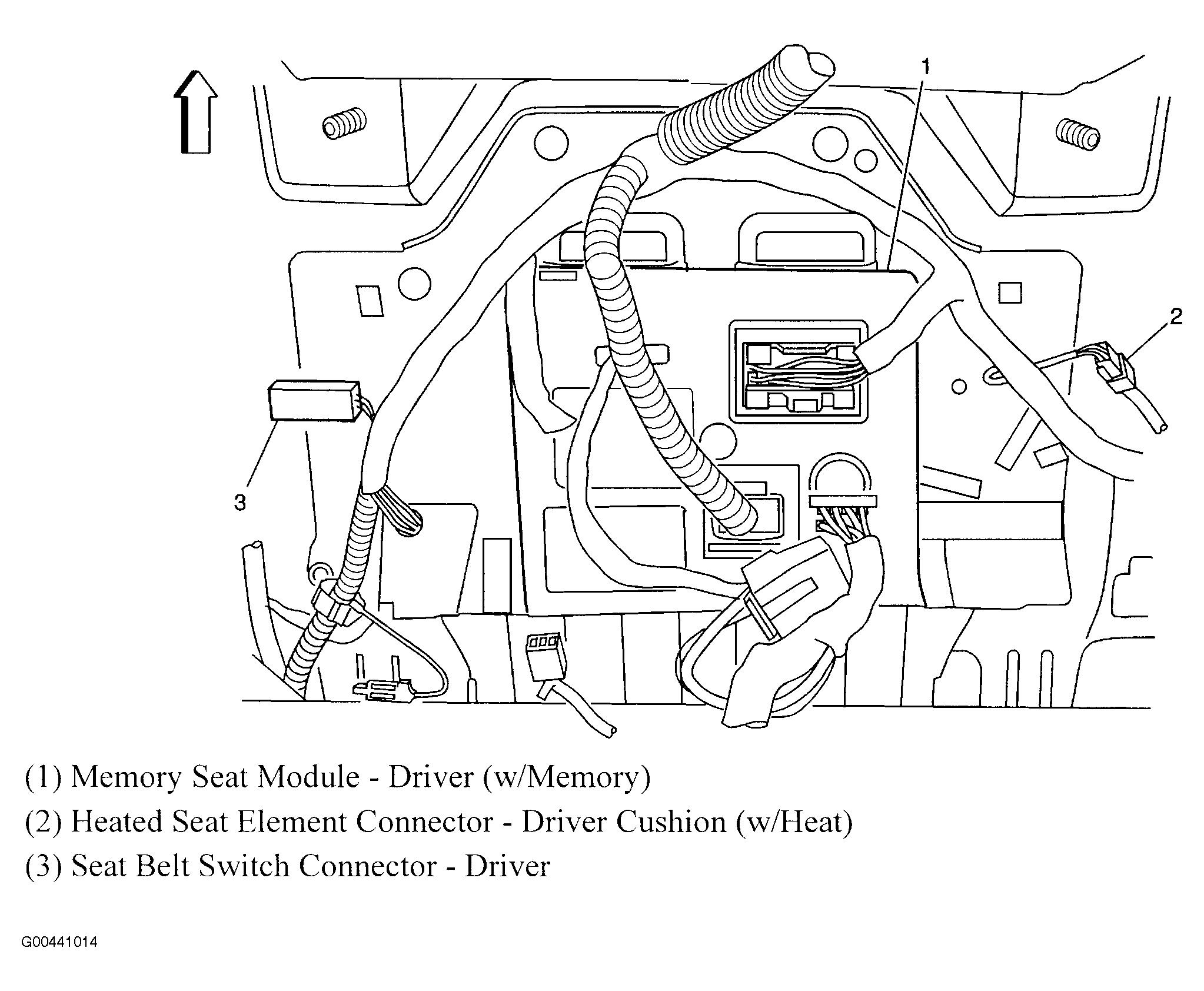

| Memory Seat Module (Driver) | Below left front seat. See Figure. |

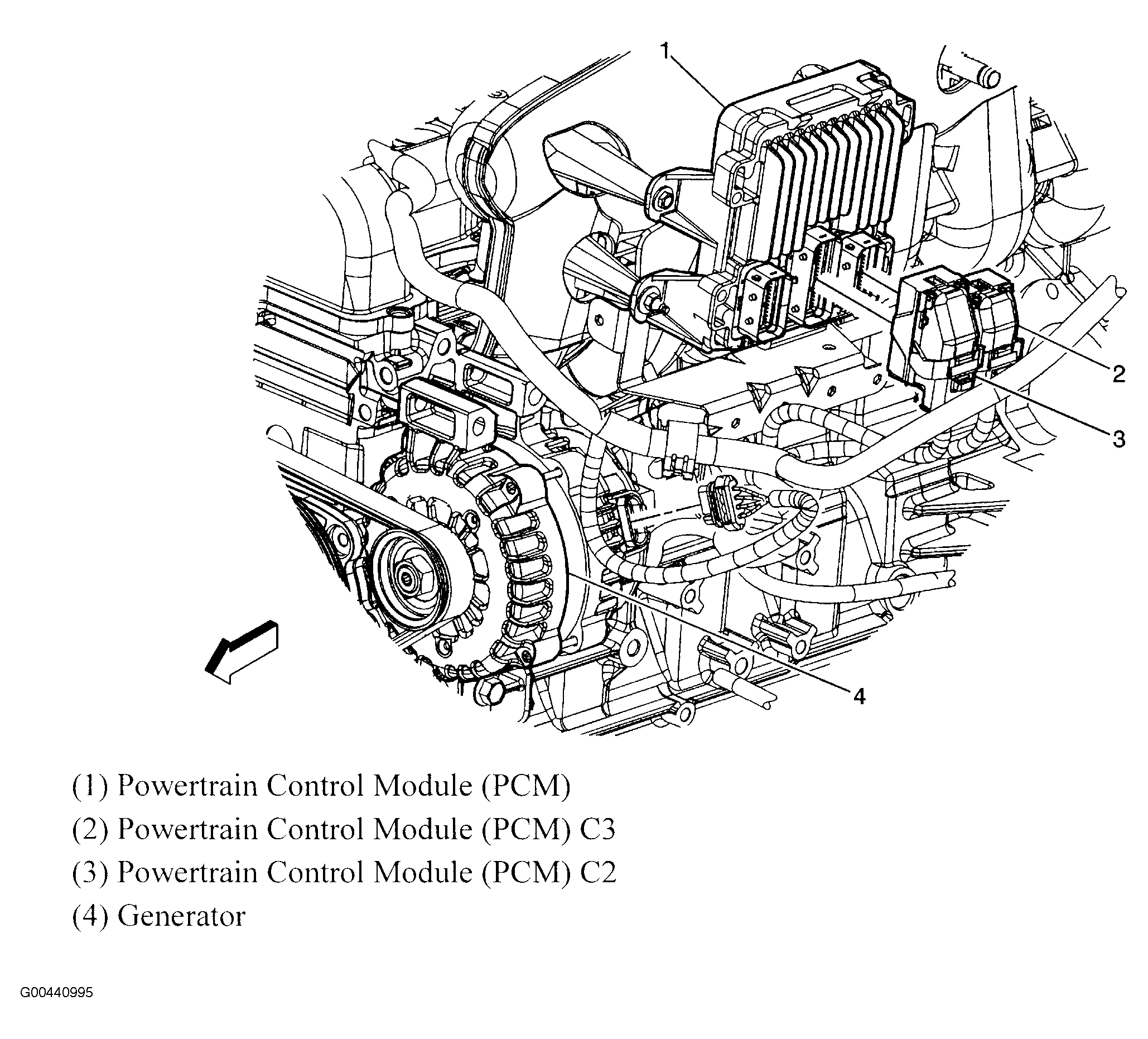

| Powertrain Control Module (PCM) | On upper left side of engine. See Figure. |

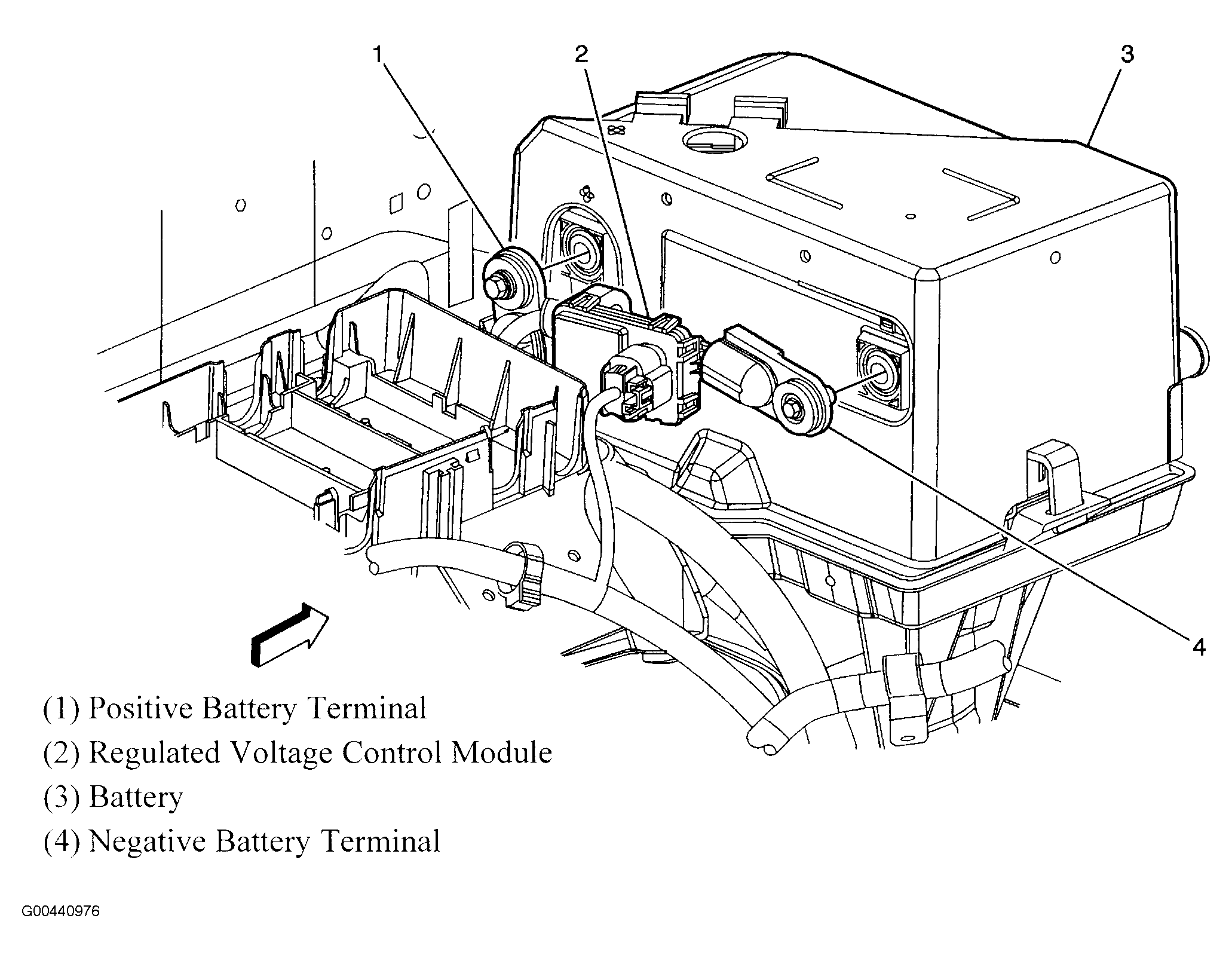

| Regulated Voltage Control Module | Behind battery. See Figure. |

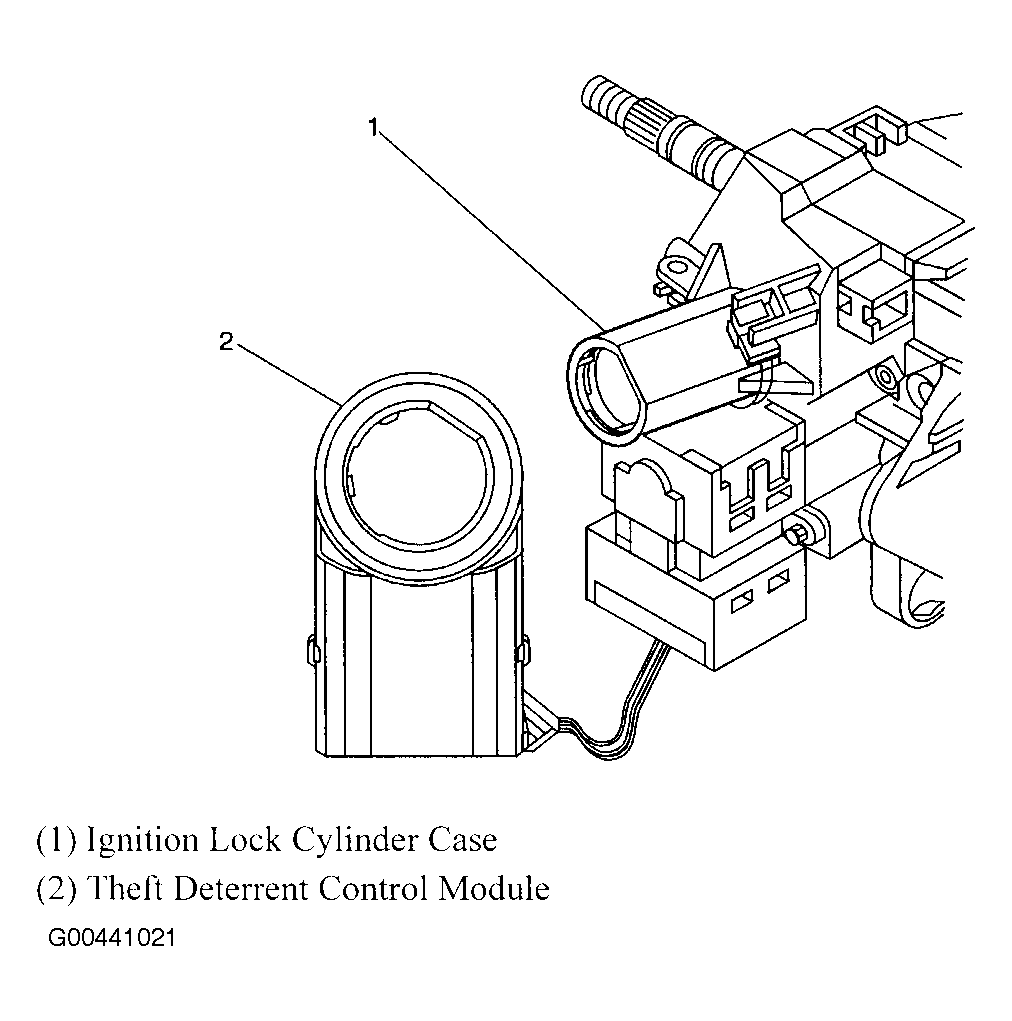

| Theft Deterrent Control Module | In steering column. See Figure. |

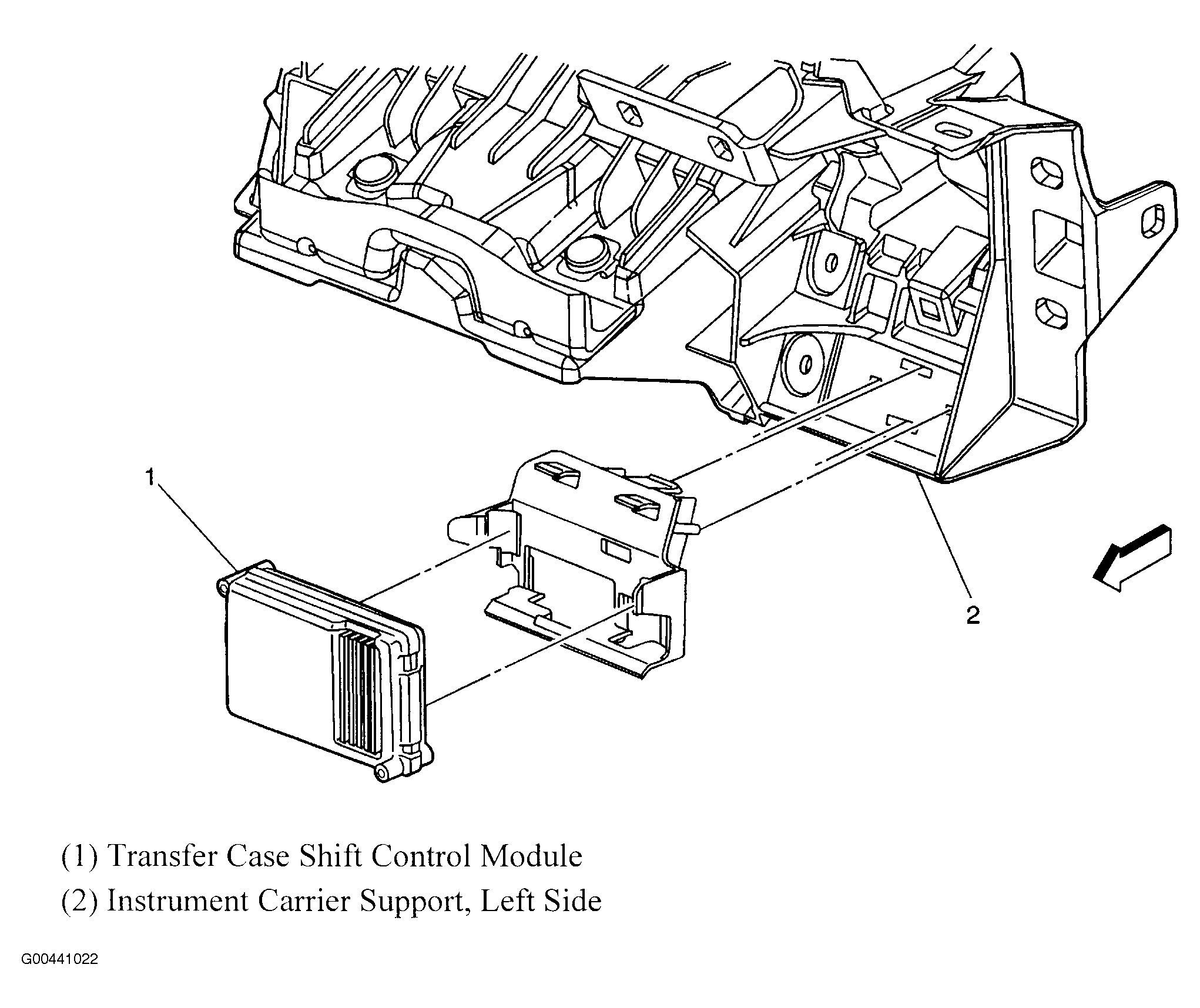

| Transfer Case Shift Control Module | Behind lower left side of dash. See Figure. |

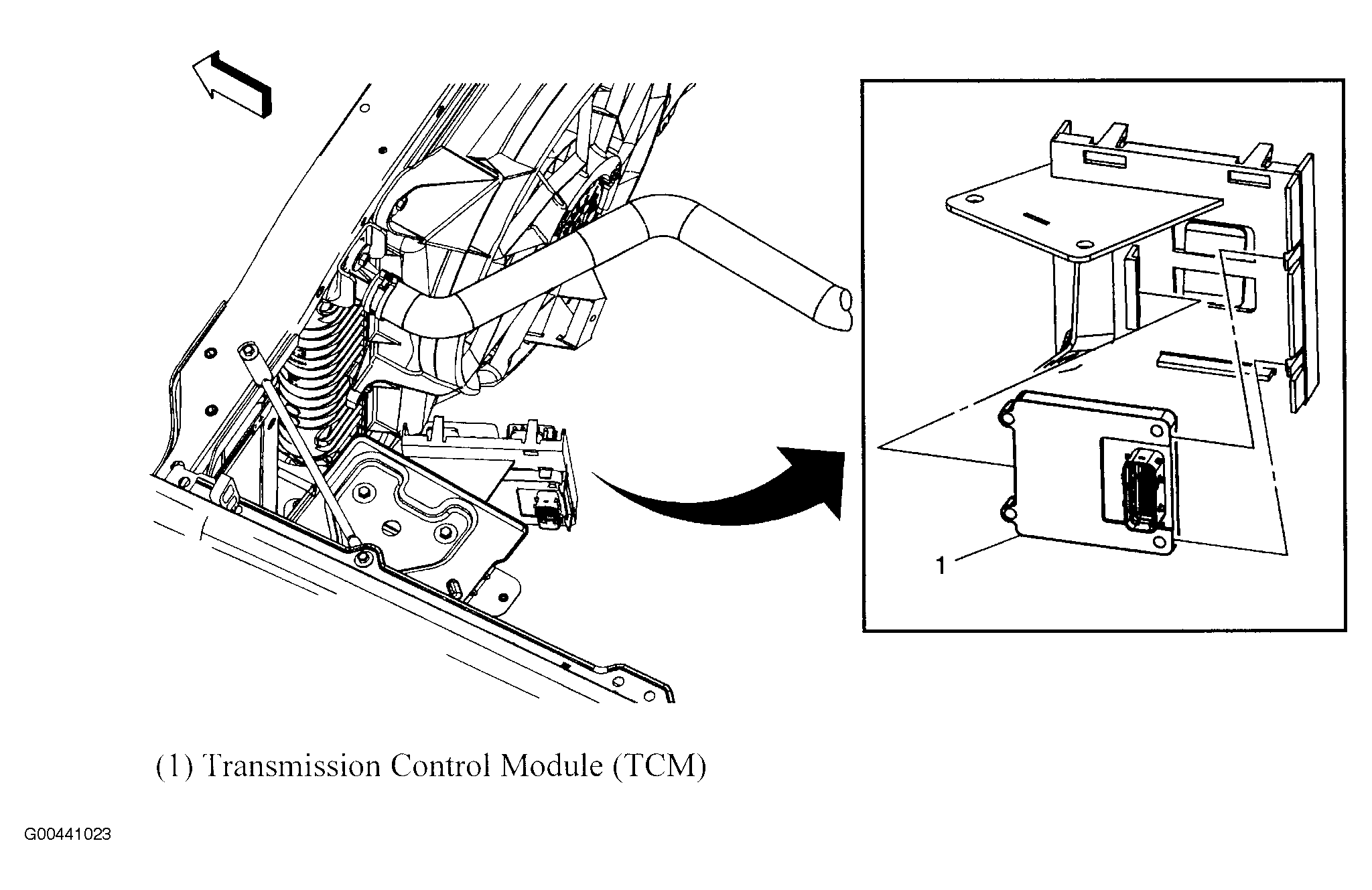

| Transmission Control Module (TCM) | Left front of engine. See Figure. |

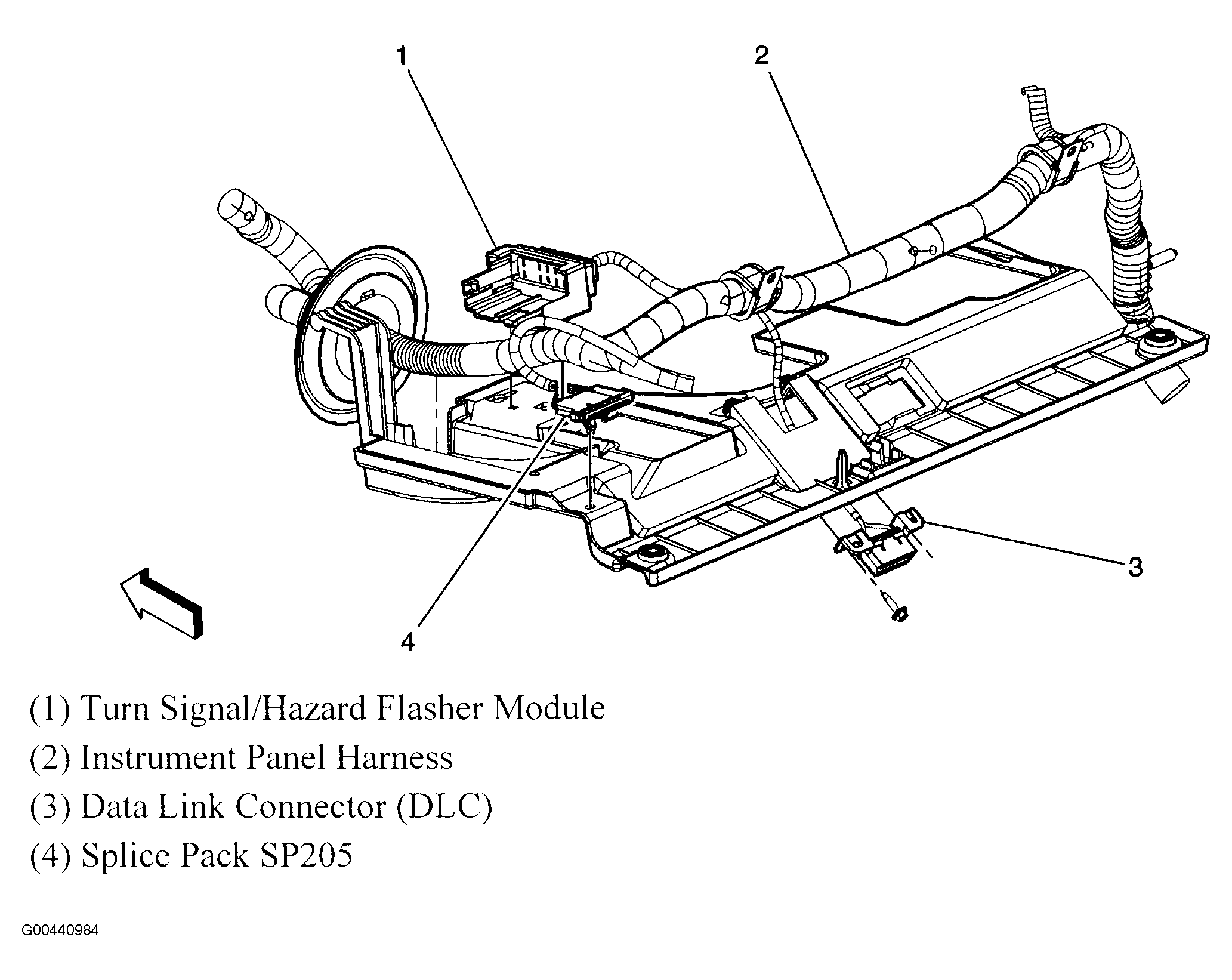

| Turn Signal/Hazard Flasher Module | Behind lower left side of dash. See Figure. |
| Vehicle Communication Interface Module (VCIM) | Under right rear seat. See Figure. |
