Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Accessory AC/DC Power Module | Left rear luggage compartment. |

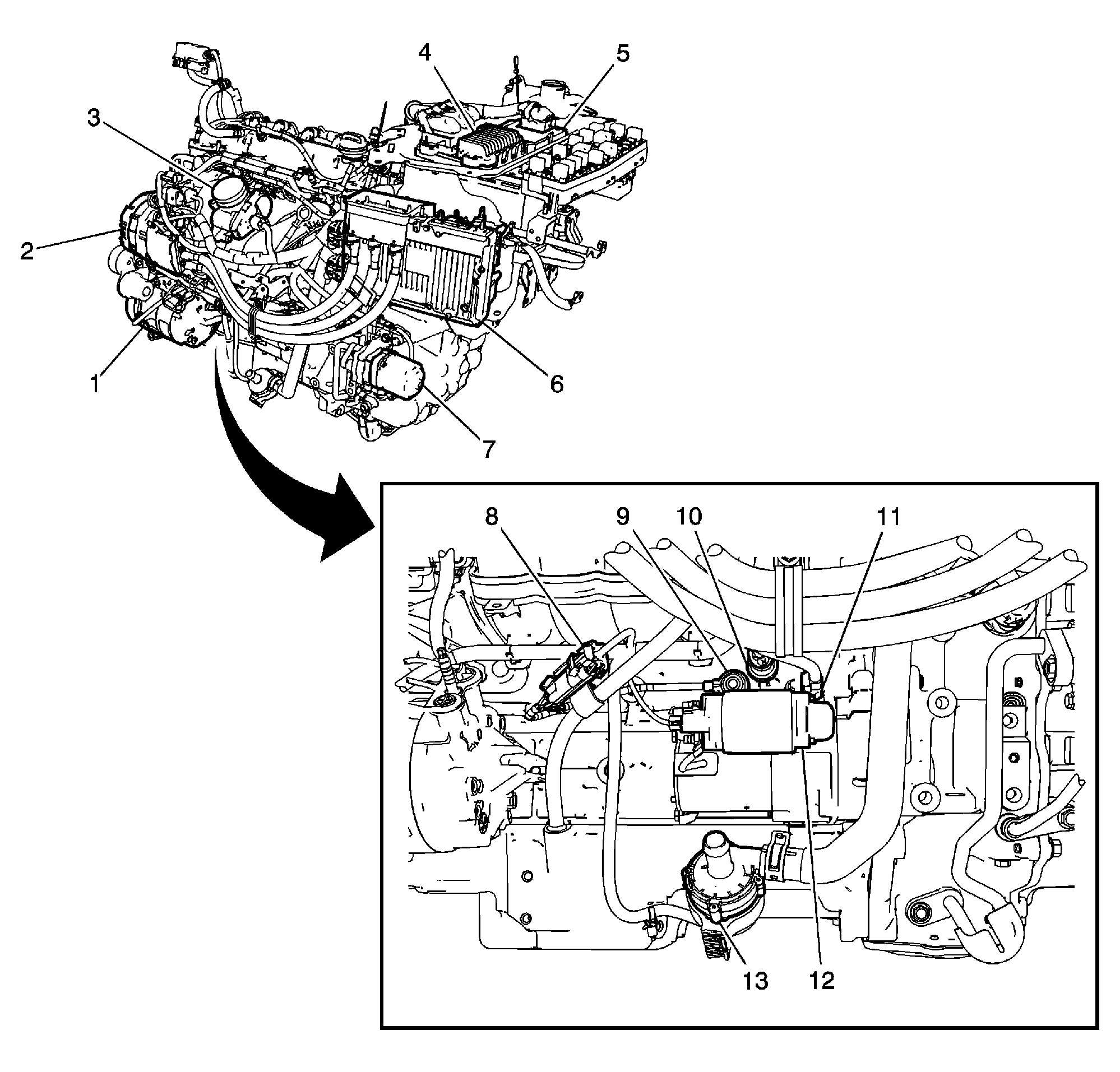

| Automatic Transmission Auxiliary Fluid Pump Control Module (V6 Hybrid) | Left front engine compartment. |

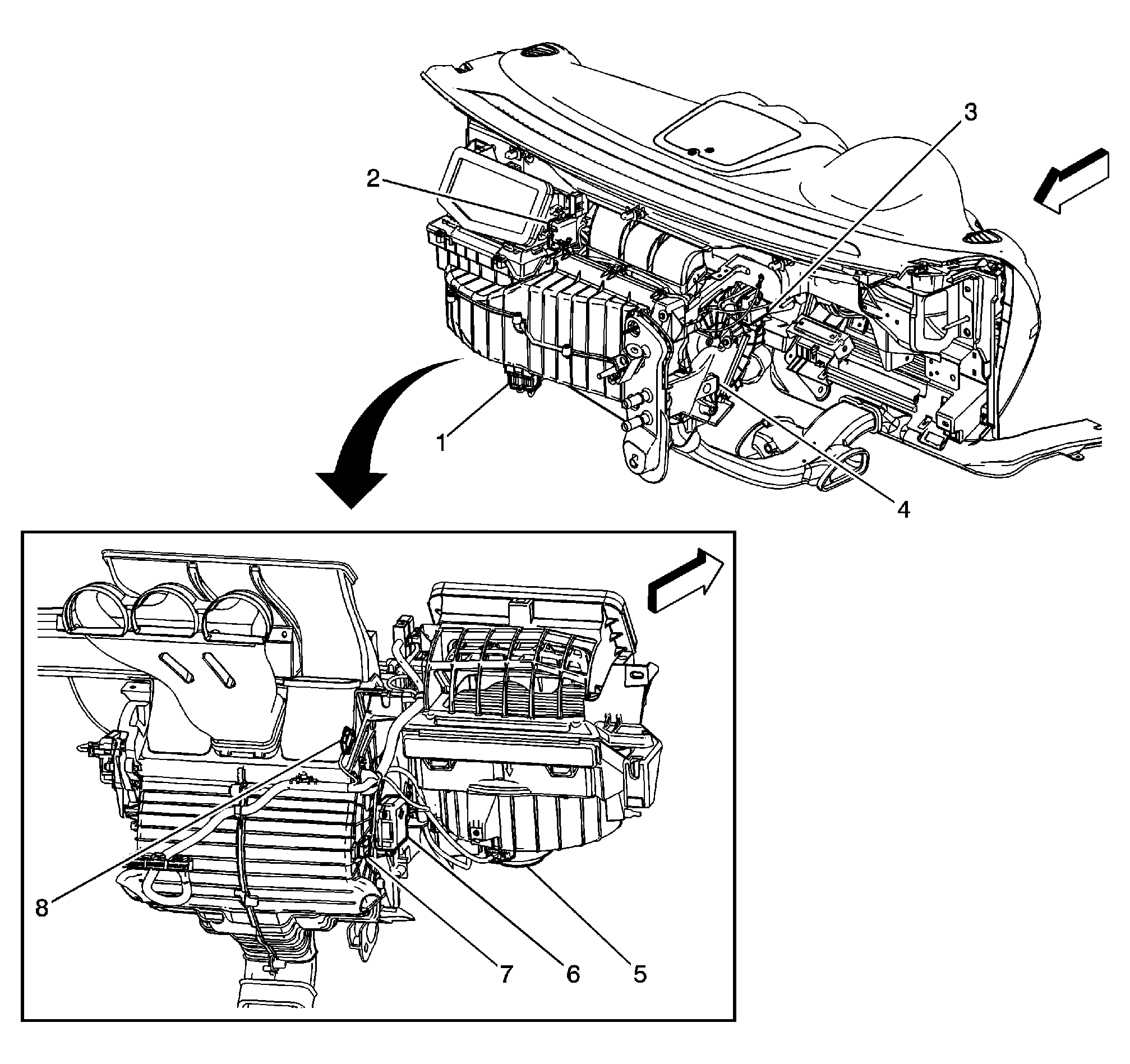

| Blower Motor Control Module (1) | Bottom of HVAC assembly. See Figure. |

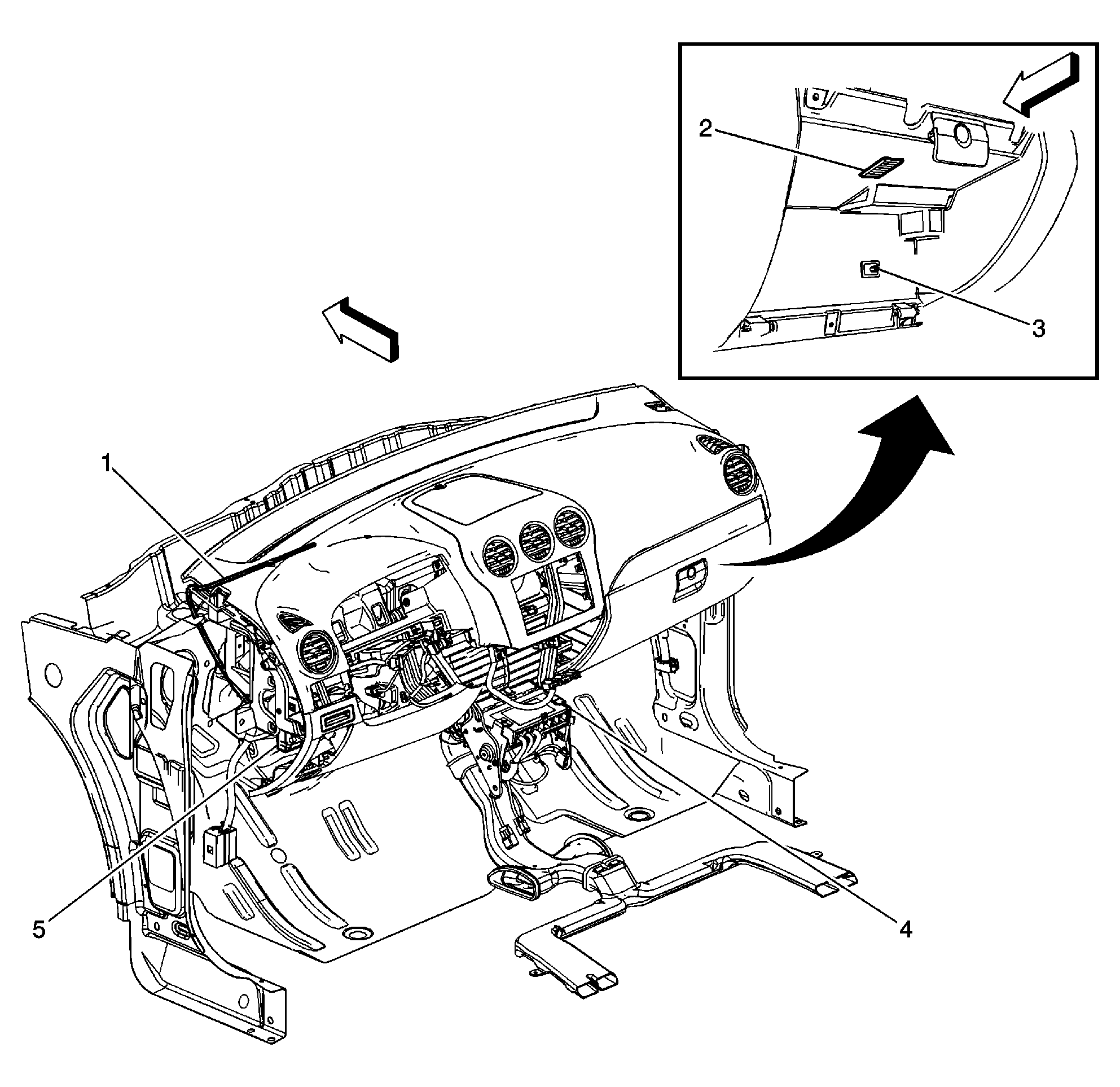

| Body Control Module (BCM) (4) | Below front of center floor console. See Figure. |
| Drive Motor Battery Main Contractor Control Module (V6 Hybrid) | In drive battery. |
| Drive Motor Battery Temperature And Voltage Sensing Module (V6 Hybrid) | In drive motor battery. |
| Drive Motor Battery Temperature Control Module (V6 Hybrid) | In drive motor battery. |
| Drive Motor Control Module (V6 Hybrid) | In drive motor battery. |
| Drive Motor Generator Power Inverter Module (V6 Hybrid) | Front engine compartment. |
| Electrical A/C Control Module | Top of Electrical A/C Compressor. |
| Electronic Brake Control Module | Left rear engine compartment. See Figure. |

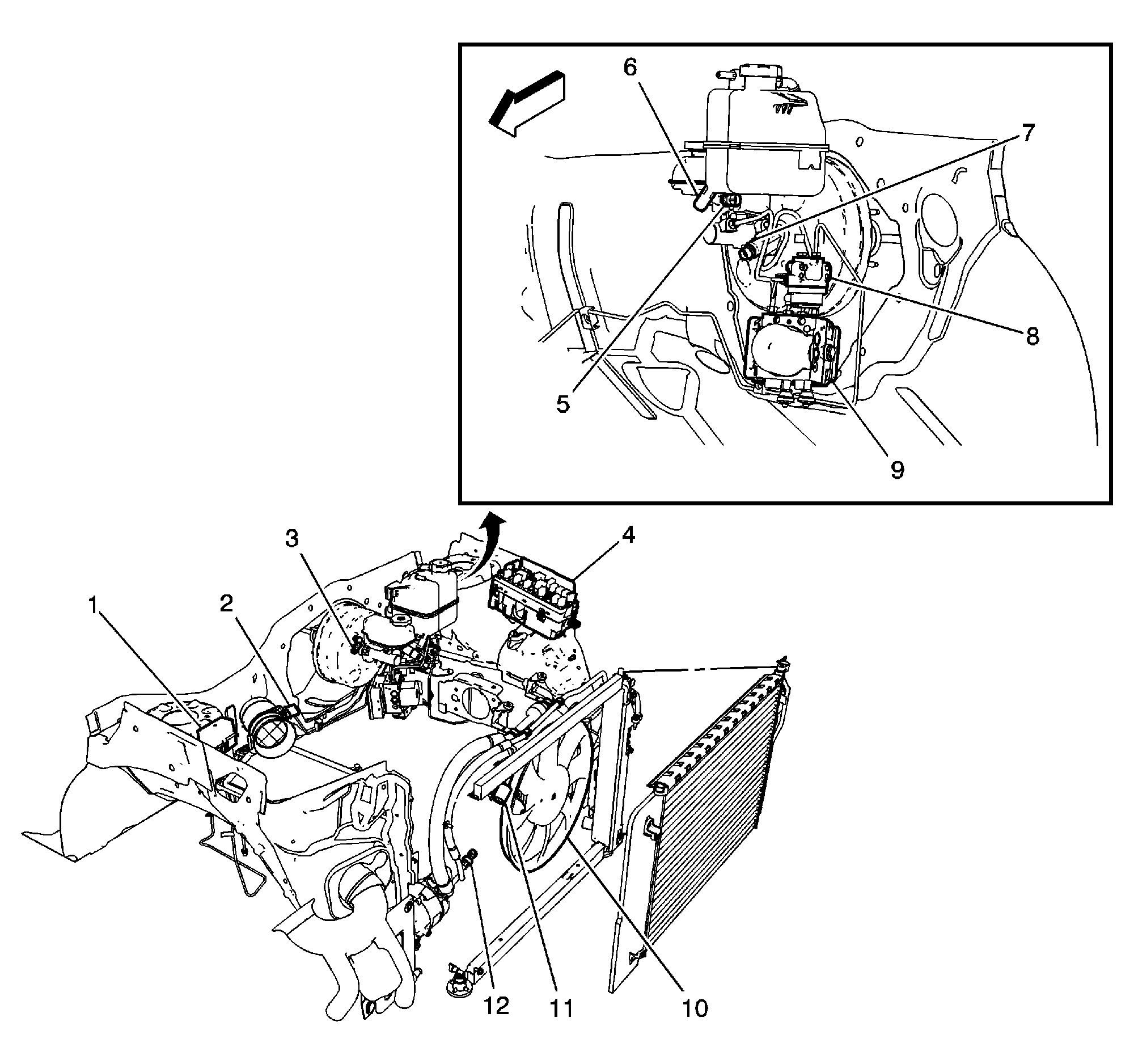

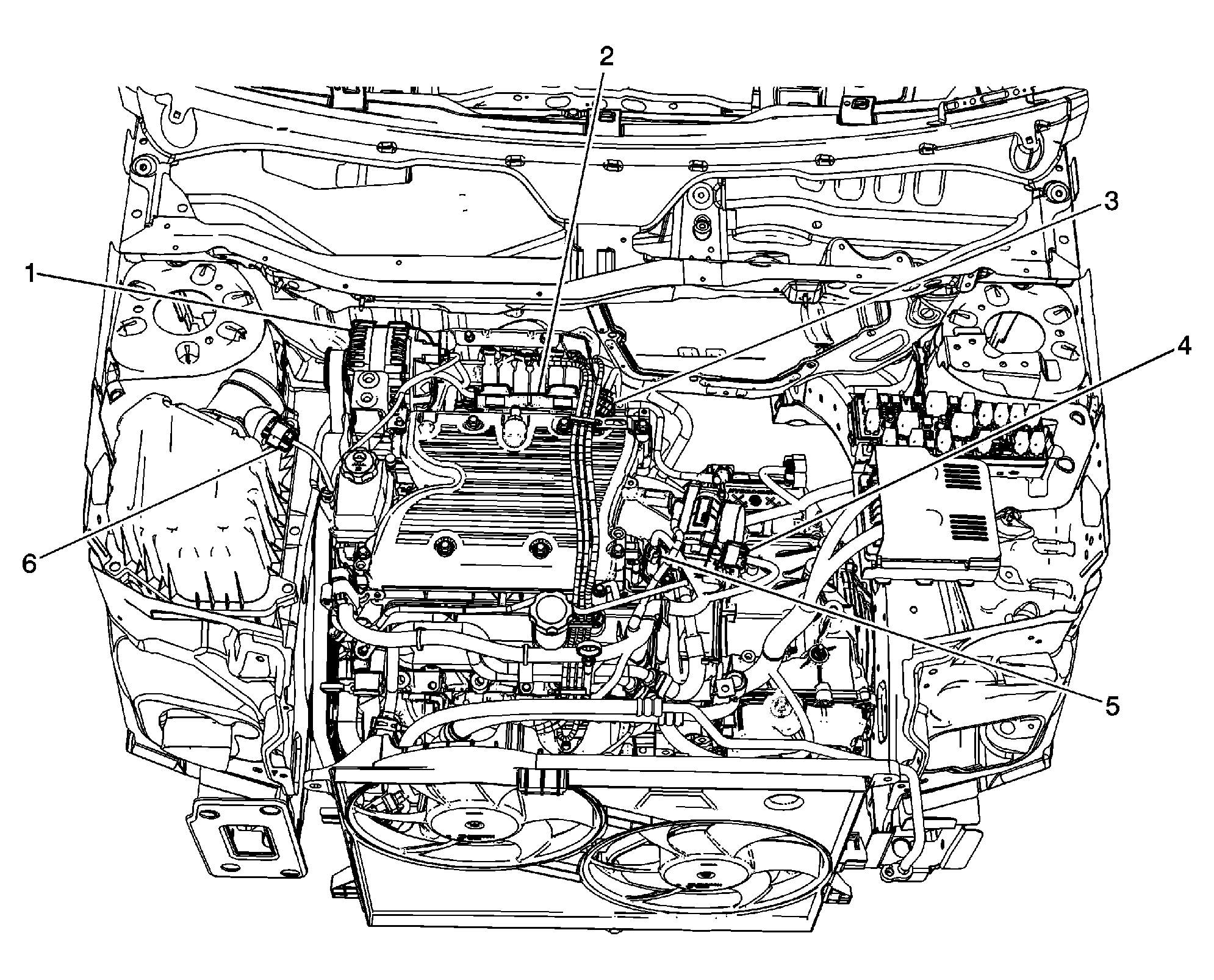

| Electronic Brake Control Module (EBCM) (9) | Near left front shock tower. See Figure. |
| Electronic Control Module (ECM) (4) | Left front corner of engine compartment. See Figure. |

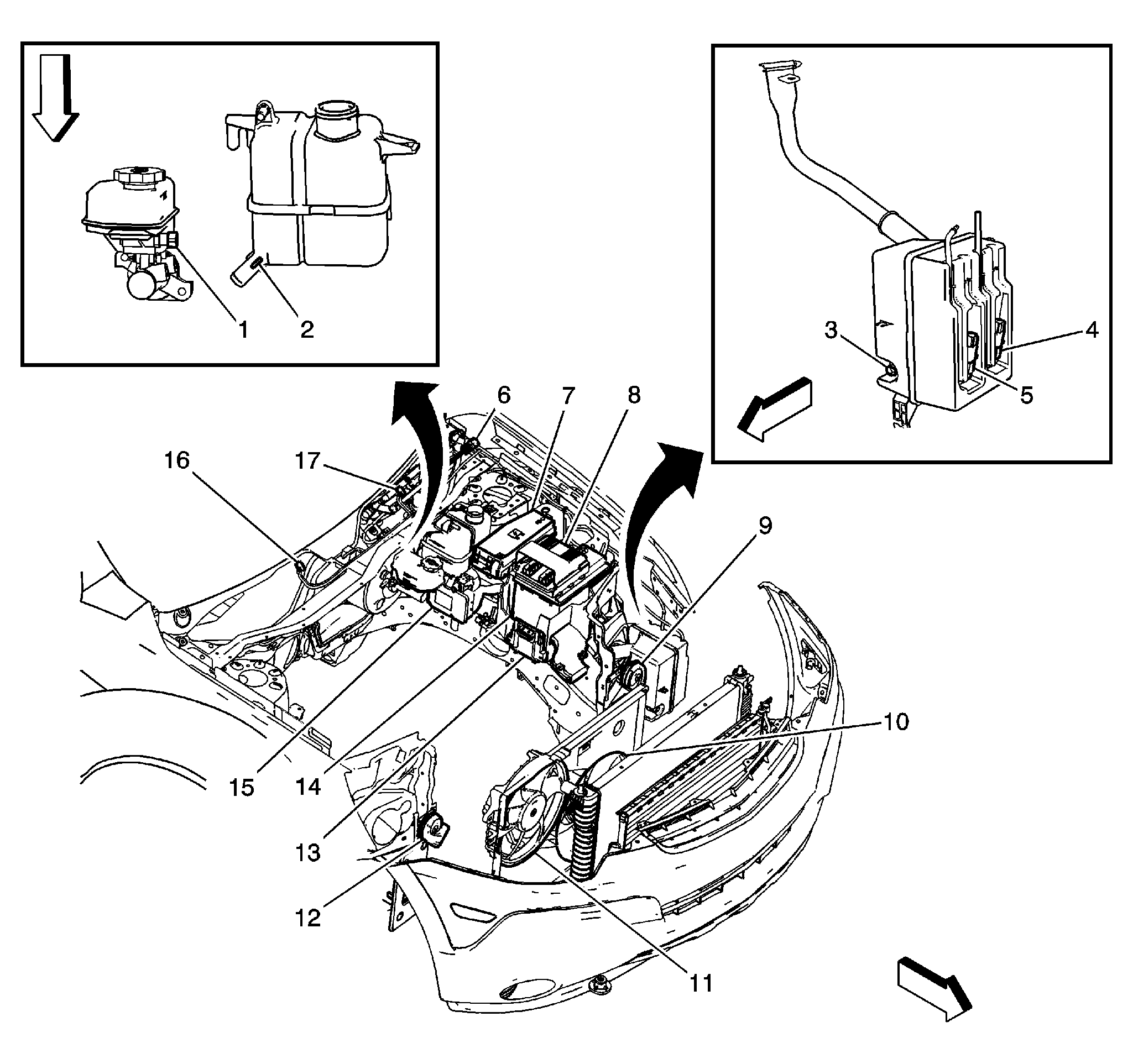

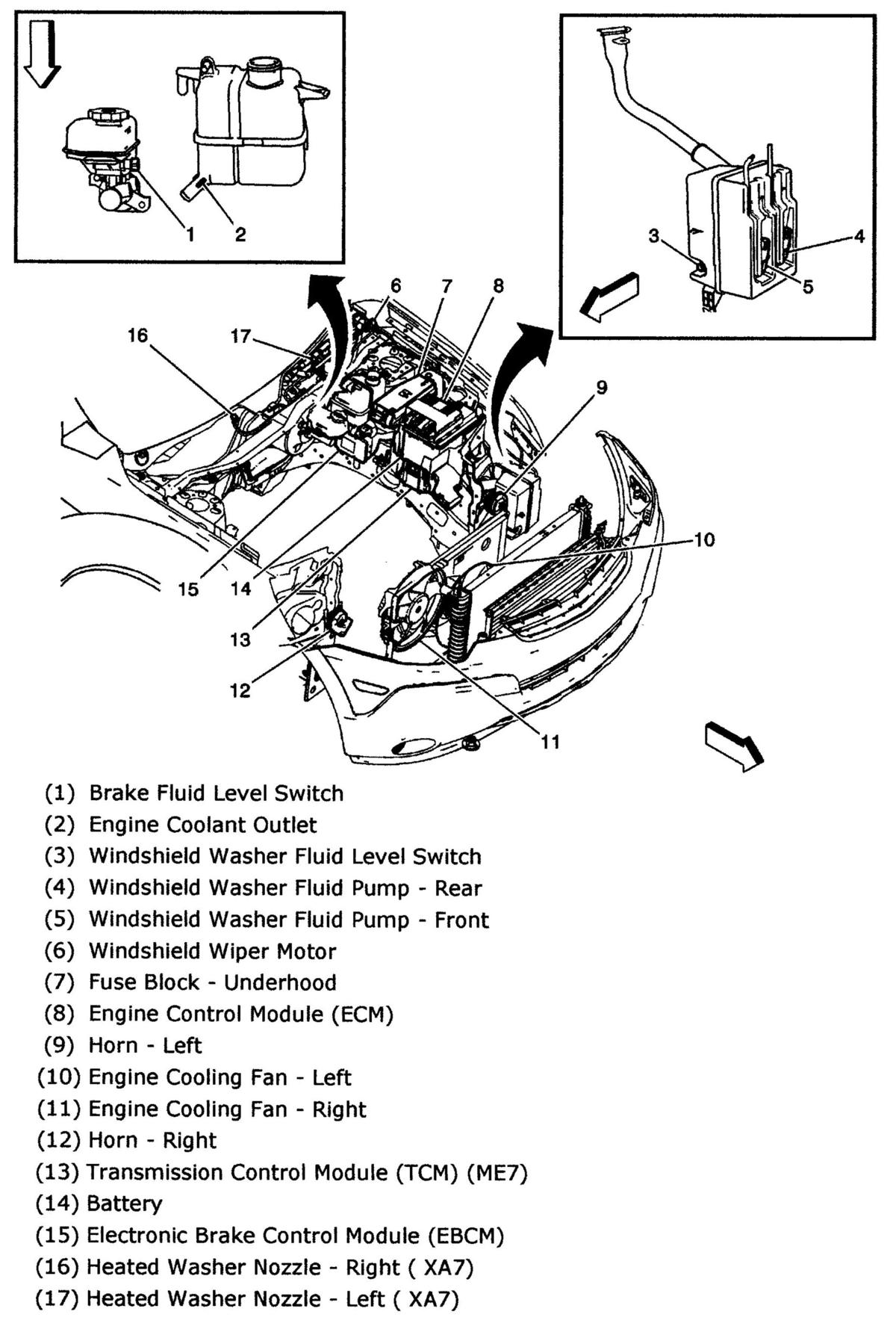

| Engine Control Module (ECM) | Left front engine compartment. See Figure. |

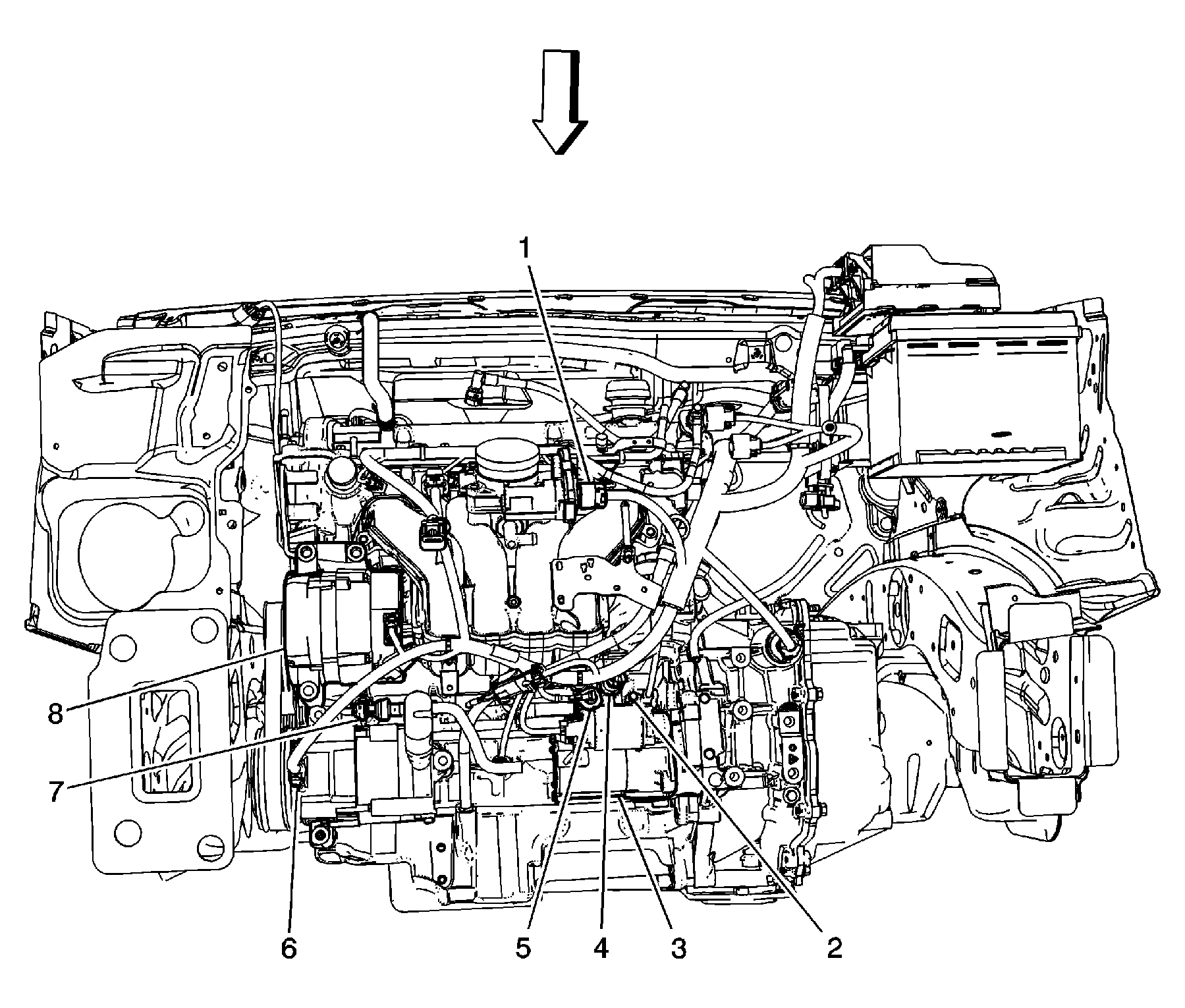

| Engine Control Module (ECM) (2.4L) (8) | Left rear of engine compartment. See Figure. |
| Engine Coolant Fan Control Module | Below under hood fuse box. |
| Fuel Pump Flow Control Module | Right side of spare tire well. |
| Fuel Pump Flow Control Module (4) | In spare tire well. See Figure. |

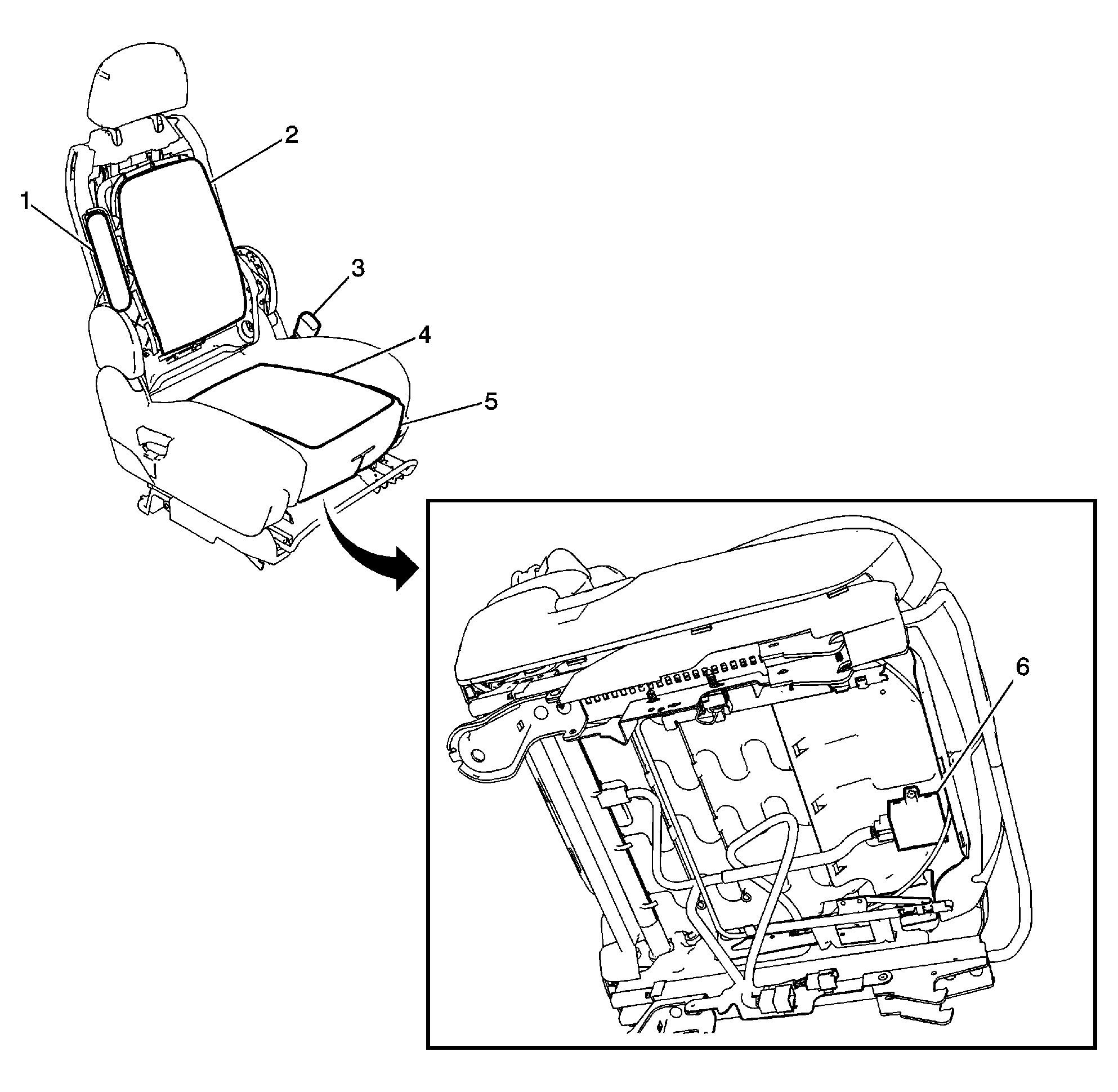

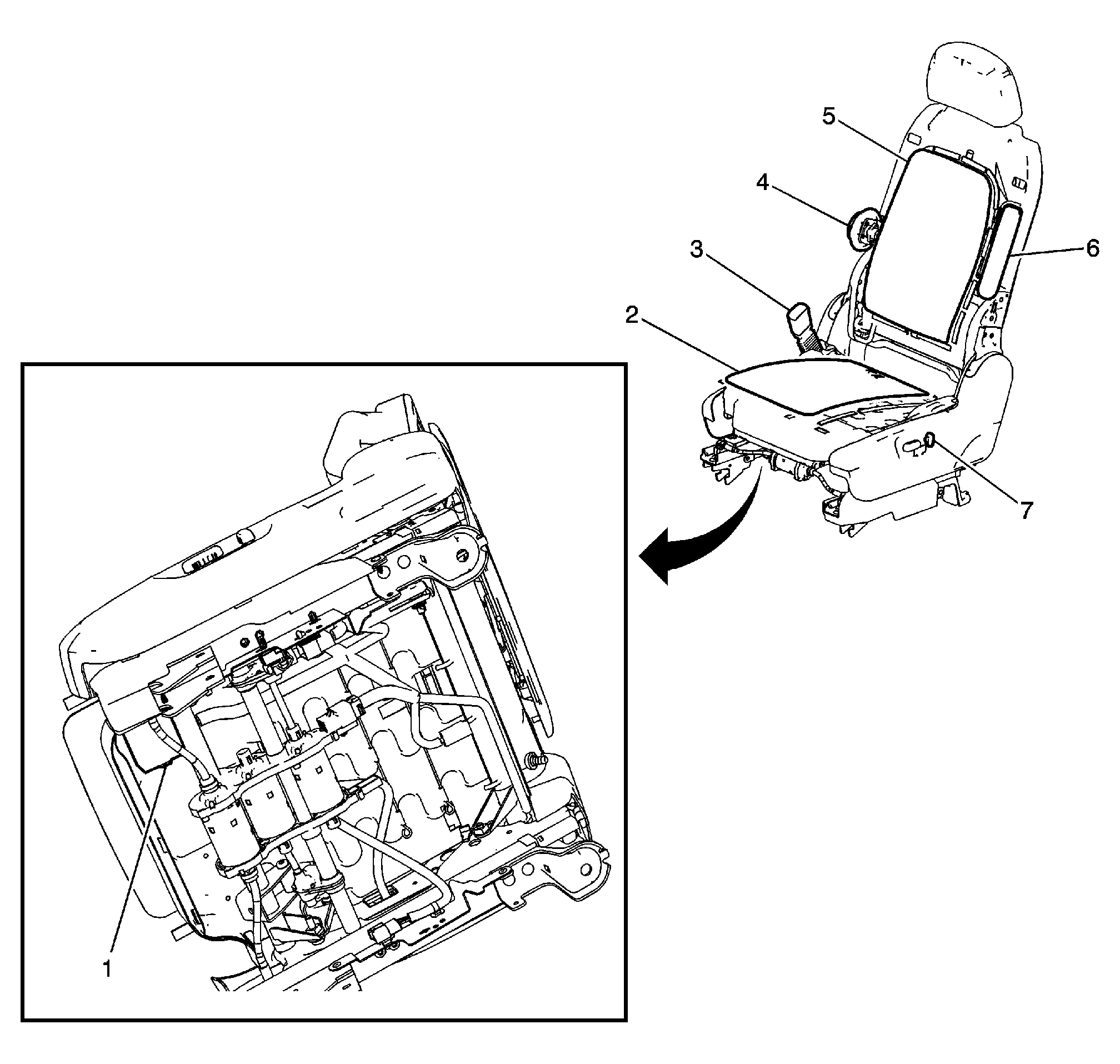

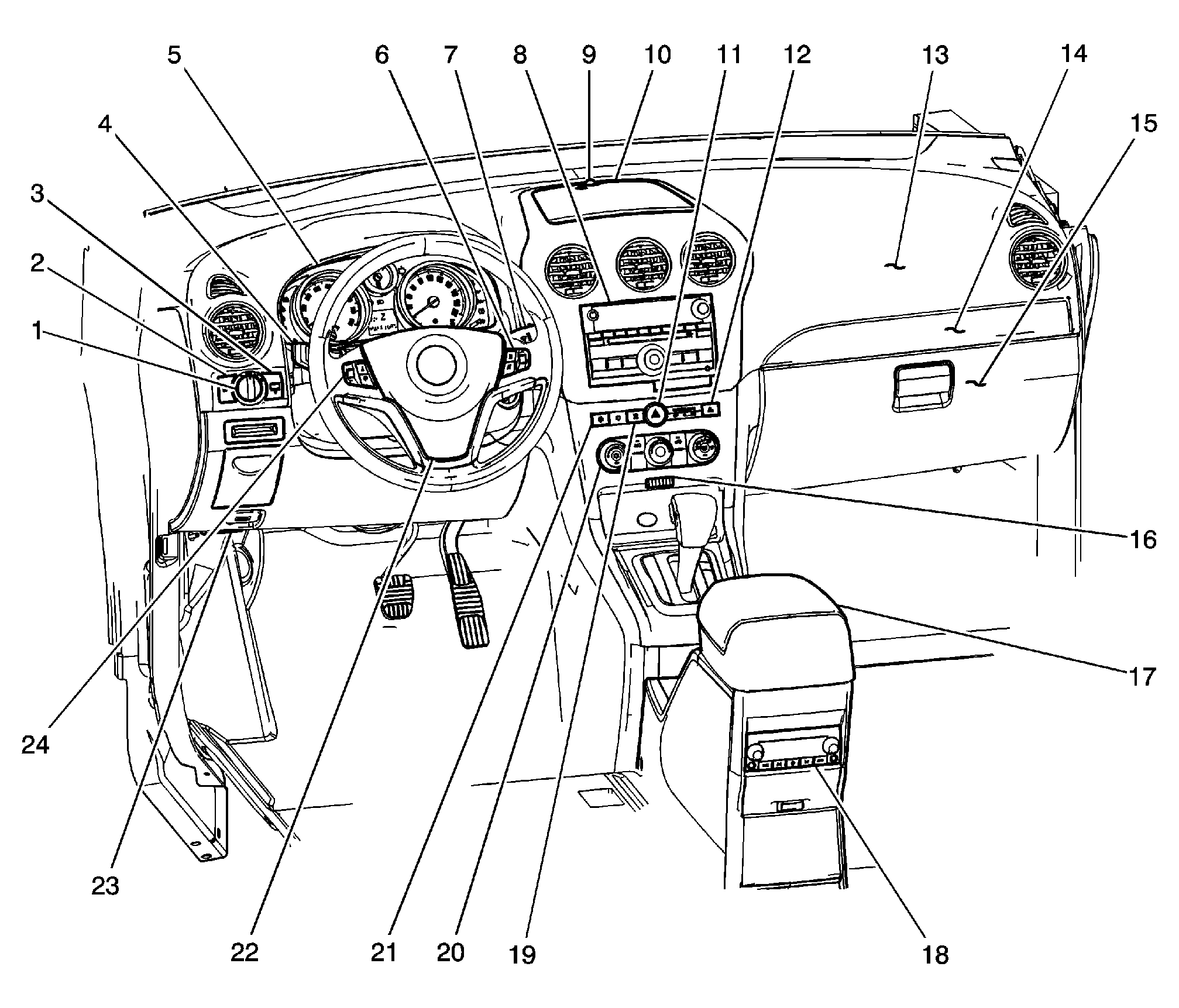

| Heated Seat Control Module - Driver (1) | Under drivers seat. See Figure. |
| Heated Seat Control Module - Passenger (6) | Under passenger seat. See Figure. |
| Ignition Control Modules (ICM) (2) | Upper rear of engine. See Figure. |
| Inflatable Restraint I/P Module (13) | Behind top right side of dash. See Figure. |
| Inflatable Restraint Passenger Presence System (PPS) Module (5) | Under front passenger's seat. See Figure. |

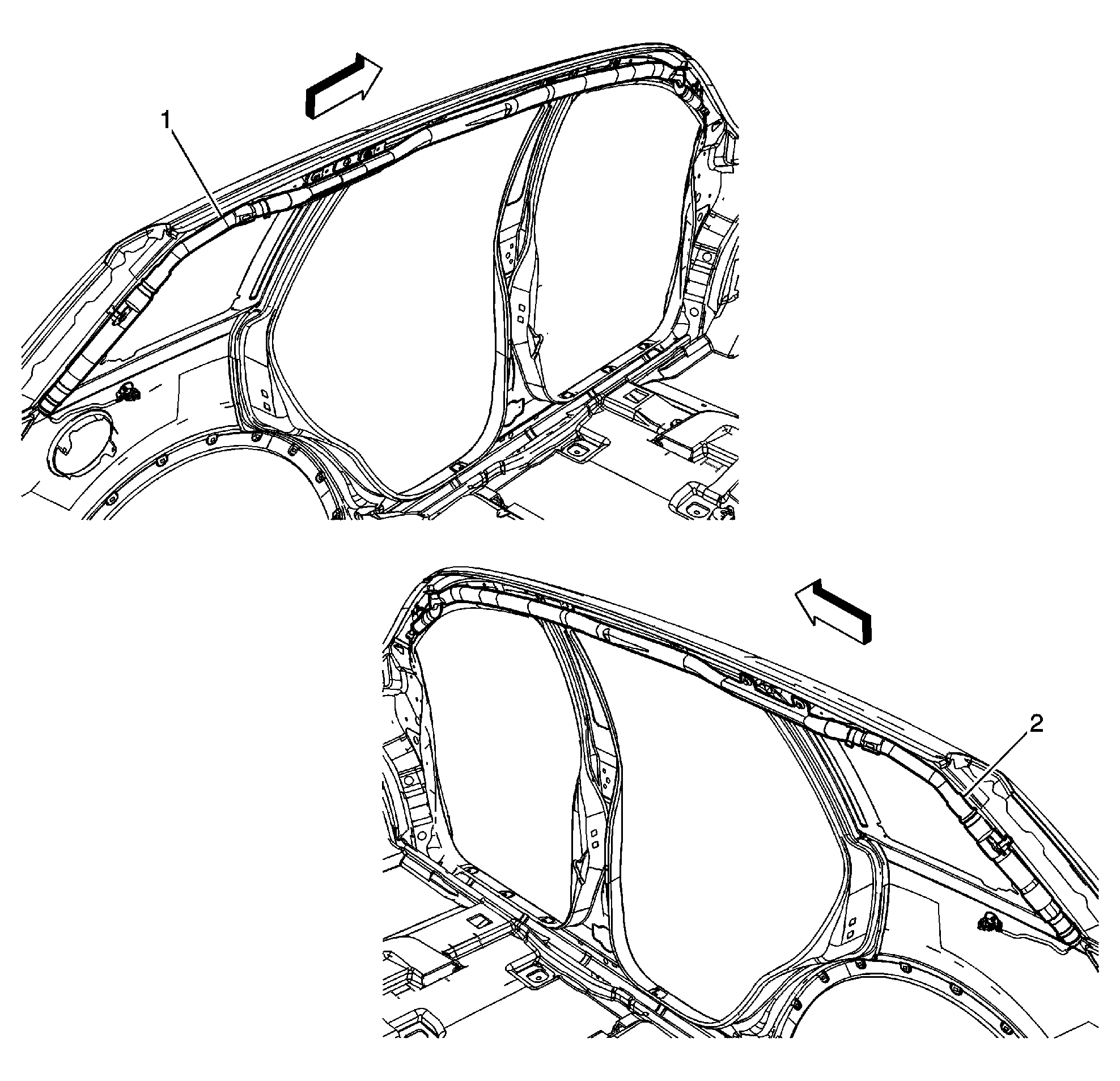

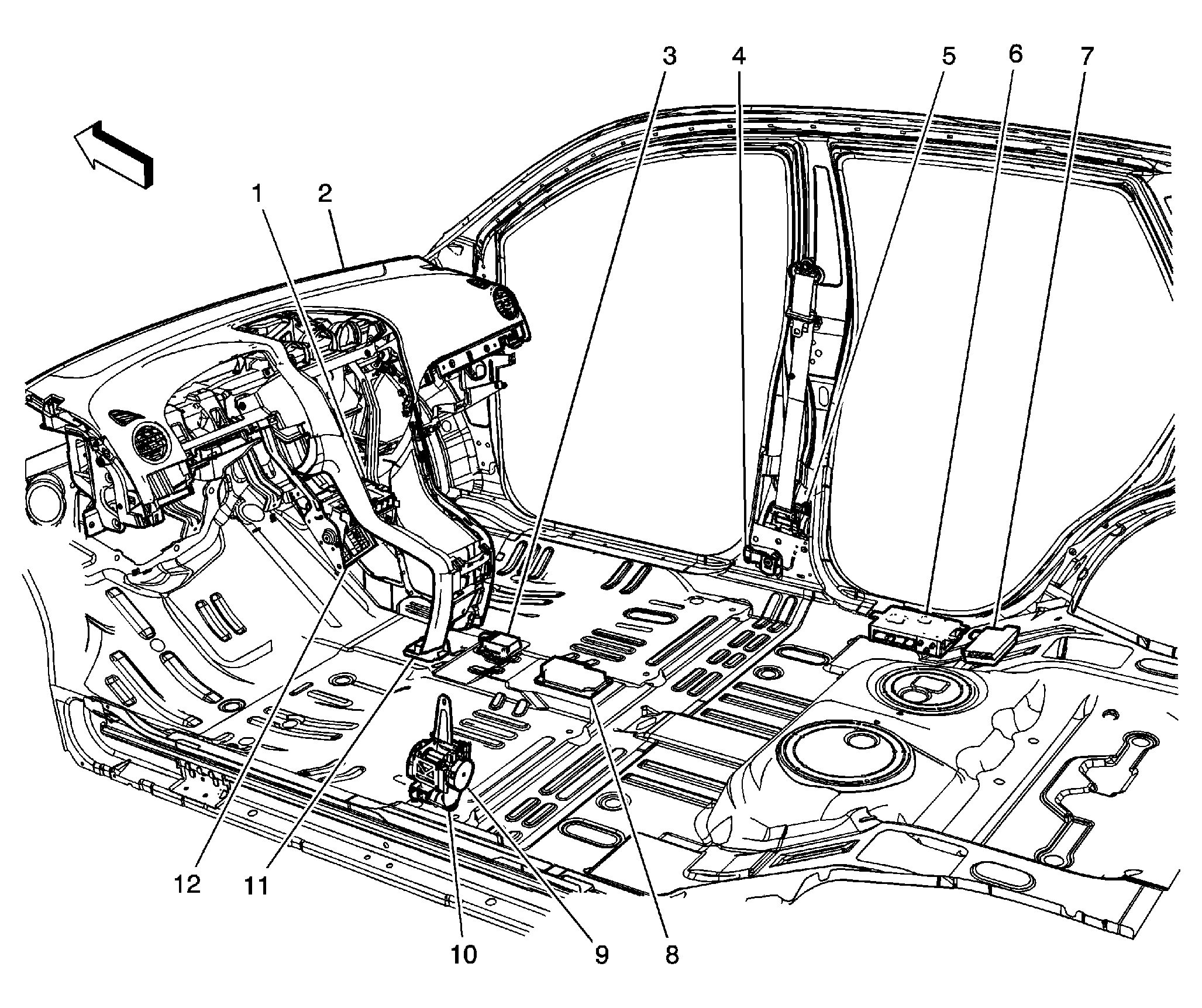

| Inflatable Restraint Roof Rail Module - Left (1) | Behind headliner, above driver. See Figure. |
| Inflatable Restraint Roof Rail Module - Right (2) | Behind headliner, above front passenger. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) (8) | Under rear of center console. See Figure. |
| Inflatable Restraint Side Impact Module - Left (6) | In drivers seatback. See Figure. |
| Inflatable Restraint Side Impact Module - Right (1) | In passenger seatback. See Figure. |

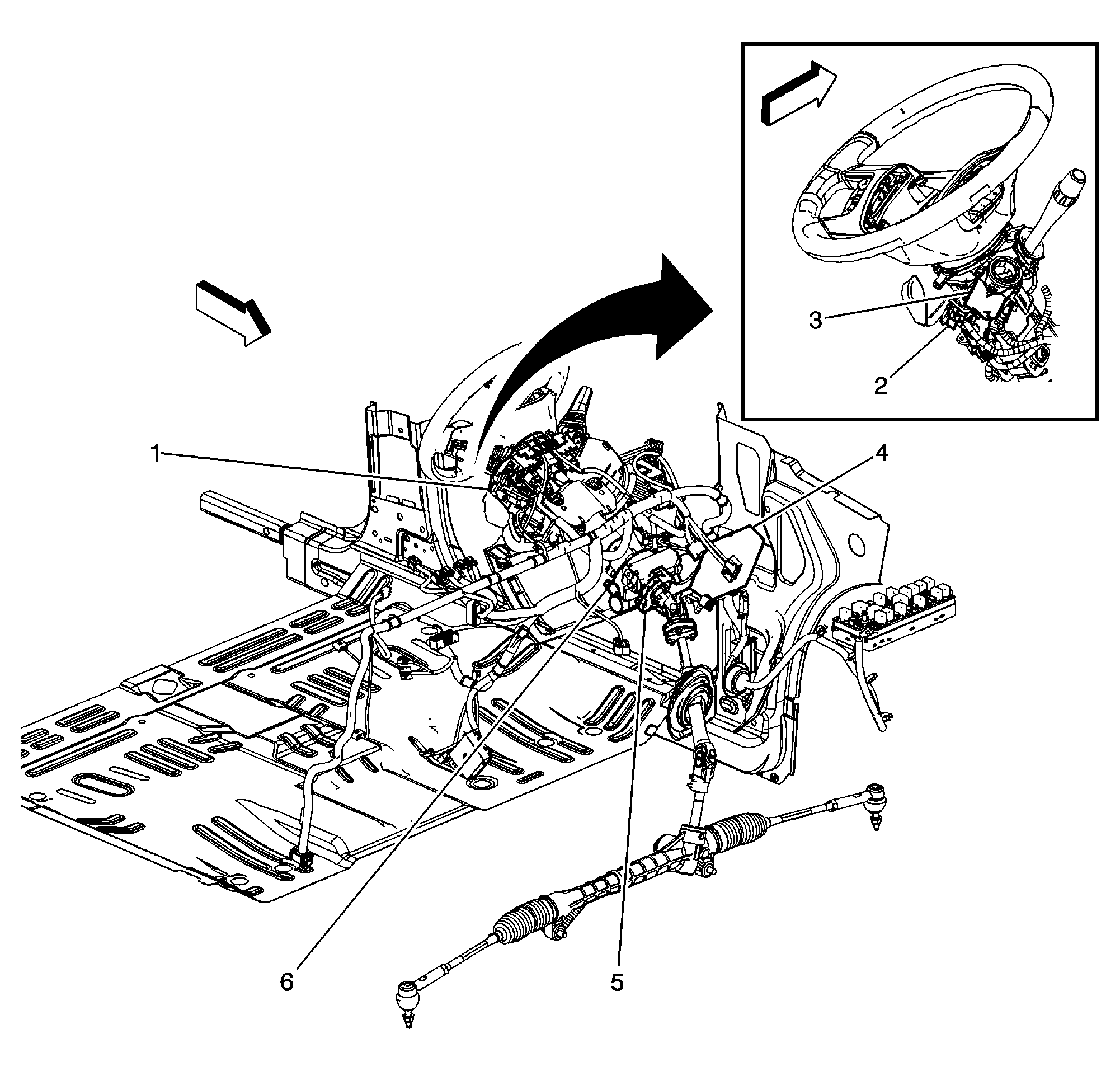

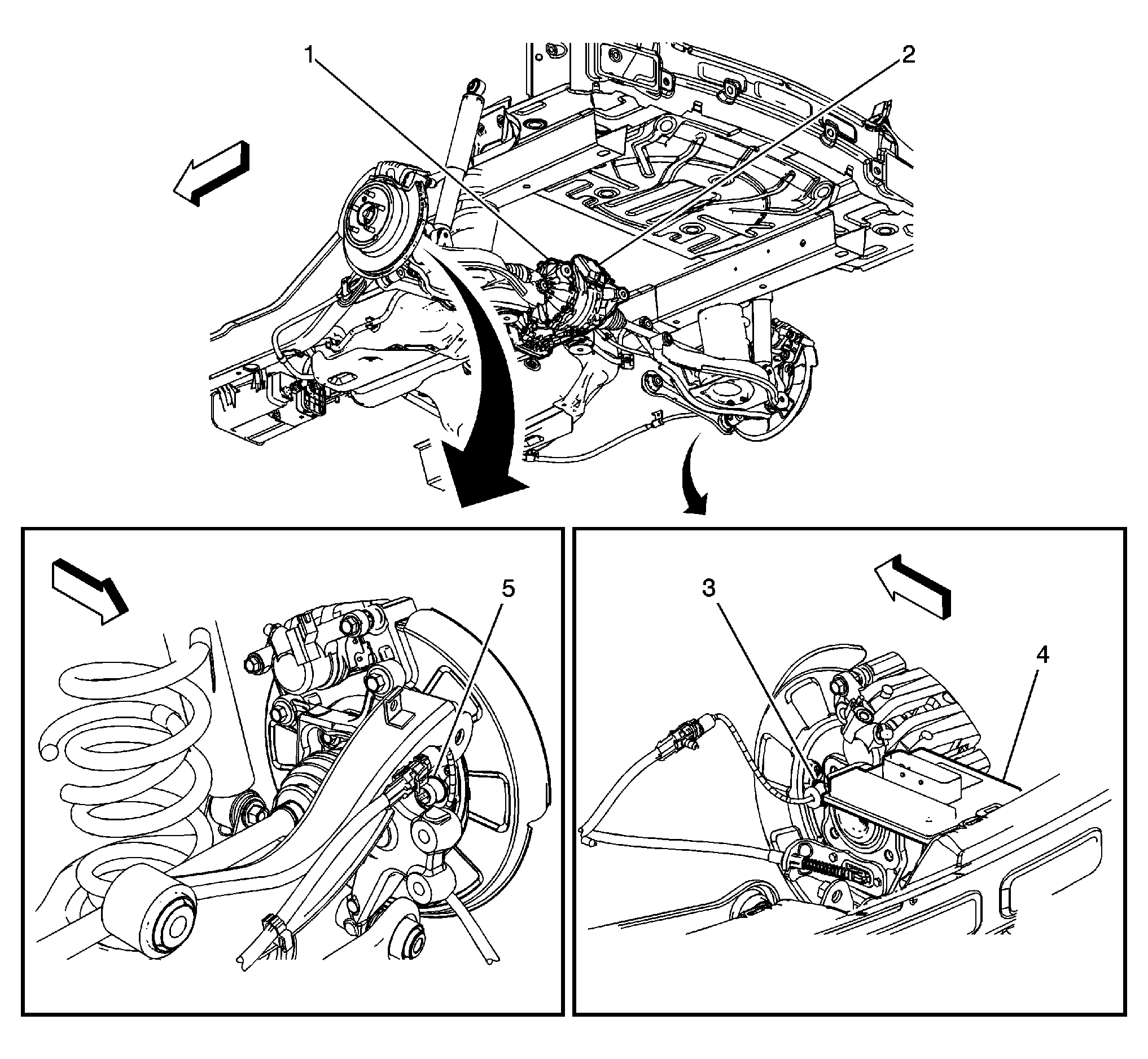

| Power Steering Control Module (PSCM) (4) | On bottom of steering column. See Figure. |
| Rear Differential Clutch Control Module (AWD) (2) | Under rear of vehicle. See Figure. |

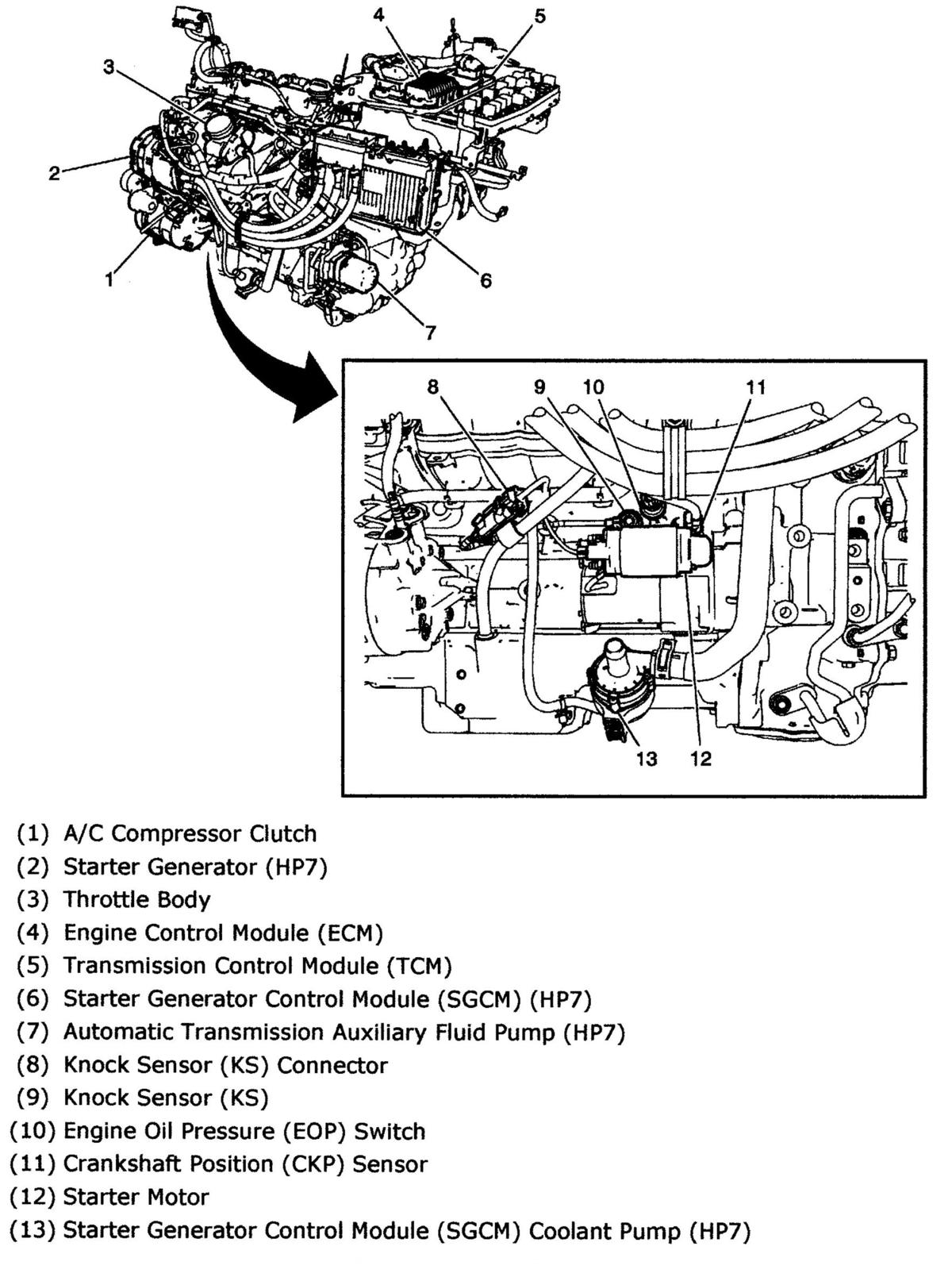

| Starter Generator Control Module (GCM) (6) | Left front of engine compartment. See Figure. |

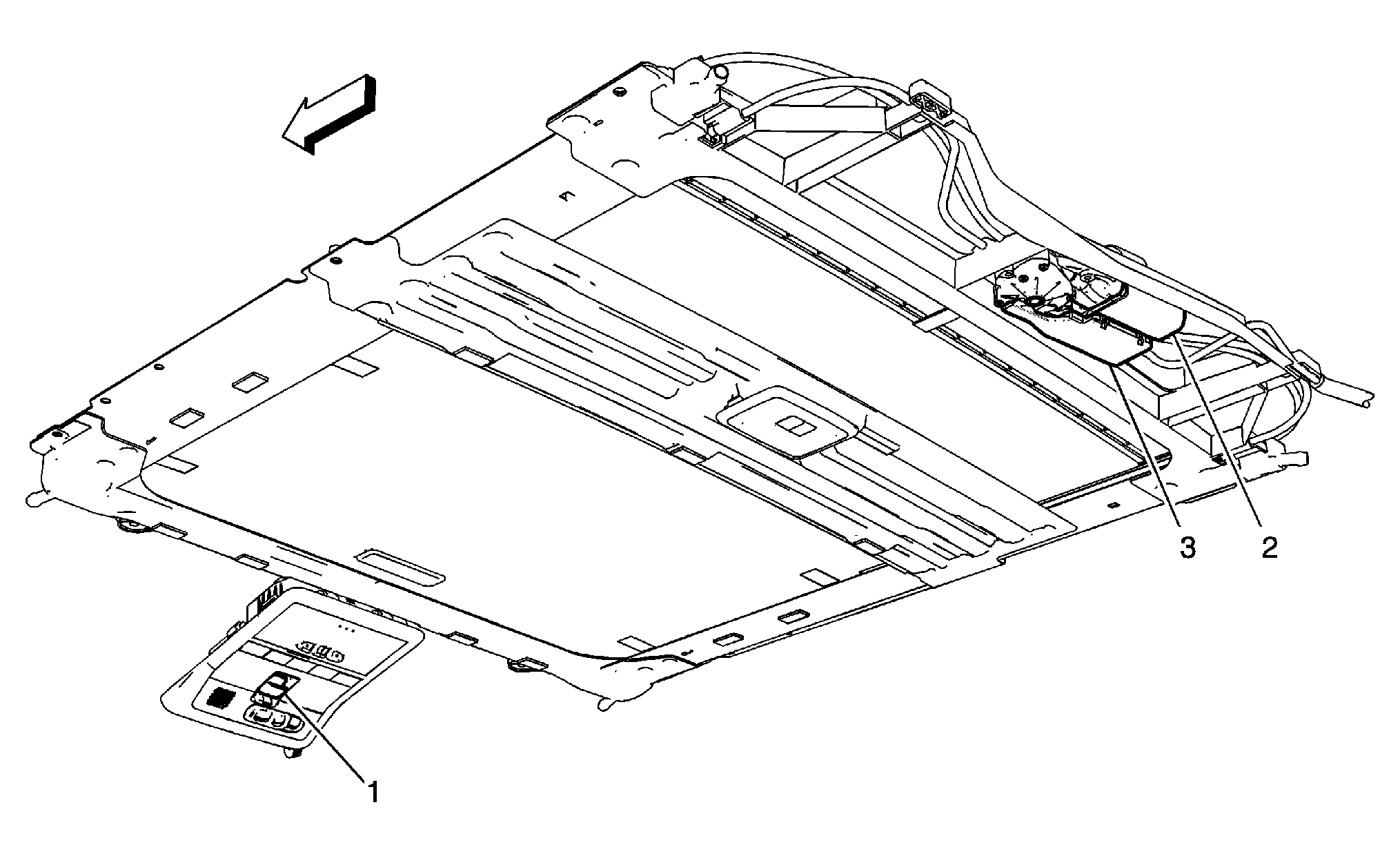

| Sunroof Control Module (3) | Rear of sunroof module. See Figure. |
| Theft Deterrent Module (3) | Left side of instrument panel. See Figure. |
| Throttle Actuator Control (TAC) Module (1) | Front top center of engine. See Figure. |
| Throttle Actuator Control (TAC) Module (3) | Front top center of engine. See Figure. |
| Transmission Control Module (TCM) (5) | Near master cylinder. See Figure. |
| Vehicle Communication Interface Module (VCIM) (6) | Under right side rear passenger seat. See Figure. |
