Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

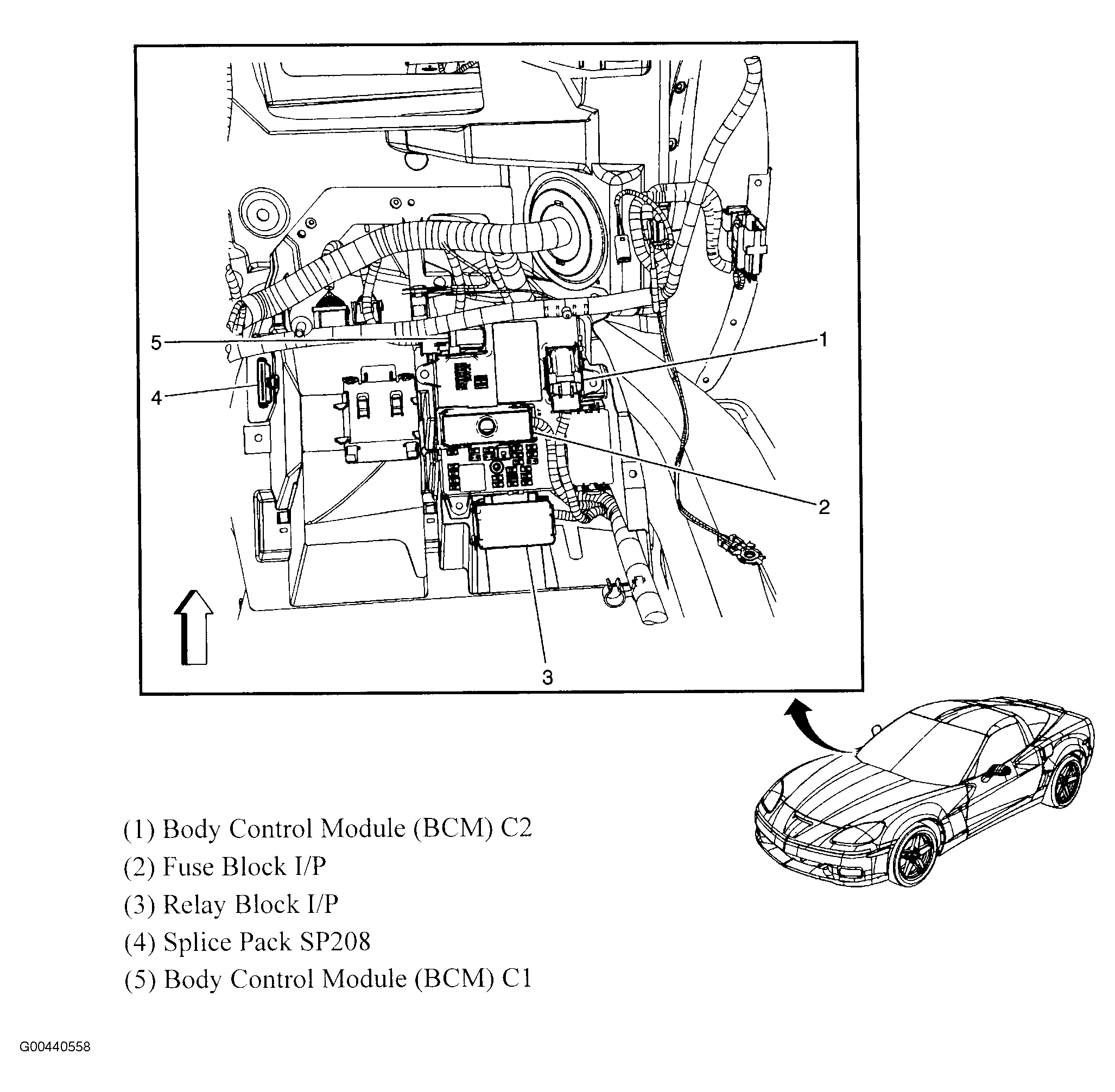

| Body Control Module (BCM) | Mounted on toe board, in right footwell. See Figure. |

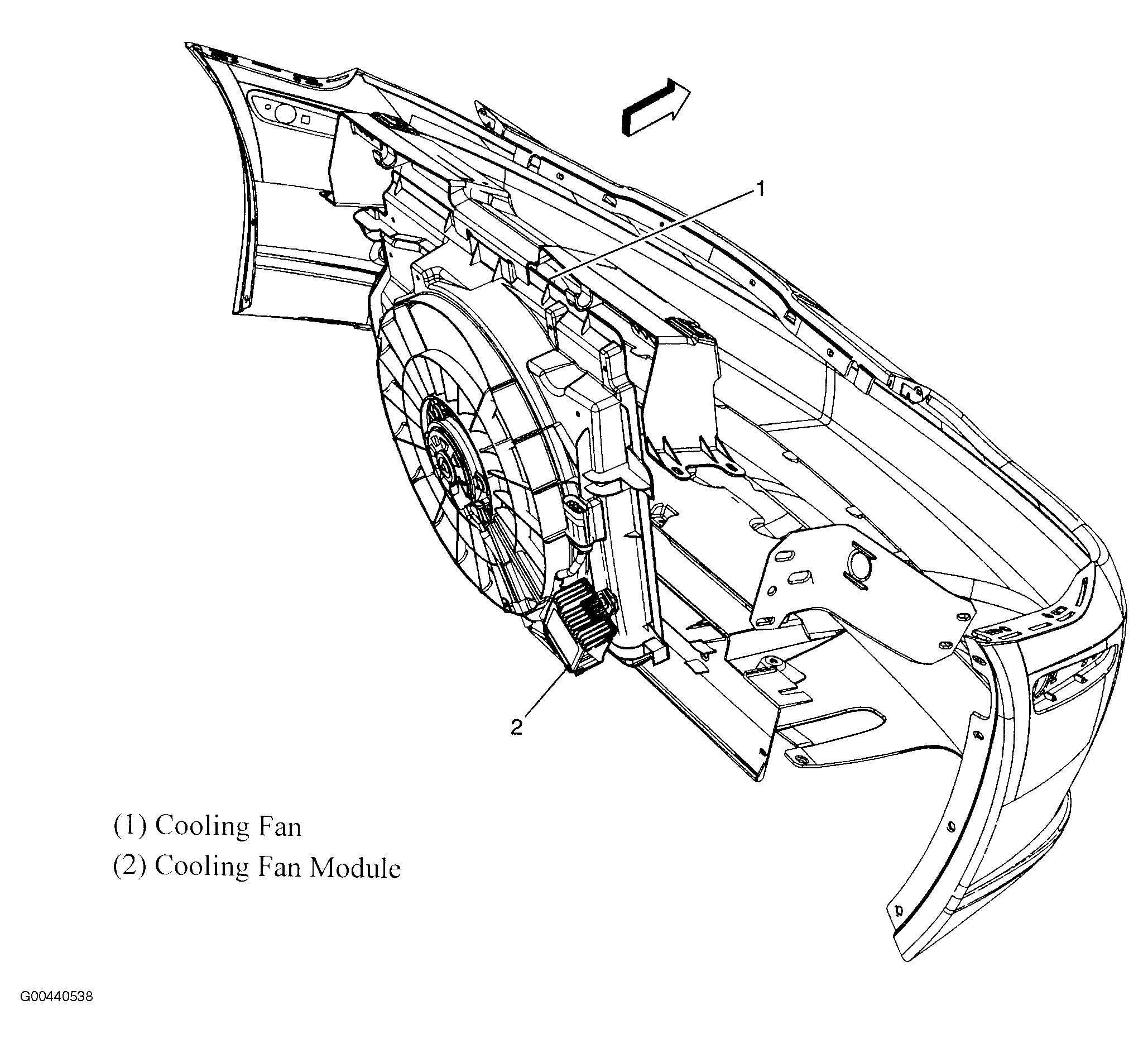

| Cooling Fan Control Module | Front of engine compartment, rear of radiator. See Figure. |

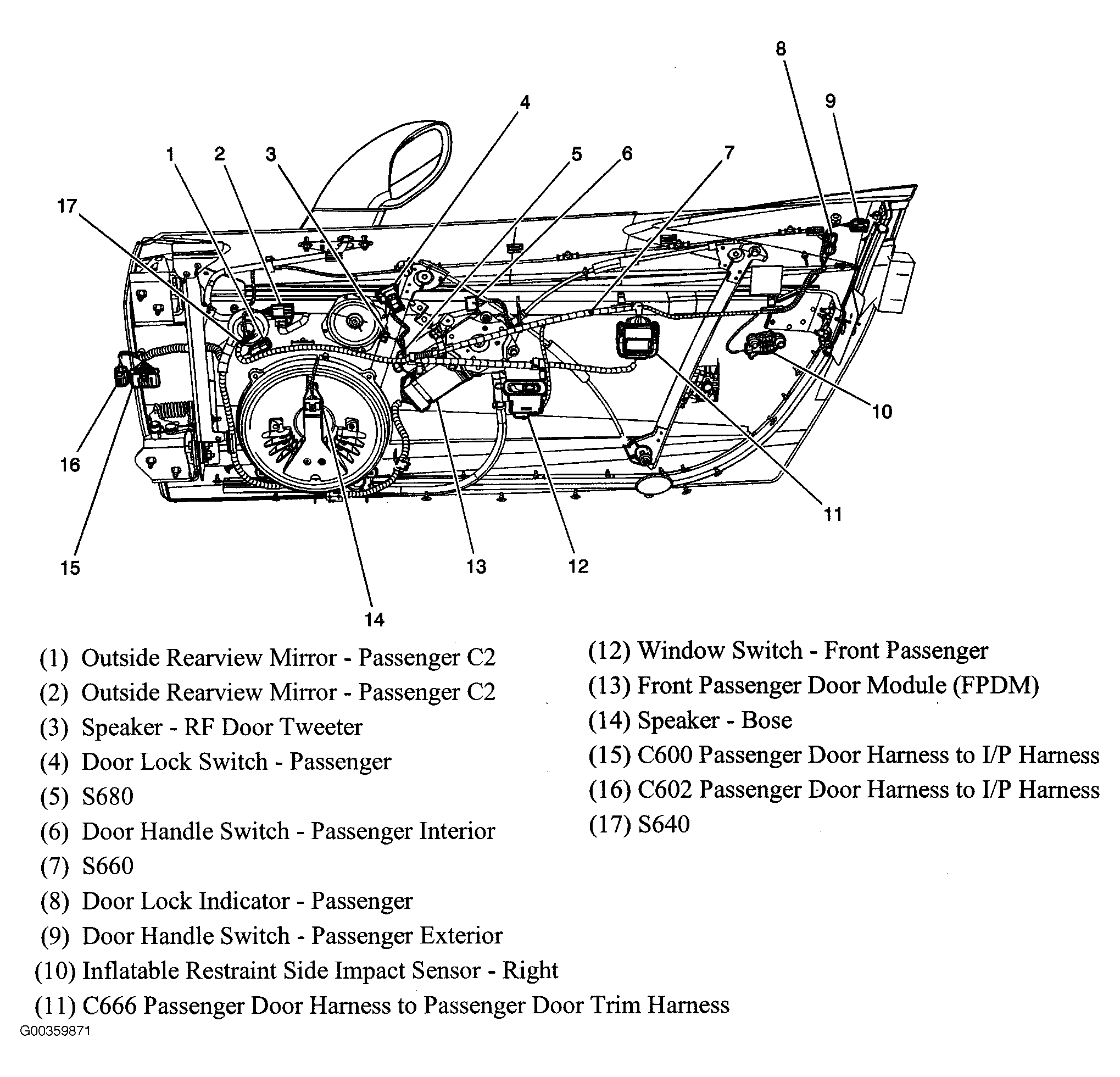

| Door Module (Front Passenger) | Bottom center of passenger door. See Figure. |

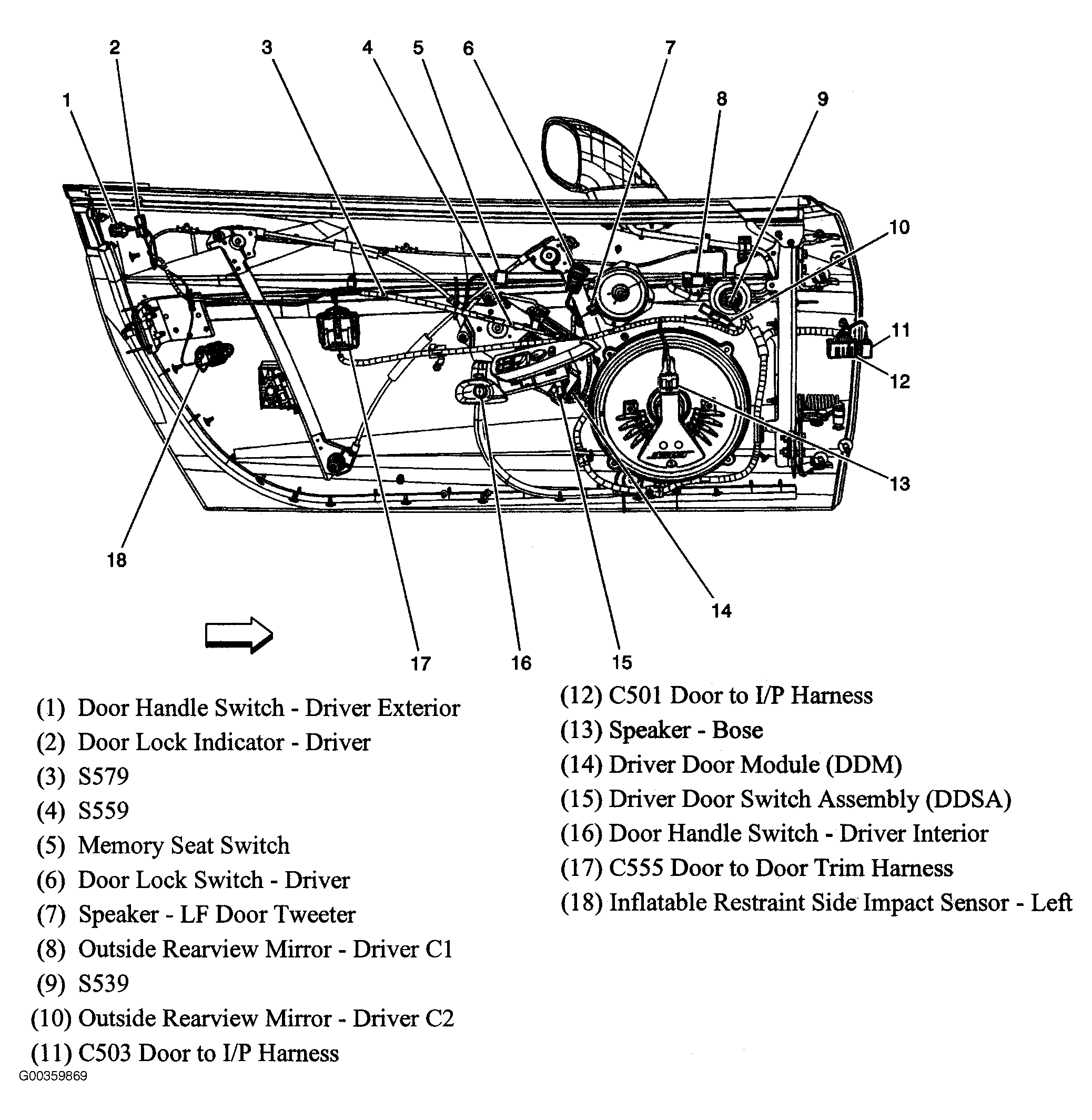

| Driver Door Module (DDM) | Bottom center of driver door. See Figure. |

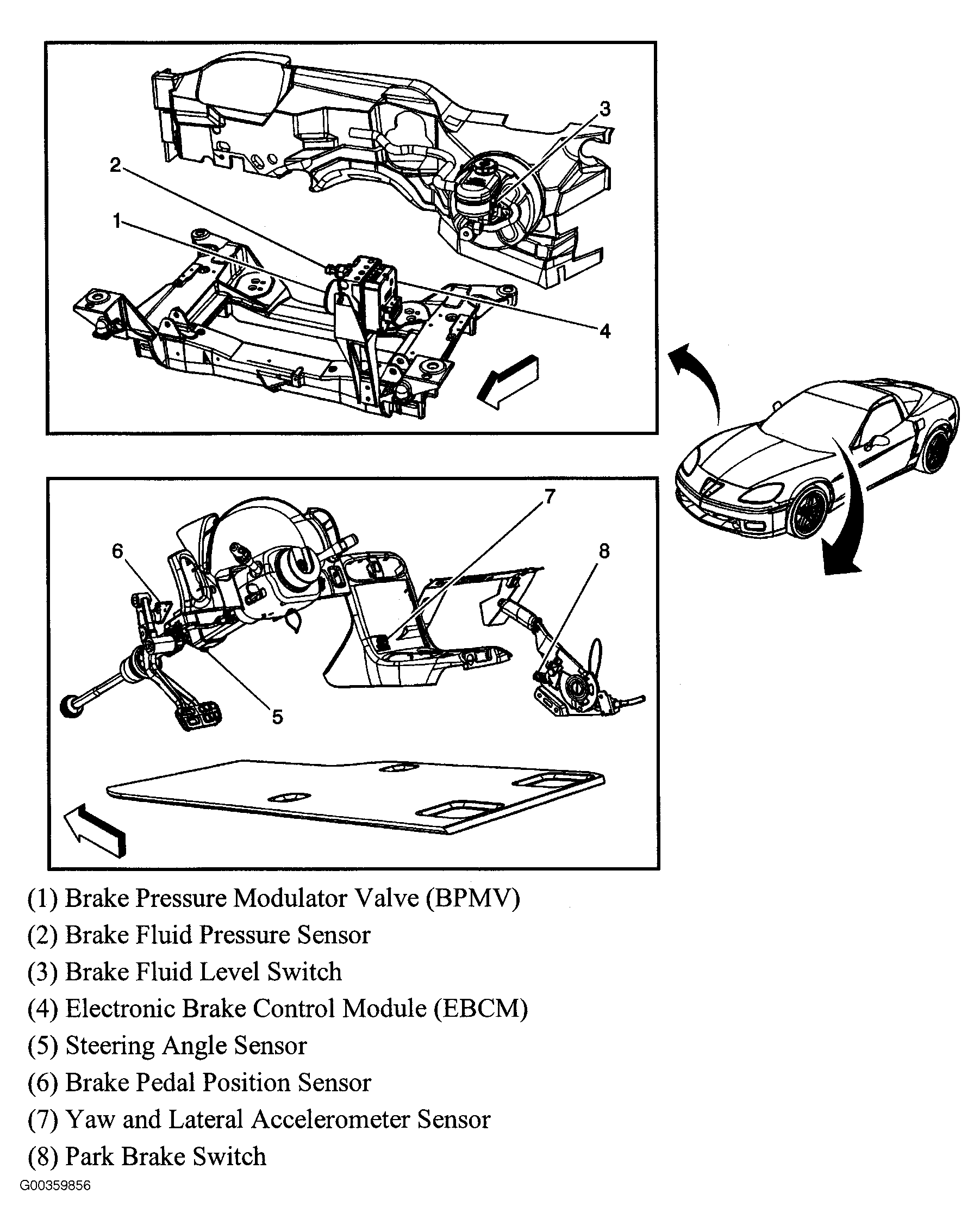

| Electronic Brake Control Module (EBCM) | At left front side of engine compartment, on frame rail. See Figure. |

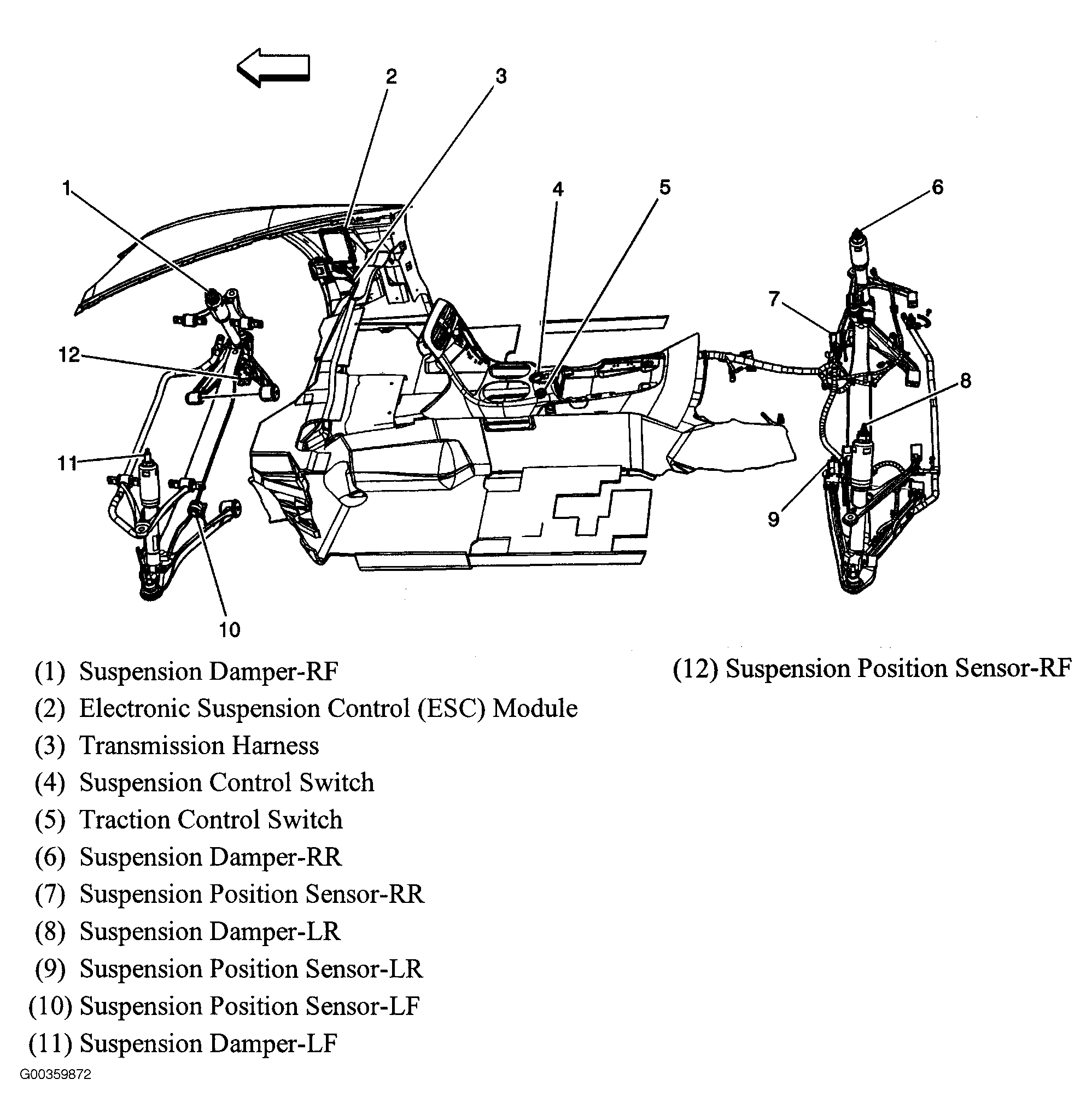

| Electronic Suspension Control (ESC) Module | Behind the right front fender, above ECM. See Figure. |

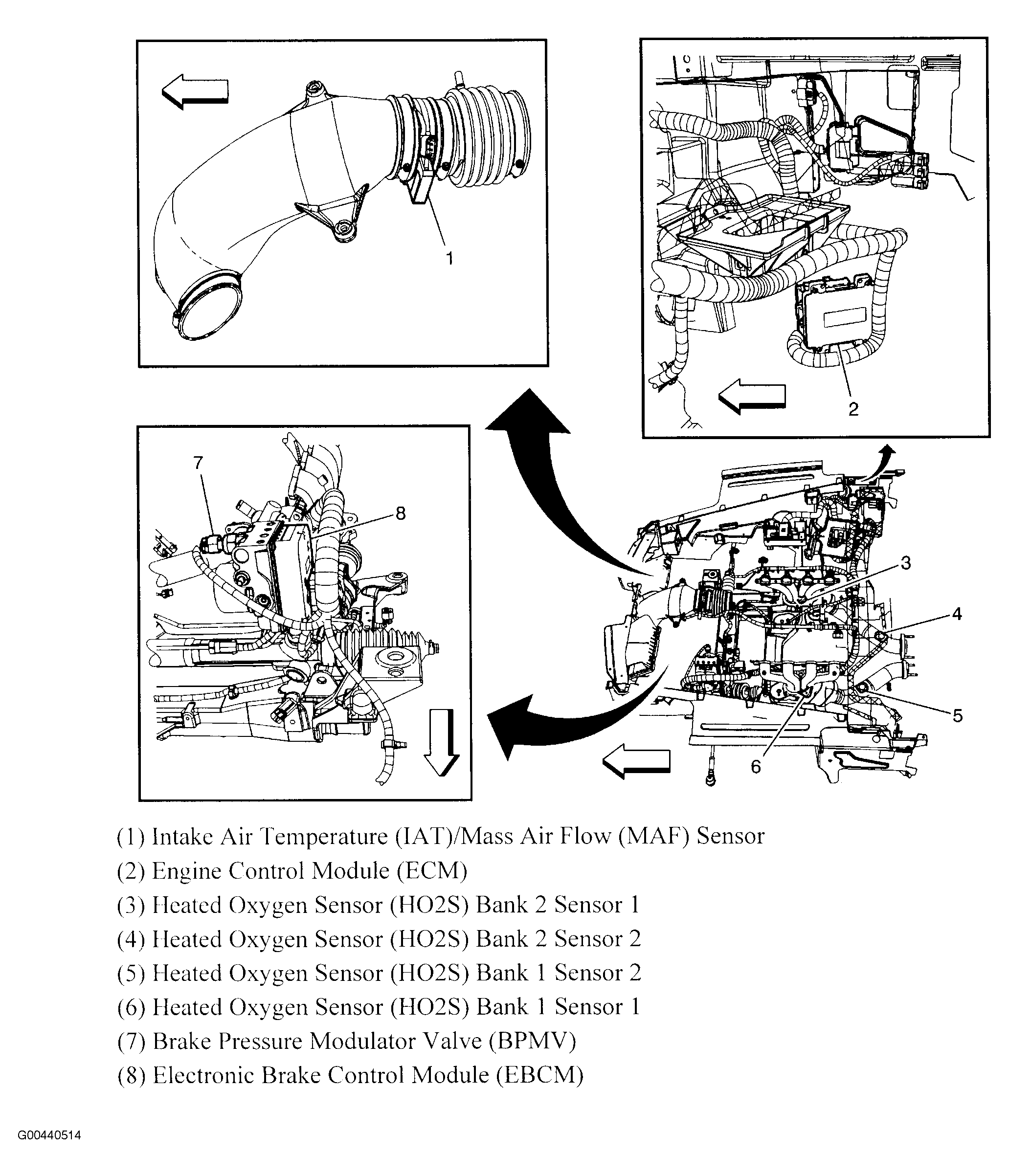

| Engine Control Module (ECM) (6.0L) | Behind right front fender, between wheelhouse & dash panel. See Figure. |
| Engine Control Module (ECM) (7.0L) | Behind right front fender, between wheelhouse & dash panel. |

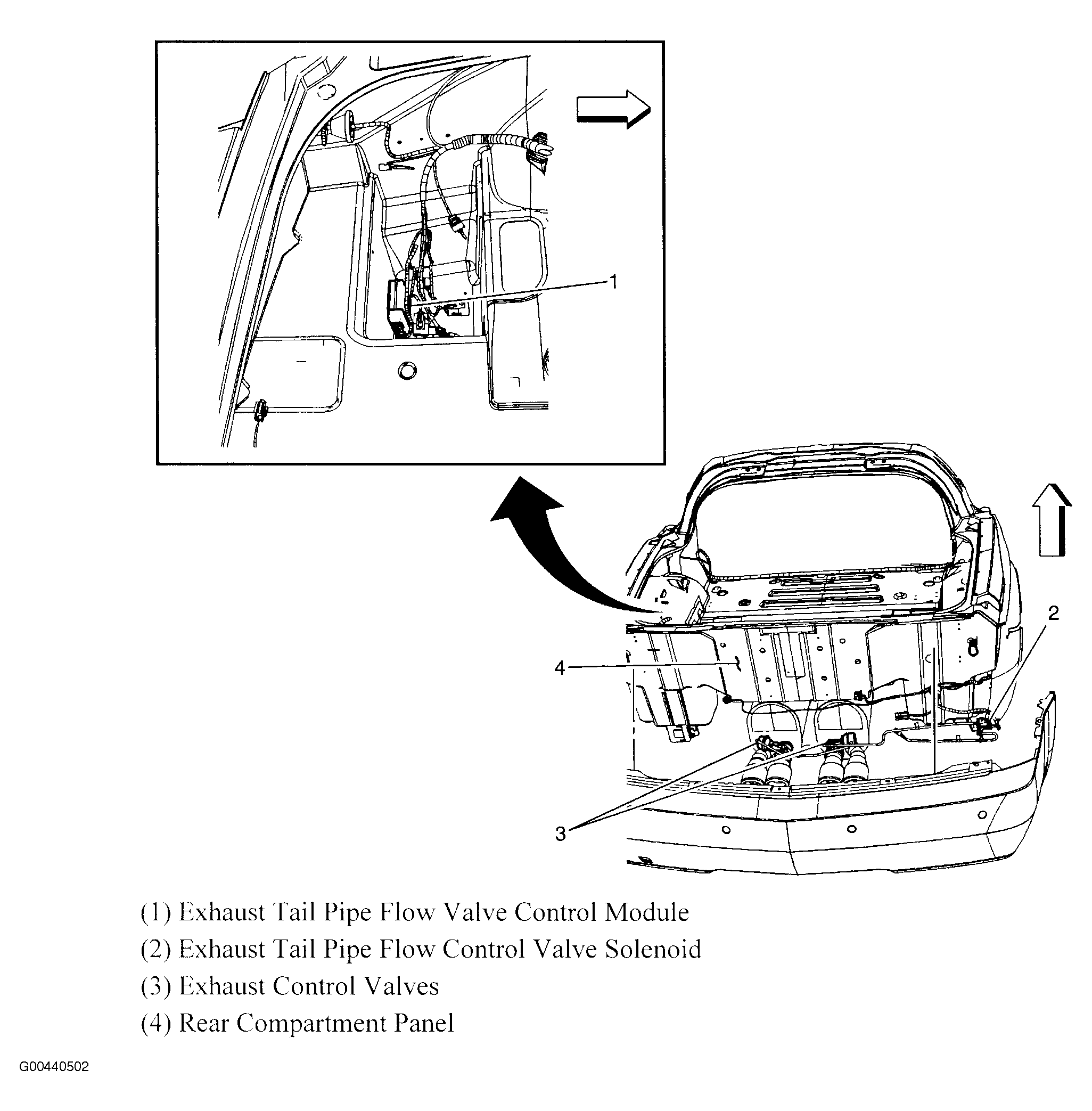

| Exhaust Tail Pipe Flow Valve Control Module | Right side of rear compartment, behind wheelwell. See Figure. |

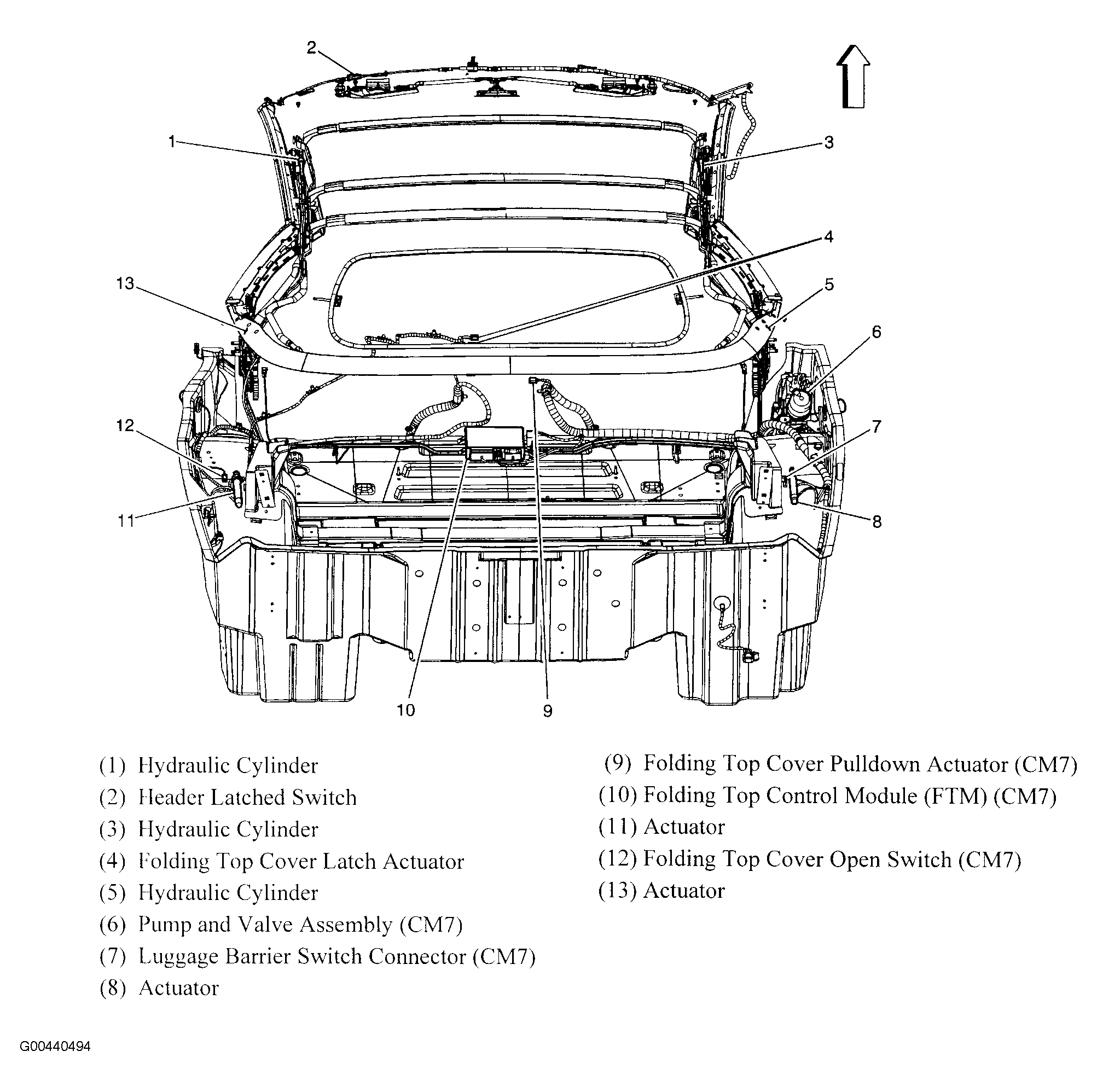

| Folding Top Control Module (FTM) | Between driver & passenger seat, mounted on bracket below tonneau latch actuator. See Figure. |

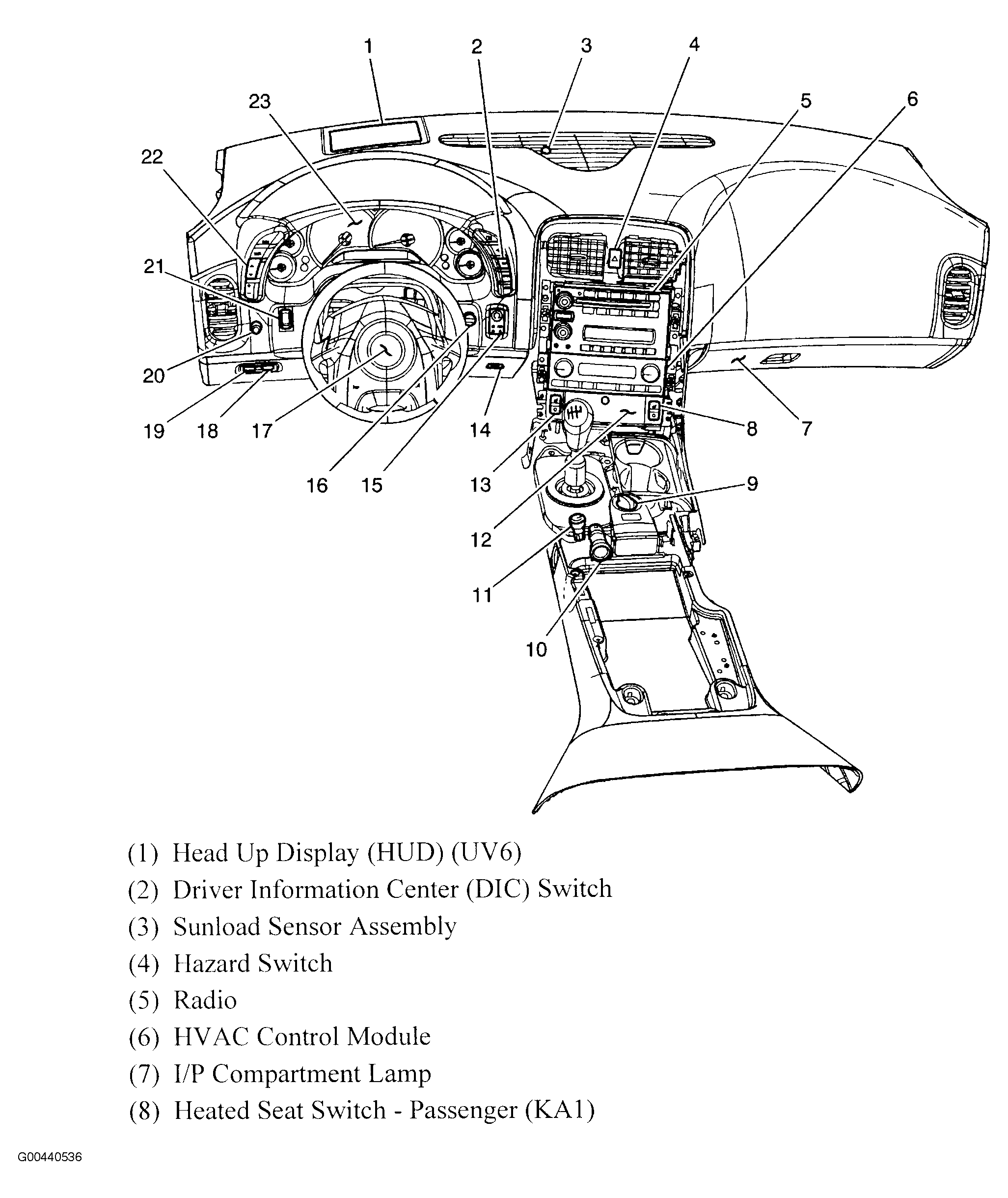

| Head Up Display (HUD) | Top left side of dash. See Figure and Figure. |
| Heated Seat Module-Driver | Under center of driver seat. See Figure. |
| Heated Seat Module-Passenger | Under center of passenger seat. See Figure. |
| HVAC Control Module | Center of dash, under radio. See Figure and Figure. |

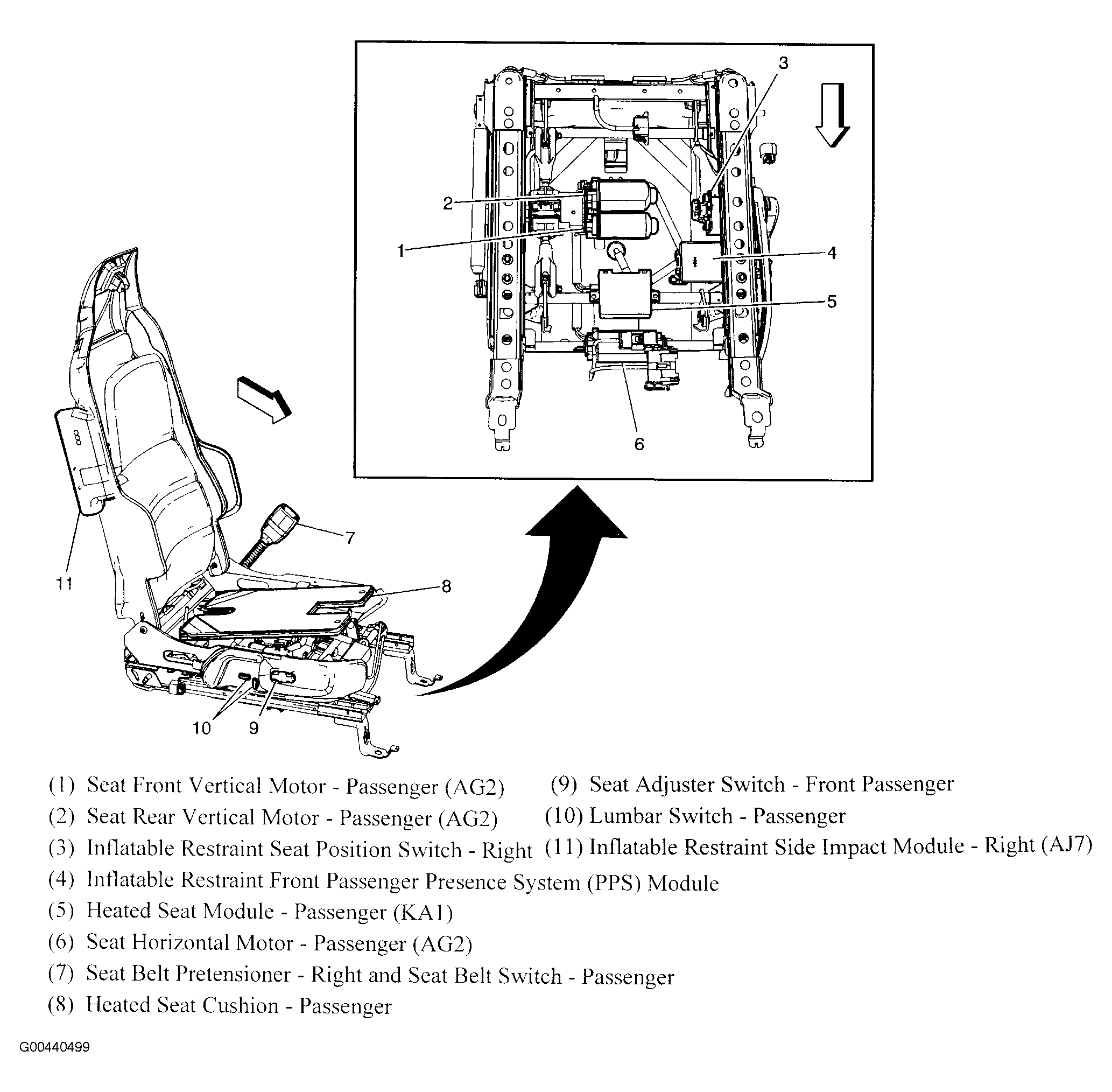

| Inflatable Restraint Front Passenger Presence System Module | Under passenger seat. See Figure. |
| Inflatable Restraint IP Module | At right side of dash. |

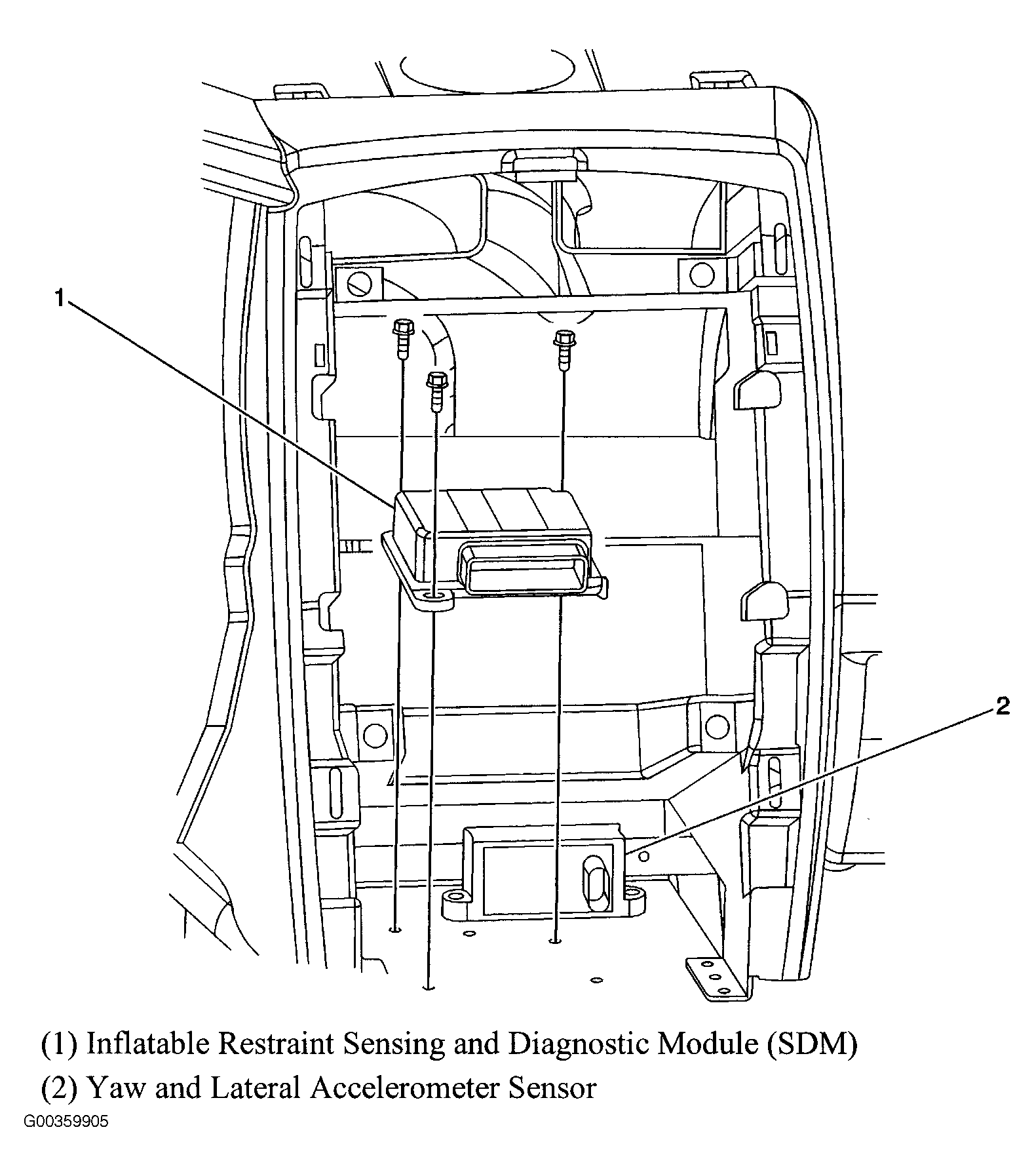

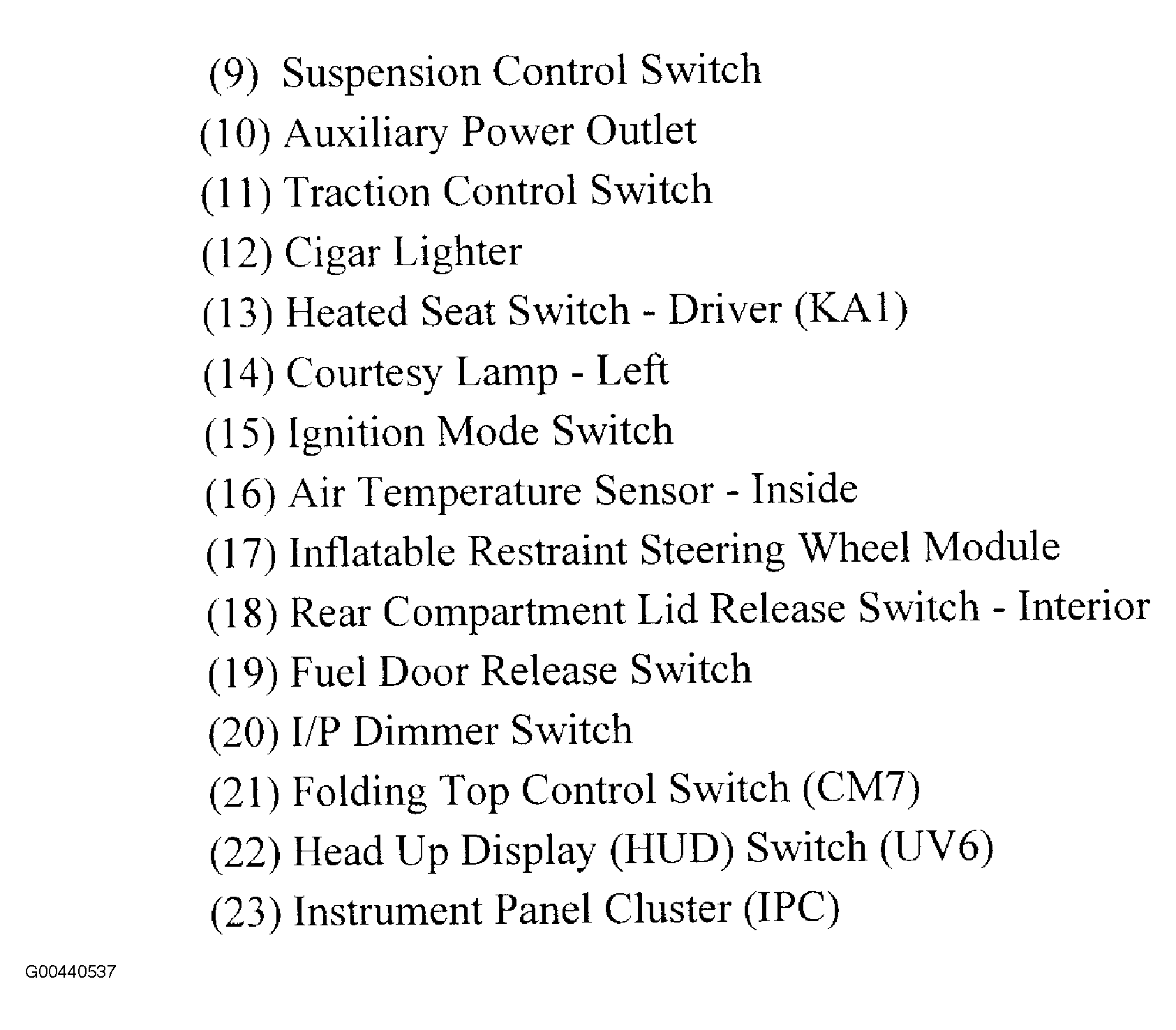

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Behind center of dash, under HVAC control head. See Figure. |
| Inflatable Restraint Side Impact Module-Left | In driver seat back, toward door. See Figure. |
| Inflatable Restraint Side Impact Module-Right | In passenger seat back, toward the door. See Figure. |
| Inflatable Restraint Steering Wheel Module | Center of steering wheel. See Figure and Figure. |

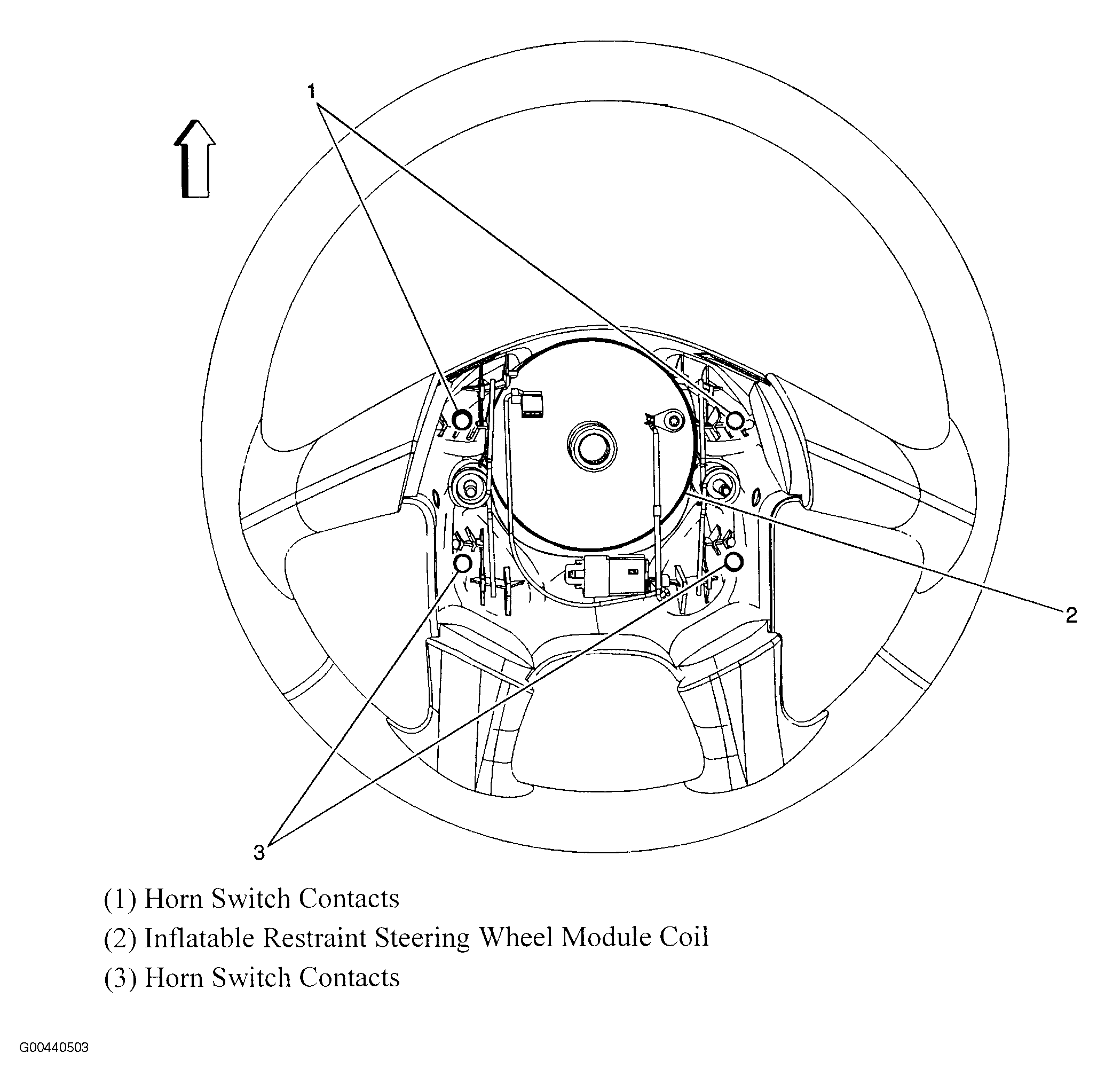

| Inflatable Restraint Steering Wheel Module Coil | Center of steering column. See Figure. |
| Lumbar Pump/Control Module-Driver | Under center of driver seat. |
| Lumbar Pump/Control Module-Passenger | Under center of passenger seat. |

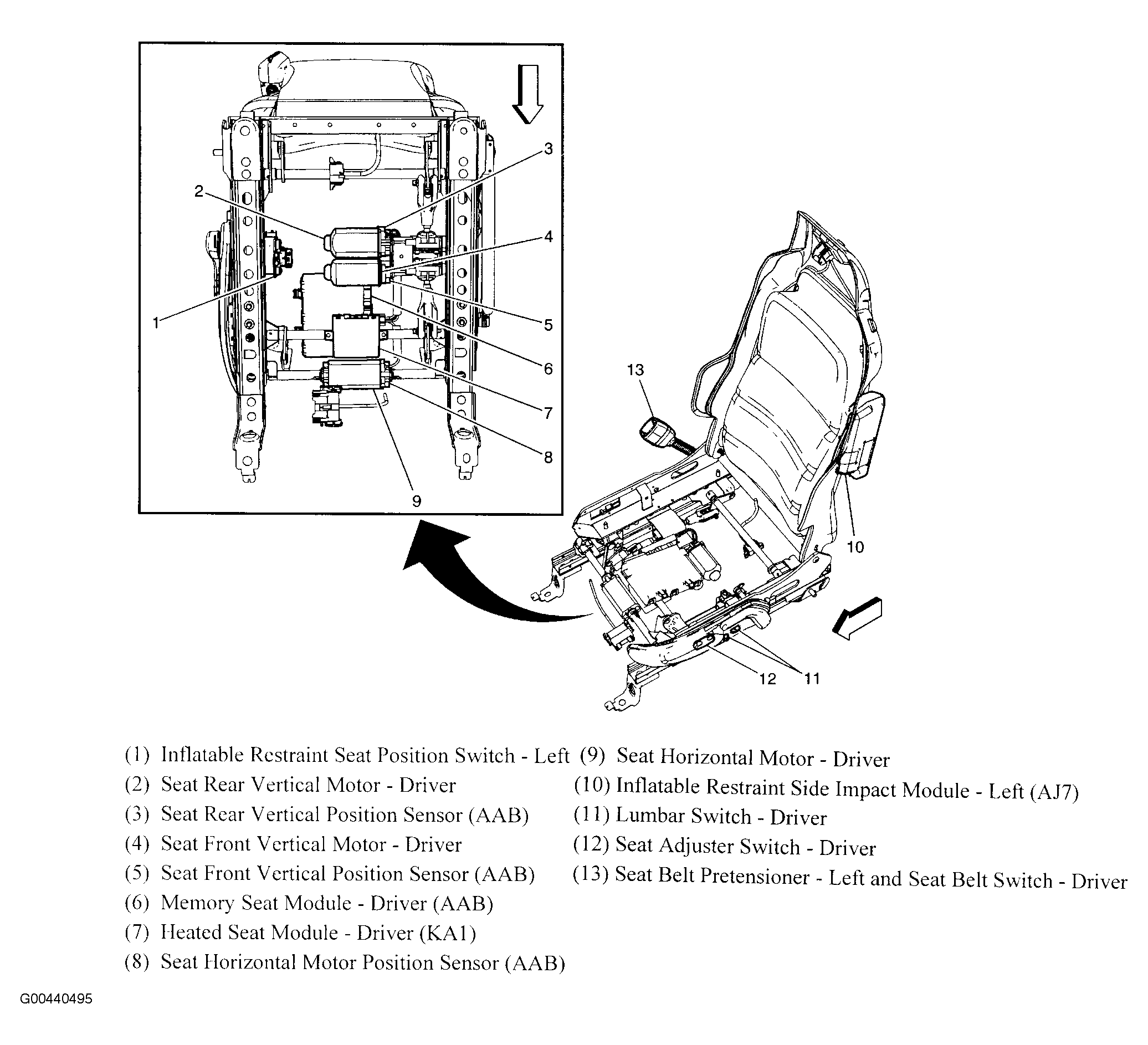

| Memory Seat Module-Driver | Under center of drivers seat. See Figure. |
| Radio Antenna Module-Left | Left side of rear compartment. See Figure. |
| Radio Antenna Module-Right | Right side of rear compartment. See Figure. |

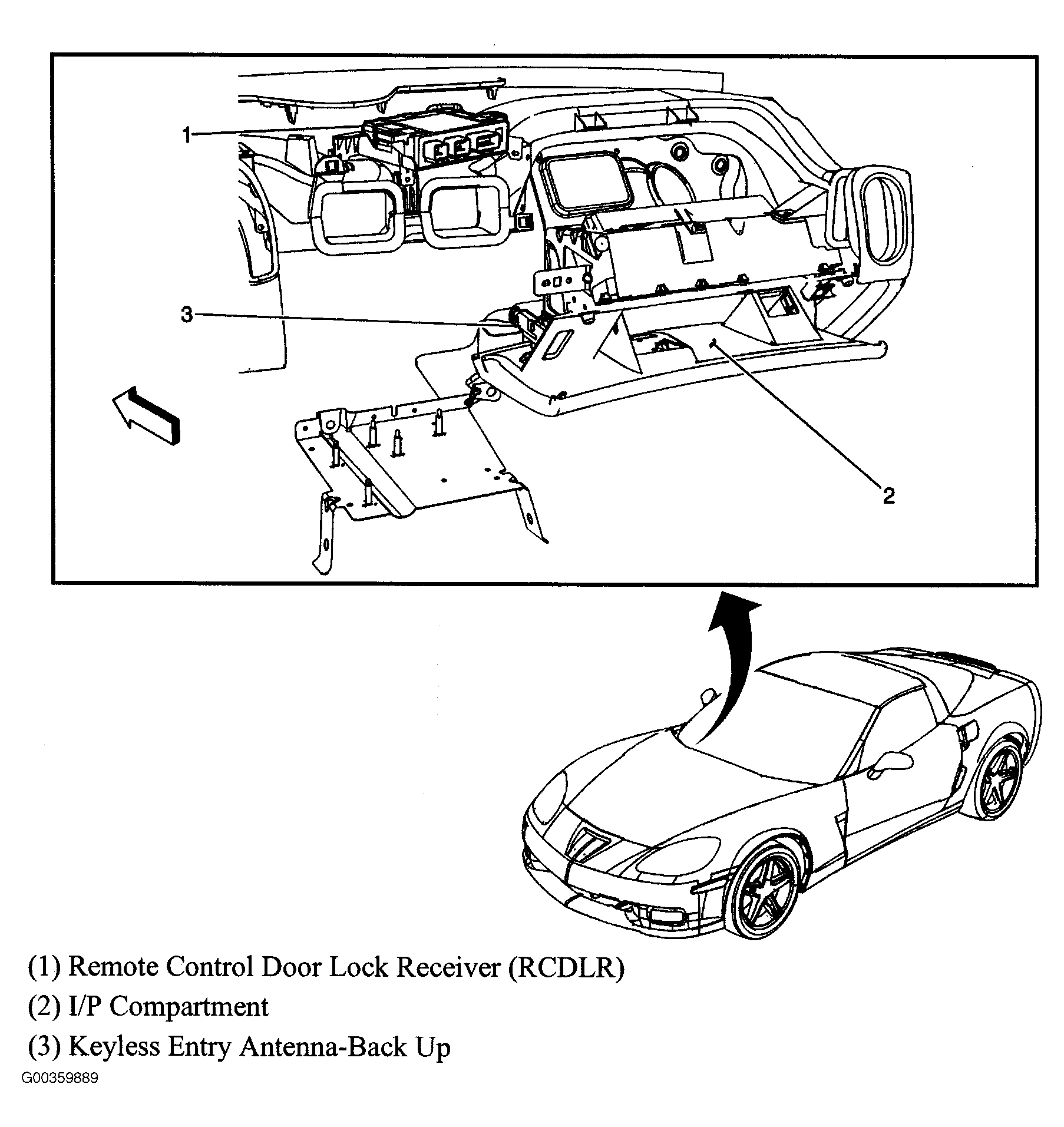

| Remote Control Door Lock Receiver (RCDLR) | Right side of dash. See Figure. |

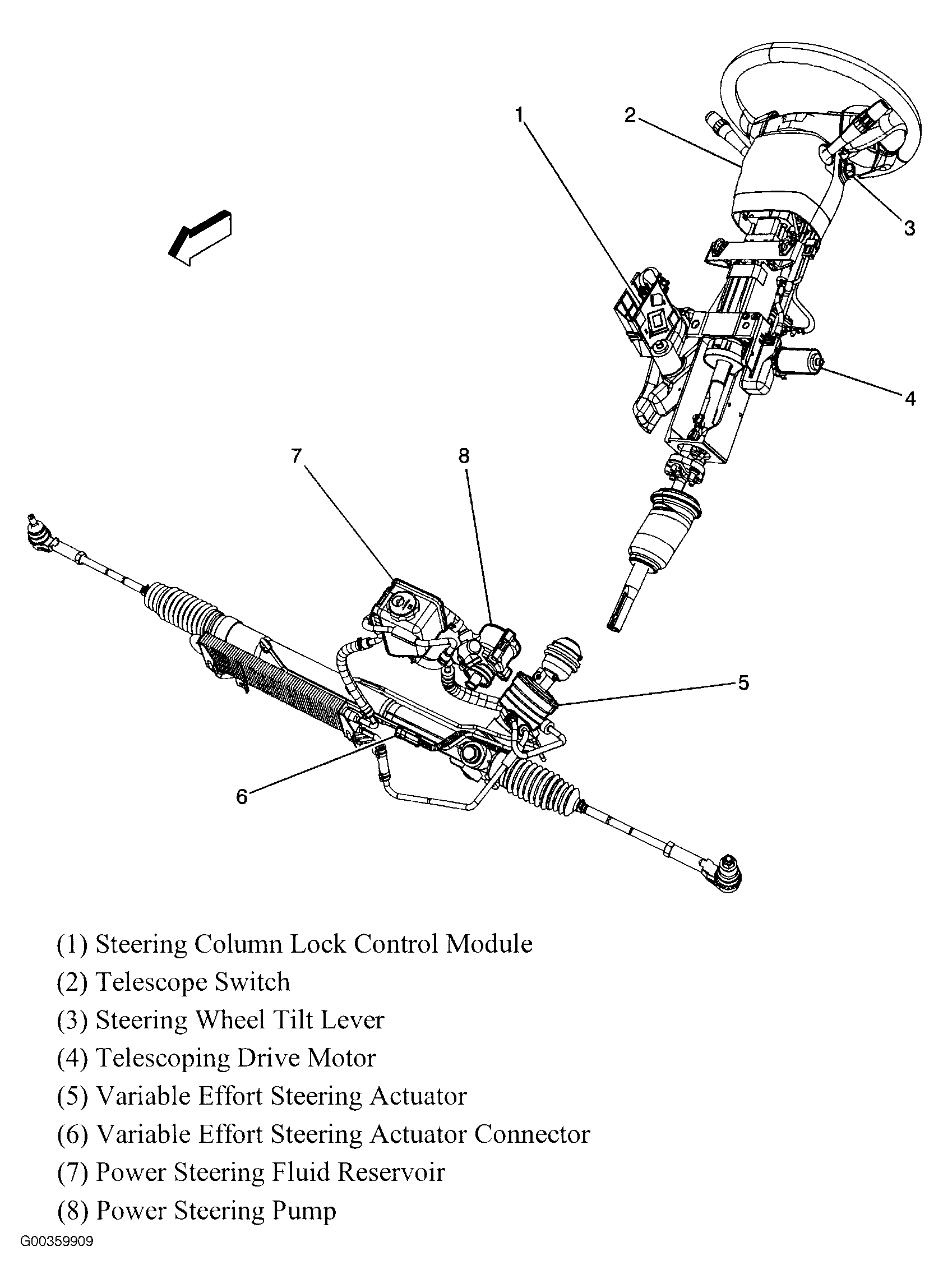

| Steering Column Lock Control Module | Right side of steering column. See Figure. |
| TEHC Module Assembly | In automatic transmission. |

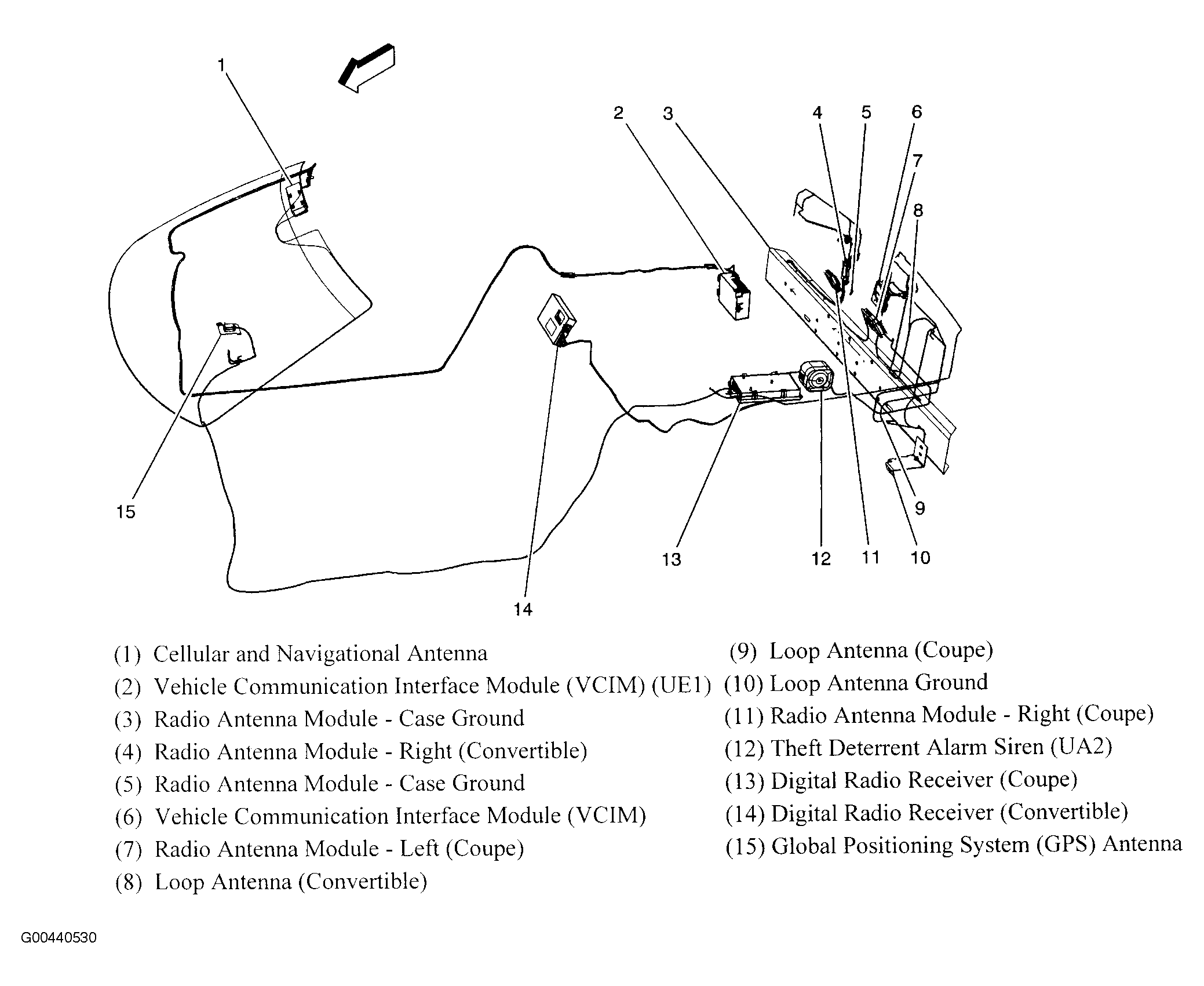

| Vehicle Communication Interface Module (VCIM) | In right rear compartment. See Figure. |
