Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

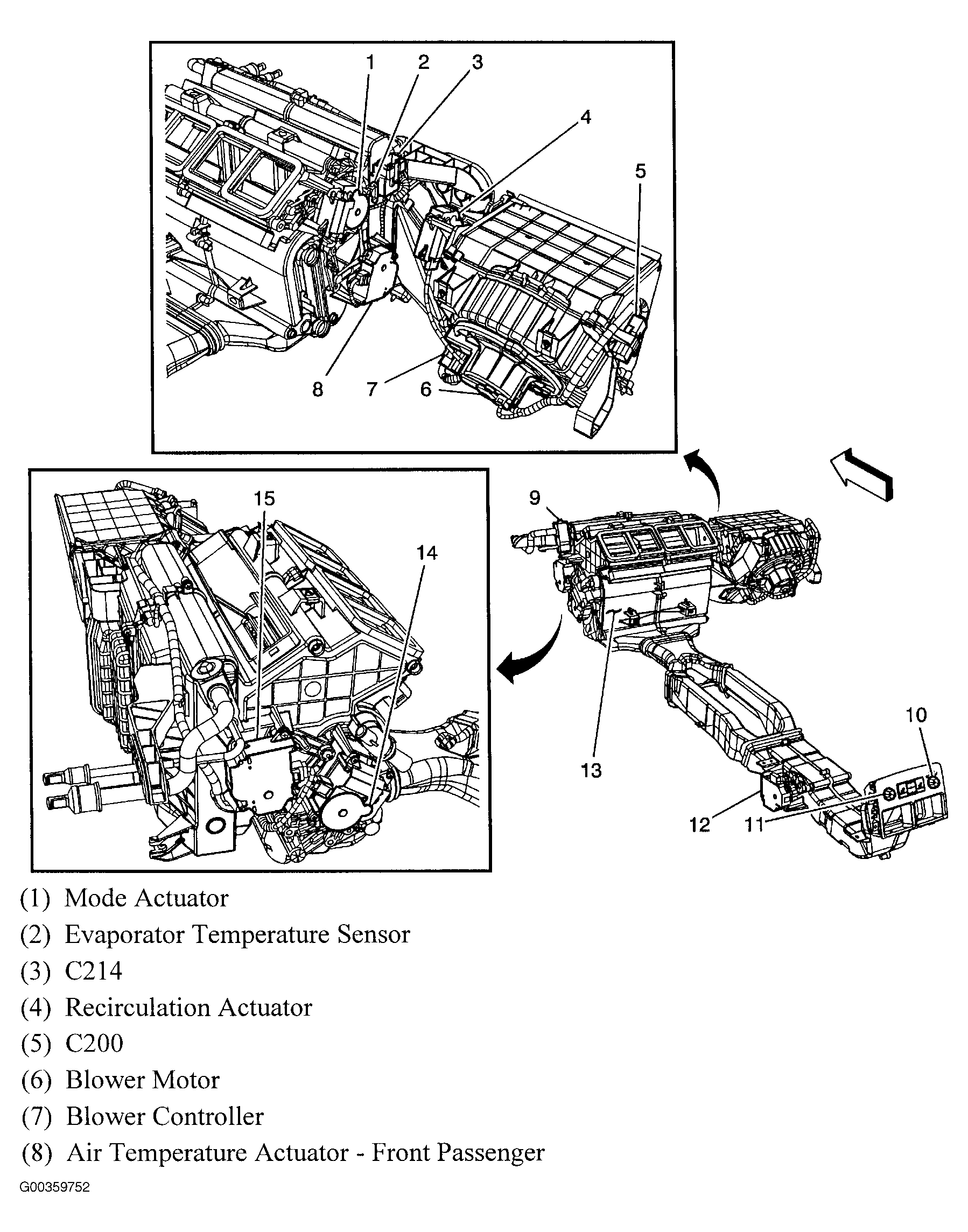

| Blower Controller | In the passenger compartment, under the dash, behind the glove box. See Figure. |

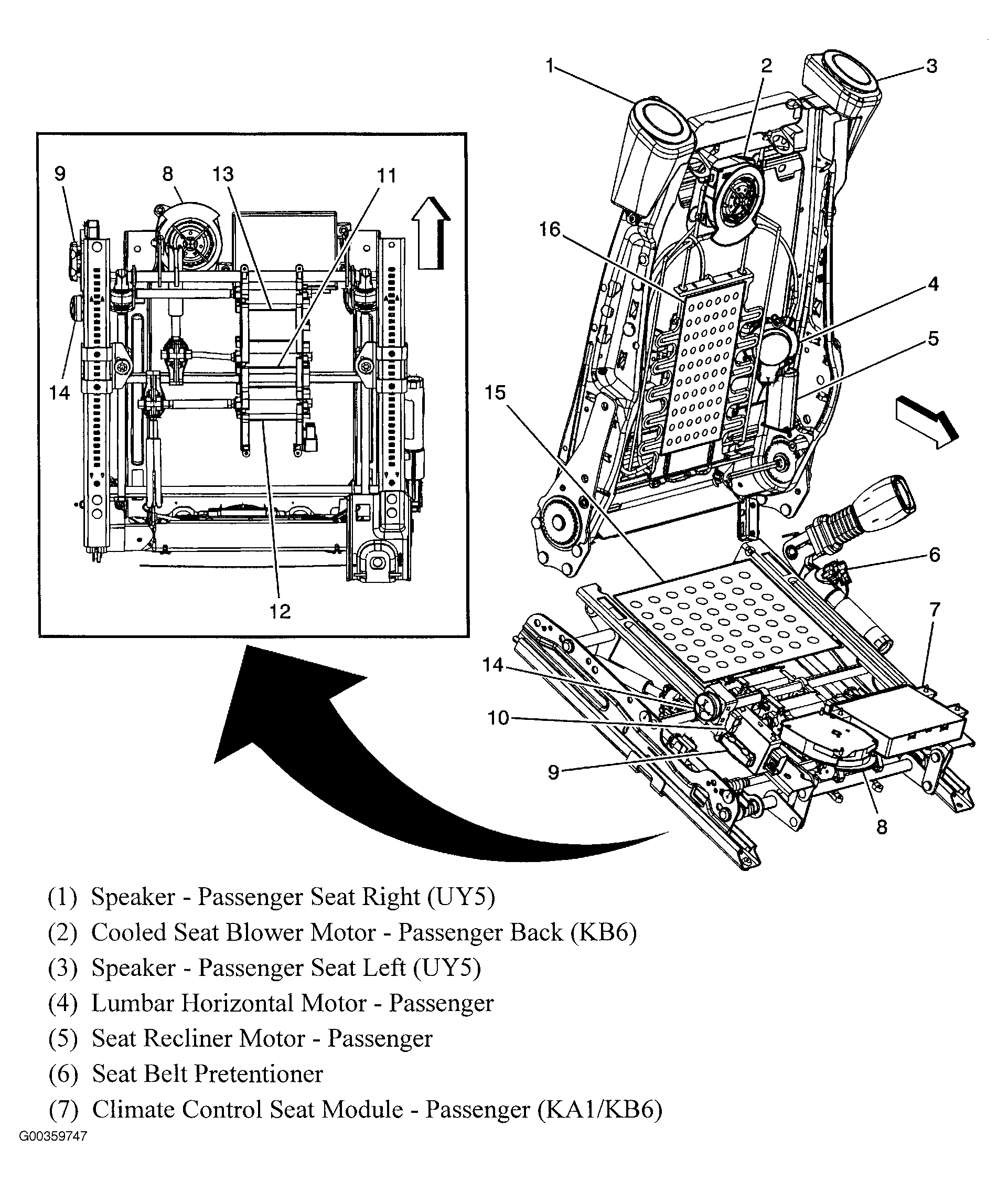

| Climate Control Seat Module - Passenger | Under right front seat. See Figure. |

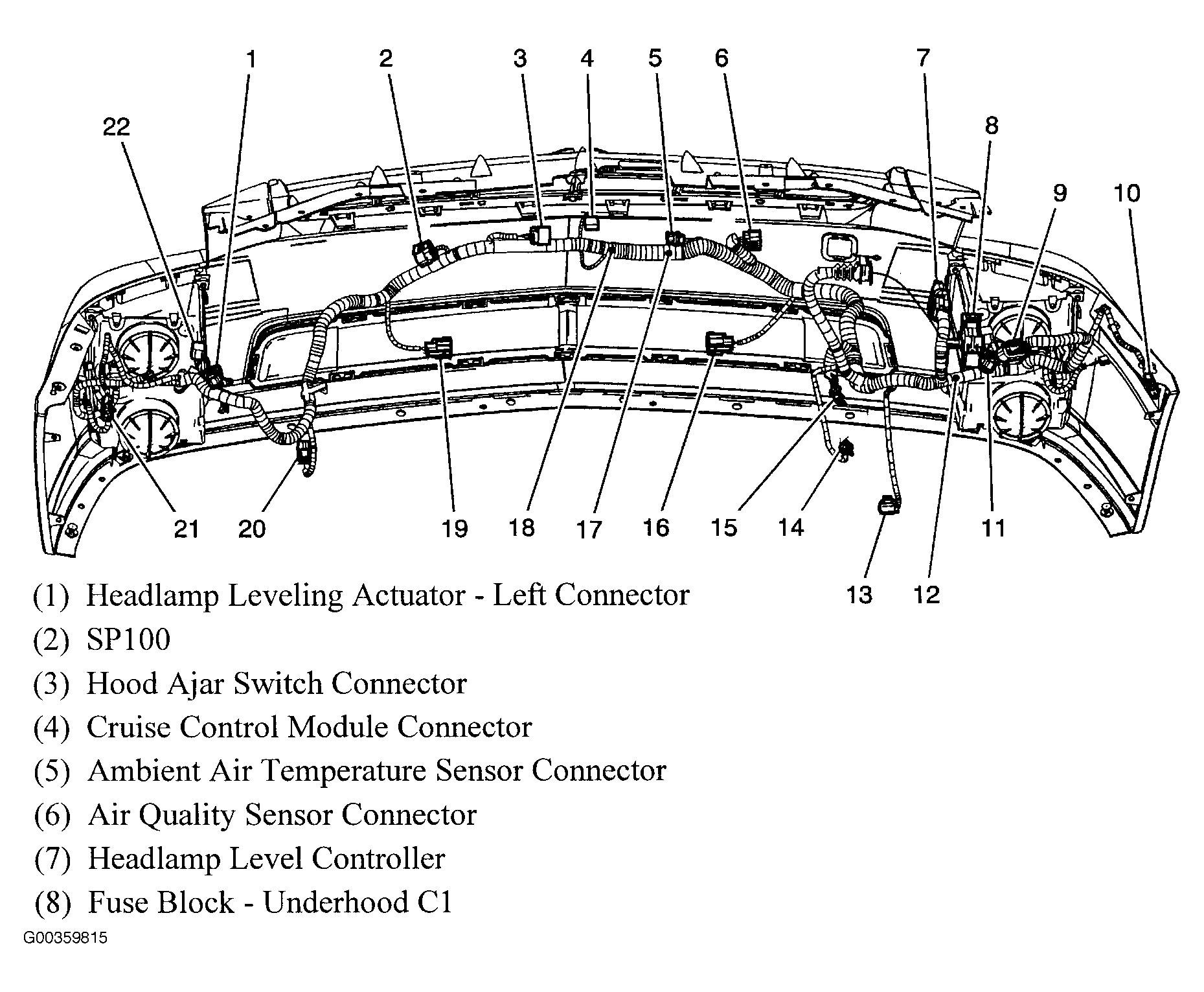

| Cruise Control Module Connector | Behind center of front bumper. See Figure. |

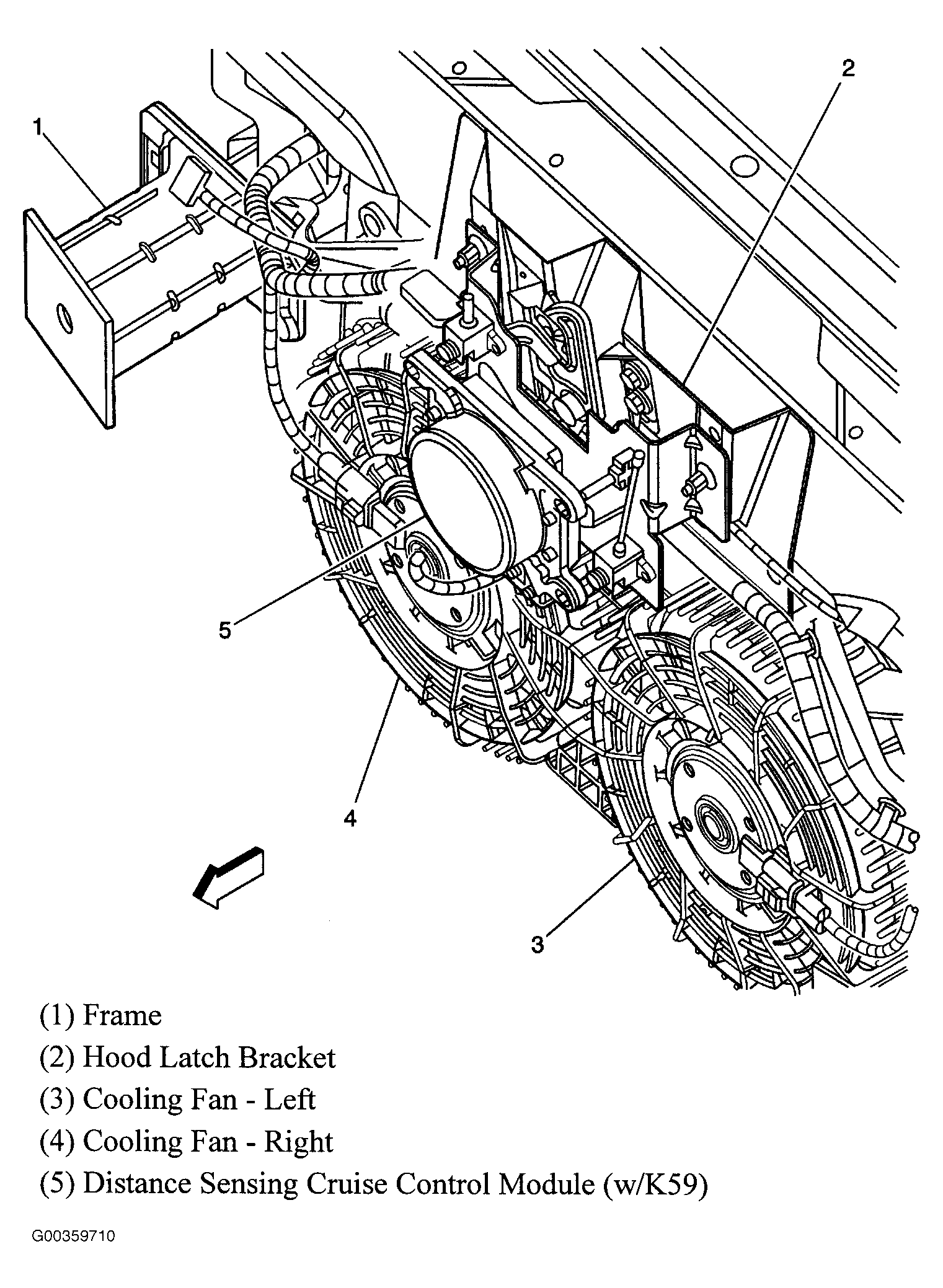

| Distance Sensing Cruise Control Module | Behind front fascia, near hood latch. See Figure. |

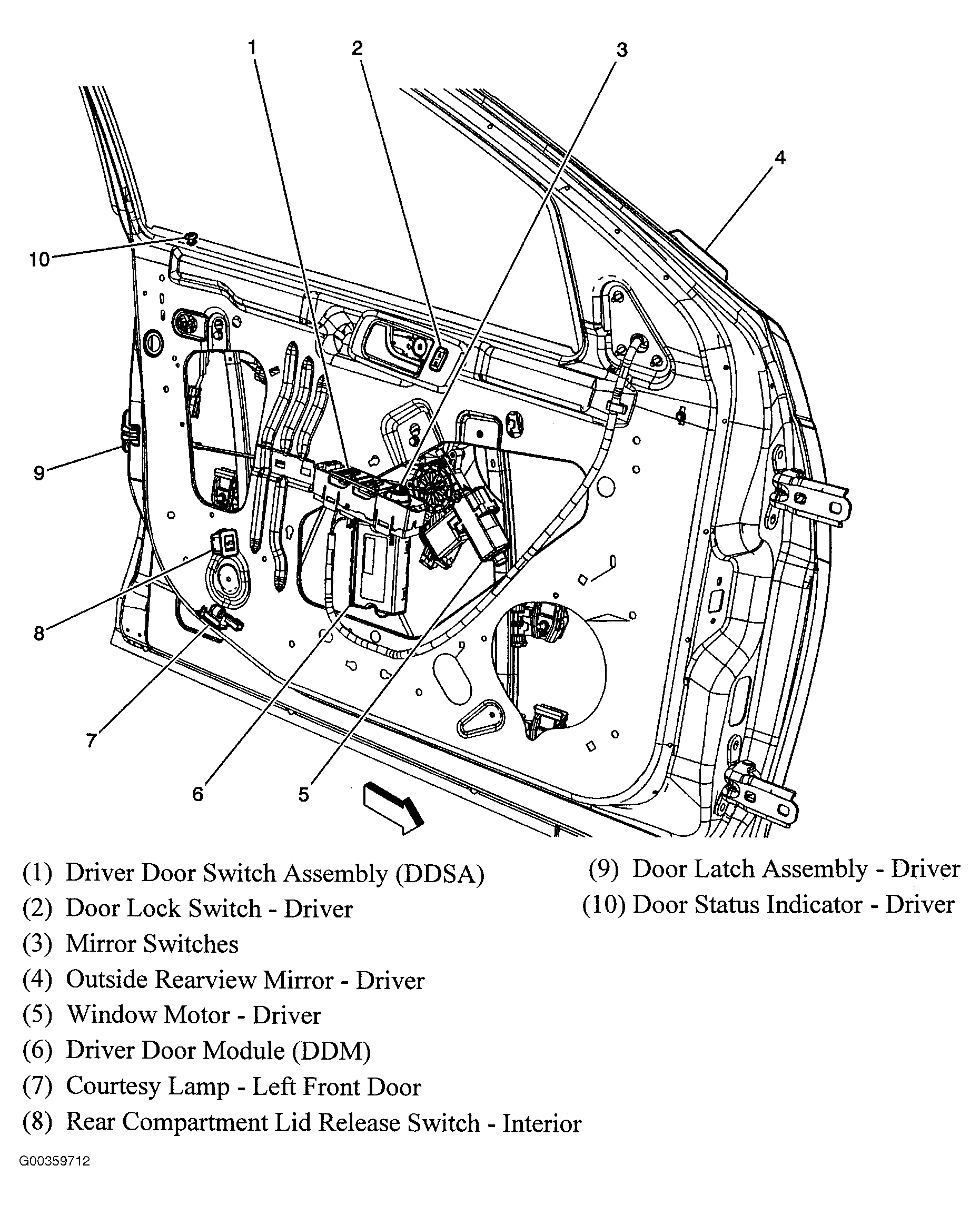

| Driver Door Module (DDM) | Inside driver door. See Figure. |

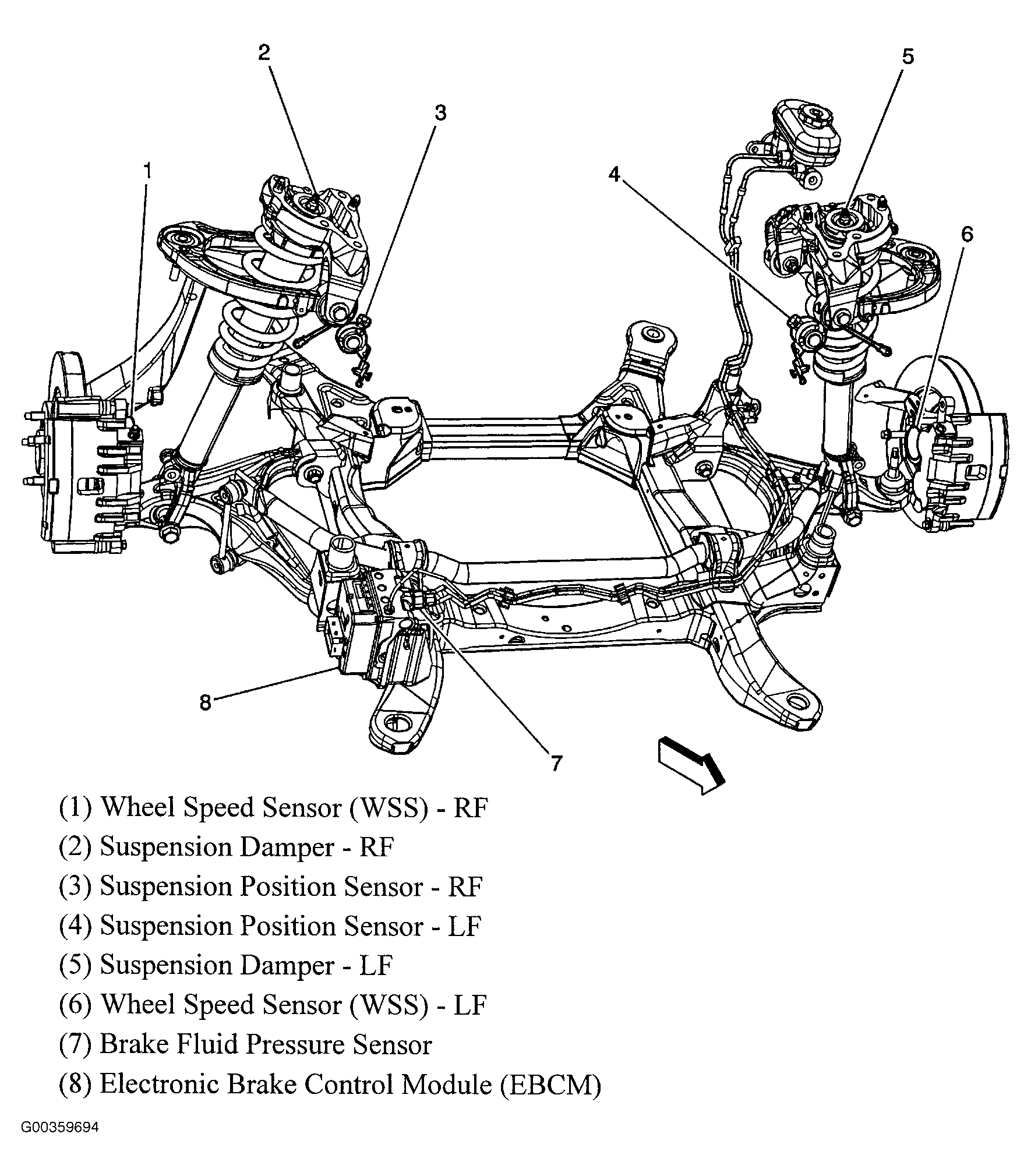

| Electronic Brake Control Module (EBCM) | On right front corner of engine compartment, behind right front wheel. See Figure. |

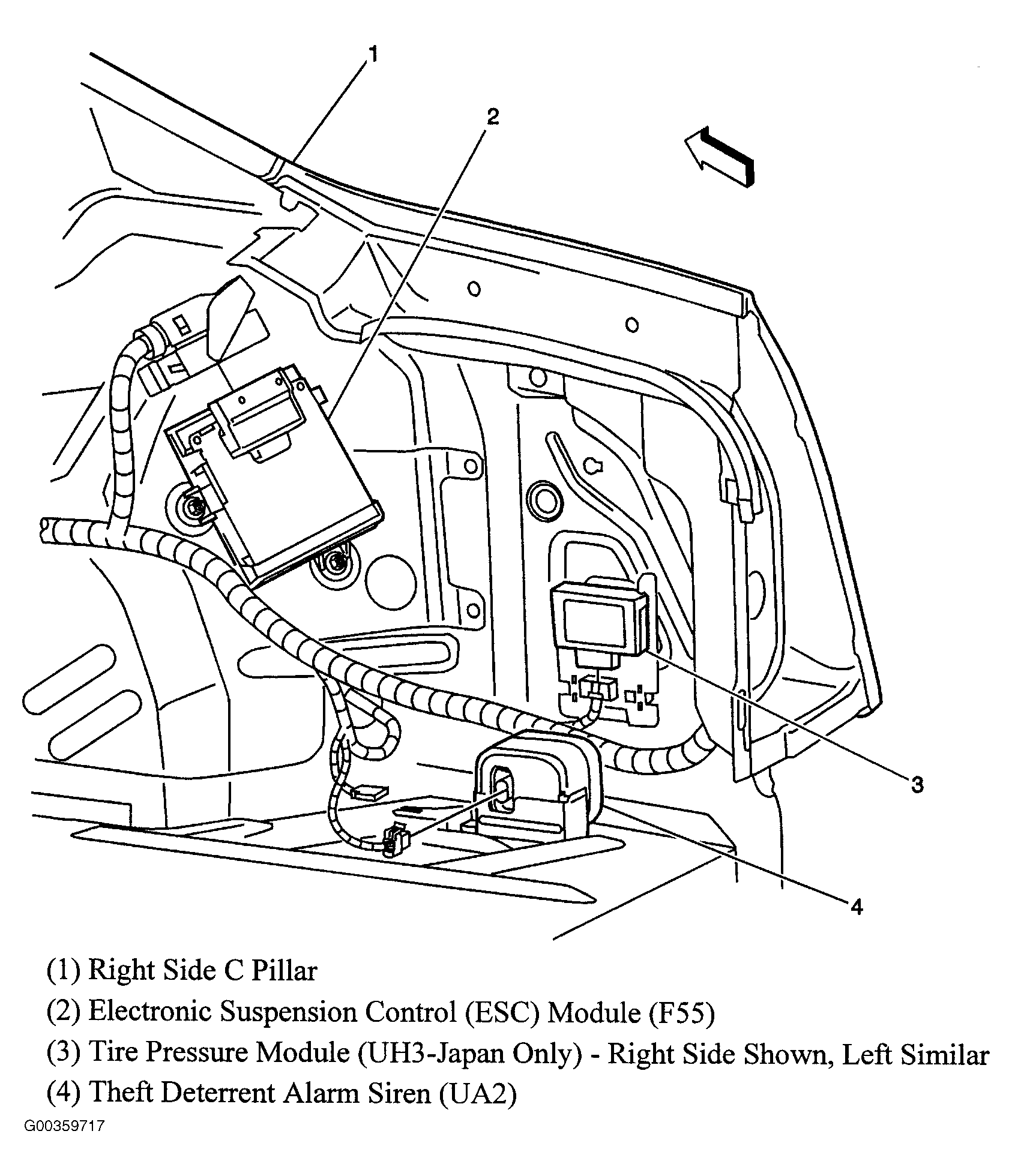

| Electronic Suspension Control (ESC) Module | Below right "C" pillar. See Figure. |

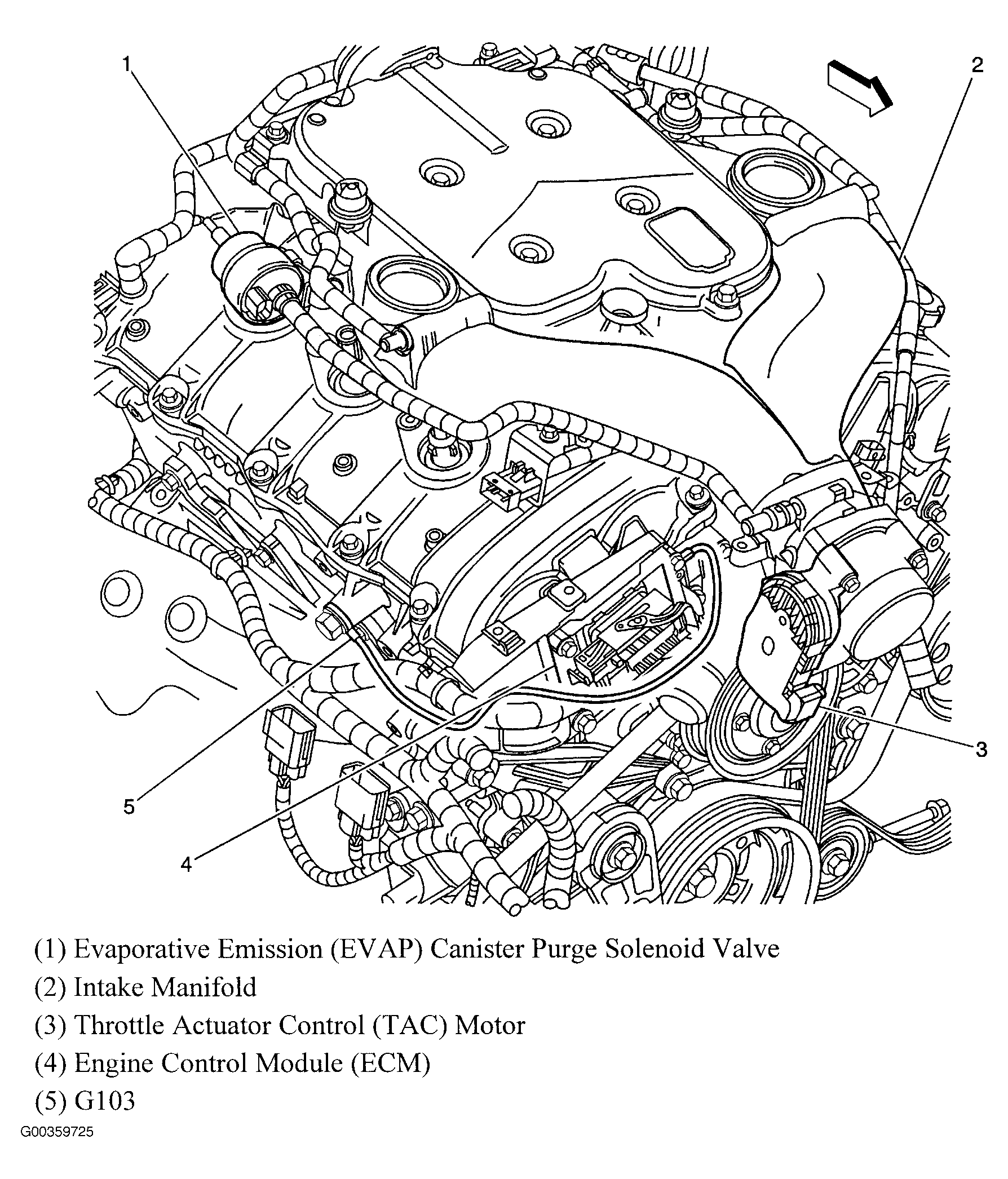

| Engine Control Module (ECM) (3.6L VIN 7) | Front of engine, on right valve cover. See Figure. |
| Engine Control Module (ECM) (4.4L VIN D) | On left front frame rail, below left headlamp assembly. See Figure. |

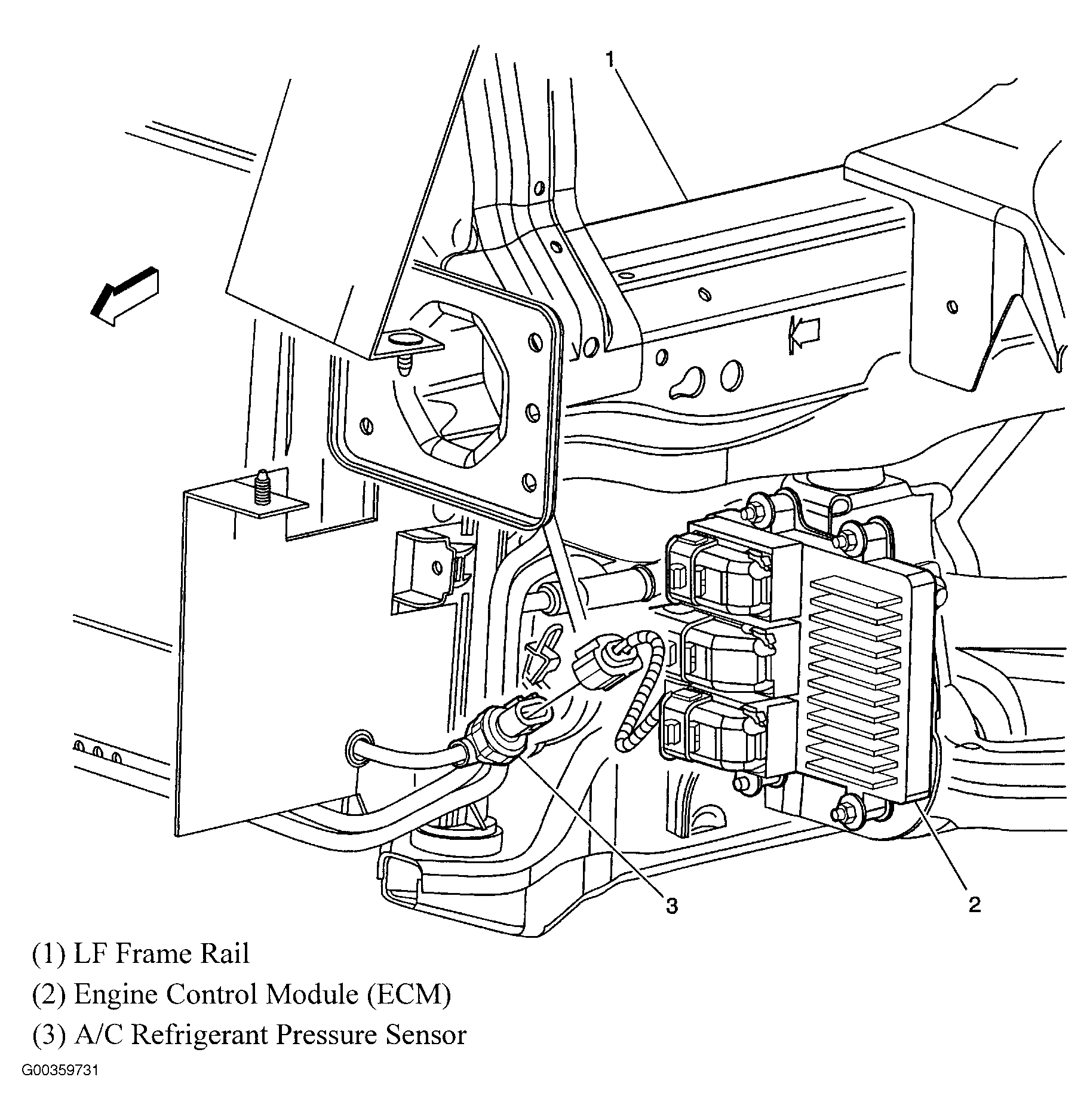

| Engine Control Module (ECM) (4.6L VIN A) | On left front frame rail, below left headlamp assembly. See Figure. |

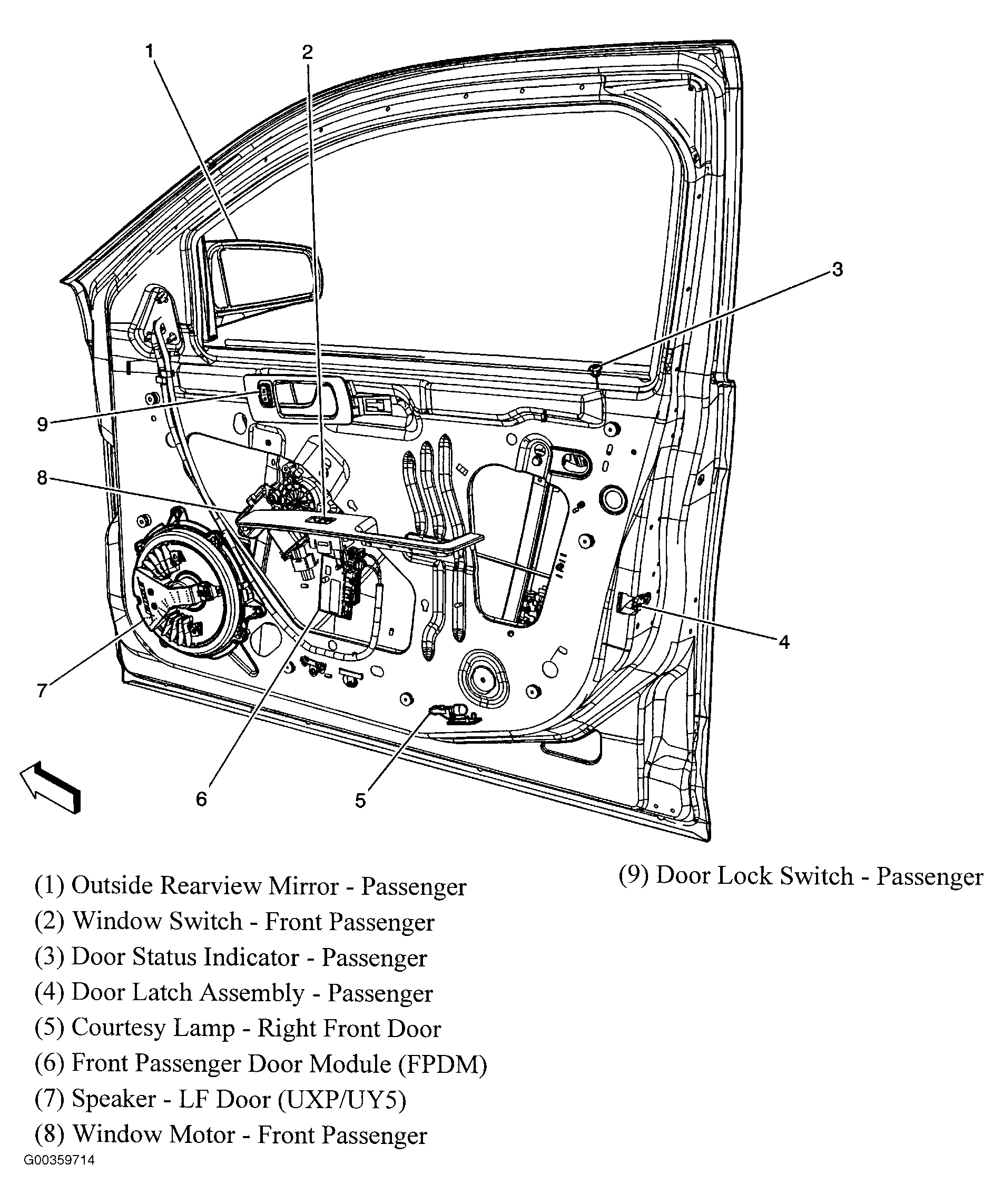

| Front Passenger Door Module (FPDM) | Inside right front door. See Figure. |

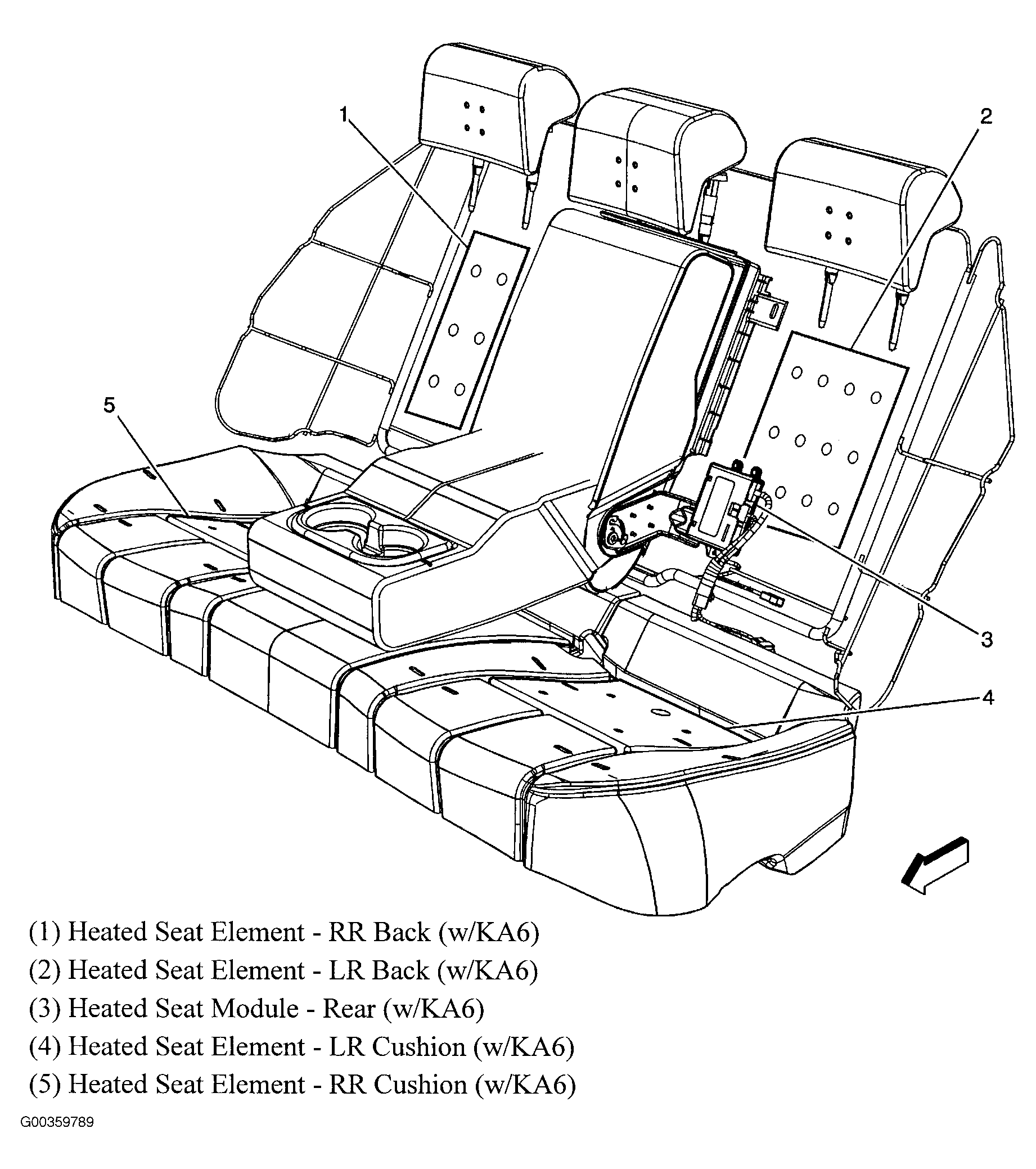

| Heated Seat Module - Rear | In center of rear seat back. See Figure. |

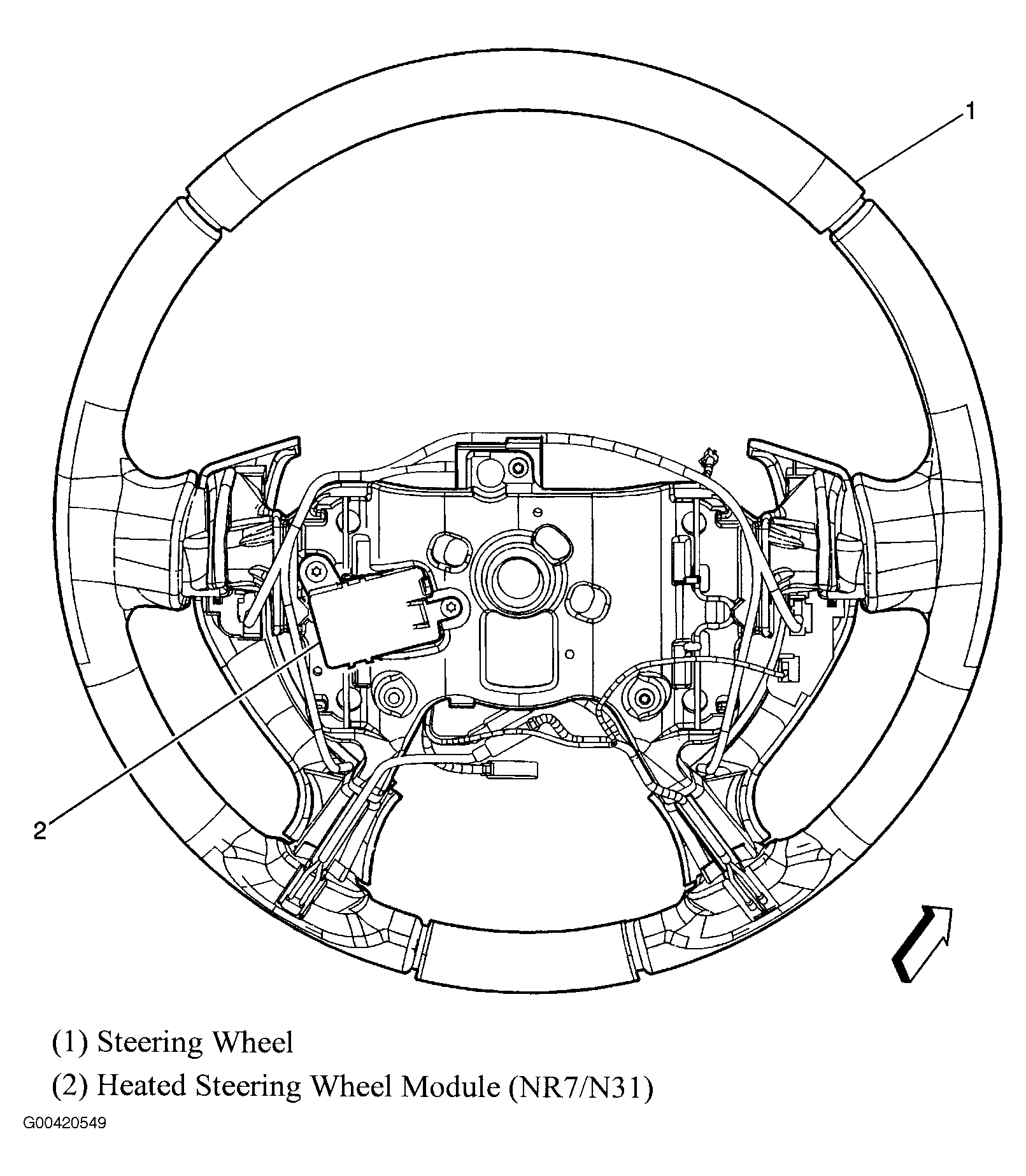

| Heated Steering Wheel Module | In steering column, under steering wheel. See Figure. |

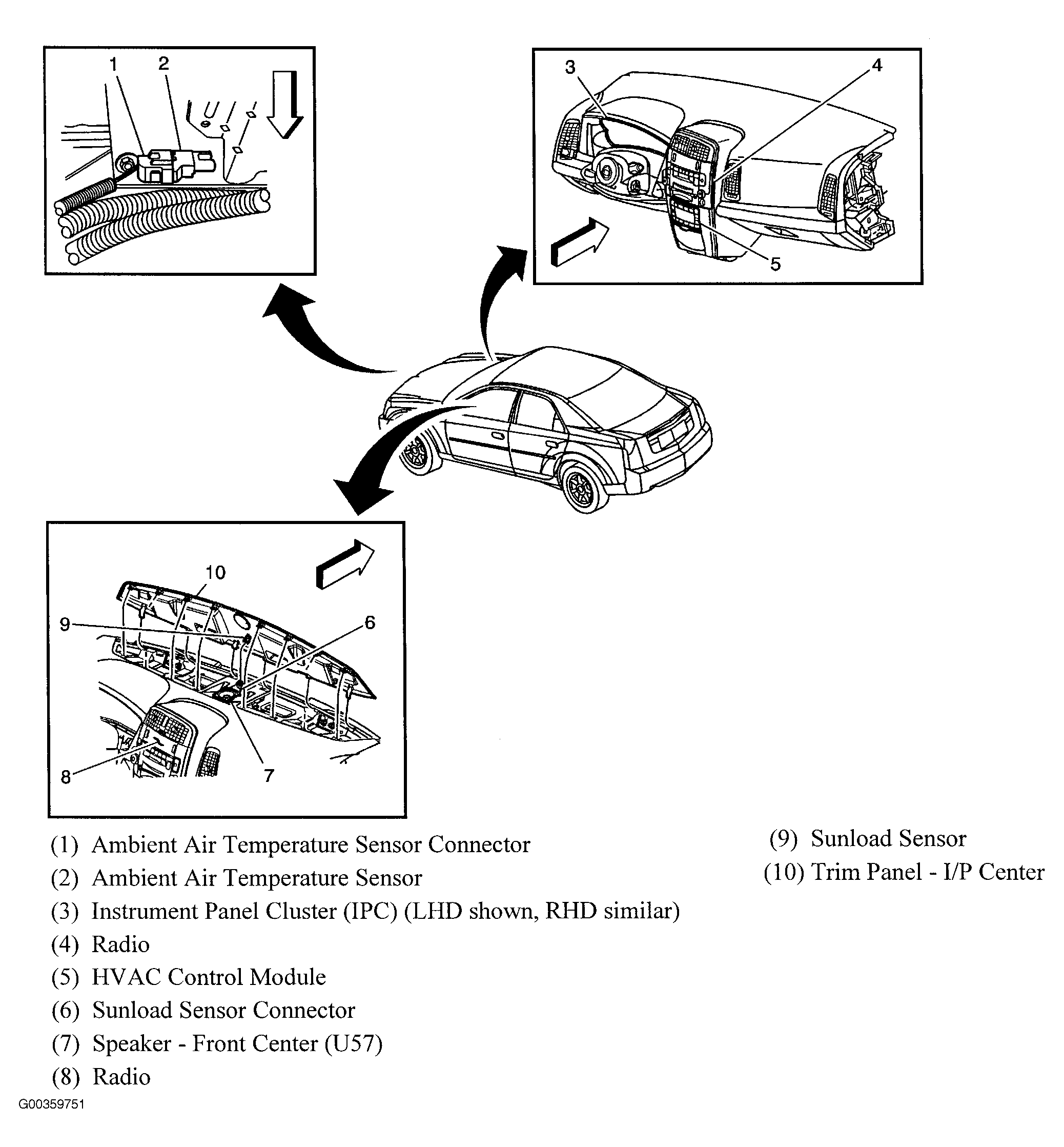

| HVAC Control Module | In center of dash, below radio. See Figure. |

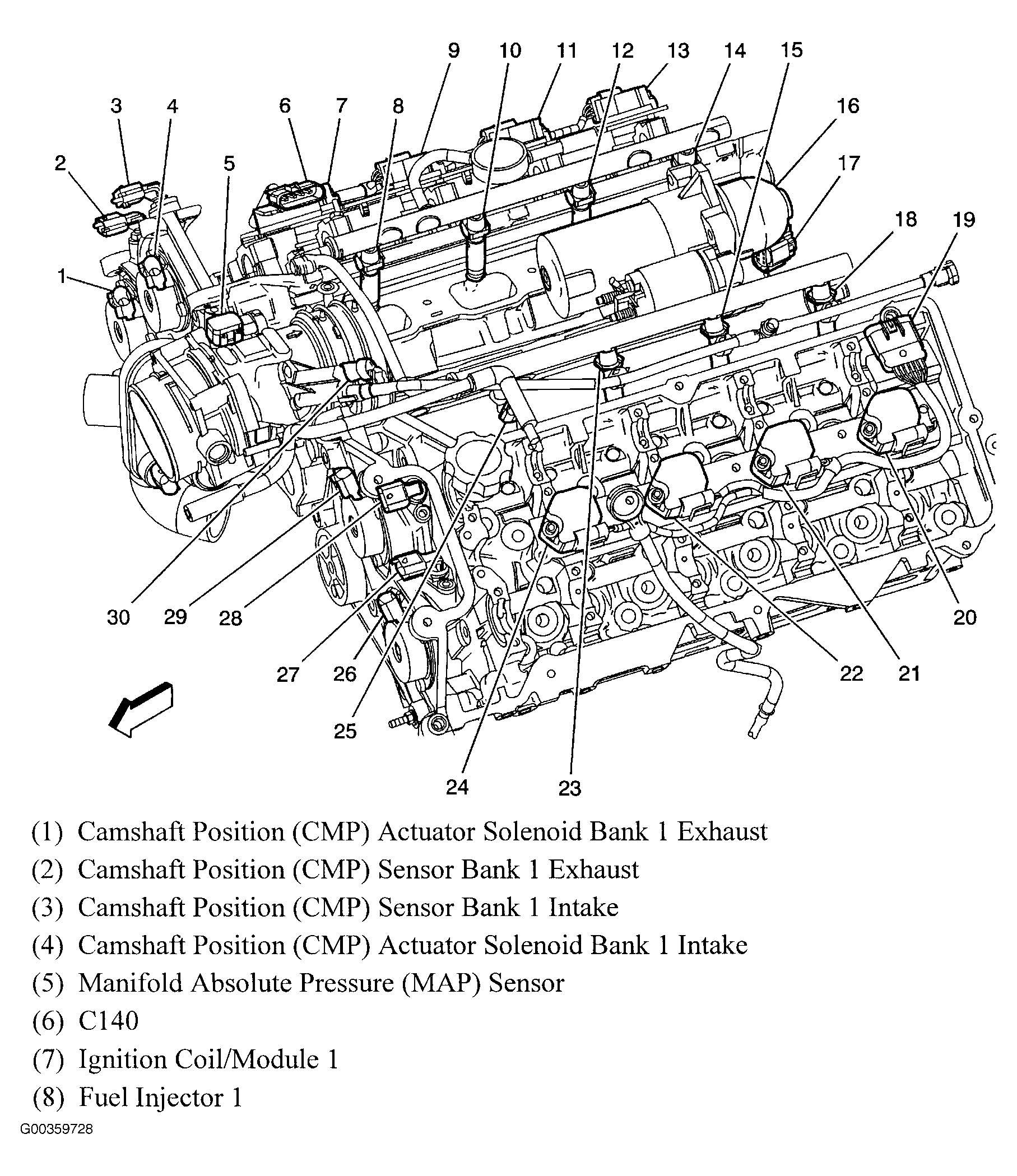

| Ignition Coil/Module 1 (4.6L VIN A) | Top left side of engine. See Figure. |
| Ignition Coil/Module 2 (4.6L VIN A) | Top right side of engine. See Figure. |
| Ignition Coil/Module 3 (4.6L VIN A) | Top left side of engine. See Figure. |
| Ignition Coil/Module 4 (4.6L VIN A) | Top right side of engine. See Figure. |
| Ignition Coil/Module 5 (4.6L VIN A) | Top left side of engine. See Figure. |
| Ignition Coil/Module 6 (4.6L VIN A) | Top right side of engine. See Figure. |
| Ignition Coil/Module 7 (4.6L VIN A) | Top left side of engine. See Figure. |
| Ignition Coil/Module 8 (4.6L VIN A) | Top right side of engine. See Figure. |

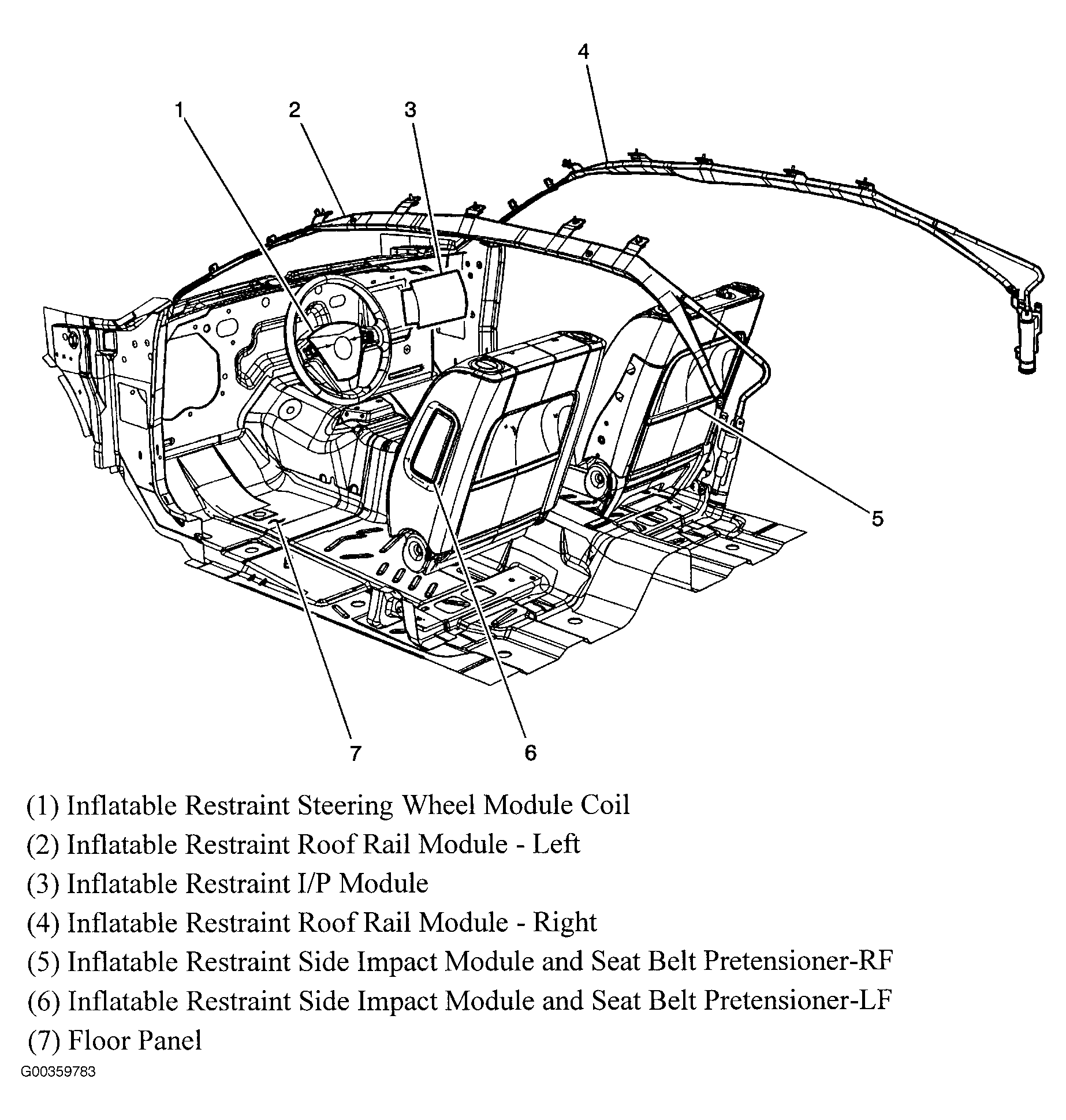

| Inflatable Restraint I/P Module | Right side of dash. See Figure. |

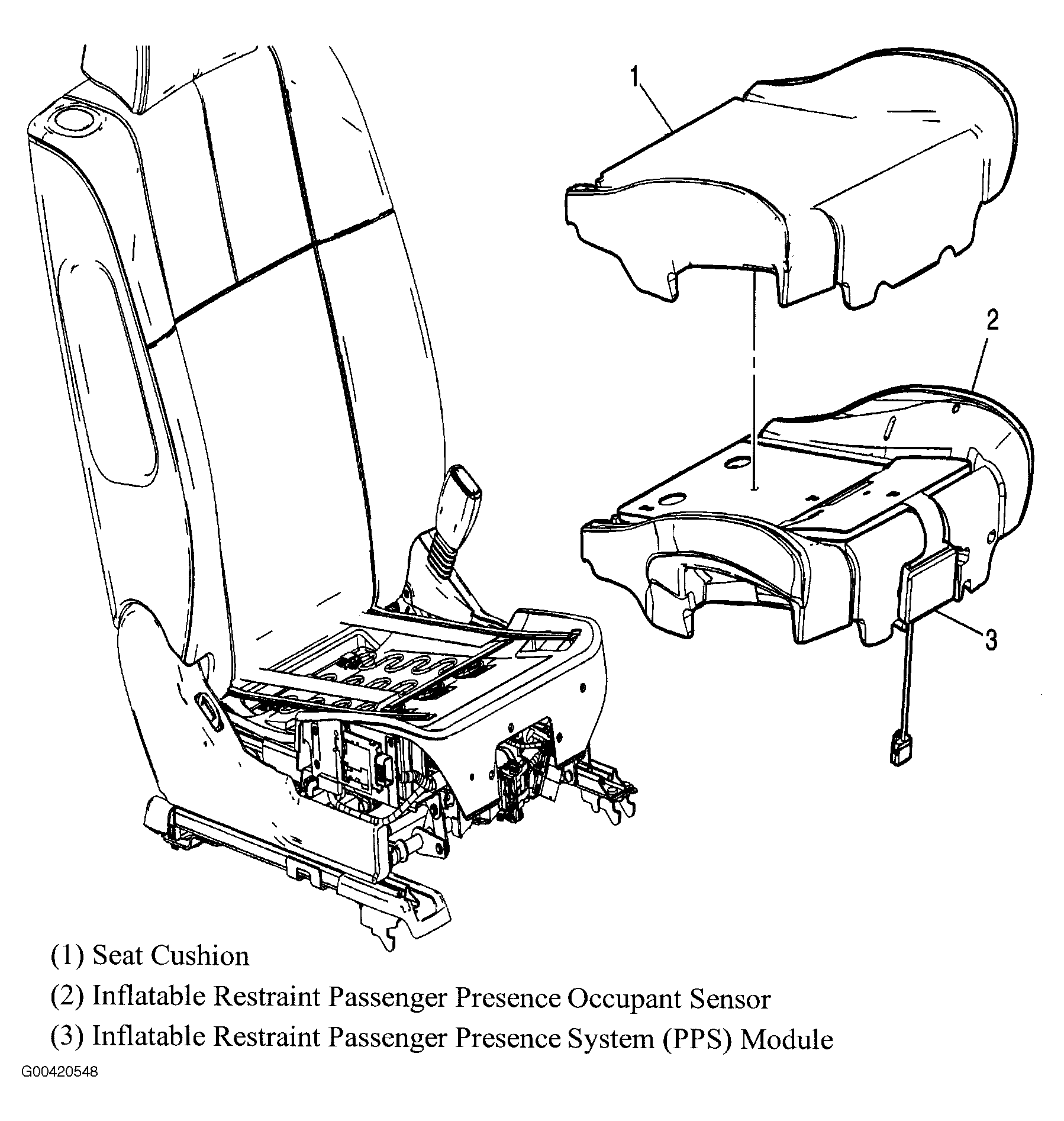

| Inflatable Restraint Passenger Presence System (PPS) Module | Under passenger's seat. See Figure. |
| Inflatable Restraint Roof Rail Module - Left | In passenger compartment roof rail, on left side, above "B" pillar. See Figure. |
| Inflatable Restraint Roof Rail Module - Right | In passenger compartment roof rail, on right side, above "B" pillar. See Figure. |

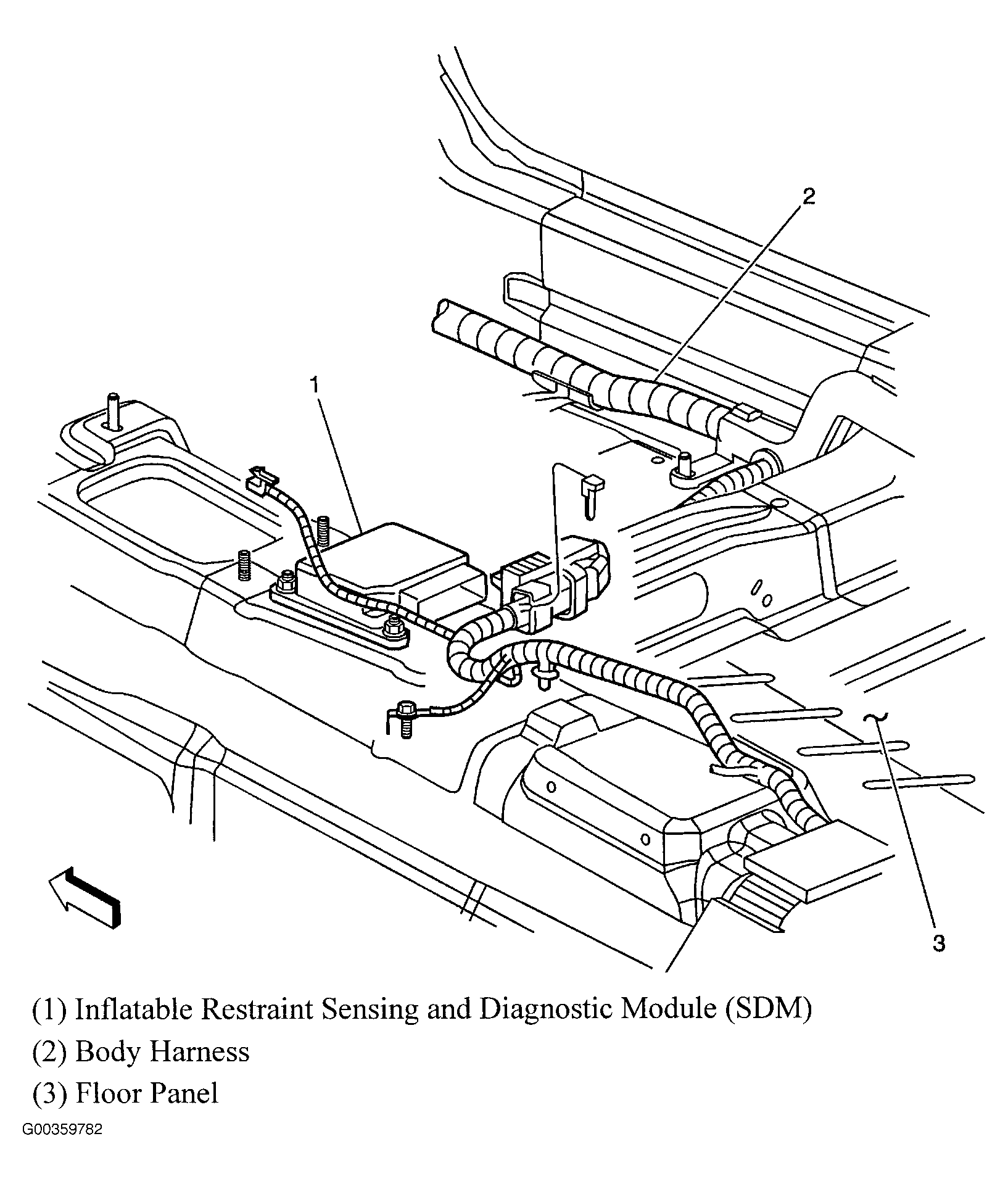

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under rear of center console. See Figure. |
| Inflatable Restraint Side Impact Module & Seat Belt Pretensioner - LF | Left side of left front seat back. See Figure. |
| Inflatable Restraint Side Impact Module & Seat Belt Pretensioner - RF | Right side of right front seat back. See Figure. |
| Inflatable Restraint Steering Wheel Module | On steering wheel. |
| Inflatable Restraint Steering Wheel Module Coil | Top of steering column, behind steering wheel. See Figure. |

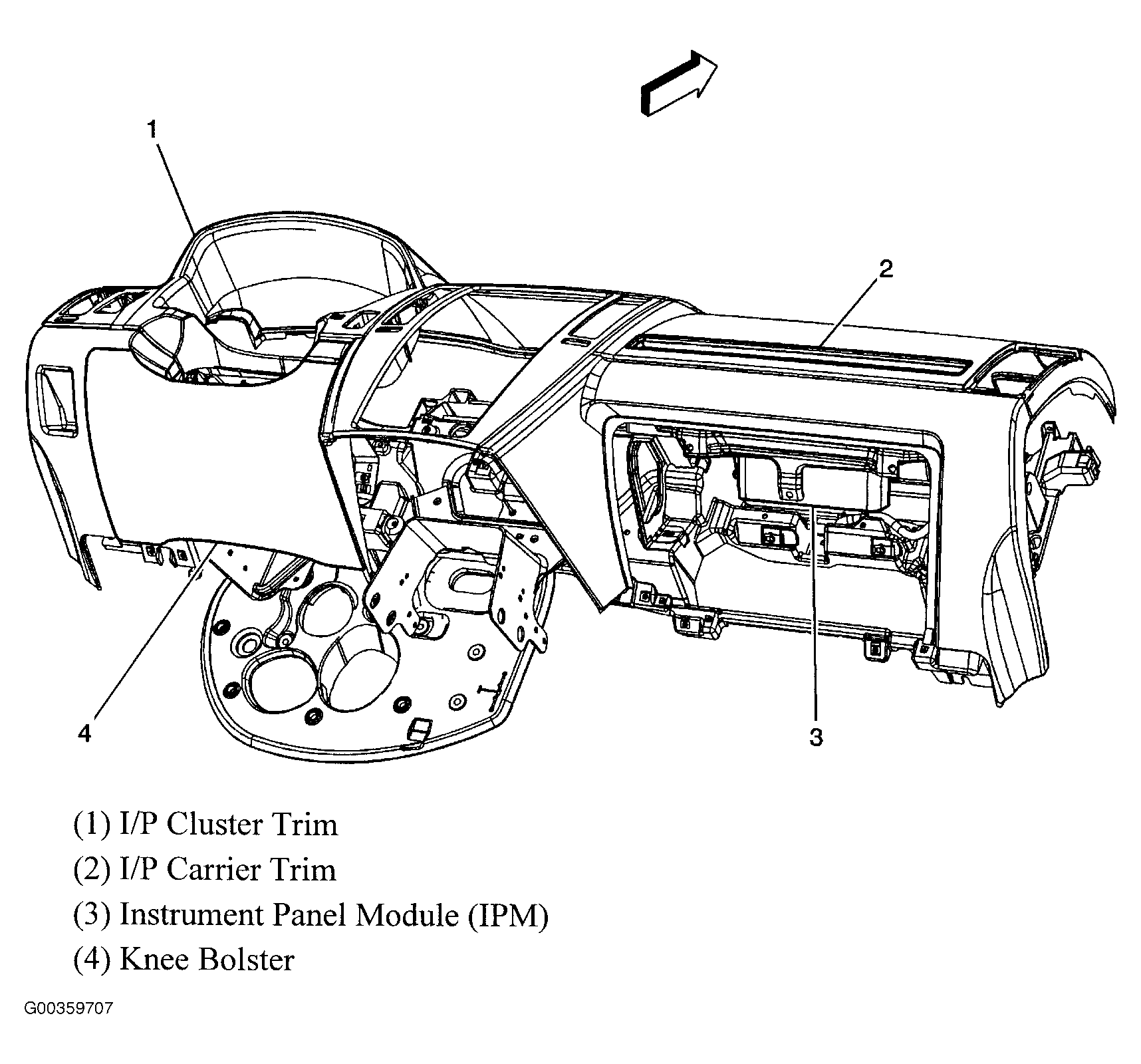

| Instrument Panel Module (IPM) | Right side of dash, behind glove box. See Figure. |

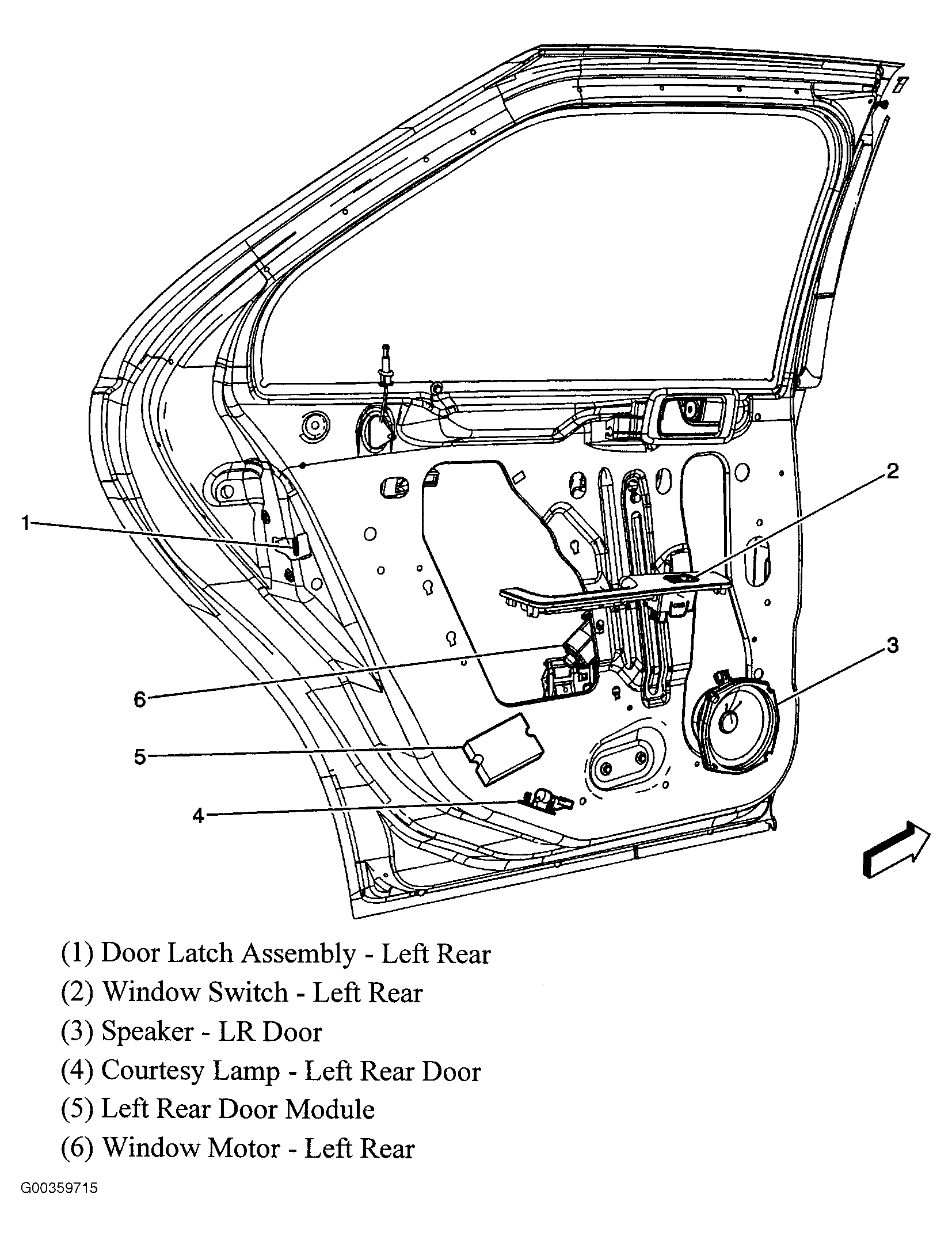

| Left Rear Door Module | Inside left rear door. See Figure. |
| Memory Seat Module | Under driver seat. See Figure. |

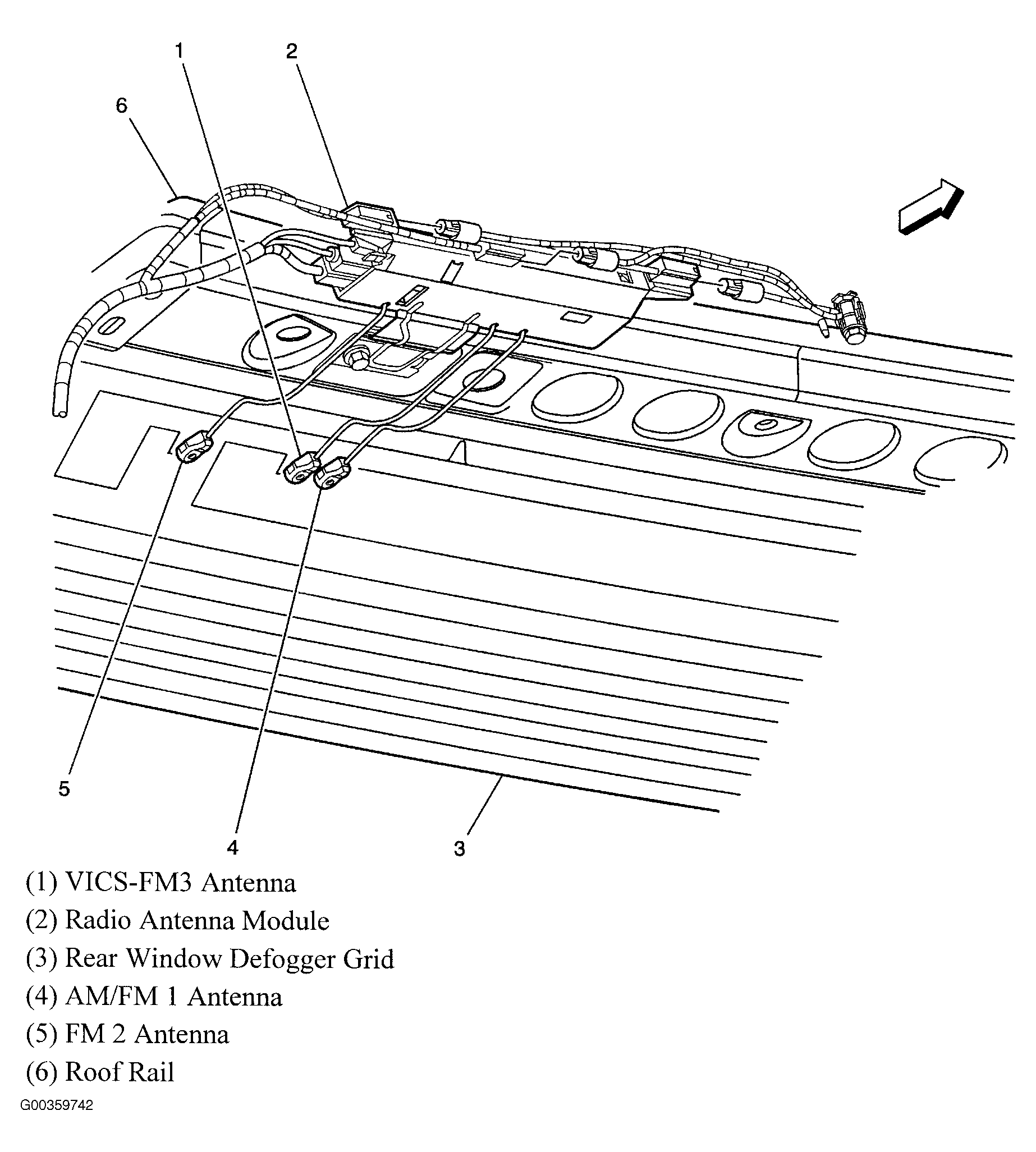

| Radio Antenna Module | Above center rear of headliner. See Figure. |

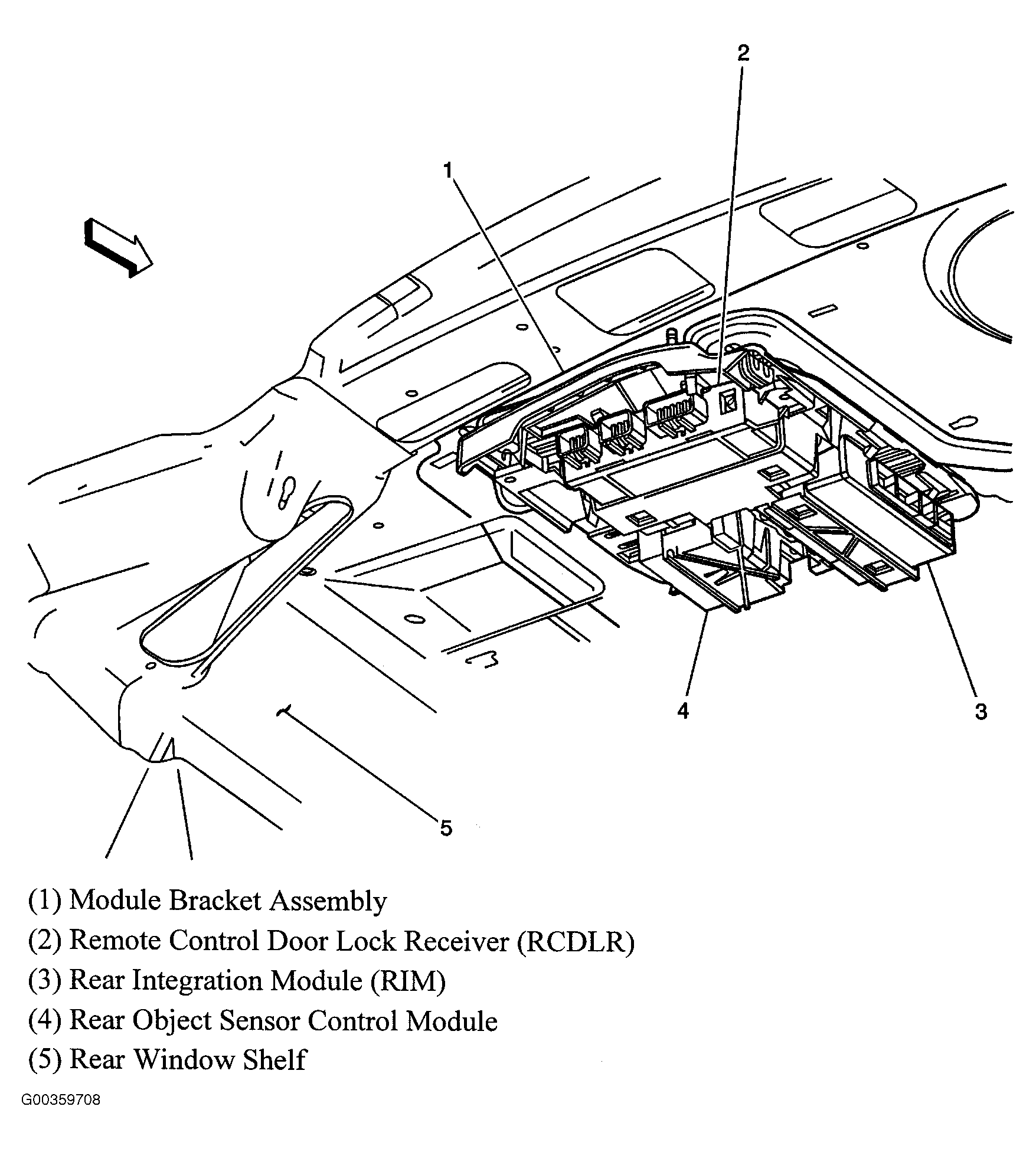

| Rear Integration Module (RIM) | In left side of rear compartment, under rear shelf. See Figure. |
| Rear Object Sensor Control Module | In left side of rear compartment, under rear shelf. See Figure. |
| Remote Control Door Lock Receiver (RCDLR) | Under rear speaker shelf. See Figure. |

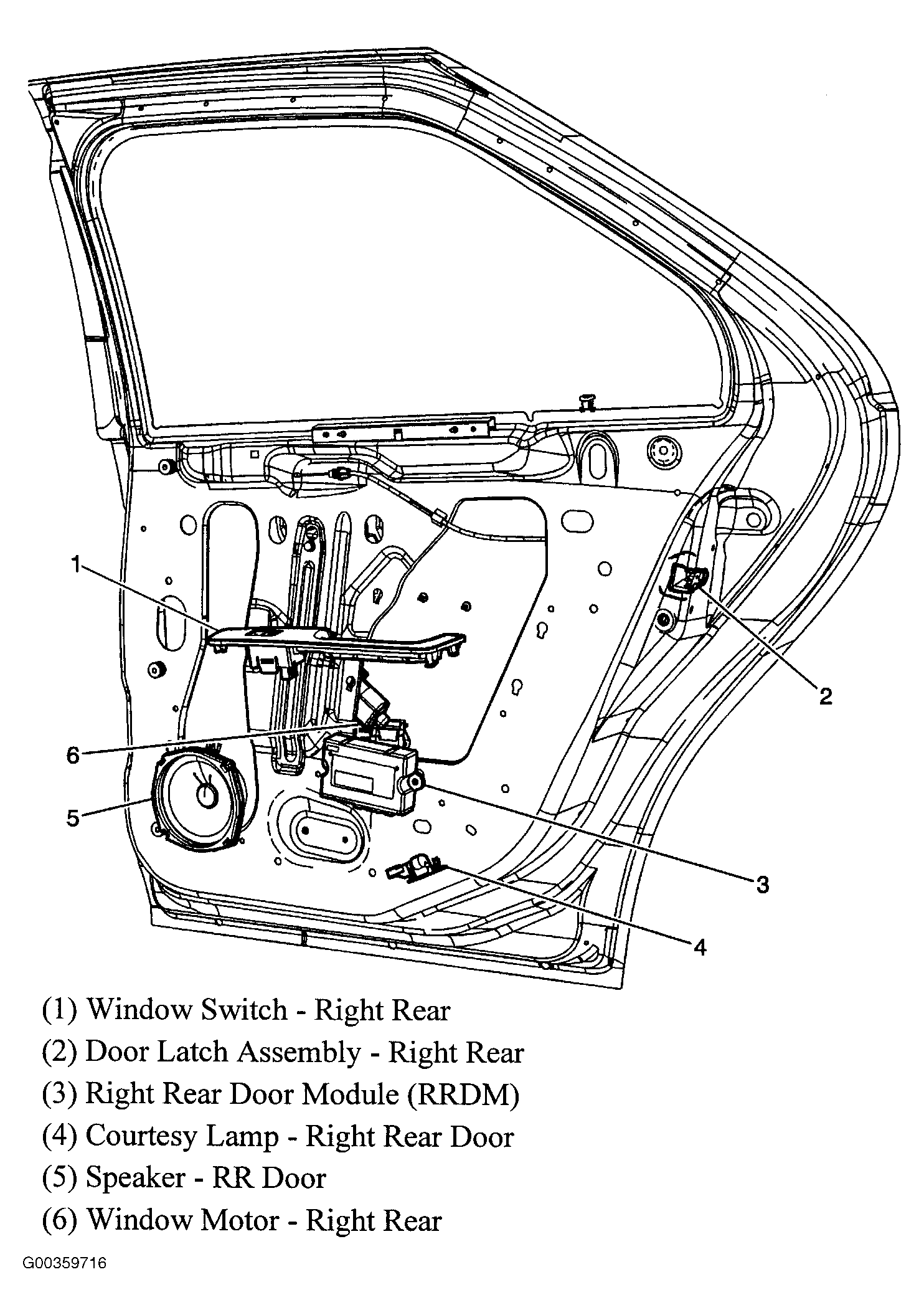

| Right Rear Door Module (RRDM) | Inside right rear door. See Figure. |
| Steering Column Lock Module (UA2) | On left side of steering column. See Figure. |

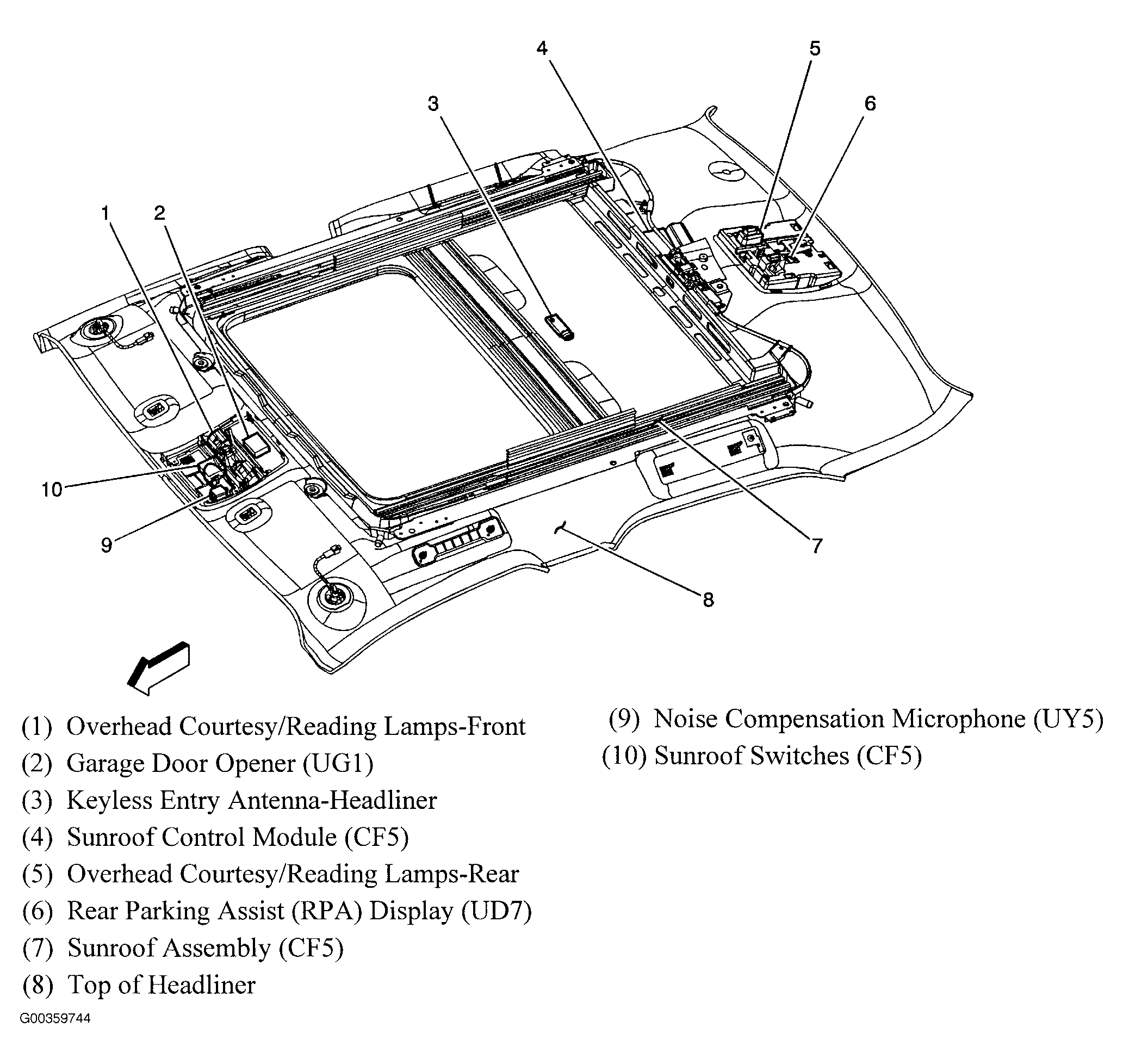

| Sunroof Control Module | Above headliner, near rear of sunroof. See Figure. |

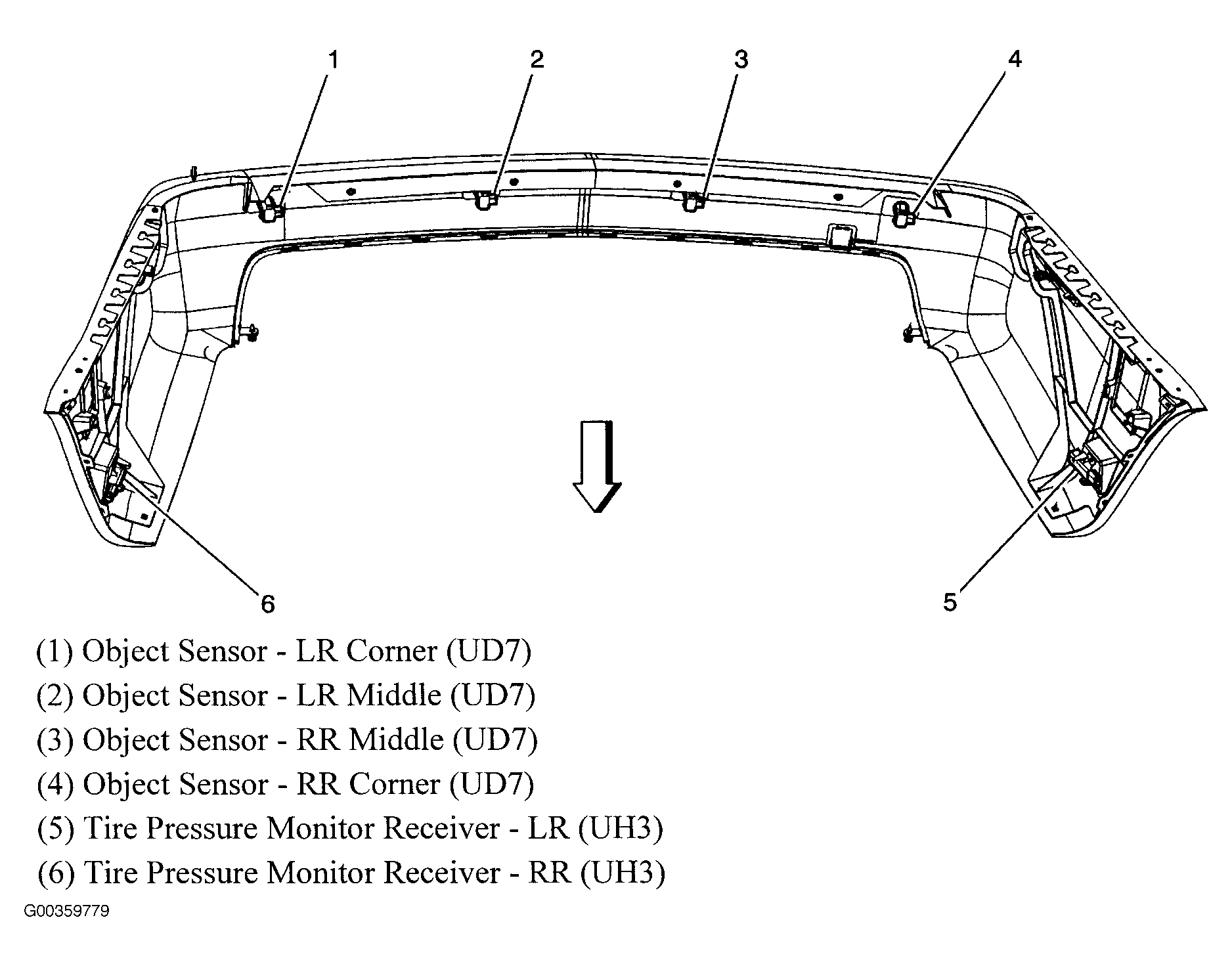

| Tire Pressure Receiver - LR (UH3) | Inside rear fascia panel, near left rear wheel. See Figure. |
| Tire Pressure Receiver - RR | Inside rear fascia panel, near right rear wheel. See Figure. |

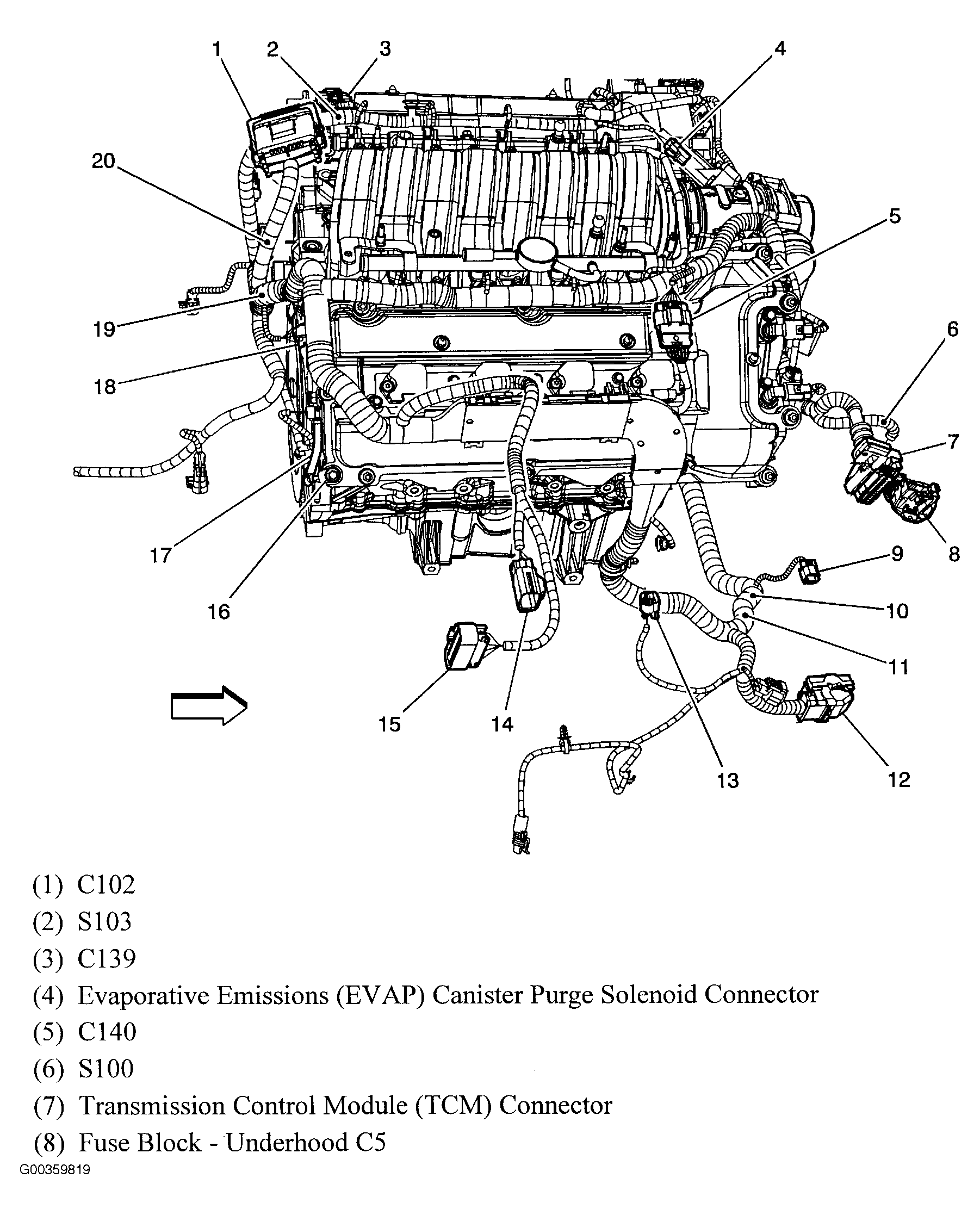

| Transmission Control Module Connector (TCM) | Right front corner of engine compartment, on underhood fuse block. See Figure. |

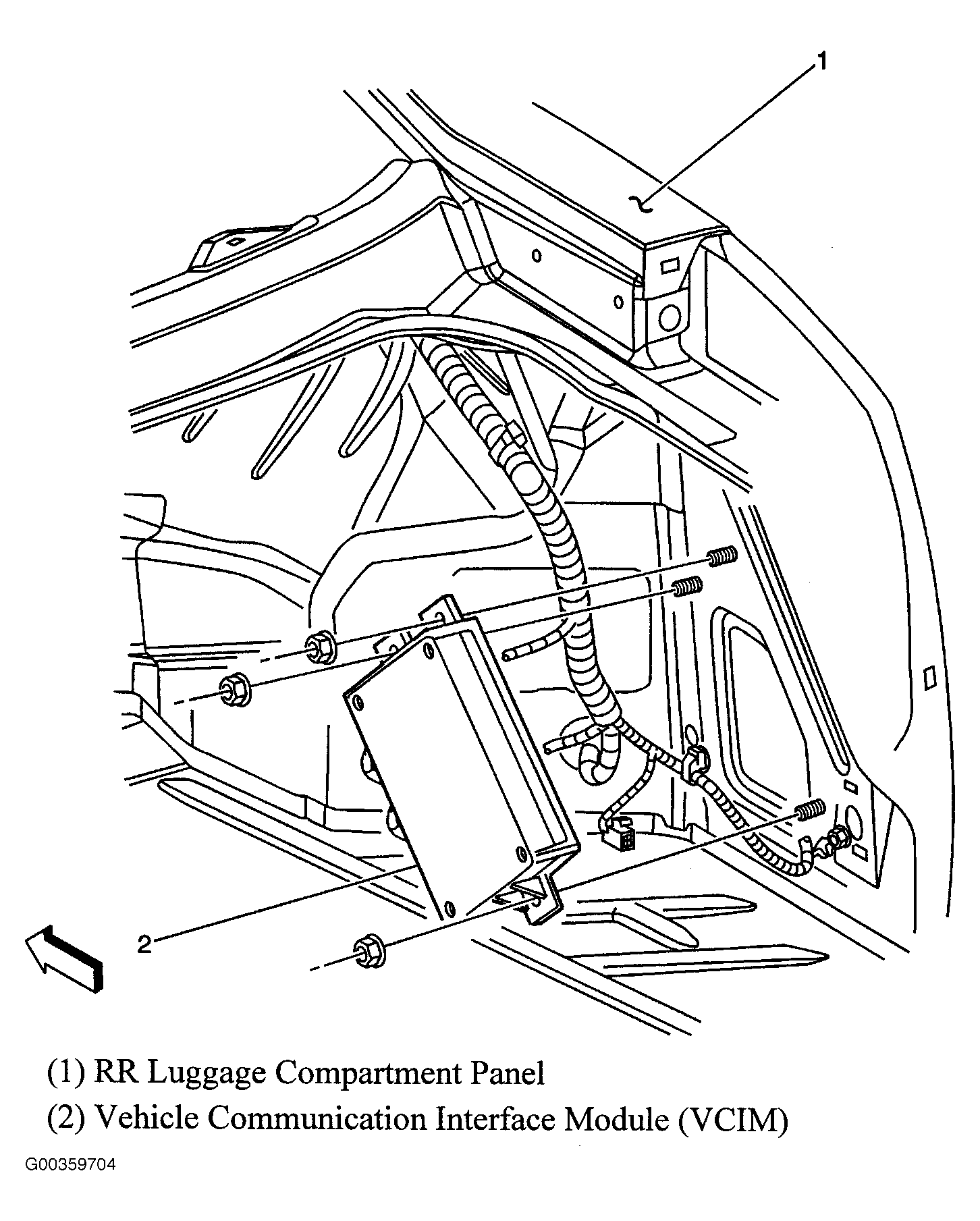

| Vehicle Communication Interface Module (VCIM) | In rear compartment, near right rear strut tower. See Figure. |

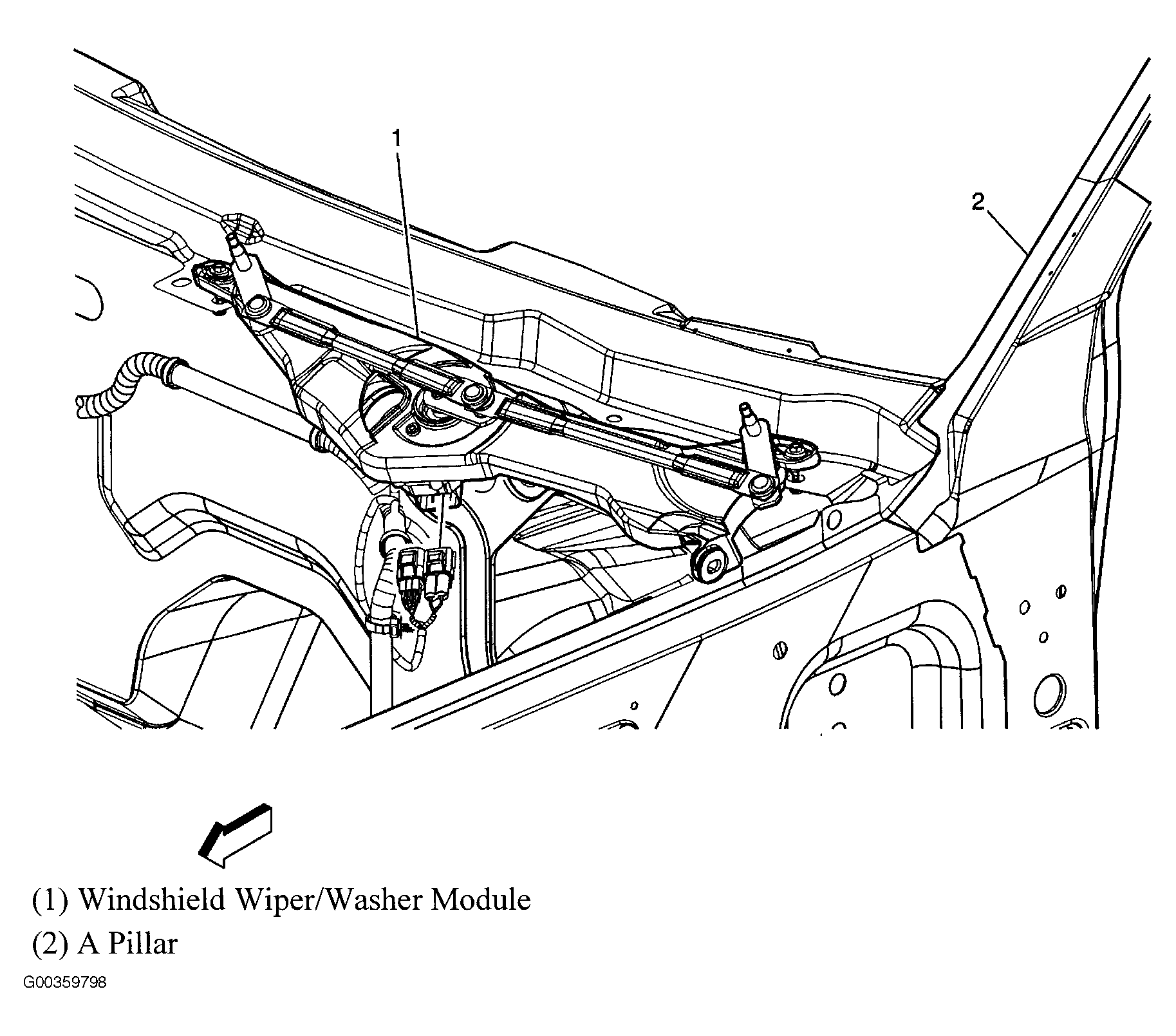

| Windshield Wiper/Washer Module | Left rear of engine compartment, near windshield. See Figure. |
