Control Units
CONTROL UNITS LOCATION

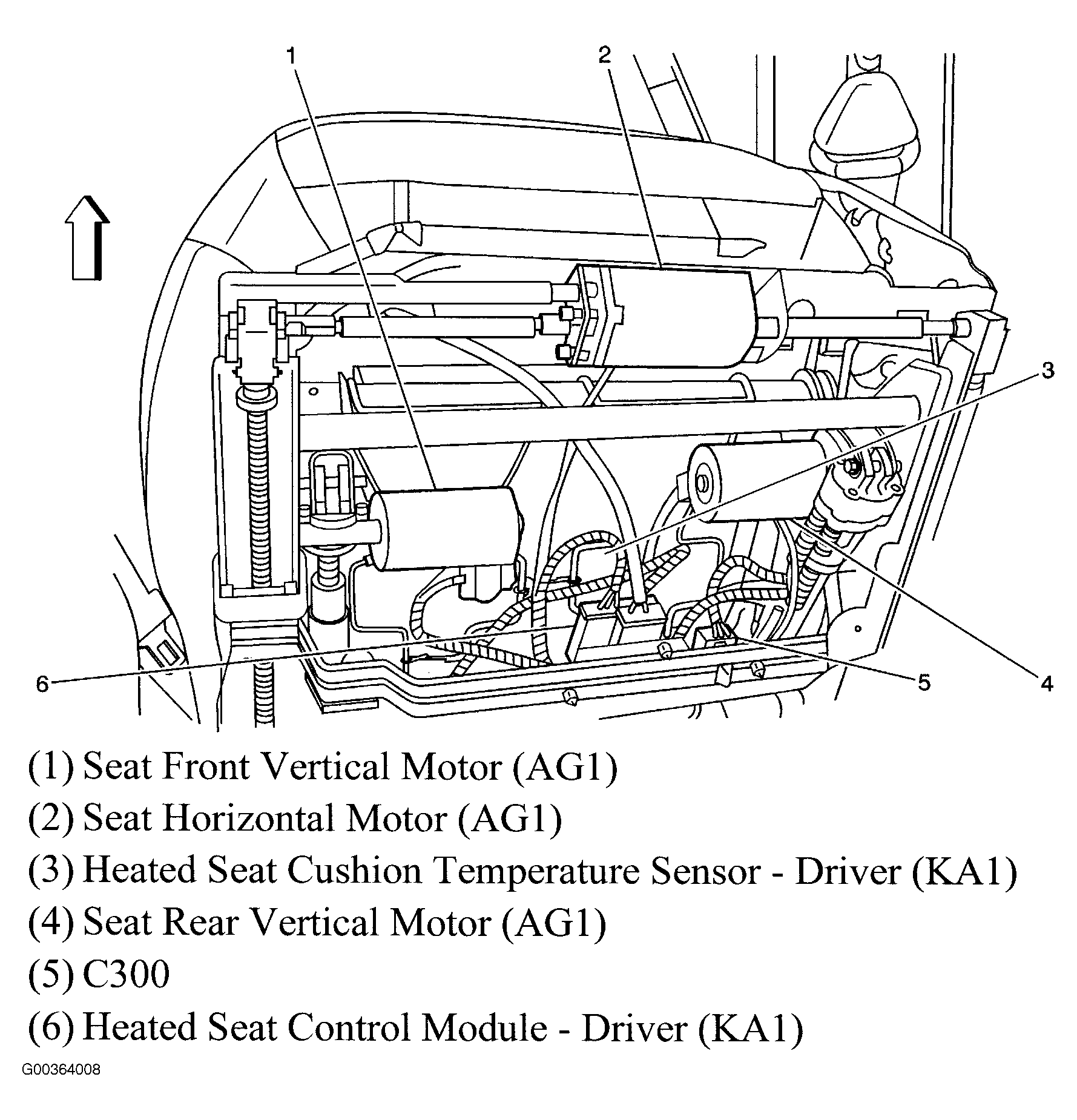

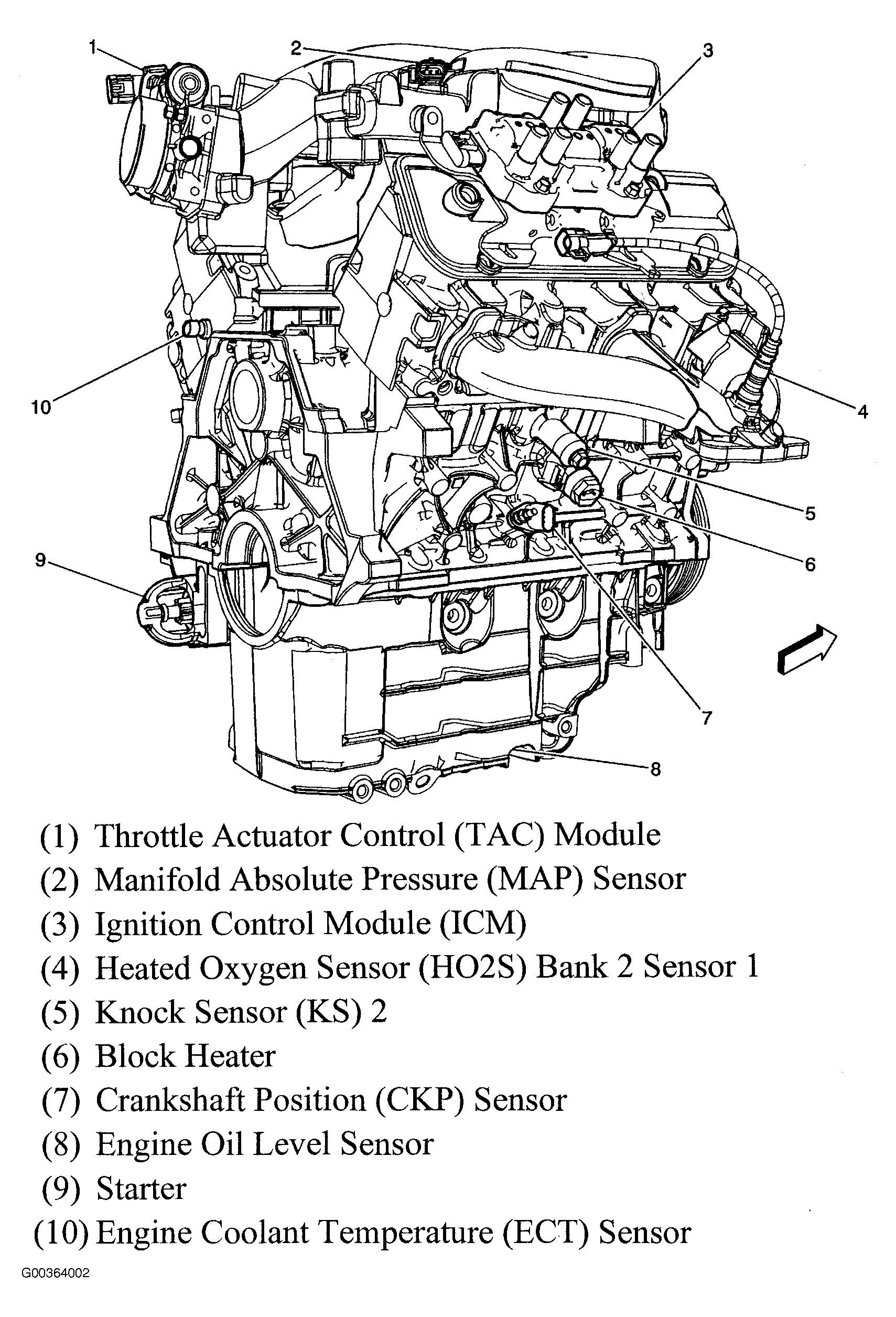

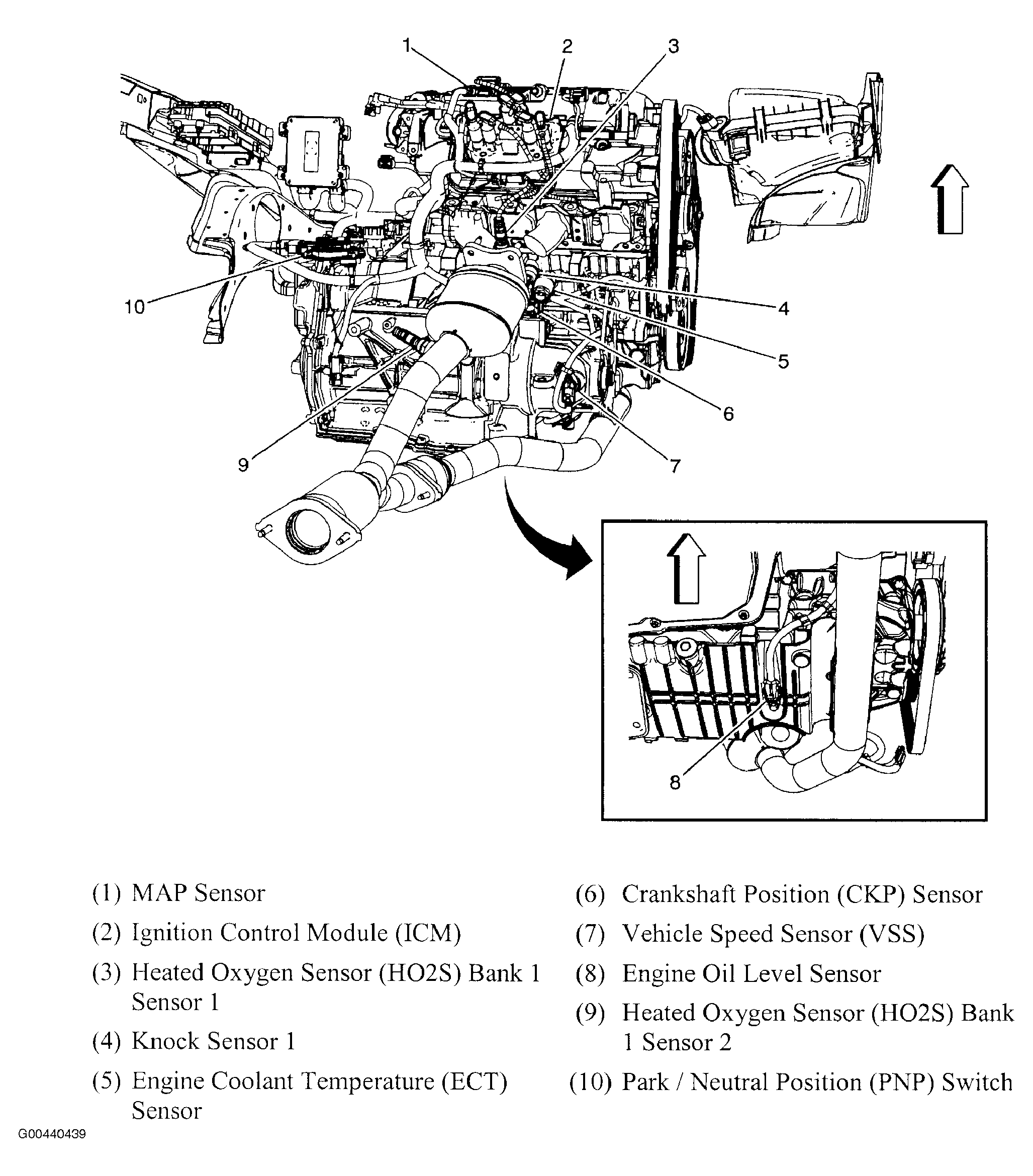

| Component | Location |
|---|---|
| Blower Motor Control Module (C68) | Right side of dash, on rear of HVAC case. See Figure. |
| Body Control Module (BCM) | Under front of center console. See Figure. |
| Electronic Brake Control Module (EBCM) | Inside left front fender. See Figure. |
| Engine Control Module (ECM) | Left side of engine compartment, forward of battery. |
| Heated Seat Control Module | Under driver's seat. See Figure. |
| HVAC Control Module | Center of dash. See Figure. |
| Ignition Control Module (ICM) (2.2L) | Top of engine. |
| Ignition Control Module (ICM) (3.5L) | On top right side of engine. See Figure. |
| Ignition Control Module (ICM) (3.9L) | On right side of engine. See Figure. |
| Inflatable Restraint I/P Module | Above glove box. See Figure. |

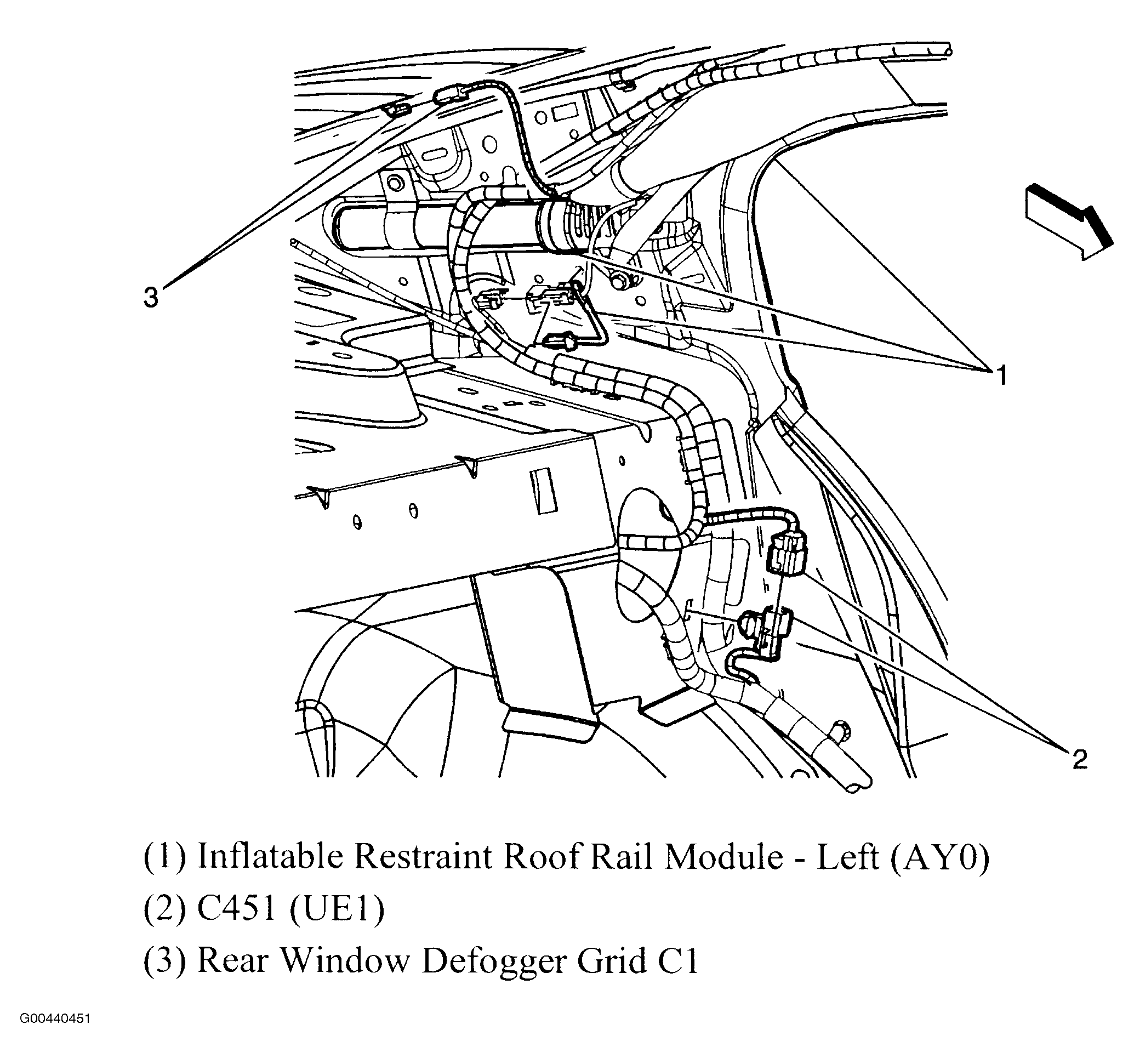

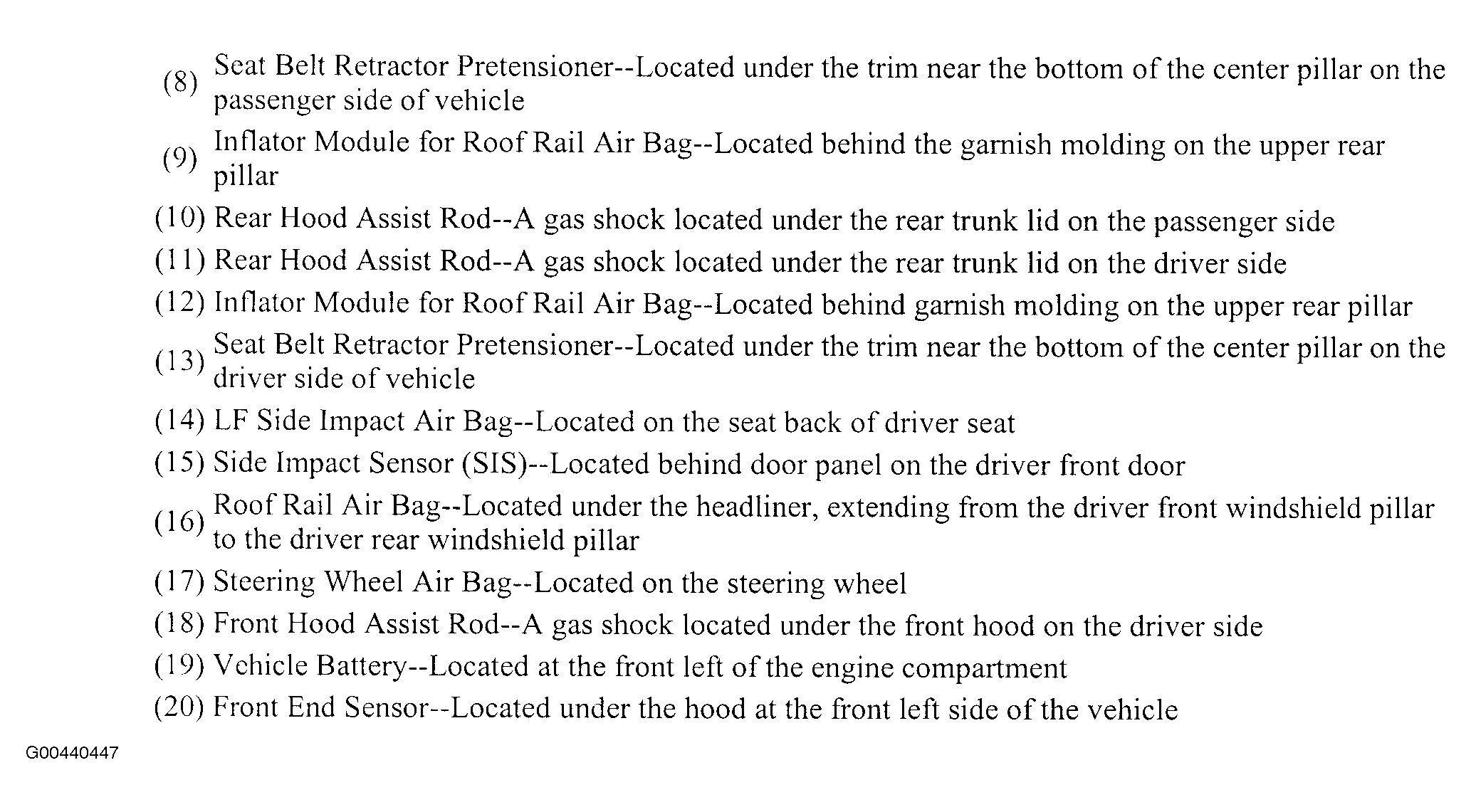

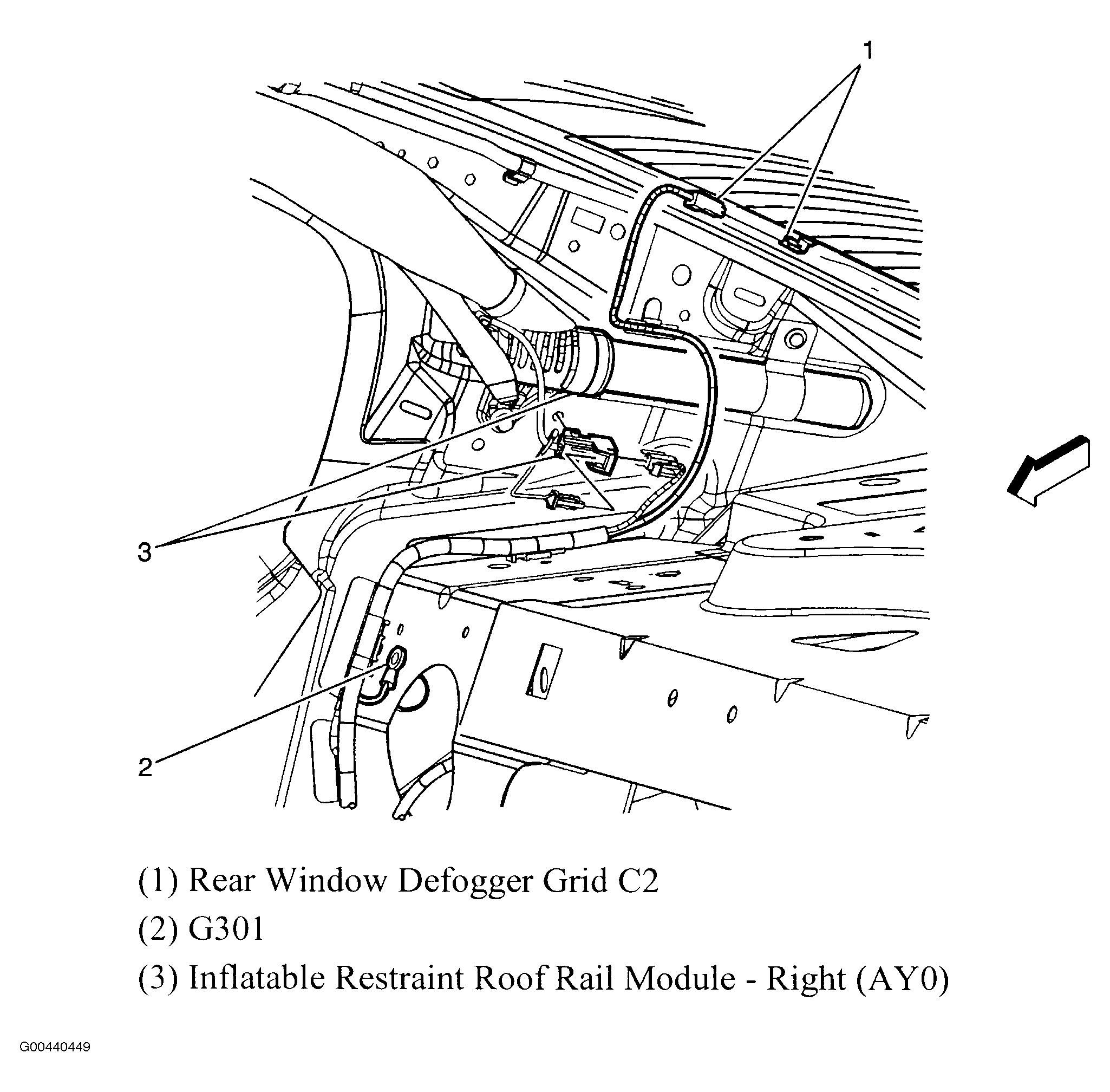

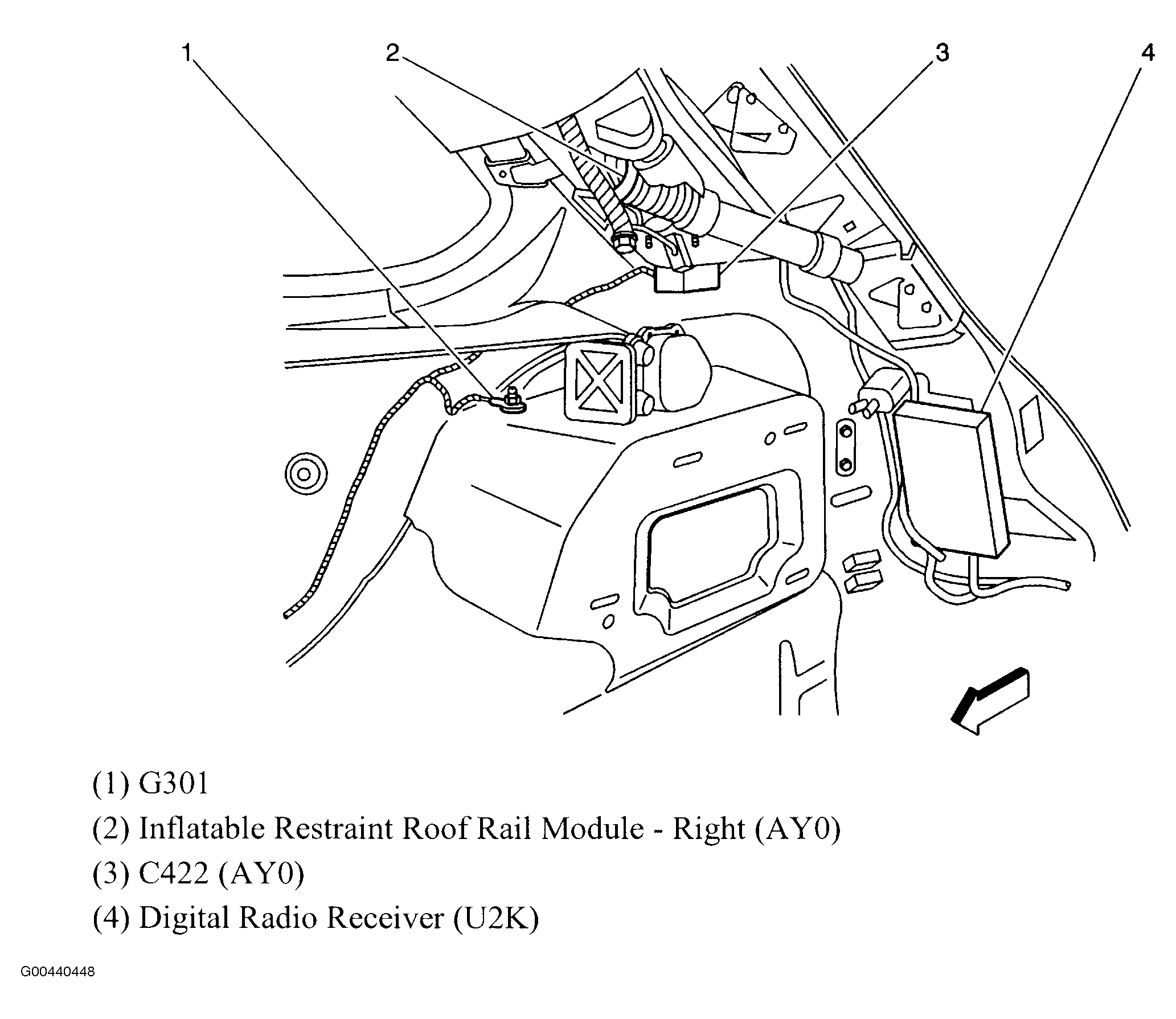

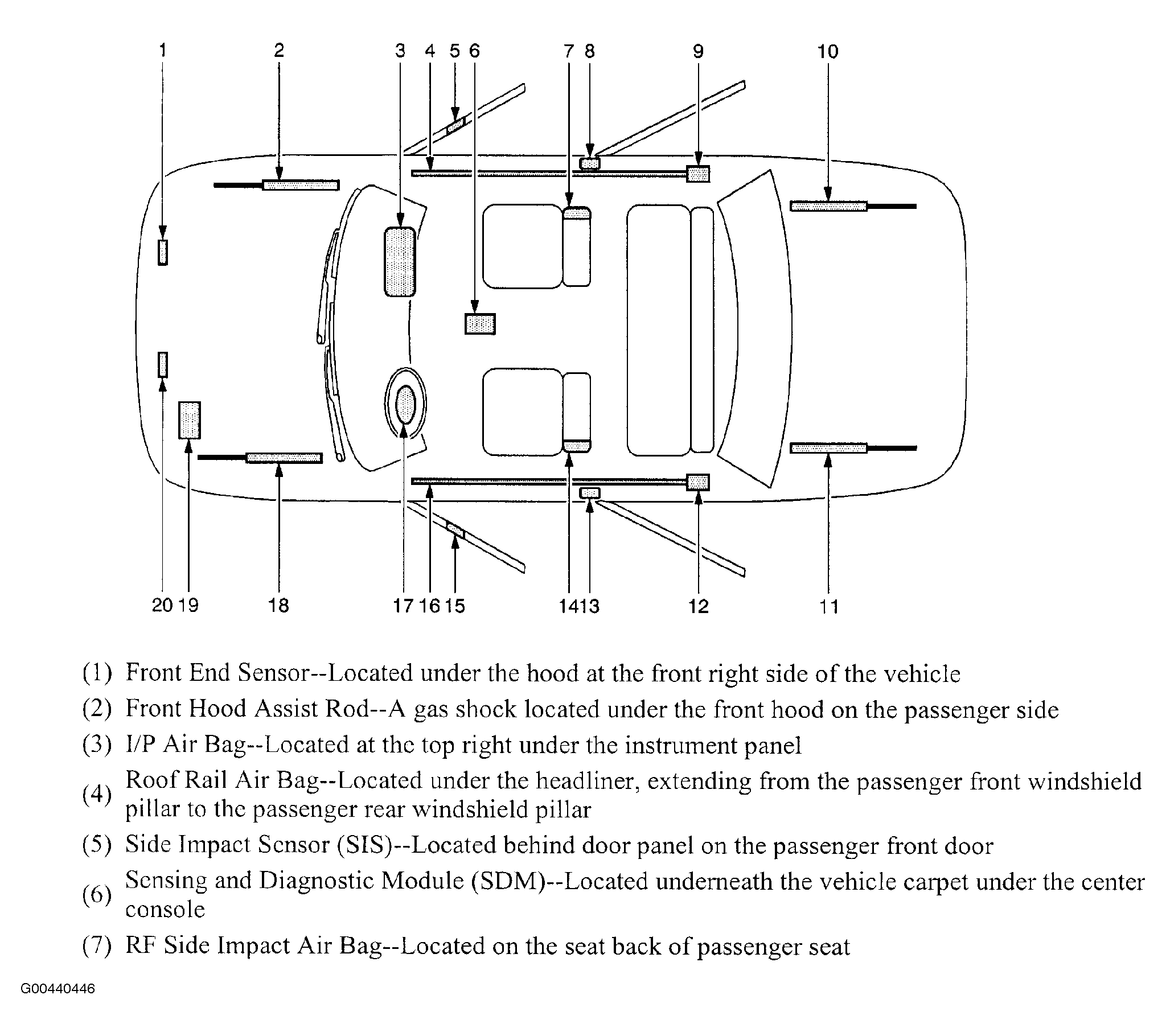

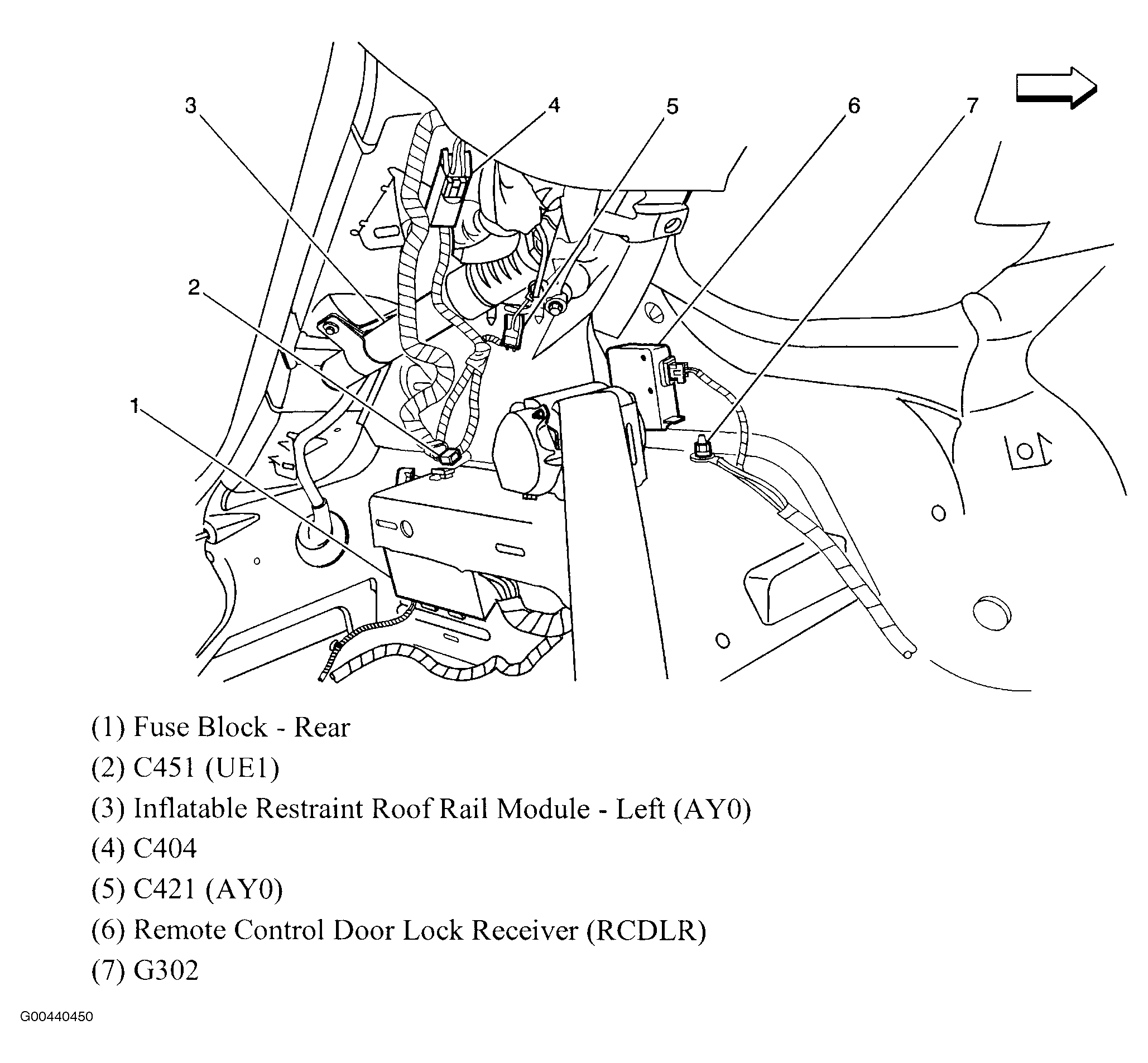

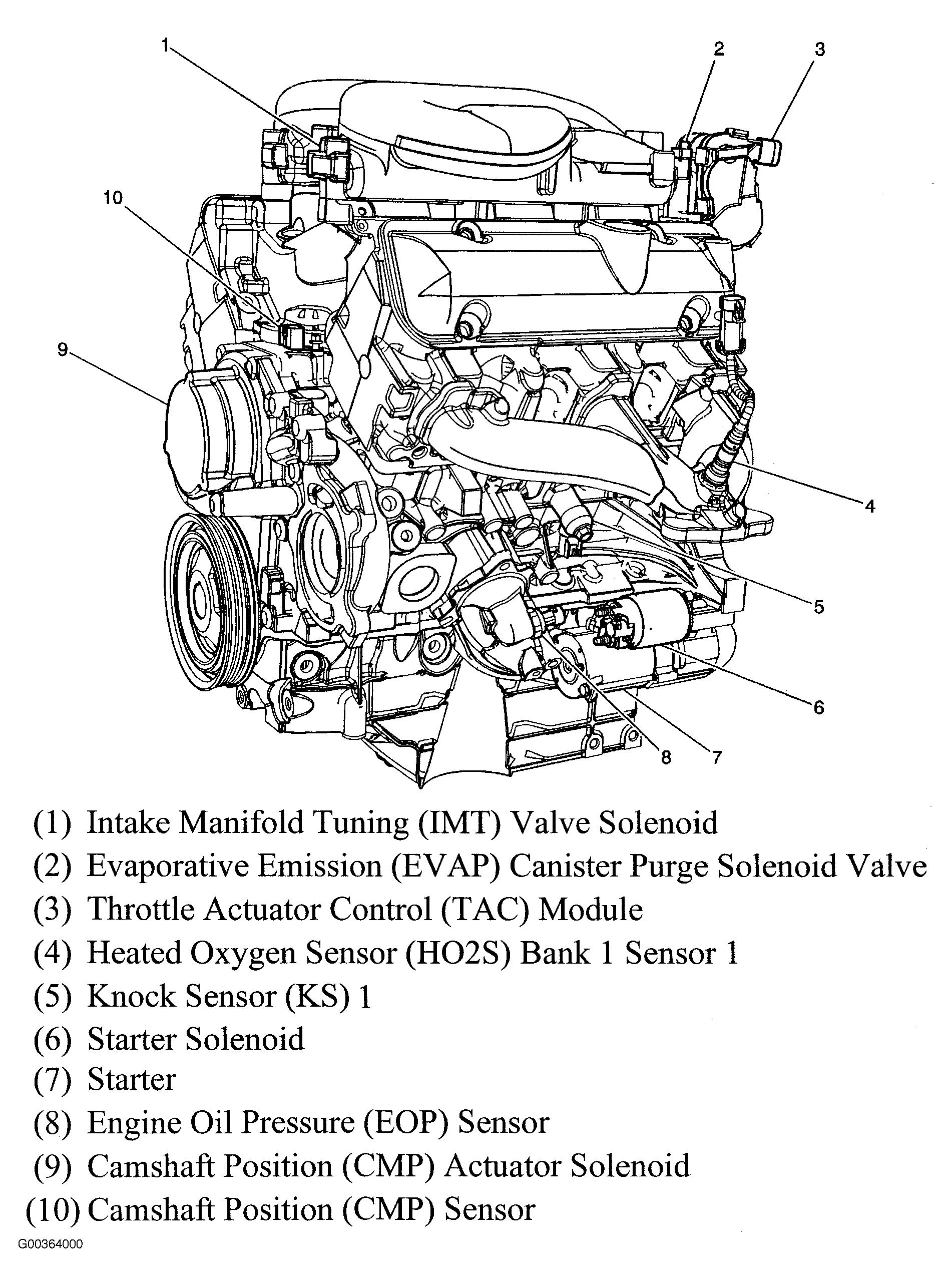

| Inflatable Restraint Roof Rail Module (Left) (Extended Sedan) | Above headliner, over both left doors. See Figure. |
| Inflatable Restraint Roof Rail Module (Left) (Sedan) | Above headliner, over both left doors. See Figure. |
| Inflatable Restraint Roof Rail Module (Right) (Extended Sedan) | Above headliner, over both right doors. See Figure. |
| Inflatable Restraint Roof Rail Module (Right) (Sedan) | Above headliner, over both right doors. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under center console, under carpet. See Figure. |
| Inflatable Restraint Steering Wheel Module | Center of steering wheel. |
| Power Steering Control Module | Left of steering column. See Figure. |
| Powertrain Control Module (PCM) | Front of battery. See Figure. |
| Radio Antenna Amplifier Module (Sedan) | Above rear glass, under left side of headliner. See Figure. |
| Remote Control Door Lock Receiver (RCDLR) (Extended Sedan) | On left "C" pillar. See Figure. |
| Remote Control Door Lock Receiver (RCDLR) (Sedan) | On rear package shelf. See Figure. |
| Roof Rail Air Bag (Left) | Above left side of headliner. See Figure. |
| Roof Rail Air Bag (Right) | Above right side of headliner. See Figure. |
| Sunroof Control Module | Rear of sunroof. See Figure. |
| Theft Deterrent Module | Attached to ignition key cylinder housing. See Figure. |
| Throttle Actuator Control (TAC) Module (2.2L) | On upper intake manifold. See Figure. |
| Throttle Actuator Control (TAC) Module (3.5L) | On upper intake manifold. |
| Throttle Actuator Control (TAC) Module (3.9L) | On throttle body. See Figure. |

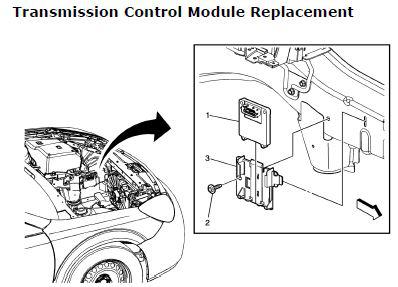

| Transmission Control Module (TCM) | Engine Compartment - Left Front. See Figure. |
