Valve Body: Disassembly

NOTE: If the valve body is being reconditioned or replaced, it is necessary to perform the Quick Learn Procedure using the DRBIII® Scan Tool.

Remove manual shaft seal.
Remove manual shaft screw. See Fig 1.

Fig 1: Removing Manual Shaft Retaining Screw
Courtesy of DAIMLERCHRYSLER CORP.

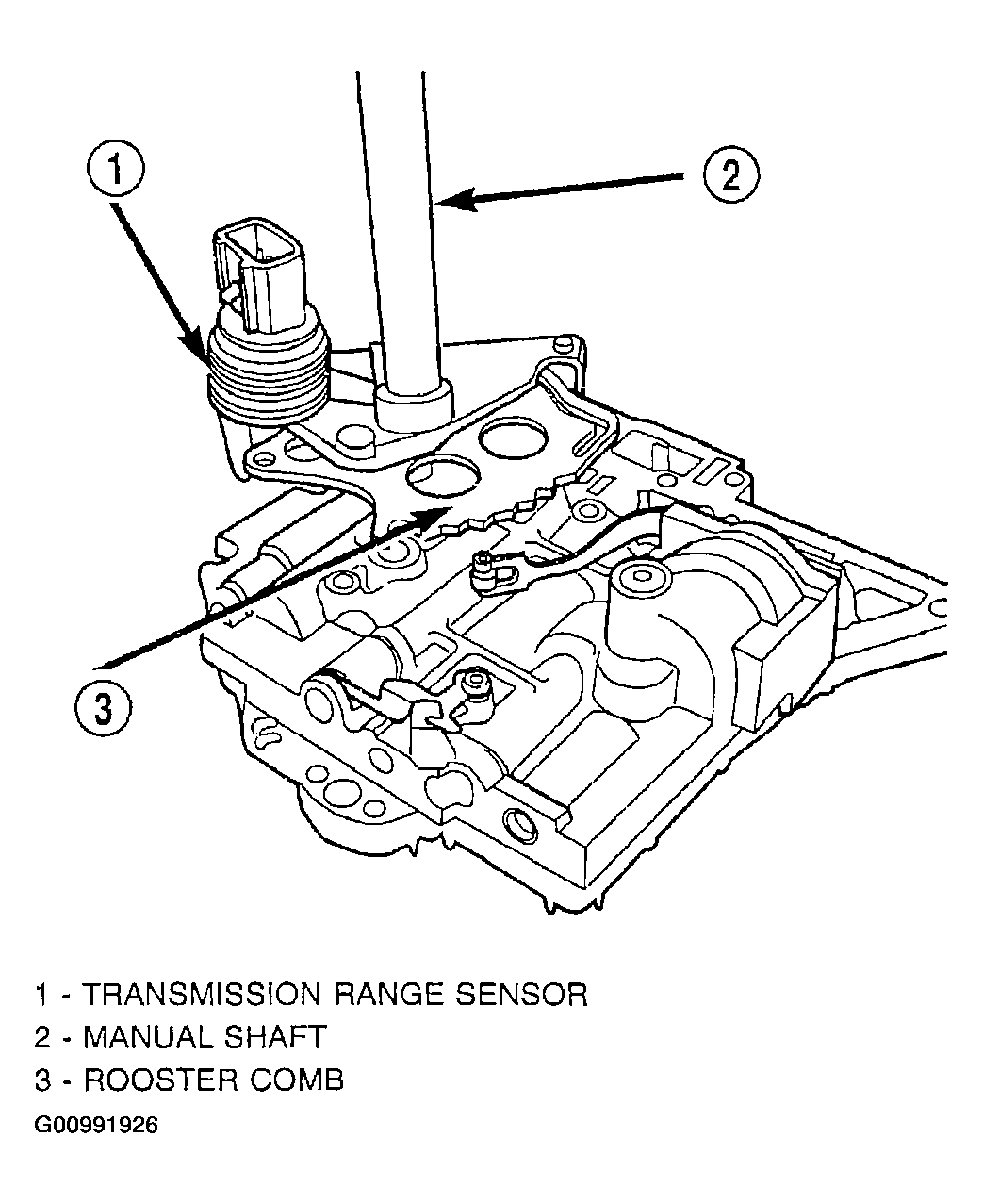

Remove Transmission Range Sensor (TRS) and manual shaft. See Fig 2.

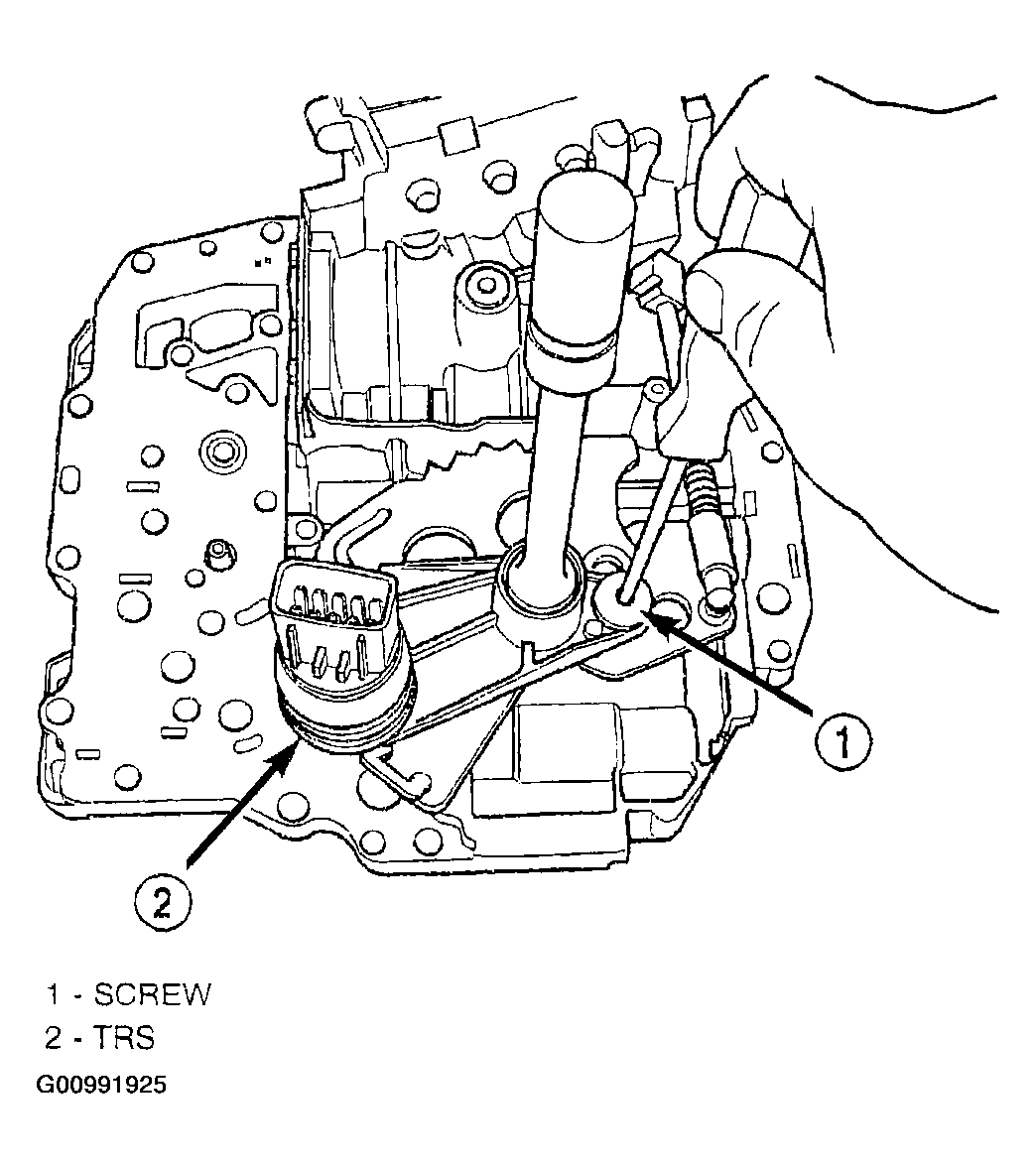

Fig 2: Removing Manual Shaft/Rooster Comb & Transmission Range Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Remove Solenoid/Pressure Switch Assembly from valve body. See Fig 3.

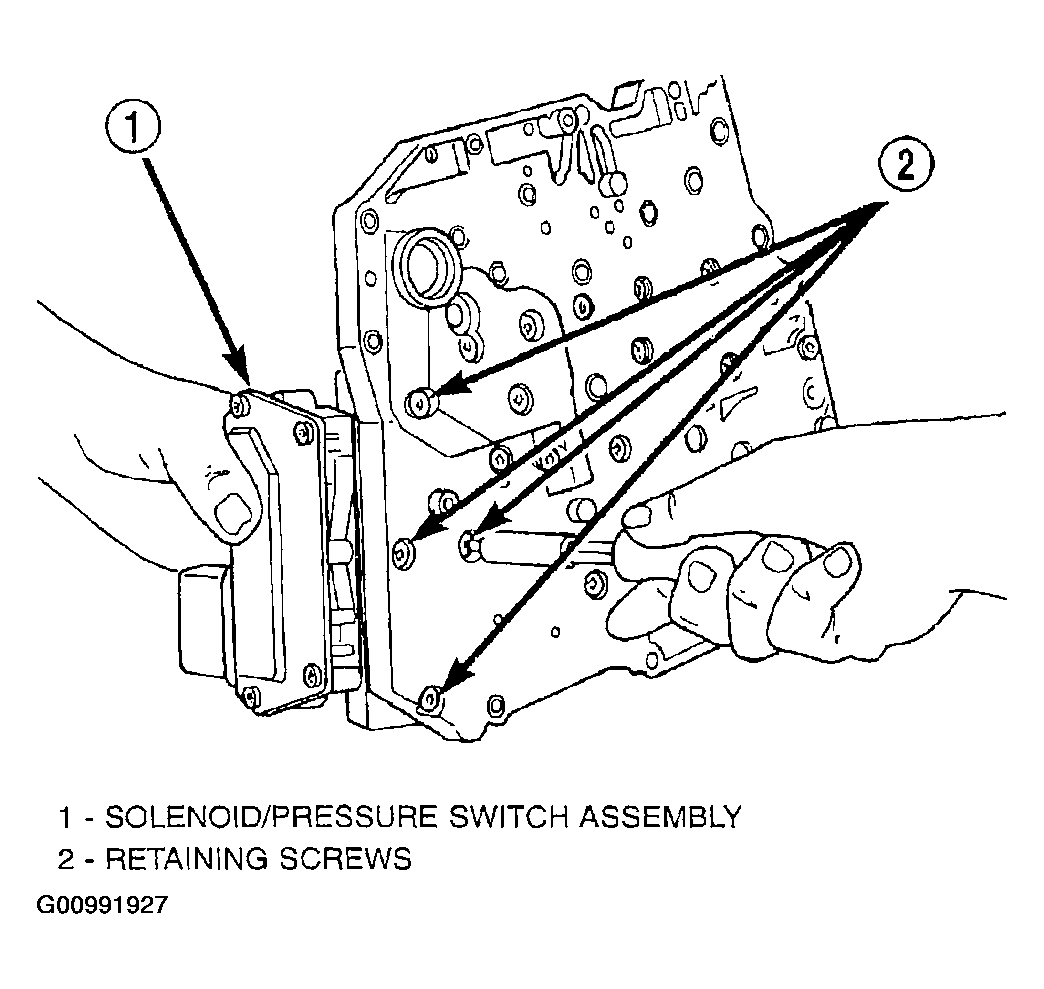

Fig 3: Removing Solenoid Retaining Screws
Courtesy of DAIMLERCHRYSLER CORP.
Remove valve body stiffener plate. See Fig 4.

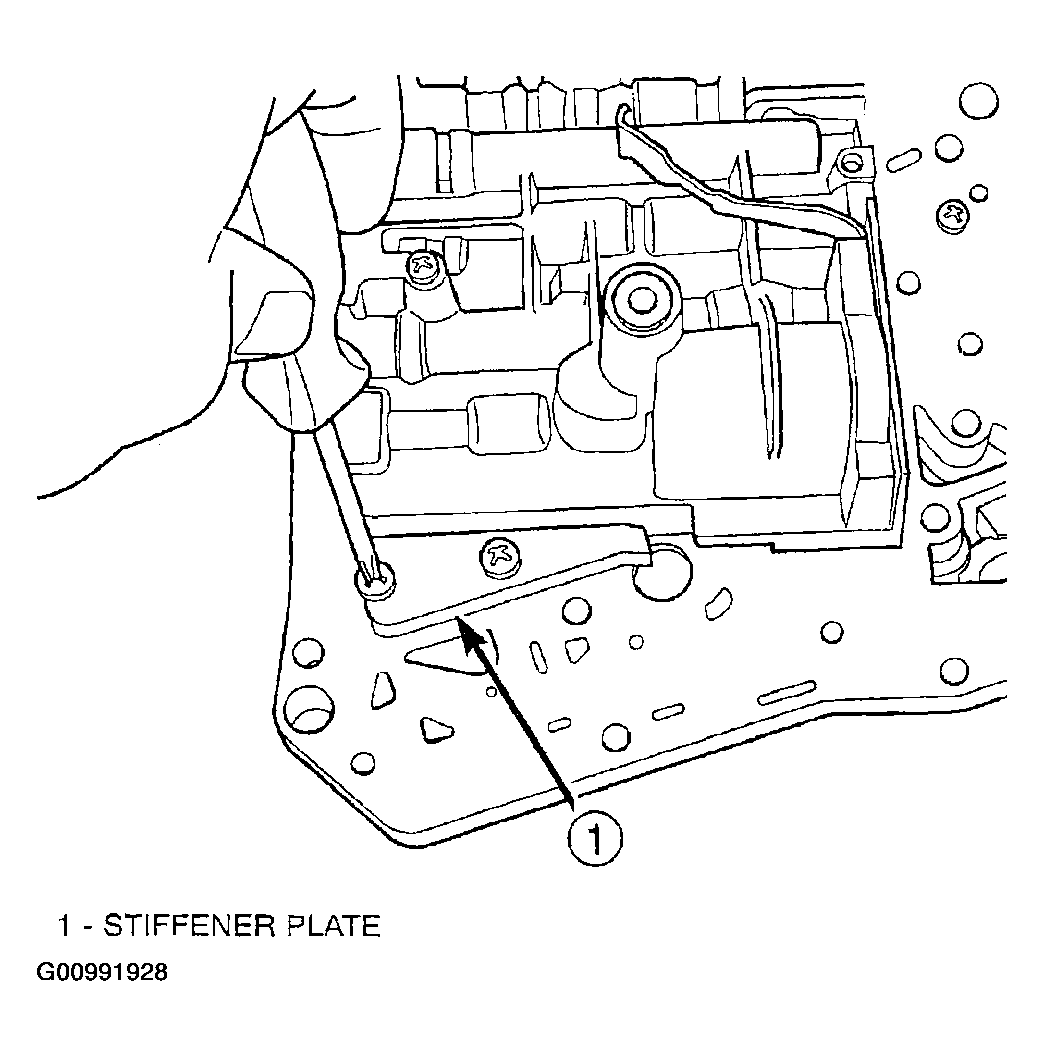

Fig 4: Removing Stiffener Plate
Courtesy of DAIMLERCHRYSLER CORP.

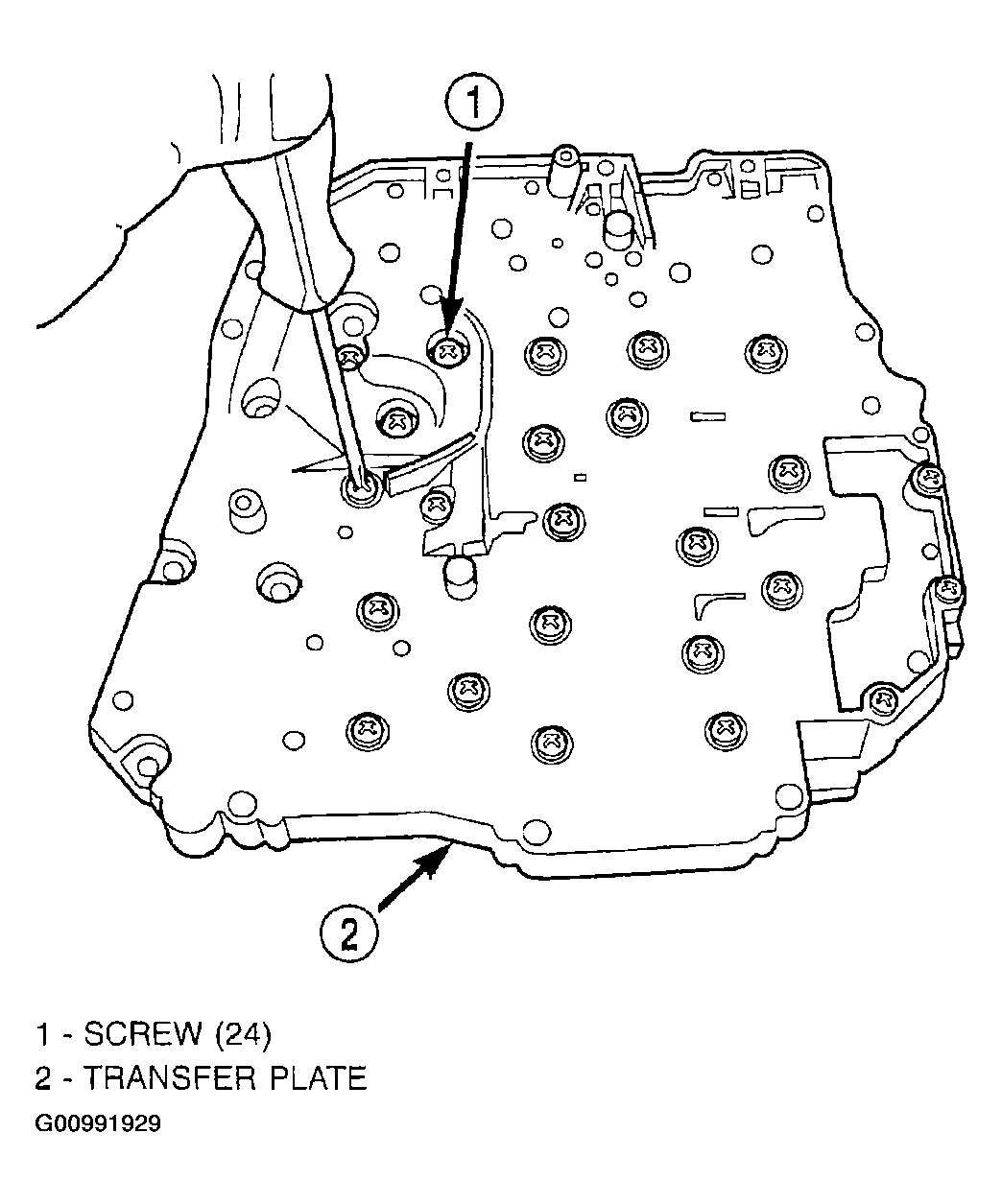

Invert valve body assembly and remove transfer plate-to-valve body screws. See Fig 5.

Fig 5: Removing Transfer Plate-To-Valve Body Screws
Courtesy of DAIMLERCHRYSLER CORP.

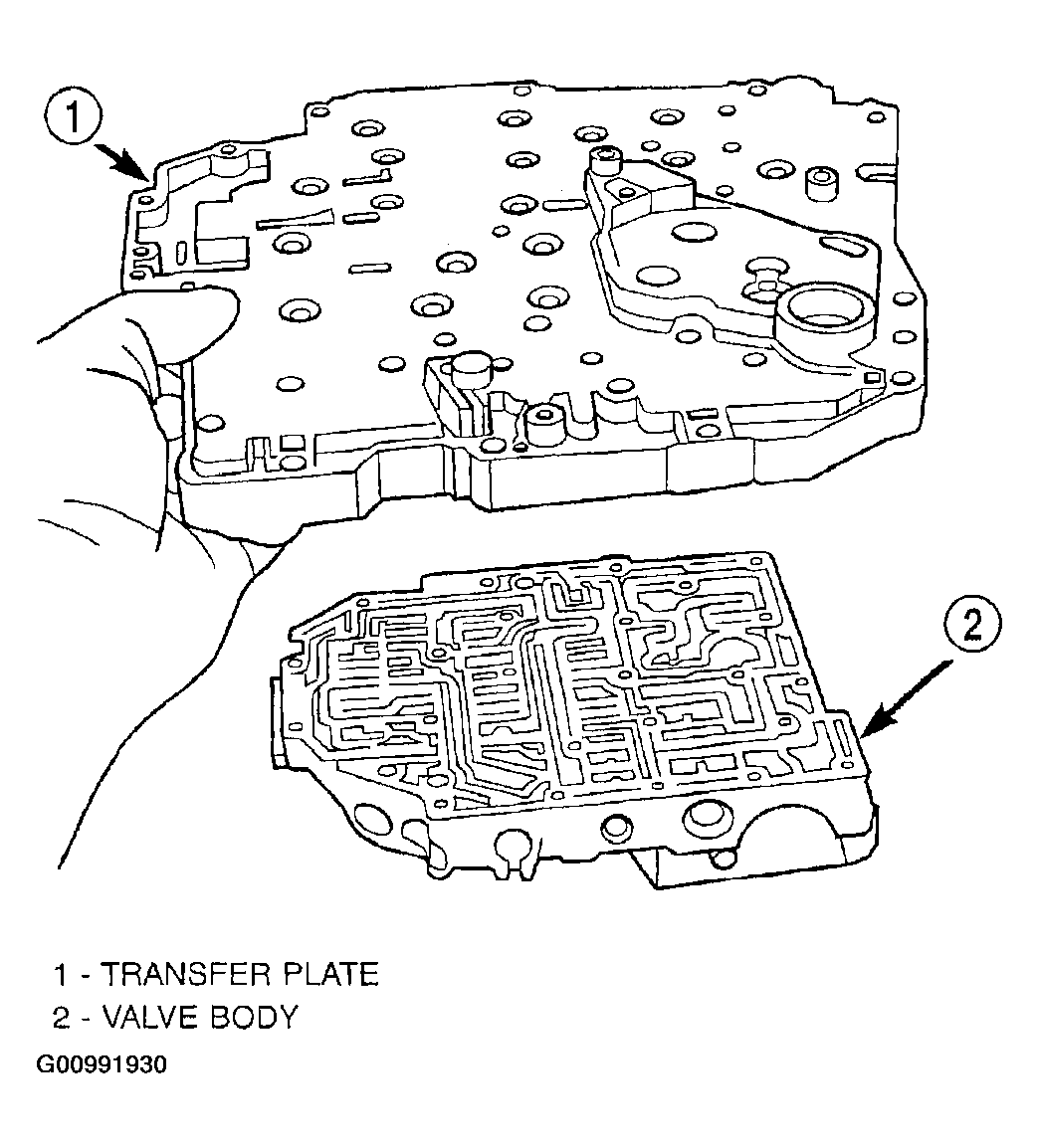

Remove transfer/separator plate from valve body. See Fig 6)

Fig 6: Removing Transfer Plate From Valve Body
Courtesy of DAIMLERCHRYSLER CORP.
Remove separator plate-to-transfer plate screws. See Fig 7.

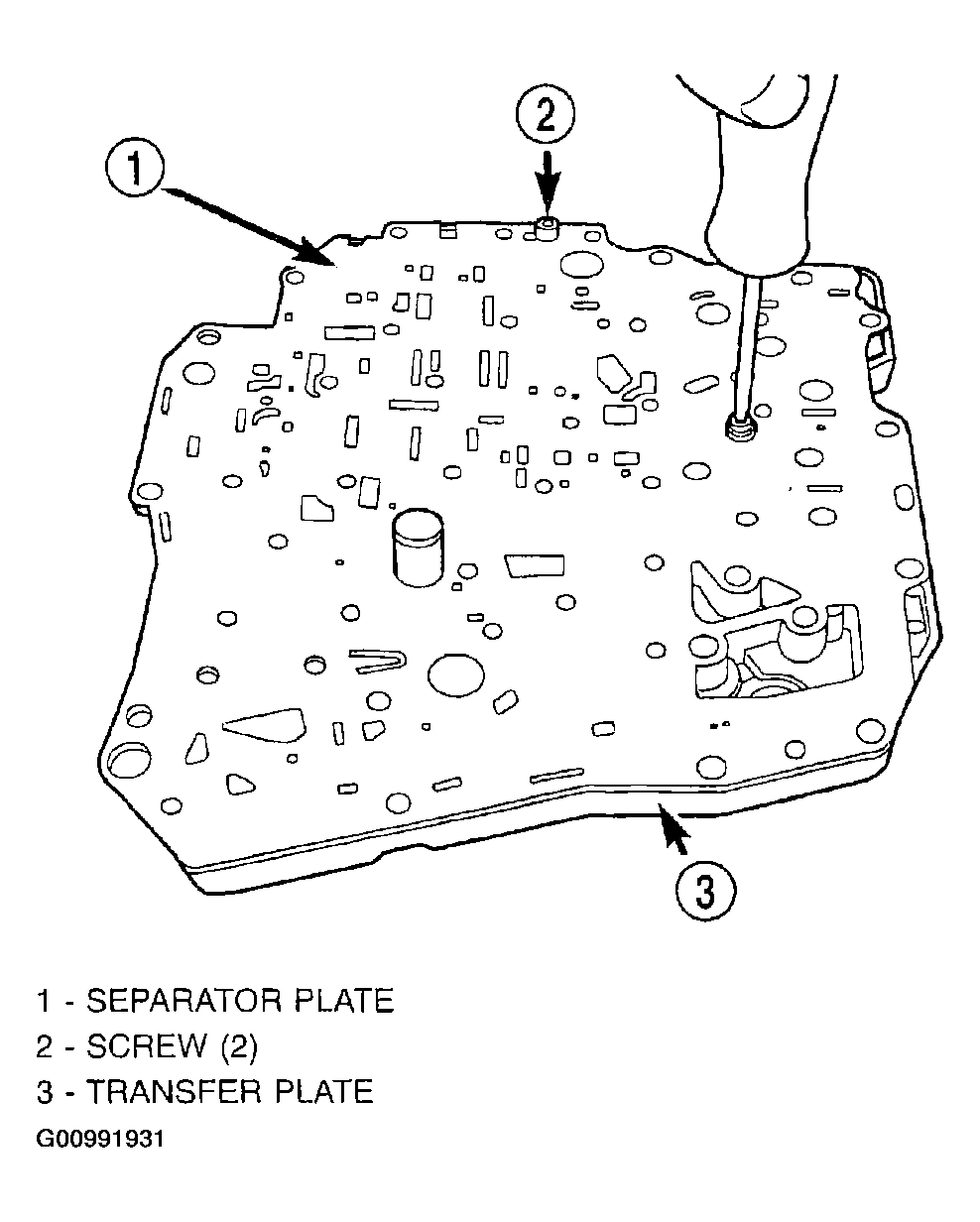

Fig 7: Removing Separator Plate-To-Transfer Plate Screws
Courtesy of DAIMLERCHRYSLER CORP.

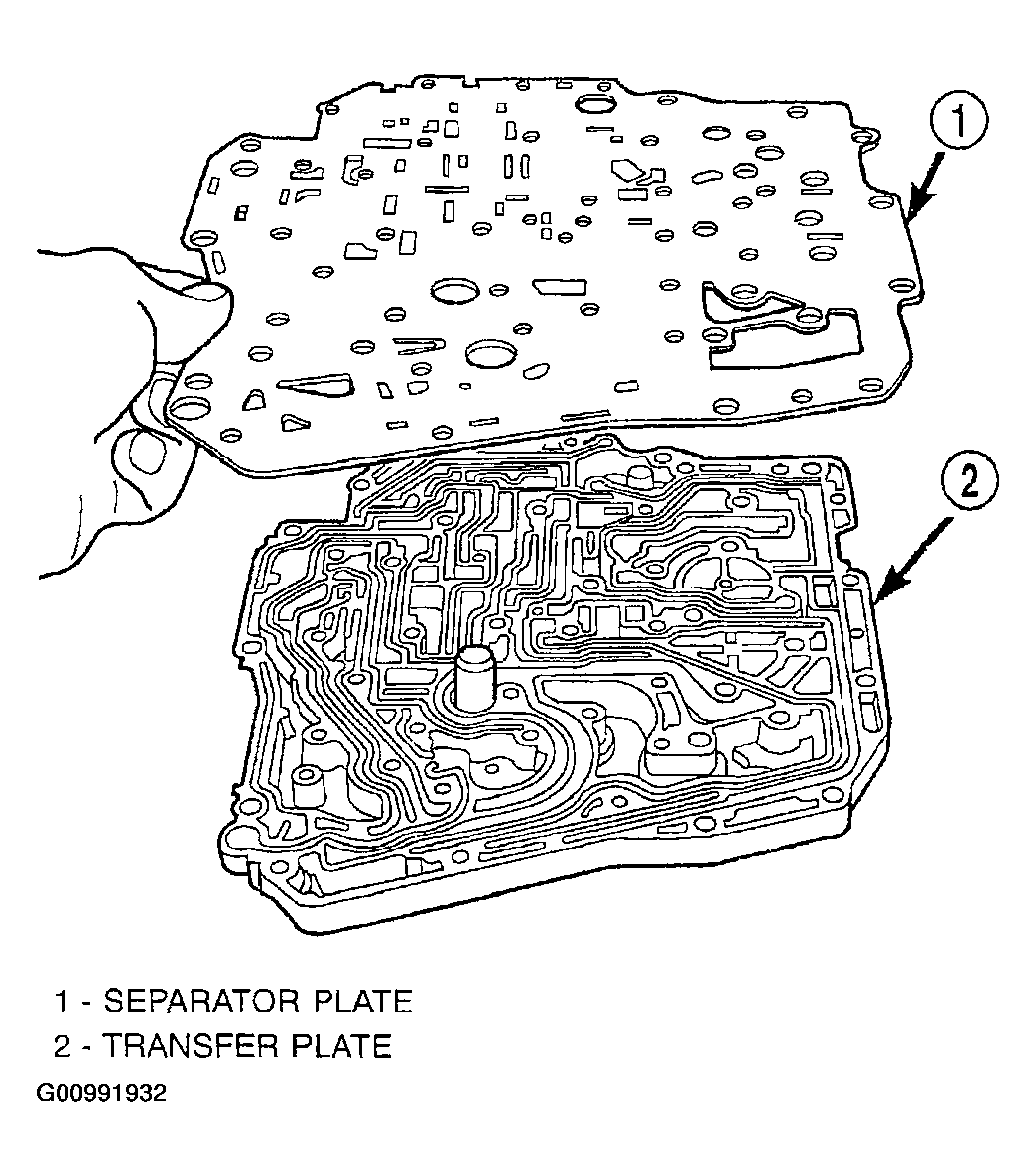

Remove separator plate from transfer plate. See Fig 8.

Fig 8: Removing Separator Plate From Transfer Plate
Courtesy of DAIMLERCHRYSLER CORP.

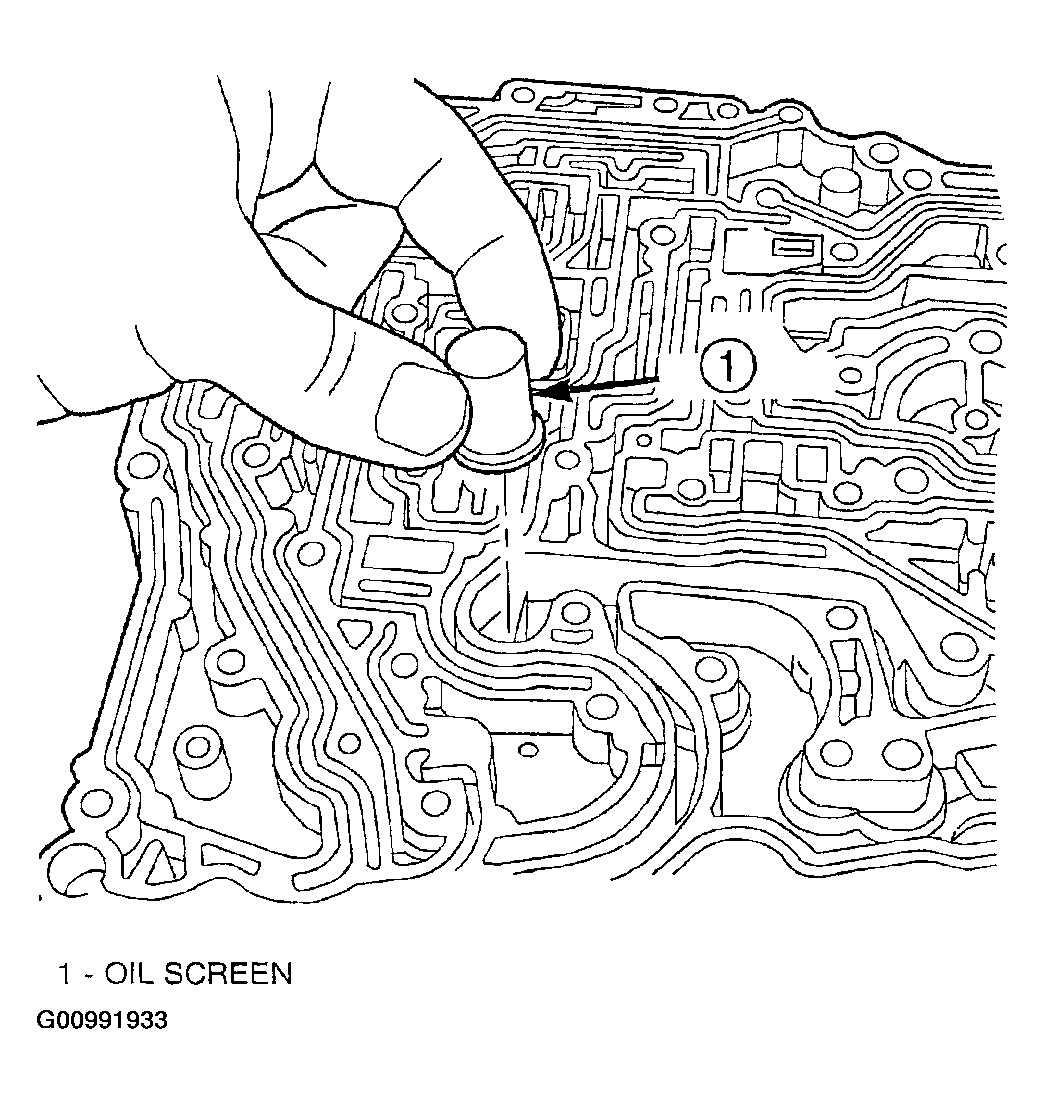

Remove oil screen from transfer plate. See Fig 9.

Fig 9: Removing Oil Screen From Transfer Plate
Courtesy of DAIMLERCHRYSLER CORP.

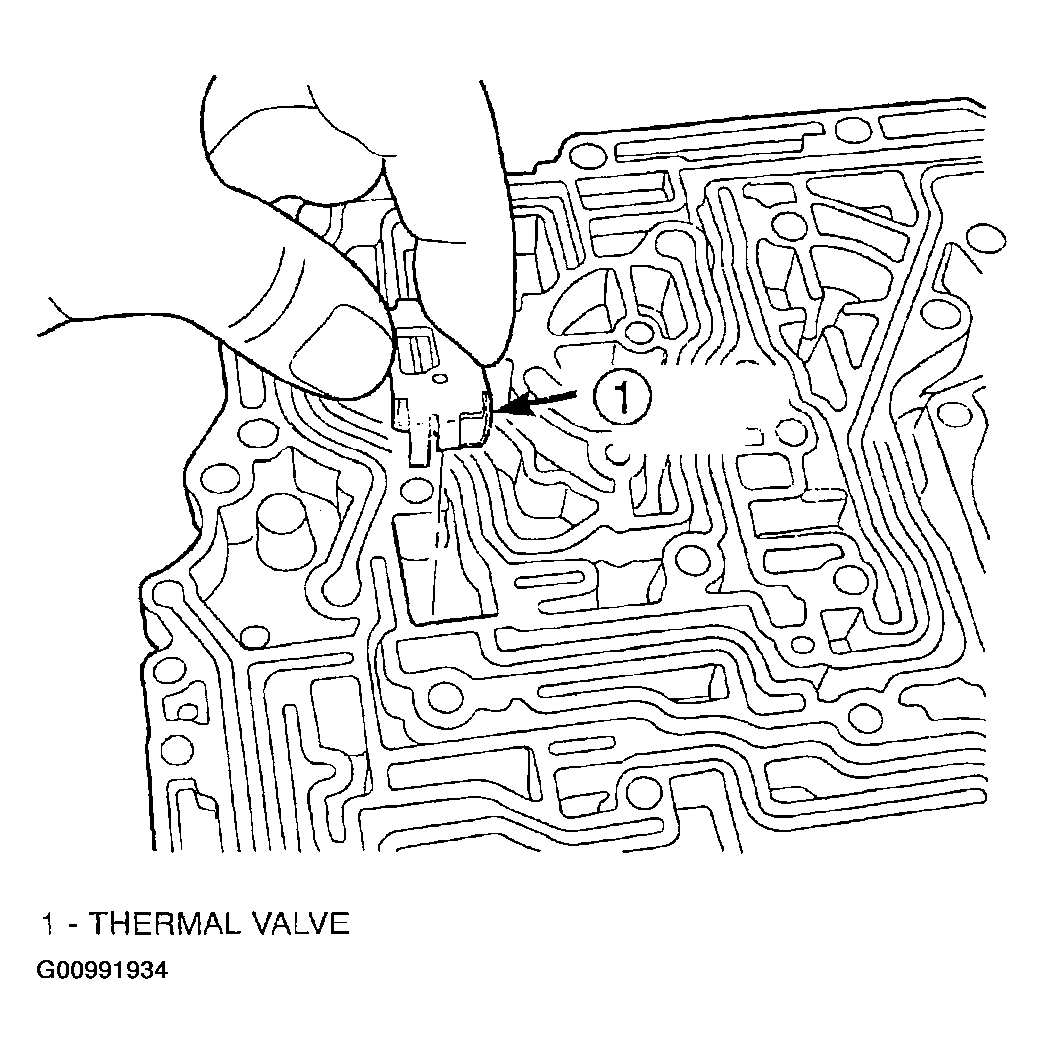

Remove thermal valve from transfer plate. See Fig 10.

Fig 10: Removing Thermal Valve From Transfer Plate
Courtesy of DAIMLERCHRYSLER CORP.

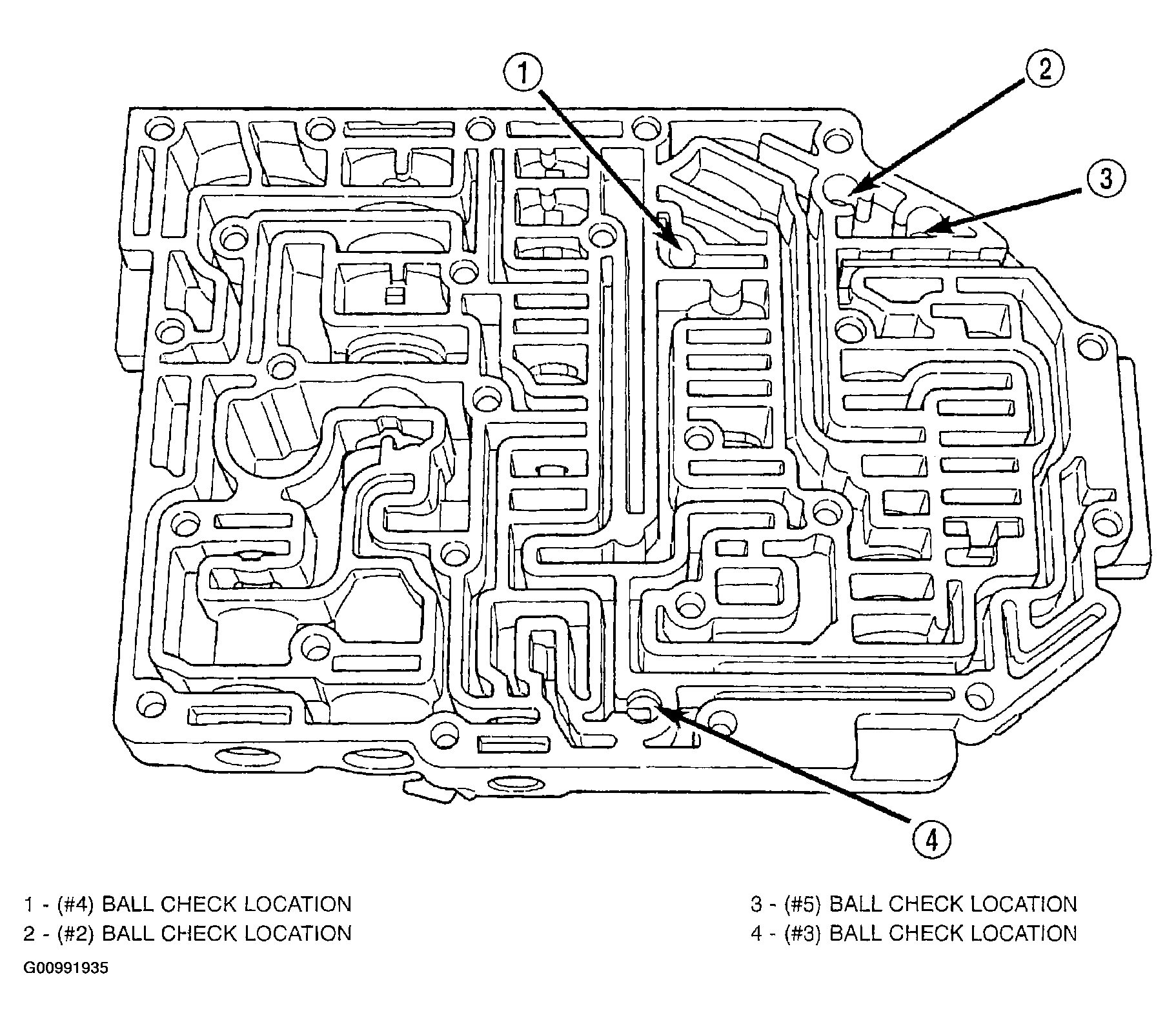

Remove valve body check balls. Note their location for assembly ease. See Fig 11.

Fig 11: Locating Check Ball
Courtesy of DAIMLERCHRYSLER CORP.
Remove 2/4 accumulator assembly as shown in Fig 12.

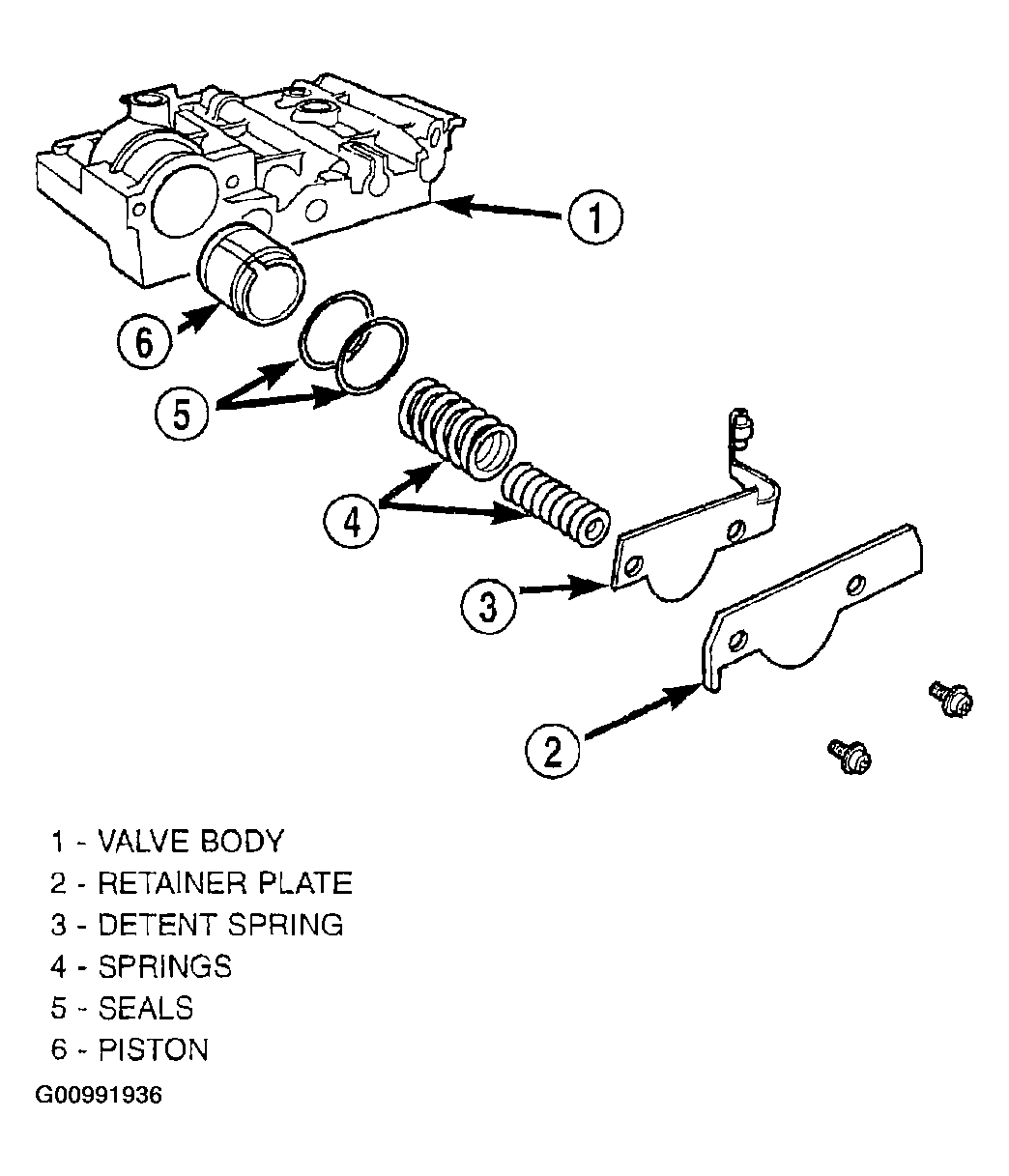

Fig 12: Exploded View Of 2/4 Accumulator Assembly
Courtesy of DAIMLERCHRYSLER CORP.

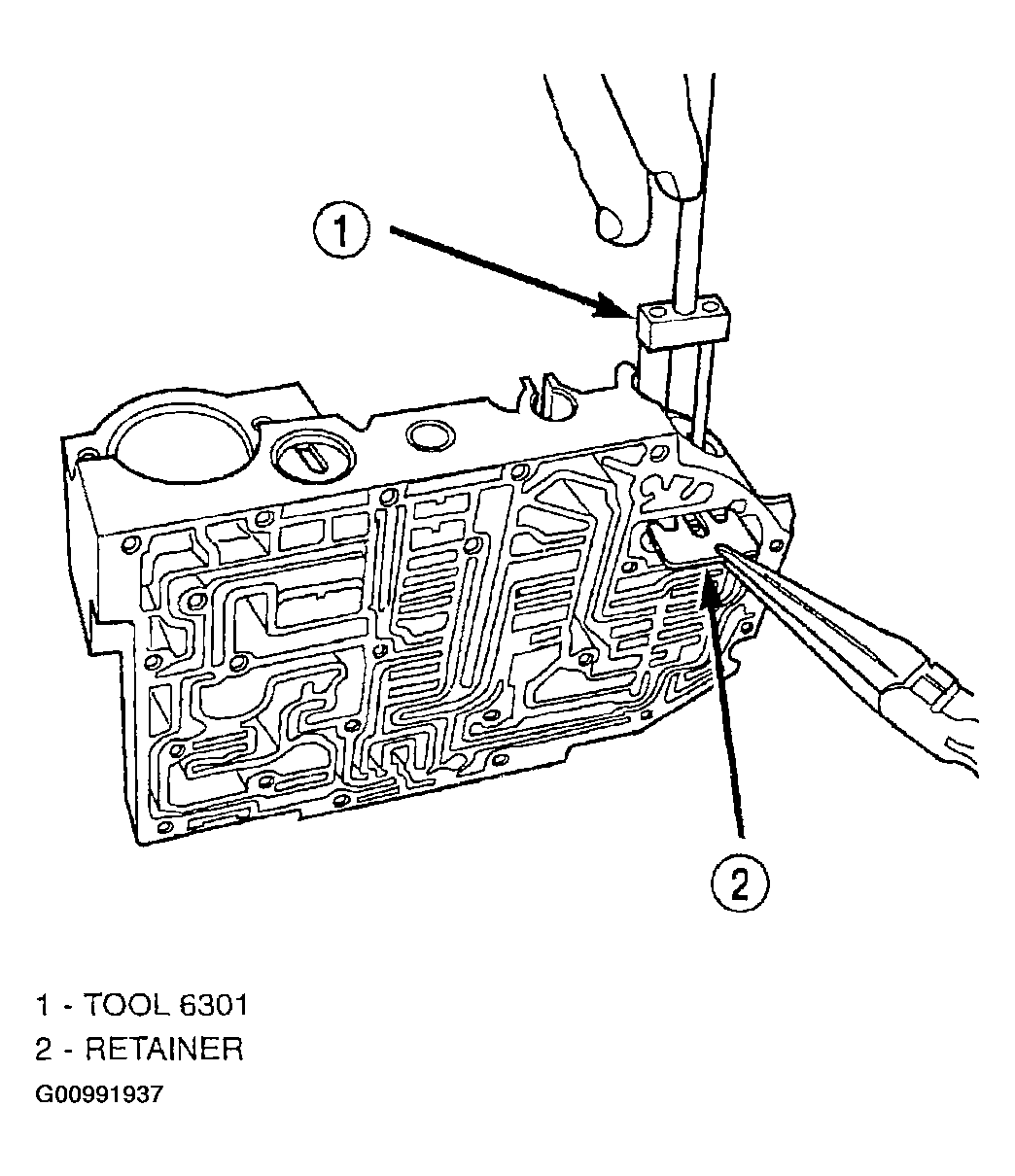

Remove dual retainer plate from valve body. Use special tool 6301 to remove plate. See Fig 13.

Fig 13: Removing Dual Retainer Plate Using Tool 6301
Courtesy of DAIMLERCHRYSLER CORP.
Remove regulator valve spring retainer. See Fig 14.

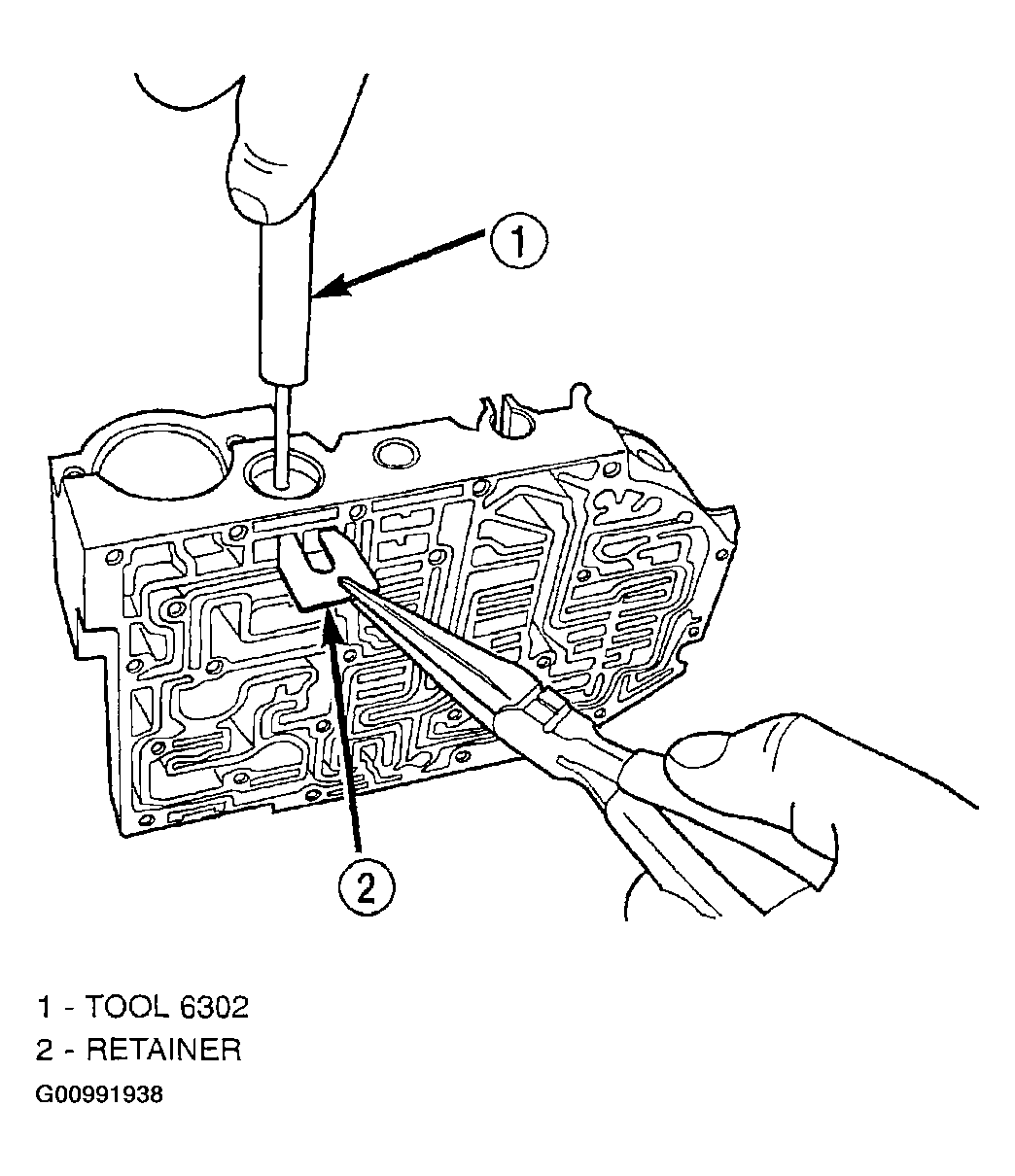

Fig 14: Removing Regulator Valve Spring Retainer Using Tool 6302
Courtesy of DAIMLERCHRYSLER CORP.
Remove remaining retainers as shown in Fig 15.

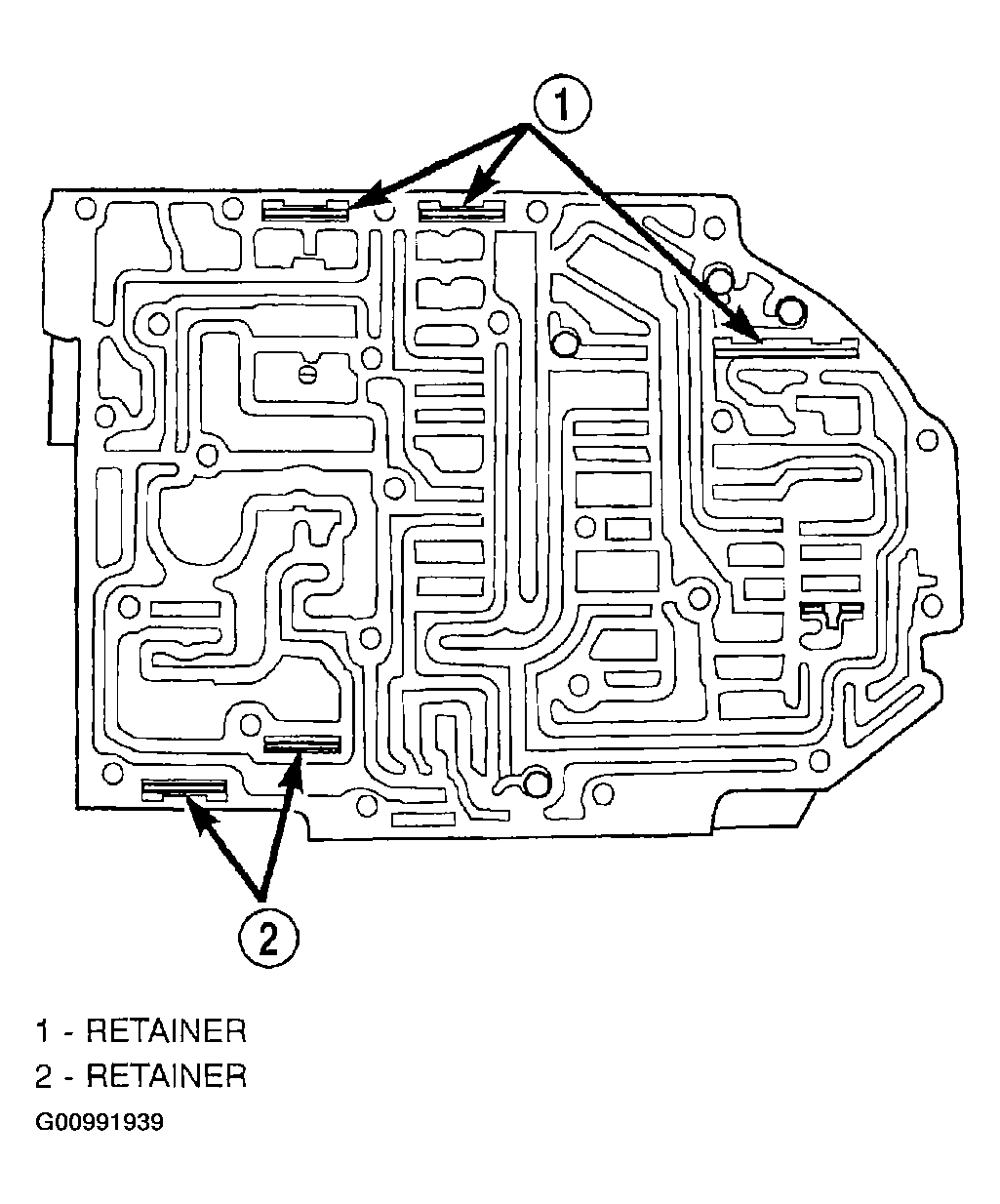

Fig 15: Locating Valve Retainer
Courtesy of DAIMLERCHRYSLER CORP.
Remove valves and springs as shown in Fig 16.

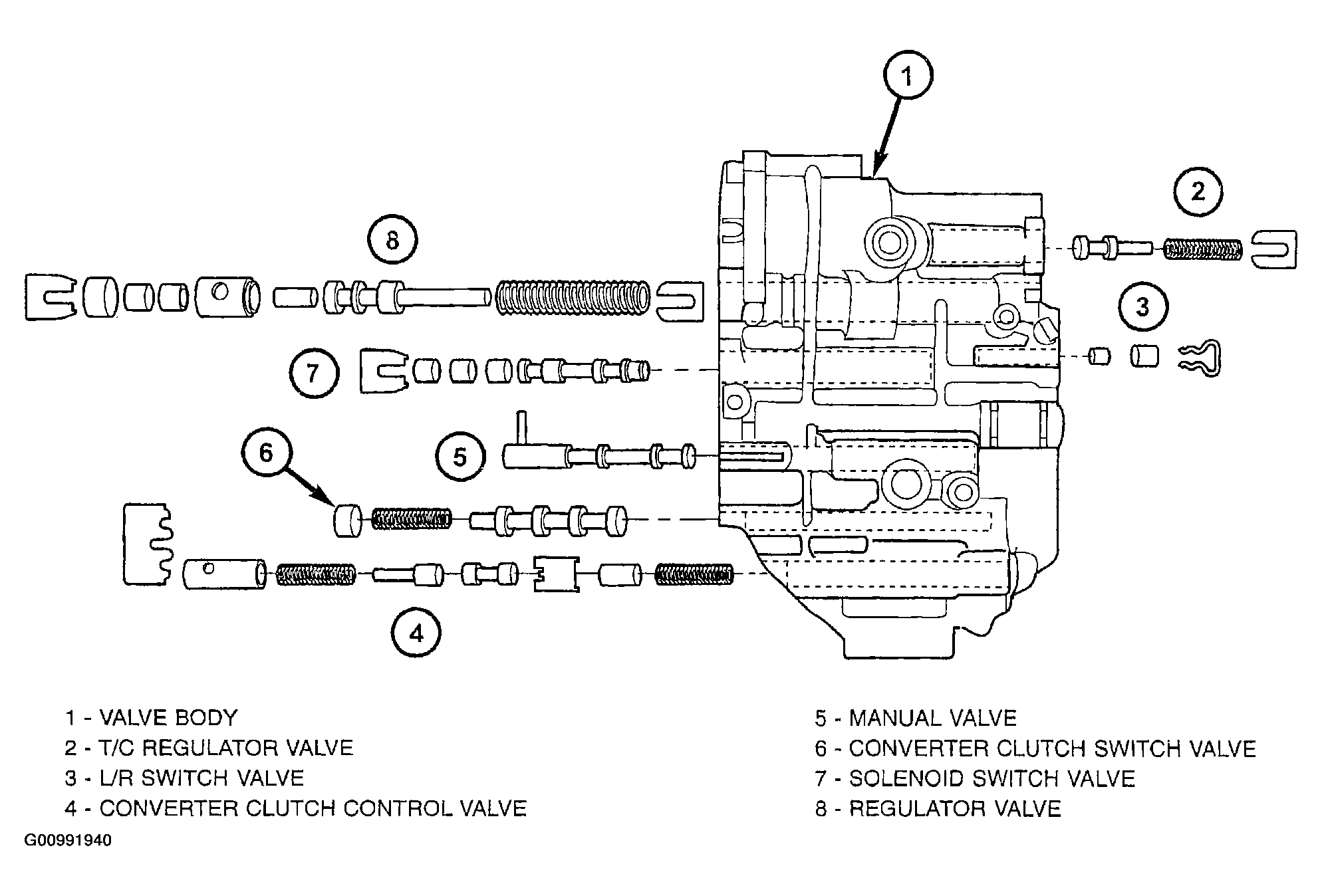

Fig 16: Exploded View Of Valve Body Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Cleanliness through entire disassembly and assembly of the valve body cannot be overemphasized. When disassembling, each part should be washed in a suitable solvent, then dried by compressed air. Do not wipe parts with shop towels. All mating surfaces in the valve body are accurately machined; therefore, careful handling of all parts must be exercised to avoid nicks or burrs.
