Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Body Control Module (BCM) | Behind right side of dash. See Figure. |
| Distance Sensing Cruise Control Module | Forward of radiator. See Figure. |

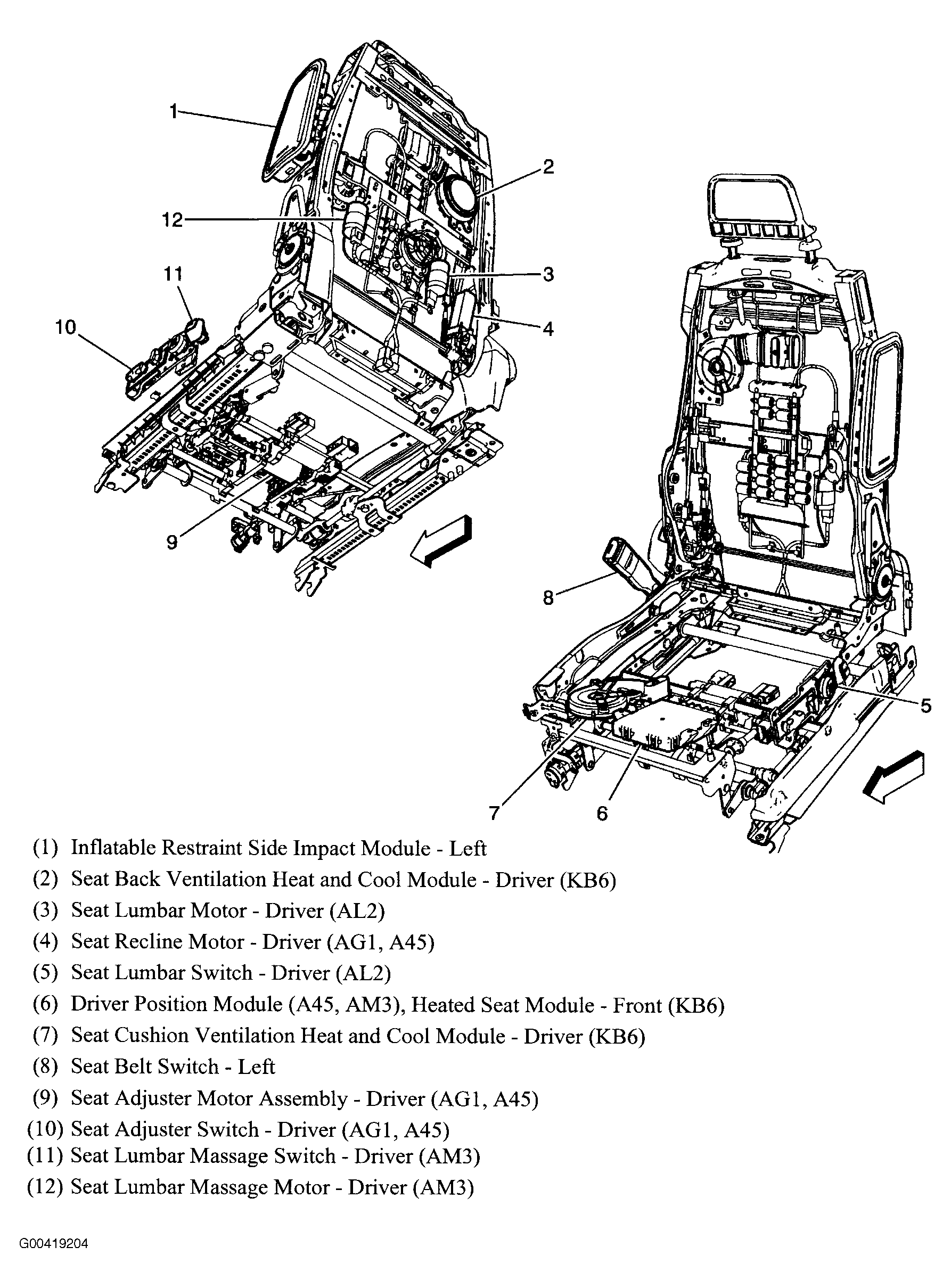

| Driver Position Module | Under front of driver's seat cushion. See Figure. |
| Electronic Brake Control Module (EBCM) | Under air cleaner housing. See Figure. |

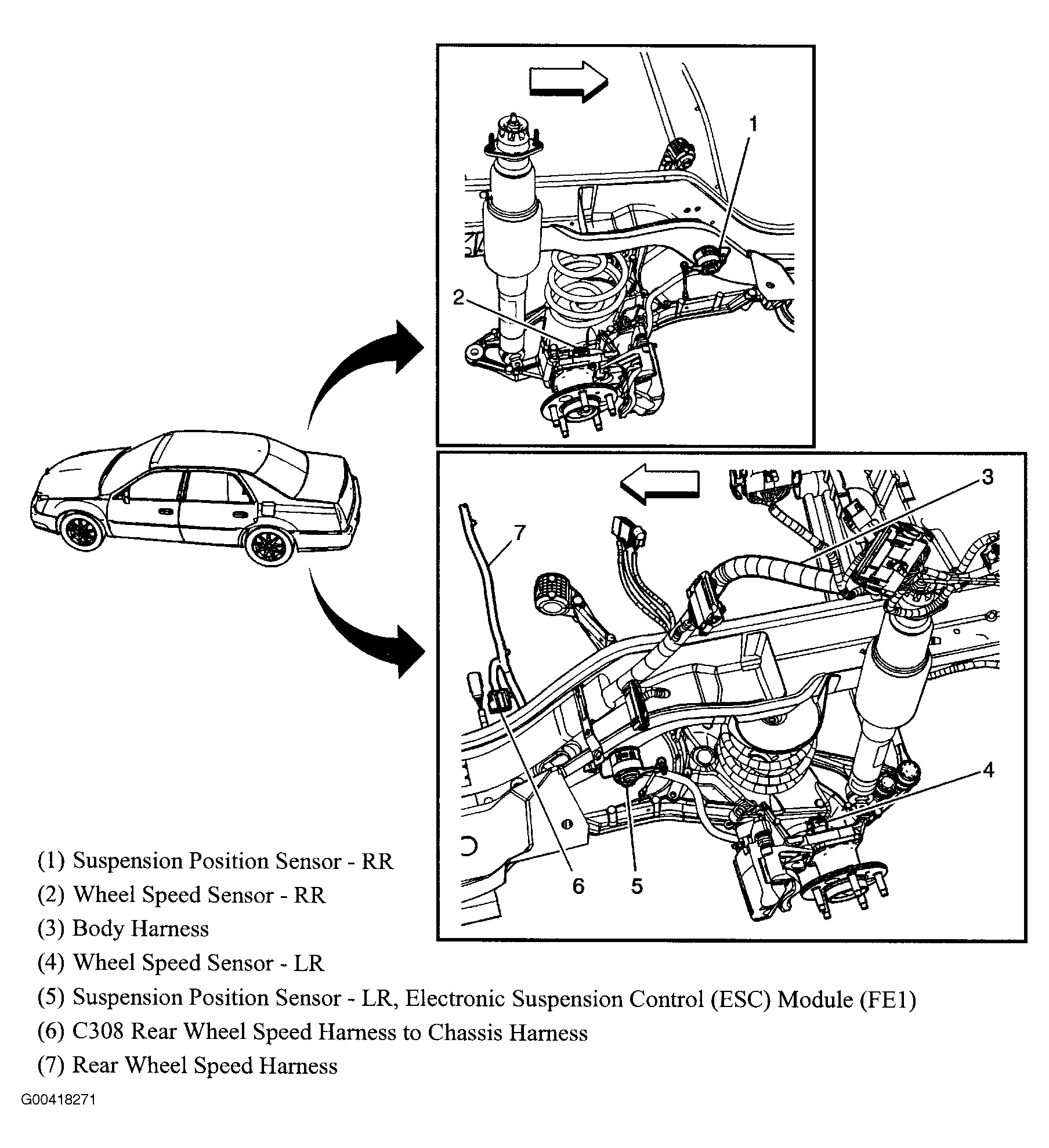

| Electronic Suspension Control (ESC) Module | Forward of rear axle, on left rear frame rail. See Figure. |
| Engine Control Module (ECM) | Left side of engine compartment. See Figure. |
| Front & Rear Object Alarm Module | Right front of trunk. See Figure. |
| Heated Seat Module (Front) | Below left front seat. See Figure. |

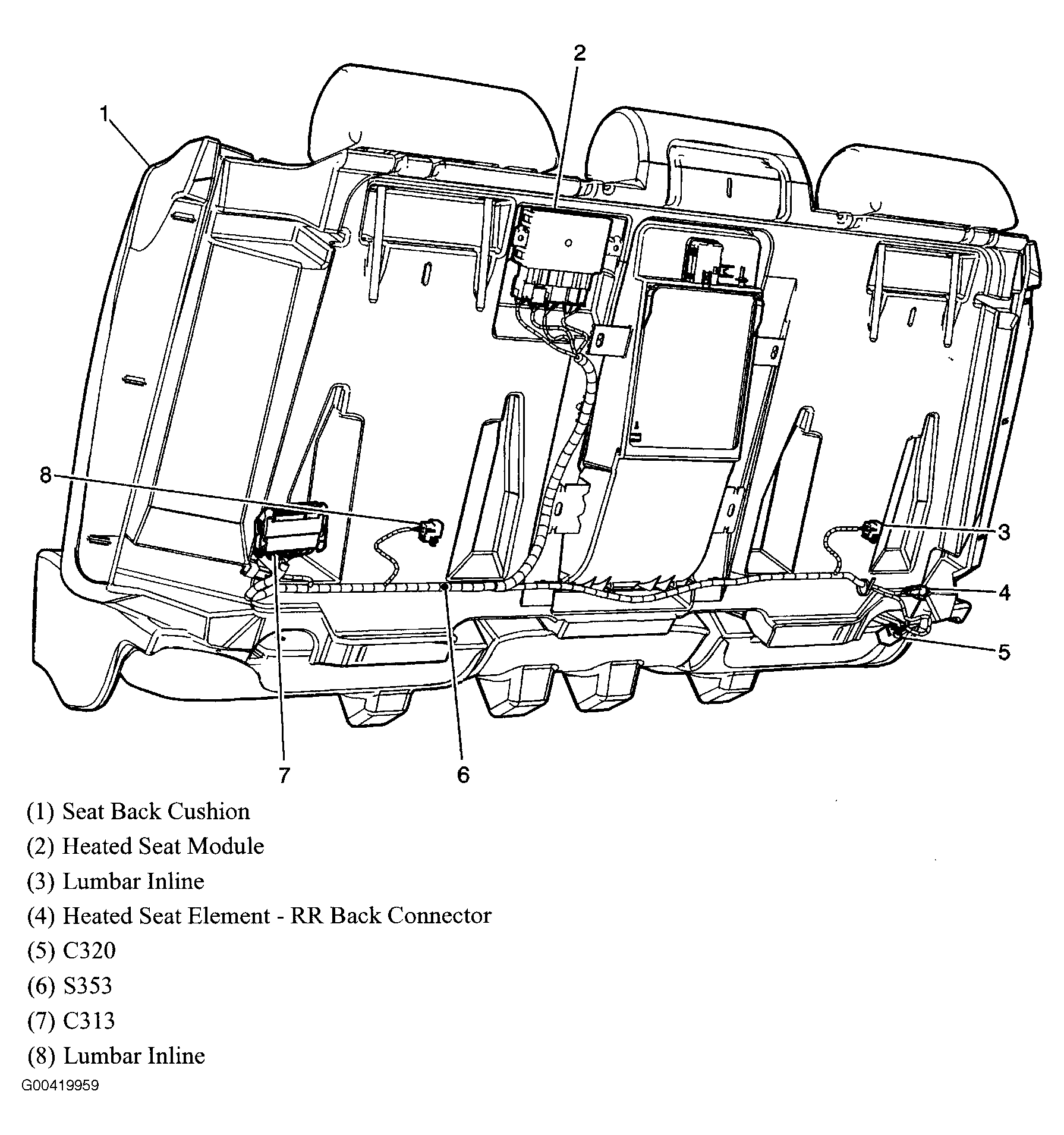

| Heated Seats Module (Rear Seats) | Behind left rear seat back. See Figure. |
| Ignition Coil/Module 1, 3, 5 & 7 | Top right side of engine. See Figure & Figure . |
| Ignition Coil/Module 2 | Top left side of engine. See Figure & Figure . |
| Ignition Coil/Module 4, 6 & 8 | Top left side of engine. See Figure & Figure . |
| Inflatable Restraint I/P Module | Behind right side of dash. See Figure. |

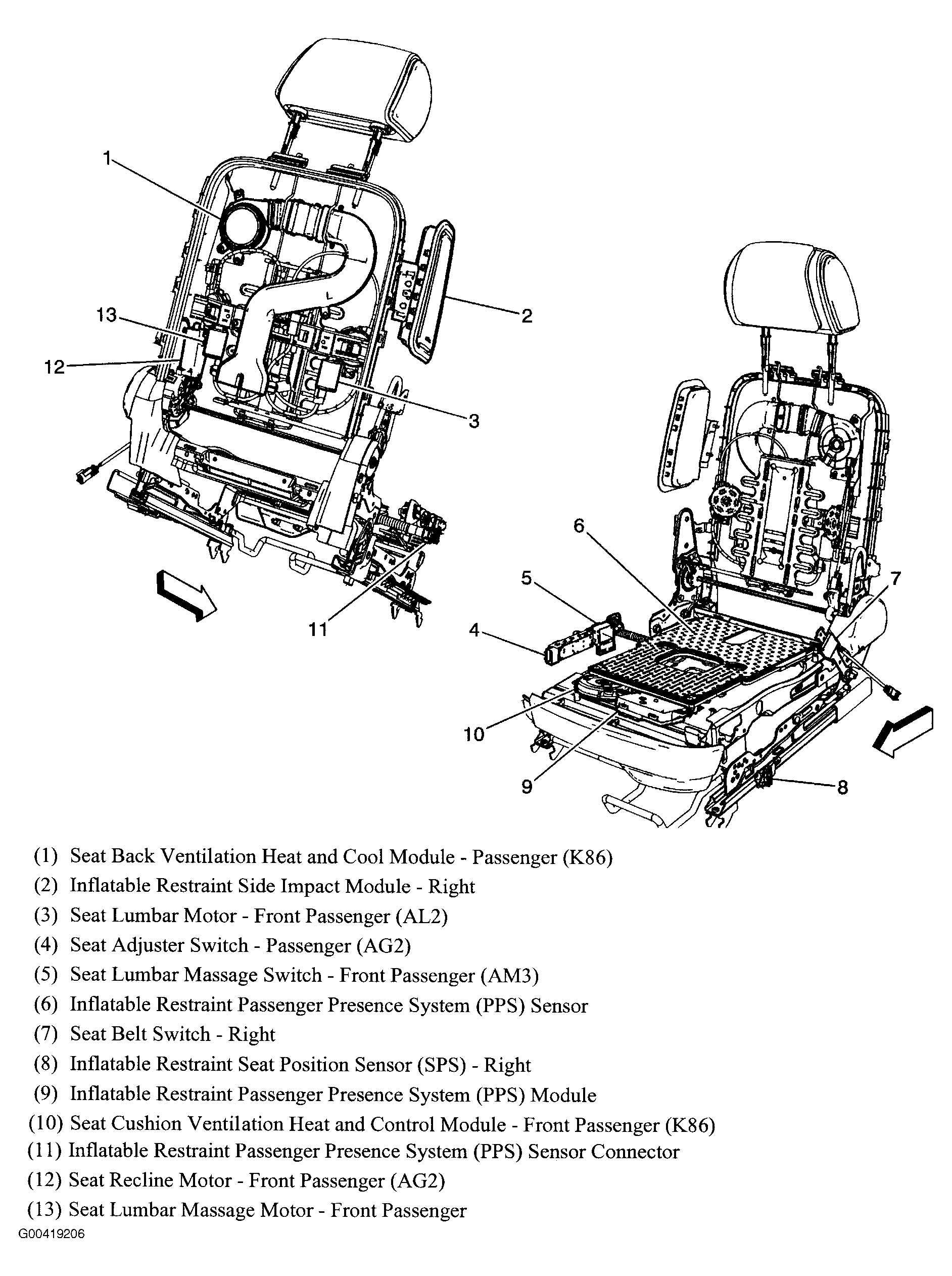

| Inflatable Restraint Passenger Presence System (PPS) Module | Under front of front passenger's seat cushion. See Figure. |

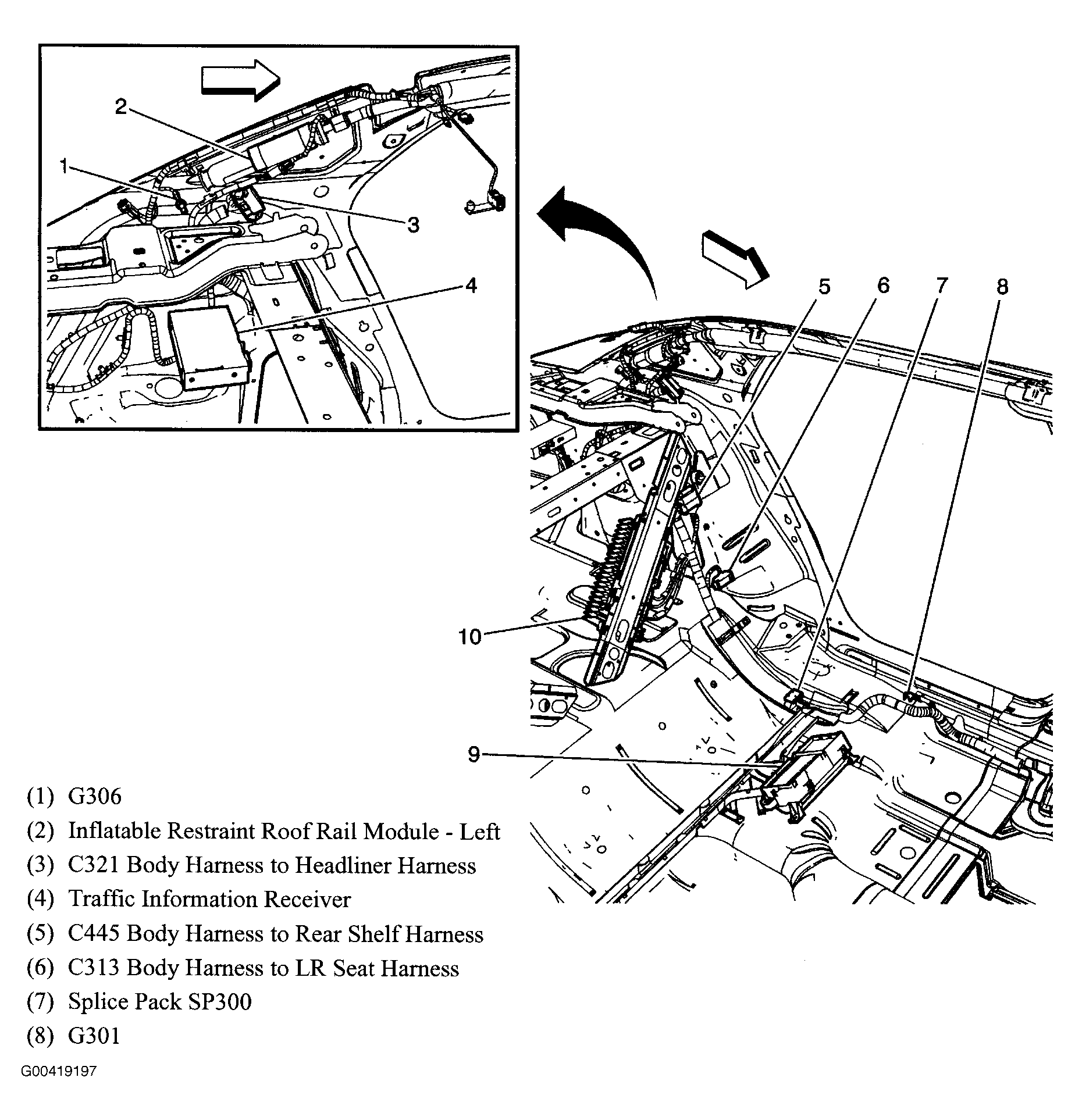

| Inflatable Restraint Roof Rail Module (Left) | At left "C" pillar. See Figure. |
| Inflatable Restraint Roof Rail Module (Right) | At right "C" pillar. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under rear of front floor console. See Figure. |
| Inflatable Restraint Side Impact Module (Left) | Left side of driver's seat back. See Figure. |
| Inflatable Restraint Side Impact Module (Right) | Right side of front passenger's seat back. See Figure. |
| Inflatable Restraint Steering Wheel Module | Top of steering column. See Figure. |

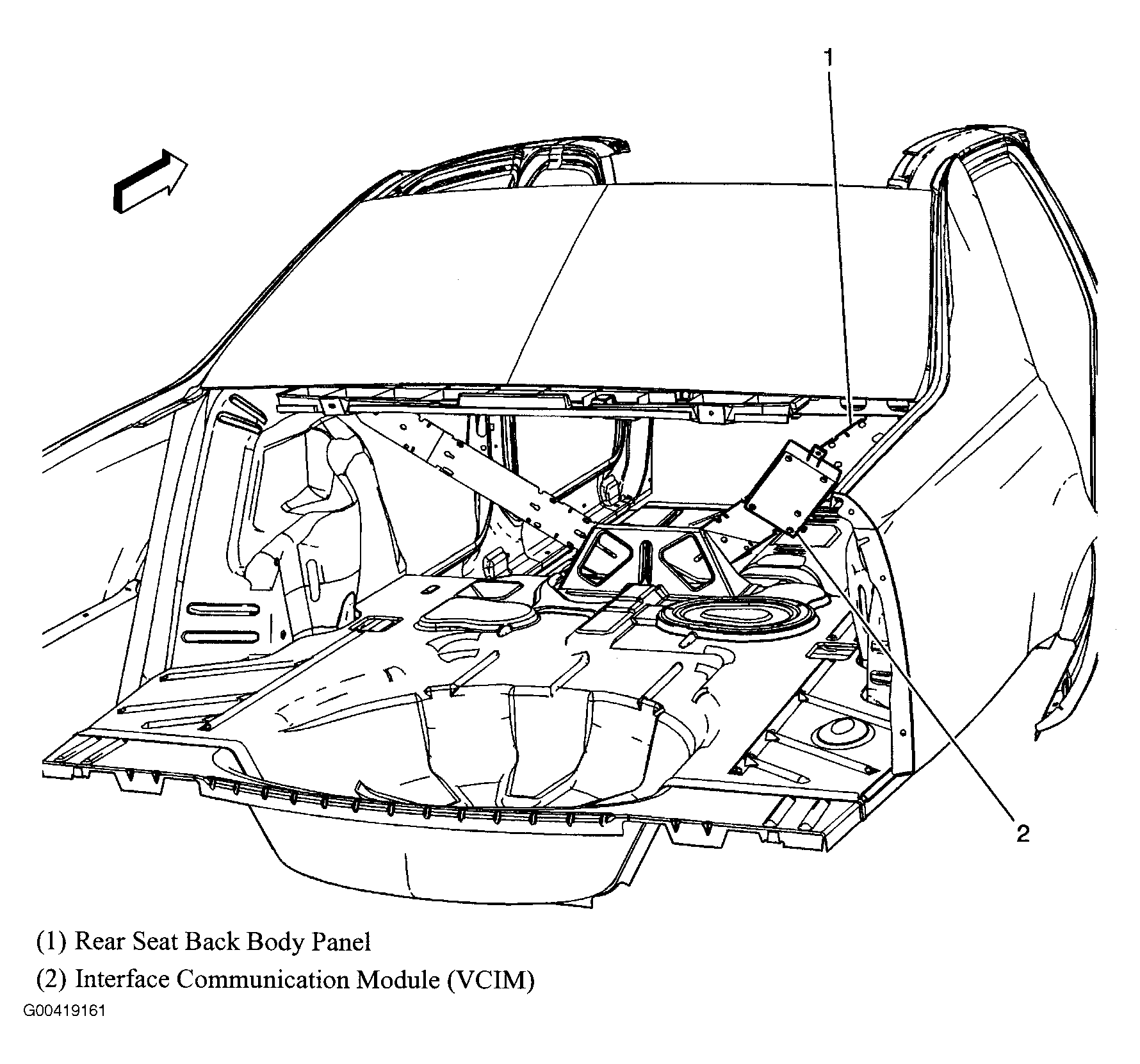

| Interface Communication Module (VCIM) | Behind right side of rear seat. See Figure. |

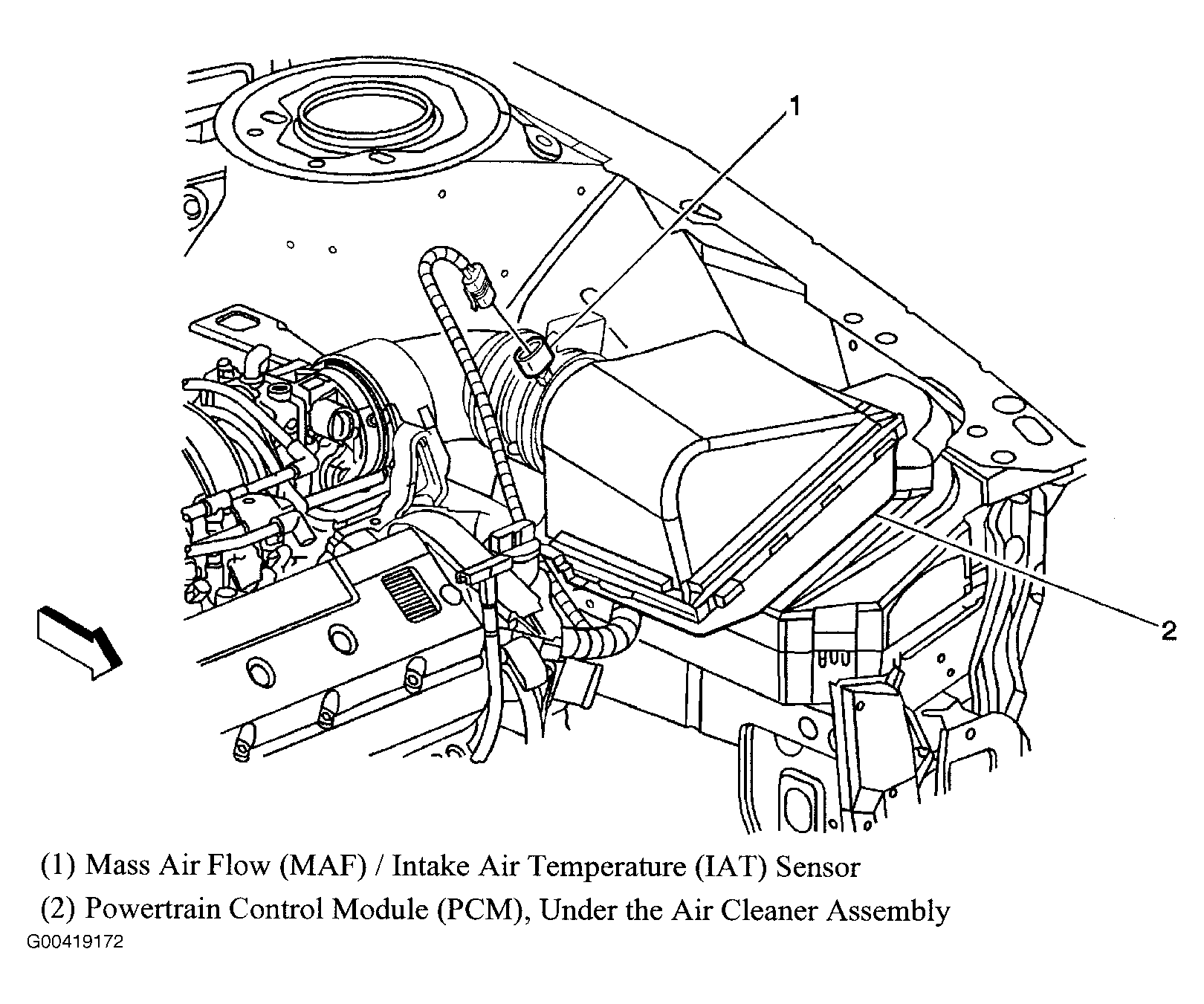

| Powertrain Control Module (PCM) | At left side of engine compartment, under air cleaner. See Figure. |
| Radio Antenna Module | Behind rear center of headliner. See Figure. |

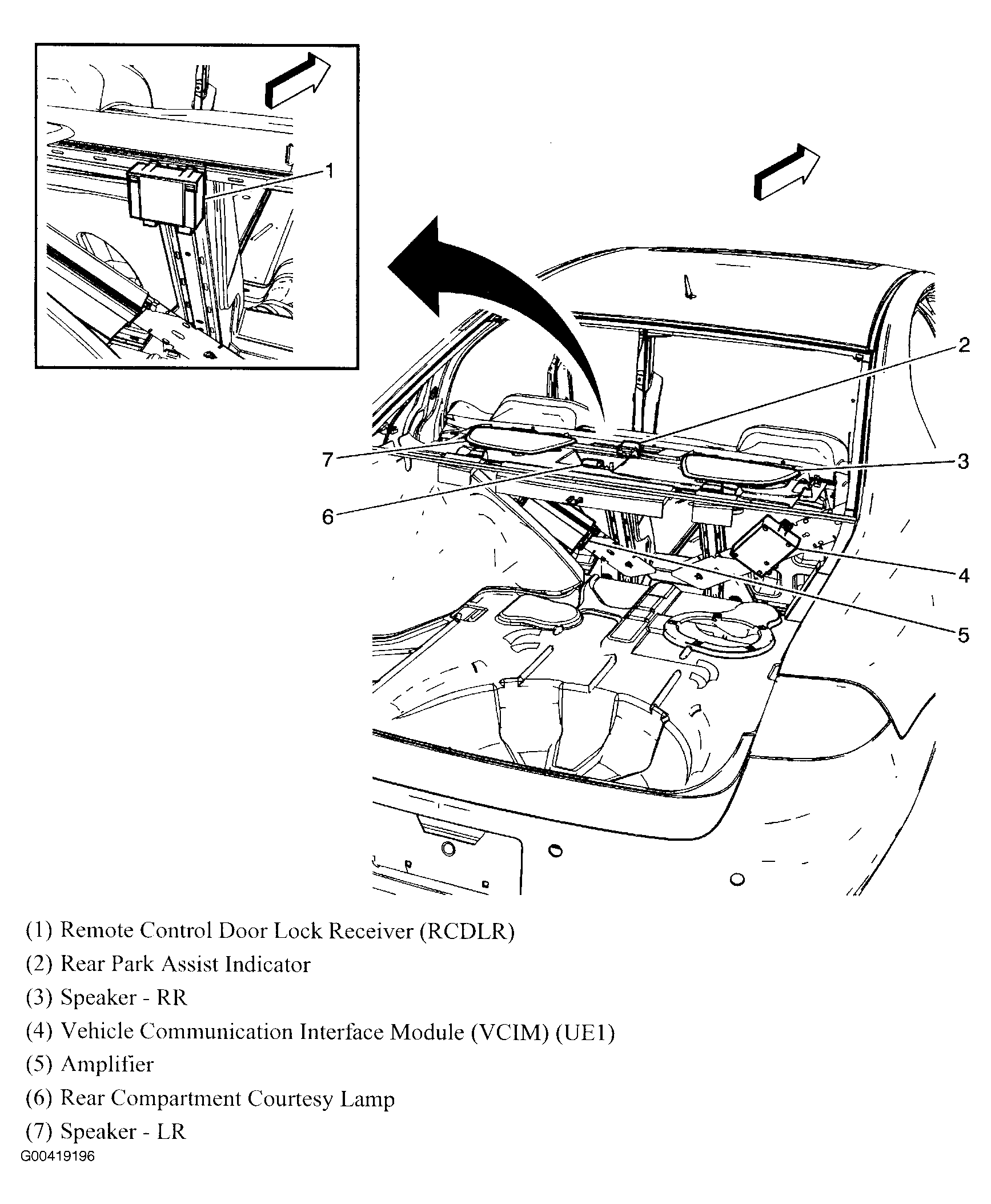

| Remote Control Door Lock Receiver (RCDLR) | Under center of rear package tray. See Figure. |
| Seat Back Ventilation Heat & Cool Module (Driver) | Right side of driver's seat back. See Figure. |
| Seat Back Ventilation Heat & Cool Module (Passenger) | Left side of front passenger's seat back. See Figure. |
| Seat Cushion Ventilation Heat & Control Module (Front Passenger) | Under right side of front passenger's seat cushion. See Figure. |
| Seat Cushion Ventilation Heat & Cool Module (Driver) | Under right side of driver's seat cushion. See Figure. |
| Sunroof Control Module | Near rear of sun roof. See Figure. |

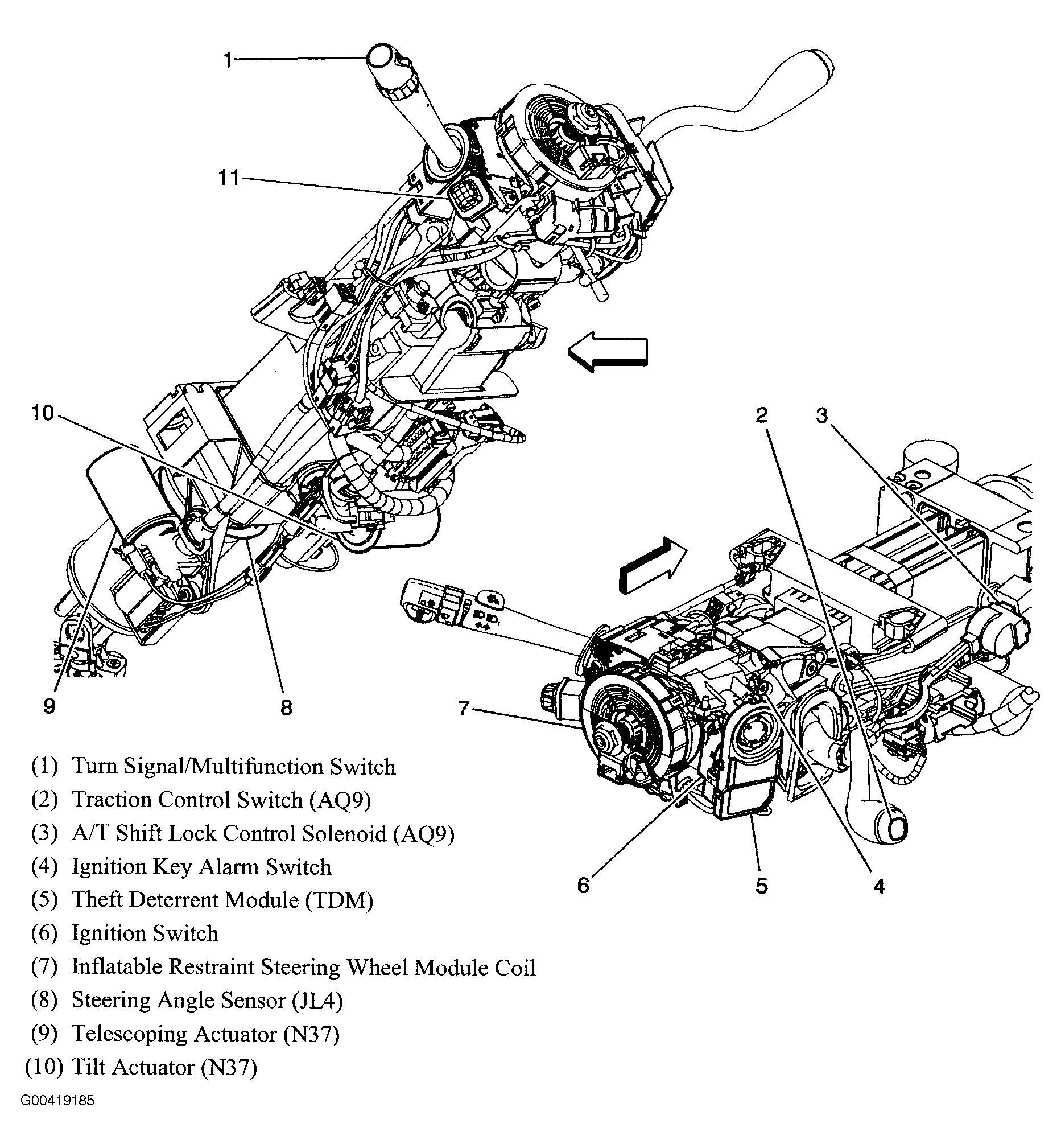

| Theft Deterrent Module (TDM) | Top right side of steering column. See Figure. |
| Vehicle Communication Interface Module (VCIM) | Behind right rear seat back. See Figure. |
| Windshield Heated Washer Fluid Module | Left rear corner of engine compartment. See Figure. |
