Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

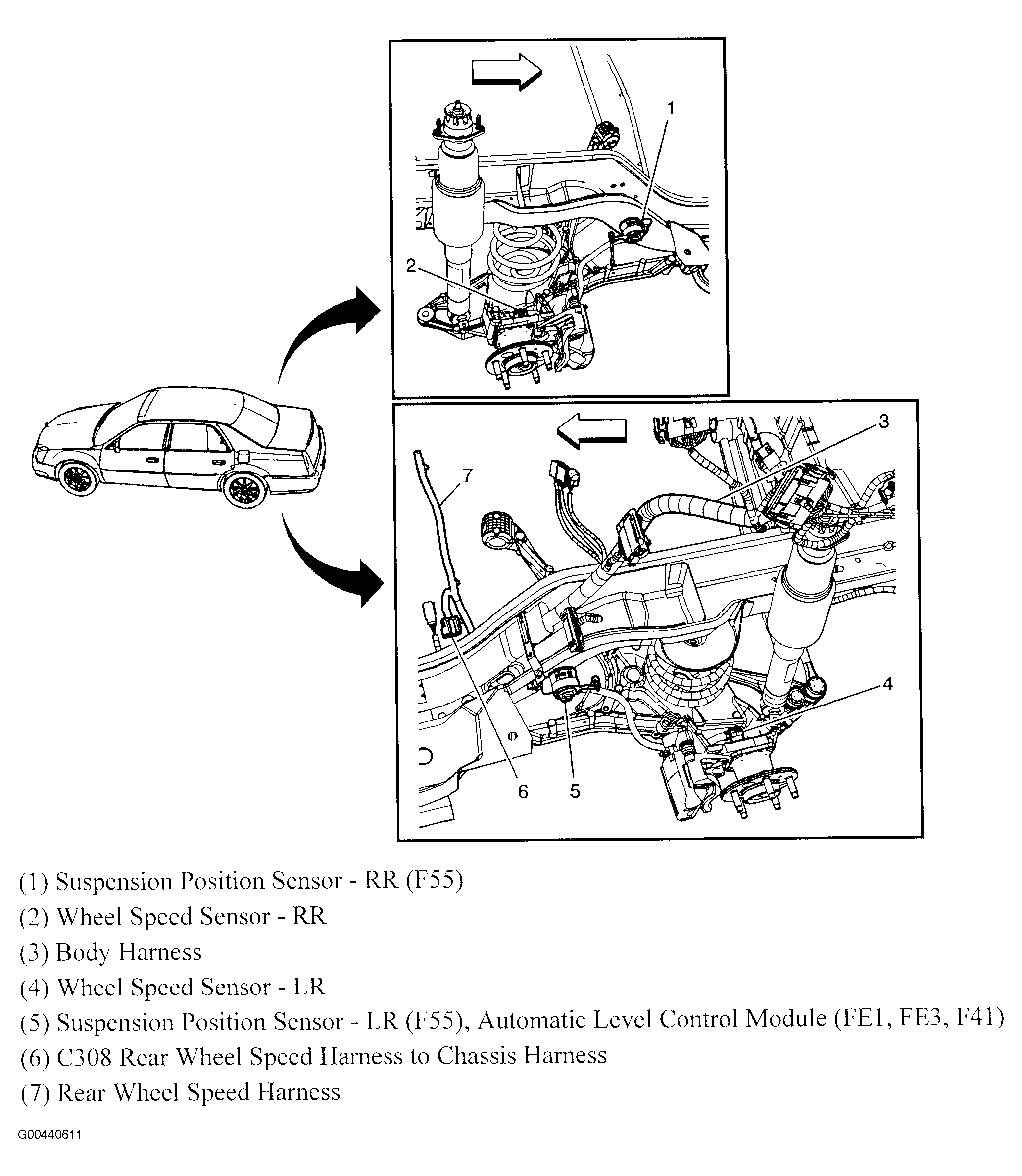

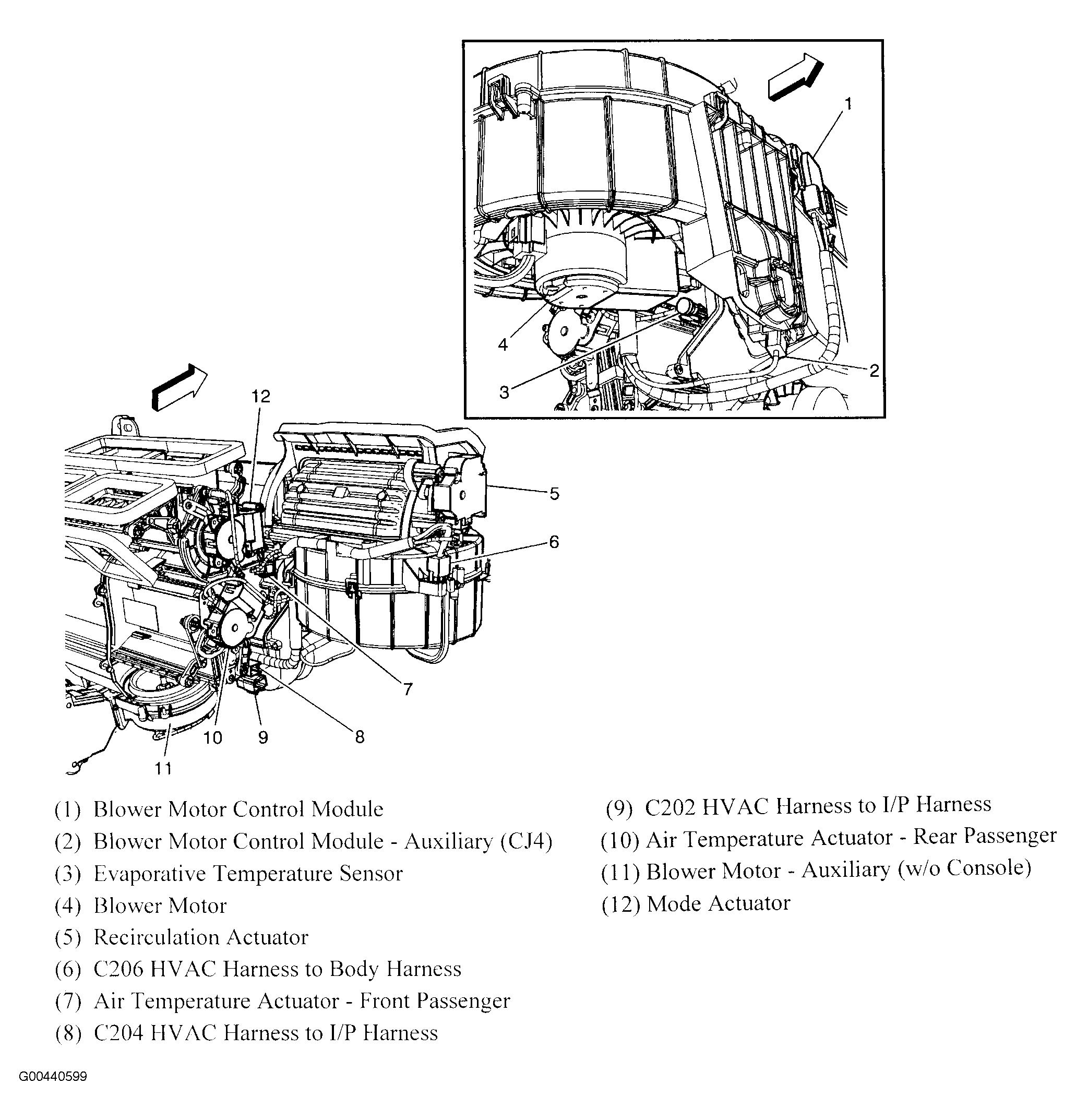

| Automatic Level Control Module | In left rear wheelwell, near suspension position sensor. See Figure. |
| Blower Motor Control Module | Behind HVAC case above main blower motor. See Figure. |
| Blower Motor Control Module (Auxiliary) | Under right of dash, behind main blower motor. See Figure. |

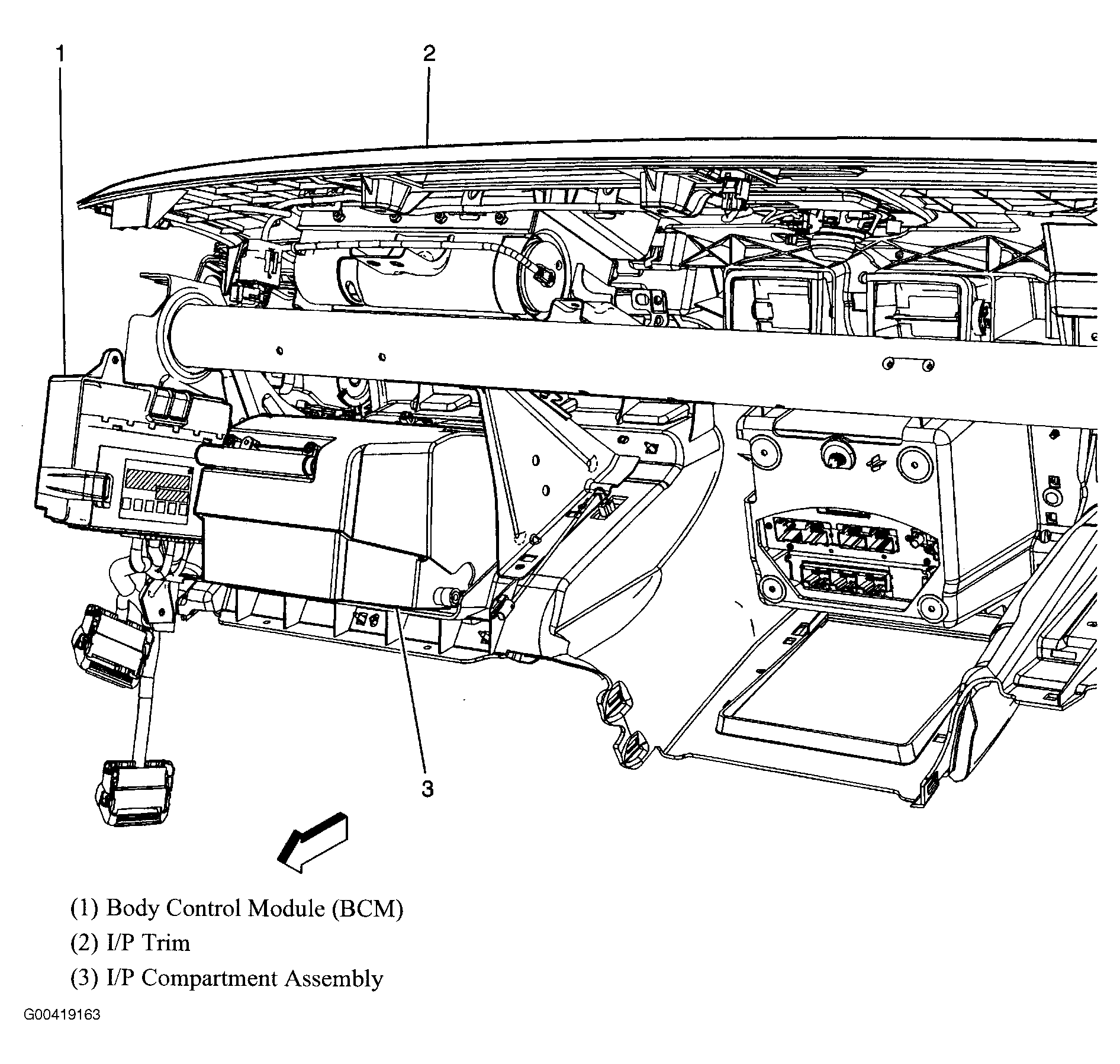

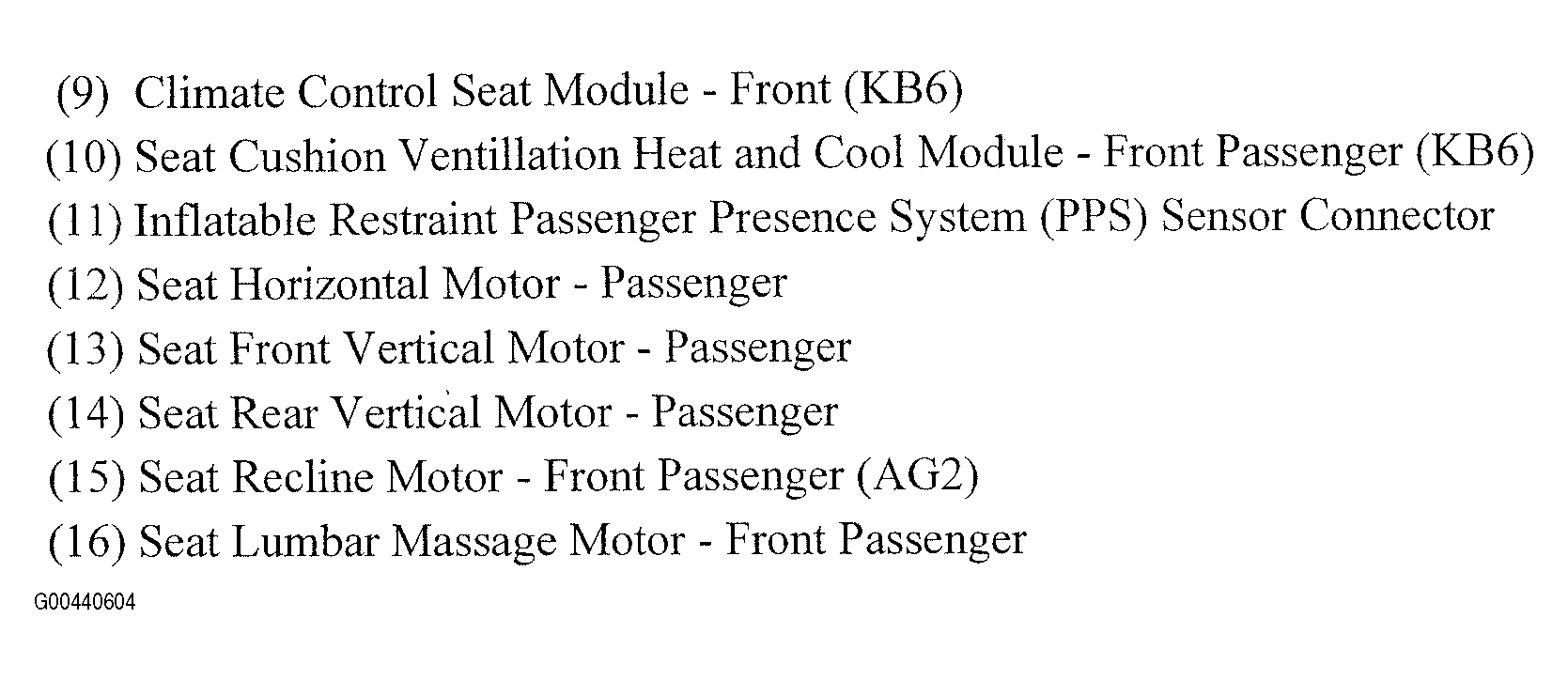

| Body Control Module (BCM) | Behind right side of dash. See Figure. |
| Climate Control Seat Module (Front) | Under right front seat. See Figure. |

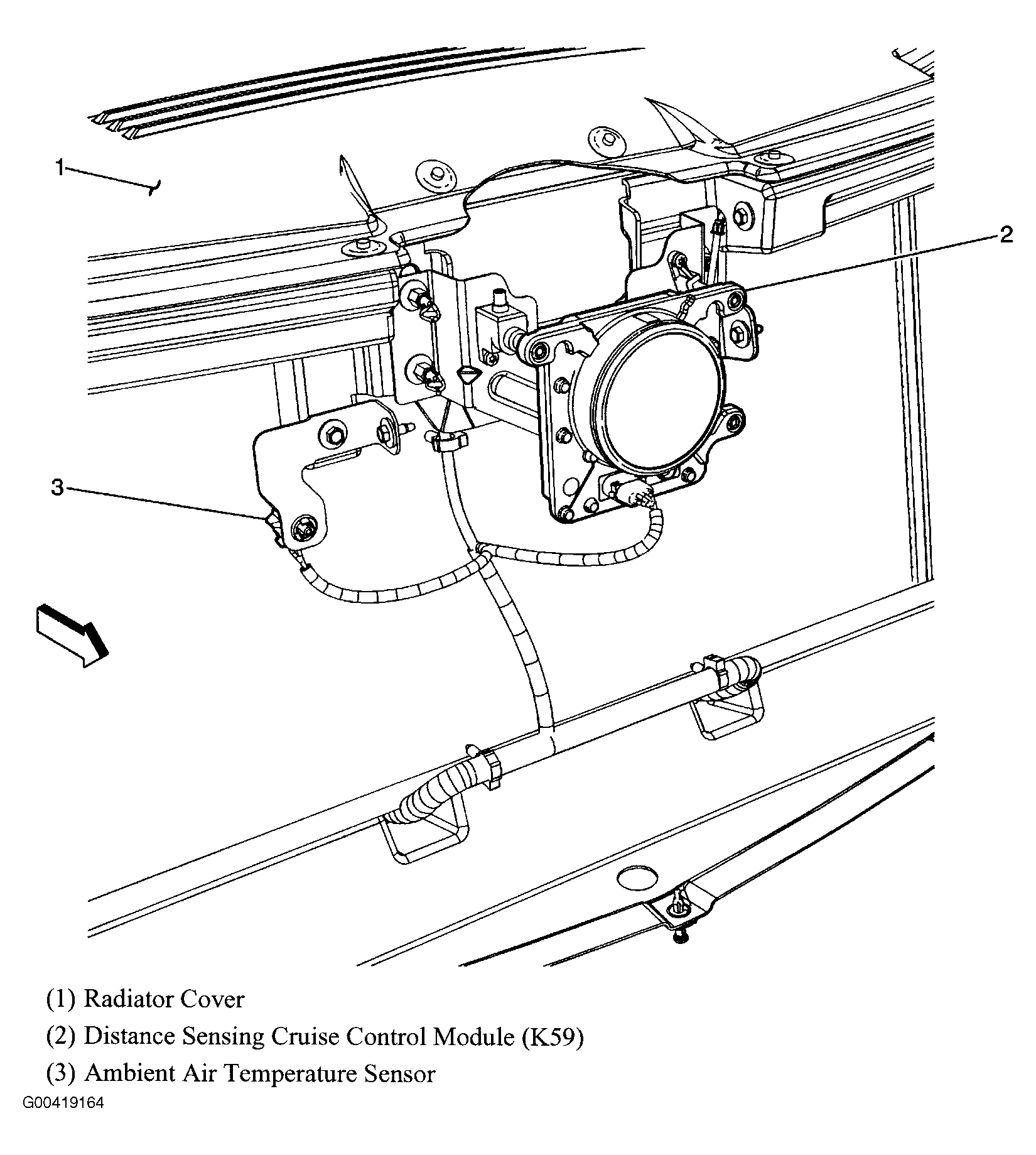

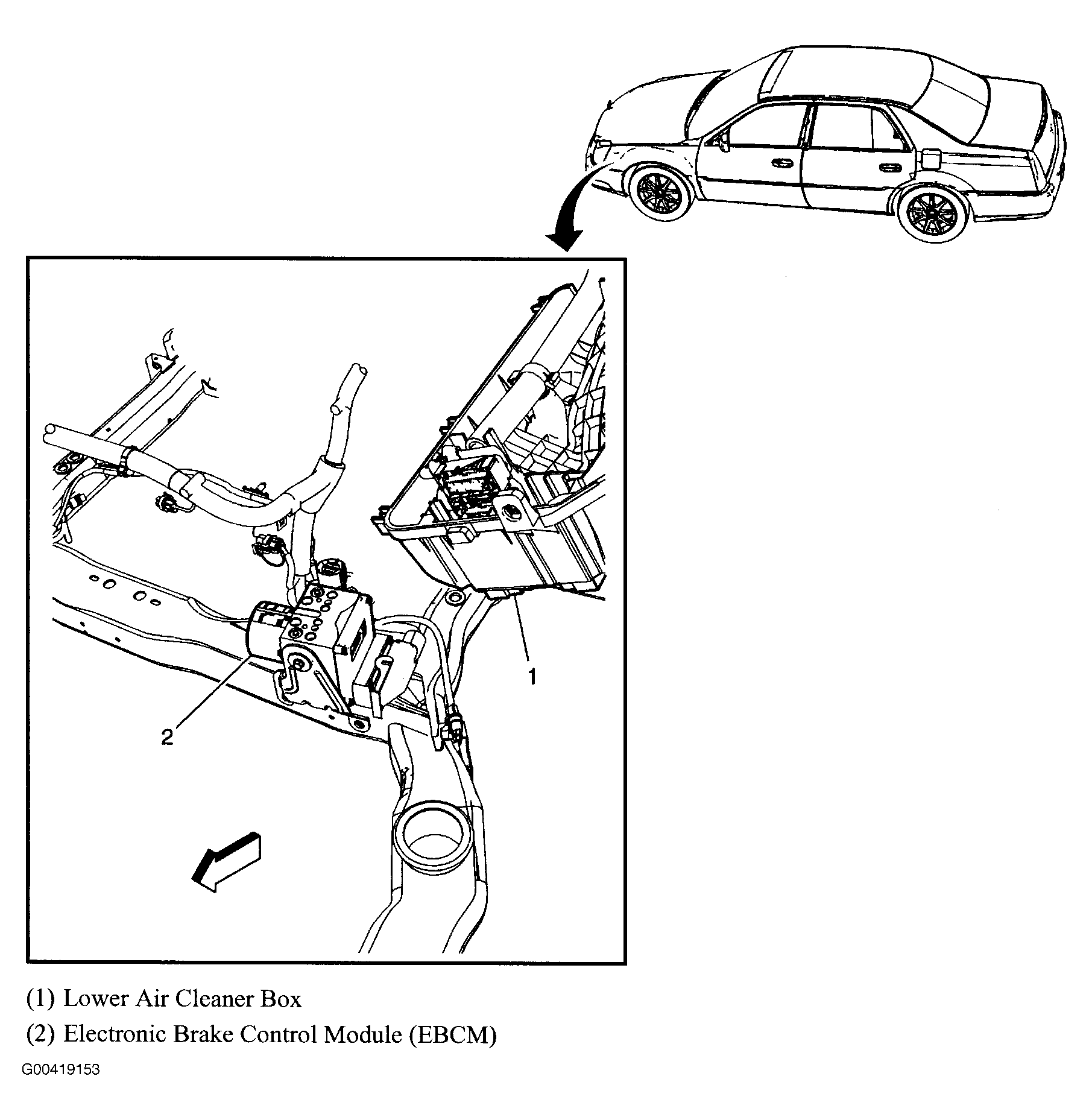

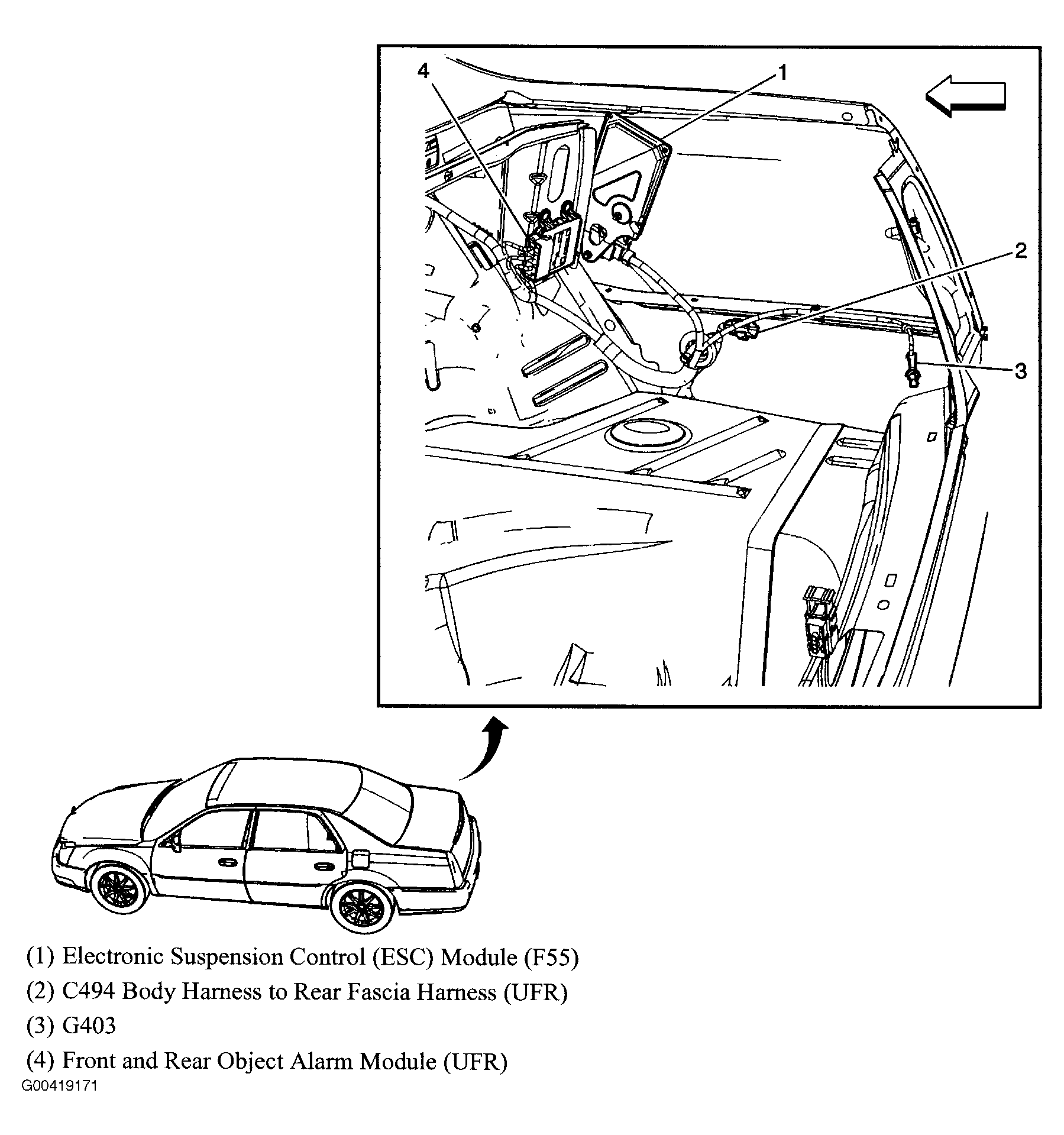

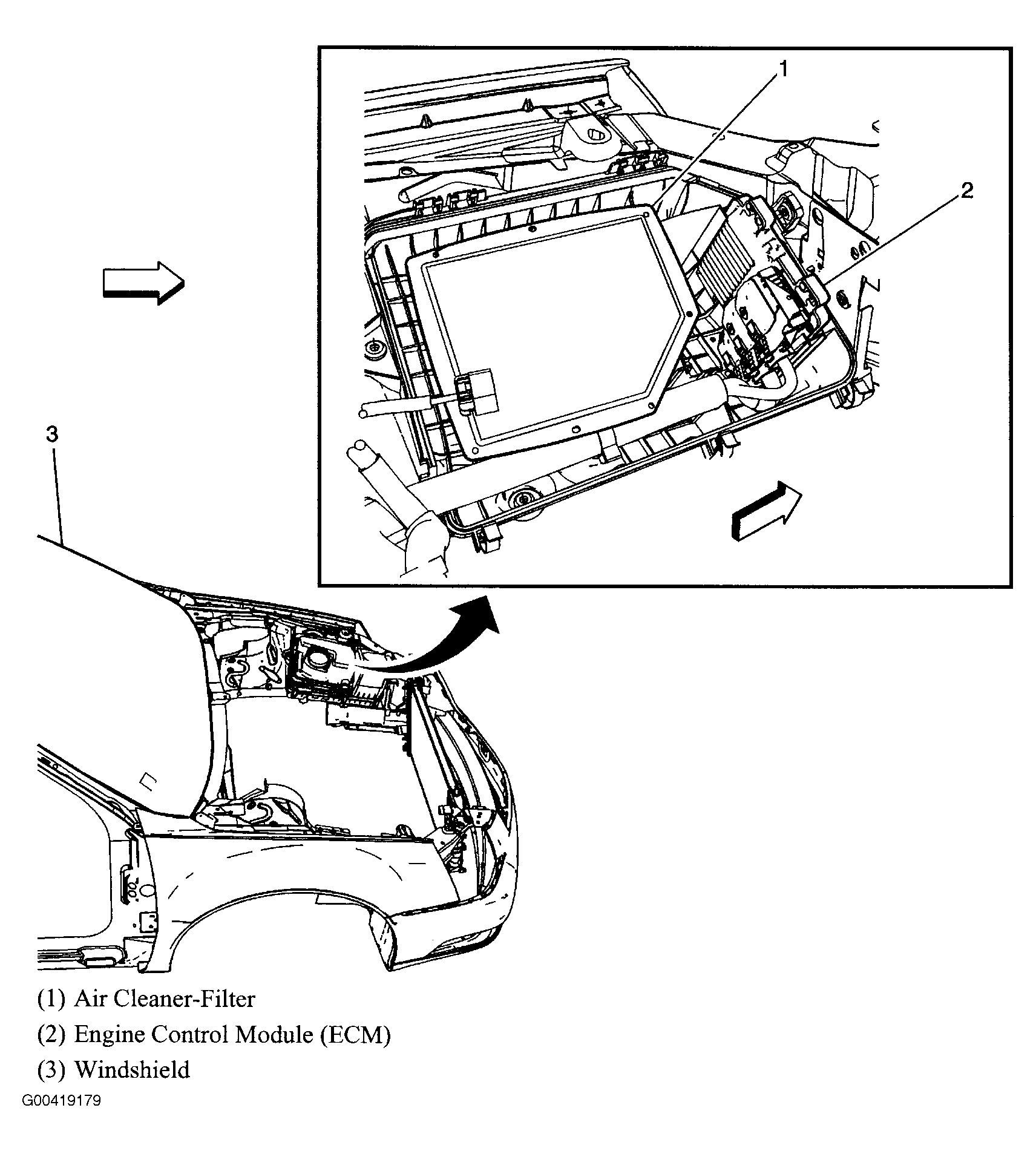

| Distance Sensing Cruise Control Module | Forward of radiator. See Figure. |
| Electronic Brake Control Module (EBCM) | Under air cleaner housing. See Figure. |
| Electronic Suspension Control (ESC) Module | Behind rear seat back. See Figure. |
| Engine Control Module (ECM) | Left side of engine compartment. See Figure. |

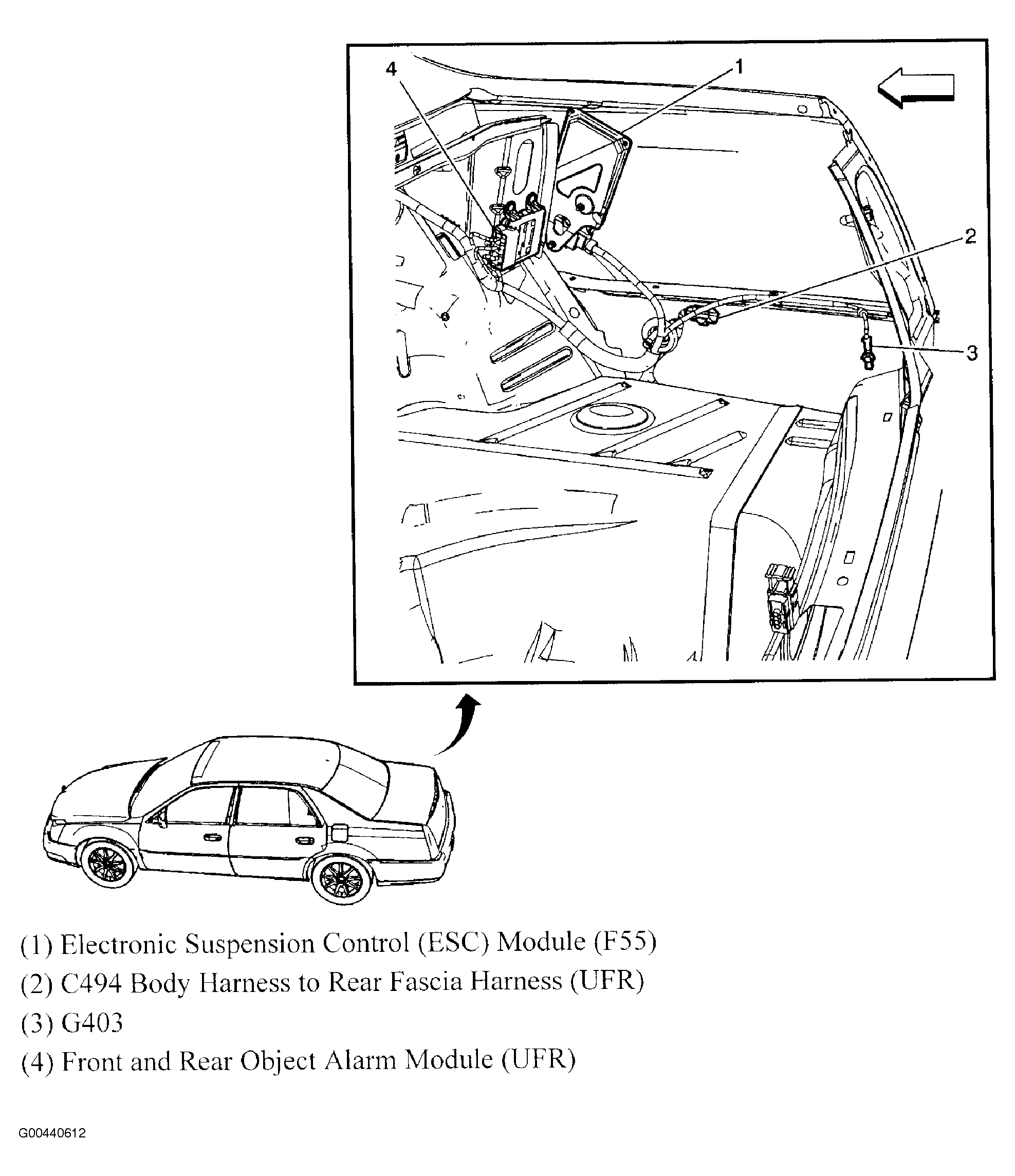

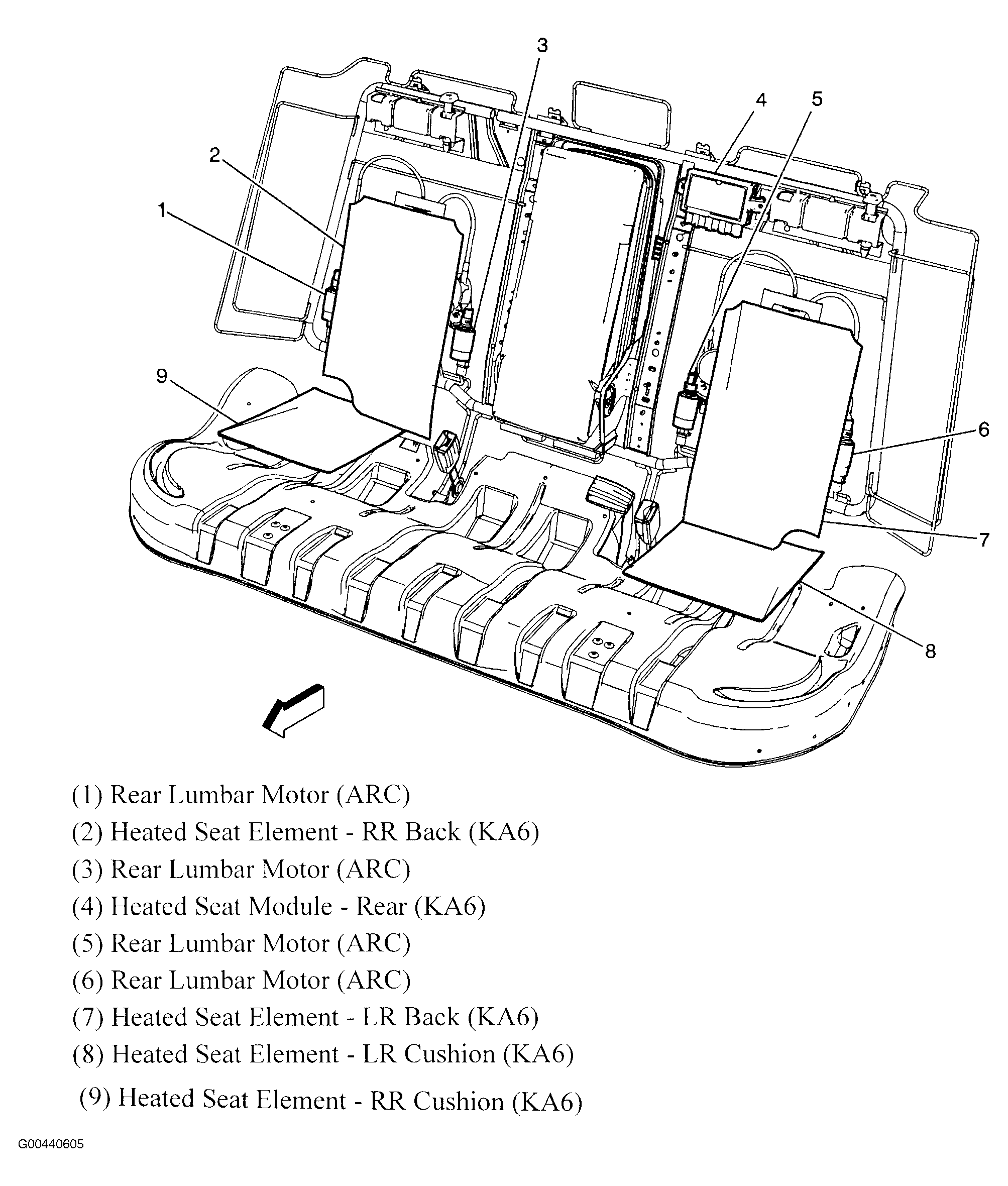

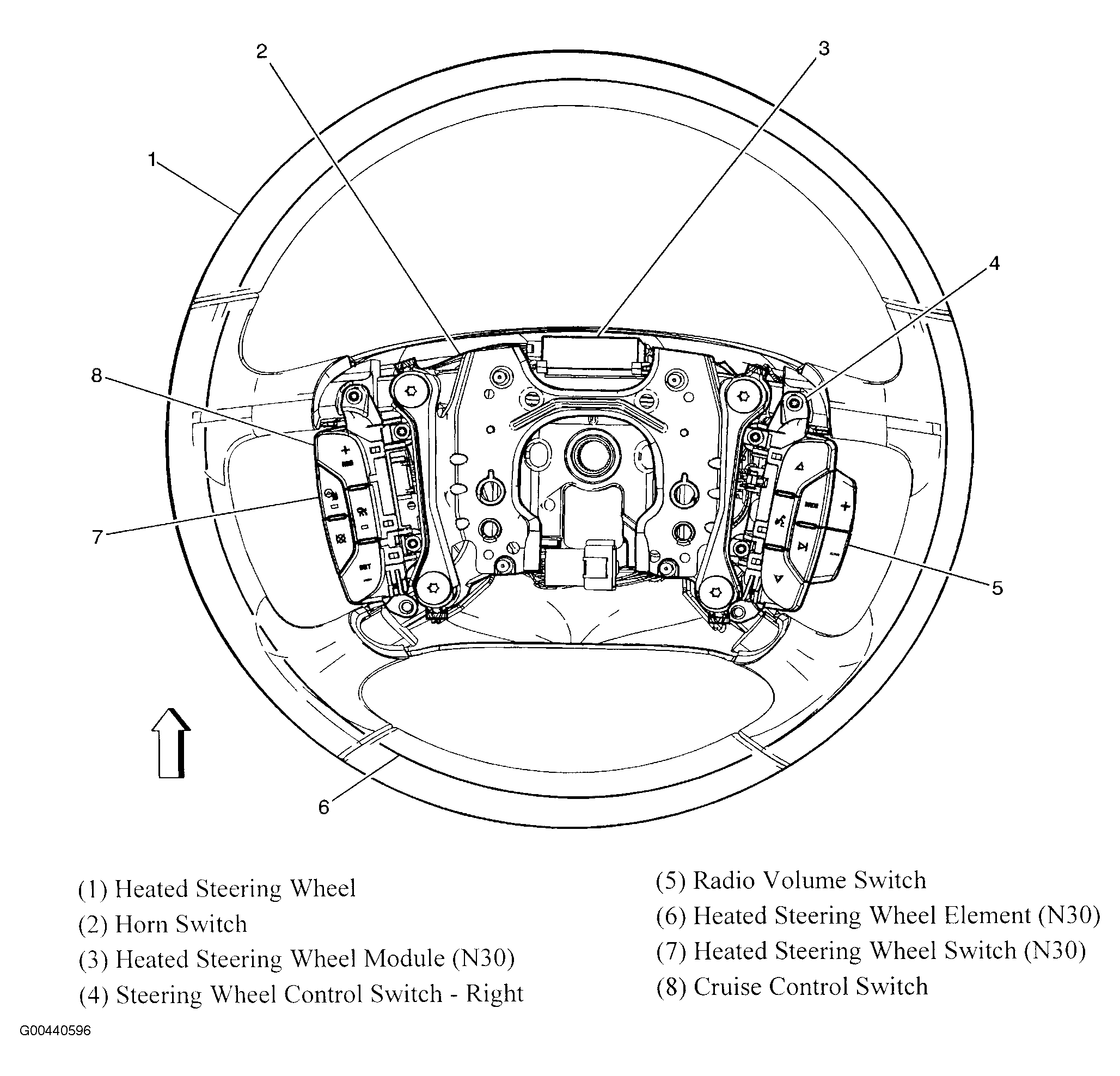

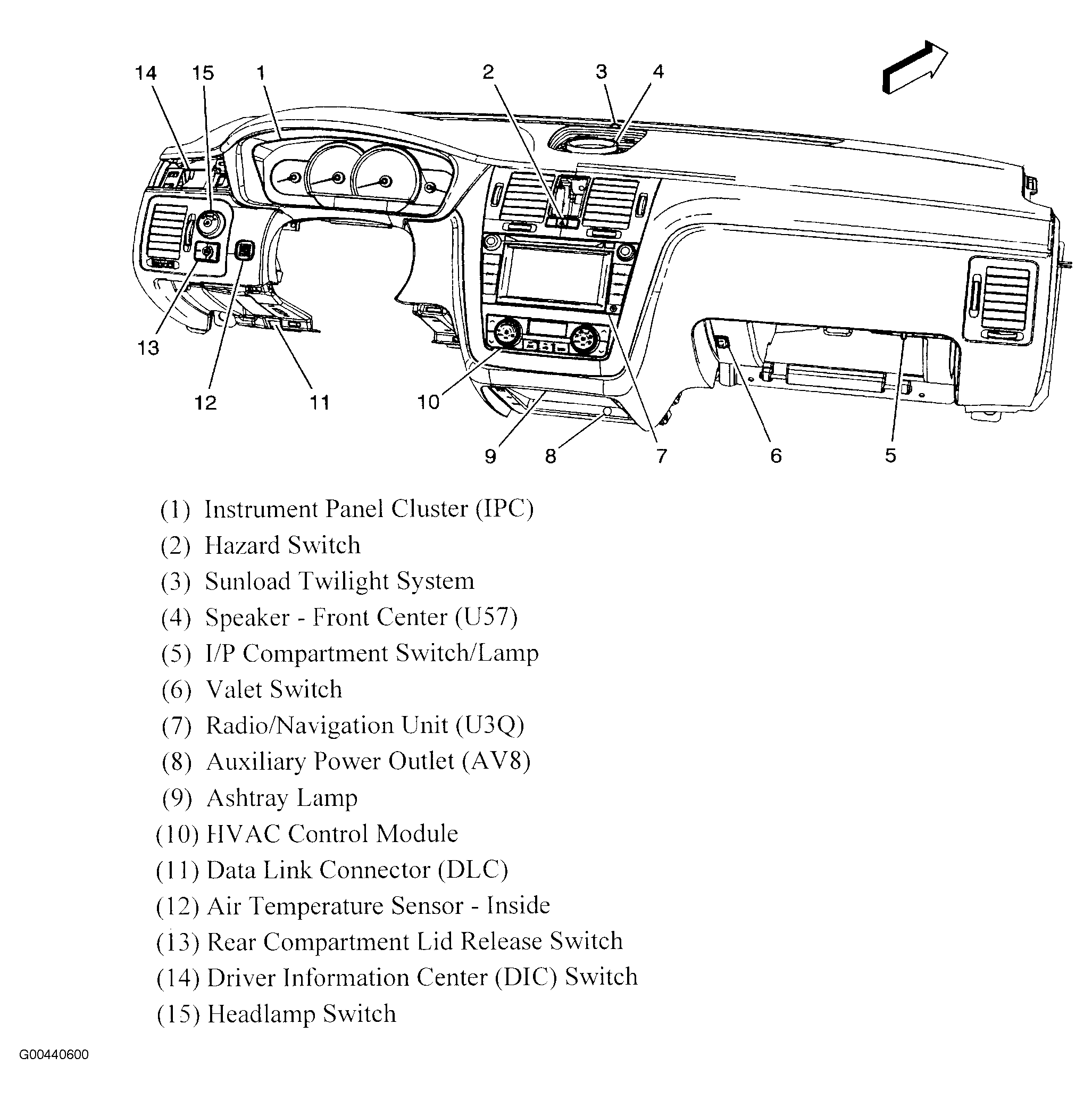

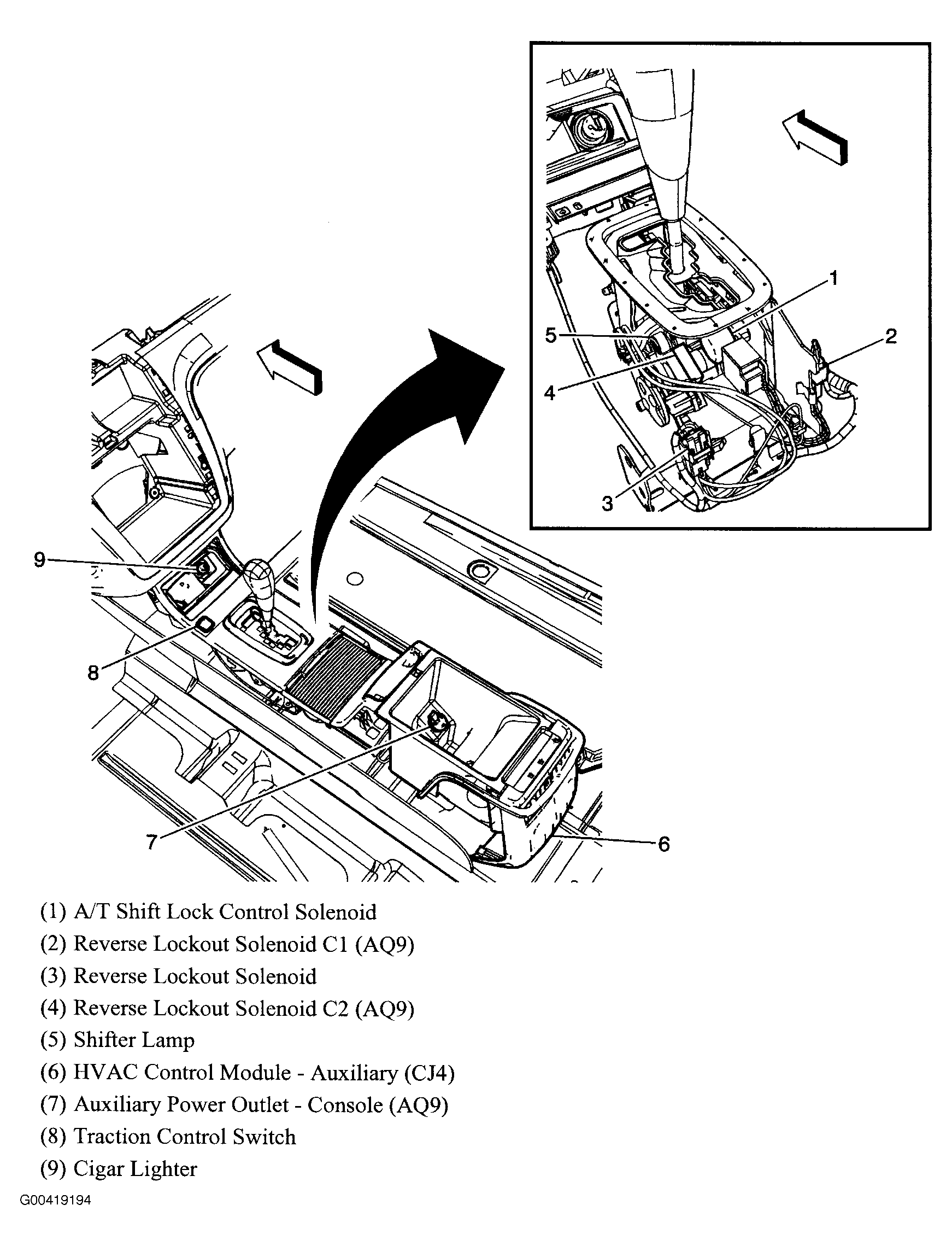

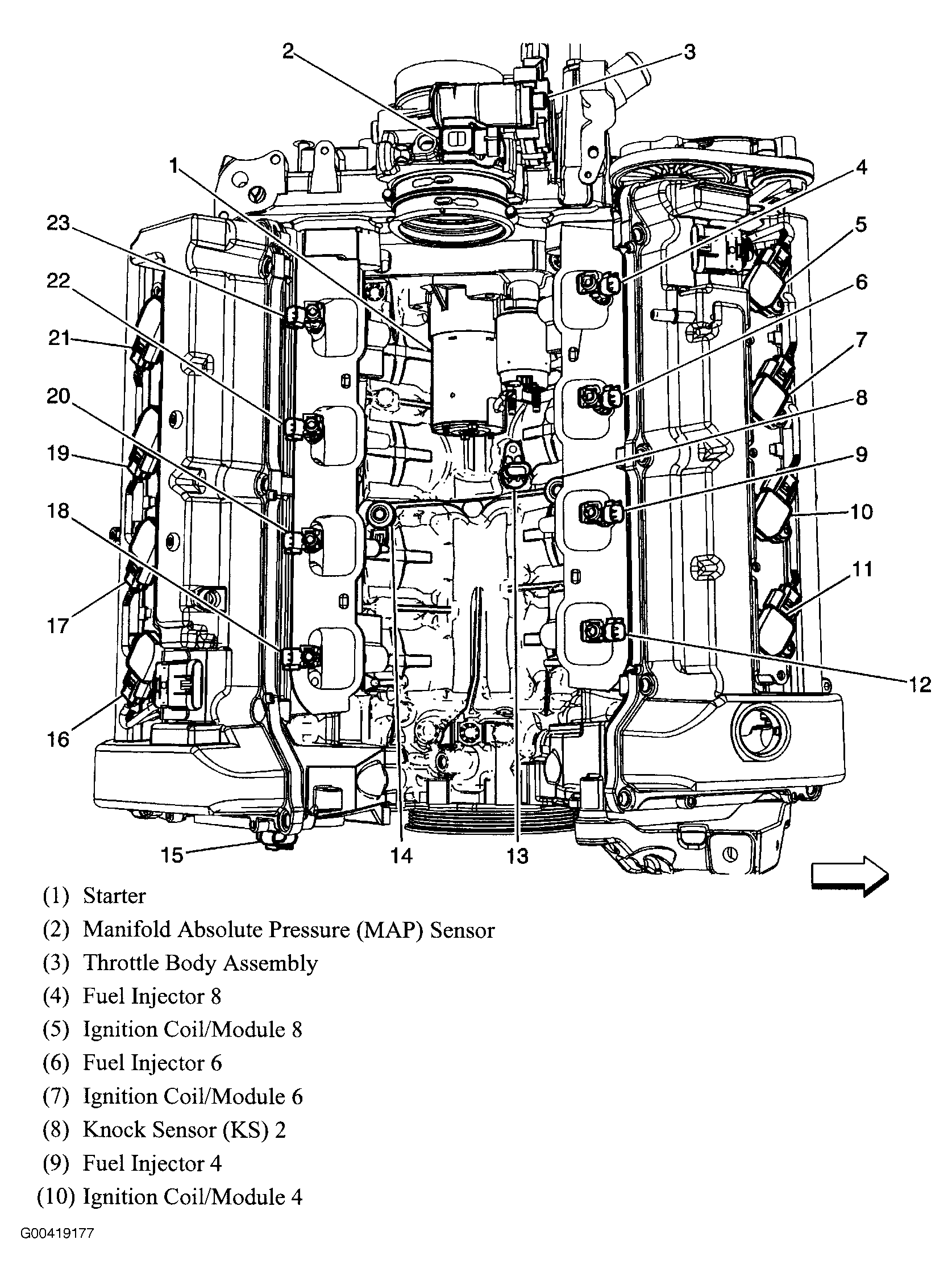

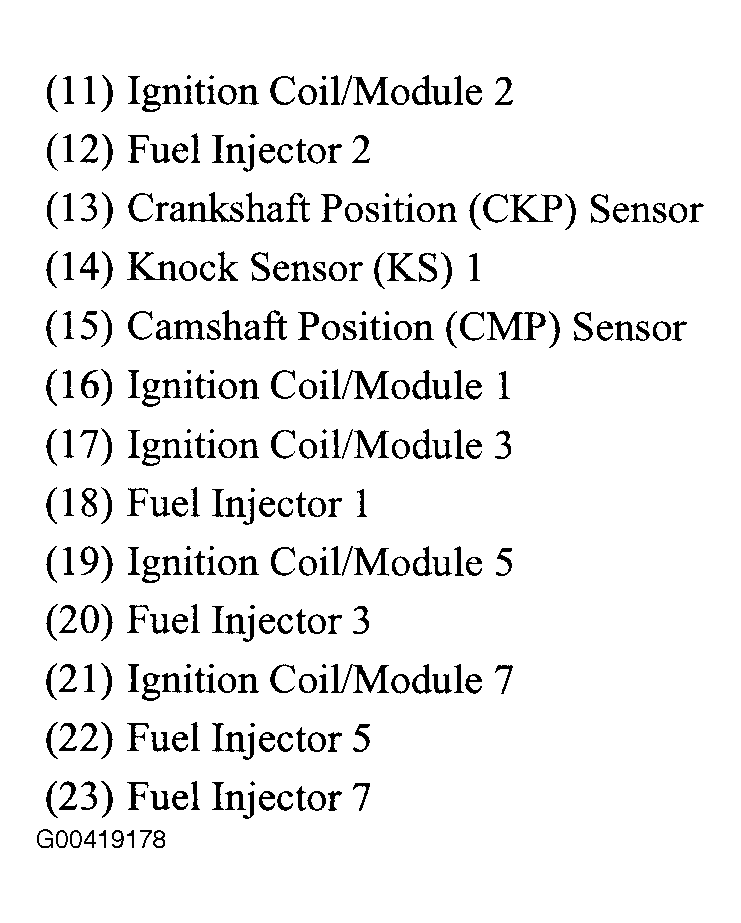

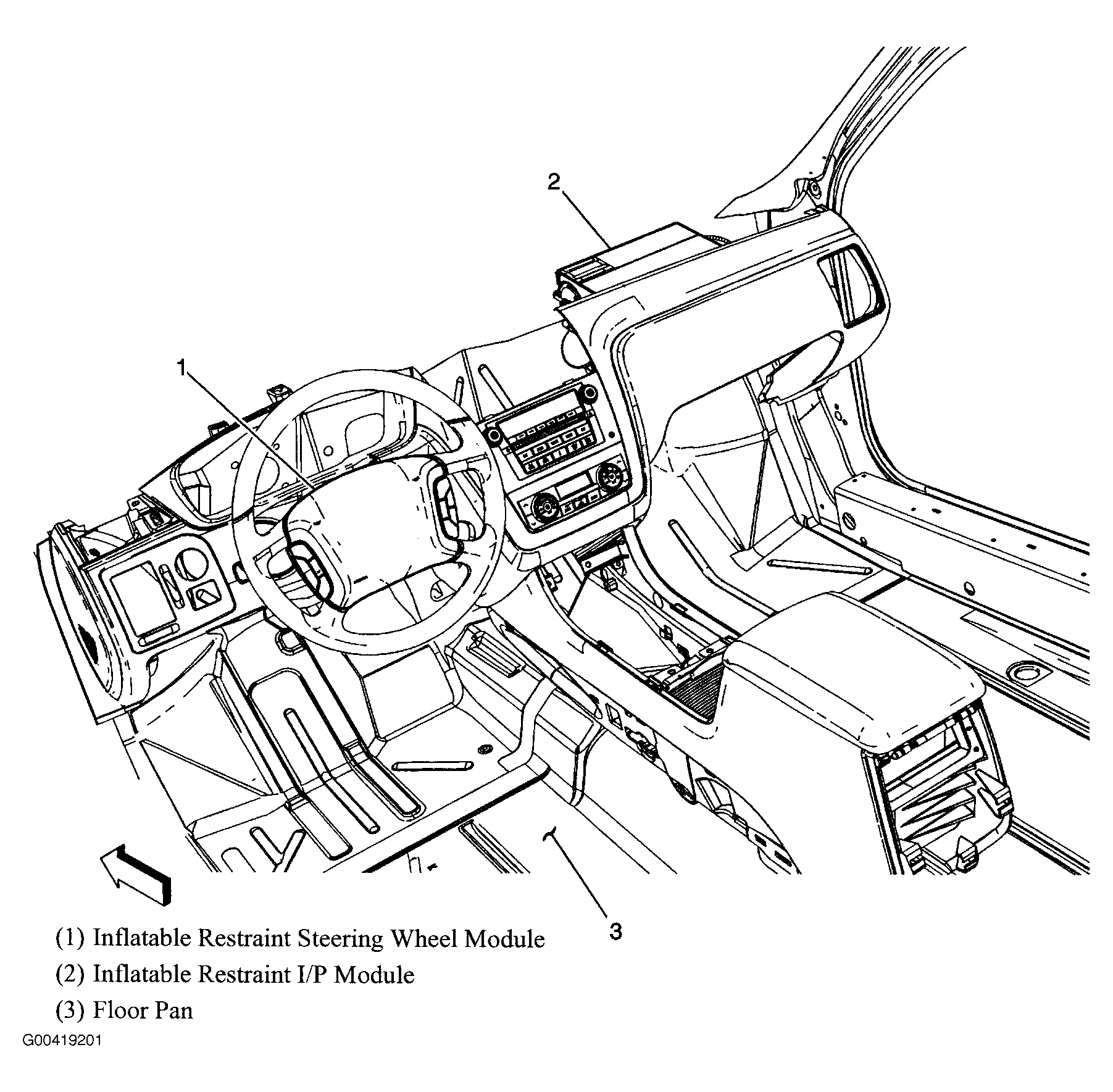

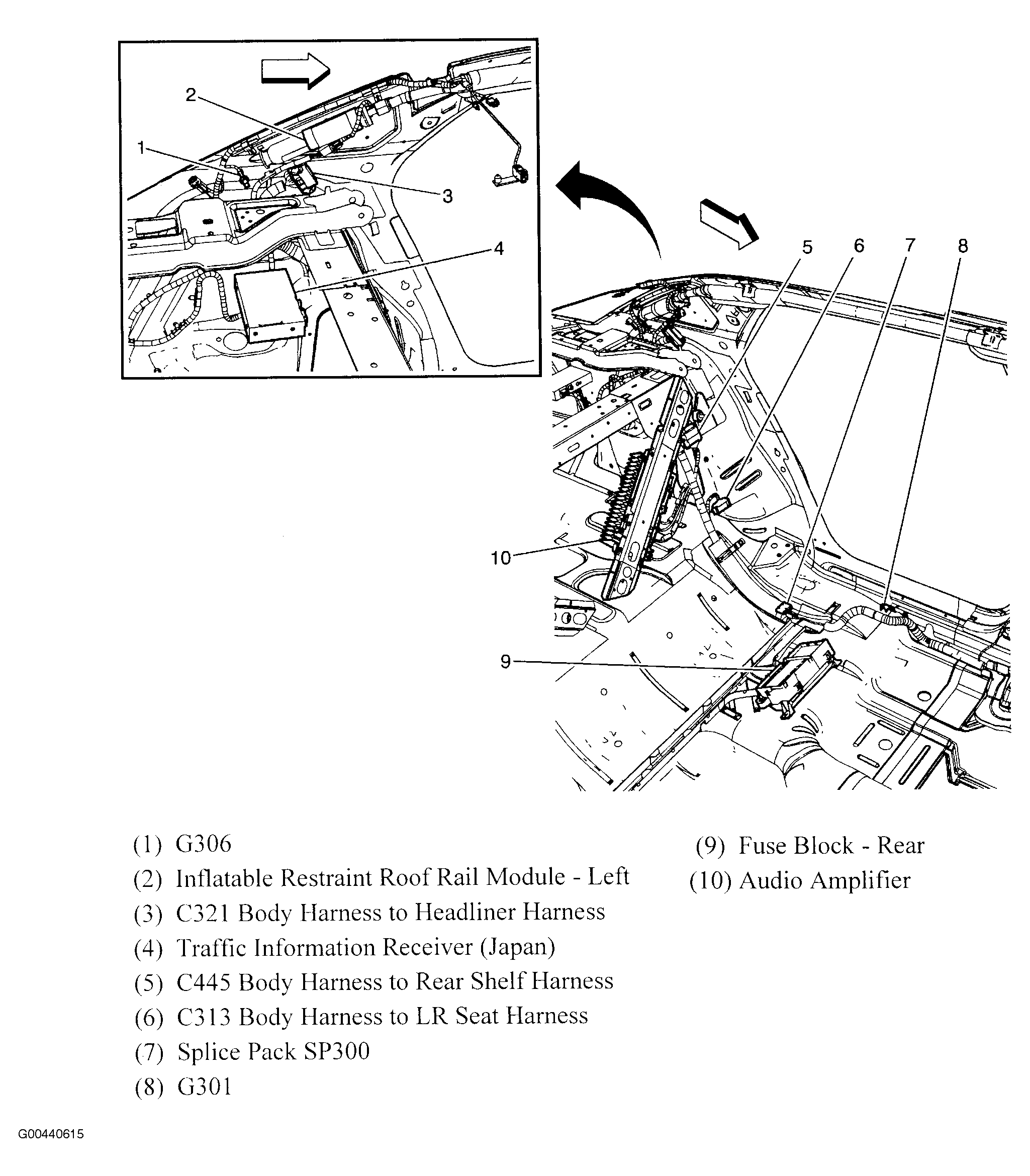

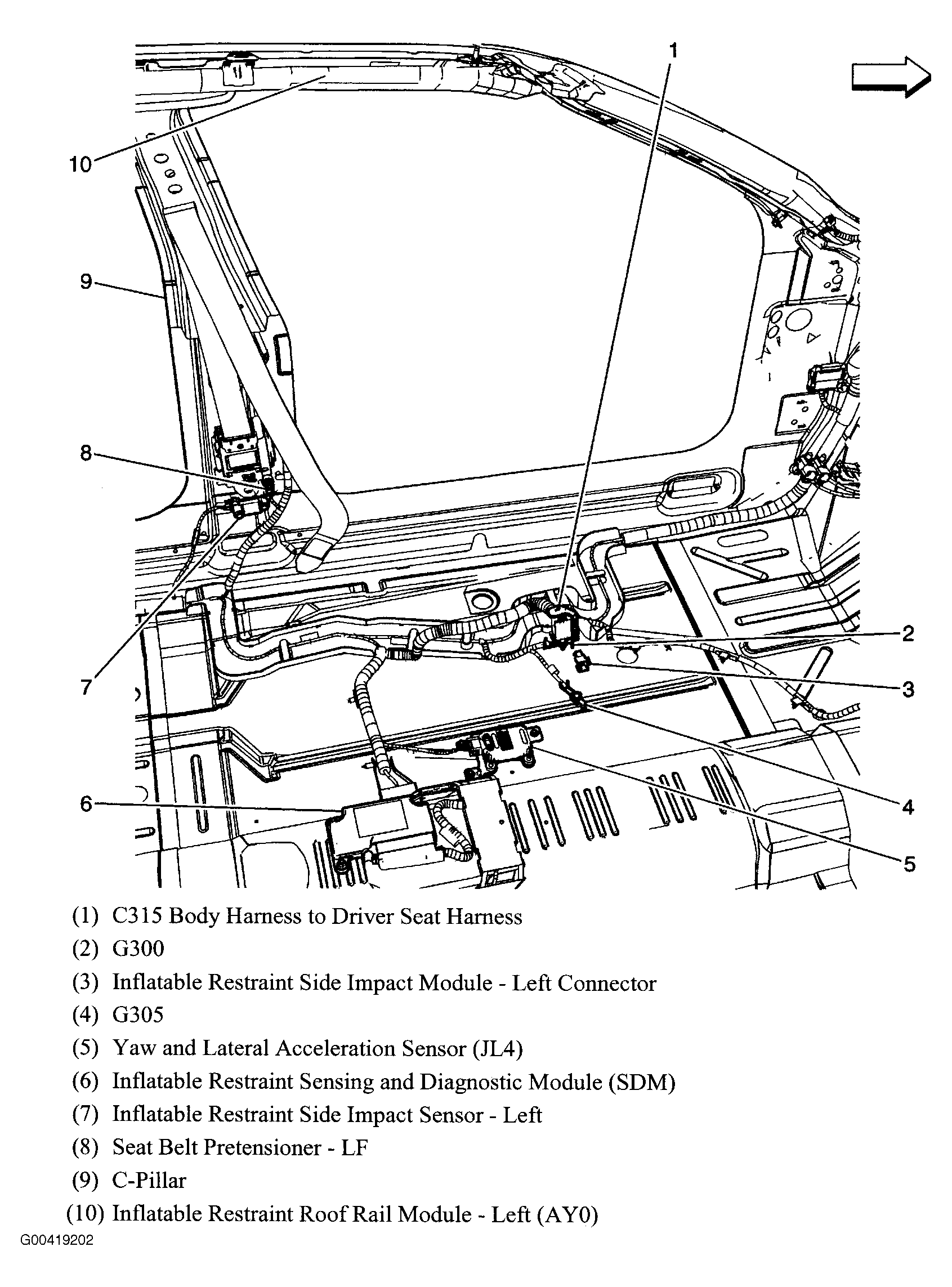

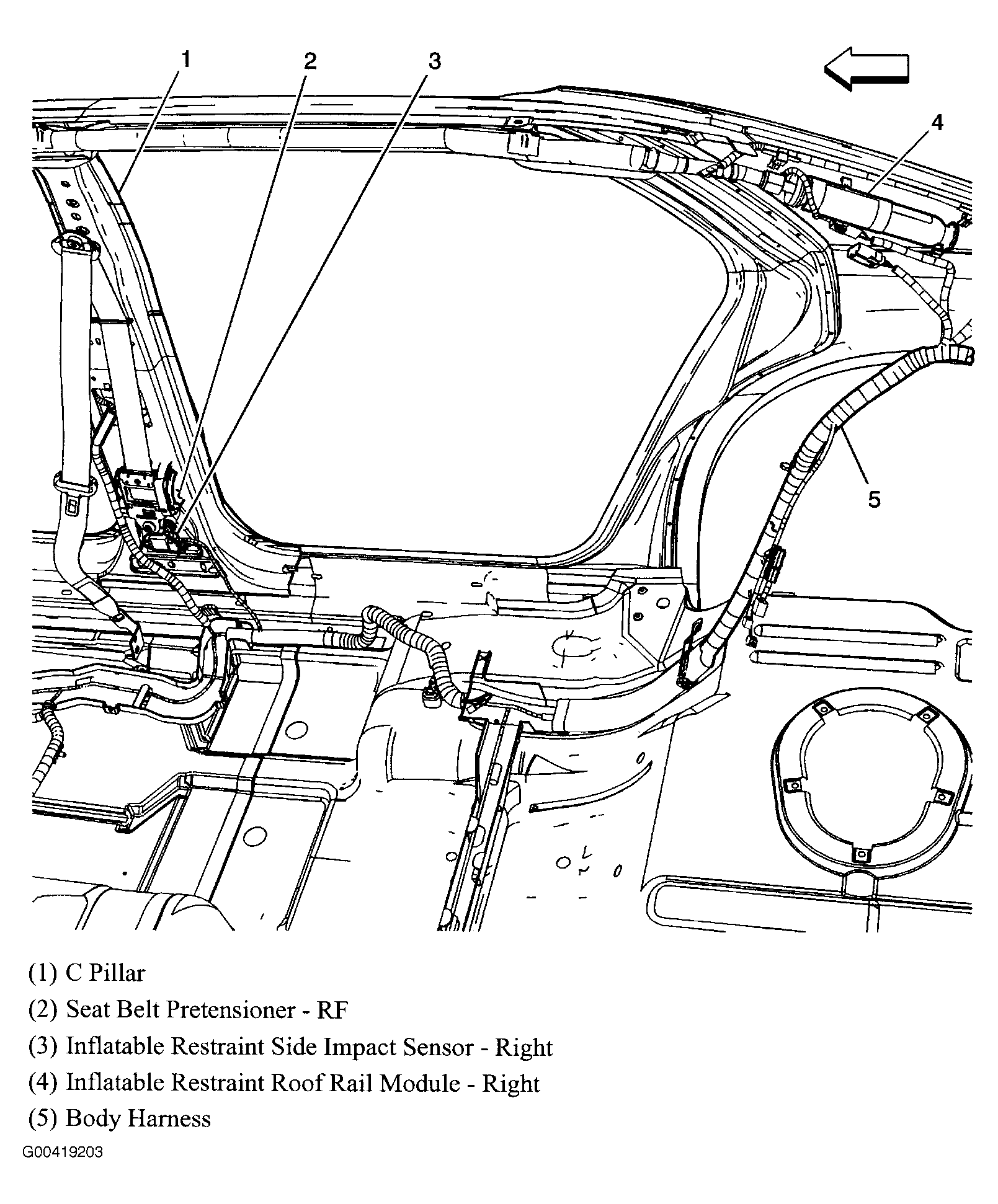

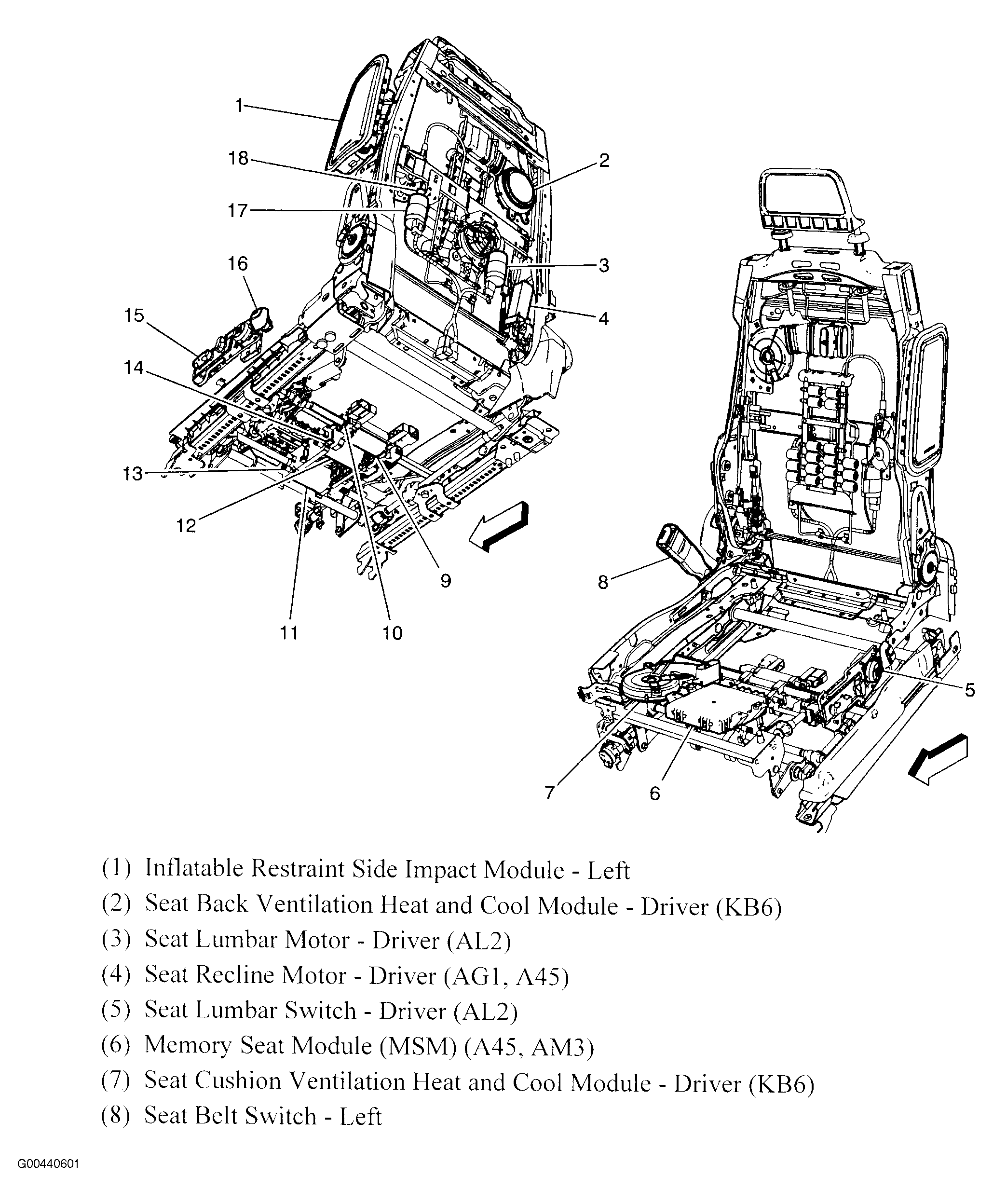

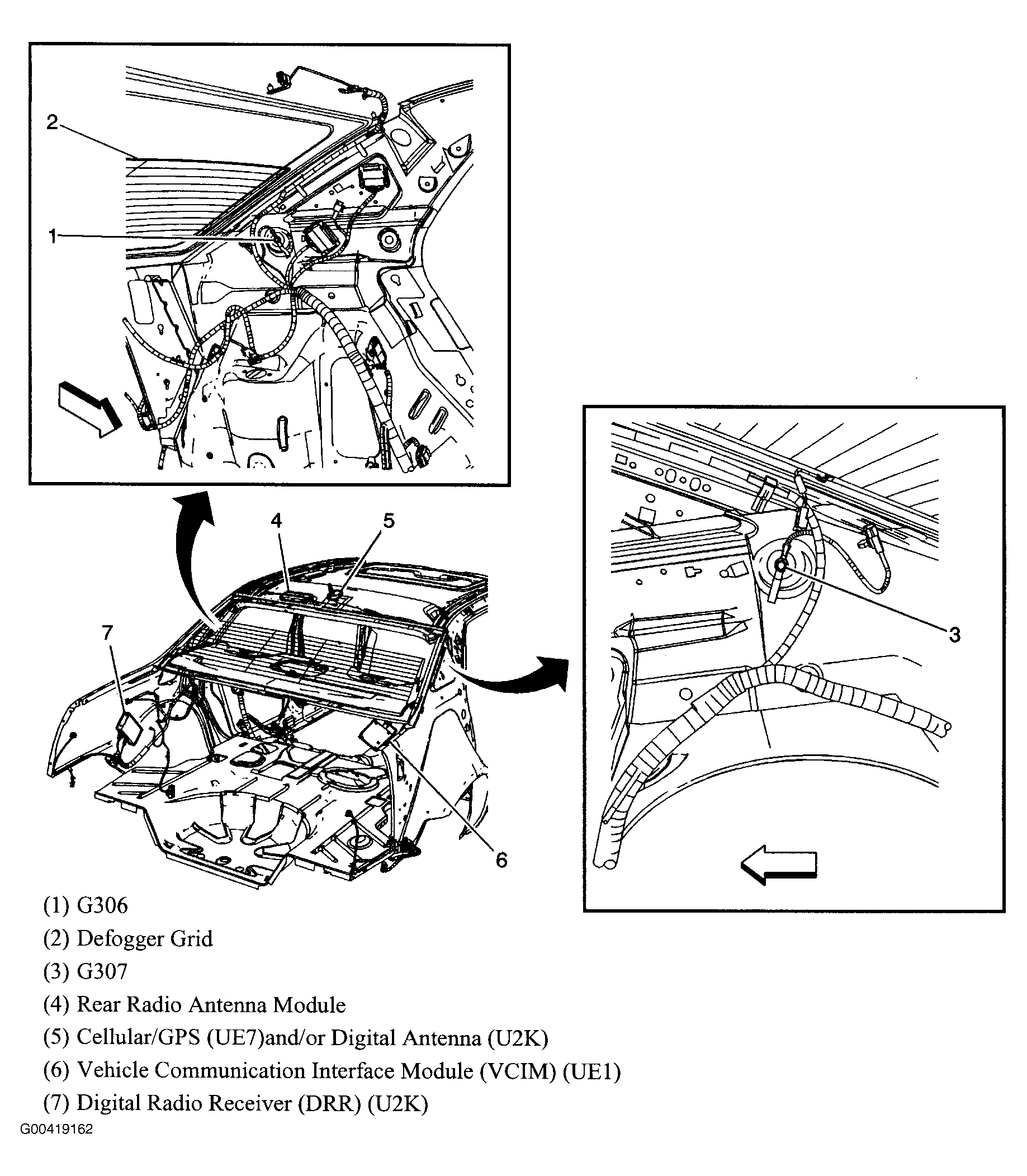

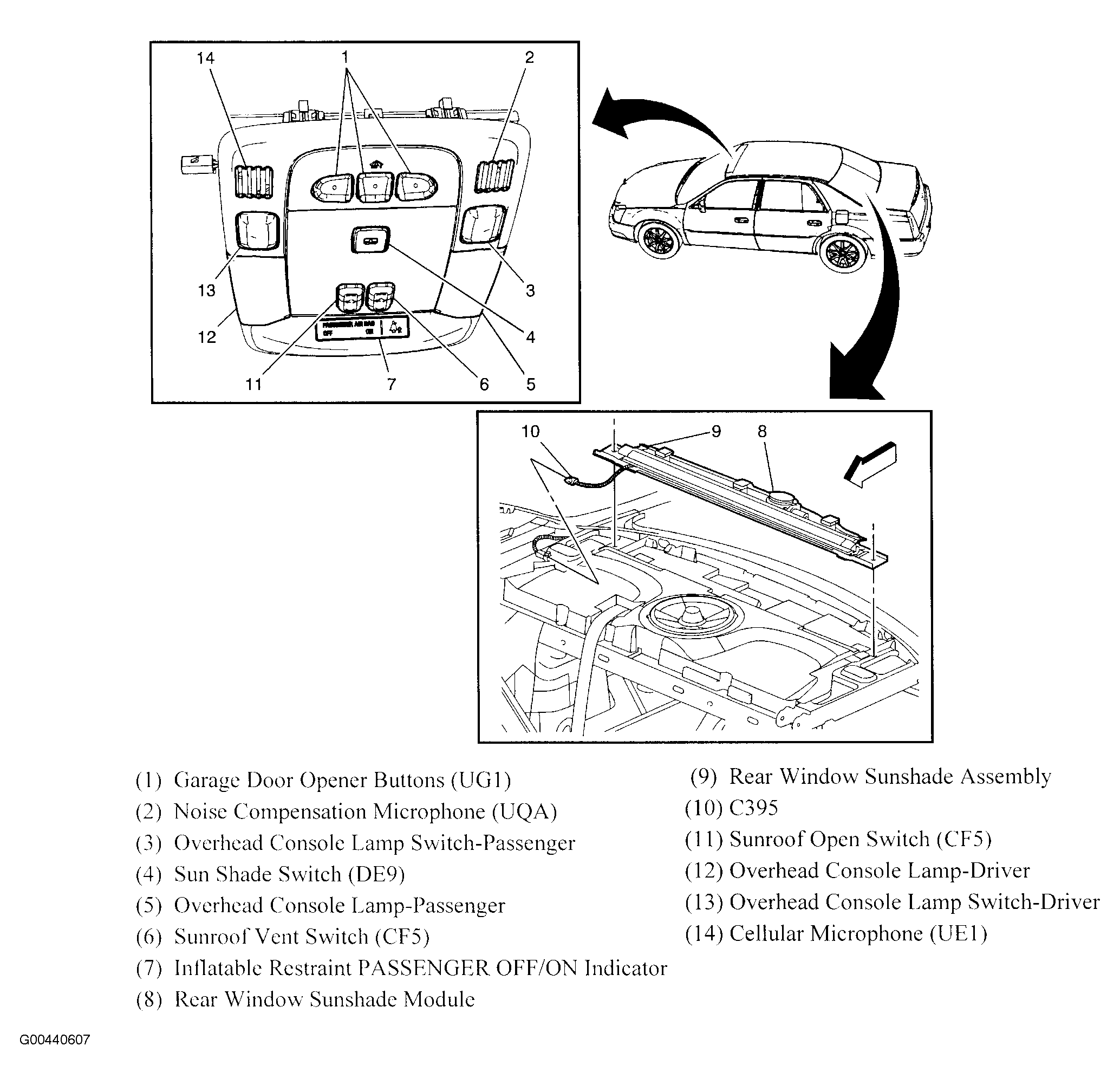

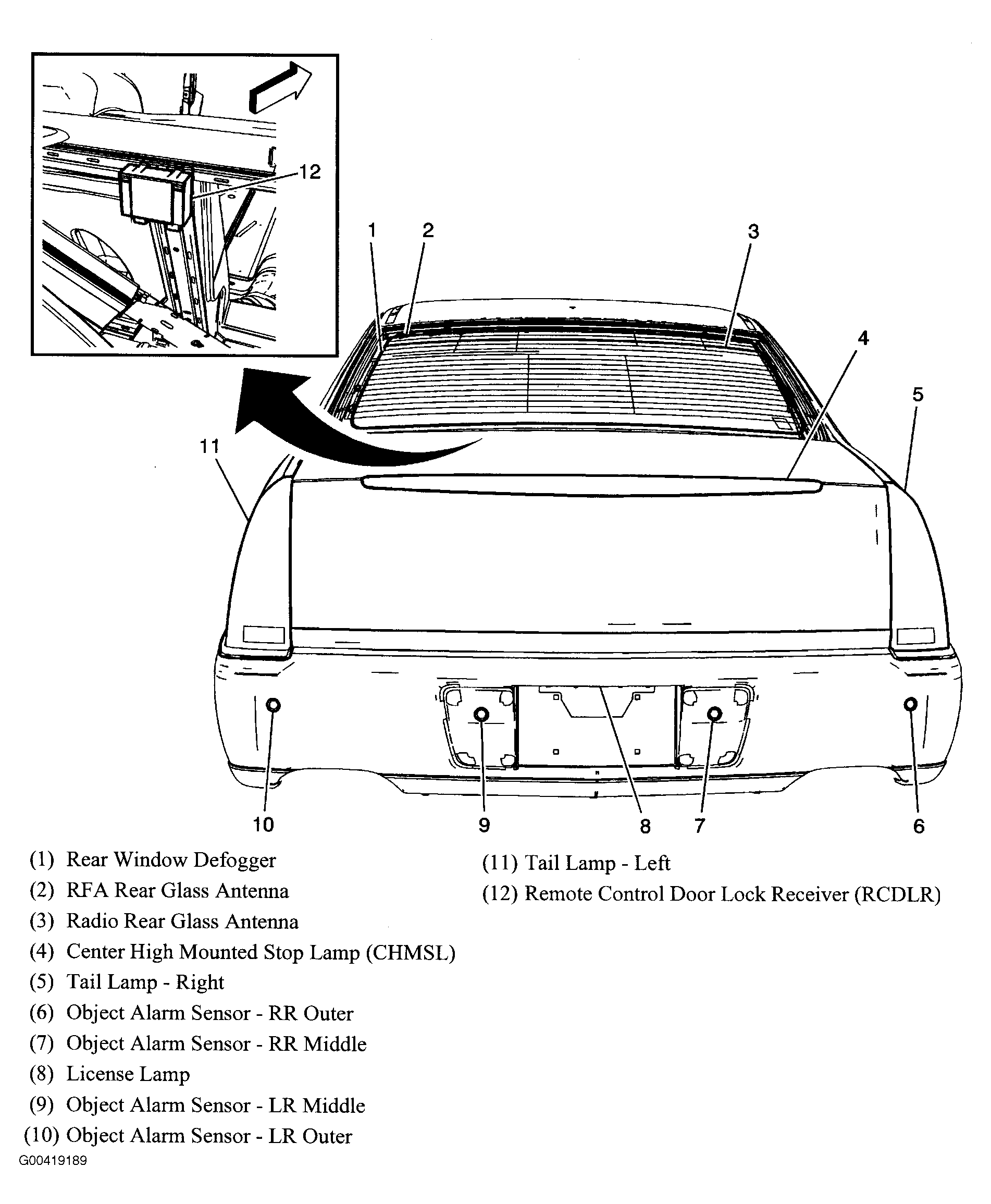

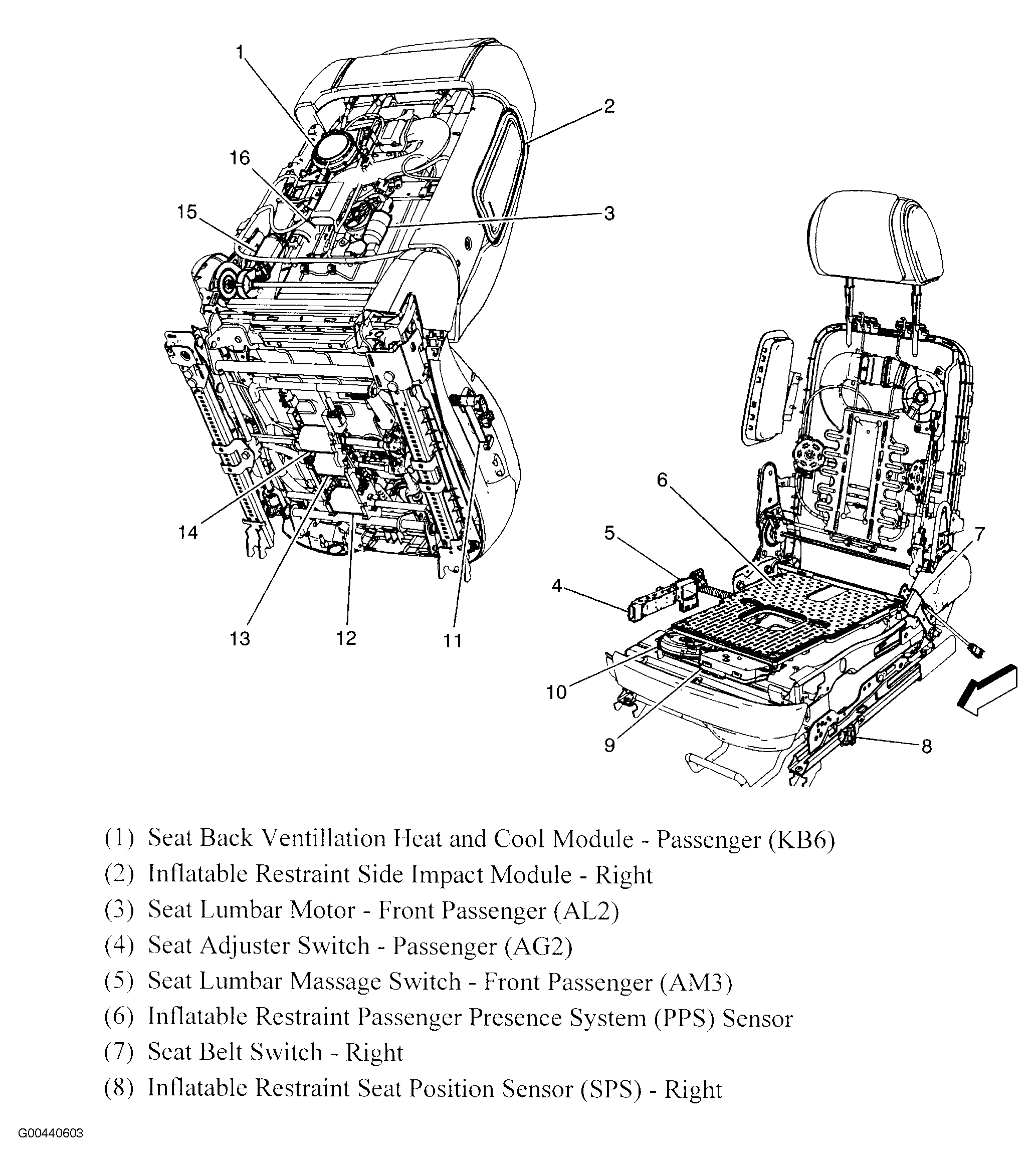

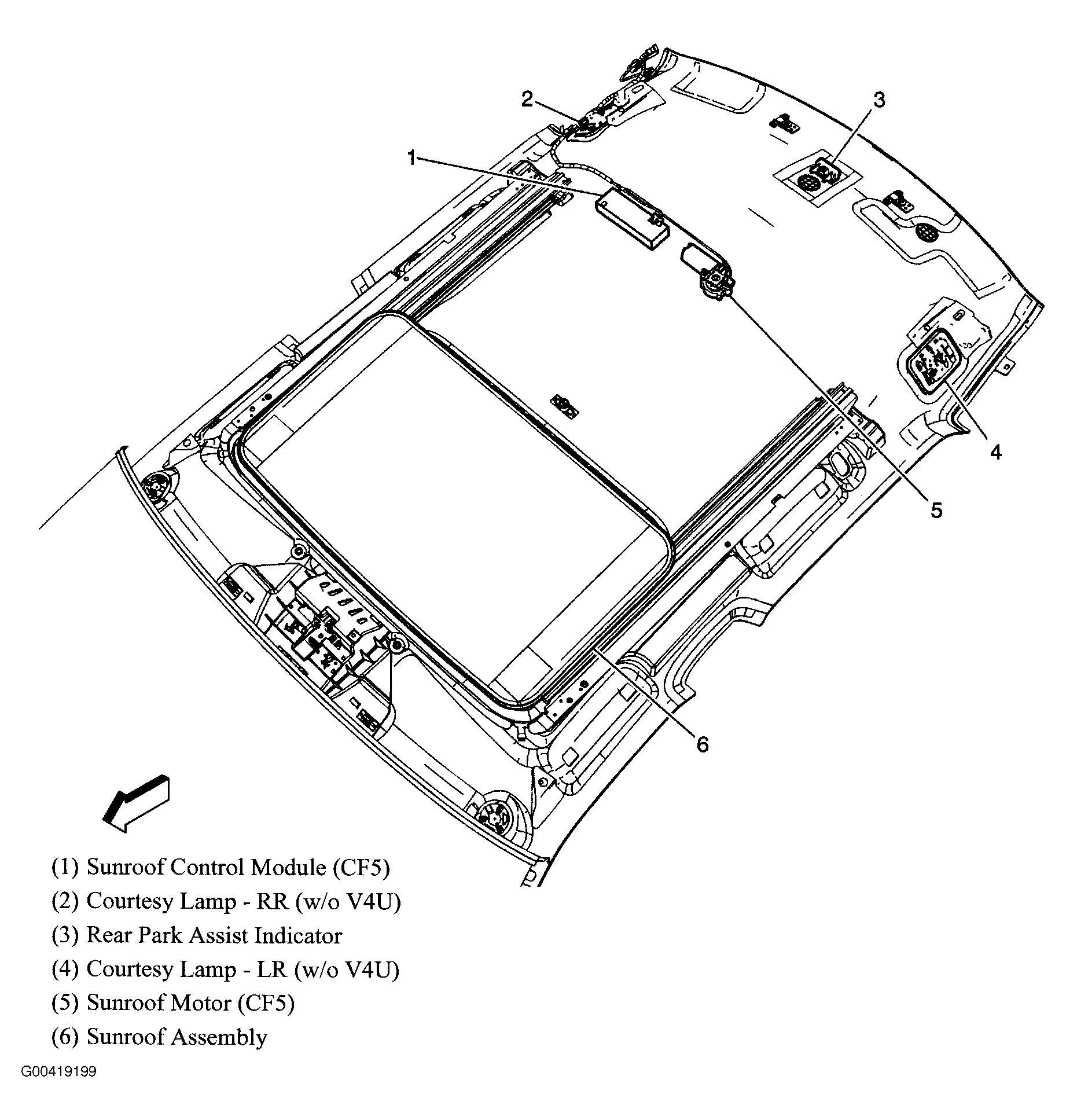

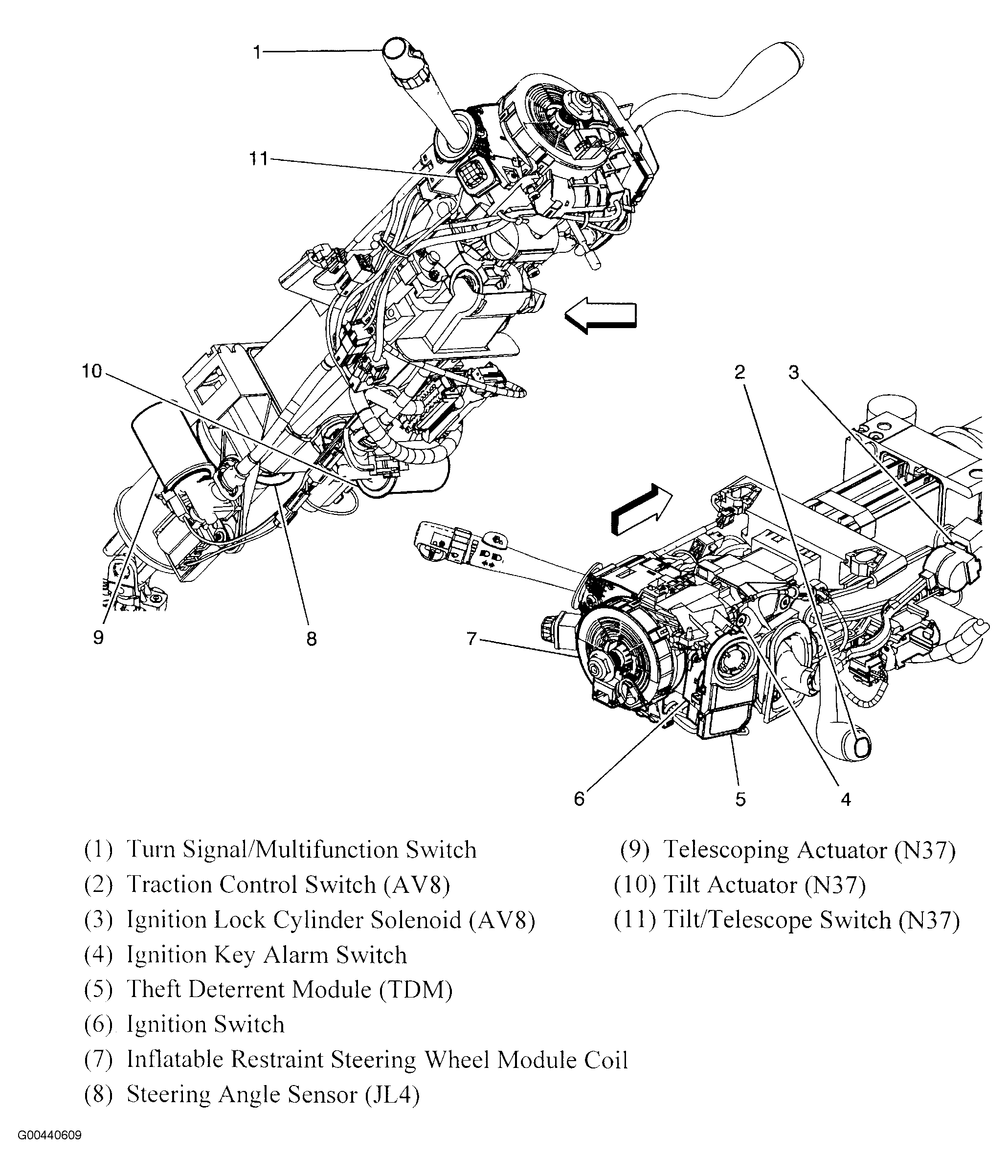

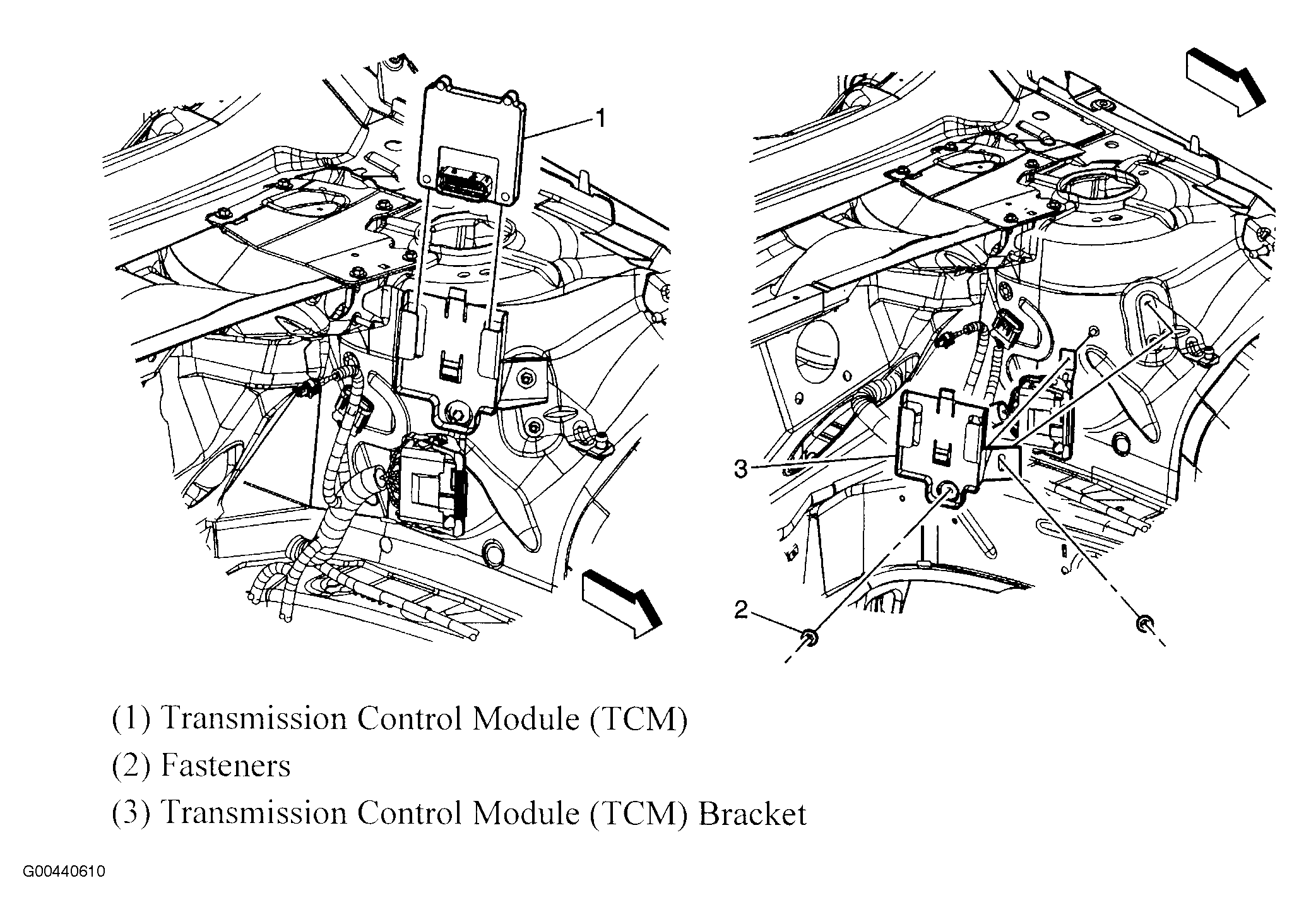

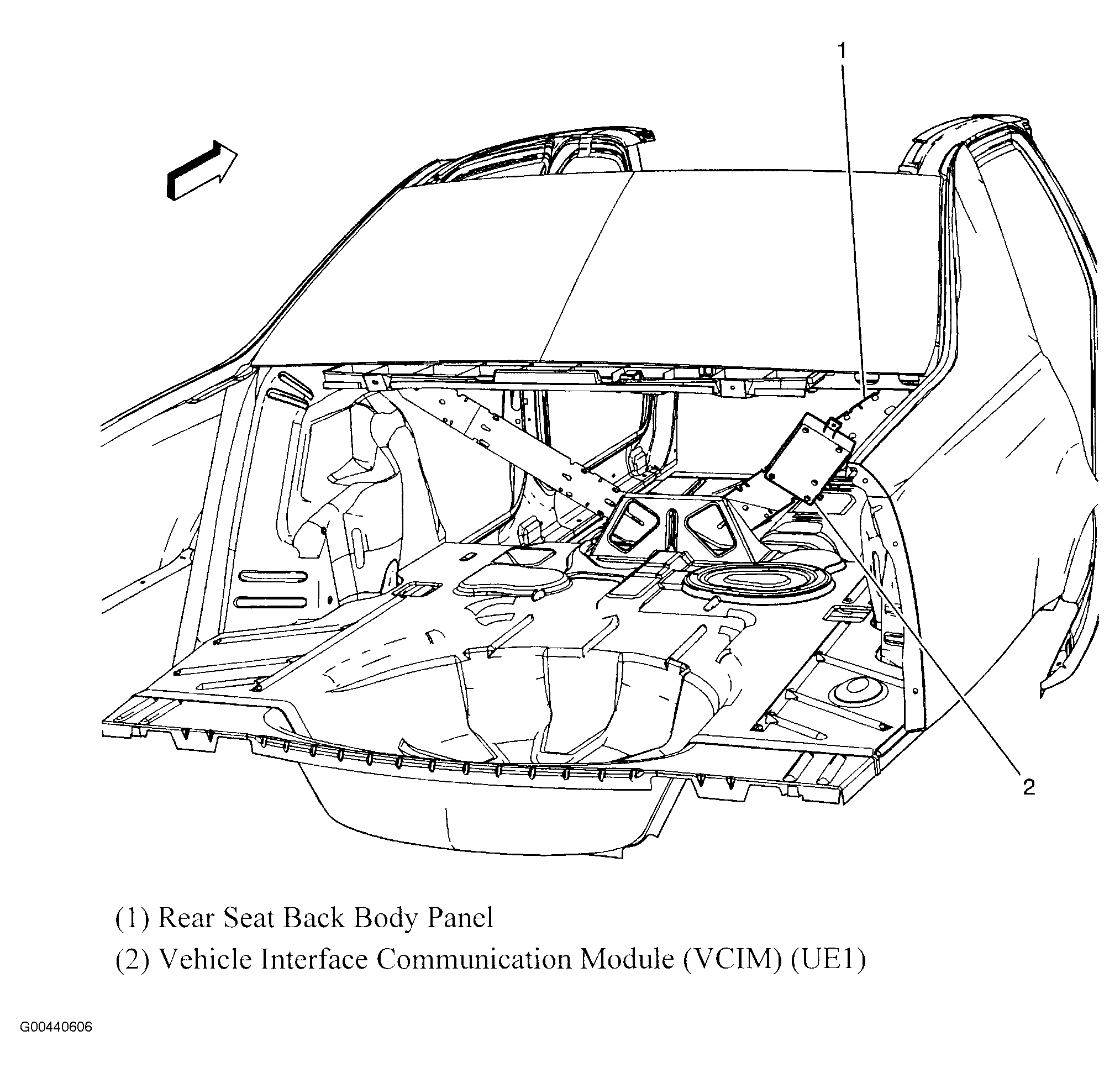

| Front & Rear Object Alarm Module | Right front of trunk. See Figure. |
| Heated Seats Module (Rear) | Behind left rear seat back. See Figure. |
| Heated Steering Wheel Module | Behind inflatable restraint steering wheel module, in steering wheel. See Figure. |
| HVAC Control Module | Front center of dash. See Figure. |
| HVAC Control Module (Auxiliary) | Behind center console storage compartment. See Figure. |
| Ignition Coil/Module 1, 3, 5 & 7 | Top right side of engine. See Figure. |
| Ignition Coil/Module 2 | Top left side of engine. See Figure. |
| Ignition Coil/Module 4, 6 & 8 | Top left side of engine. See Figure. |
| Inflatable Restraint I/P Module | Behind right side of dash. See Figure. |
| Inflatable Restraint Passenger Presence System (PPS) Module | Under front passenger's seat. |
| Inflatable Restraint Roof Rail Module (Left) | At left "C" pillar. See Figure. |
| Inflatable Restraint Roof Rail Module (Right) | At right "C" pillar. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under rear of front floor console. See Figure. |
| Inflatable Restraint Side Impact Module (Left) | Left side of driver's seat back. See Figure. |
| Inflatable Restraint Side Impact Module (Right) | Right side of front passenger's seat back. See Figure. |
| Inflatable Restraint Steering Wheel Module | Top of steering column. See Figure. |
| Memory Seat Module (MSM) | Under left front seat. See Figure. |
| Radio Antenna Module | Behind rear center of headliner. See Figure. |
| Rear Window Sunshade Module | In center front of rear compartment. See Figure. |
| Remote Control Door Lock Receiver (RCDLR) | Under center of rear package tray. See Figure. |
| Seat Back Ventilation Heat & Cool Module (Driver) | Under left front of driver's seat. See Figure. |
| Seat Back Ventilation Heat & Cool Module (Passenger) | Left side of front passenger's seat back. See Figure. |
| Seat Cushion Ventilation Heat & Control Module (Front Passenger) | Under right side of front passenger's seat cushion. See Figure. |
| Seat Cushion Ventilation Heat & Cool Module (Driver) | Under right side of driver's seat cushion. See Figure. |
| Sunroof Control Module | Near rear of sun roof. See Figure. |
| Theft Deterrent Module (TDM) | Top right side of steering column. See Figure. |
| Transmission Control Module (TCM) | Left rear of engine compartment, on strut tower. See Figure. |
| Vehicle Communication Interface Module (VCIM) | Behind right rear seat back. See Figure. |

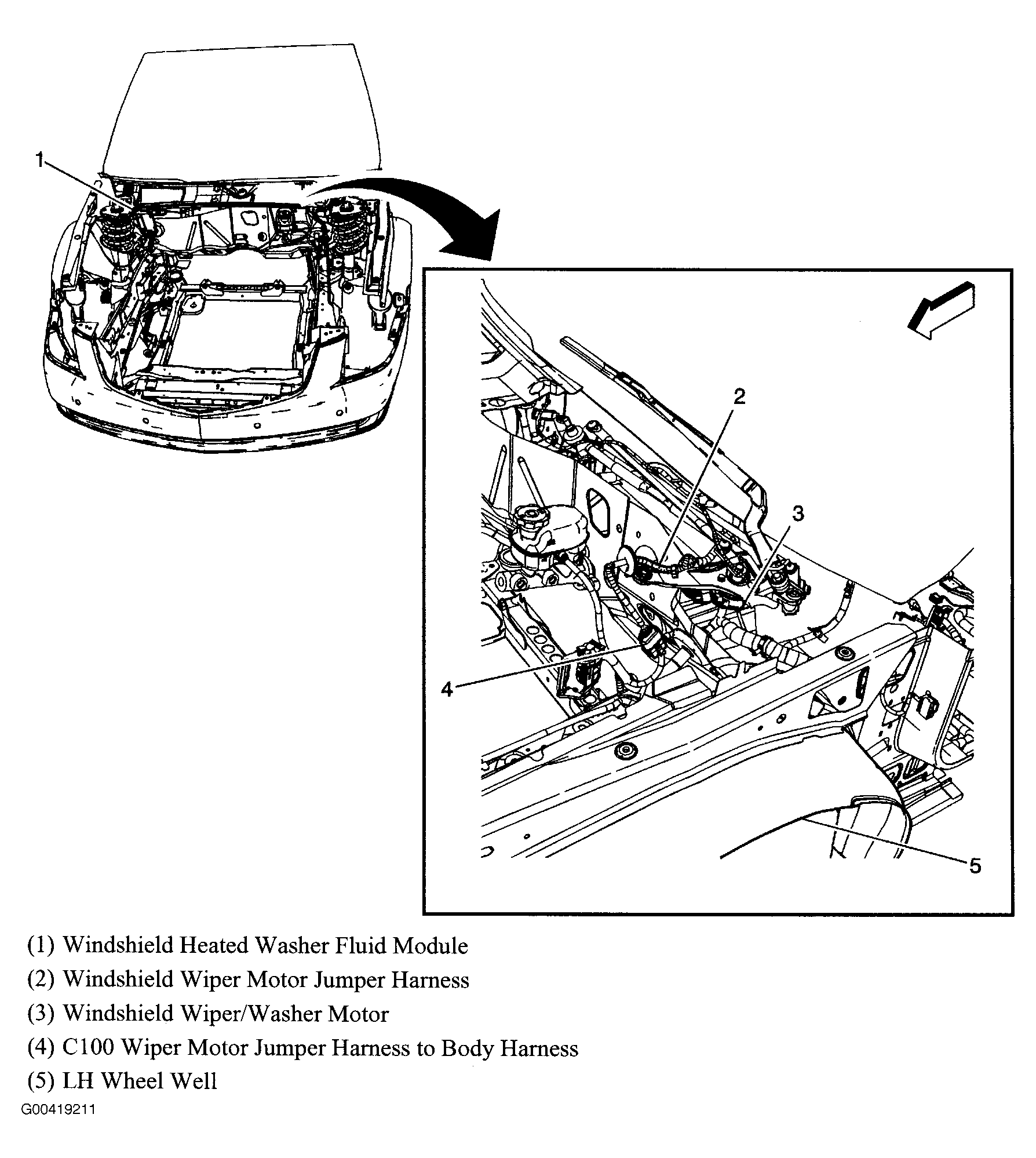

| Windshield Heated Washer Fluid Module | Left rear corner of engine compartment. See Figure. |
