Control Units
CONTROL UNITS LOCATION

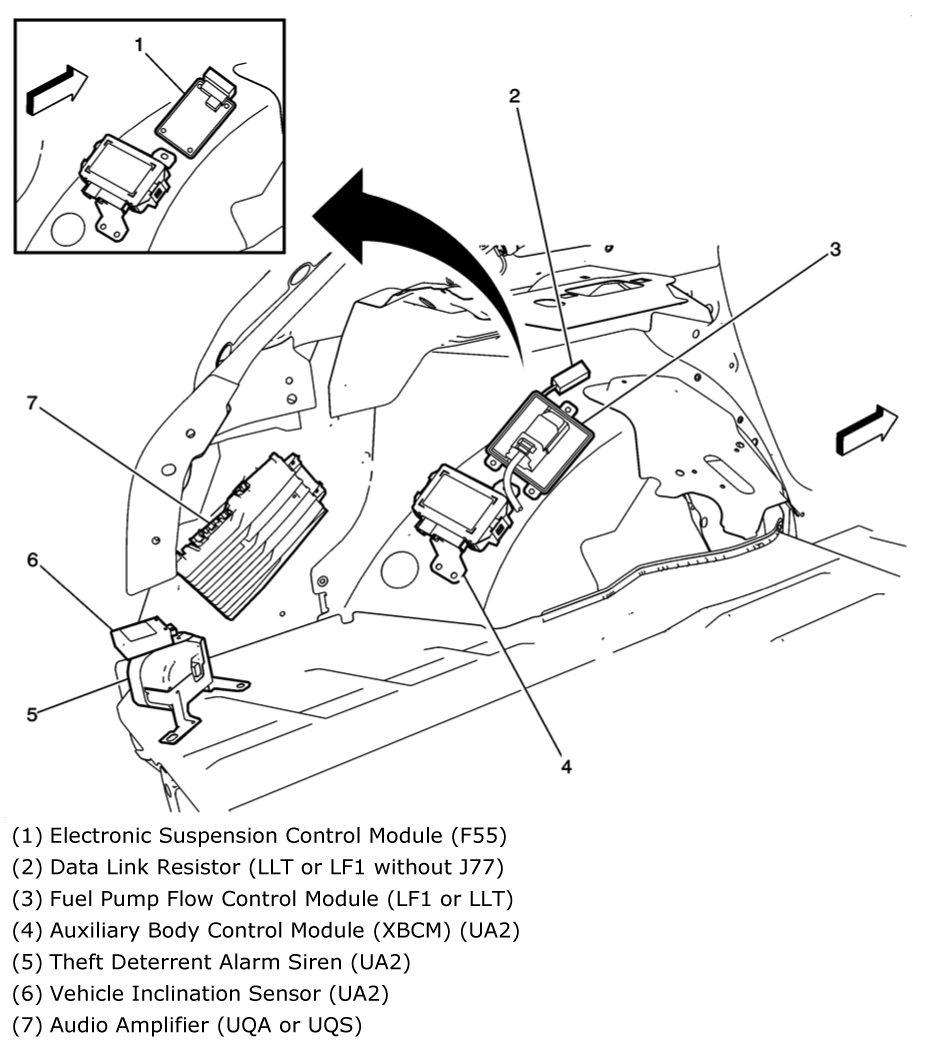

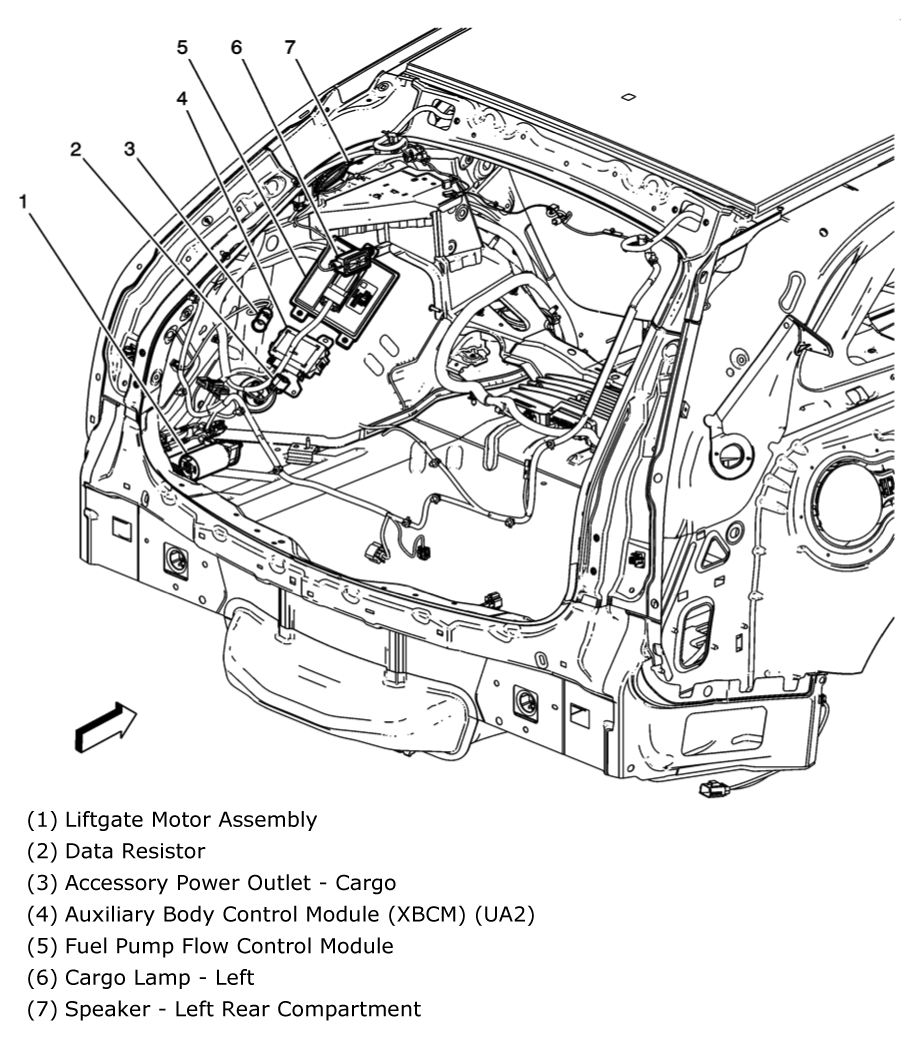

| Component | Location |
|---|---|
| Auxiliary Body Control Module (Sedan) | Left side of luggage compartment. See Figure. |
| Auxiliary Body Control Module (Wagon) | Left side of luggage compartment. See Figure. |

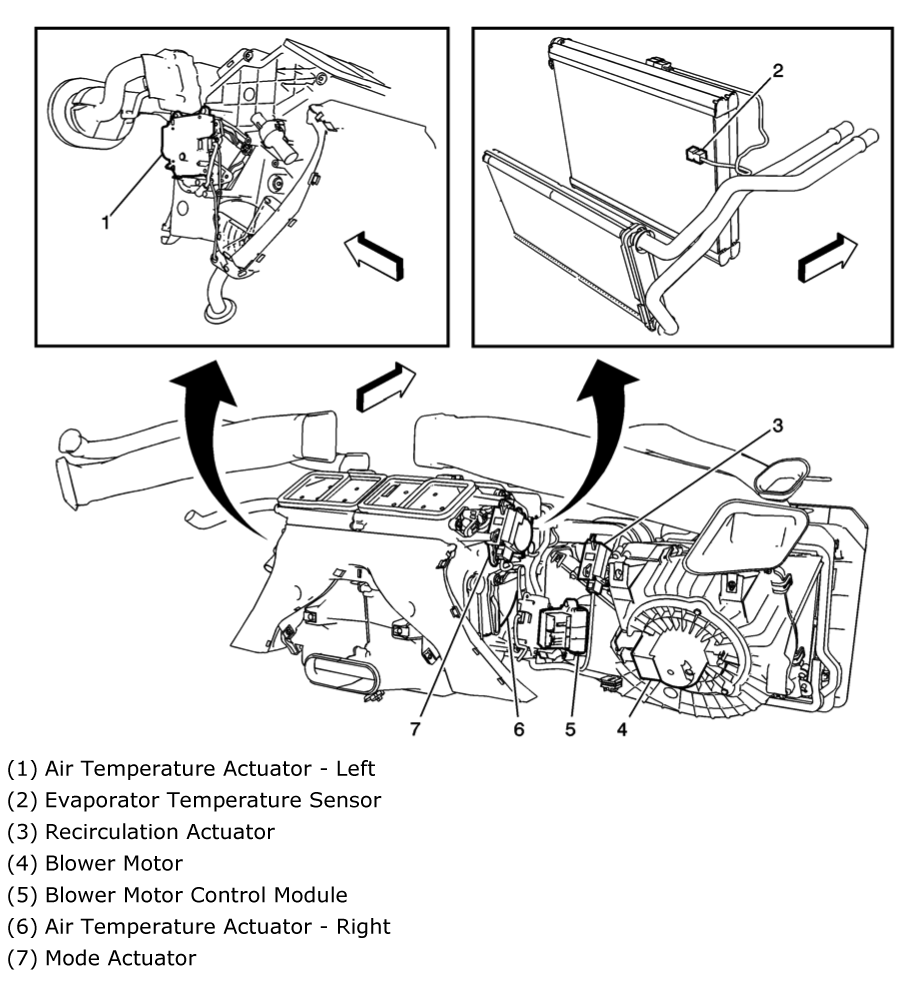

| Blower Motor Control Module | Lower left side of blower motor. See Figure. |

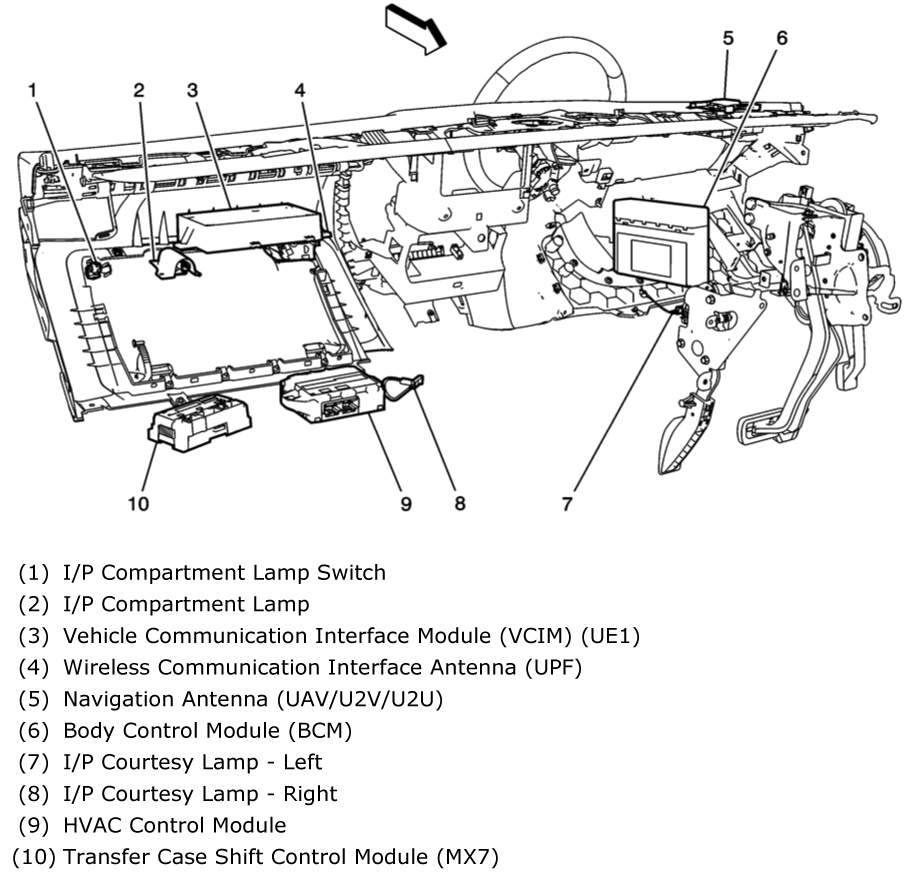

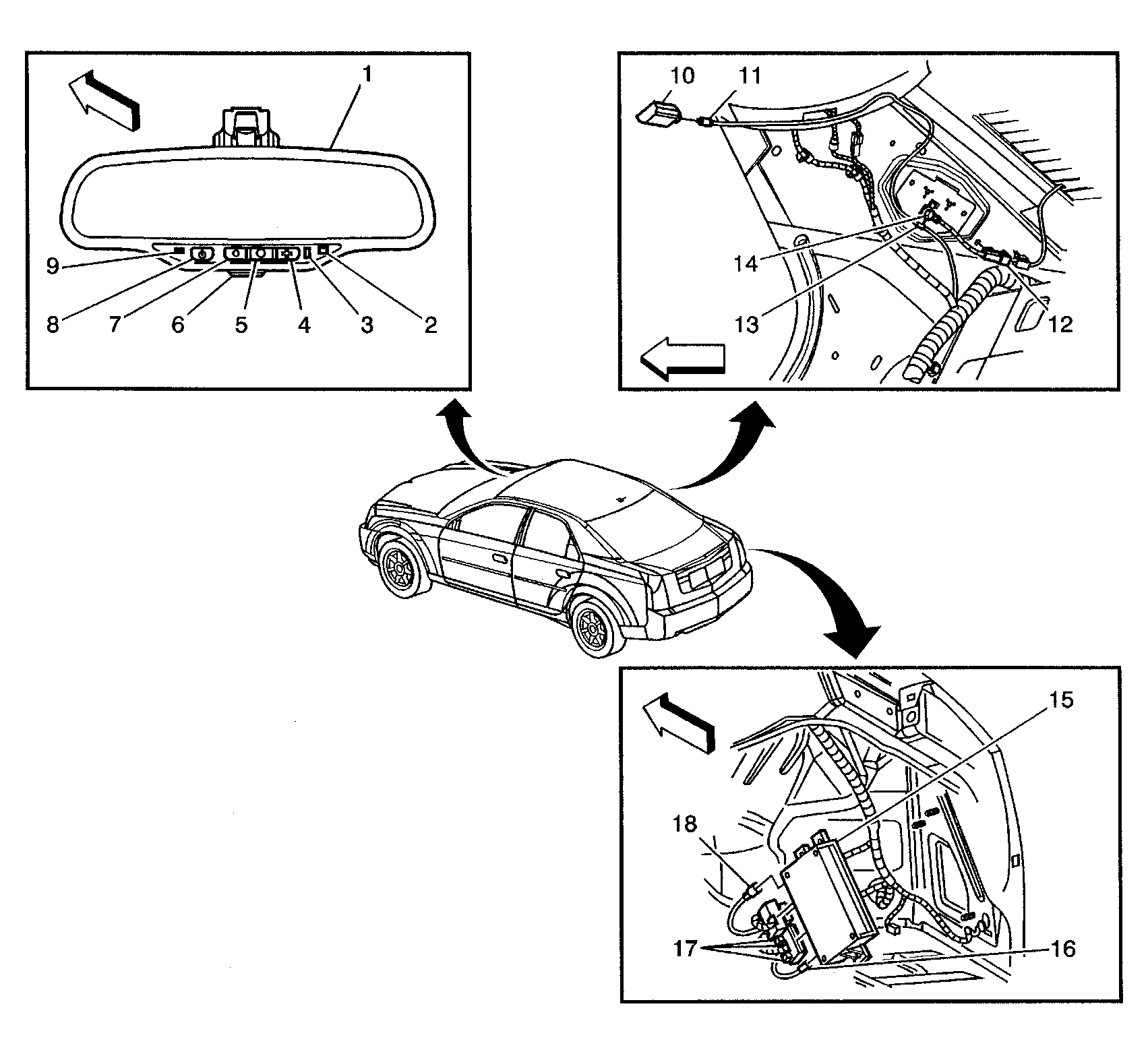

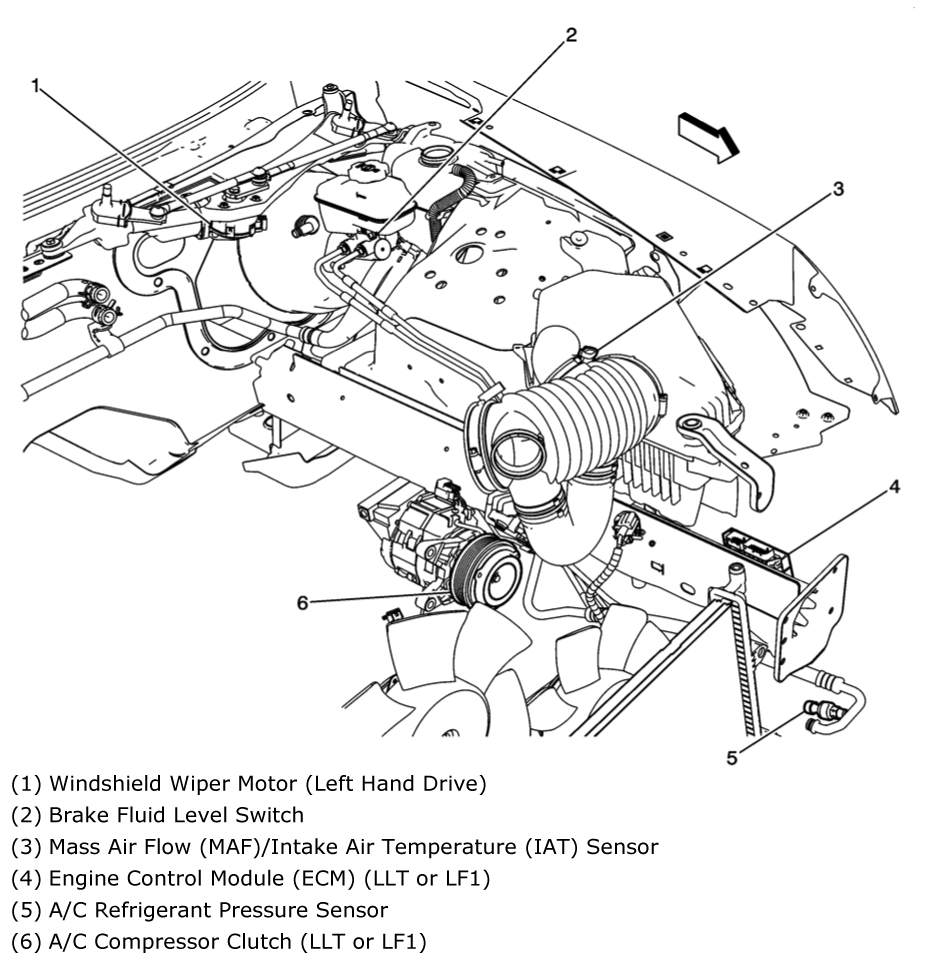

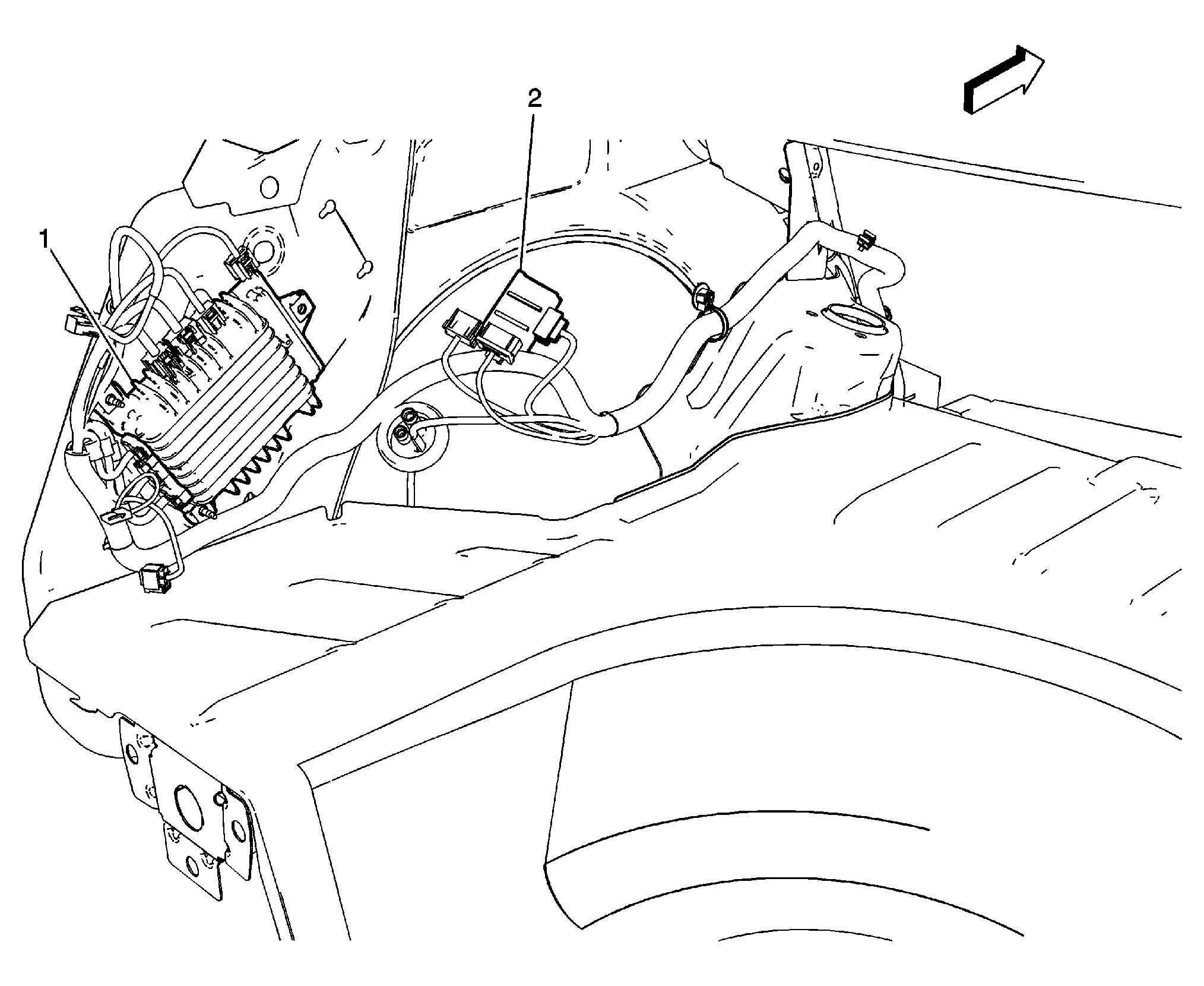

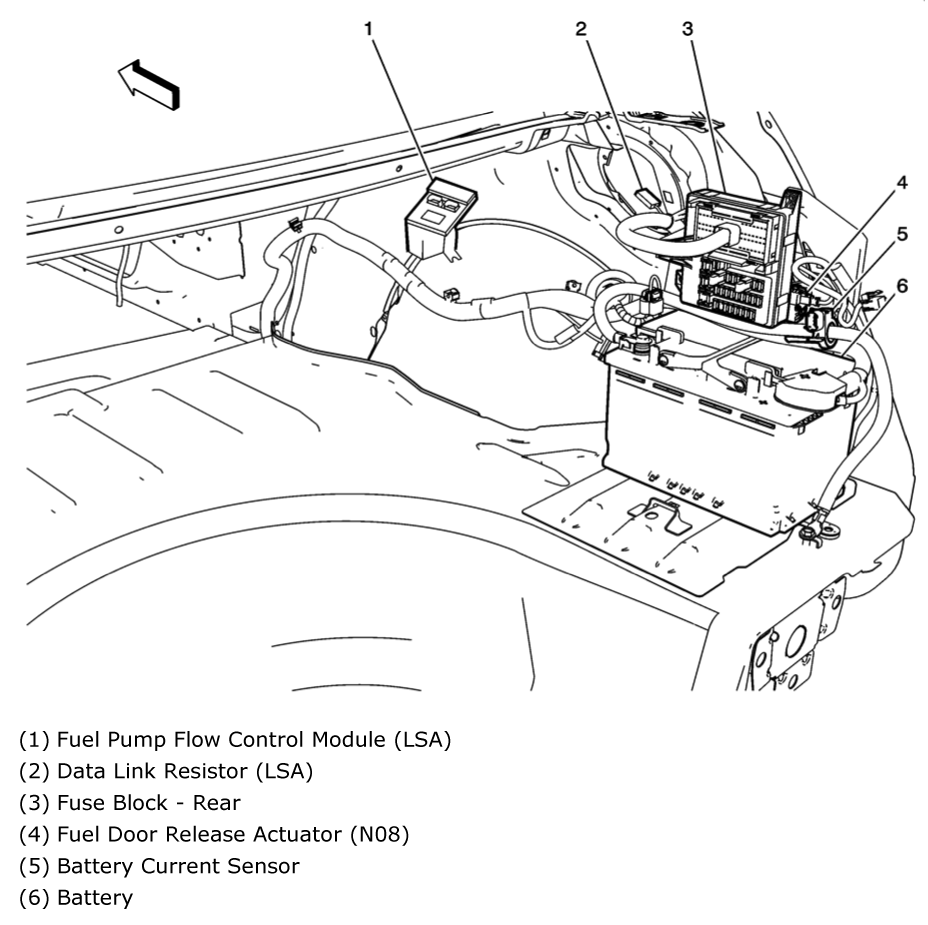

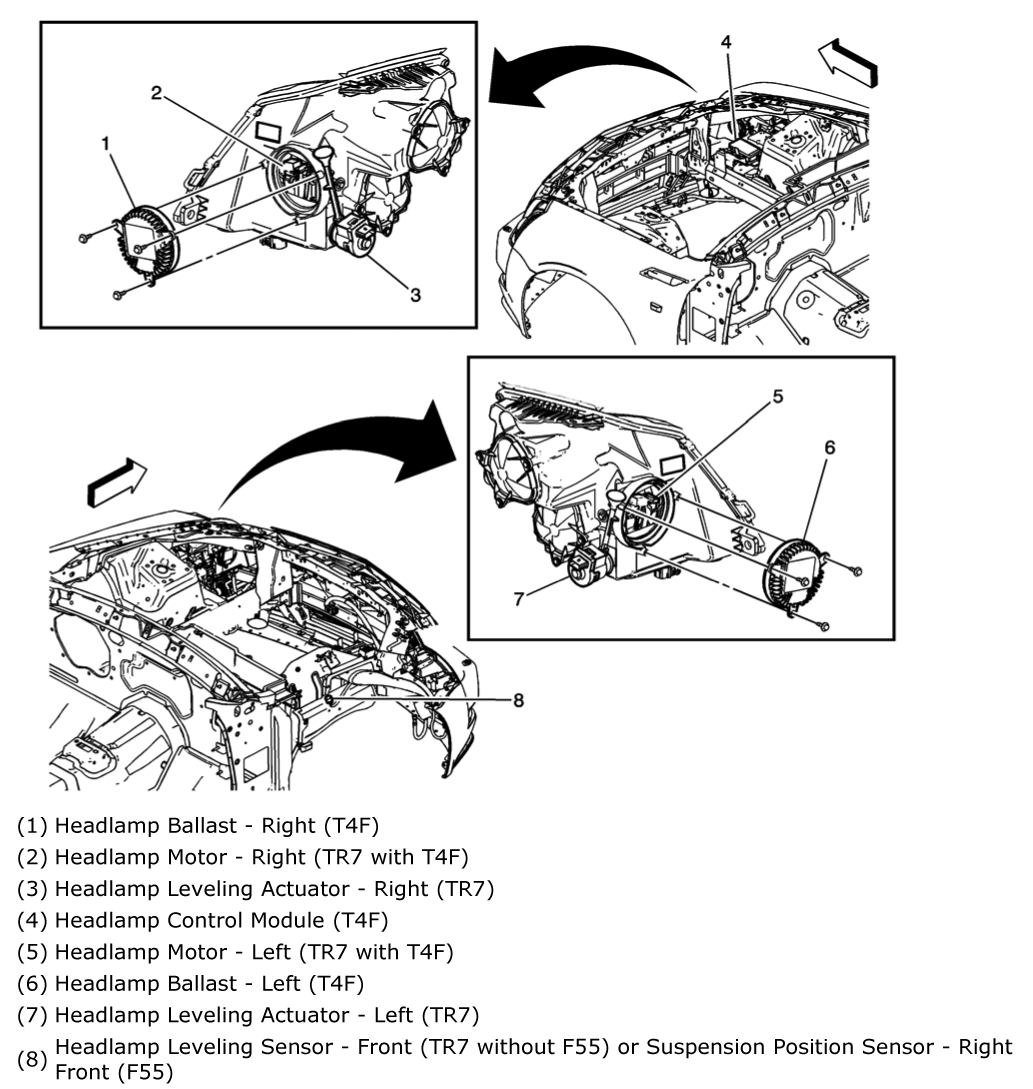

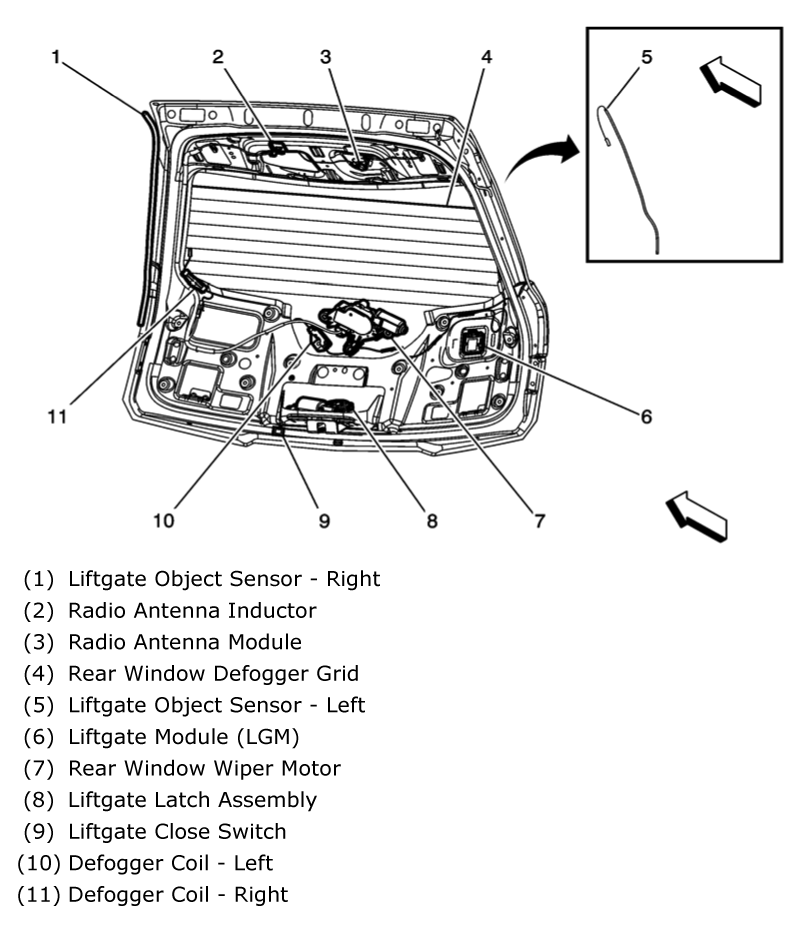

| Body Control Module (BCM) | Center of dash. See Figure. |
| Compass Module (9) | Left side of rear shelf. See Figure. |
| Dash Integration Module (DIM) | Right side of dash. See Figure. |
| Electronic Brake Control Module (EBCM) | Right front corner of engine compartment. See Figure. |
| Electronic Compass Module (Sedan) | Left side of rear shelf. See Figure. |
| Electronic Compass Module (Wagon) | Center front of luggage compartment. See Figure. |
| Electronic Suspension Control Module | Left side of luggage compartment. See Figure. |
| Engine Control Module (ECM) (V6) | Left front of engine compartment. See Figure. |
| Engine Control Module (ECM) (V8) | Right rear of engine compartment. See Figure. |
| Front Passenger Door Module (FPDM) (DDM Similar) | Respective front door. |
| Fuel Pump Flow Control Module (Sedan) (V6) | Left side of luggage compartment. See Figure. |
| Fuel Pump Flow Control Module (Sedan V8) | Right side of luggage compartment. See Figure. |
| Fuel Pump Flow Control Module (Wagon) | Left side of luggage compartment. See Figure. |
| Headlamp Control Module | Front of engine compartment. See Figure. |
| Heated Seat Module (Driver's) | Under driver's seat. See Figure. |
| Heated Seat Module (Passenger) | Under front passenger's seat. See Figure. |
| HVAC Control Module | Center of dash. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under center console. See Figure. |
| Liftgate Module (LGM) | Right side of liftgate. See Figure. |

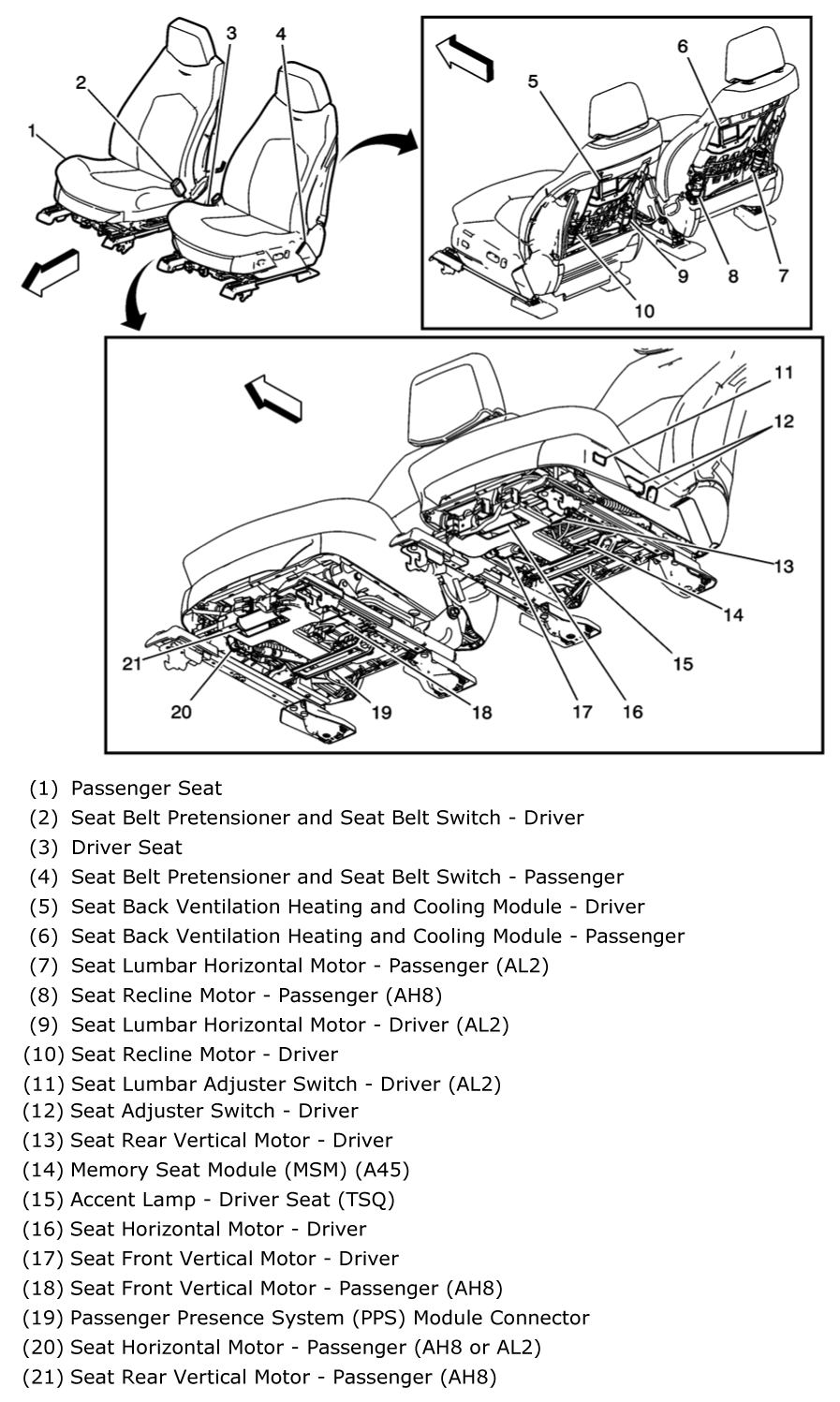

| Memory Seat Module (MSM) | Under driver's seat. See Figure. |
| Passenger Presence System (PPS) Module Connector | Under passenger seat. See Figure. |

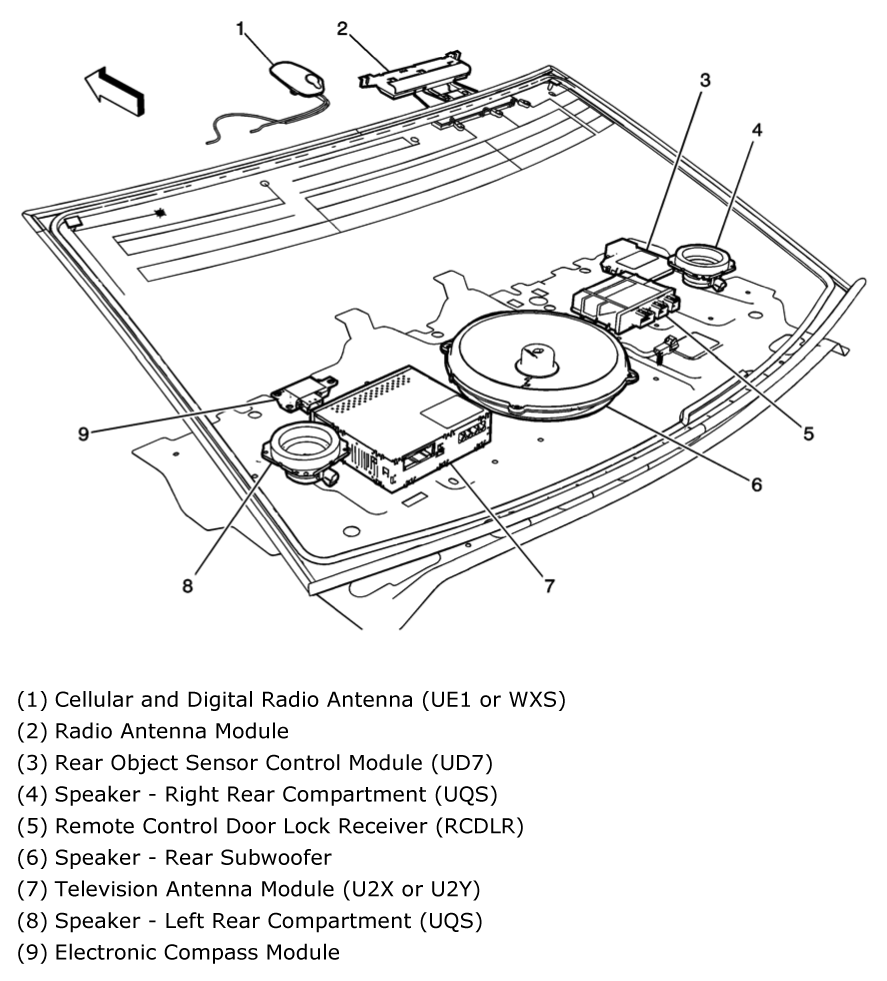

| Radio Antenna Module (Sedan) | Center rear of headliner. See Figure. |
| Radio Antenna Module (Wagon) | Top of liftgate. See Figure. |
| Rear Integration Module (RIM) | Under package shelf. See Figure. |

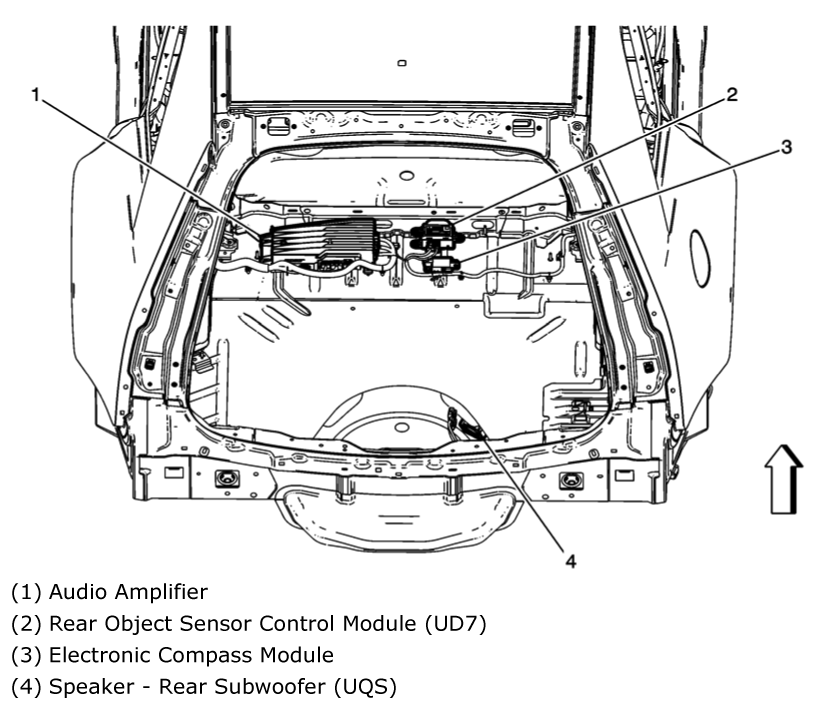

| Rear Object Sensor Control Module (Sedan) | Right side of rear shelf. See Figure. |
| Rear Object Sensor Control Module (Wagon) | Center front of luggage compartment. See Figure. |
| Recirculation Actuator | Right side of HVAC module. See Figure. |

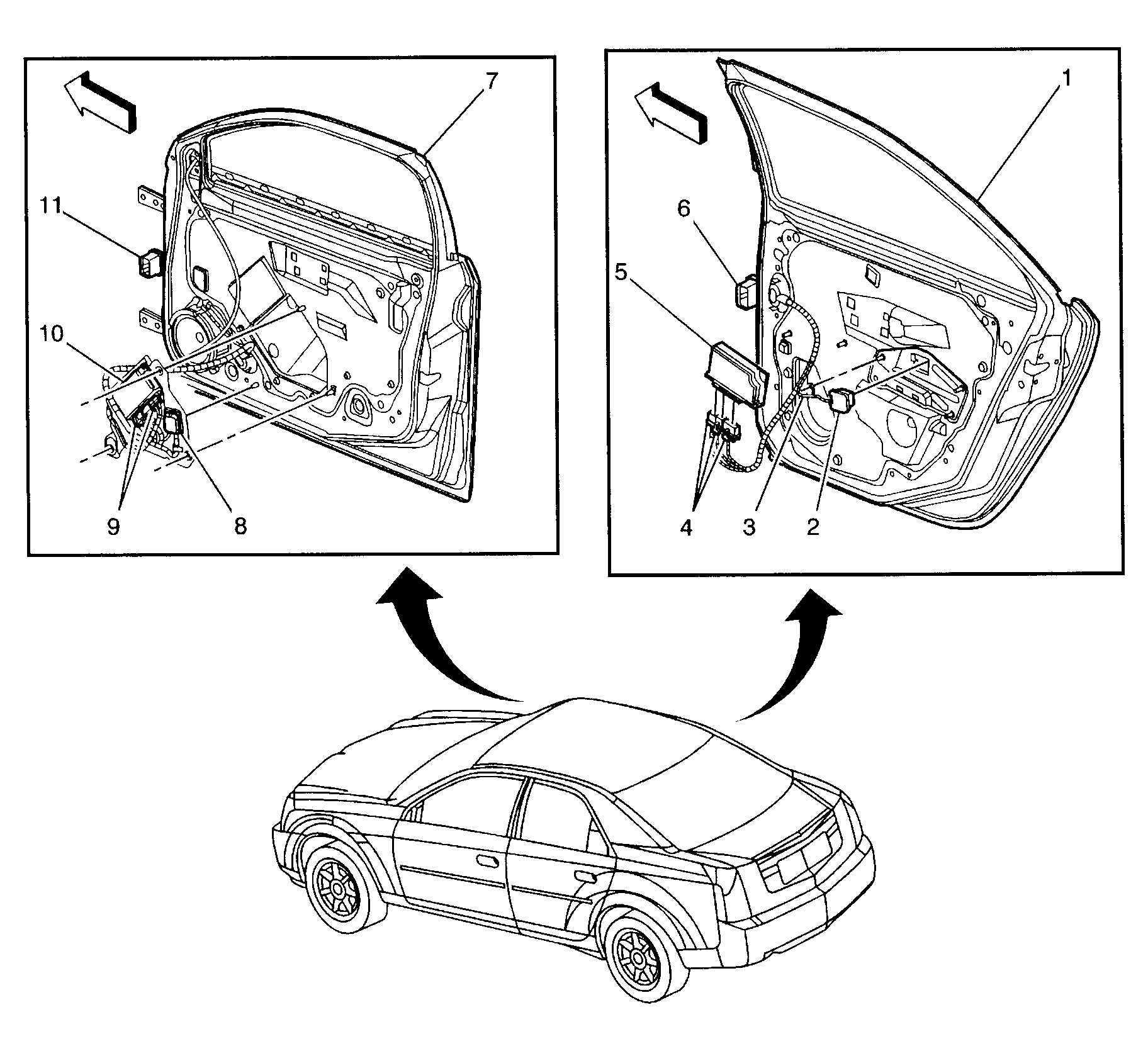

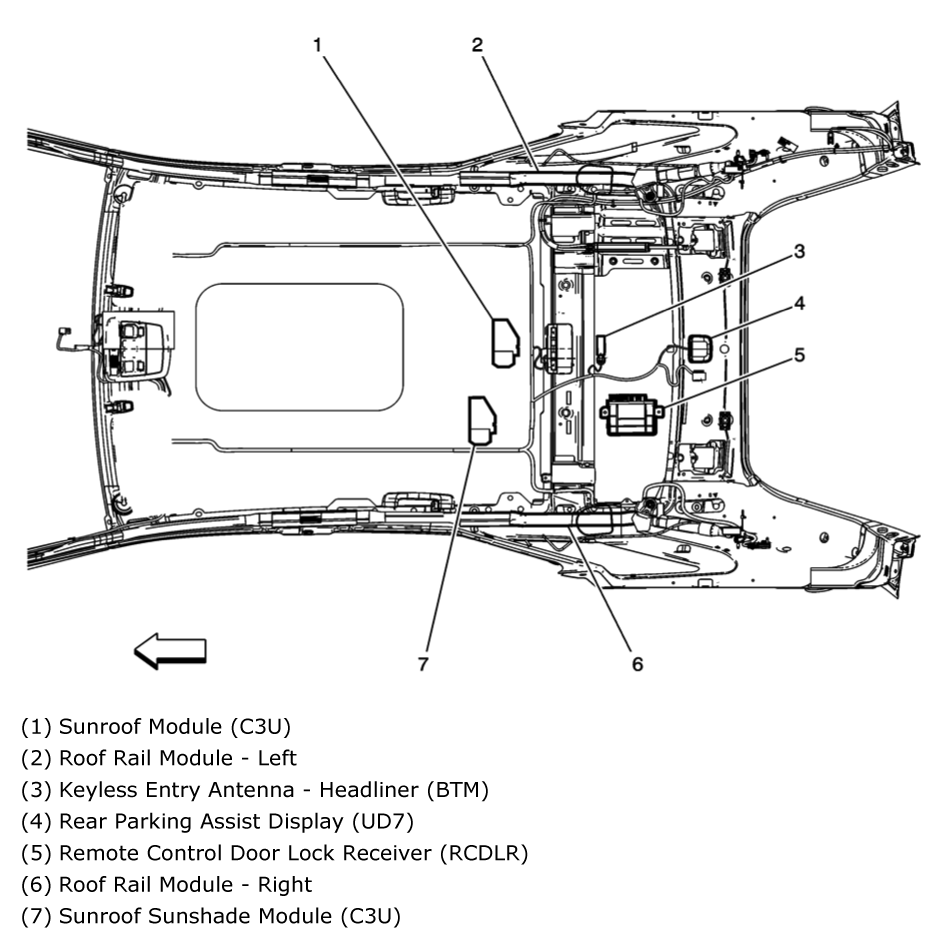

| Right Rear Door Module (RRDM) (LRDM Similar) (5) | Respective rear door. See Figure. |
| Seat Back Ventilation Heating & Cooling Module - Driver/Passenger | In respective seat back. See Figure. |
| Sunroof Module (Sedan) | Rear of sunroof assembly. See Figure. |
| Sunroof Module (Wagon) | Rear of sunroof assembly. See Figure. |
| Sunroof Sunshade Module | Left rear of sunroof assembly. See Figure. |
| Theft Deterrent Control Module | Top of steering column. |
| Tire Pressure Module (2) | Left side of luggage compartment. See Figure. |
| Transfer Case Shift Control Module | Right side of dash. See Figure. |
| Transmission Control Module (TCM) | Right front of engine compartment. See Figure. |
| Turn Signal/Hazard Flasher Module | Left side of dash. See Figure. |
| Vehicle Communication Interface Module (VCIM) (15) | Behind right rear strut tower. See Figure. |

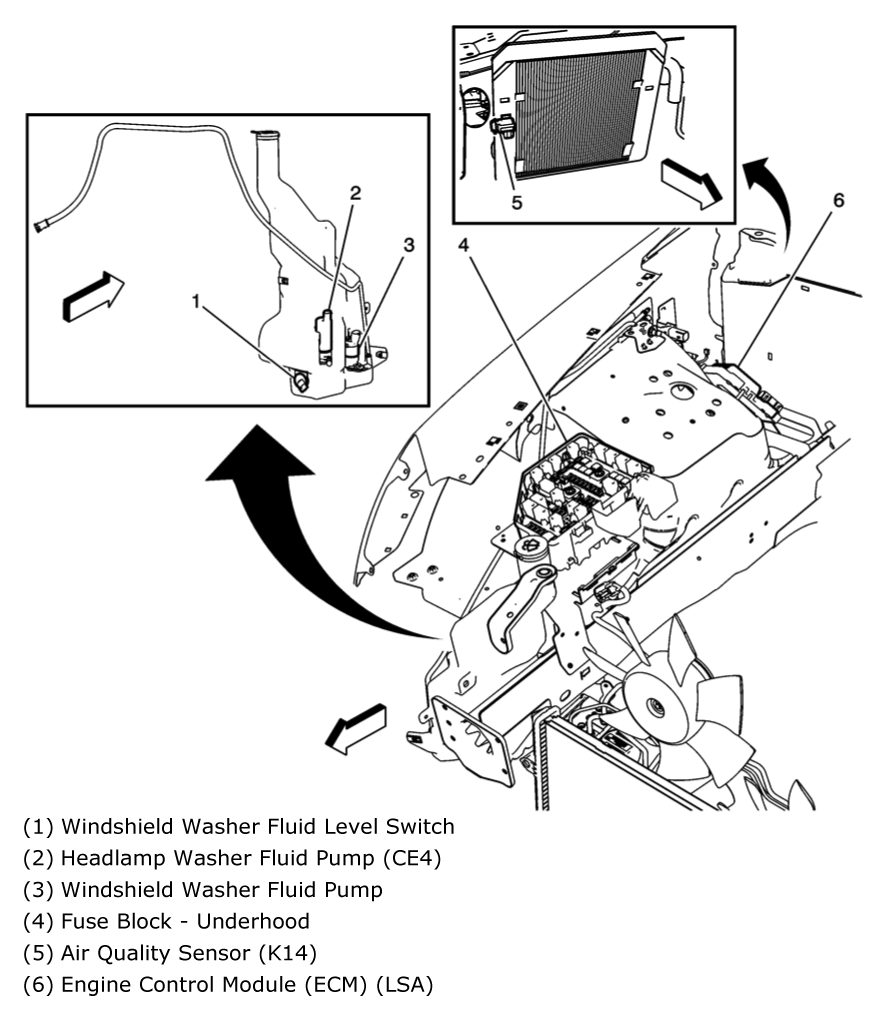

| Windshield Wiper/Washer Module | Left rear of engine compartment. See Figure. |
